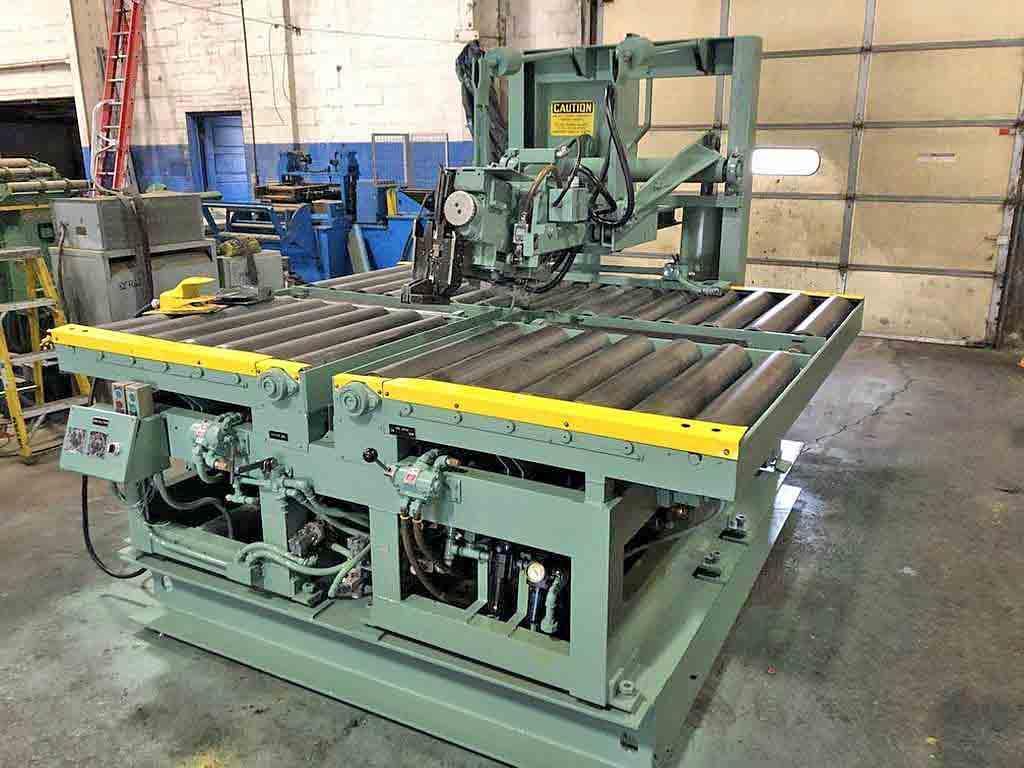

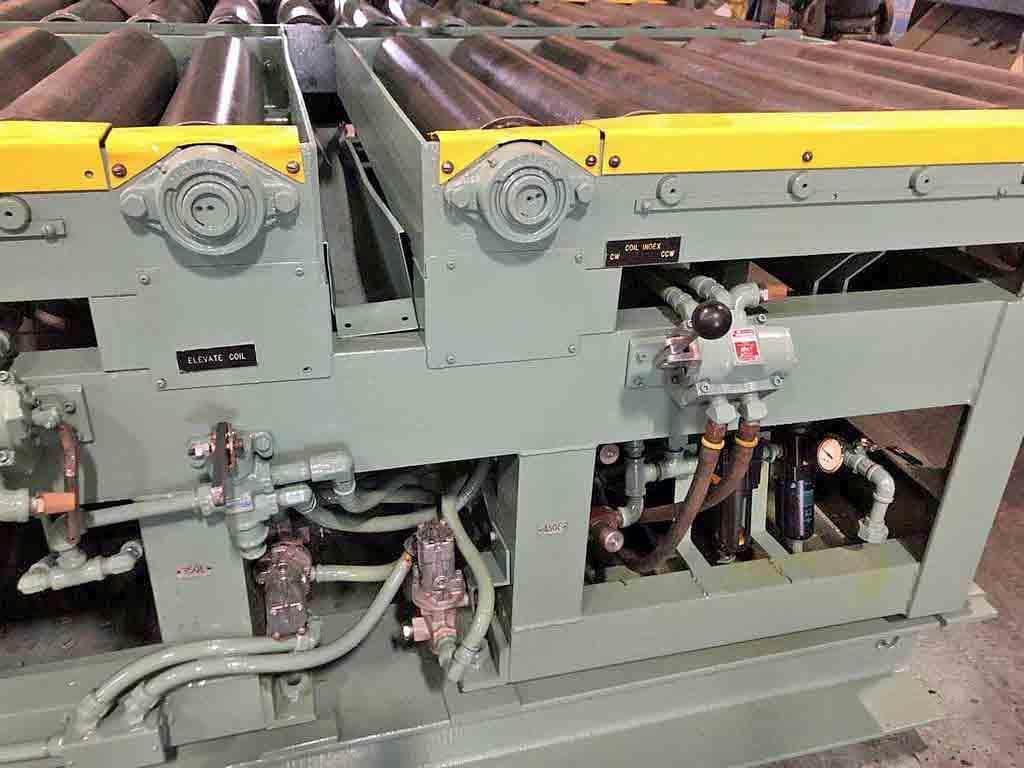

-Pick & Place Downlayer:
10,000 Lb. Capacity
Inline Discharge
4" Dia. x 75" face Rolls
Hydraulic actuated horn and tilt
Driven Conveyor
Horn 5" wide x 9.5" tall x 13" long
62.75" from floor to top of the Horn in raised position
34" Passline Height
Overall Size: 108" L x 96" W x 36" High

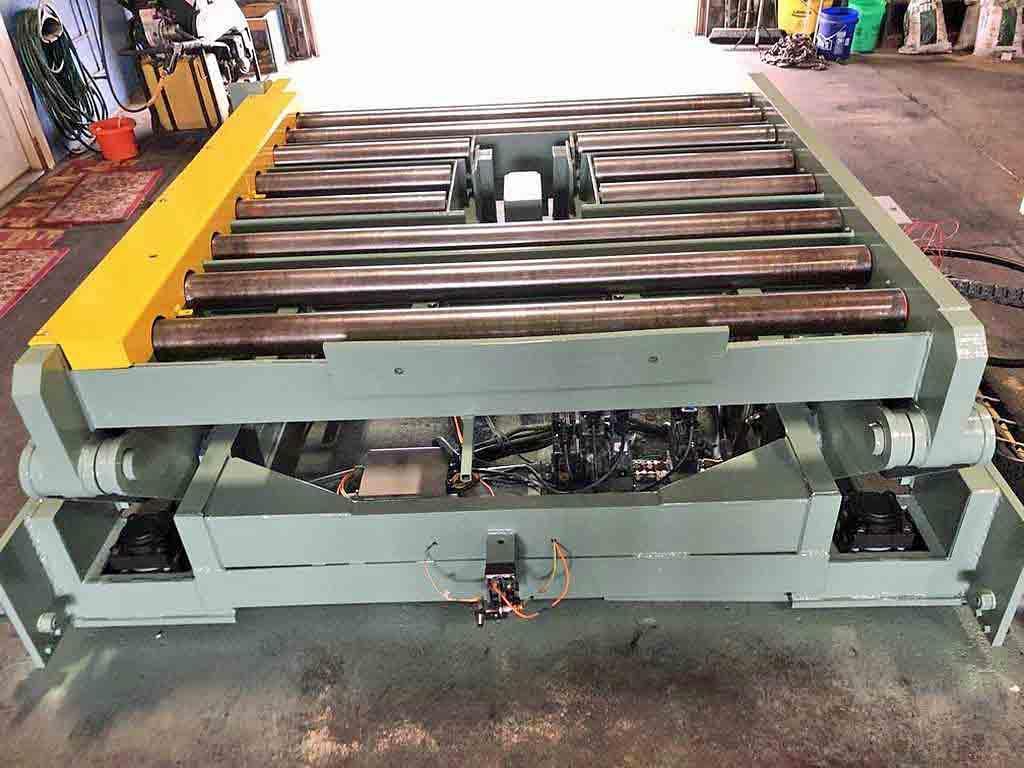

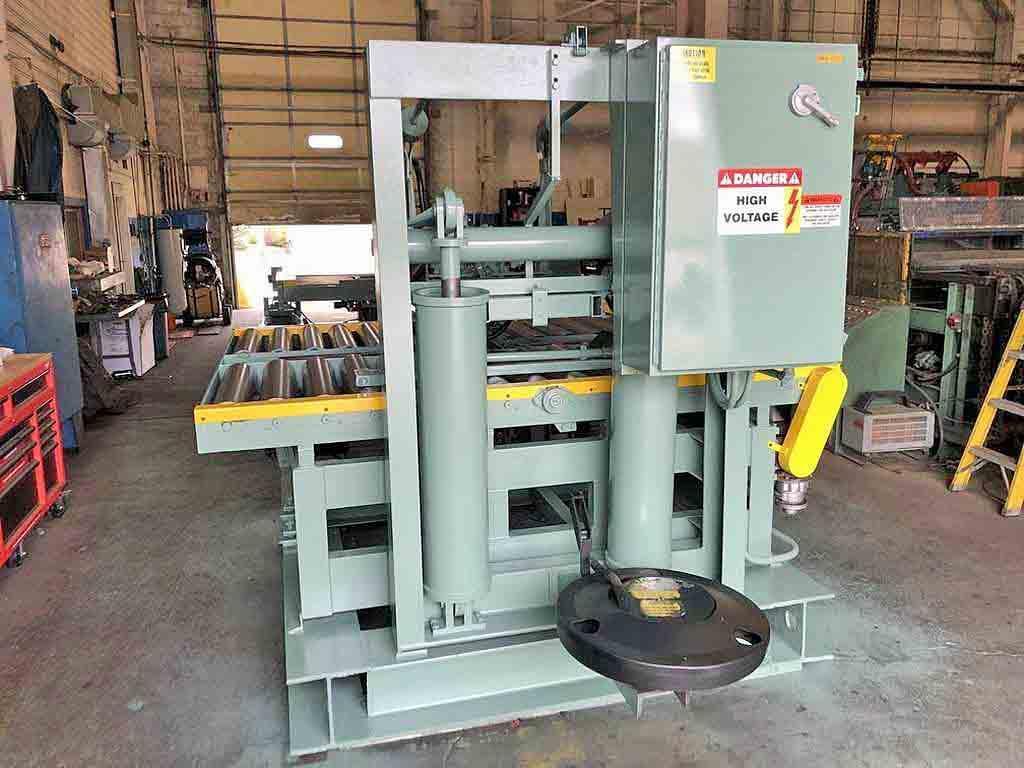

-Signode Banding Table:
10,000 Lb. Capacity
M20SV Semi-Auto Banding Head
(2) Tapered Turning Rolls
5" Dia. x 75" Face Driven Conveyor Rolls
95" Wide Conveyor Top
Overall Size: 130" L x 95" W x 88" High

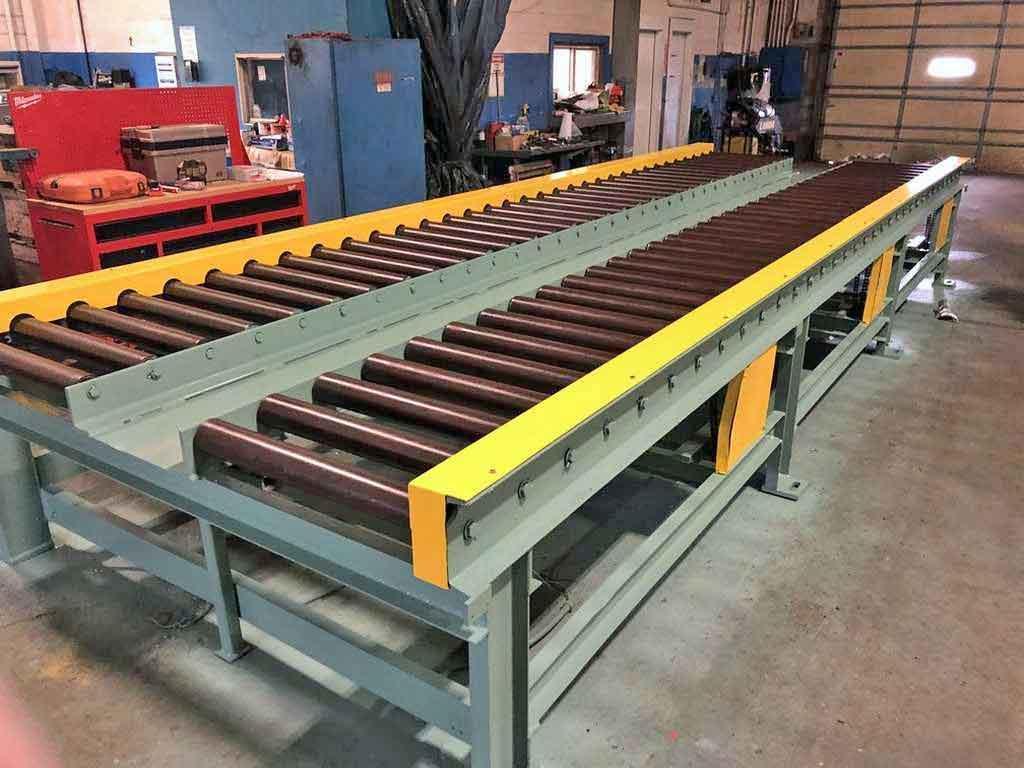

-Split Conveyor Section:
15,000 Lb. Capacity
21 Ft. Long
4" Dia. x 28" Face Driven Rolls on both sides
19" Split section down the center
(3) - 1.5 HP AC Gearmotor Drives, 1725 RPM, 230/460 V
36" Passline Height
Overall Size: 252" L x 93" W x 36" High

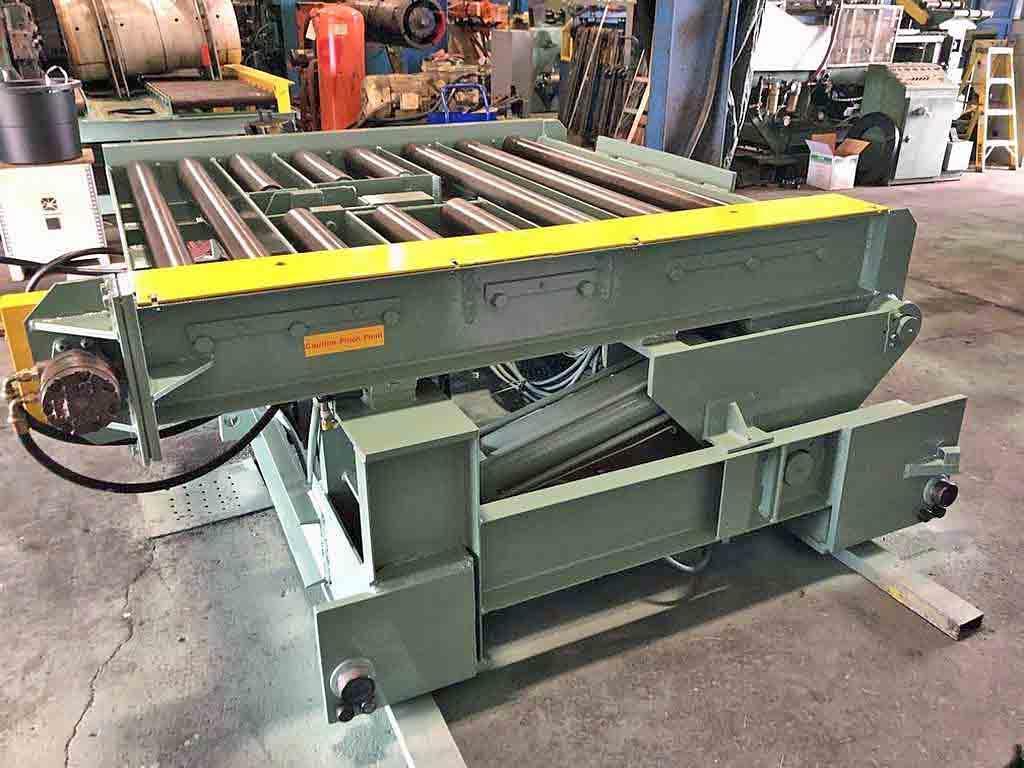

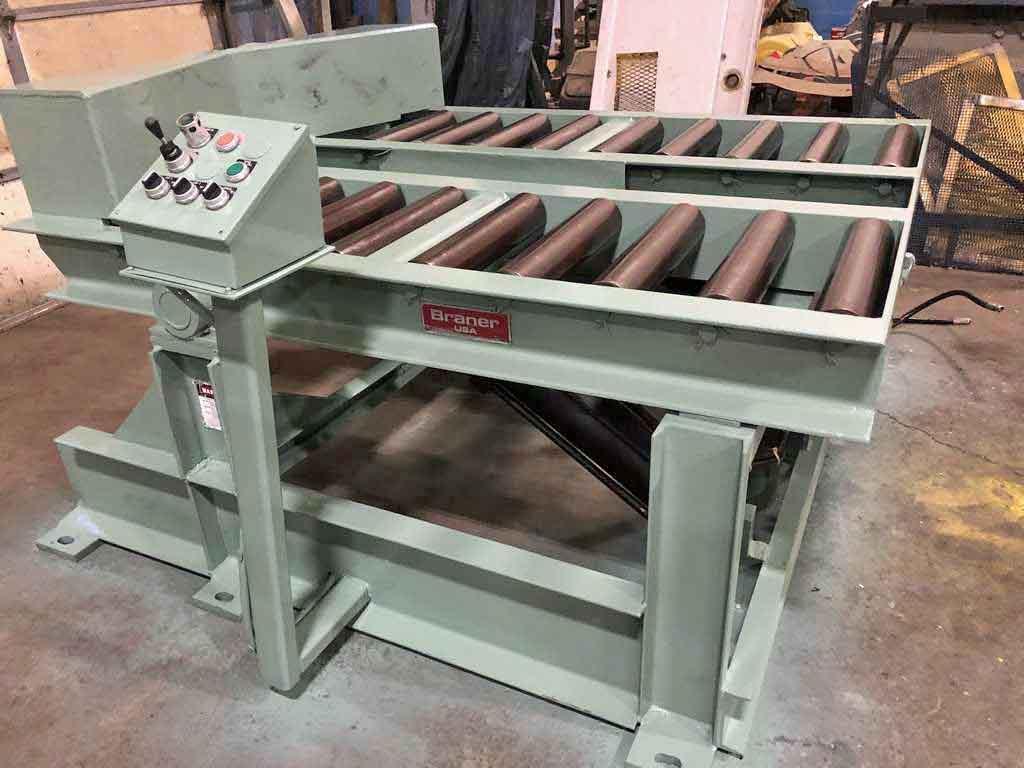

-Exit Split Conveyor/Coil Tipper: Braner
S/N: PO 6734
15,000 Lb. Capacity
4" Dia. x 18" Face Rolls
11" Split section down the center
(2) - 5" Bore x 20" Stroke Hyd. Tilt Cylinders
11" High "V" Cradle Coil Support
36" Passline Height
Overall Size: 91" L x 79" W x 48" High
-Monorail System:
15,000 Lb. Capacity
30' L Monorail Travel
7.5 Ton P & H Crane
-Operators Station:
-Electrical Panel for Downlayer:
Avon Engineering
S/N: 7526-10
-Removed and in Storage:
