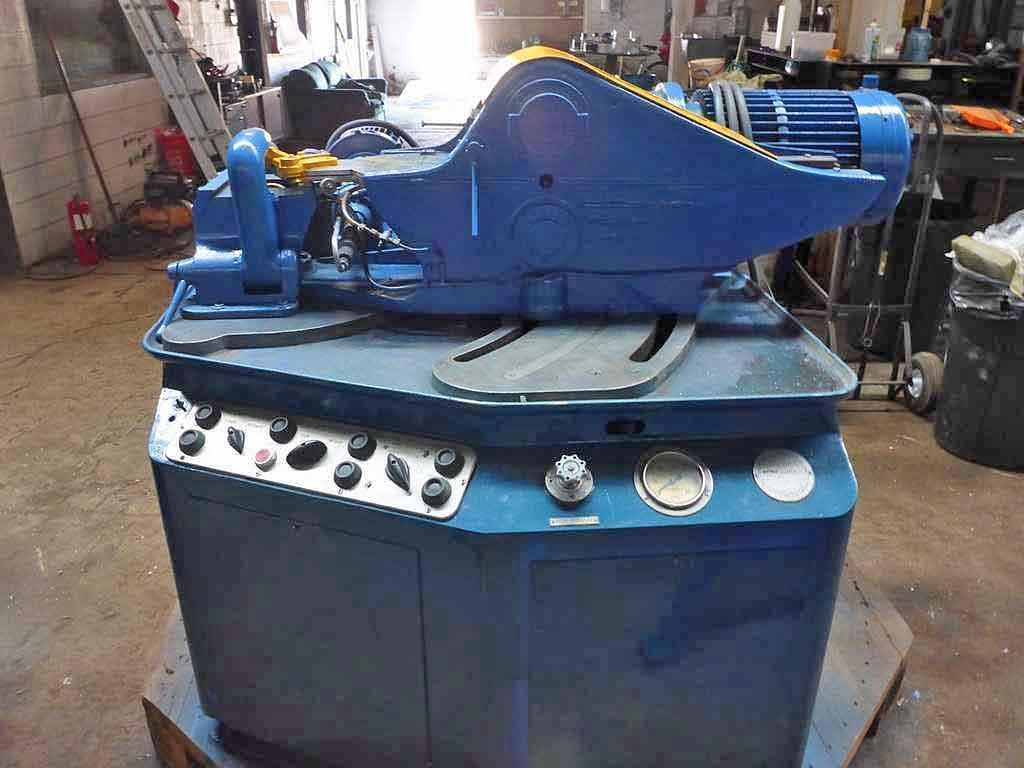

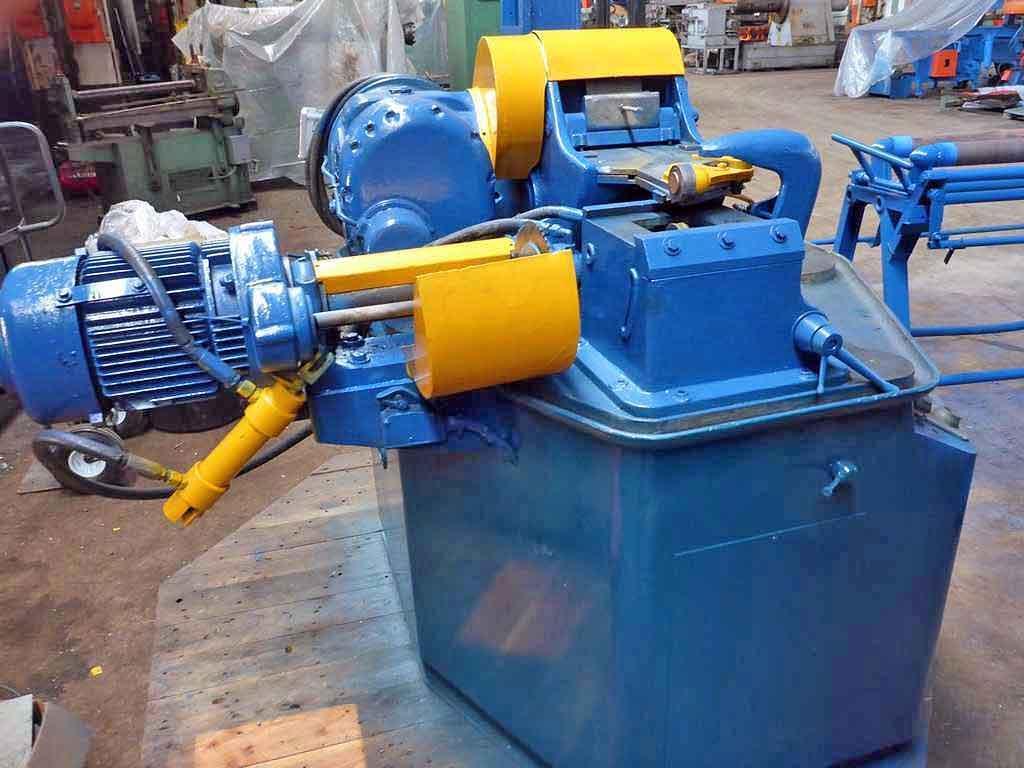

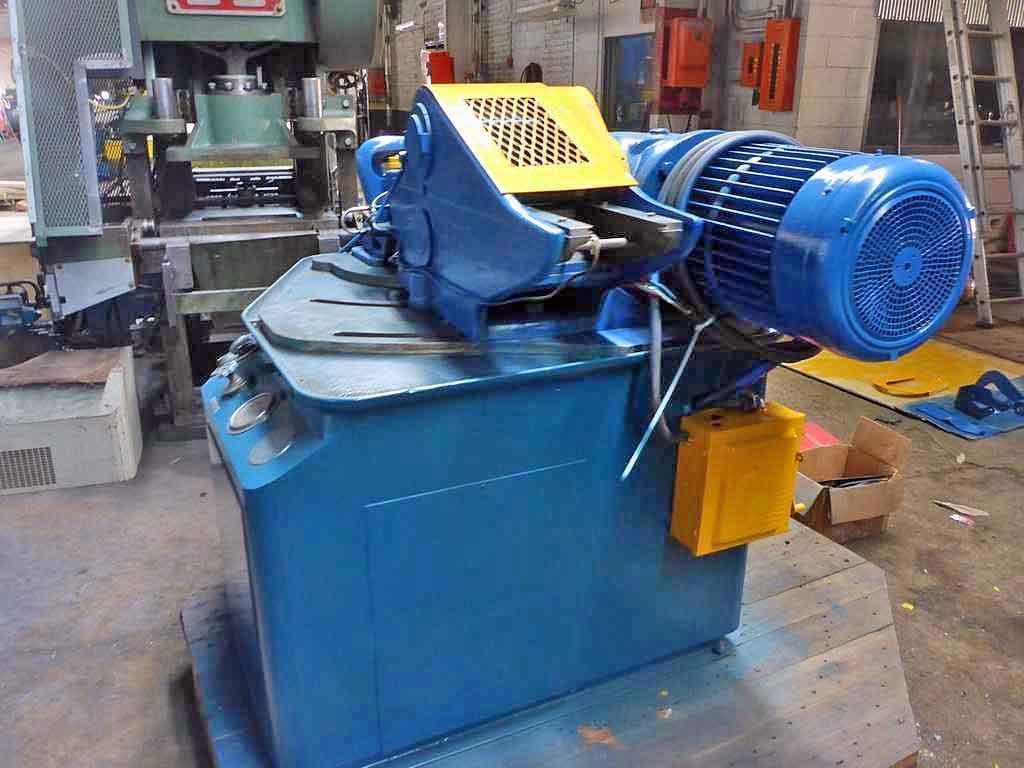

Spiromatic Spiral Duct Former

Brand
Not Specified

Model
600

Type
None

Stock #
2096

Condition
Used

Year

Location
Toledo, Ohio
United States

Specifications

Equipped With

Model:  600

Duct Diameter Range: 100mm - 1250mm (3.94" - 49.25")
Gauge Range:         0.4mm - 1.0mm TO DW144 (0.0157" - 0.0394")

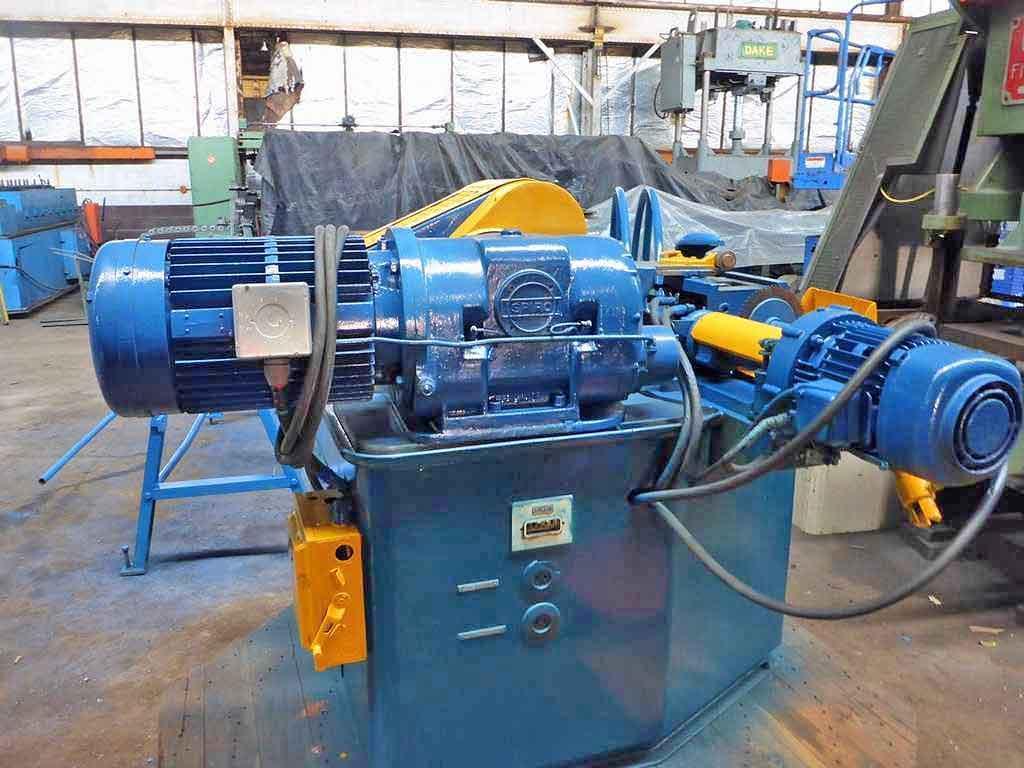

-Main Motor: 7.5 KW (10 HP), 1700 RPM, 220 V, 3 Ph
-2 Speed, 2 Clutch Motor
-2 Speed Motor, High Speed & Low Speed(4 speeds total)
-Differential Gear Ratio - allows 2 more speeds
-Electric Clutches

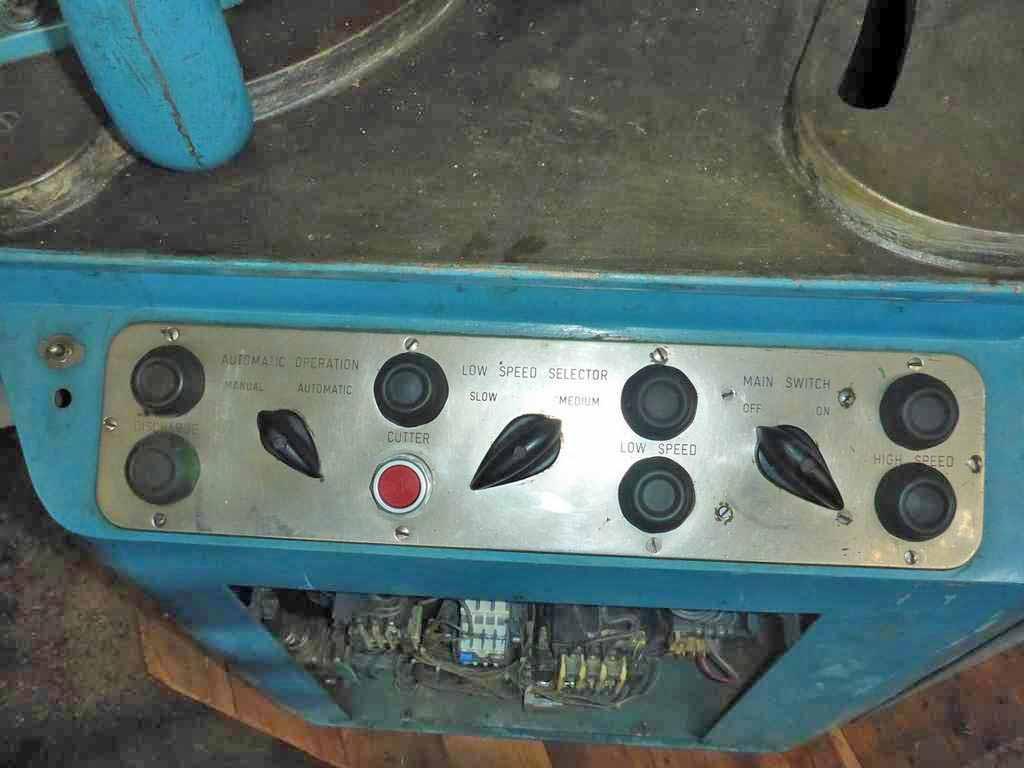

-Can be used in Automatic Cycle or Manual
-Spiro requires an entry Forming Box for each gauge material
-Not equipped with Forming Boxes or Die Shoes (Forming Dies)

Equipped With:

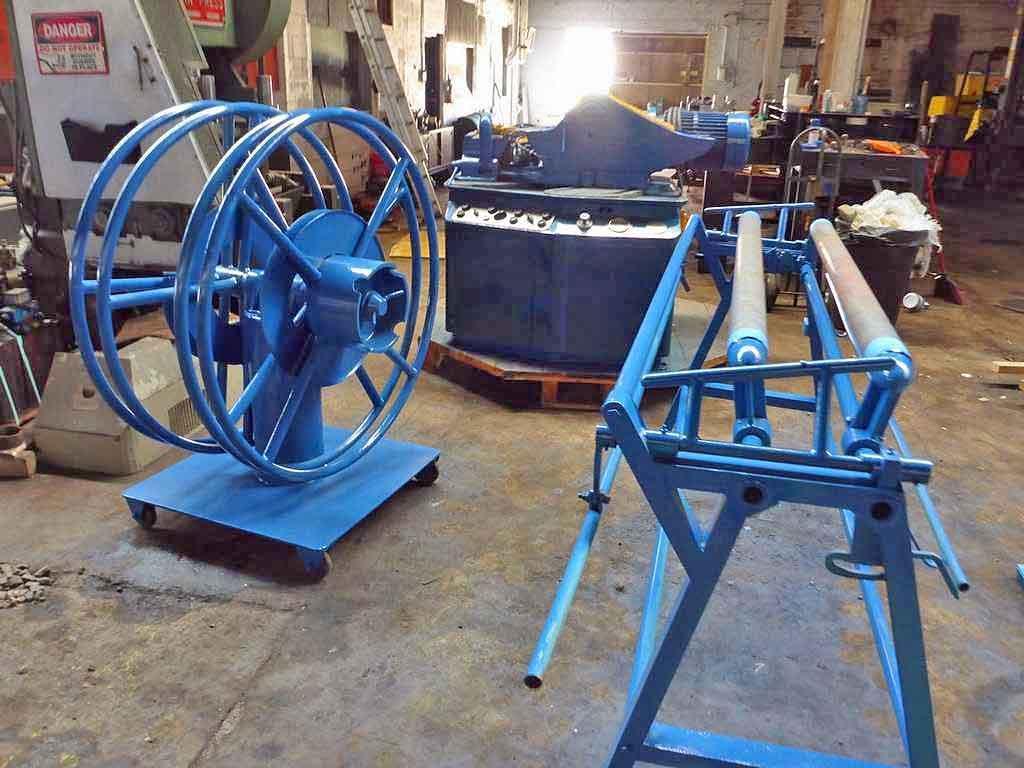

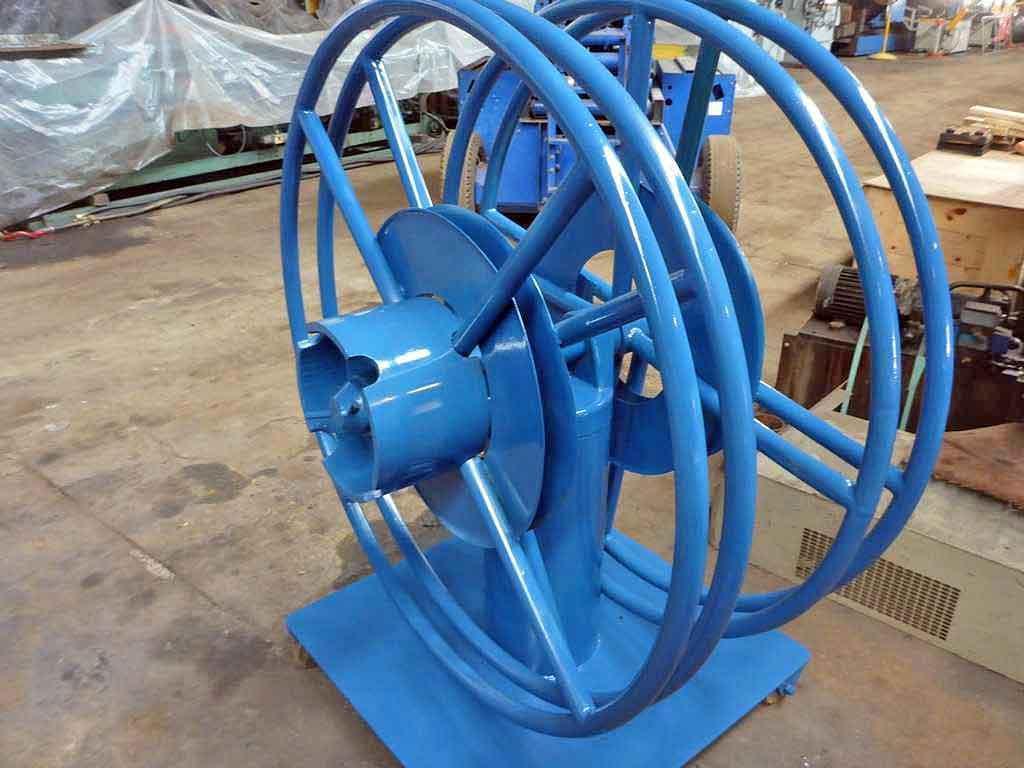

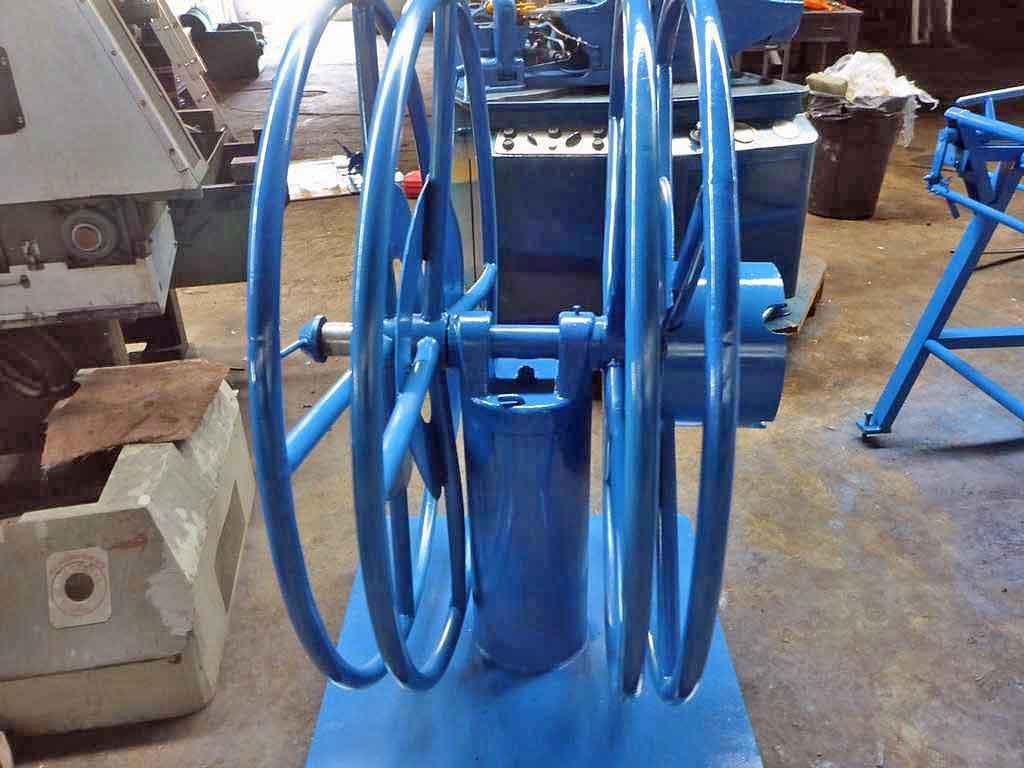

-Double End Uncoiler
-Saw Blade Duct Cutoff
-Roller Duct Receiving Table
-Variable Speed Drive

-Dimensions of Mill:  6' x 6'
-Weight of Mill:      3,500 Lbs.

-Uncoiler:            4' x 4'
-Weight:              400 Lbs.

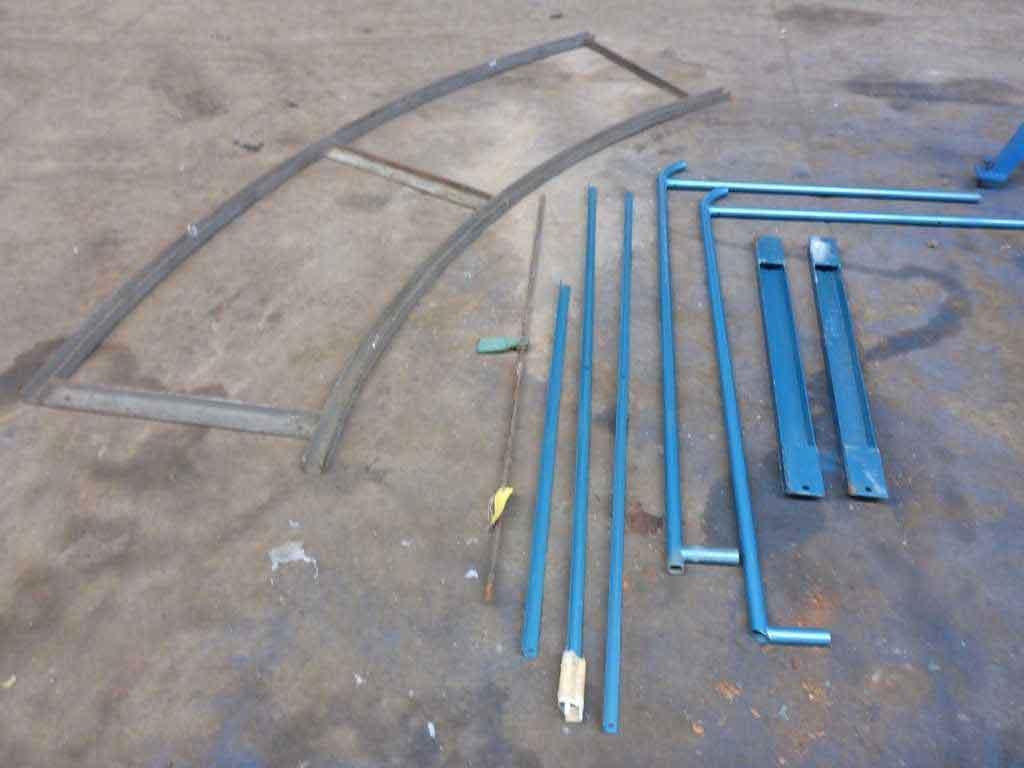

-Runout: Posts & Rollers Free Standing

-Note: These are "Catalog" specifications. Subject to change.
