Outboard Support, TPM STOCK# 4336

Brand
Not Specified

Model

Type
None

Stock #
4336

Condition
Not specified

Year

Location
Toledo, Ohio
United States

Request a Quote

Specifications

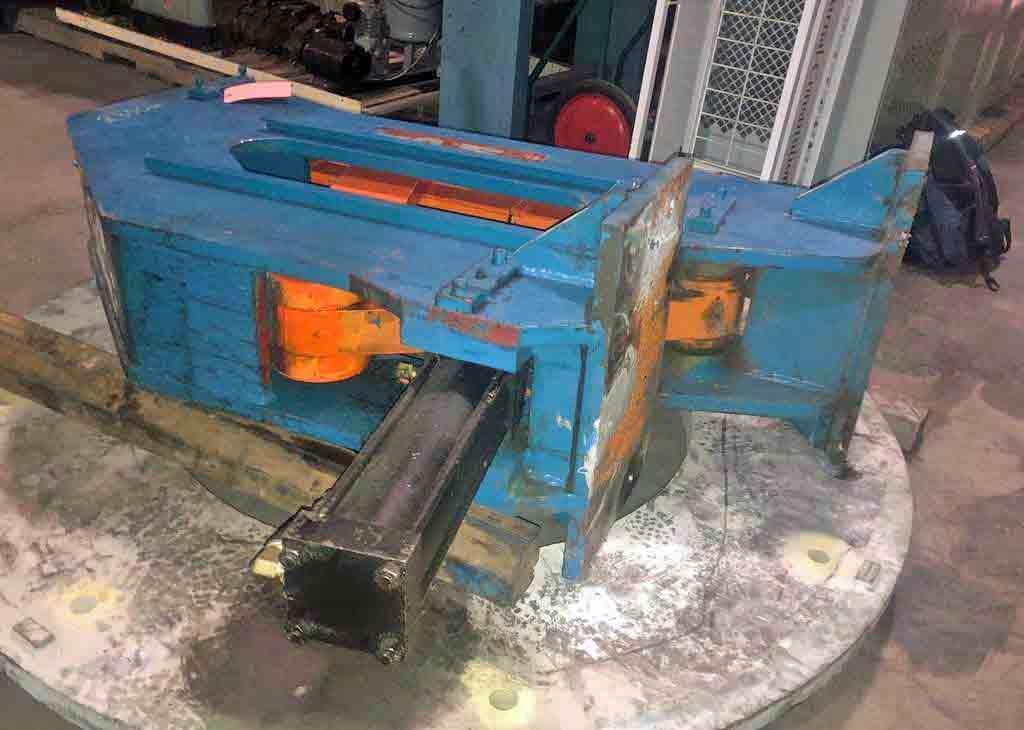

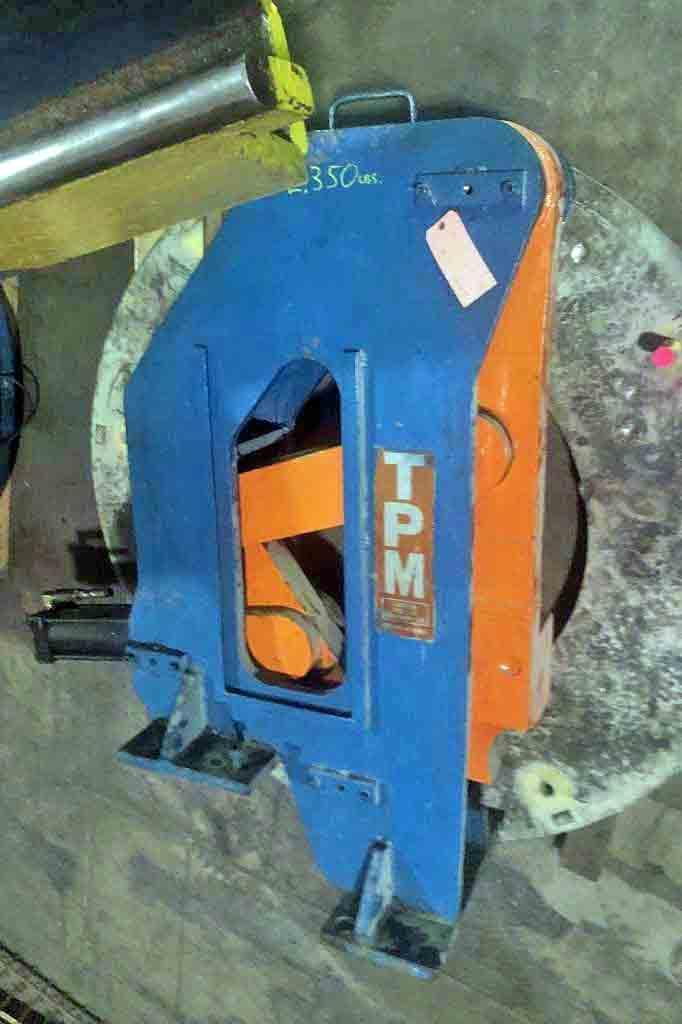

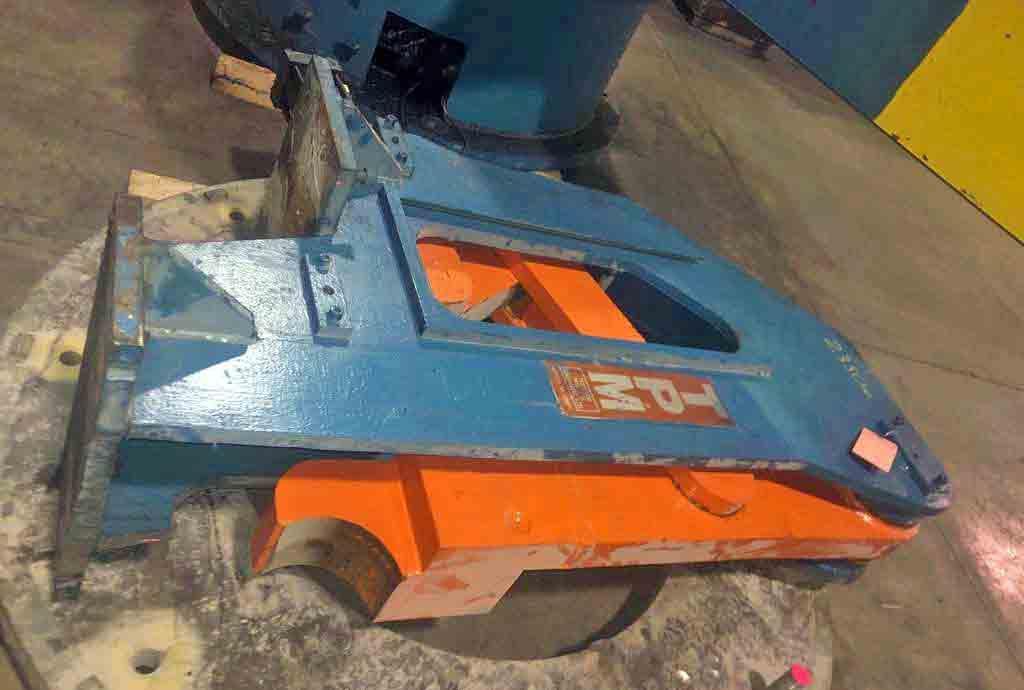

TPM Outboard Support

-For use on Mandrel Type Uncoilers or Recoilers

-Floor Mounted Arm raises from Vertical to Horizontal position for support

of Mandrel. Hydraulic Cylinder Actuated.

-Approx. 58" from Centerline/Pivot of support arm to longest part/front

of base. Approx. 48" to shorter part/rear of base.

-Arm is approx. 44.5" from pivot of support arm to center of horn support.

-Bearing is designed for a 4" Dia. Horn.

-Weight: 2,400 lbs.

-Approx. Dimensions: 48" x 60" x 24" High

-In Storage
