Specifications
| Tonnage |
800 tons |
| Stroke |
6 inches |
| Shut Height |
32 inches |
| SPM |
80 |
| Bed W |
96 inches |
| Bed L |
48 inches |
| Air Clutch (Yes/No) |
yes |
| Dimensions |
: 289" Tall x 177" Wide x 97" FB |
Equipped With

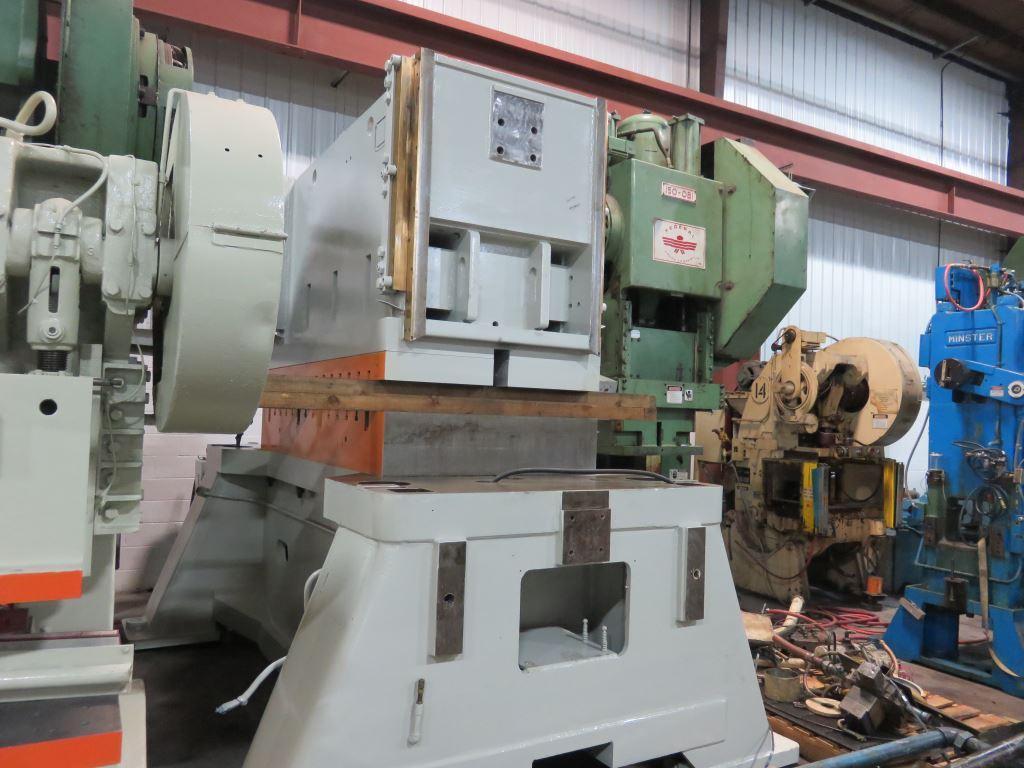

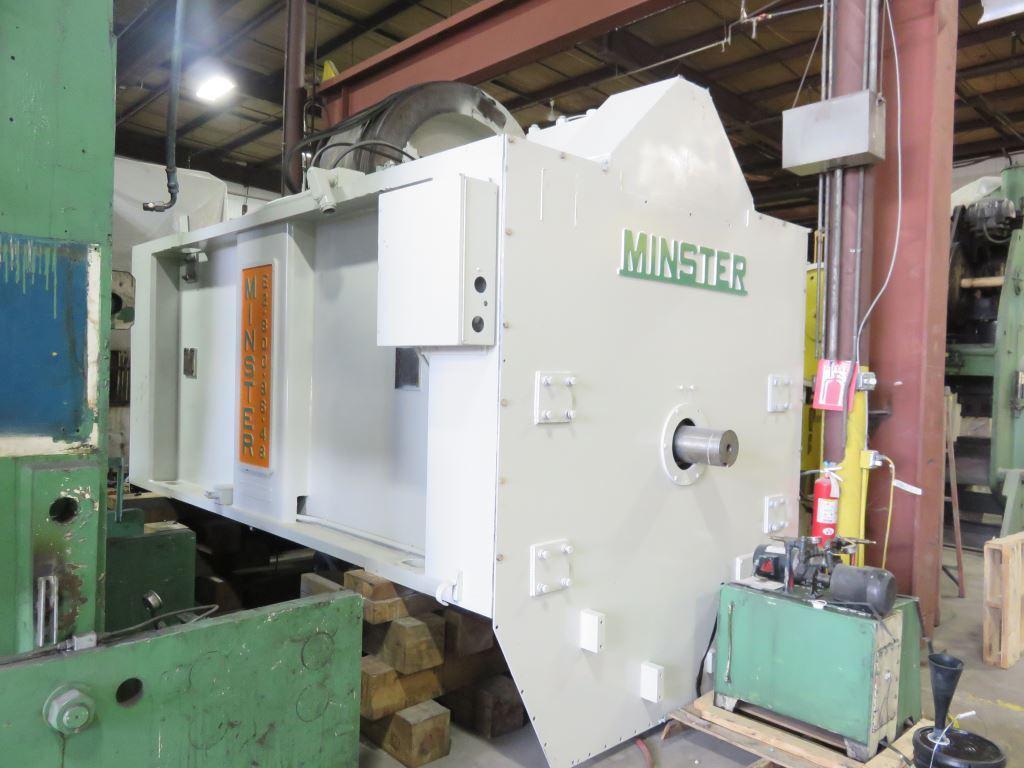

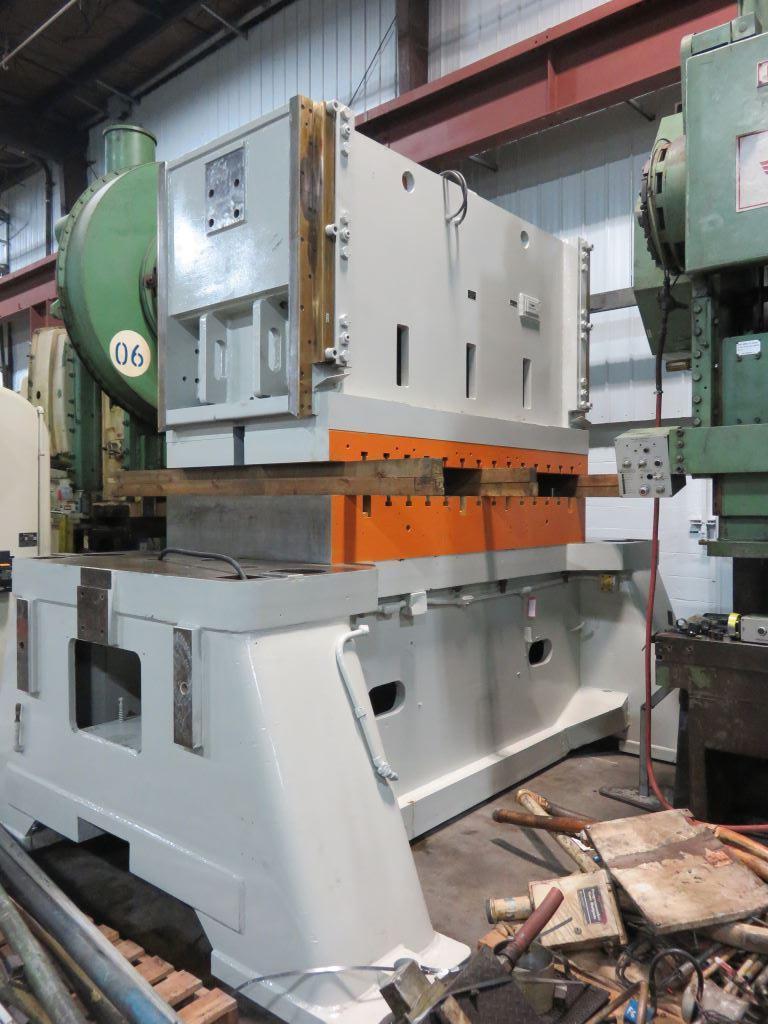

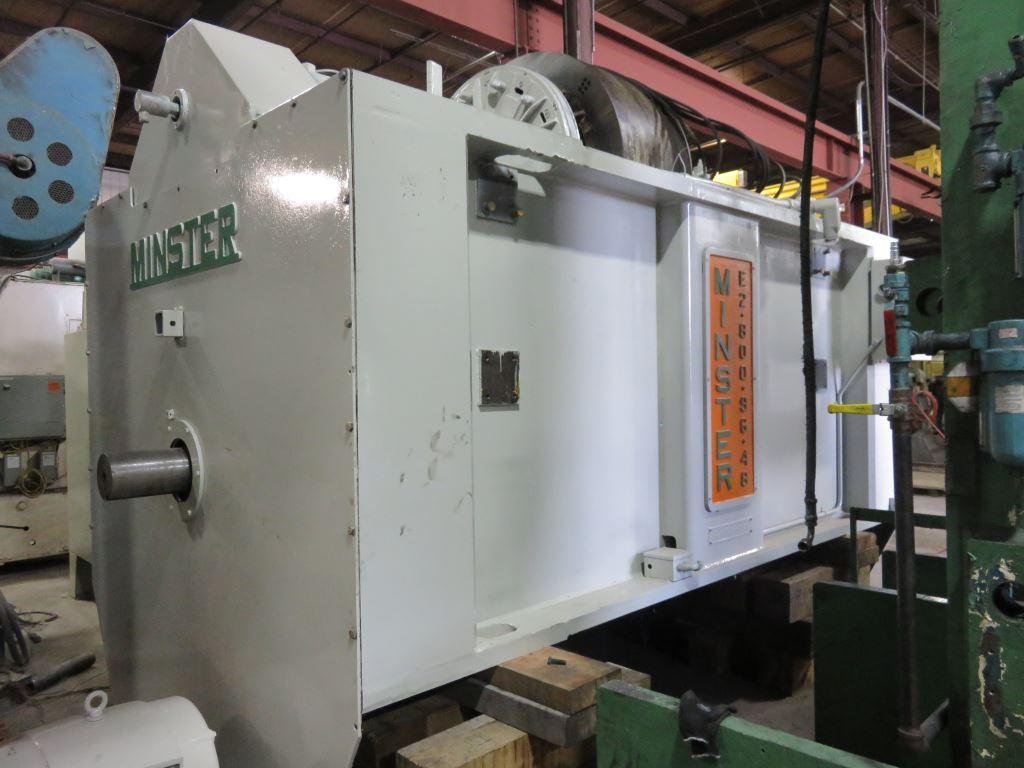

800 TON MINSTER SSDC PRESS
Model: E2-800
Age: 1980
Stroke: 6”
SH: 32"
Adj: 6"
SPM: 0-80
Bed Size: 96" x 48"
Equipped w/
Air Clutch & Brake
Air Counterbalances
32" Windows
T-Slotted Ram & Bolster on 6" Centers
12" Bolster
5 1/2" Ram Plate
Dual Palm Button Station
Monitor Flow Lube System
Wintriss DiPro 1500 and Autoset 1504
Programmable Cam Output
Power Ram Adjustment
Inch, Single, & Continuous Mode

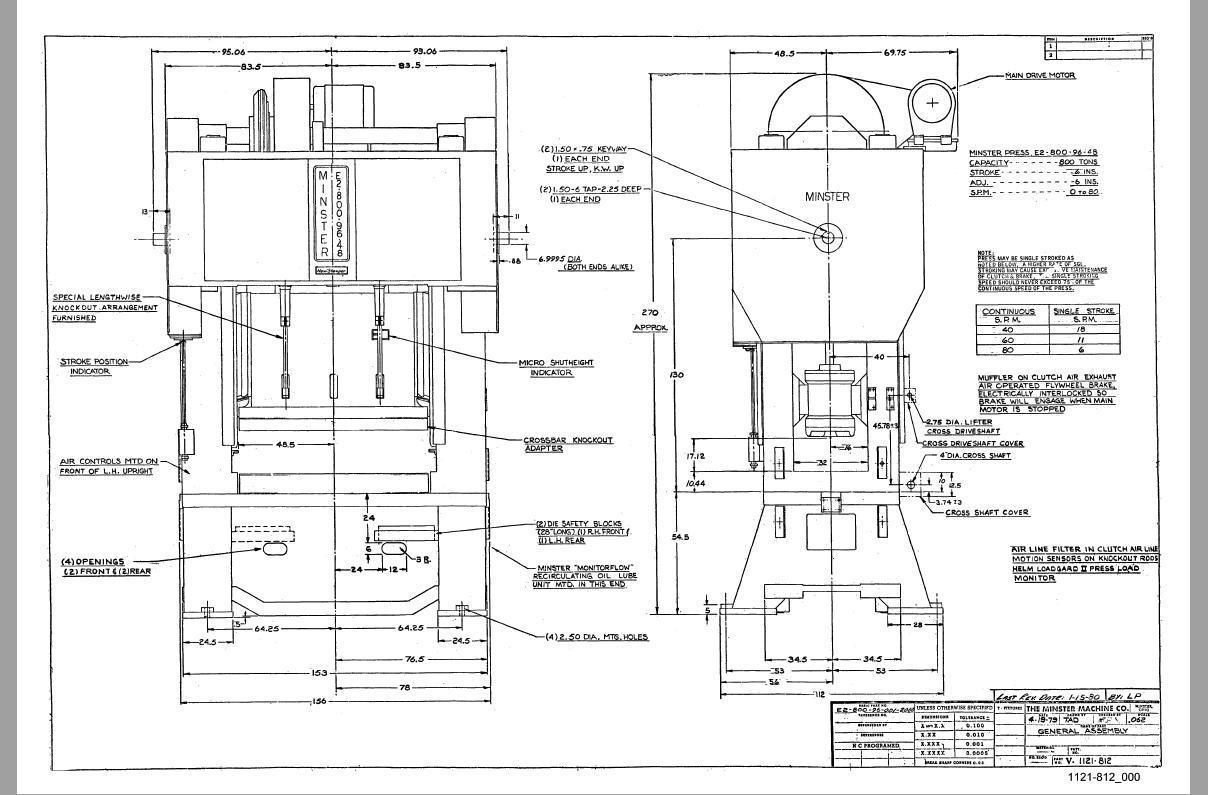

OA Dimensions: 289" Tall x 177" Wide x 97" FB
Good Running Condition
