Specifications
Equipped With
72" x 8.00" x 40,000# Delta Slitting Line
Gauge Range: 0.020" - 0.250"
Consisting of the following:
-Entry Coil Car:
Self-Contained Hydraulics
Push Button Control
-Uncoiler:
40,000 lbs. Capacity
Hydraulic Expansion
16" - 24" ID
Sliding Base
Threading Drive

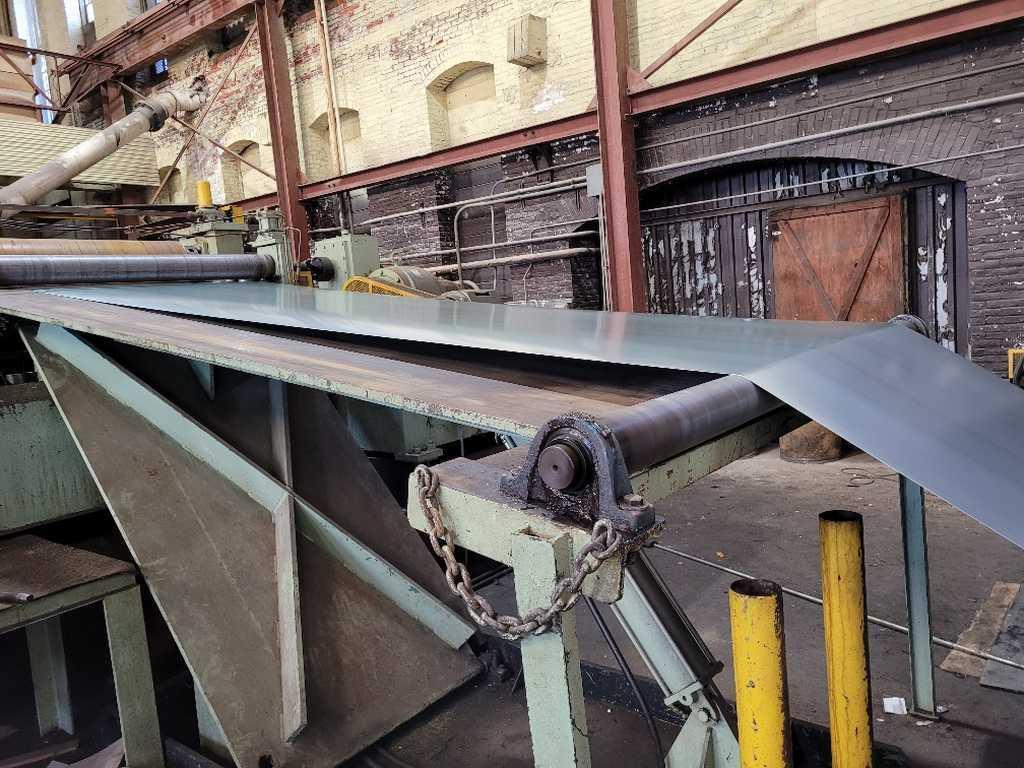

-Entry Table:
-Entry Pinch Rolls:
Hydraulic Cylinder Up/Down
-Slitter Head:
8" Dia. Arbors
Entry Driven Pinch Rolls
Parallel Arbor Adj.
20 HP AC Motor Threading Drive

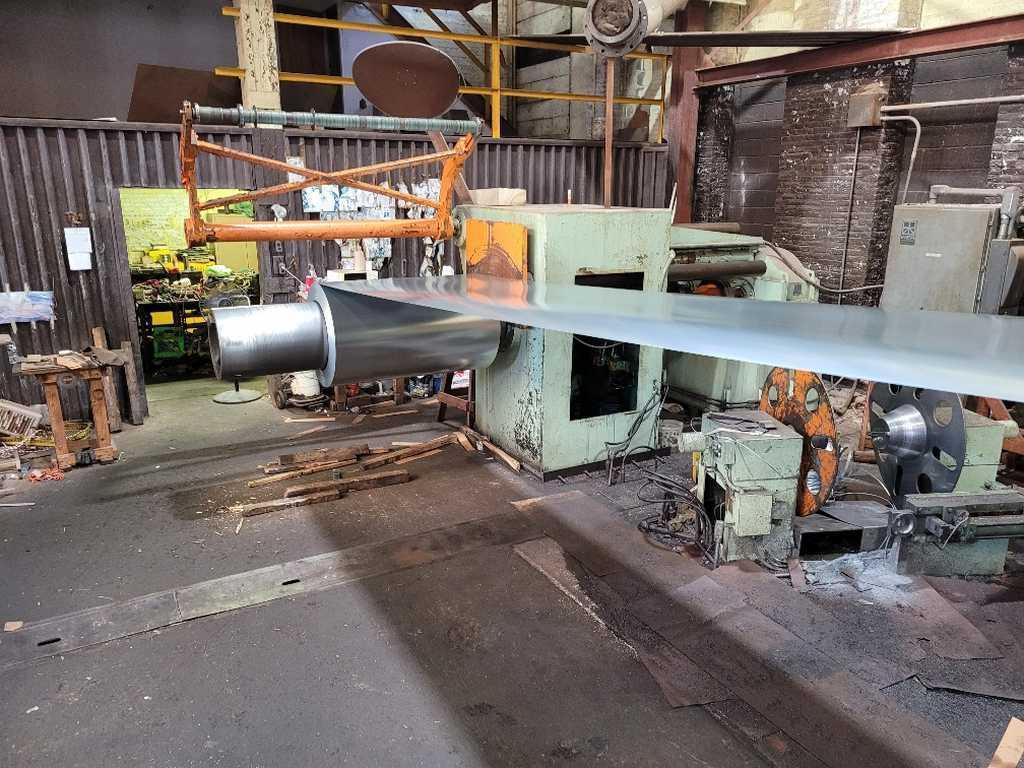

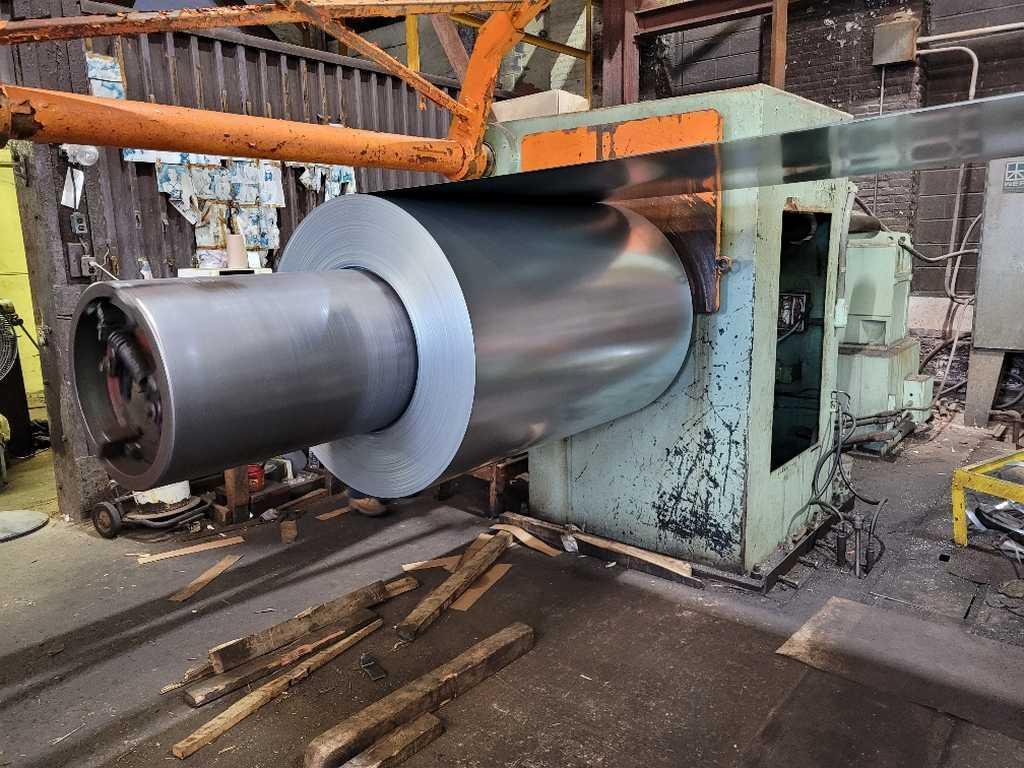

-Recoiler:
20" Dia. Drum
Manual Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
75 HP DC Motor
-Scrap Winder:
Level Wind
AC Motor Drive

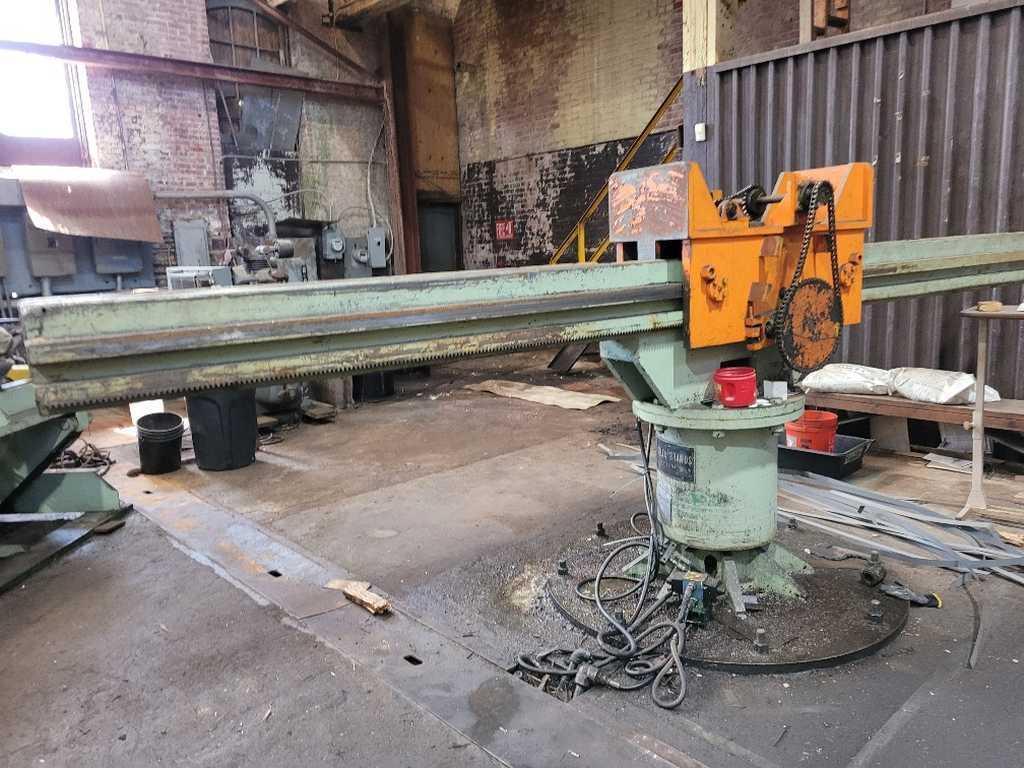

-(2) Arm Turnstile:
40,000 lbs. Capacity Each Arm
Pushoff
-Tooling:
Knives, Spacers and Rubbers
-Hydraulic Power Unit:
-Main Electrical Cabinet:
-Line Direction: Right to Left
-Approx. Floor Space required: 75' Long x 35' Wide.
-Braner Packaging Line:
65" O.D. Coil Capacity
10,000 lb. Crane System
-Installed
