54" x 7.00" x 30,000# Braner Slitting Line STOCK#3217



Stock #



Toledo, Ohio
United States


Max Width of Workpiece 54 inches
Max Thickness of Workpiece (in.) 7.00 inches
Weight 30000 ounces

Equipped With

Material Width:            12" - 54"
Material Thickness:        0.010" - 0.187"
Weight Capacity:           30,000 lbs.
Coil ID: Entry             18 to 24"
         Exit              16"
Coil OD:                   72"
Line Direction:            Right to Left
Consisting of the following:
-Entry 3 Arm Turnstile:
  Power Rotation
-Entry Coil Car:
  L Type
  Self Contained
-Mandrel Uncoiler:
  Hydraulic Expansion 18" to 20" I.D.
  4 Leaf Mandrel
  Sliding Base
  Hydraulic Feedup Motor
  Water Cooled Brake
  Powered Overarm Holddown

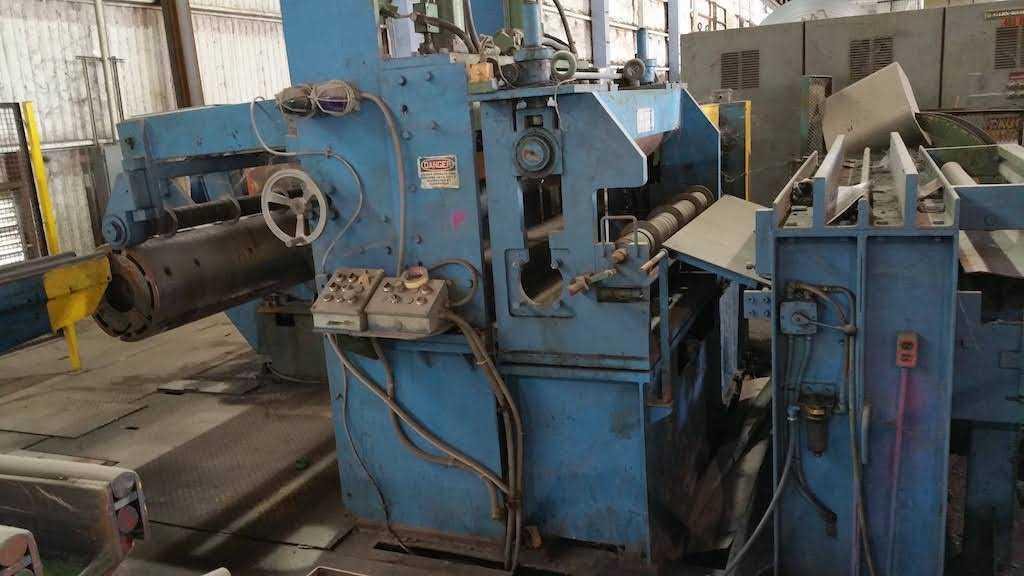

-Entry Unit:
  Peeler Table - Hydraulic Lift & Expand
  Hydraulic Motor Drive Pinch Rolls
  Hydraulic Adjusted Side Guides
  Photo Electric Edge Control

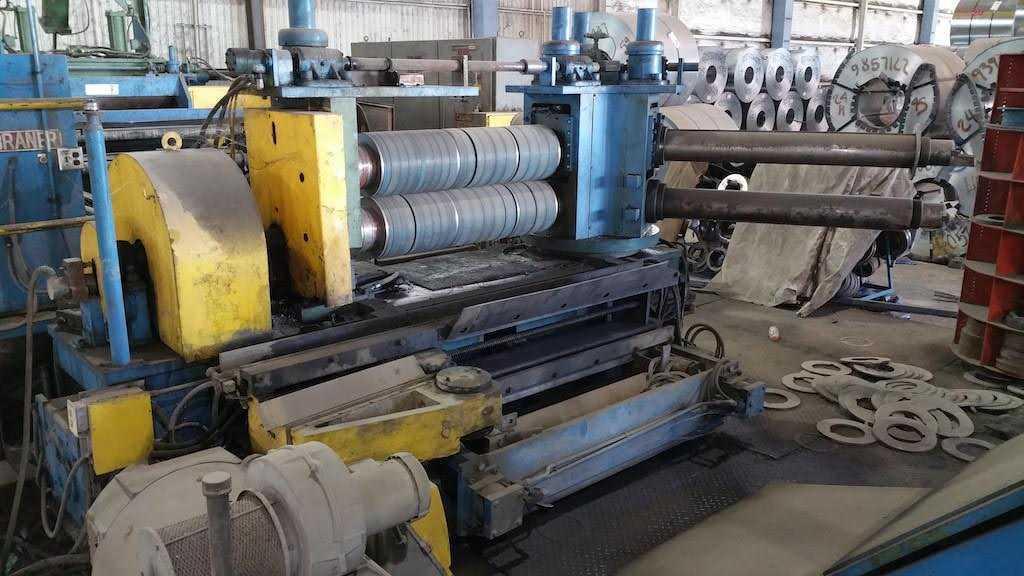

-Slitter:  Turret Head
  (3) Heads with 7" Diameter Arbors
  Parallel Arbor Adjustment
  DC Motor Driven
-(2) Scrap Winders:
  Hydraulic Level Wind
  Hydraulic Auto Dump
-Pit Cross Over Table:
-Combination Tension Stand:
  Entry Separator Tooling Shaft
  Drag Board Unit
  Tension Rolls
  Independent 16" Water Cooled Brakes
  Hydraulic Expansion
  16" Drum Diameter with Filler Plates for 20" Diameter
  Overarm Separator
  Hydraulic Pushoff
  125 HP DC Motor:  650 / 1950 RPM
  CMC Solid State Drive
  Drive-All 2 Speed Reducer w/2.143 & 1.063:1 Ratios
-4 Arm Turnstile:
  Power Rotation
  No Pushoff
-Removed and in storage
