Specifications
| Max Width of Workpiece |
48 inches |
Equipped With

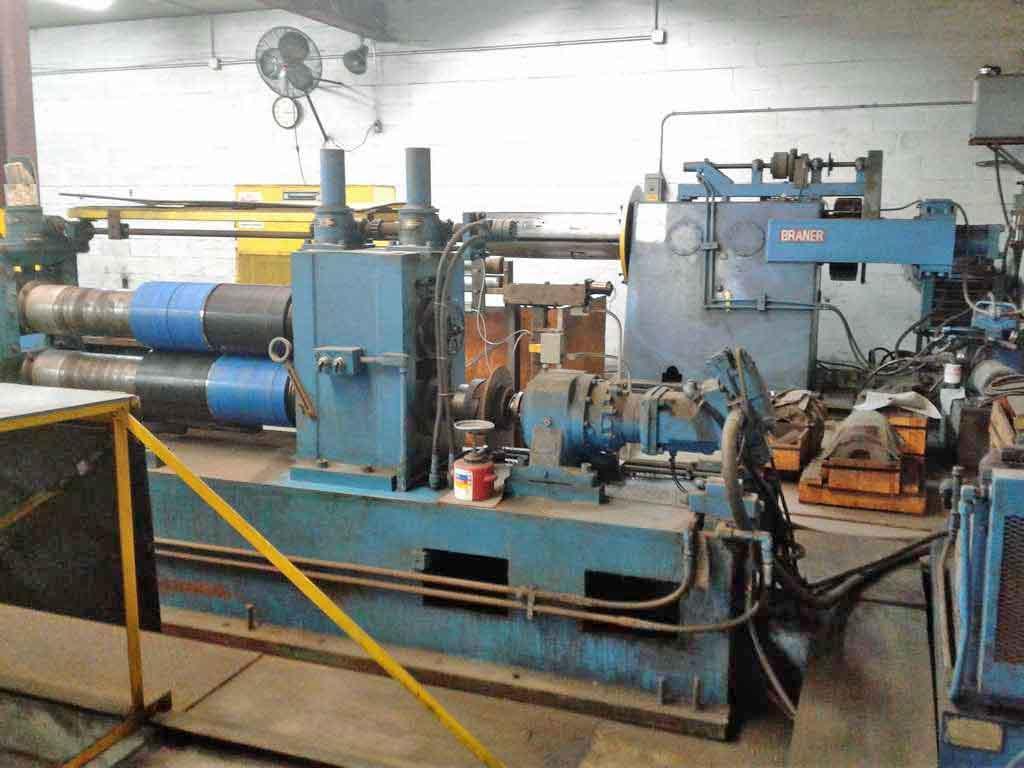

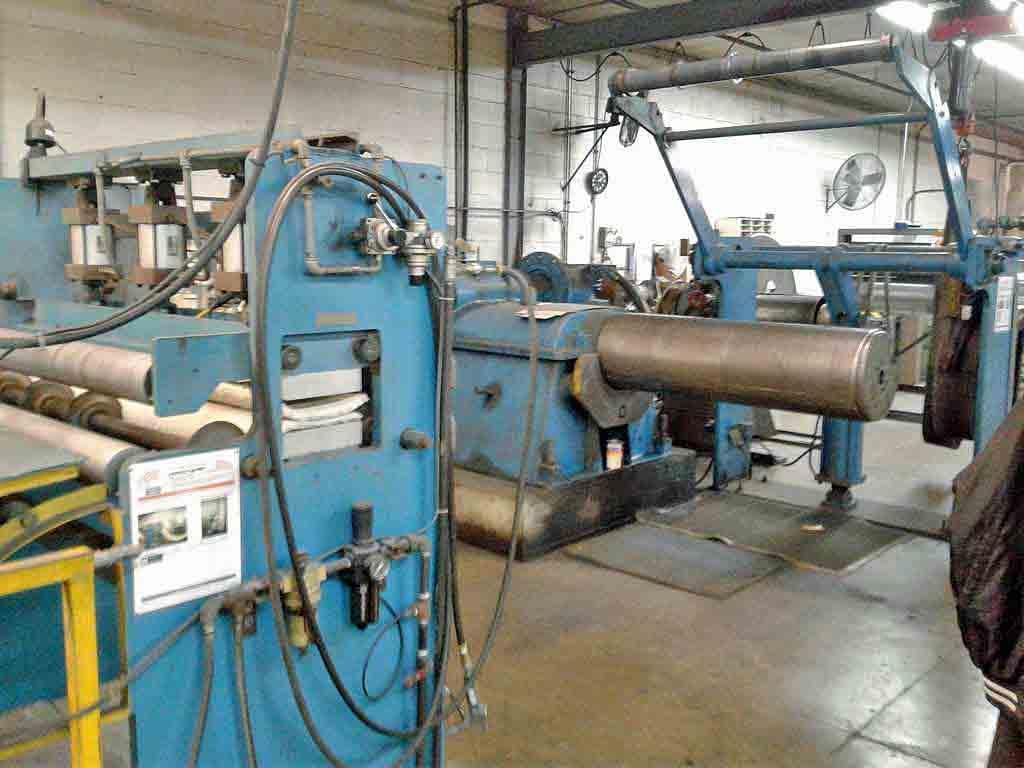

Braner 48" x 5.00" x 30,000lb Slitting Line
-Rebuilt in 1996
-48" Wide
-30,000 lb. Capacity
-Line Direction: Left to Right
Consisting of the following:

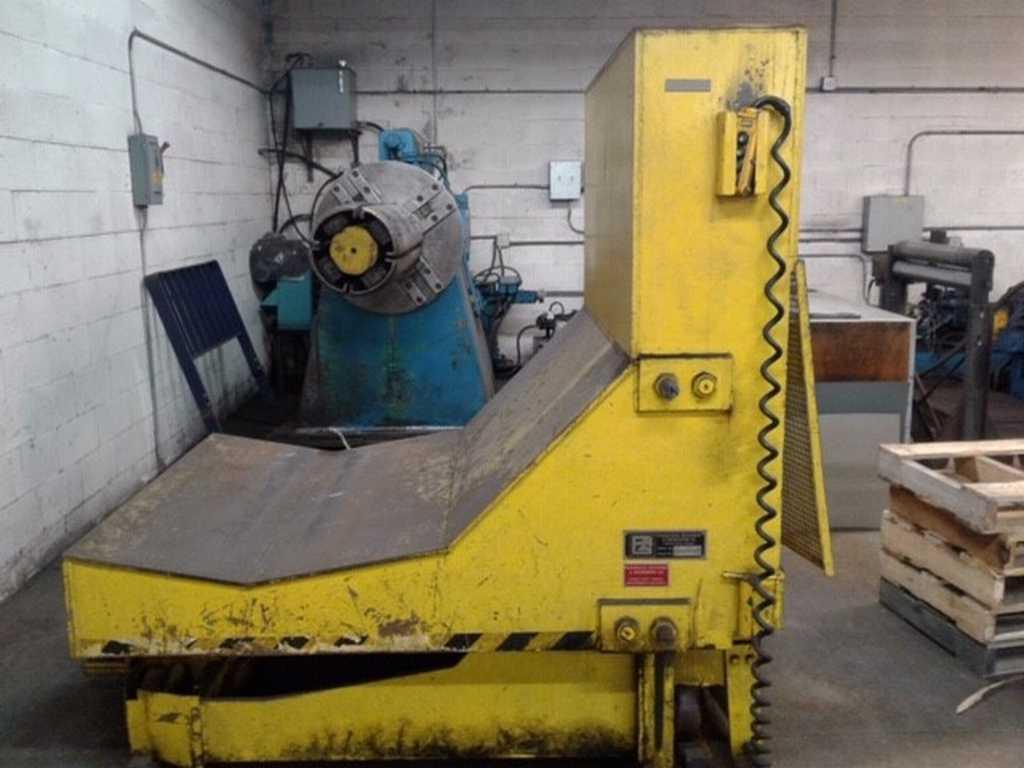

-Entry Coil Car:
"L" Type Design
Self Contained Hydraulics
Hand Pendant Control

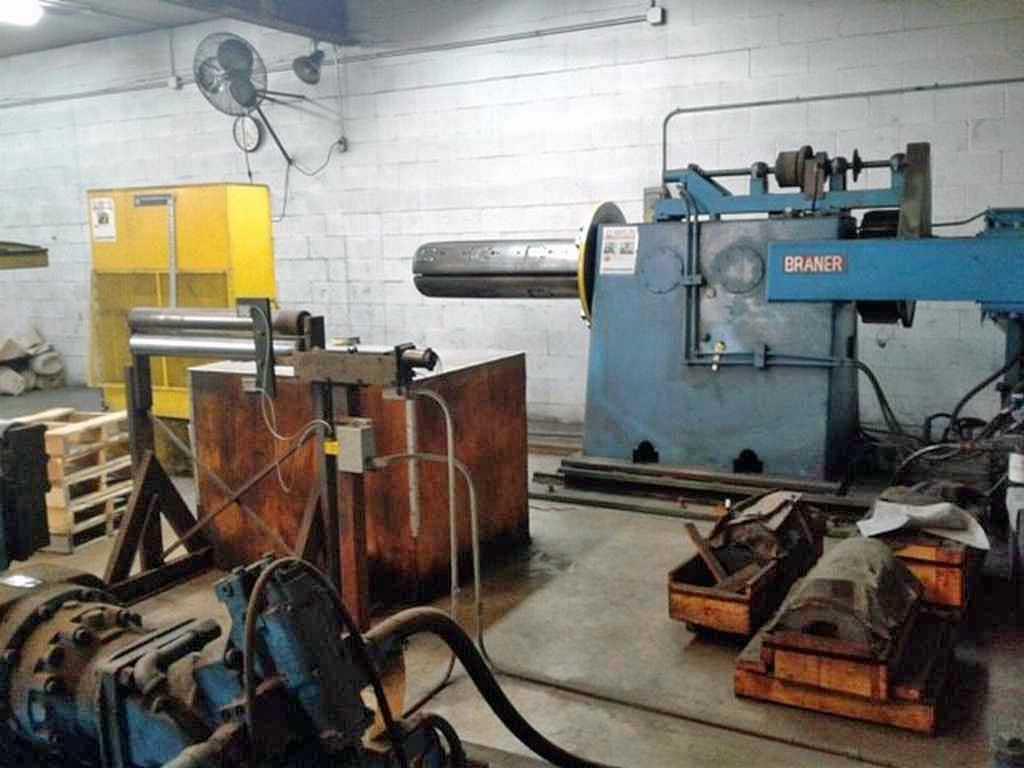

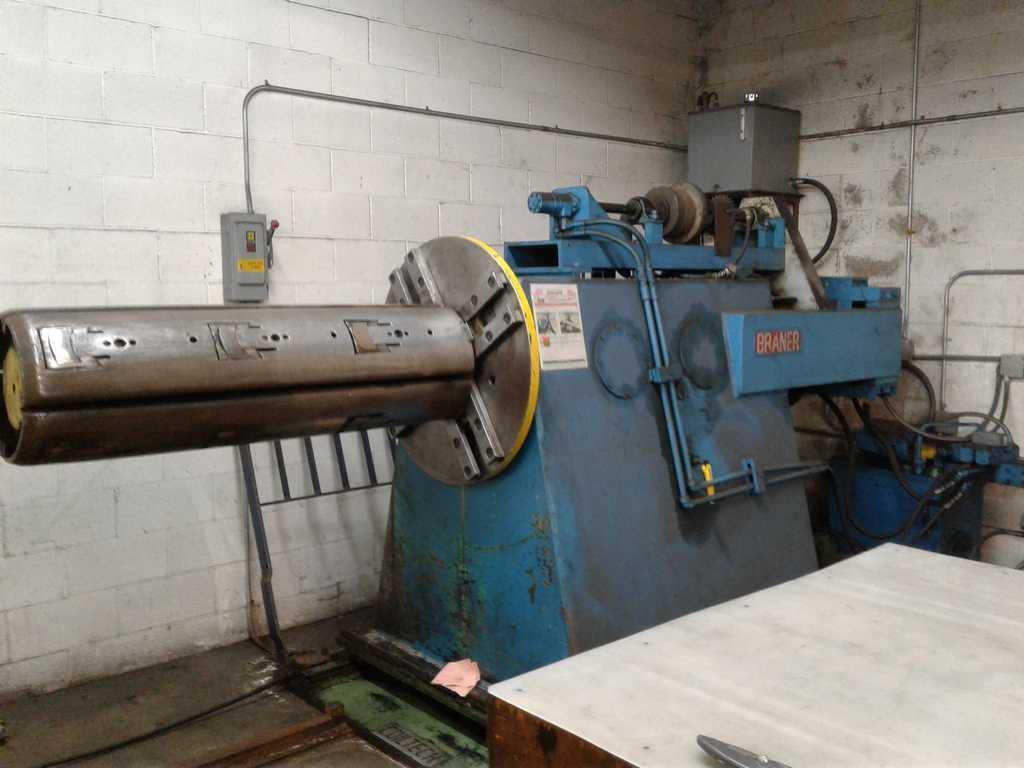

-Mandrel Uncoiler:
(4) Segment Mandrel
Hydraulic Expansion
ID Range 15" - 20.5"
Sliding Base
Hydraulic Motor Feedup
Air Drag Brake

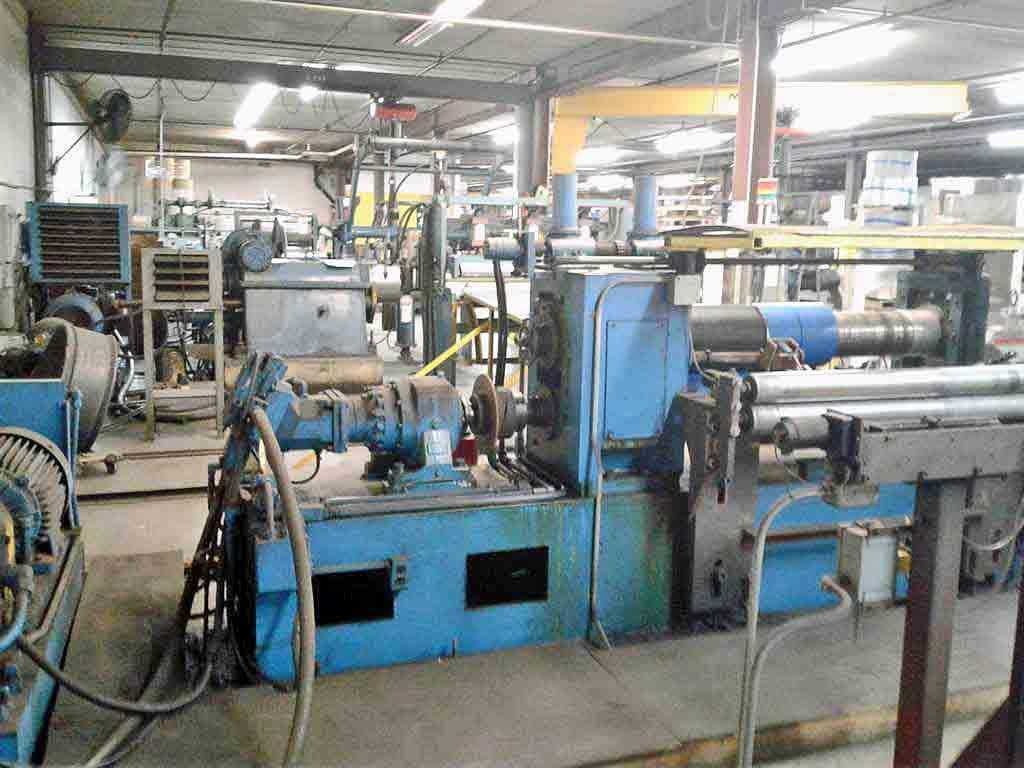

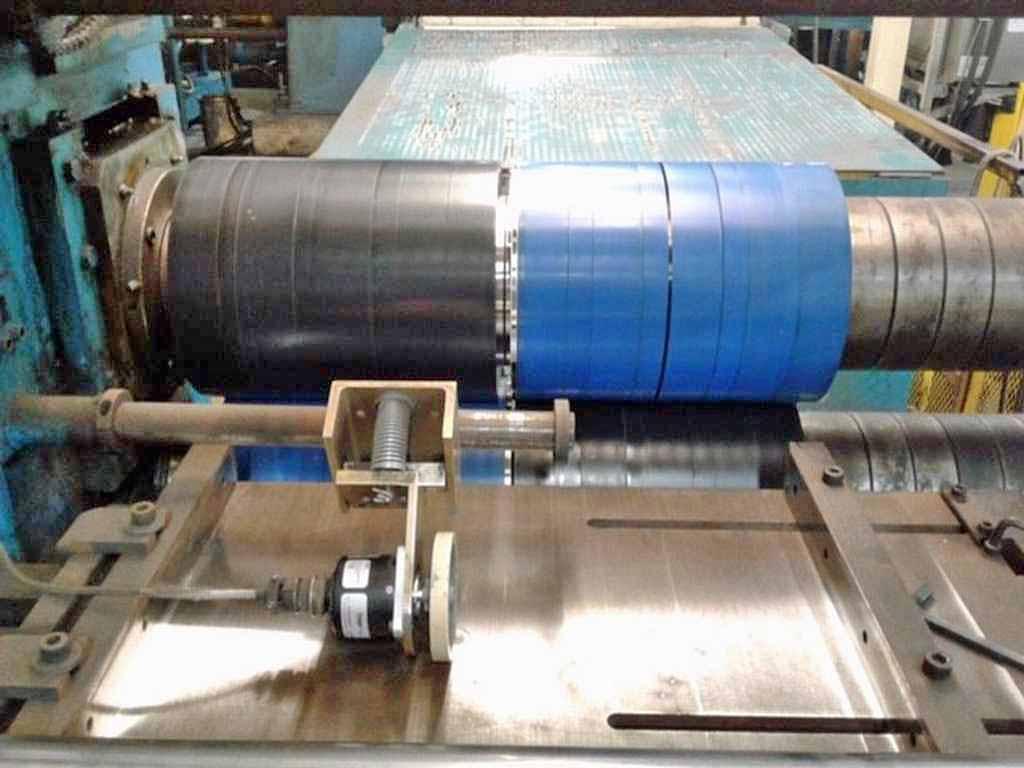

-Slitter Head:
5" Dia. Arbors
Entry Pinch Rolls
Entry Side Guides
Parallel Arbor Adjustment
Hydraulic Motor Driven
-Pad Type Tension Stand:
Entry Separator Tooling Bar
Entry Passline Roll
Air Cylinder Adjustment

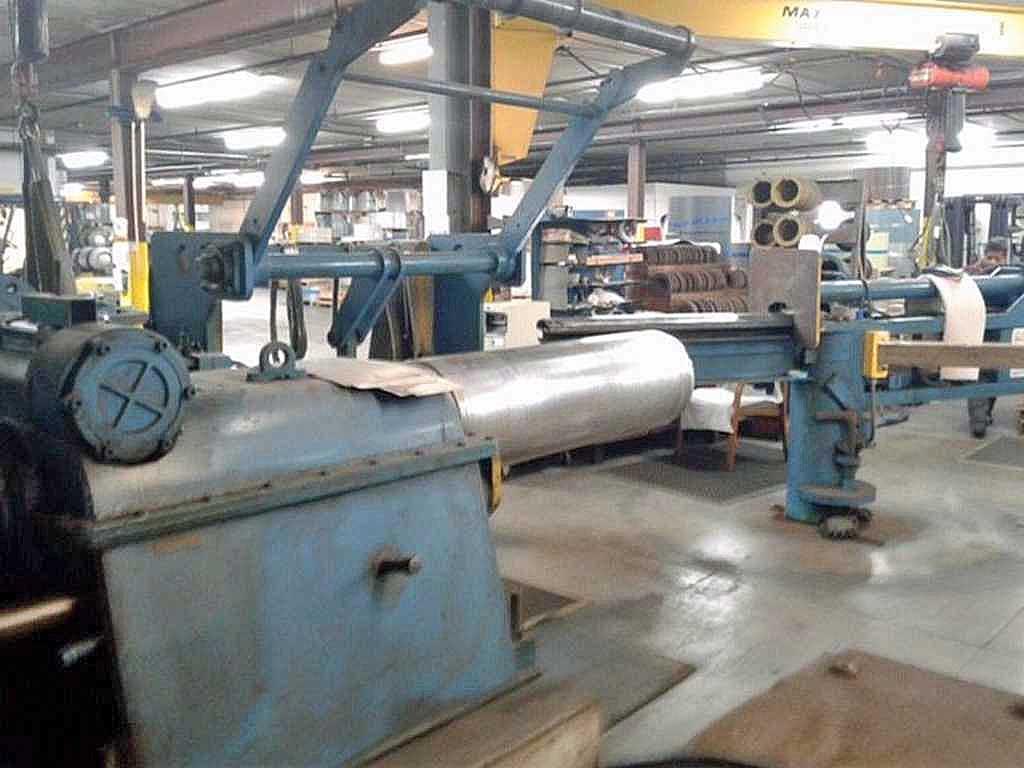

-Recoiler:
20" Diameter Drum
Hydraulic Grip and Expand
75 Hp DC Motor
Reducer w/12.5:1 ratio
-Free Standing Overarm Separator:

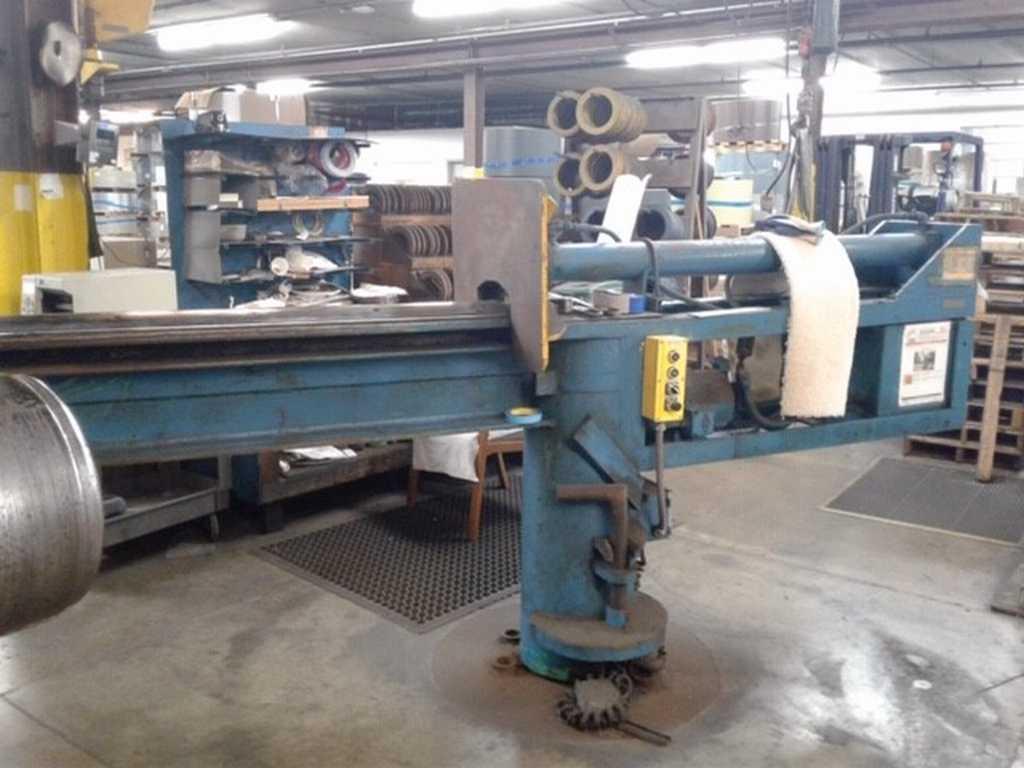

-One Arm Turnstile:
Manual Rotation
Hydraulic Pushoff
-Main Operators Control Panel:
