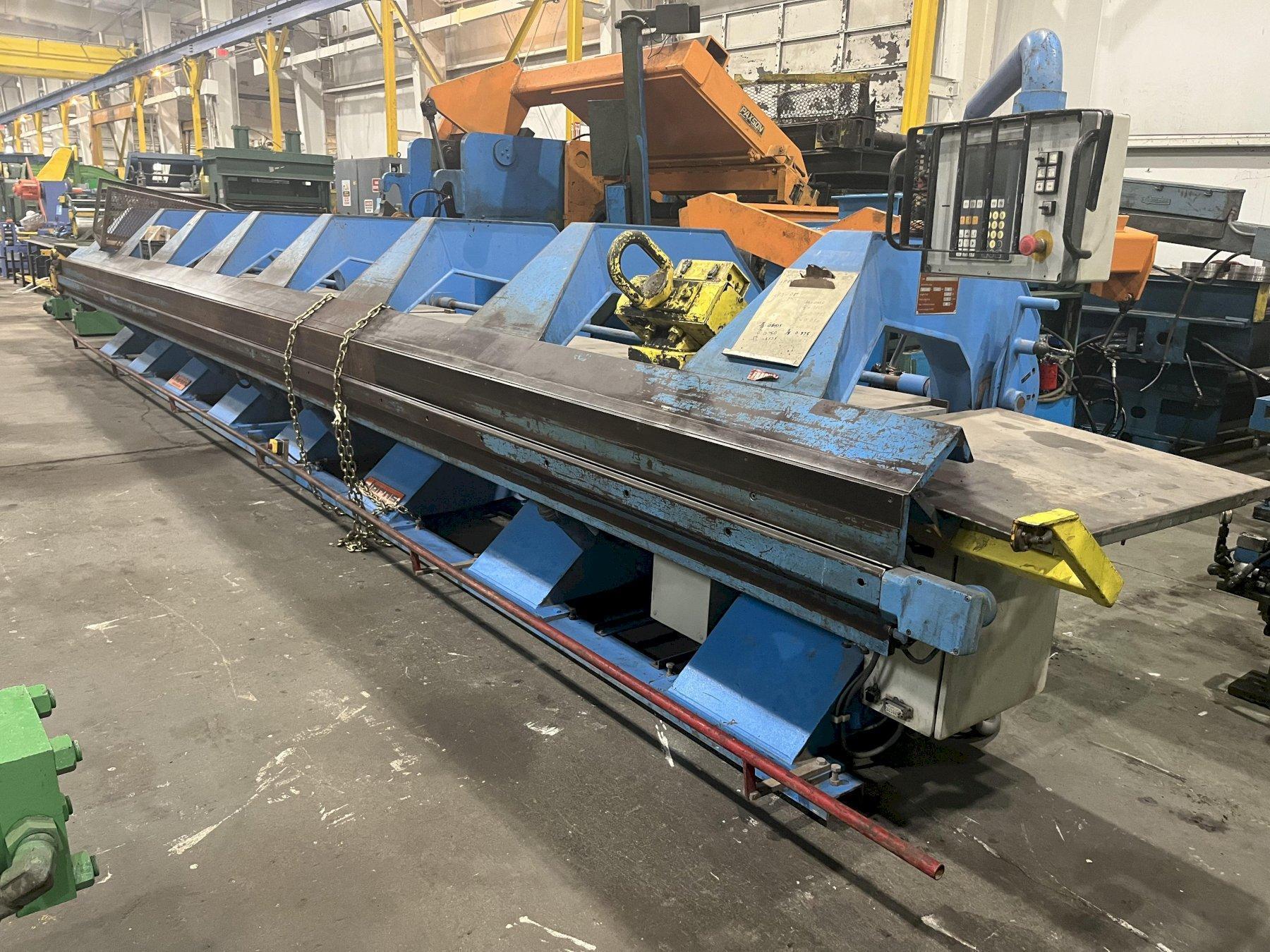

Specifications
Equipped With

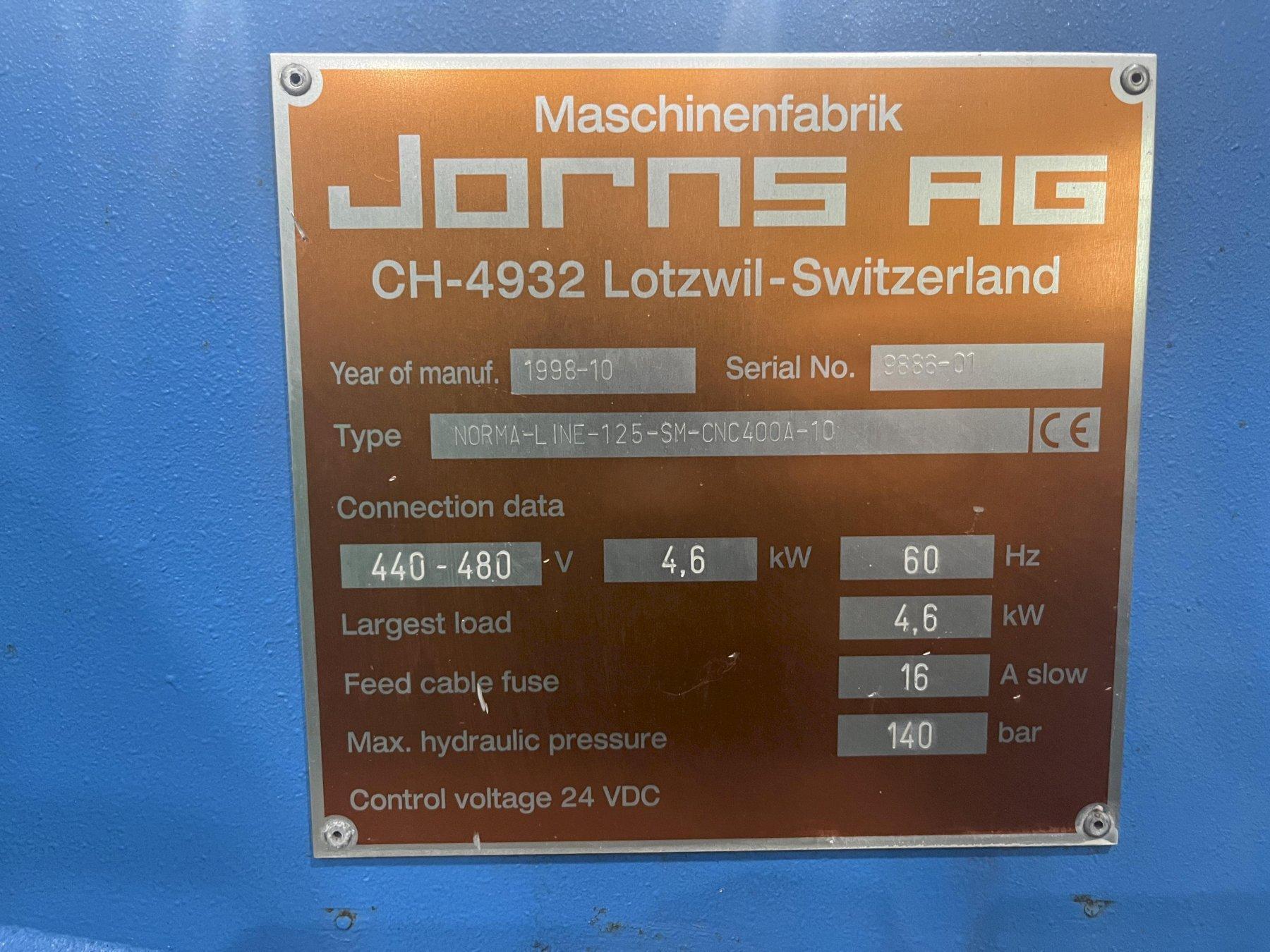

Year: 1998
Serial# CH 4932 1998
Model# 125-SM-CNC-400A-10
Max. Material Width 21'
Thickness Capacities:
Mild Steel: 0.050" (1.25mm)
Aluminum : 0.078" (2mm)
Stainless Steel: 0.031" (0.80mm)
Feeding Depth 39" (1,000mm)
Max Bending Angle 140 degrees
Opening Stroke (Max): 7.8" (200mm)
Clamping Force: 30KN
Upper Cheek Adjustment:
Sheet Thickness (min): 0.019" (.5mm)
Sheet Thickness (max): 0.078" ( 2 mm)
Max Hydraulic Pressure 140 bar
Feed rate: 17 M/min
Stop Depth (min.): 1" (25mm)
Stop Depth (max): 39.3" (1,000mm)
Connection Data:
480v, 60cy, 3ph
Motor Drive 4.6 KW

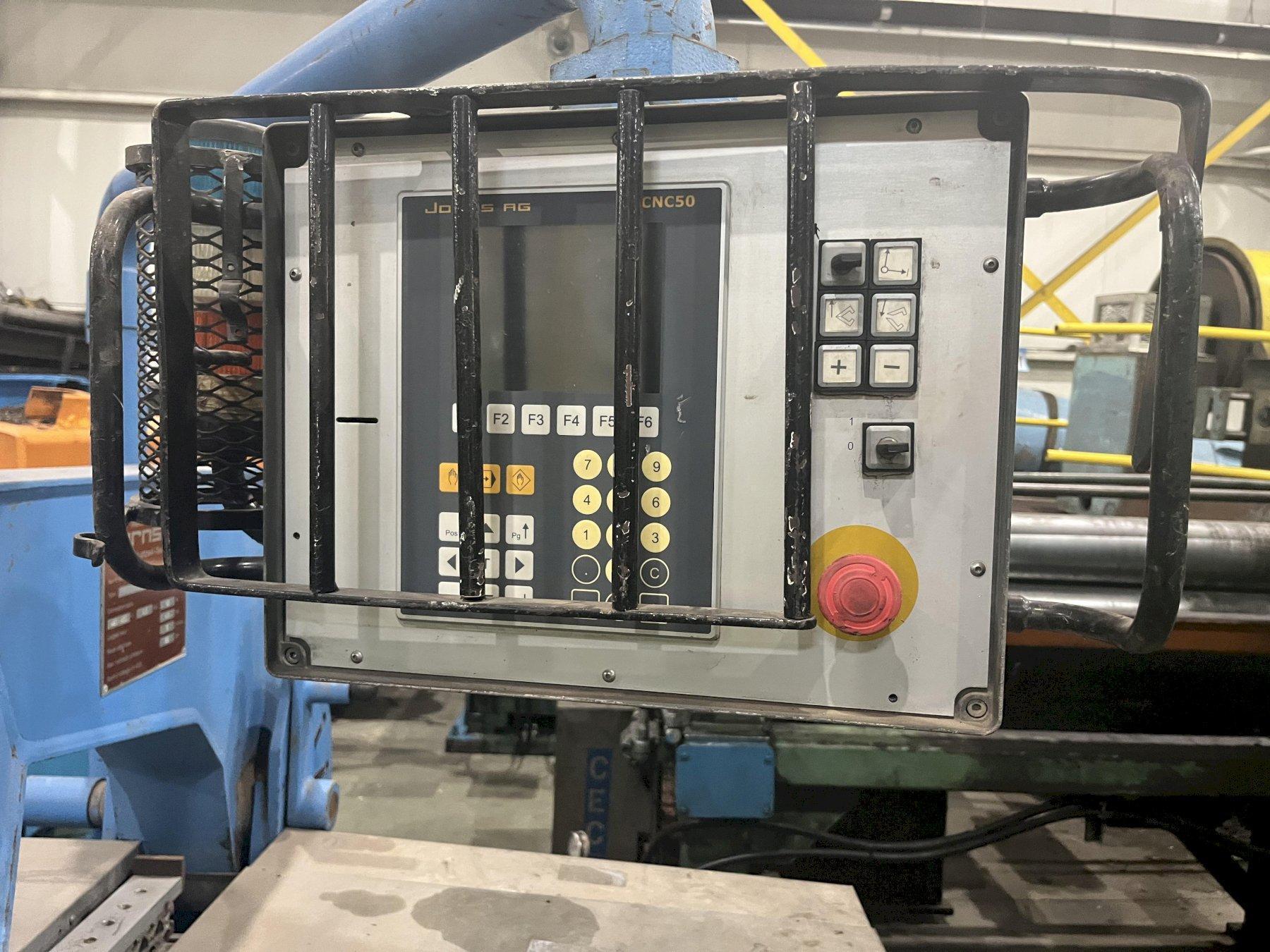

Unitek Drive
Machine Total Dimensions:
Length Overall: 36'.2"
Width Overall: 5'
Height Overall: 73'.6"
Total Weight: 11,440lbs
