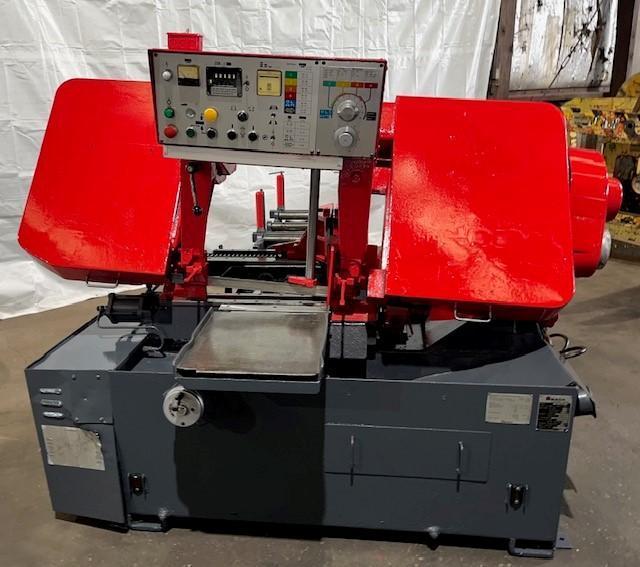

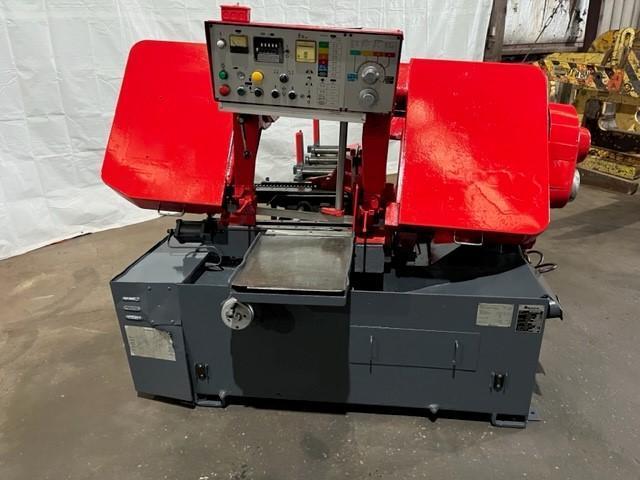

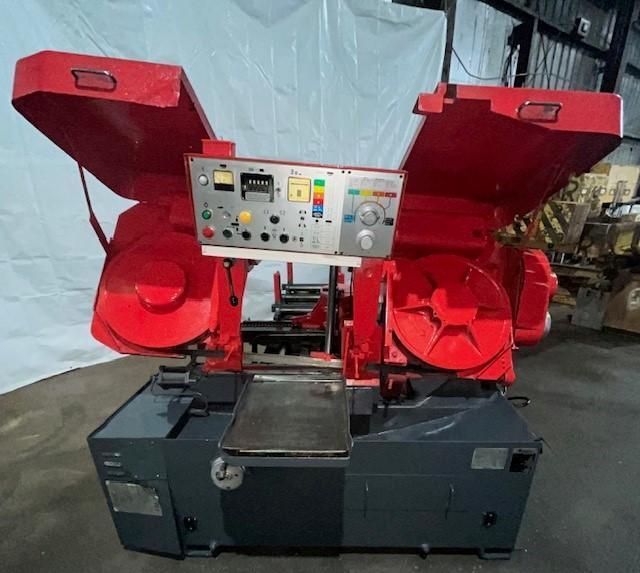

MAKE ............................. AMADA
MODEL ............................ HA-400W
SERIAL ........................... 40651096
YEAR ............................. 1990
VOLTS ............................ 230/380/415/460
PHASE ............................ 3
Round Cutting Capacity ........... 16"
Rectangle Cutting Capacity ....... 15.9" X 15.9"
Saw Blade Dimensions ............. 1-1/2' x 180" x .05'
Blade Speed ...................... 50-295 FPM
Main Motor ....................... 10 HP Hyd.
Pump Motor ....................... 2 HP
Coolant Pump Motor ............... 1/4 HP

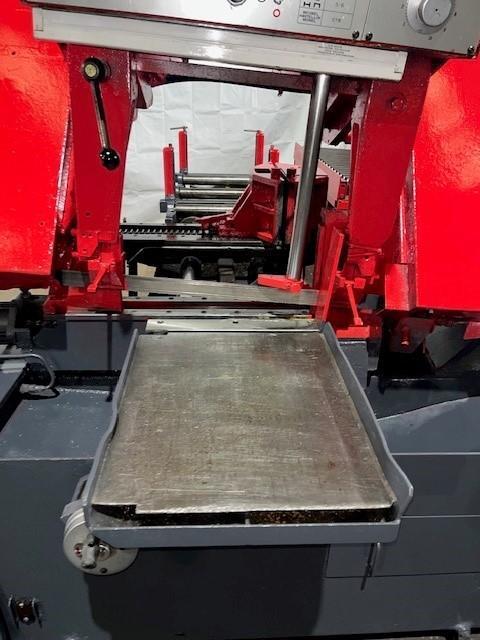

Table Height ..................... 27"
Machine Weight ................... 4,400 Lbs.
Work Load Capacity ............... 7,250 Lbs.
Max. Index Length ................ 20" up to 9 times = 180"
Machine Approx. Dims ............. 88" x 98" x 57" H

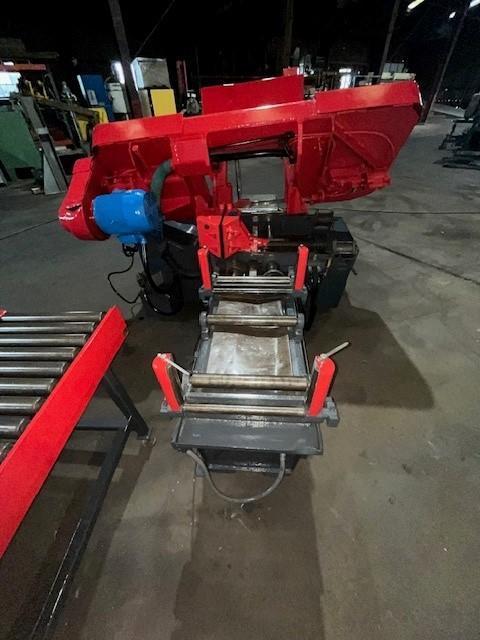

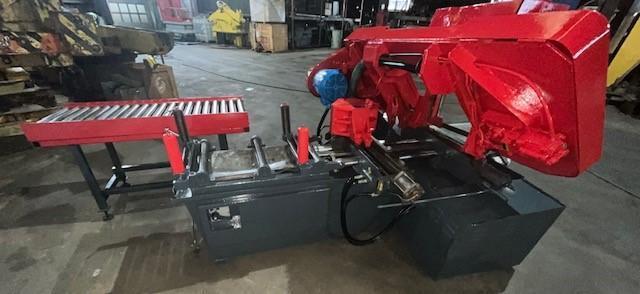

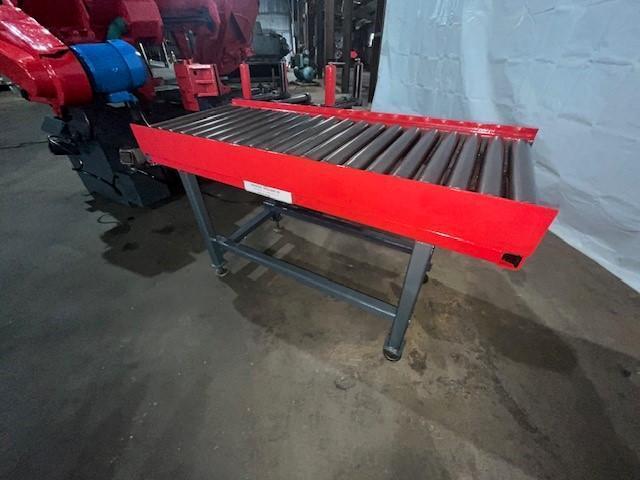

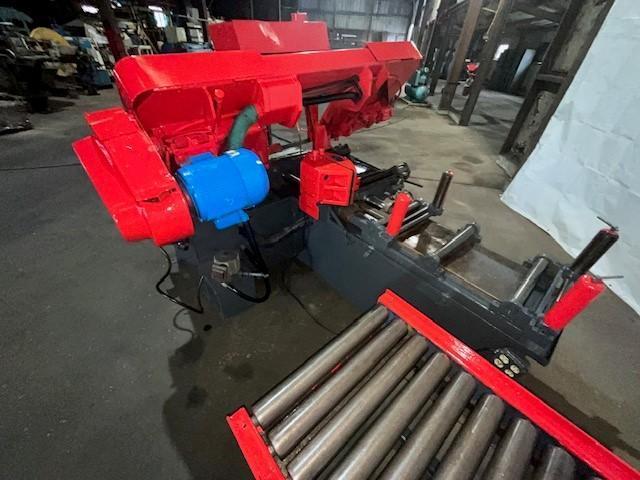

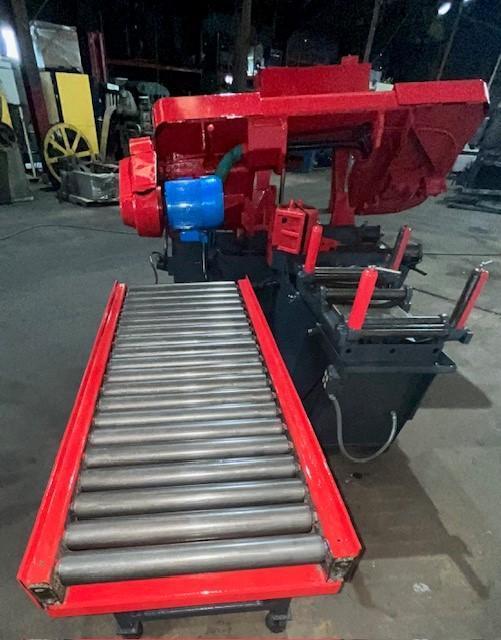

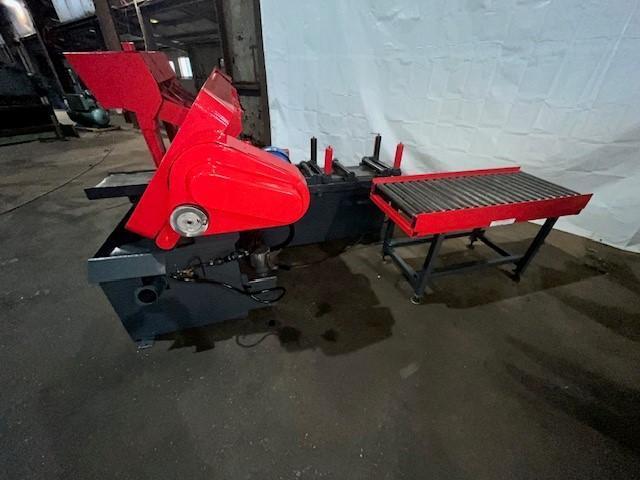

ENTERTY ROLLER CONVEYOR .......... YES
CONVEYOR LENGTH .................. 5'
CONVEYOR WIDTH ................... 24"
ROLLER LENGTH .................... 20"
ROLL DIAMETER .................... 2.5"
ROLL COUNT ....................... 20
