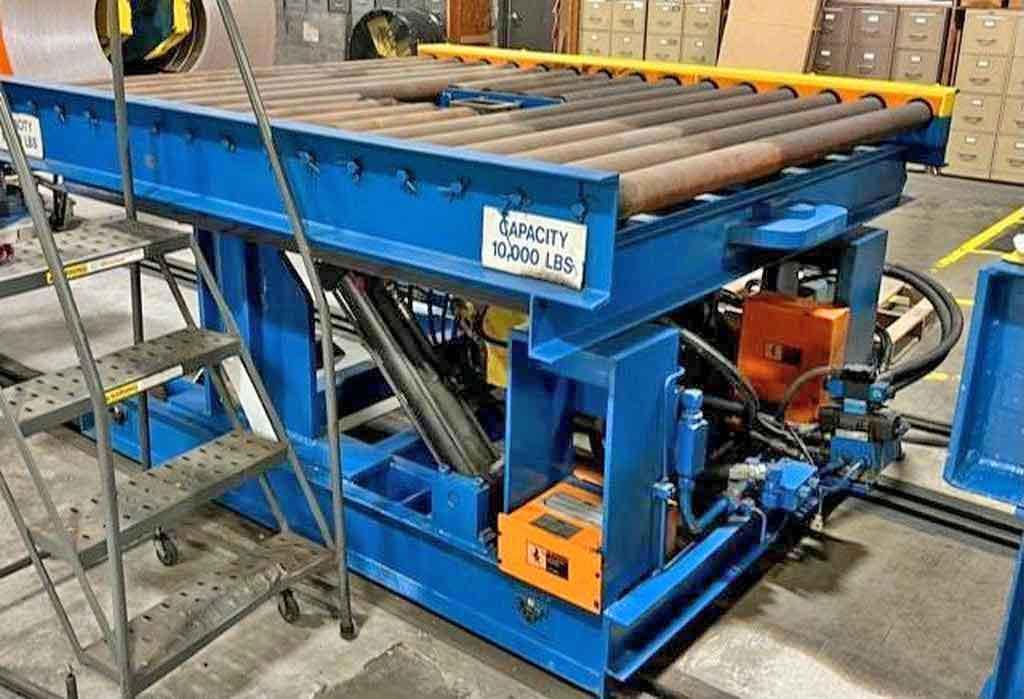

Downlayer: Post Monyak
Pick and Place Design
In-Line Discharge
Capacity: 10,000 lbs. x 72" O.D.
Roll Face: 75.5"
Pass Line: 50.5"
Opening for Turnstile: Approx. 24" High x 16" Wide
Floor to top of Horn: Approx. 64" in tipped position
(2) Hydraulic Tilt Cylinders
Hydraulic Cylinder powered Horn in/out

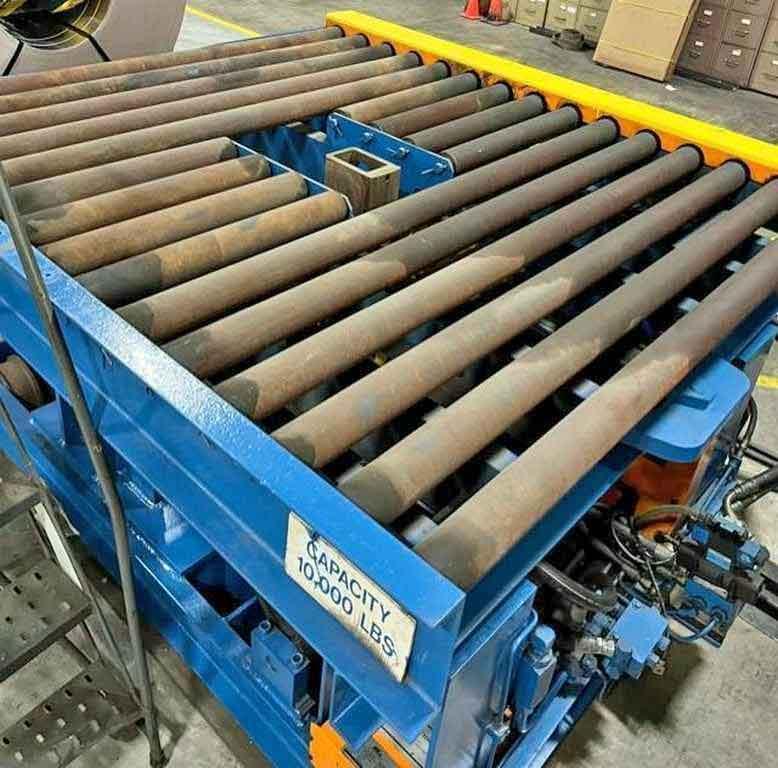

Powered Conveyor Rolls

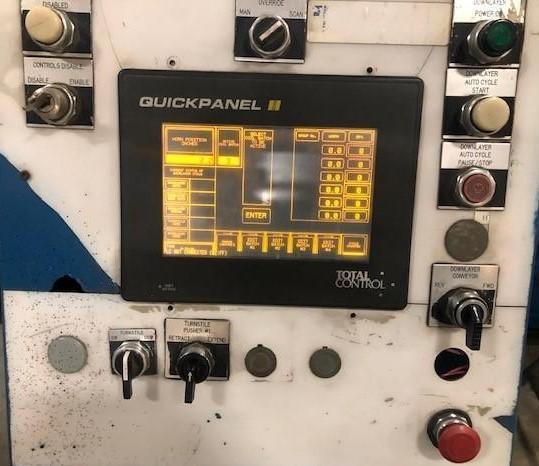

Control Panel with Touch Screen

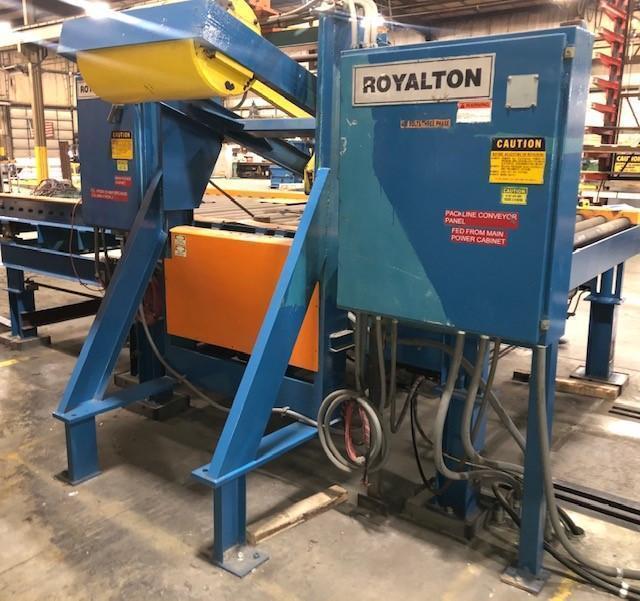

-Banding Table: Royalton

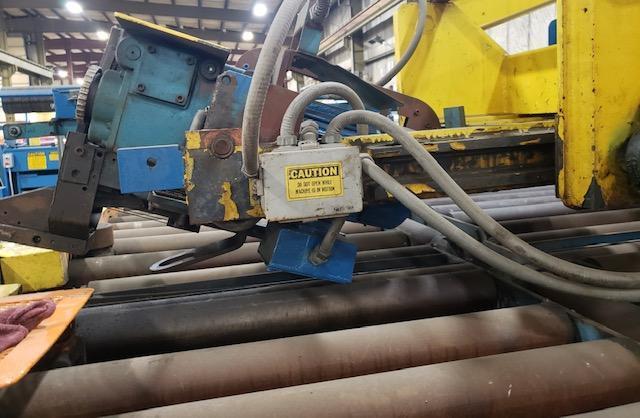

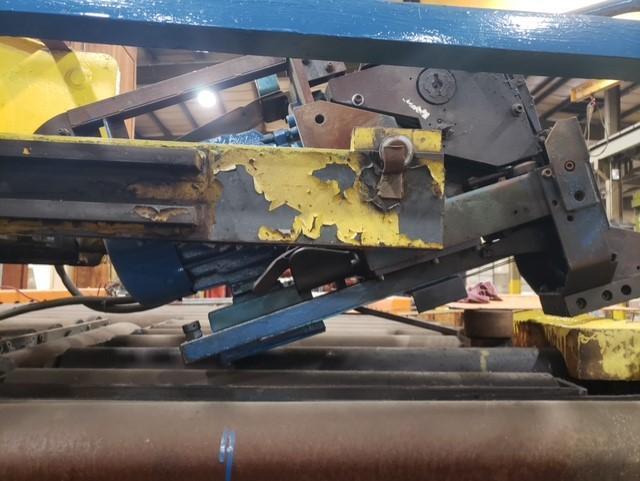

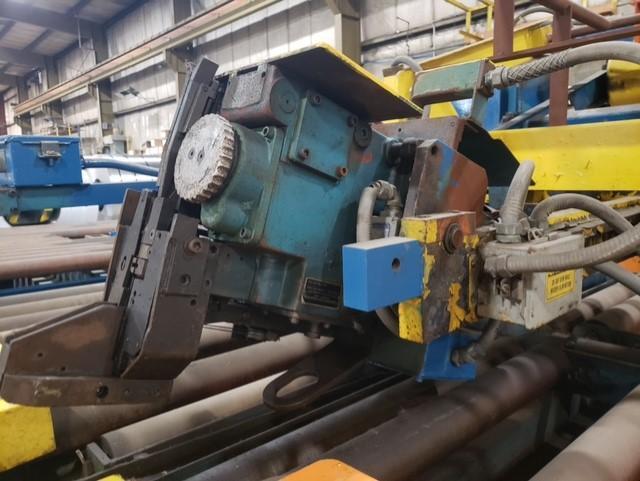

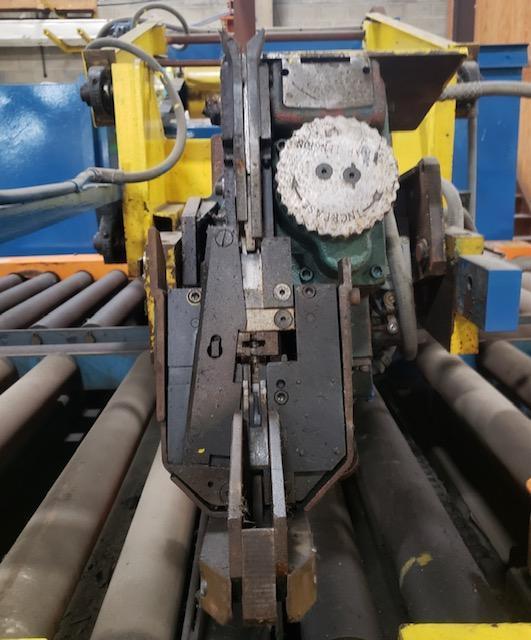

Signode Semi-Automatic Banding Head
Capacity: 10,000 lbs. x 72" O.D.
Roll Face: 83"
Powered Conveyor Rolls
(2) Tapered Turning Rolls

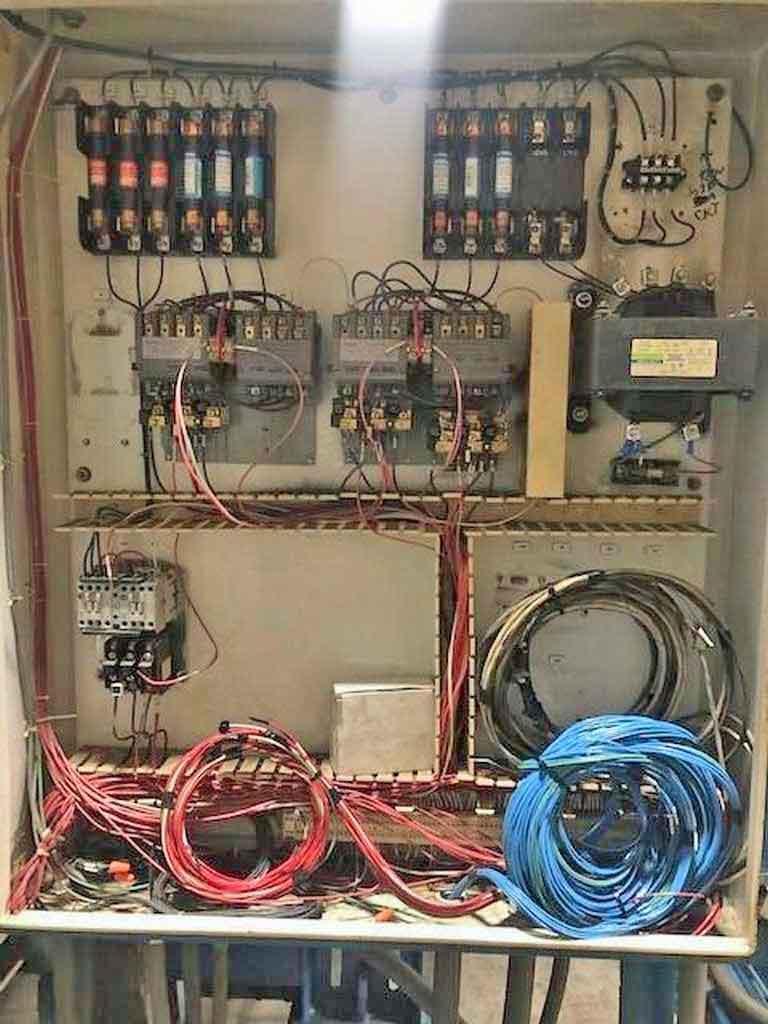

Attached Electrical Cabinets
-Scale Conveyor: Cardinal Scale
Capacity: 10,000 lbs. x 72" O.D.
Roll Face: 75.5"
Powered Conveyor Rolls

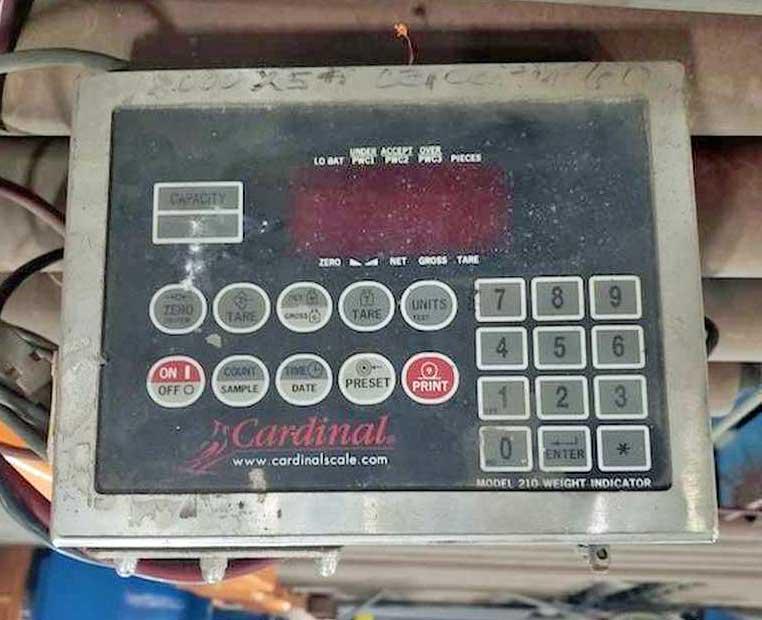

Digital Read Out
Split Conveyor Section for Coil I.D. Grab
