Michigan Rollform Trim Coil Winding Line
Capacity: 24" x 0.024" Mild Steel
Consisting of the following:
-Motorized Uncoiler:
Model: VHCH 60
Serial Number: 60269
Weight Capacity: 6,000 lbs.
Width: 26"
Hydraulic Expansion: 16" - 20"
7.5 HP Baldor DC Motor, 1750/2300 RPM, 500 V
Line Speed: 0 - 350 FPM
Self-Contained Hydraulic Power Unit

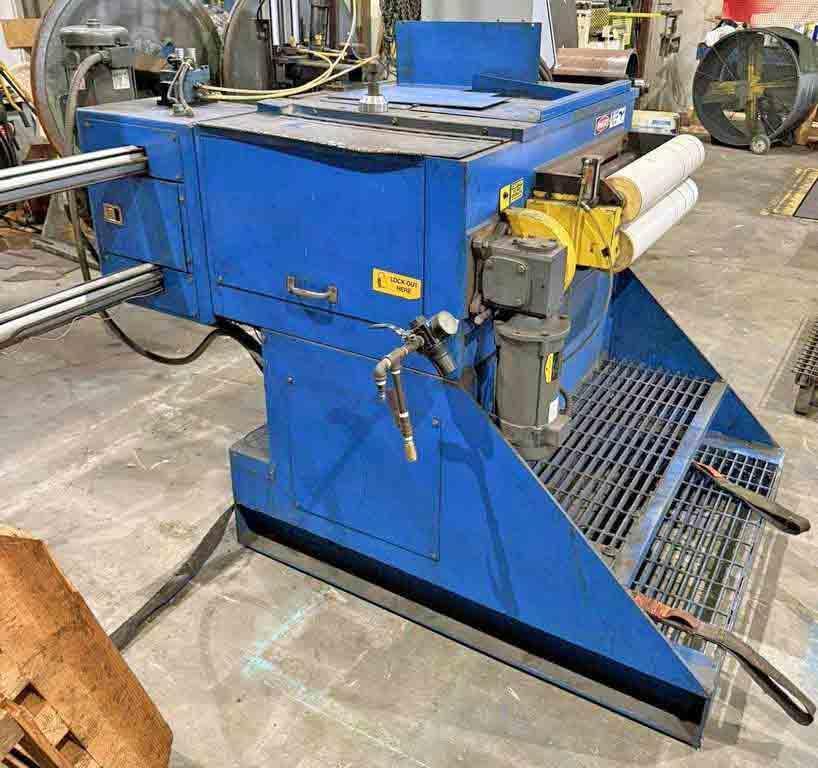

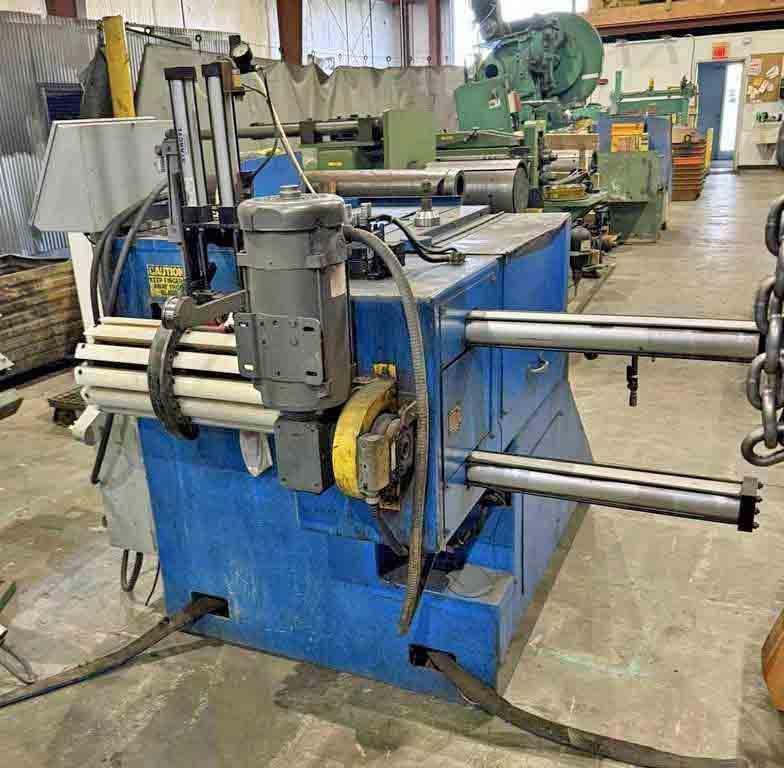

-Straightener & Rewind Unit:
Model: 24CLR
Serial Number: 60278
Stock Width Maximum: 24"
Maximum Thickness: 0.024"
Entry Passline Rolls
Entry 3 Roll Coil Breaker
Line Speed: 0 - 300 FPM
Straightener Motor: 0.75 HP Baldor DC Motor
Rewind Motor: 0.75 HP Baldor DC Motor, 1750 RPM
Rewind Mandrel Diameter: 10"
Rewind Coil Weight: 250 lbs. max.
Air Cylinder Pushoff
Passline Height: 41.5"

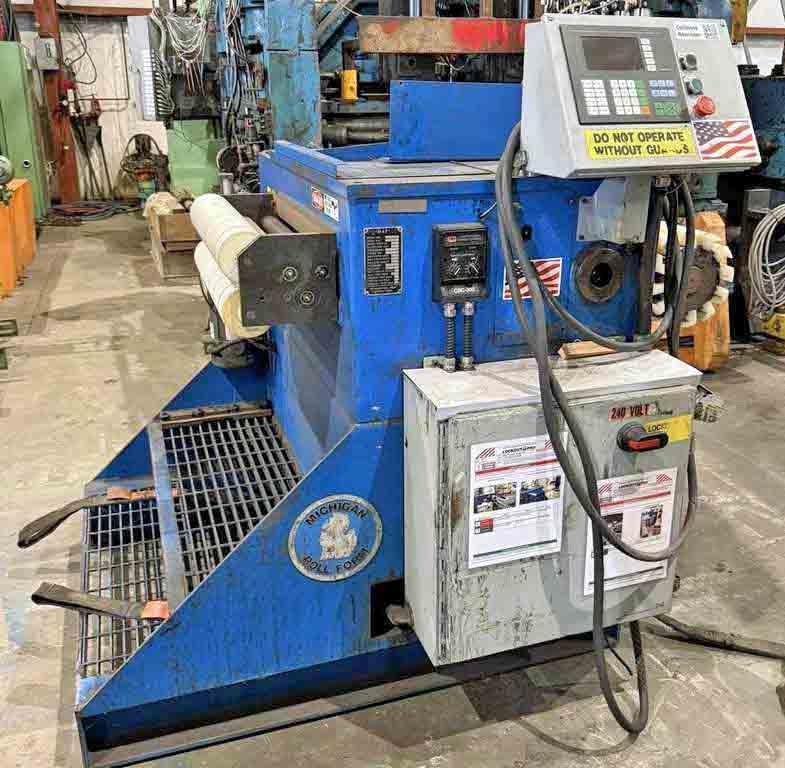

Touchscreen Control Panel
-Line Direction: Left to Right
-Overall Dimensions: 7' L x 7' W x 6' High
-Approx. Weight: 4,000 lbs.
-New Cost: $275,000.
-In Storage: Toledo, OH
