Specifications
Equipped With

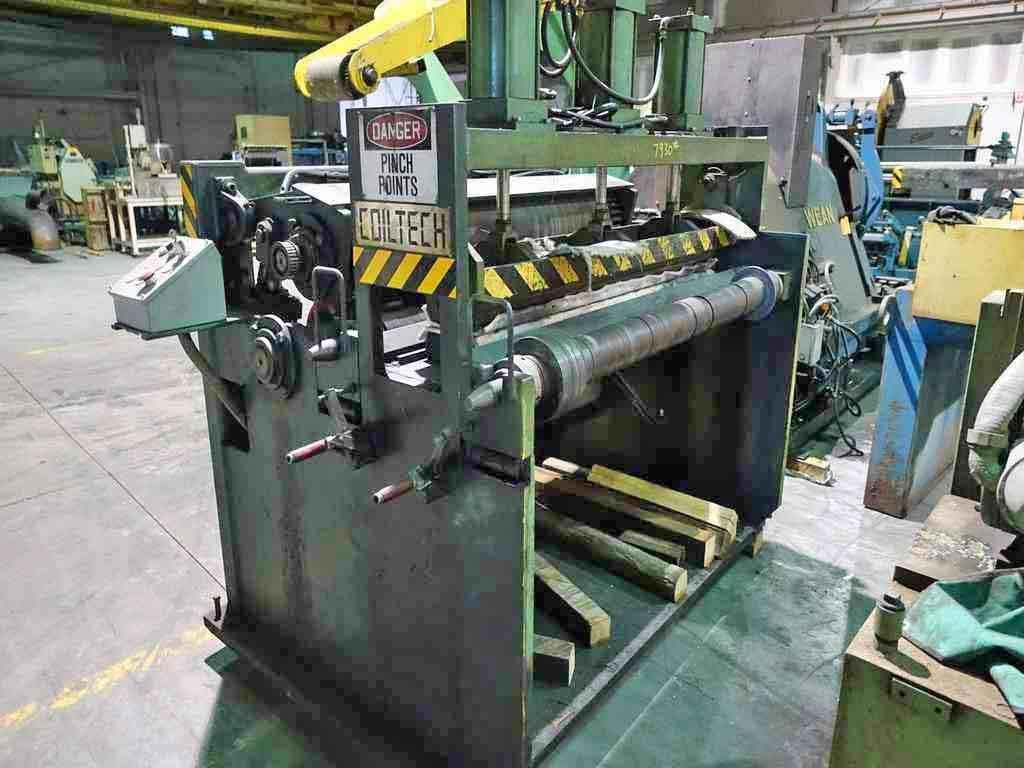

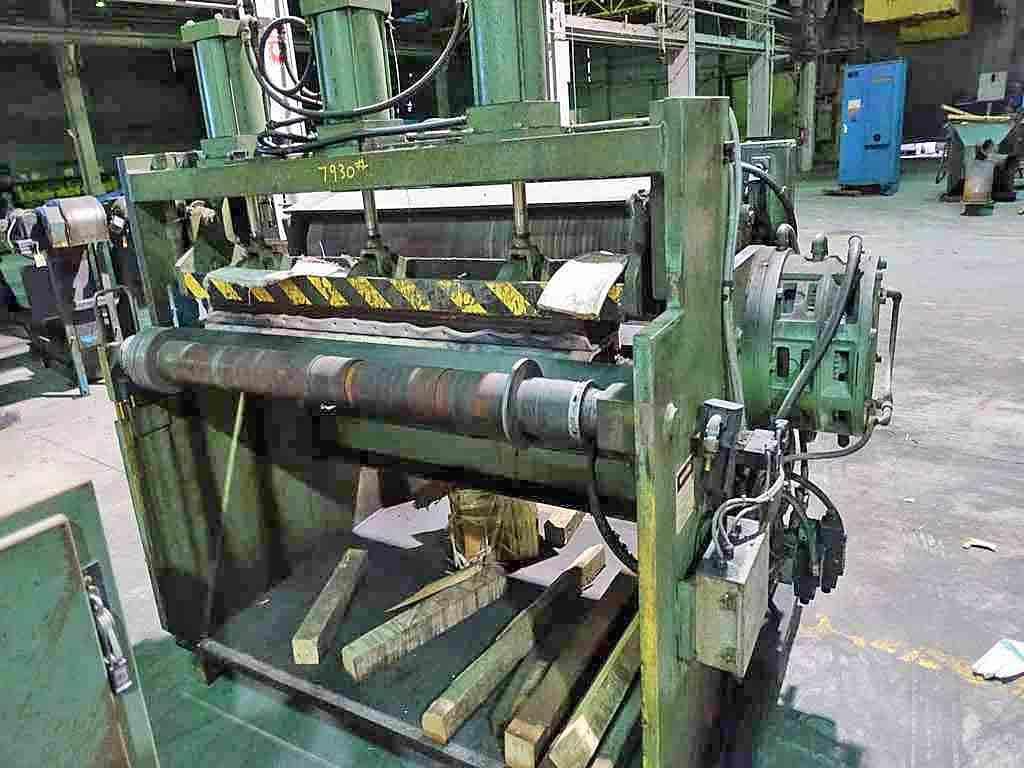

Combination Roll and Drag Board Tension Stand
-Entry Separator Tooling Bar
-Drag Board Unit
(3) Hydraulic Cylinders for clamping pressure
-Separator Tooling Bar

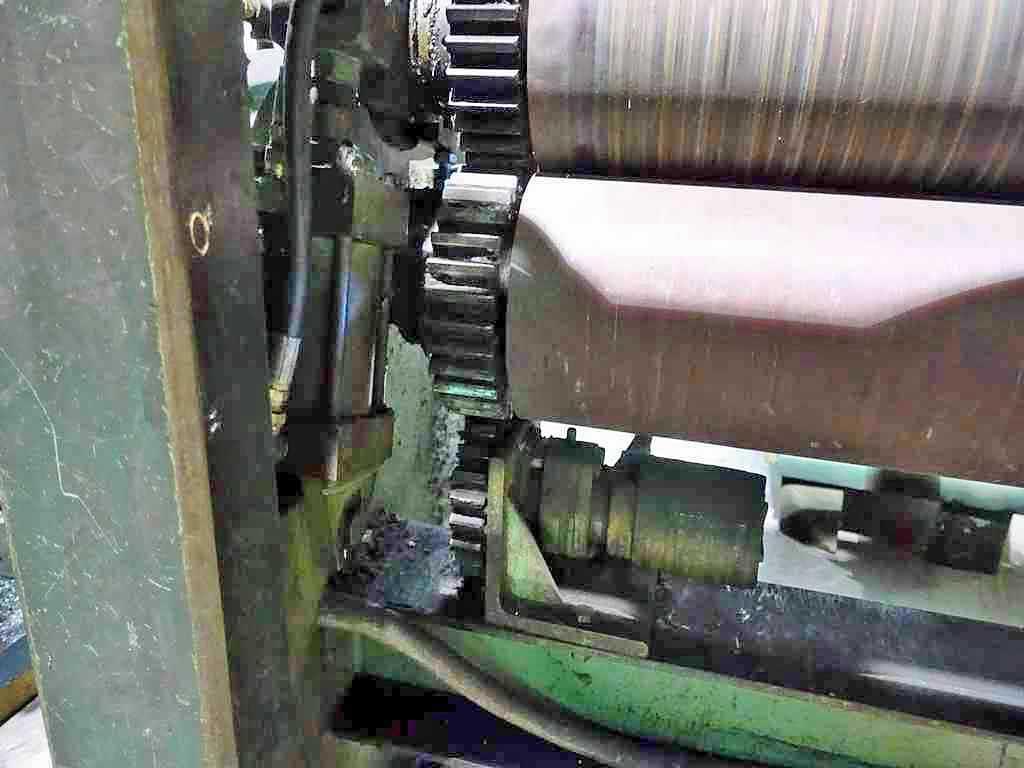

-Tension Rolls
-10" Dia. x 52" Face Rolls
Hydraulic Motor Threading Drive

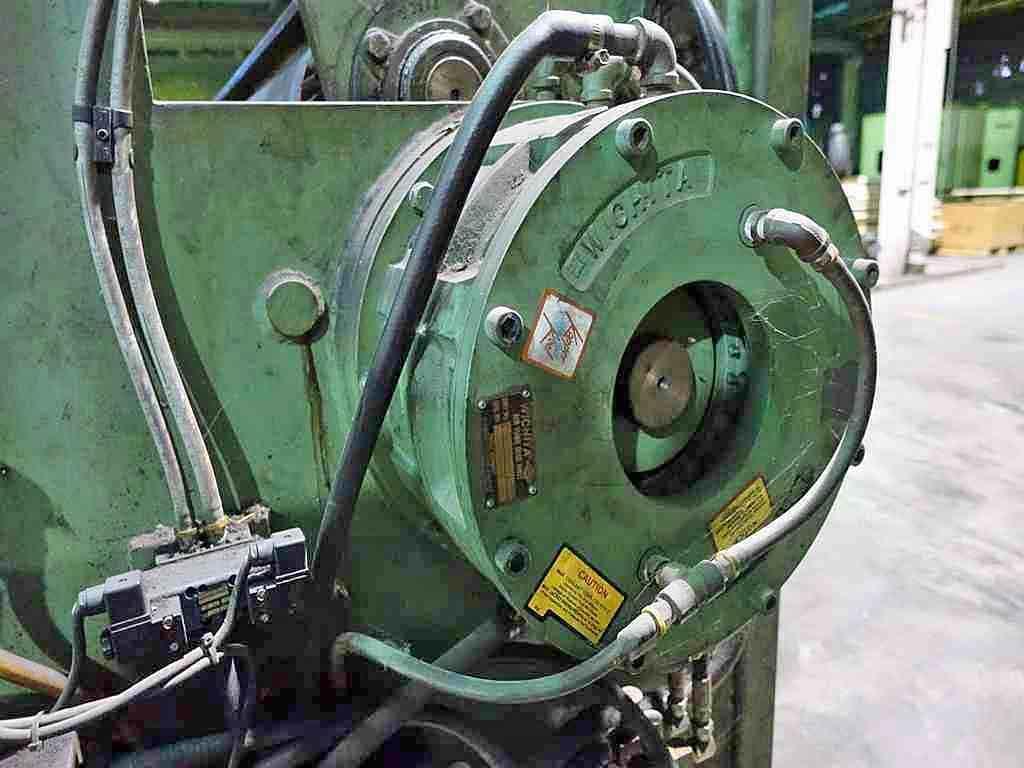

-Wichita Water Cooled Brake on bottom Roll
-42.5" Passline Height
Technically designed for Right To Left Mode of Operation.

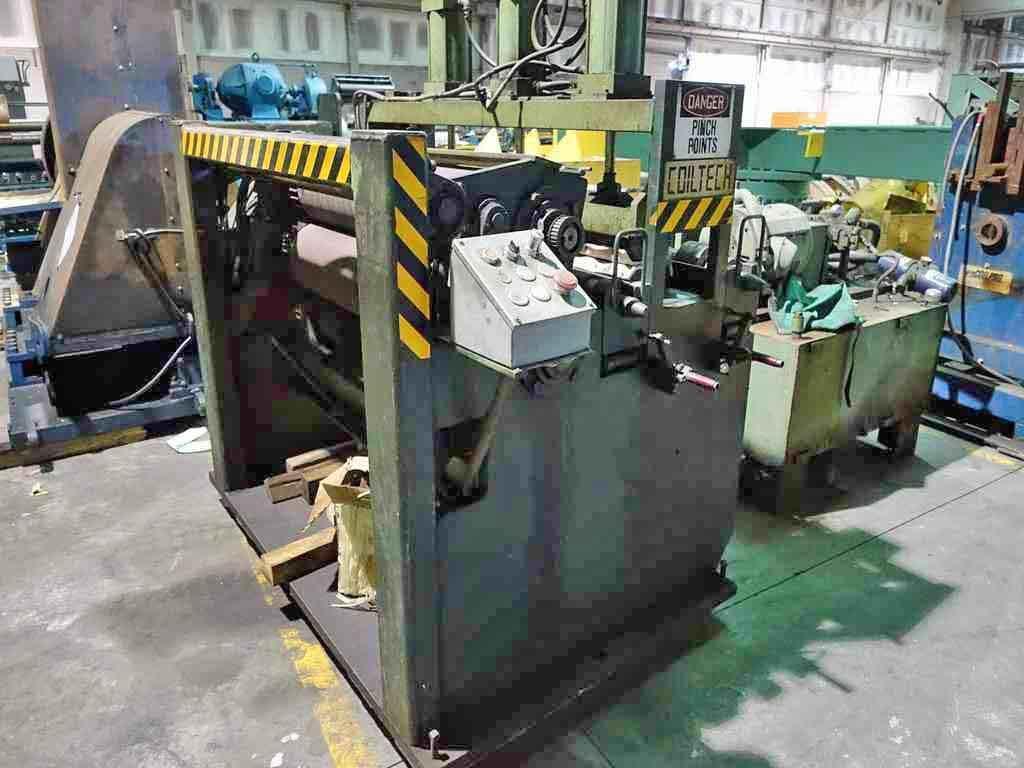

This can be changed to opposite hand however, the 12" x 12" E-Stop Panel
must be moved to opposite side and you must have space to change out
Drag Boards and Tooling Bars on your drive side of the line.
Overall Size: 99" L x 55" W x 5'High
