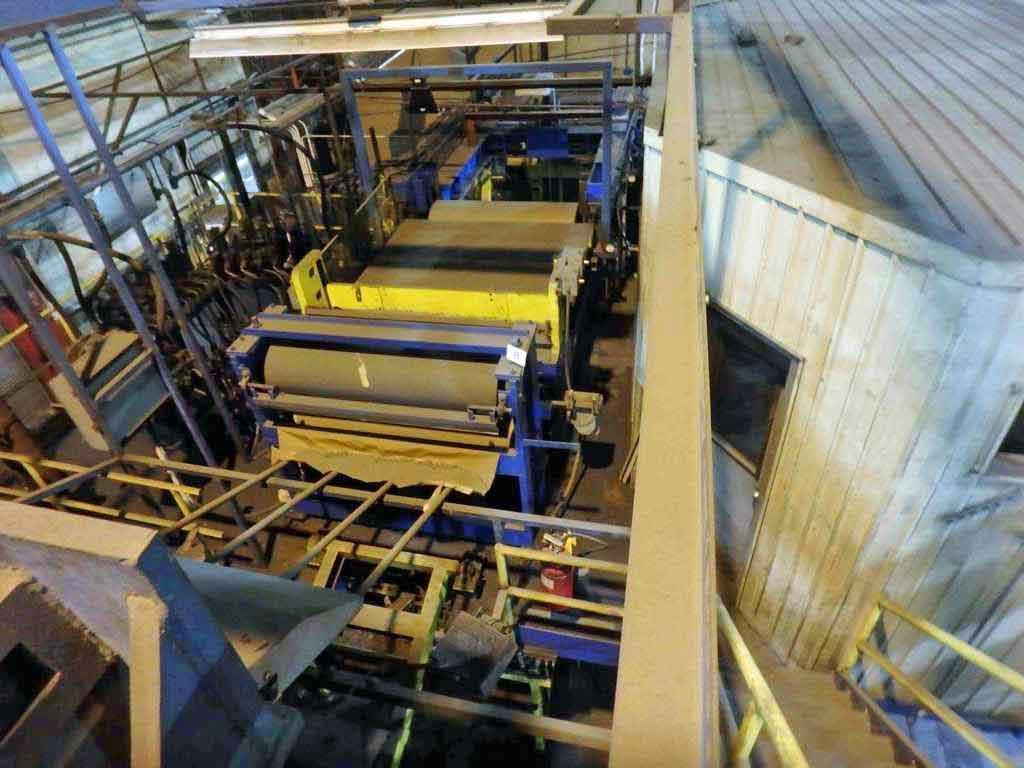

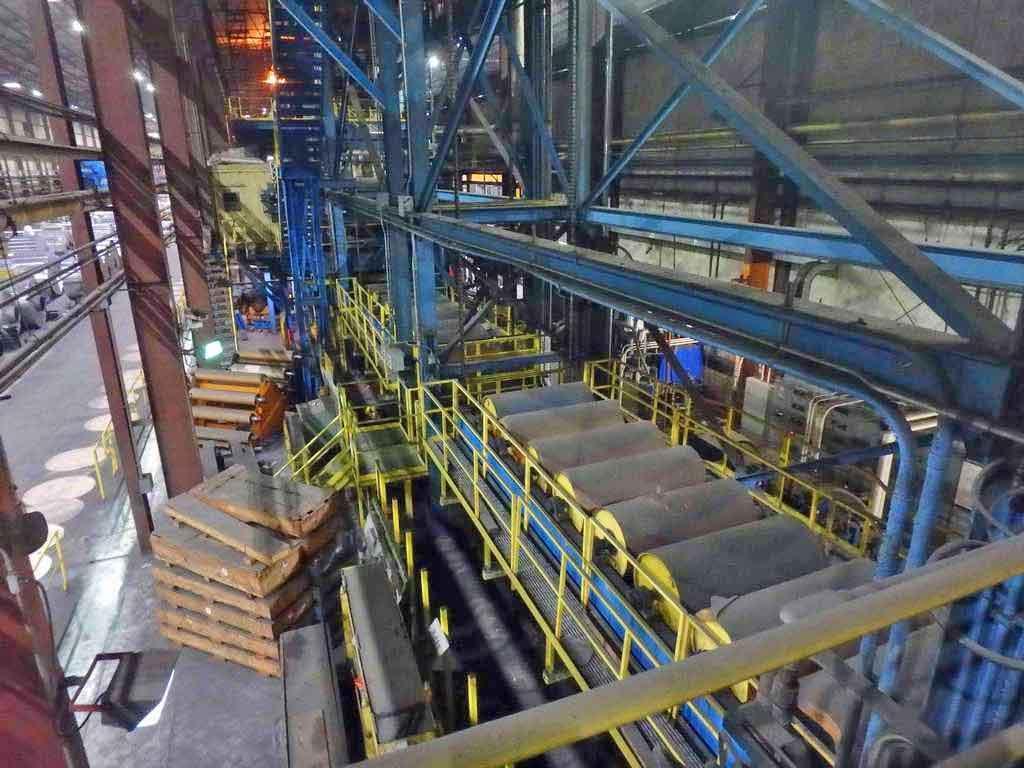

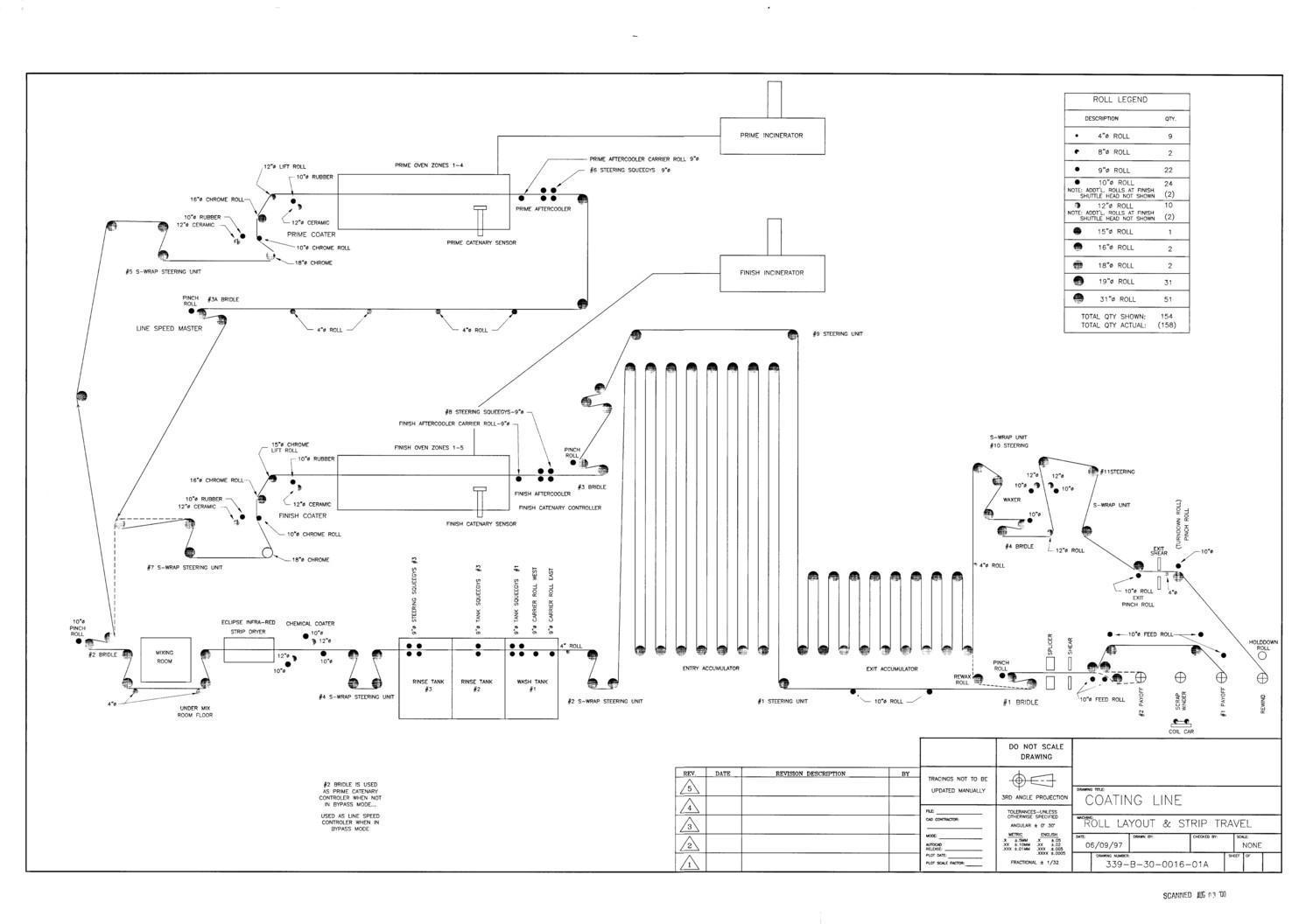

Hunter Paint Line

Material:                              Aluminum

Line Speed:                            125 FPM Min, 500 FPM Max.

Entry Section Speed:                   125 FPM Min, 650 FPM Max.

Exit Section Speed:                    125 FPM Min, 650 FPM Max.

Thread Speed:                          50 FPM Min, 150 FPM Max.

Strip Gauge:                           0.008" Min, 0.072" Max.

Strip Width:                           30" Min, 60" Max.

Coil Weight:                           50,000 lbs.

Horsepower:

Payoffs #1 and #2:                     80 HP

Bridles #1, #2, #3, #3A and #4:        125 HP

Rewind:                                150 HP

Entry Coil O.D.:                       40" Min, 96" Max.

Exit Coil O.D.:                        96" Max.

Core:                                  20" ID x 22.5" OD x 84" L

Line Tensions:

Payoffs:                               1000 PSI

Entry Accumulator:                     1500 PSI

Ovens:                                 5500 PSI

Exit Accumulator:                      1500 PSI

Rewind:                                2000 PSI

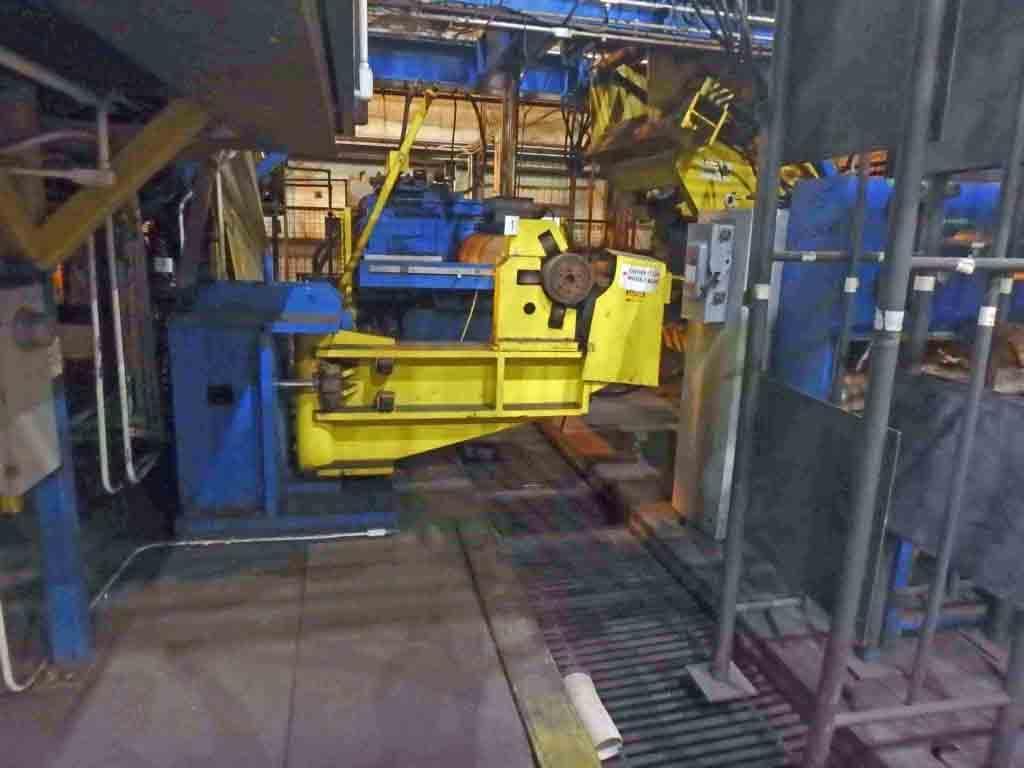

Unwinder:                              Dual Payoff 50,000 lb. Capacity

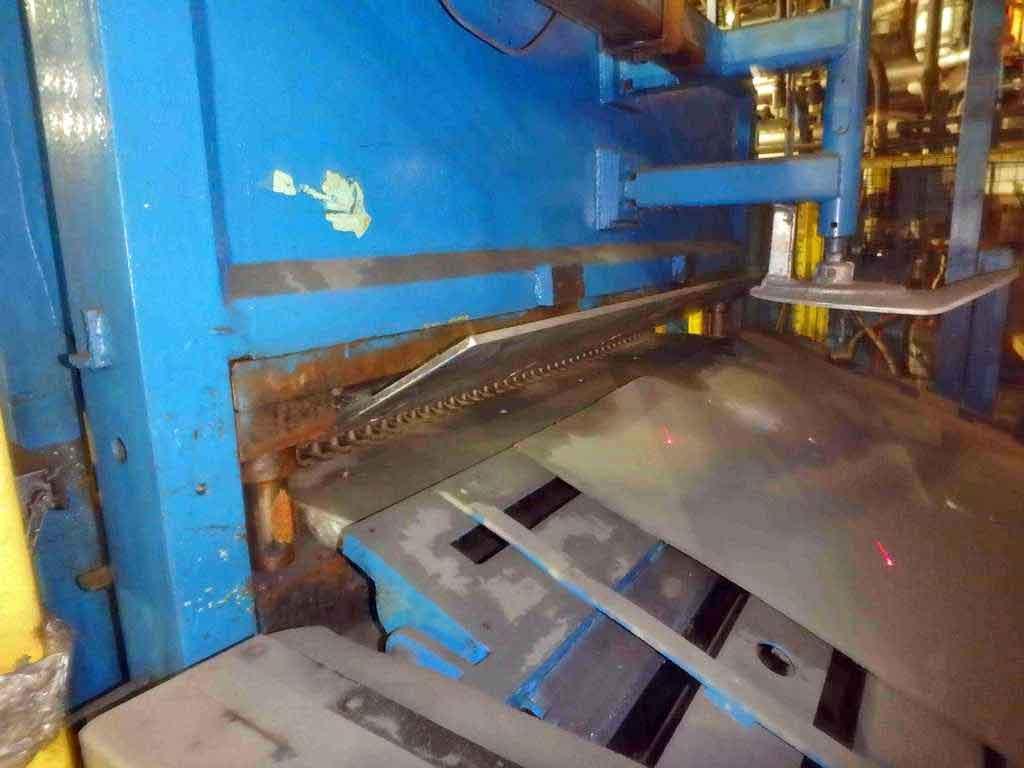

Shears:                                Hydraulic Down Cut

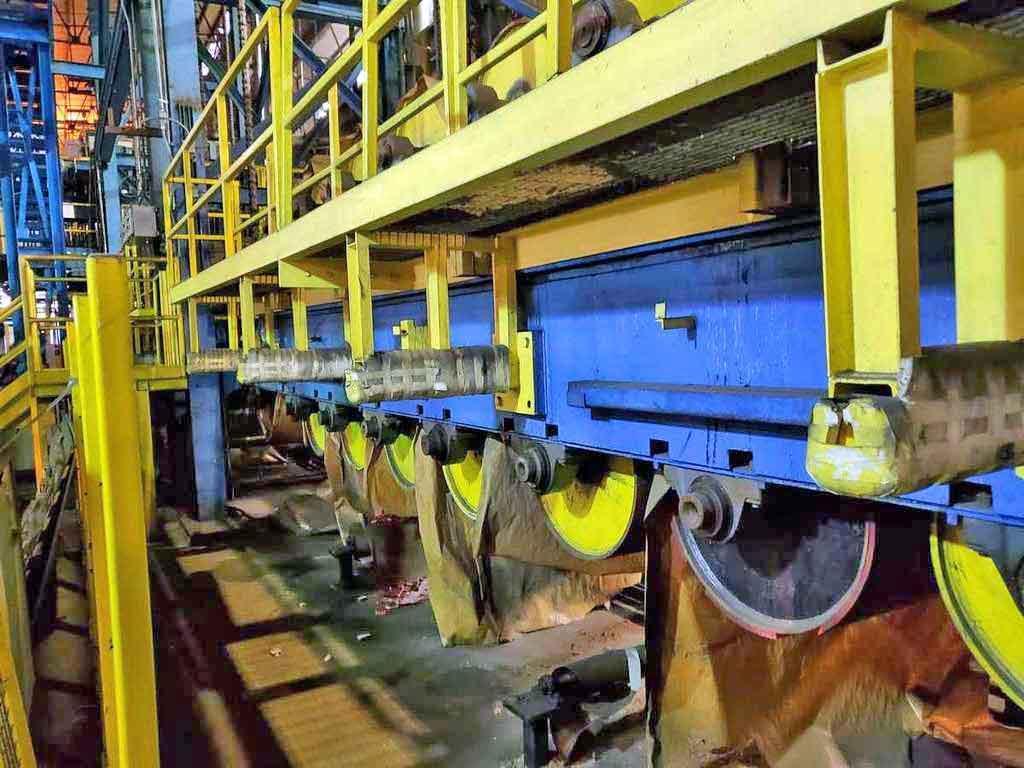

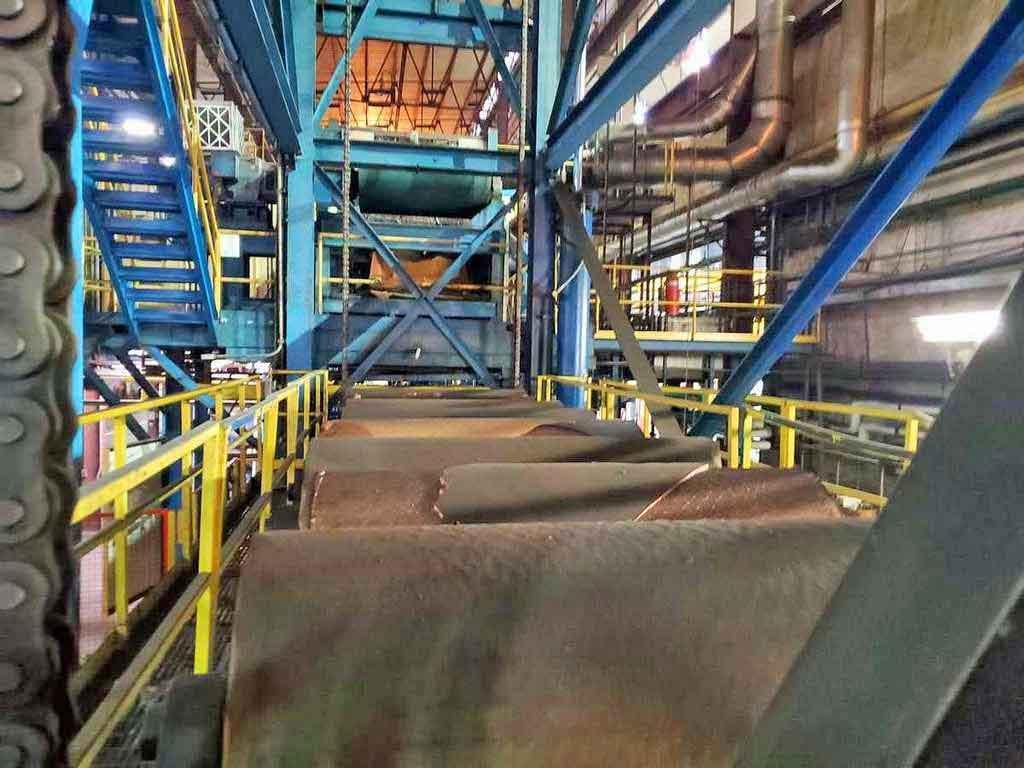

Bridles:                               Two Roll DC Driven

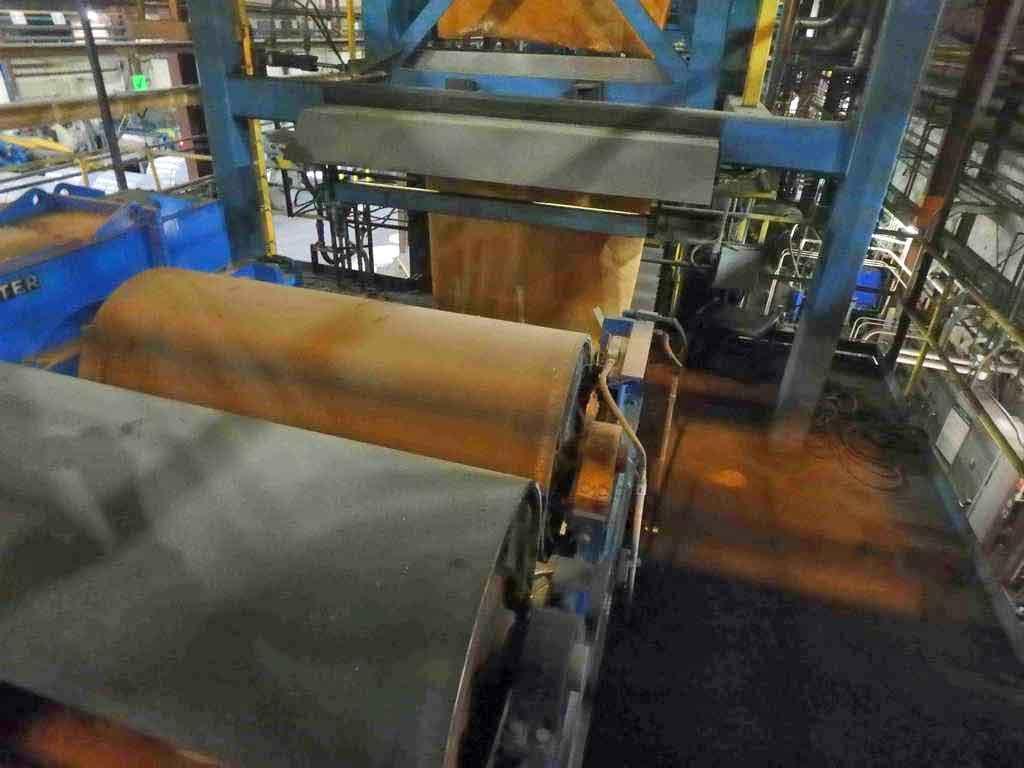

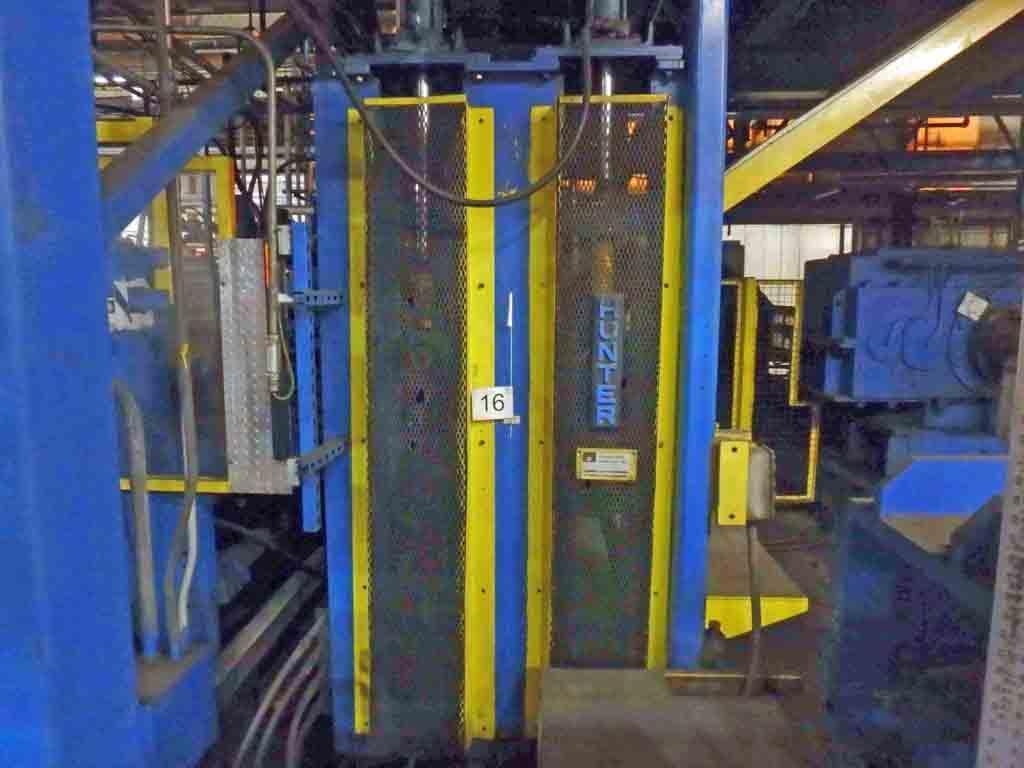

Strip Accumulators:                    Hydraulic Floating Type with 450 Feet Storage

Cleaning & Rinsing:                    Caustic Cleaning and Water Rinse

Conversion Coat:                       Chemical Dry-In-Place Coater

Conversion Coat Drying:                Gas Fired Infrared Oven

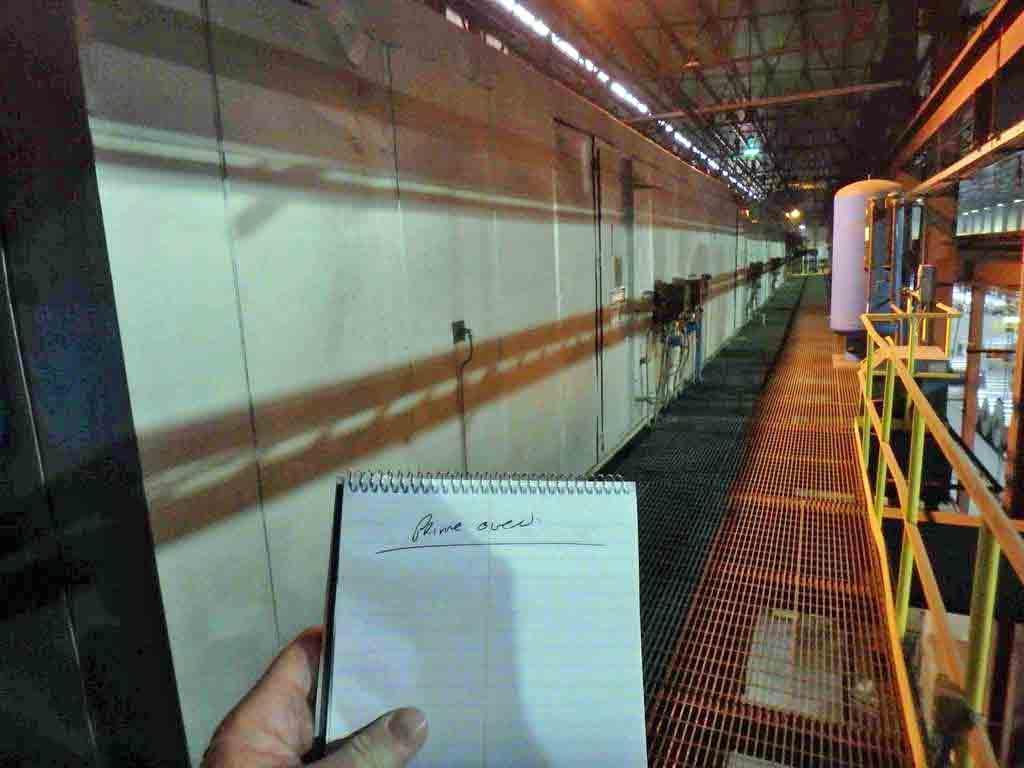

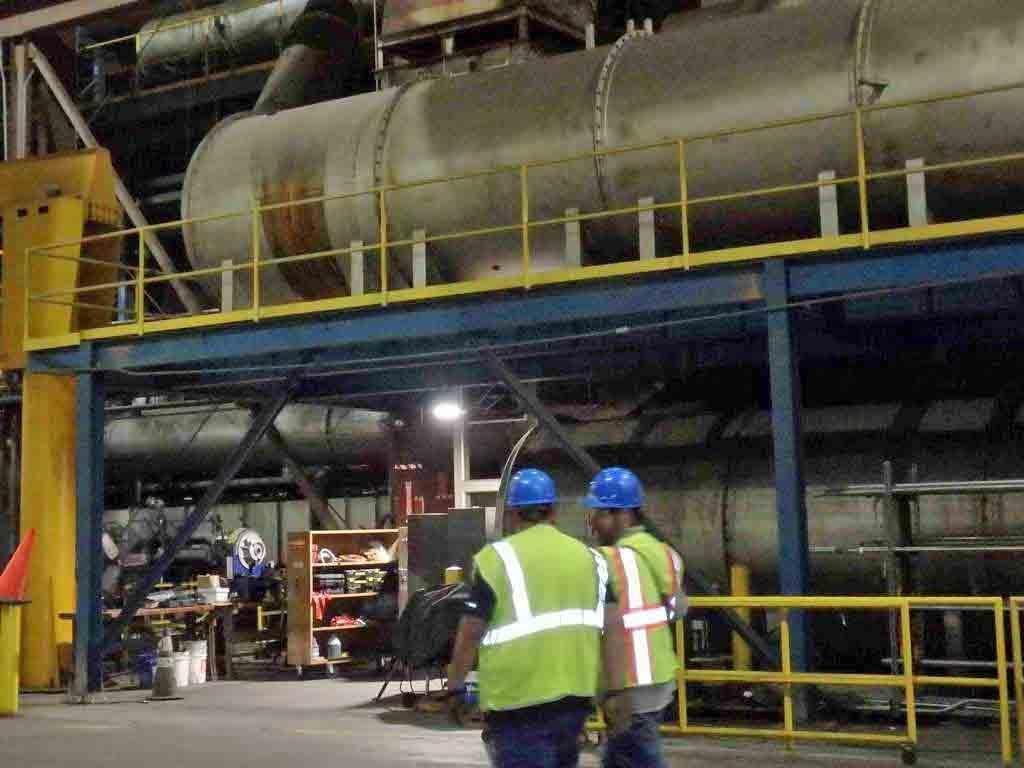

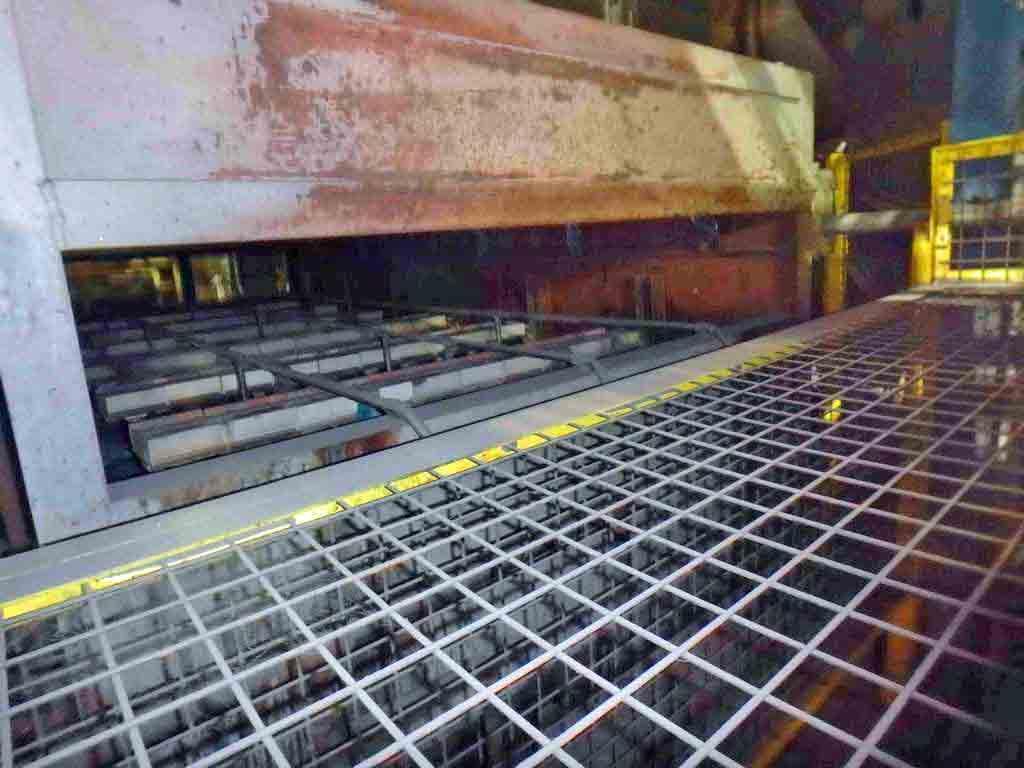

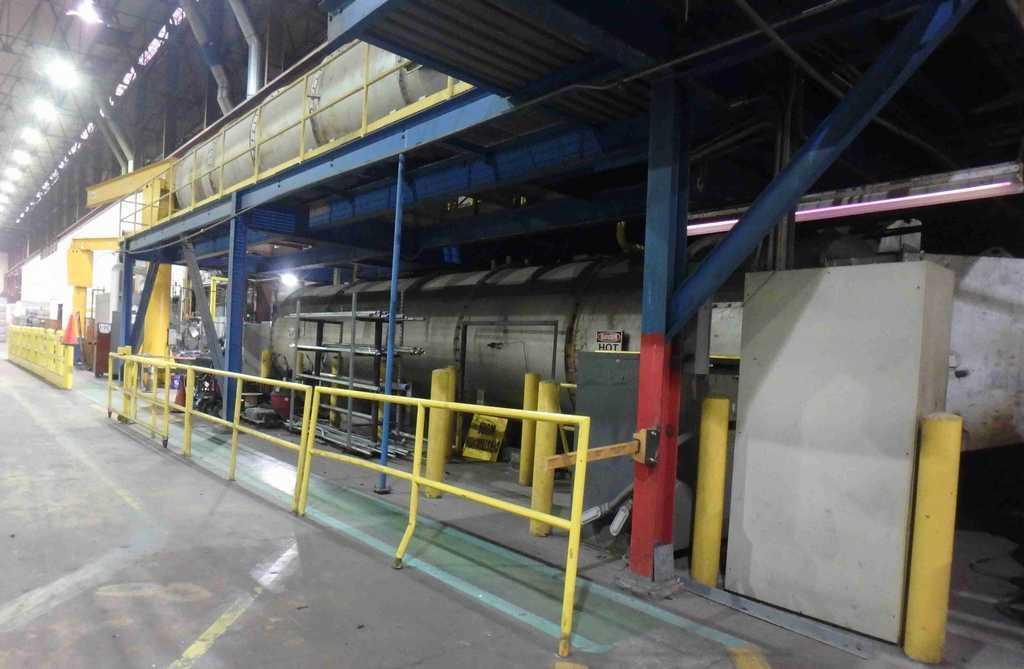

Prime Organic Film Curing Oven:        Recirculated Heat from after burner heat

                                        recovery system, 4 zones.

Finish Organic Film Curing Oven:       Recirculated Heat from after burner heat

                                        recovery system, 5 zones.

Film Thickness:                        Infrared Thickness Detection System

Waxer, DOS Center:                     Roll Applied Waxer

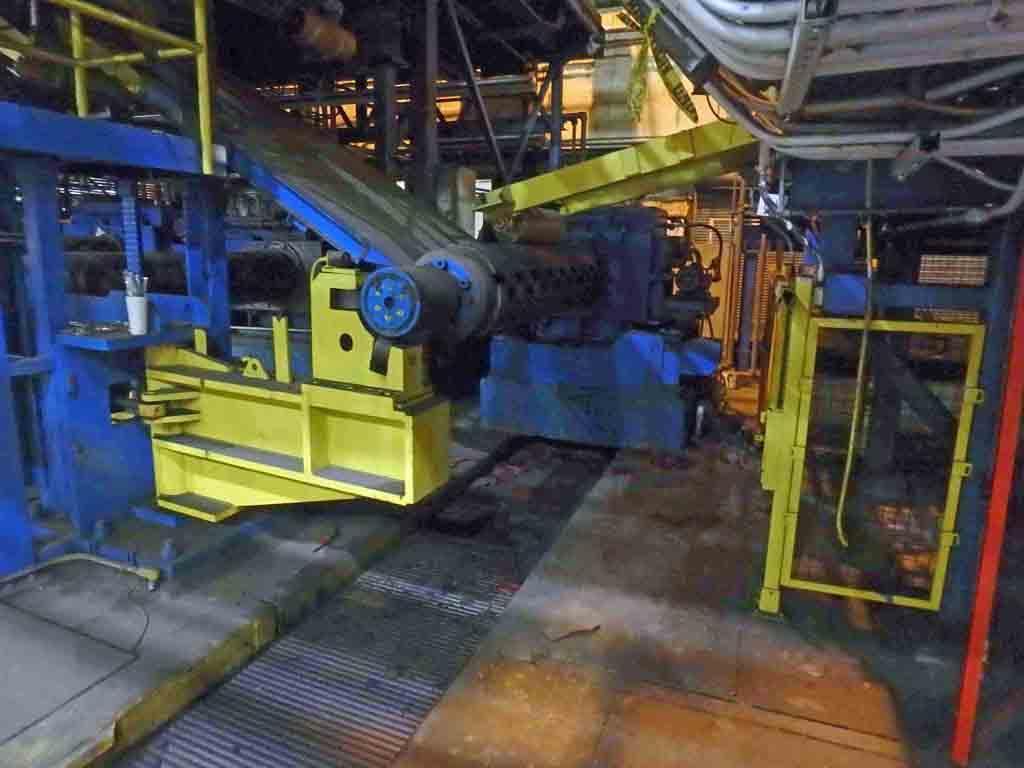

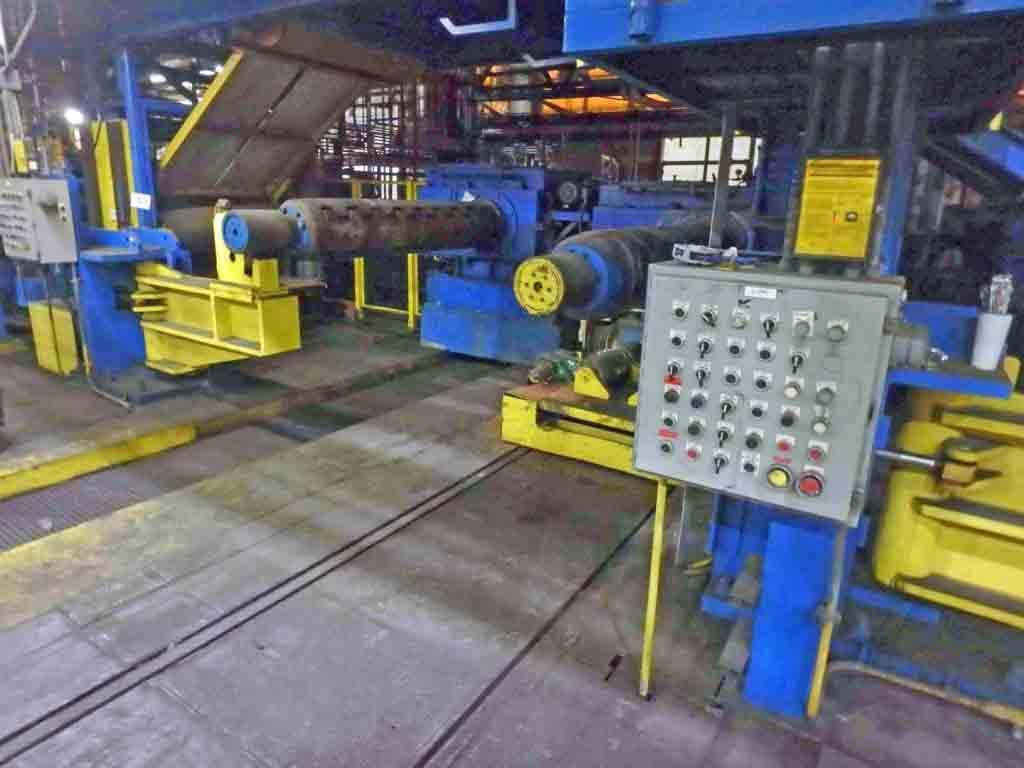

Payout:                                Dual 20"/24" Payoff Mandrels

Rewinder:                              One 16"/20" Winder Mandrel

Coil Size Payout:                      20"/24" ID x 60" Wide x 98" OD

Coil Size Rewind:                      16"/20" ID x 60" Wide x 96" OD

Gauge:                                 0.072"

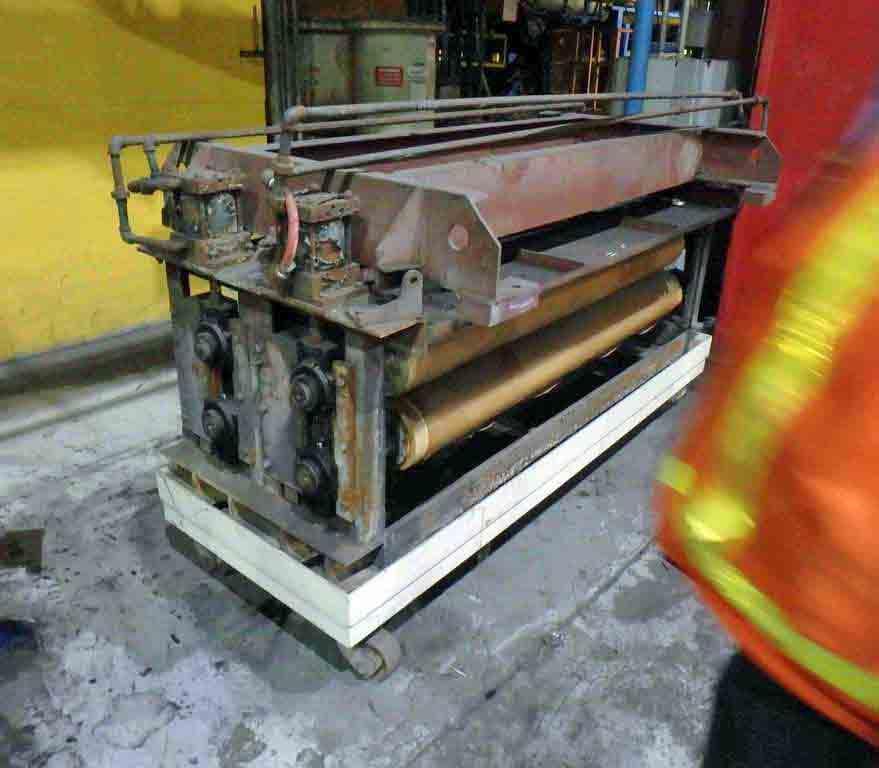

Prime Coater:                          3 Roll Doubleheaded Reverse Roll.

                                       DC Driven Motor

Finish Coater:                         2 Roll Doubleheaded Reverse Roll

                                       Shuttle Hear (4 Heads)

                                       Hydraulic Driven Motors

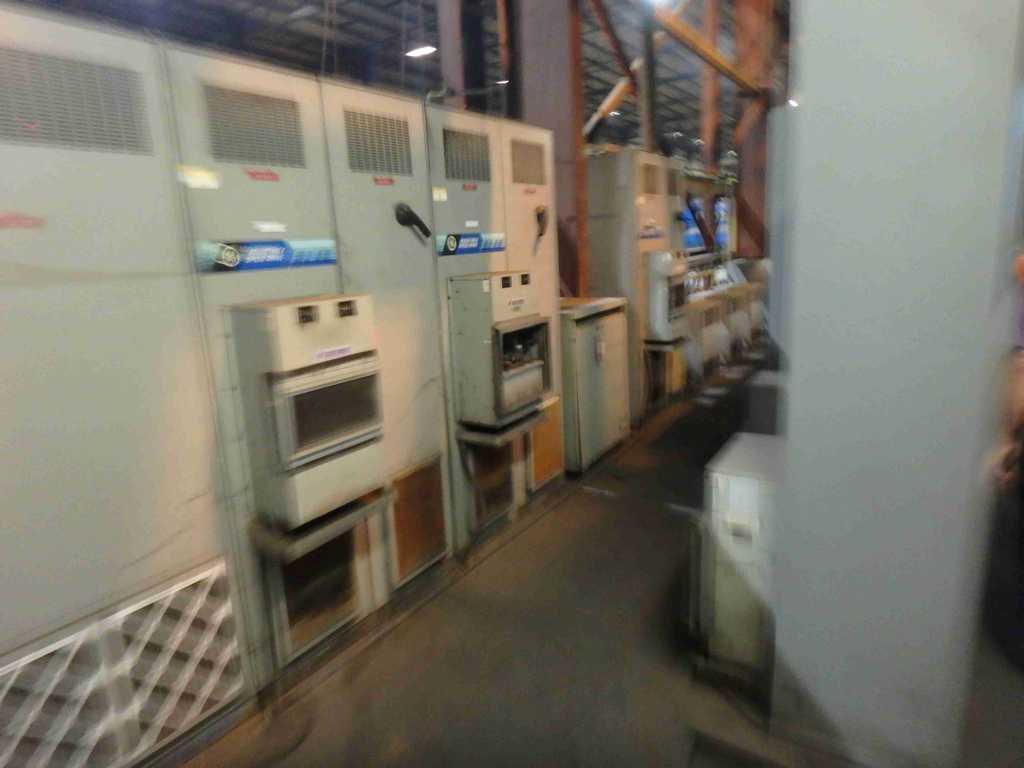

Control System:                        GE 90-30 & Series 6 PLC's

Drives:                                GE Drives

Line is Installed
