Specifications
Equipped With

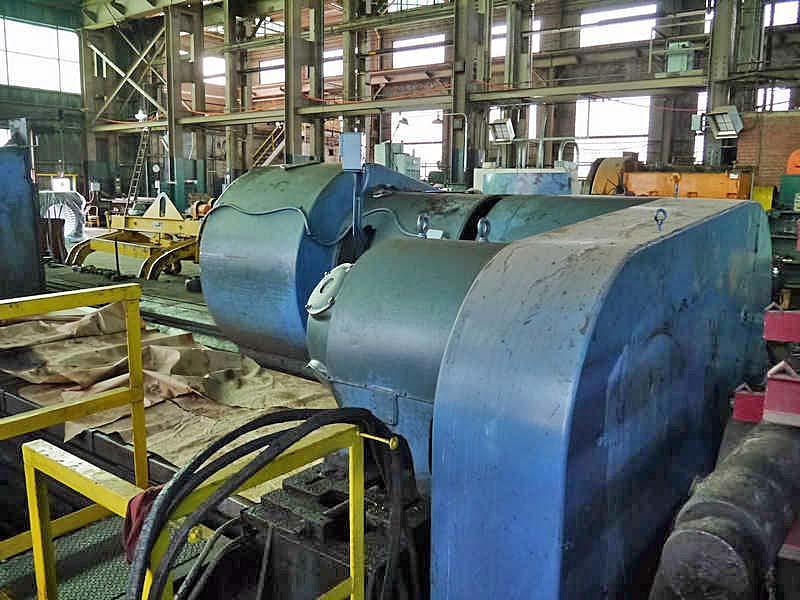

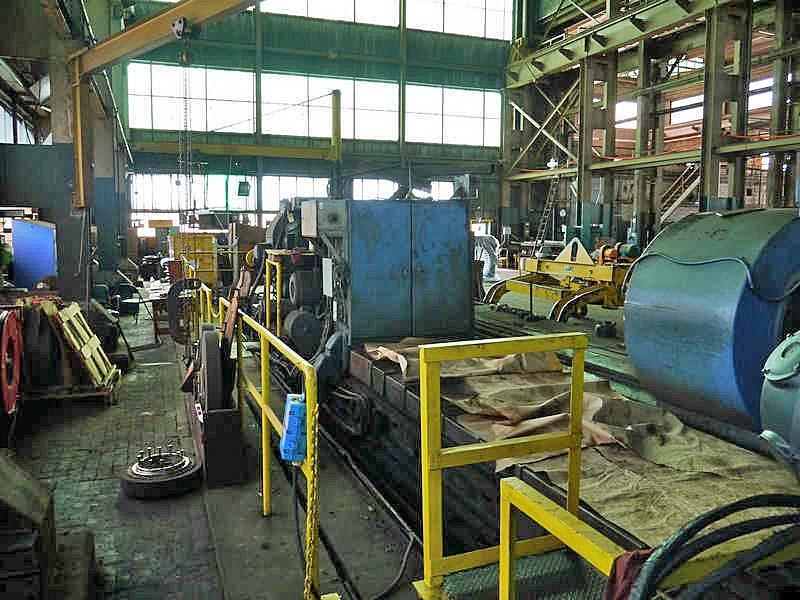

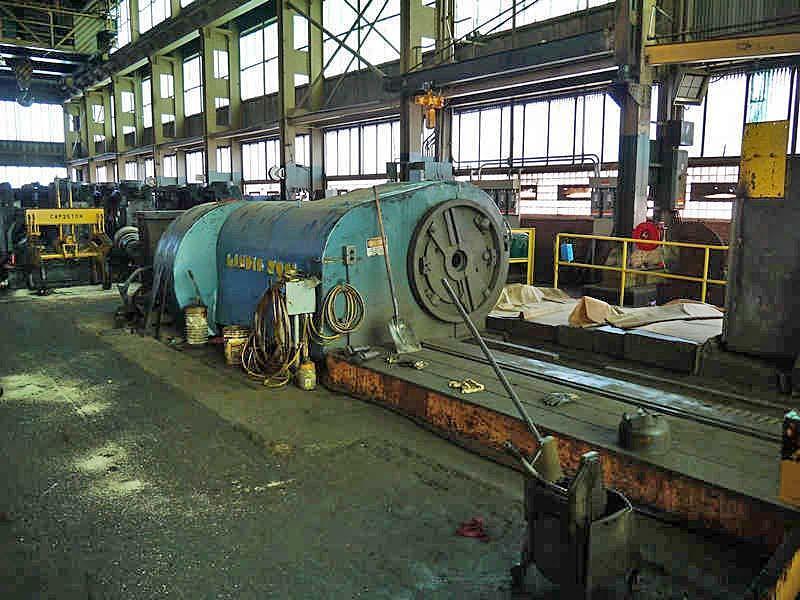

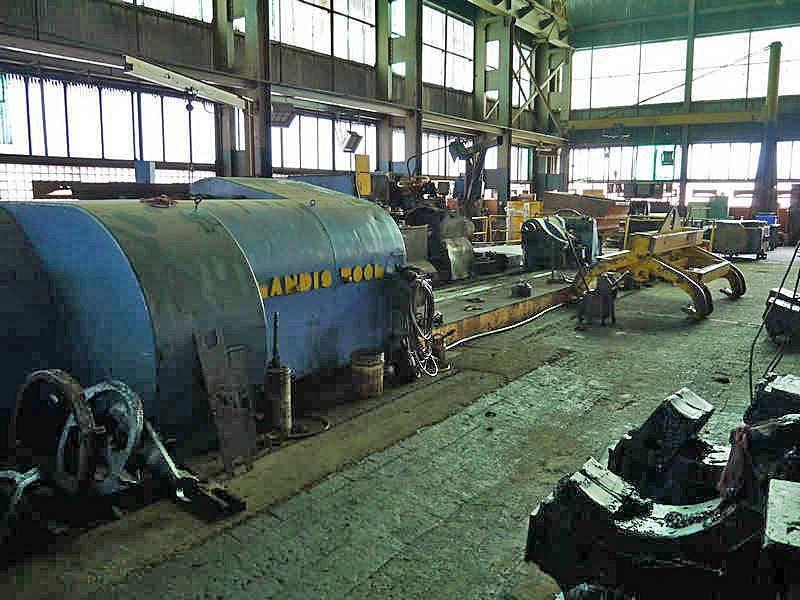

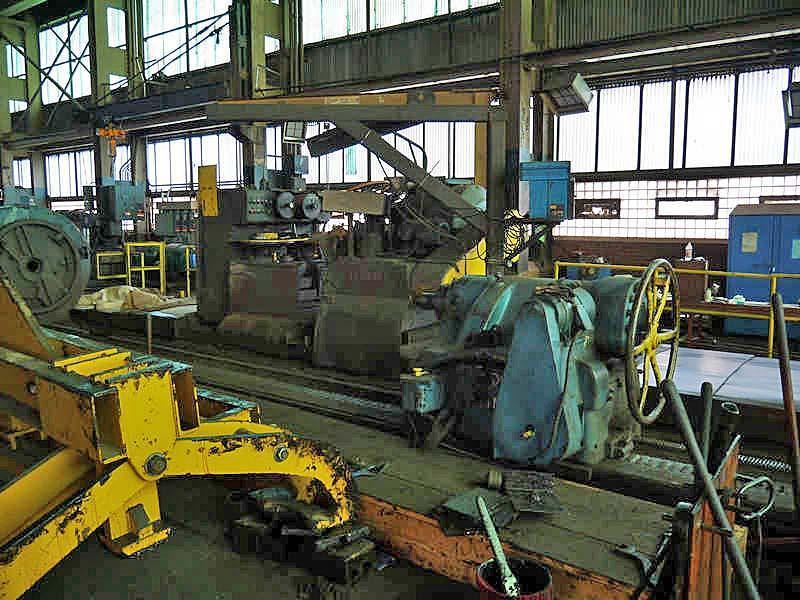

Landis Roll Grinder
-Capacity: 60" Dia. x 252" Long (1524 Dia. x 6400 mm Long)
-Workhead Motor: 30 HP DC
-Wheelhead Motor: 50 HP DC
-Wheel Size: 36" x 4" x 12" (914.4 x 101.6 x 304.8 mm)
-Work Speeds: Approx. 4.5 - 27 RPM
-Traverse Speed: Approx. 2" - 65" per min.
-Maximum Weight between Centers: Approx. 150,000 Lbs.
Equipped With:
-Traveling Wheelhead Carriage
-Tailstock
-Asko Digital MKV Programmable Operator Interface
-Crowning
-Sarclad Rollscan In-Process Gaging

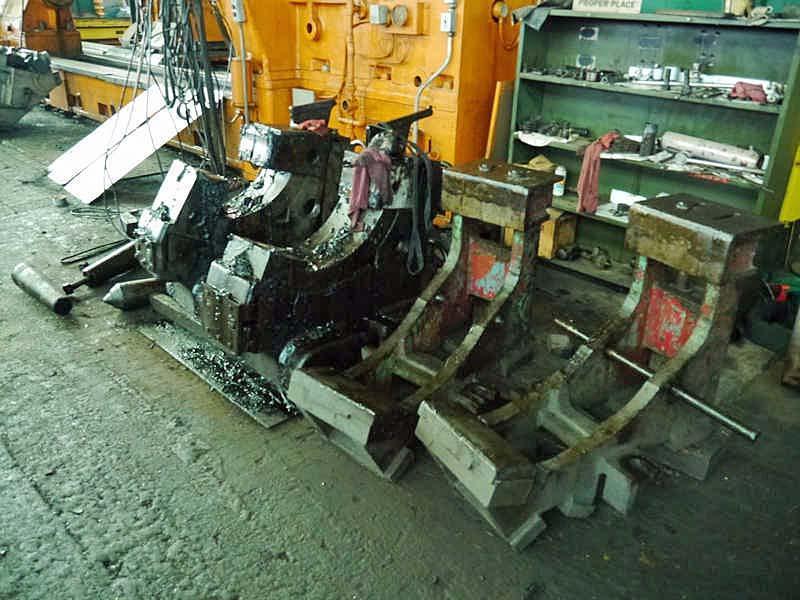

-Work Rest Supports
-Coolant System
-Headstock Weighs: 33,000 Lbs. Approx.
-Bed Weighs: 45,000 Lbs. Approx.
