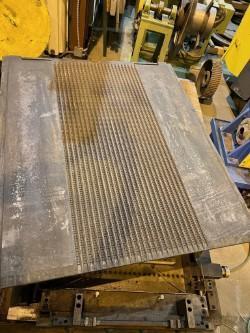

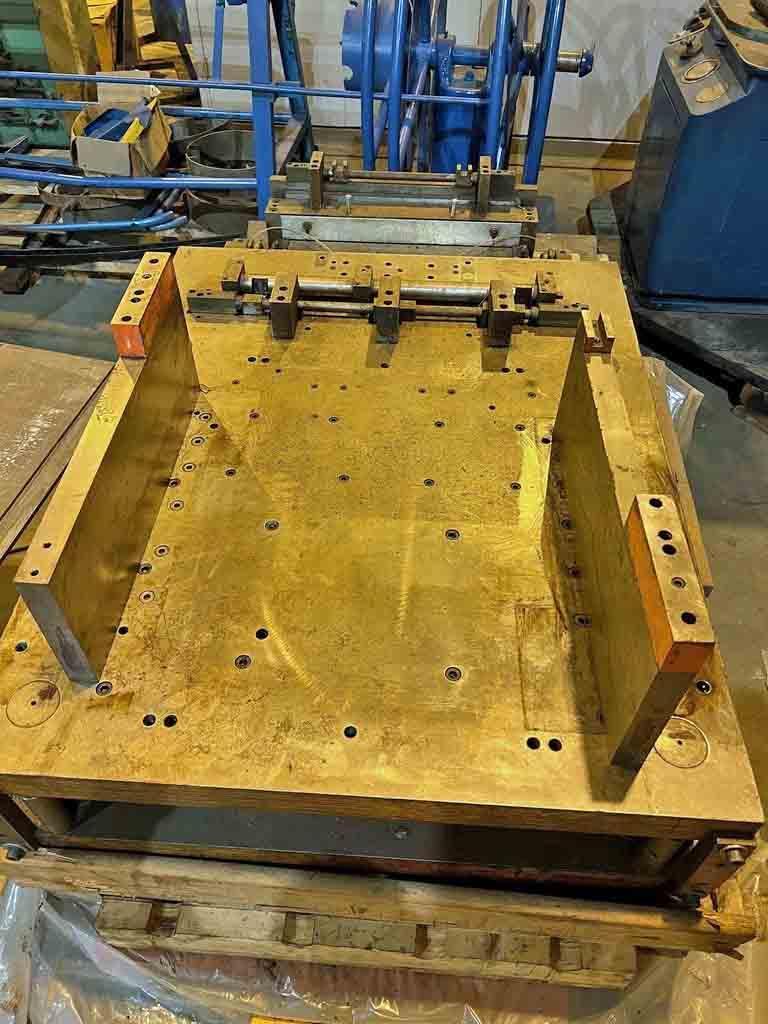

Oak Fin Die

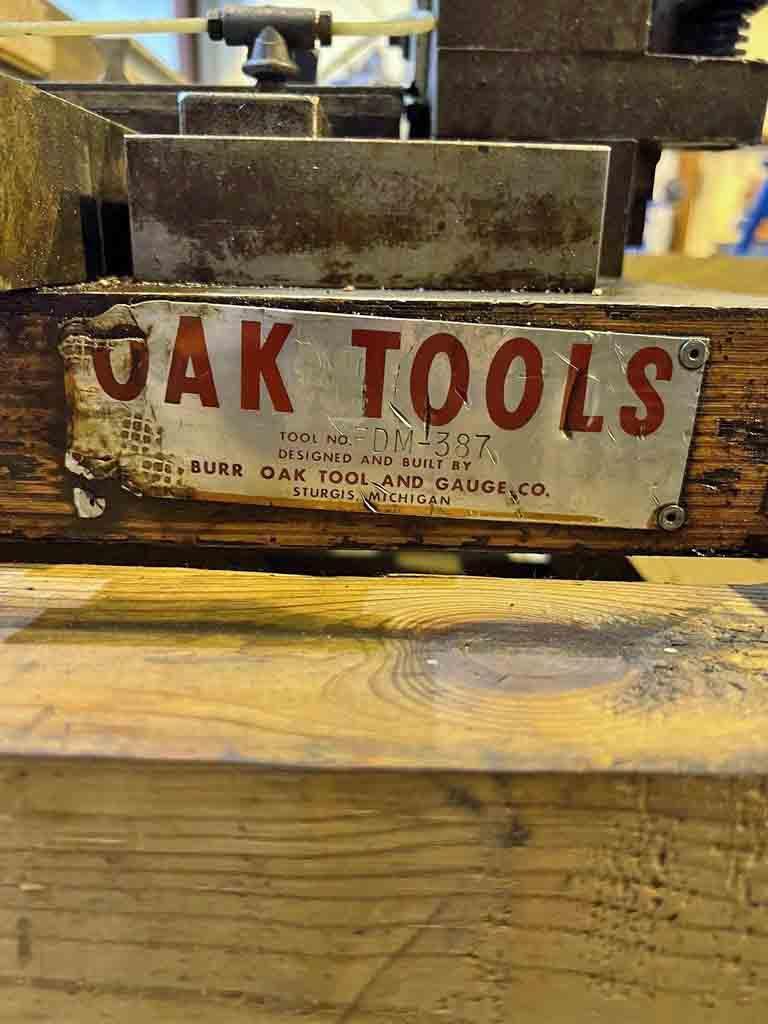

-Model: FDM-387
-Pattern: 0.625" x 3.031" x 1.750"
-Fits in an Oak FP2-48 or FP3 Fin Press
-24 Rows x 1 progression
-Staggered, Ribbon
-Special 0.355" Spacing holes
-10 - 4 FPI
-Gaggable Heater Notch
-Originally manufactured in 1976
-Was running in an FP2-48 Press at Krack in Addison, IL.
Die has been transferred 6 times
-Would fit in FP3, but have to drill new mounting holes in the Ram.
Additionally, the Bolster would not line up. Most likely have to
have a new Bolster made.
-In 1990 Burr Oak sharpened and rebuilt the Die.
5/8" Dia Tube
Special 0.355" ID Spacing on holes
Flared Collar for spacing
Heater Notch on sides of fin
Used in Co2 application.
According to Sharp Solutions, this die will only run stainless.
Might be possible to modify it to run aluminum.
