Specifications
Equipped With
COILPRO
USED FOR COPPER ALLOY
TENSILE STRENGTH ....................... 26-46 KPSI
SHEAR STRENGHT ........................ 20-56 KPSI
GAUGE .................................. 0.025" TO 0.125"
COIL ENTRY WEIGHT ...................... 5000 LB.
MAX COIL WIDTH ......................... 28"
EXIT COIL MIN WIDTH .................... 2"
EXIT COIL ID RANGE ..................... 6", 16", 20", 30"
LINE SPEED ............................. 250 F/MIN
ENTRY ROLLS ............................ YES

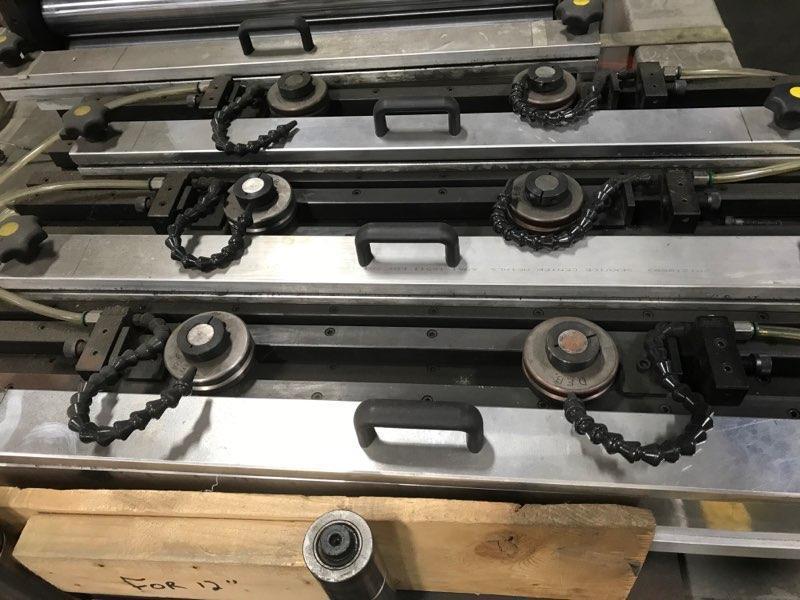

# FLOATING SWEDGING TOOL STATIONS ...... 3
EXIT PINCH ROLLS ....................... YES

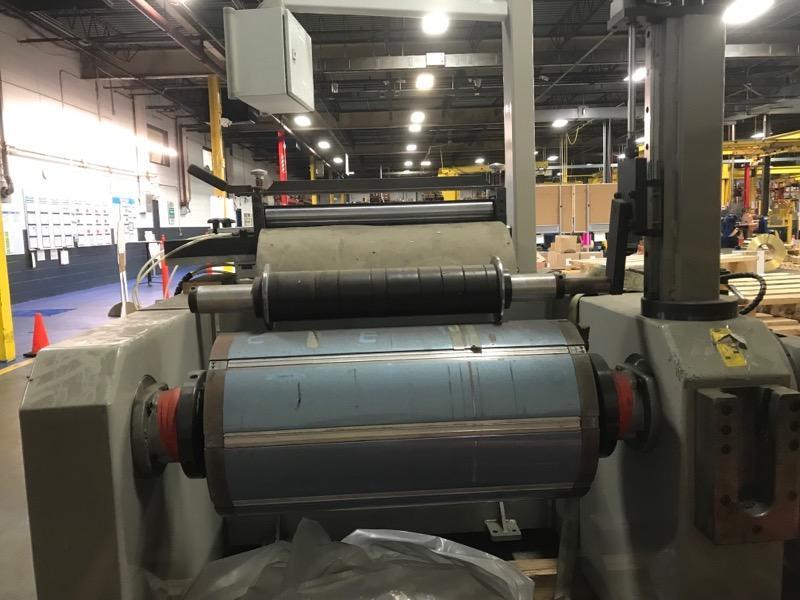

REWINDER DRUM .......................... PNEUMATIC EXPANSION FOR CARDBOARD CORES
DRIVE MOTOR ............................ AC
