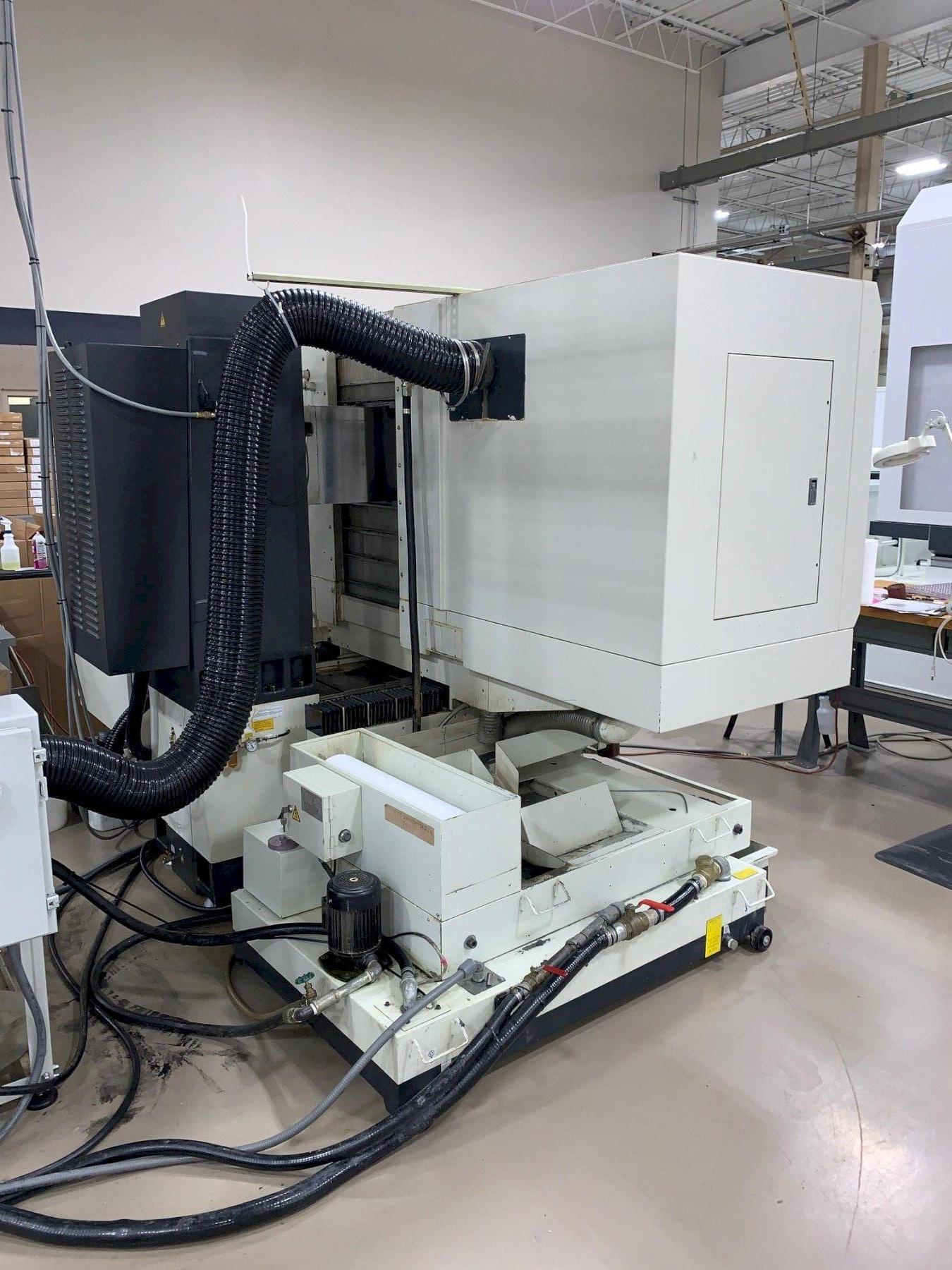

Chevalier CNC Hydraulic Grinder, Model: Smart-B1224III

Brand
CHEVALIER

Model
Smart-B1224III

Type
None

Stock #
2083

Condition
Not specified

Year
2014

Location
Toledo, Ohio
United States

Specifications

Equipped With

Year of Mfg ........................... 2014
Table Size ............................ 11-3/4" x 23-5/8",
Max. Grinding Length .................. 24",
.Max. Grinding Width Crosswise ......... 12",
Max. Grinding Elevation ............... 16.5",
Dist Btwn Table to Spindle Centerline . 23.6",
Table Load ............................ 923 lbs.,
Table Speed ........................... 16-82 FPM,Tranverse Movement: Max.
Stroke ................................ 13-4/5",
Feed Speed ............................ 0-10 FPM,
Spindle ............................... 1750
Spindle ............................... 15 HP

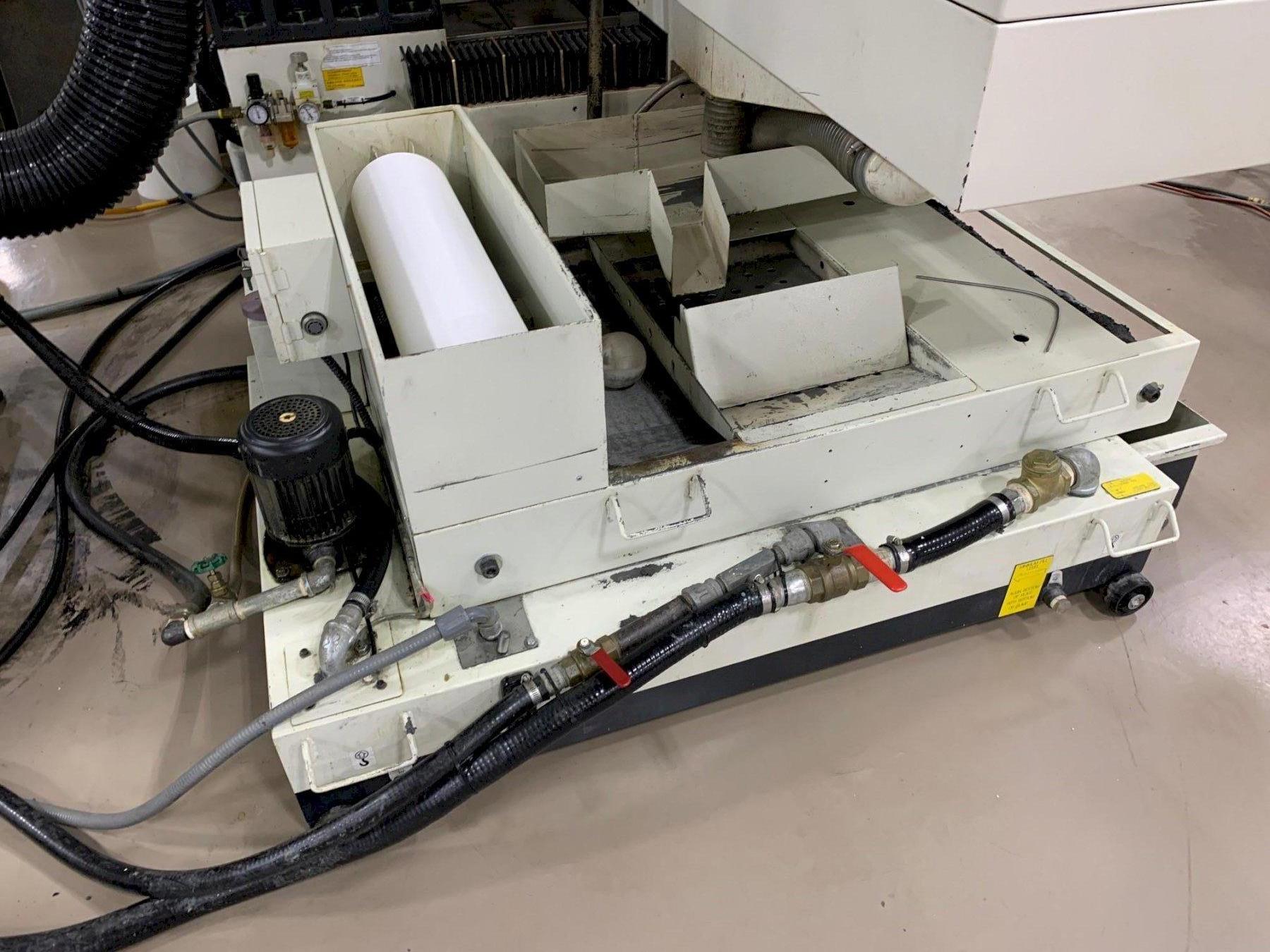

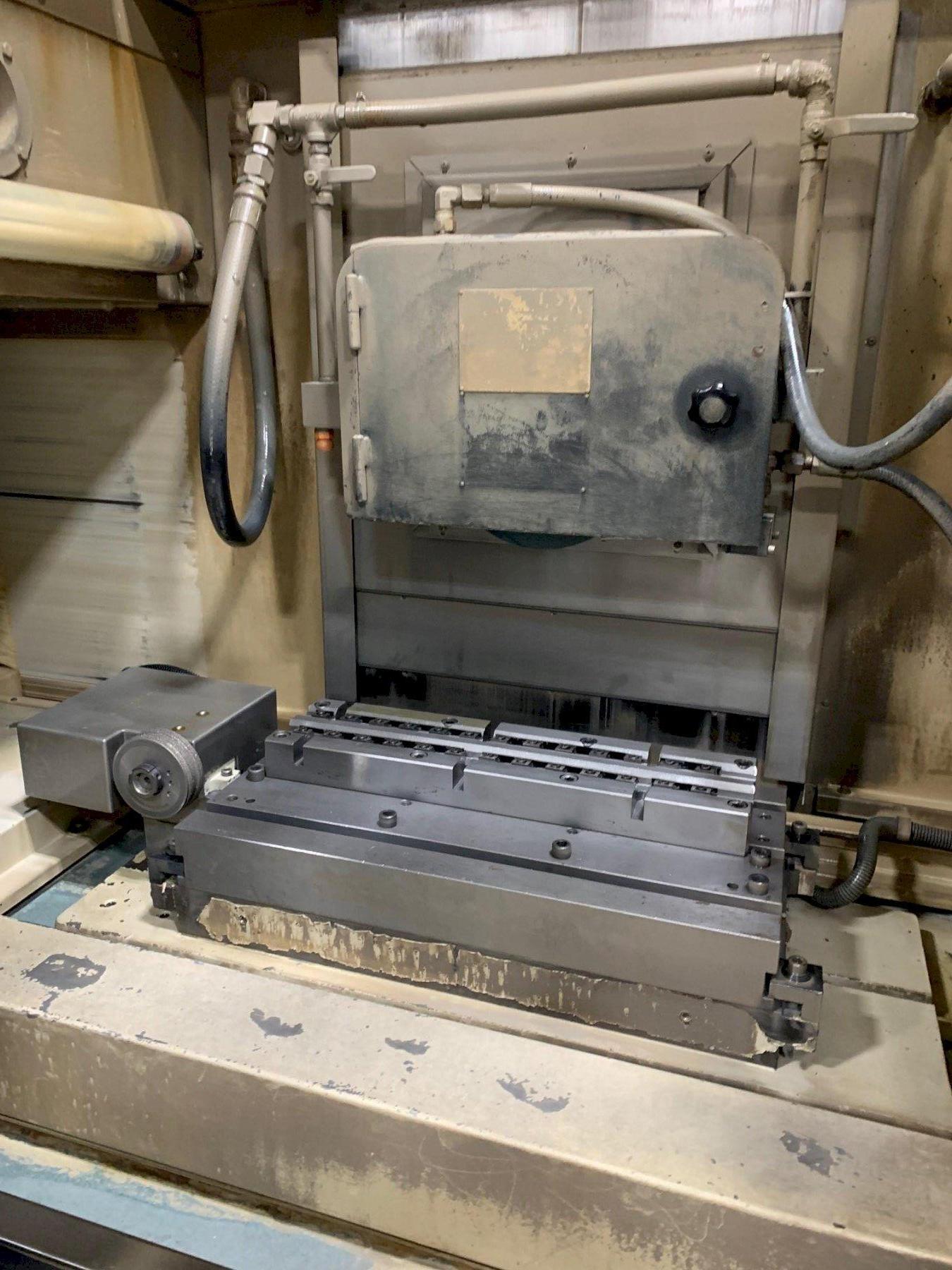

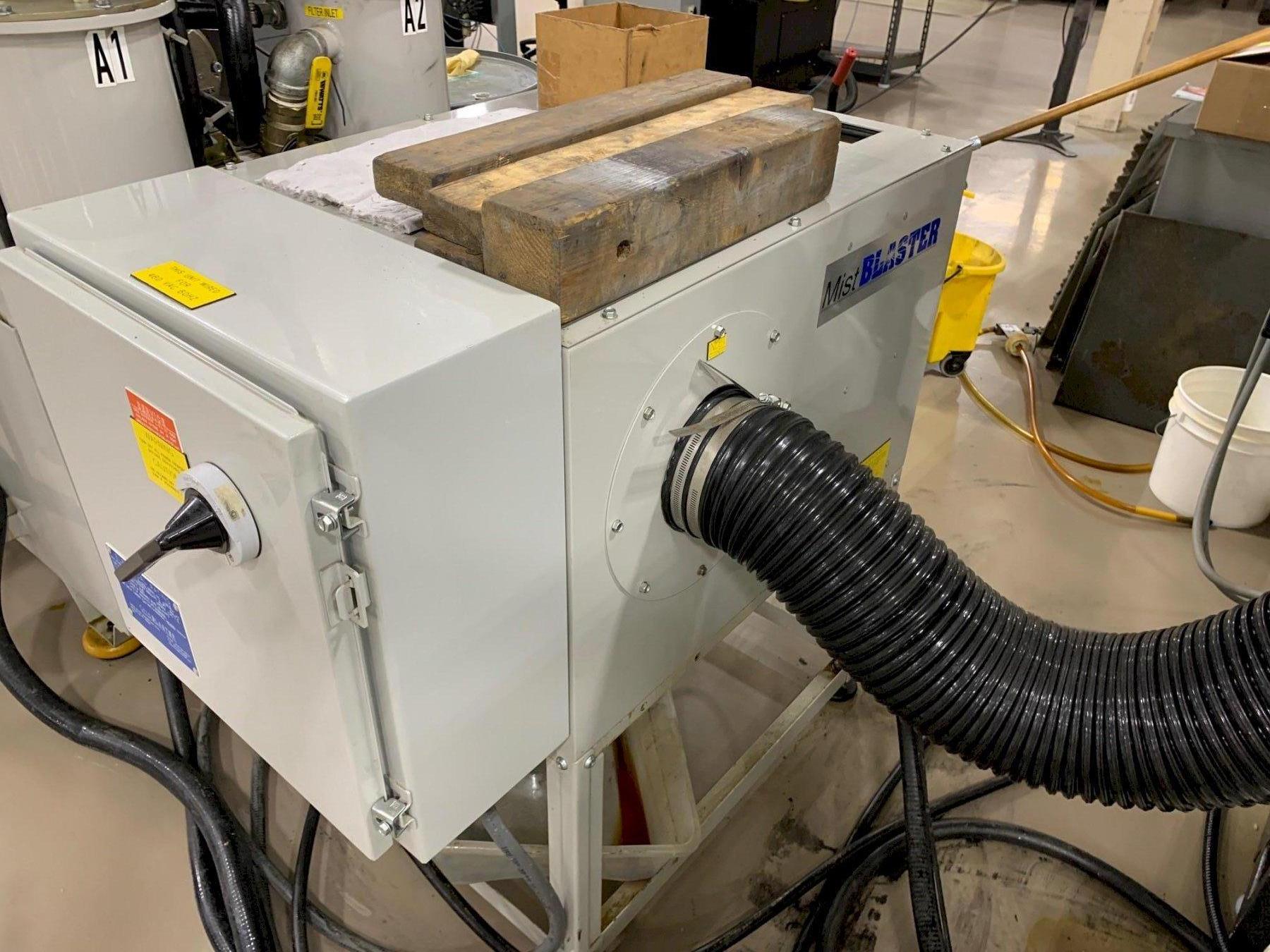

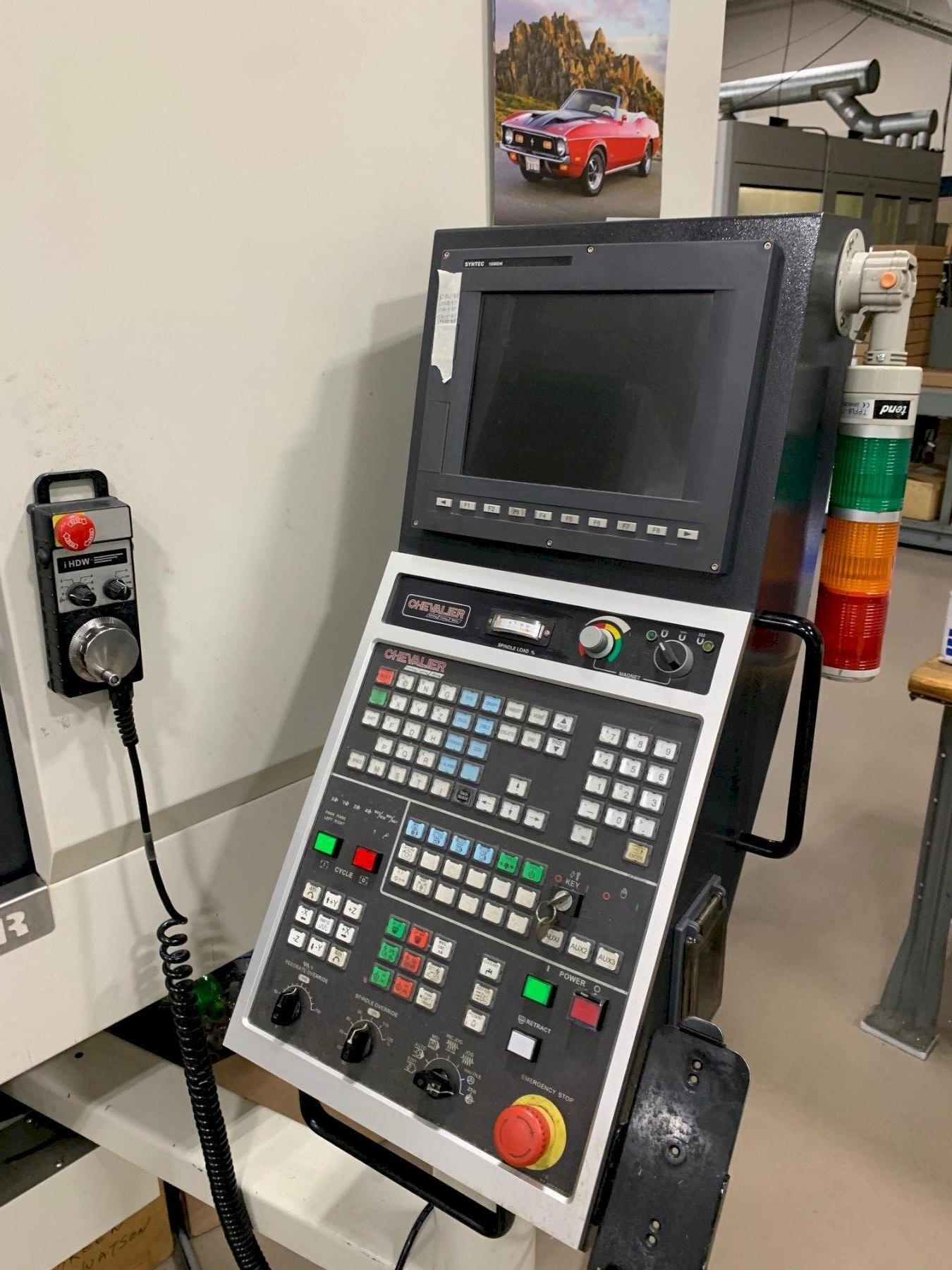

Equipped with: Chipblaster Mist Collector, Model: SAMB (2103). Pendant Controller, Model: iHDW-BLECS-IM, Walker Electromagnetic Chuck Control, (12"x24"), Diamond Disc Wheeler Dresser with Coolant Pipe (2,000 Rpm, 1" Shaft Max. Width 1" OD 3-1/2" - 4-1/2" Riser Block, Coolant System with Auto Paper Feeding, Fully Enclosed Splash Guard w/ 2 Machine Lamps, Control: Syntec 10 MDN

Also available and selling separately is a

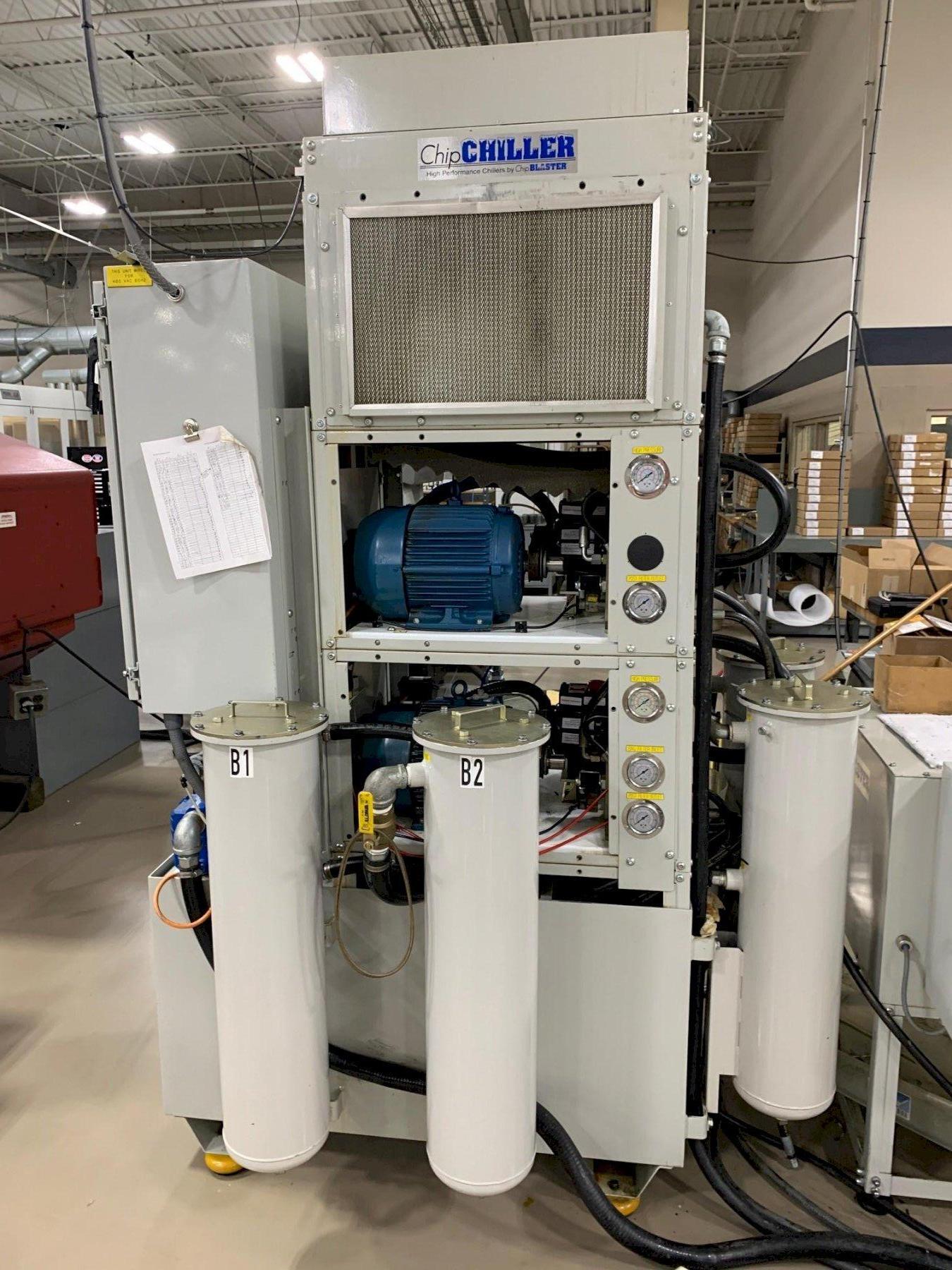

ChipBlaster Model:  ChipBlaster Model: JS-60 & ChipChiller by ChipBlaster
Specifications subject to verification
