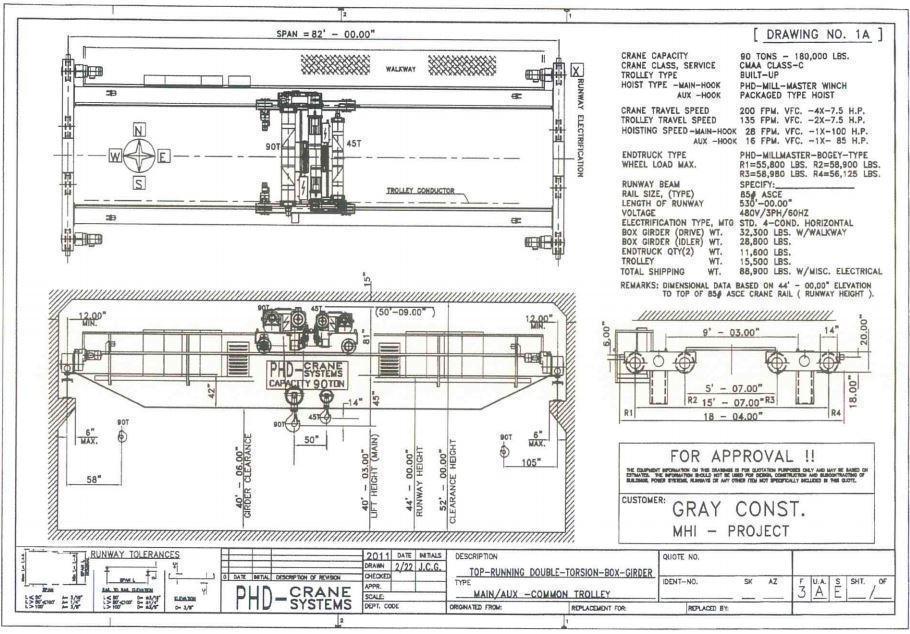

SERIAL ...................... A2577C
YEAR ........................ 2011
CRANE CLASS ................. C

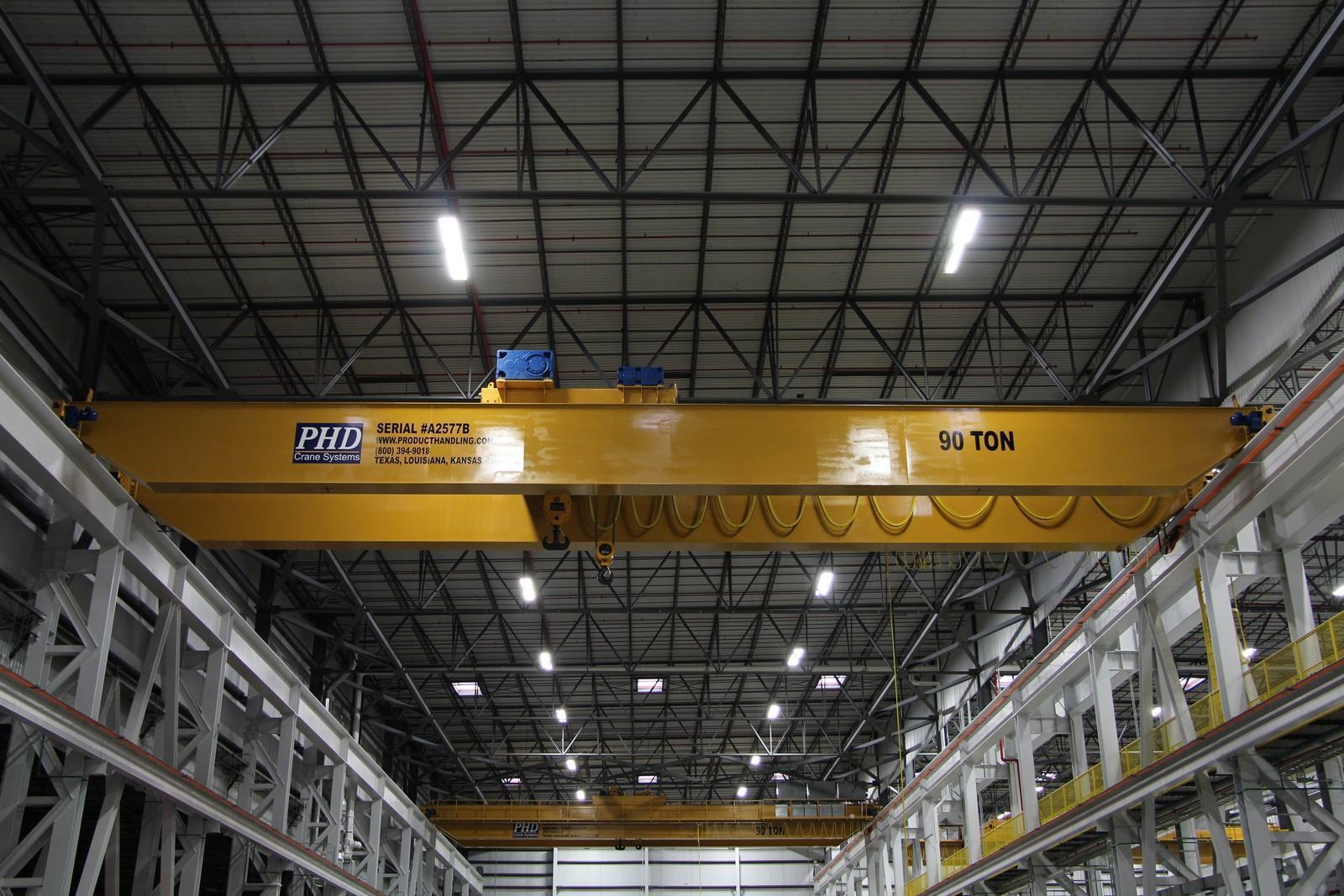

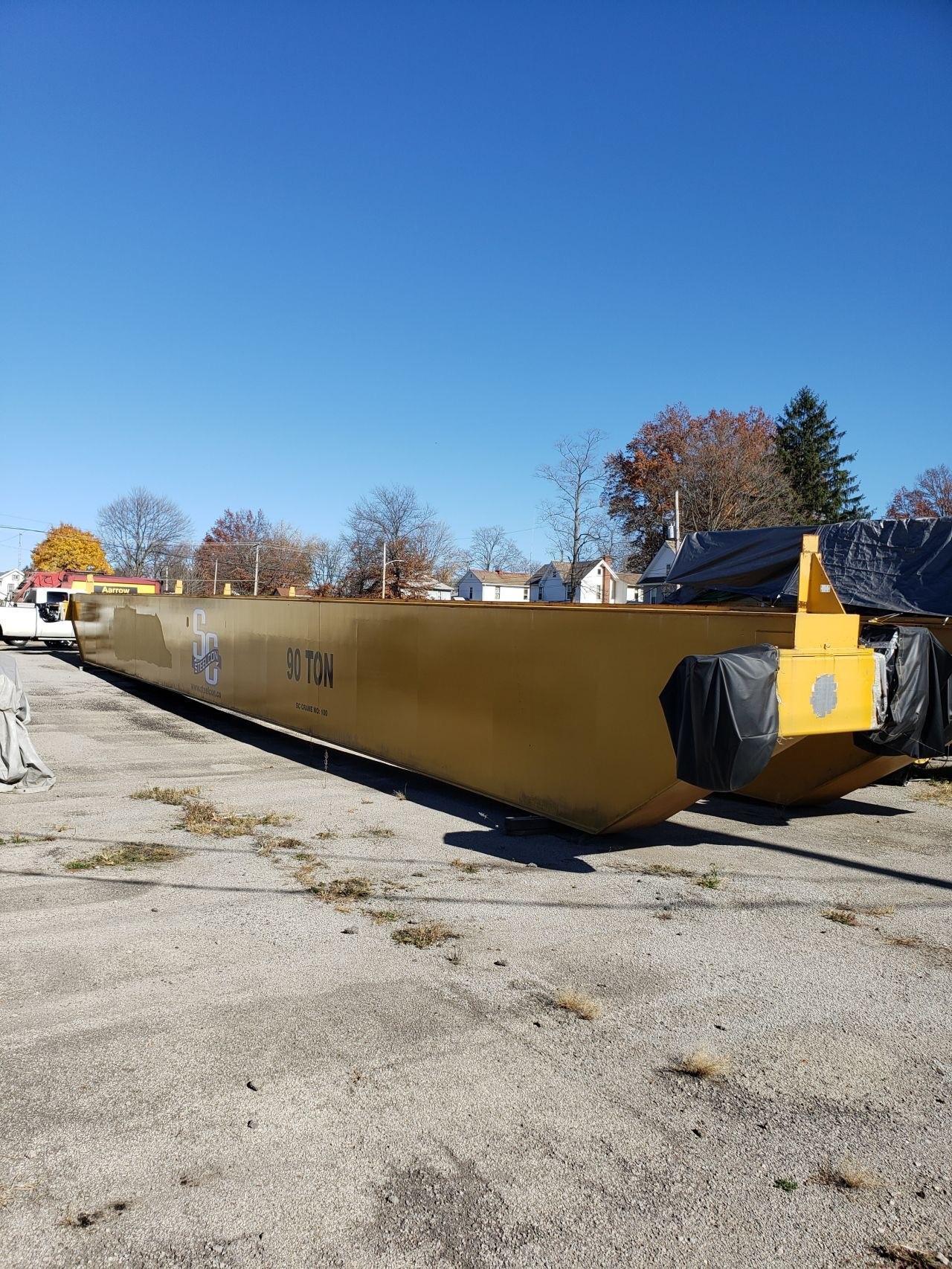

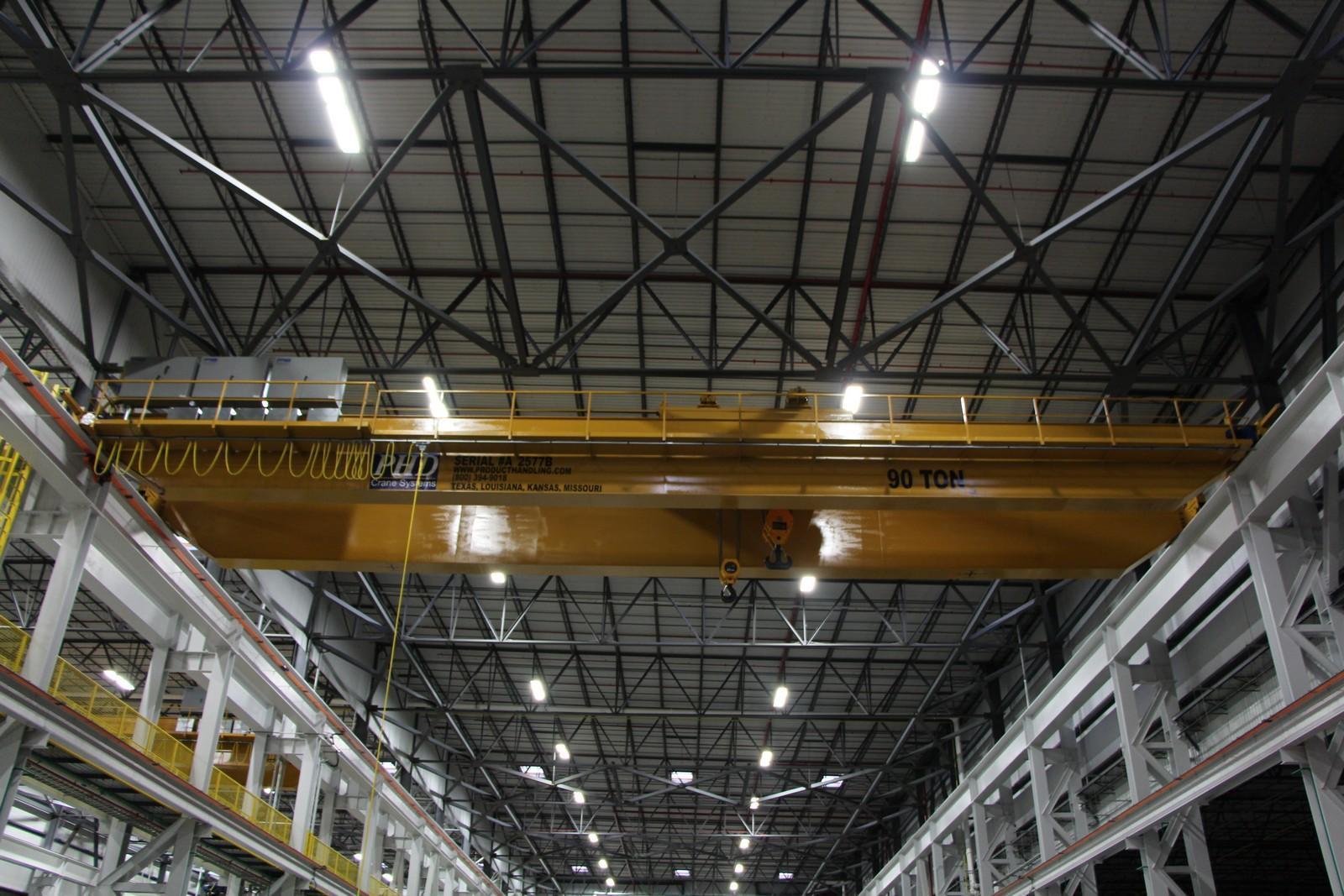

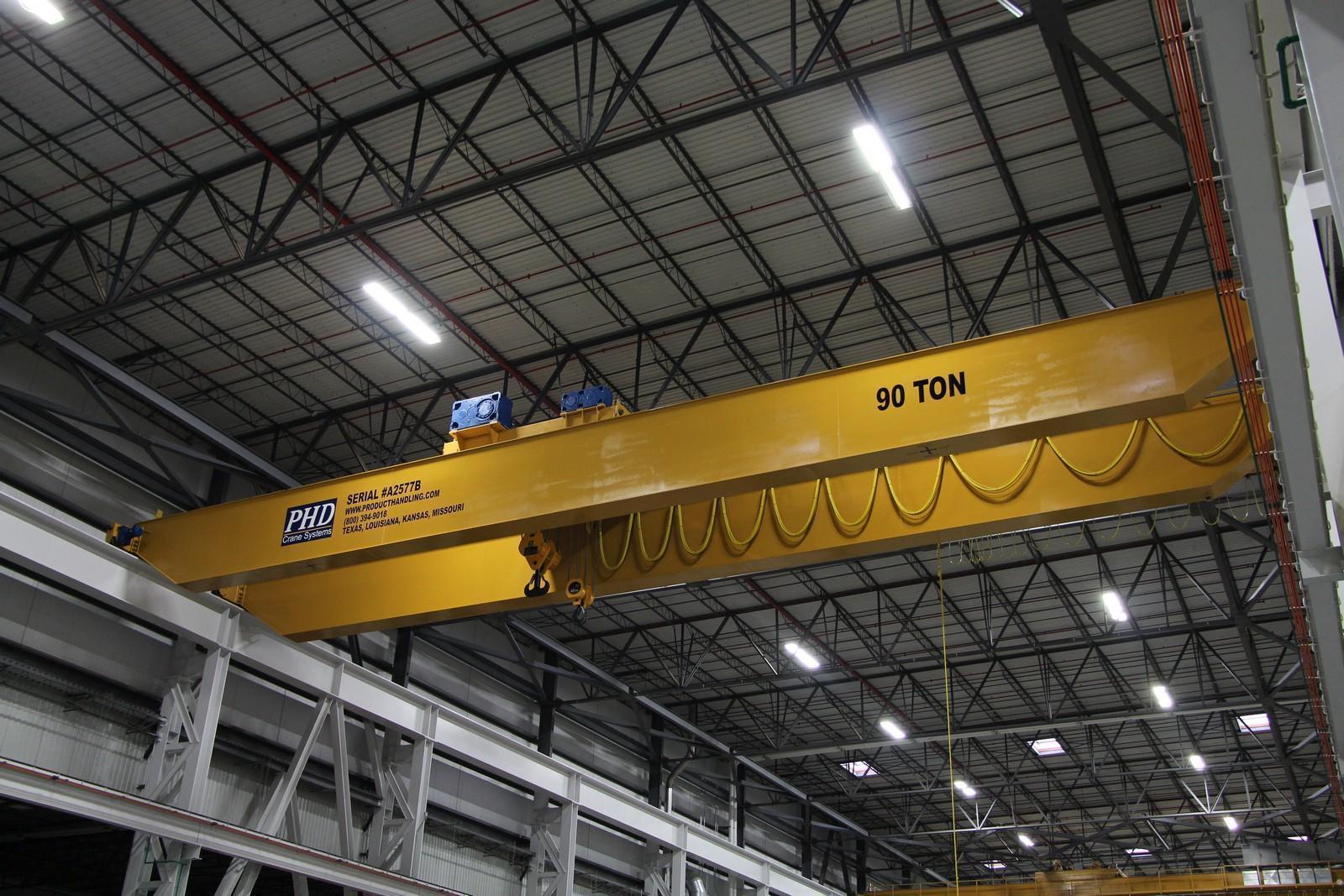

CAPACITY MAIN HOIST ......... 90 TON
CAPACITY AUX HOIST .......... 45 TON
BRIDGE SPAN ................. 82'
LIFT HEIGHT ................. 40'
TROLLEY TYPE ................ BUILT-UP
HOIST TYPE (MAIN HOOK) ...... PHD MILL MASTER WINCH
HOIST TYPE (AUX HOOK) ....... PACKAGED TYPE HOIST
RAIL SIZE ................... 85 LBS
MOTOR ....................... 480V / 3PH / 60HZ

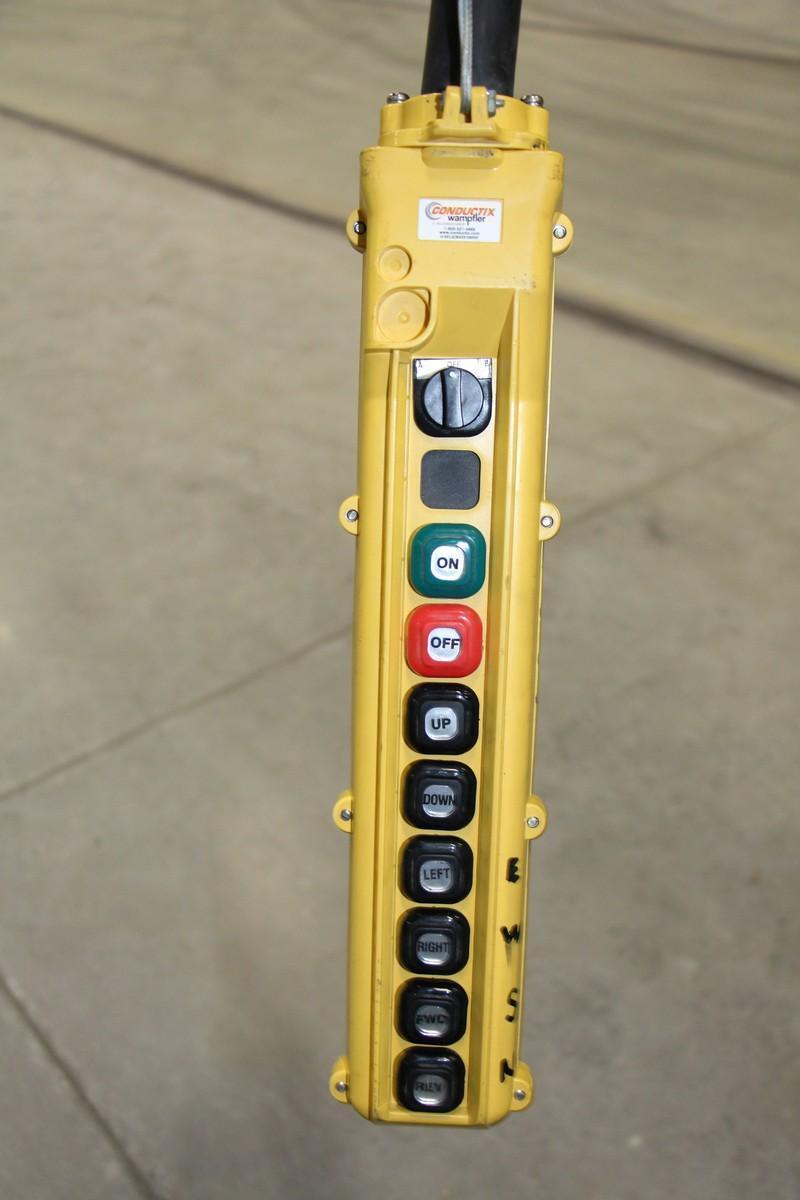

REMOTE CONTROL W/ PENDANT BACKUP
WHEEL LOAD MAX .............. R1=55,800 LBS, R2=58,900 LBS
R3=58,980 LBS & R4=56,125 LBS
SPEEDS:
BRIDGE ...................... 200 FPM / 7.5 HP
TROLLEY ..................... 135 FPM / 7.5 HP
