Strip Width: 24" - 84" (600 - 2.135mm)
Strip Thickness: 0.040" - 0.315"/0.393" (1 - 8mm/10mm)
Plate Length Max: 47' (14.500mm)
Reference Material Tensile Strength: 50,000 PSI (350 N/mm2)
Max. Tensile Strength (Limited): 101,000 PSI (700 N/mm2)
Coil O.D. Max: 84" (2.135mm)
Coil Weight Max.: 80,000# (36 Ton)
Line Direction: Left to Right
Consisting of the following:

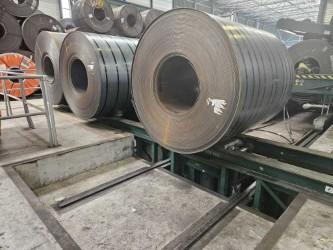

-Coil Storage:
4 Coils
-Coil Car:
Pit Type

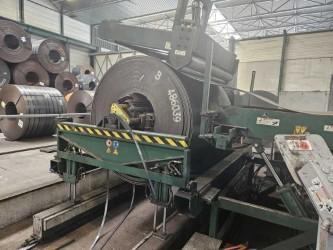

-Uncoiler:
Mandrel Type
Hydraulic Expansion
Expansion Range: 18.5" - 20.5" (470 - 520mm)
Coil I.D. Range: 20" - 24" (30", 33.5", 35.4" with Pads)
Holddown Arm: Hydraulic
Sliding Base: Hydraulic
Outboard Mandrel Support
-Strip Edge Control:

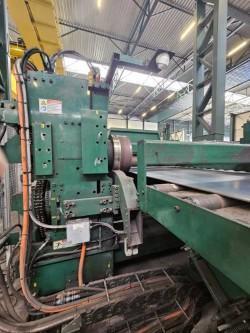

-Coil Opener / Pinch Roll Unit:
Telescopic Table: Hydraulic
-Crop Shear:
Design: Hydraulic
Cutting Edges: Quadruple
Cutting Gap Adjustment
Scrap Cart

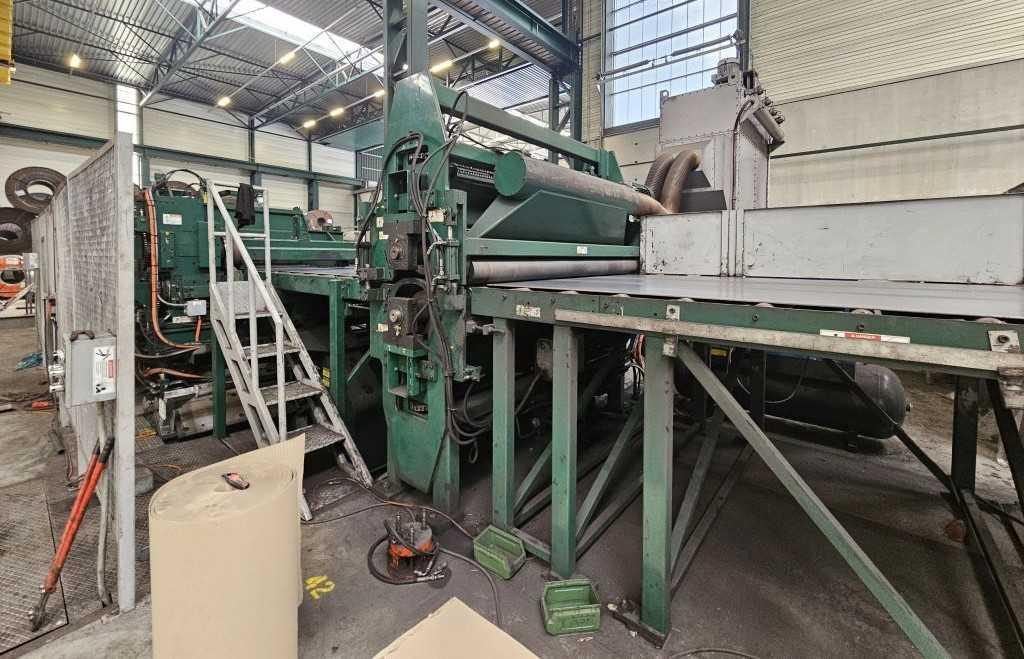

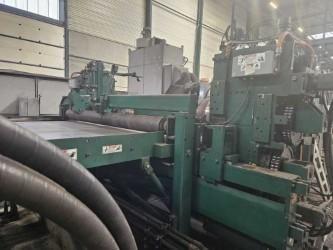

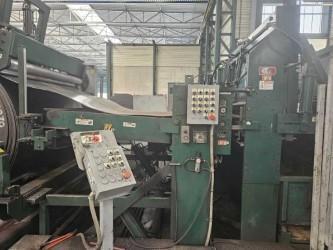

-Leveler:
Design: 4 HI
Number of Leveling Rolls: 11
Leveling Roll Dia.: 6" (152mm)
No. of Backups top/bottom: 6/6
Entry/Exit Height Adjustment
Top Leveling Roll Opening: Hydraulic
Main Drive Motor

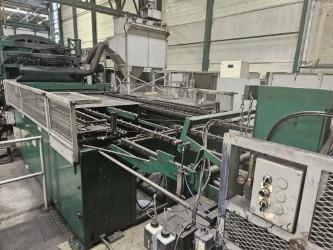

-Brushing and Exhaust Station with Filter:

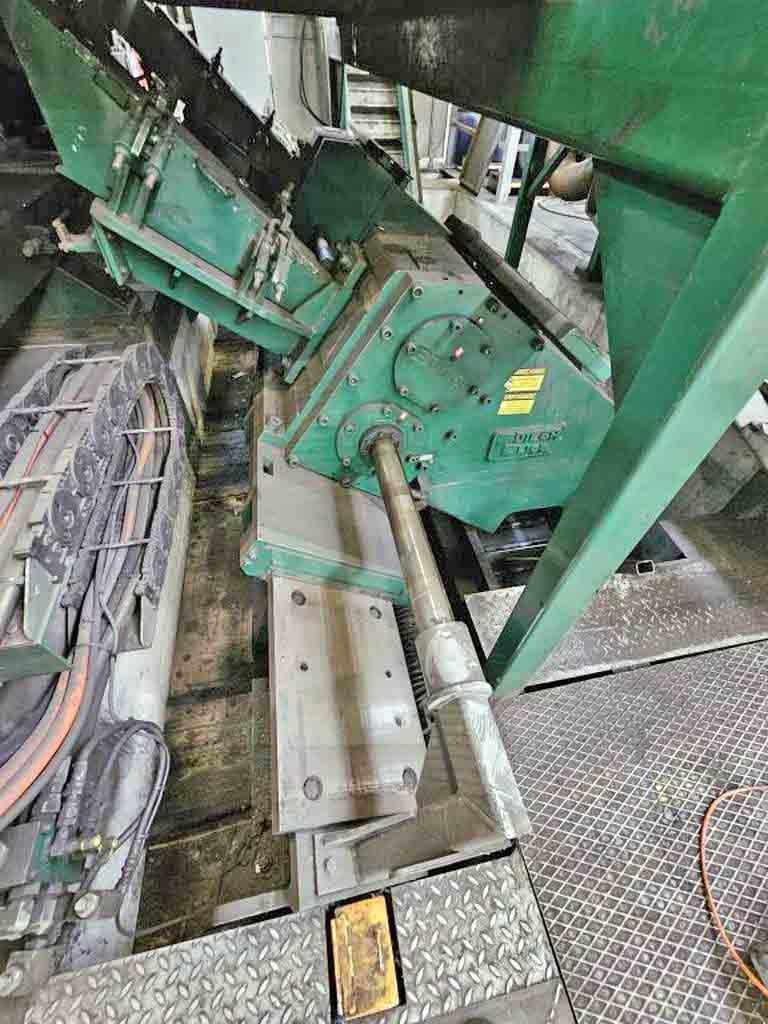

-Double-Stub Edge Trimmer:
Trimming Width: 0.078" - 2" (2 - 51mm)
Cutting Gap Adjustment: Electromechanical
Immersion Depth Adjustment: Electromechanical
Strip Width Adjustment: Electromechanical
Main Drive
-Scrap Choppers: Butech
Scrap Strip Width Adjustment: Electromechanical
-Looping Pit Equipment:

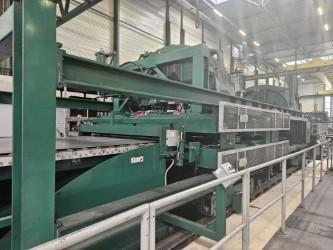

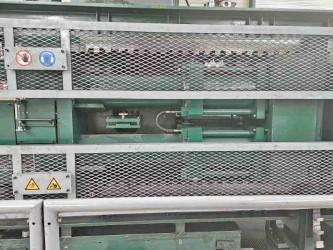

-Stretch Leveler:
Stretching Length Max: 24.6' (7.500mm)
Stretching: Hydraulic
Gripper: Hydraulic
Stretching Degree: Adjustable
Hydraulic Unit Drive/Hydraulic Pump Drive
-Brushing and Exhaust Station with Filter:
-Feeder:
-Shear:
No. of strokes: 50 SPM Max.
Holddown Device
Holddown Device Pressure: Adjustable
Blade Cutting Edges: 4
Cutting Gap Adjustment: Electromechanical
Cutting Angle Adjustment: Electromechanical
-Inkjet Printer:
-Pinch Roll Unit:

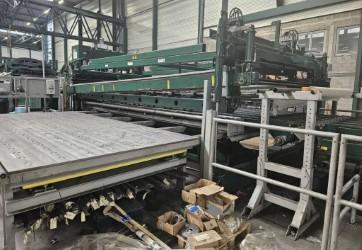

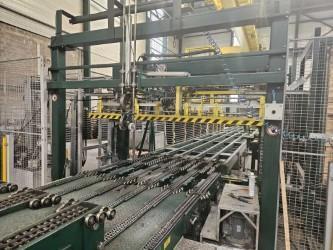

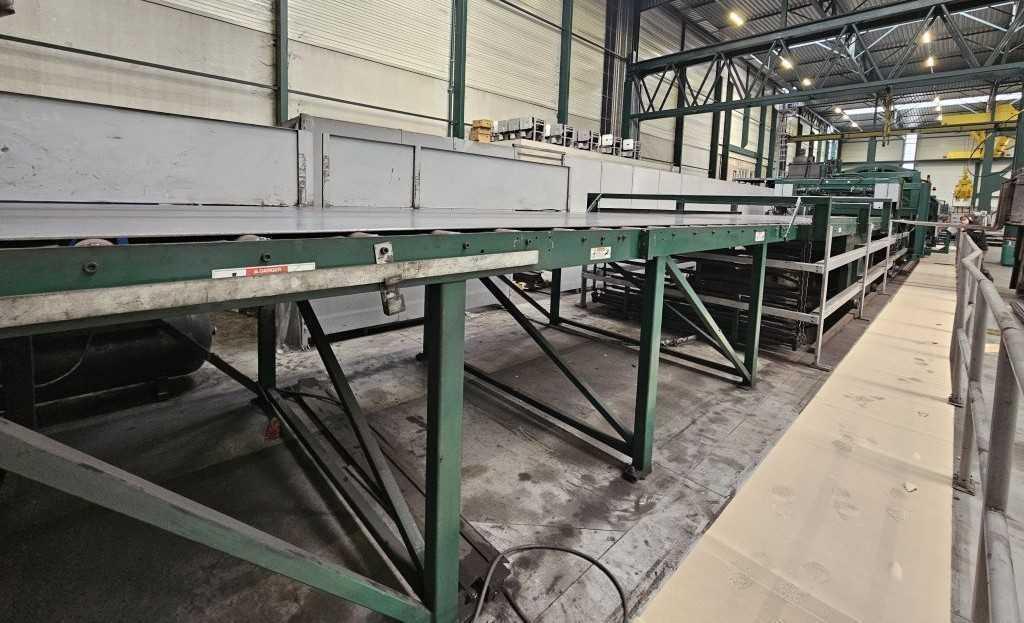

-Automatic Stacker:
Length Stop Adjustment: Electromechanical - 24.6' max.(7.500mm max.)
Width Stop Adjustment: Electromechanical
Pallet Roller Table Adjustment: Electromechanical
Pallet Supply: Lateral
-Pallet Roller Table with Banding Station: Orgapack

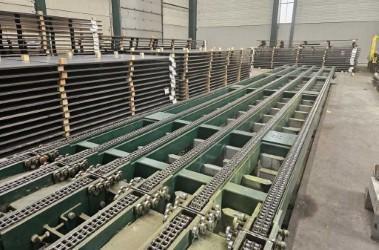

-Pallet Roller Table with Balance:

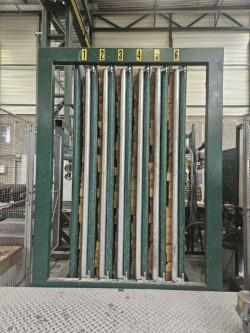

Automatic positioning of wood spacers
-Hydraulics:
-Electrics: Alan Bradley
Installed Power: 523 KW
Voltage: 400 V / 50 Hz.
