82" x 0.236" x 60,000# Ungerer Cut-To-Length Line
Material:
-Tensile Strength: 100,000 PSI Maximum (70kg/sq.mm)
-Coil Thickness: 0.063" - 0.236" (1.6 - 6mm)
-Coil Width: 31.5" - 82.7" (800 - 2100mm)
Specifications:
-Coil Weight: 30 Ton Maximum
-Sheet Length: 19.6" - 291" (500 - 7400mm)
-Stack Weight: 15 Ton Maximum
-Line Speed: 0 - 164 FPM (50M/Min.) Maximum
-Line Direction: Left to Right
Consisting of:
-Entry Coil Car:

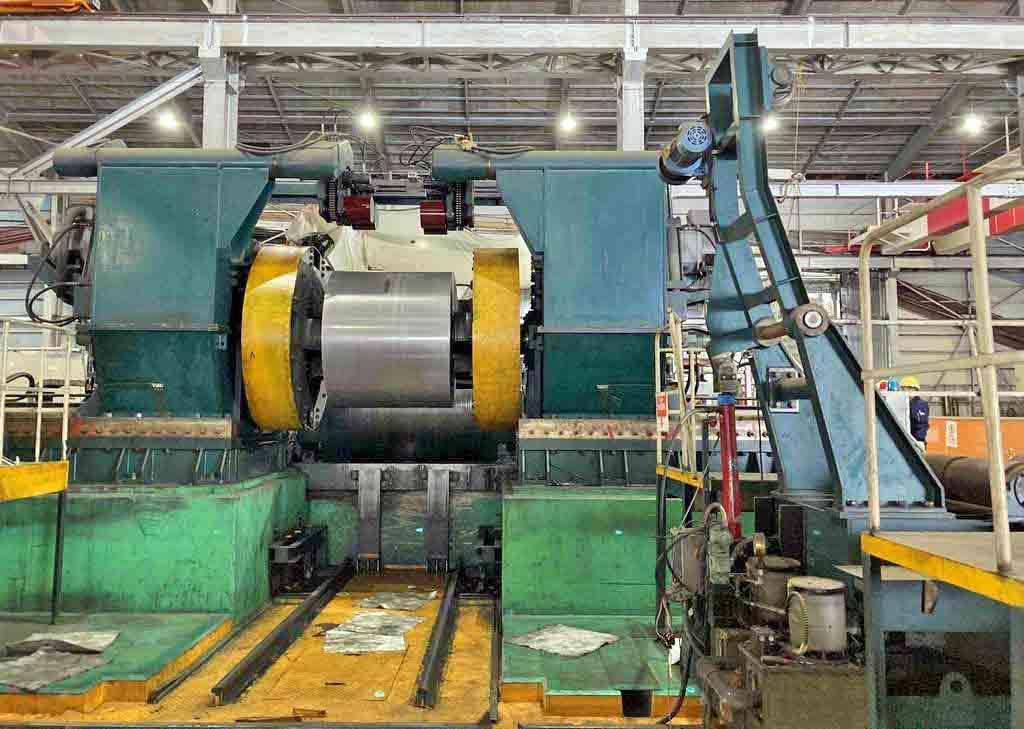

-Uncoiler:
Double-End Expanding Mandrel Type
Hydraulic Expansion
Sliding Base
Brake
Holddown Roll
-Peeler Table:
-Entry Crop Shear:
Hydraulic Cylinder Operated
-Double-Stub Edge Trimmer:
Entry Driven Pinch Rolls
-Scrap Winders:
-Feed Table:

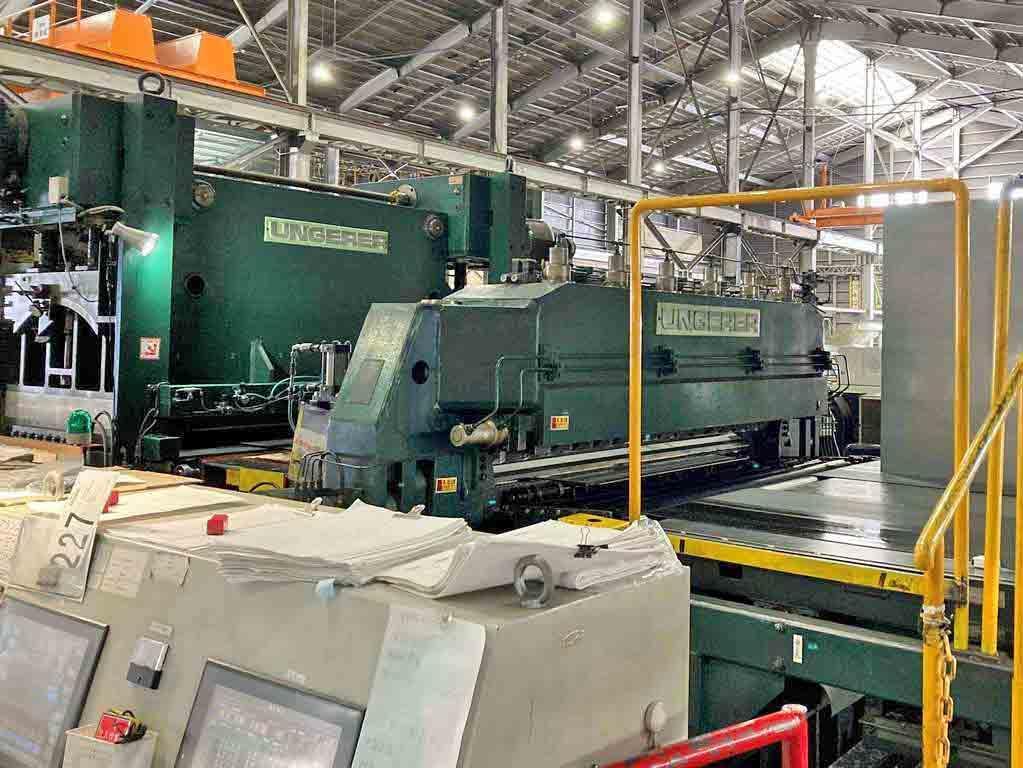

-Precision Leveler:
17 Work Rolls (8 over 9)
DC Drive Motor
-Shear:

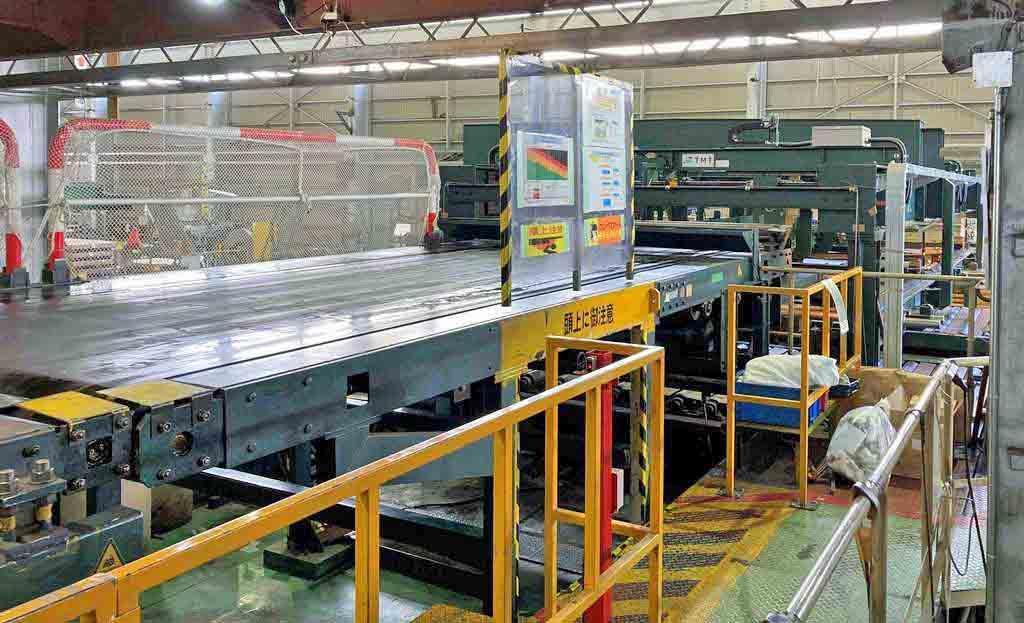

-Runout Belt Conveyor:

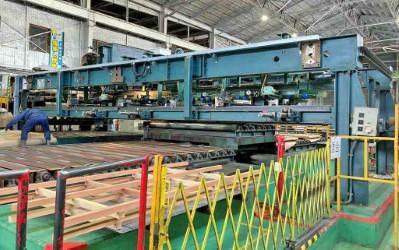

-Automatic Stacker:
Powered Width Adjustment
Powered Length Adjustment
Side Discharge
