-Material: Hot Rolled Steel Q235
-Max. Coil Weight: 30 Ton (66,000 lbs.)
-Max. Coil Length: 2000mm (78.74")
-Thickness: 8 - 20mm (0.315" - 0.787")
-Line Direction: Left to Right
Consisting of:
-Coil Car:
Pit Type
-Uncoiler:
-Peeler/Holddown:

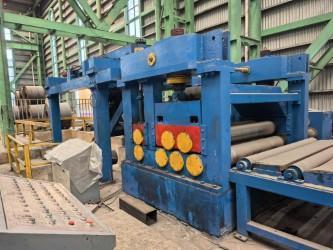

-5 Roll Pre-Leveler:
300mm (11.8") Dia. Rolls
2 over 3 Rolls
132 KW DC Motor
-Conveyor:

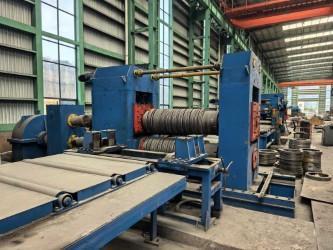

-Slitter Head:
Entry Side Guides

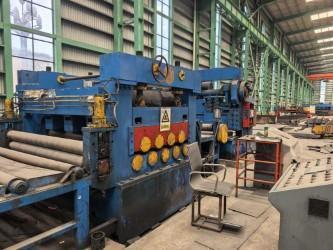

-9 Roll Main Leveler:
Entry Pinch Rolls
240mm (9.5") Dia. Rolls
4 over 5 Rolls
200 KW DC Motor
-Mechanical Shear:

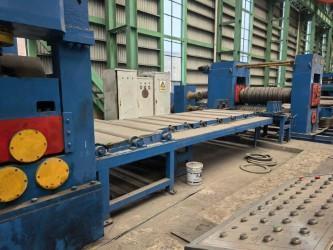

-Runout Table:
-Main Operators Control Panel:
-Electric Cabinets:
-Hydraulic Stations:
-Line is Installed:
Removal, Loading and Shipping Charges not included.
-Note: Price below is in US Dollars and does not
include any Duties or Tariff charges.
