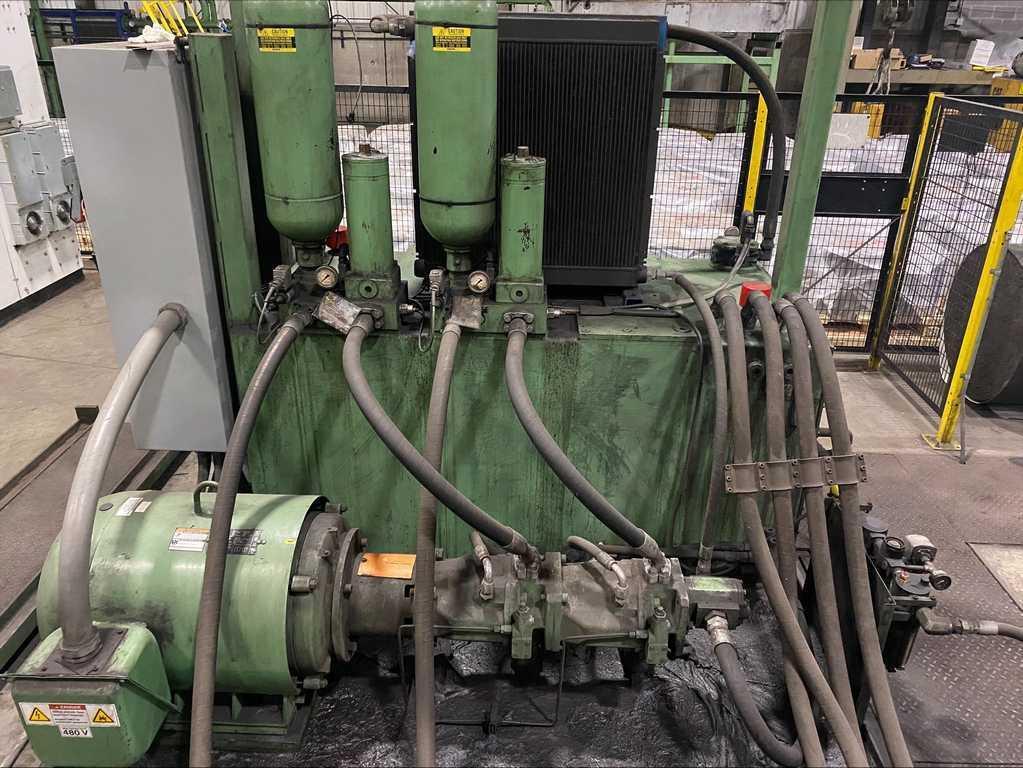

75" x 0.375" x 60,000# RBI Leveling Line Components

Line Direction:                             Right to Left

Line Speed:                                 150 FPM (46 MPM) Maximum

Material Data:

Type:                                       HRS

Max. Tensile Strength @ Max. Thickness:     80,000 PSI (551.58 N/mm2)

Max. Yield Strength @ Max. Thickness:       60,000 PSI (413.68 N/mm2)

Thickness:                                  0.043" - 0.375" (1.09mm - 9.53mm)

Coil Specifications:

Max. Weight:                                60,000 lbs. (27,216 kg)

Max. Width (Machine Clearance):             75" (1905mm) (72" at Leveler)

Max. Outside Diameter:                      84" (2134mm)

Uncoiler Mandrel Diameter:                  23" - 31" (635mm - 483mm)

Recoiler Inside Diameter:                   20" - 24" (508mm - 610mm)

Consisting of the following:

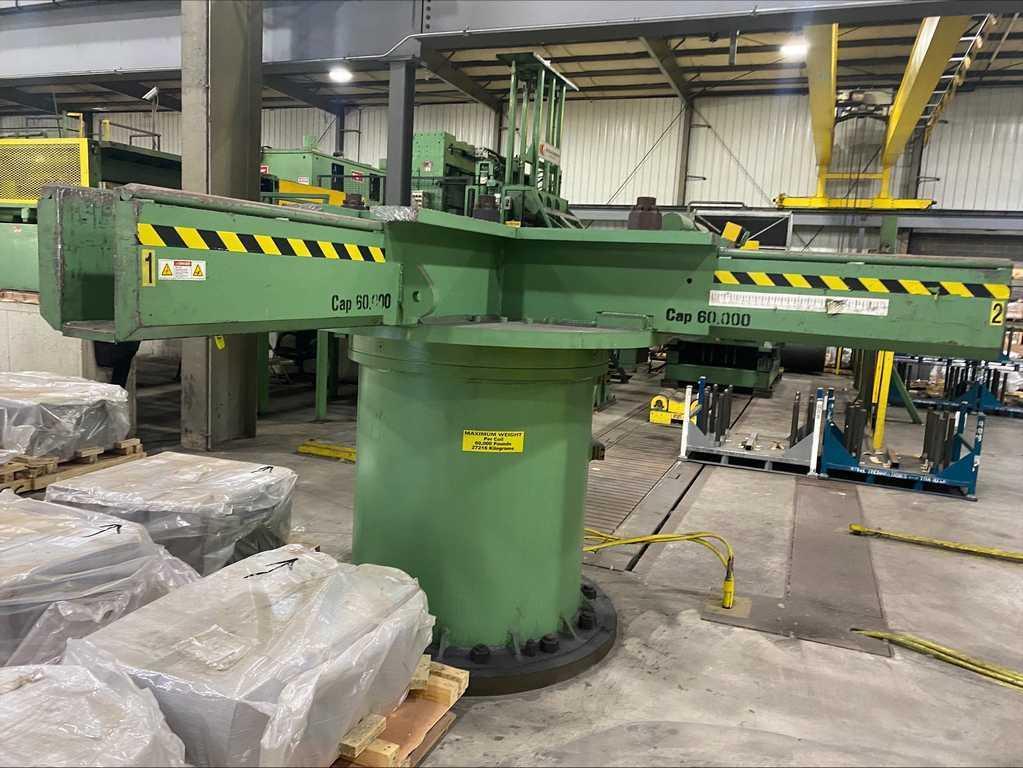

-Entry 4 Arm Turnstile:

  60,000 lb. Capacity Each Arm

  C-Hook Type Arms

  Powered Rotation

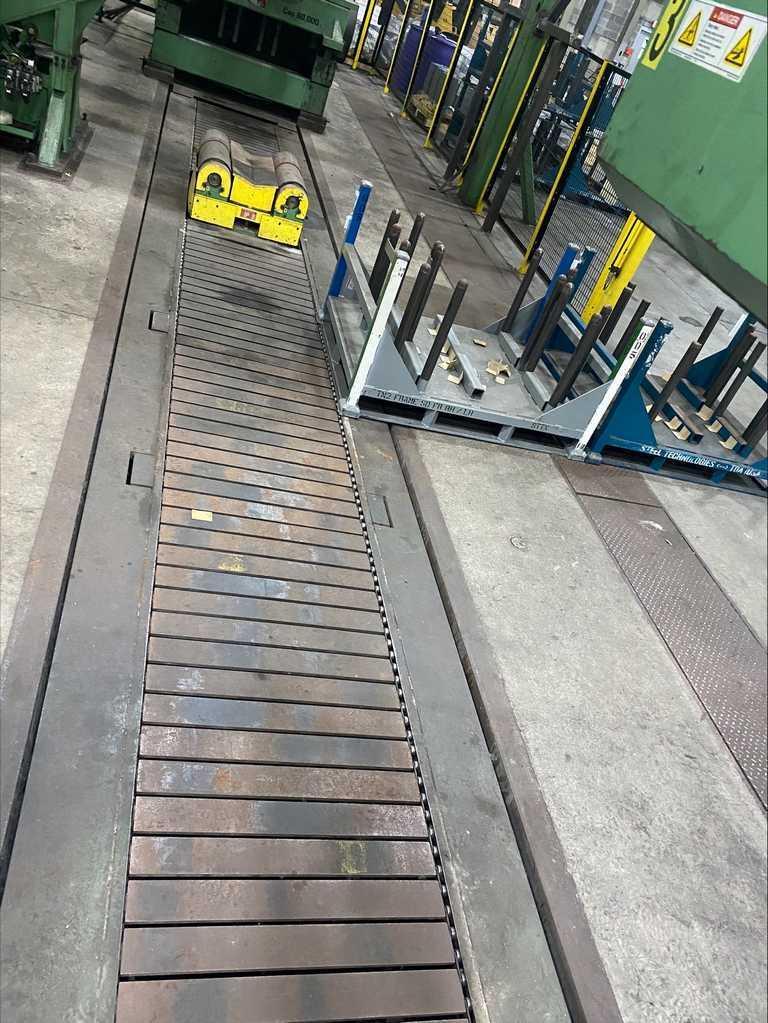

-Entry Coil Car:

  Pit Type

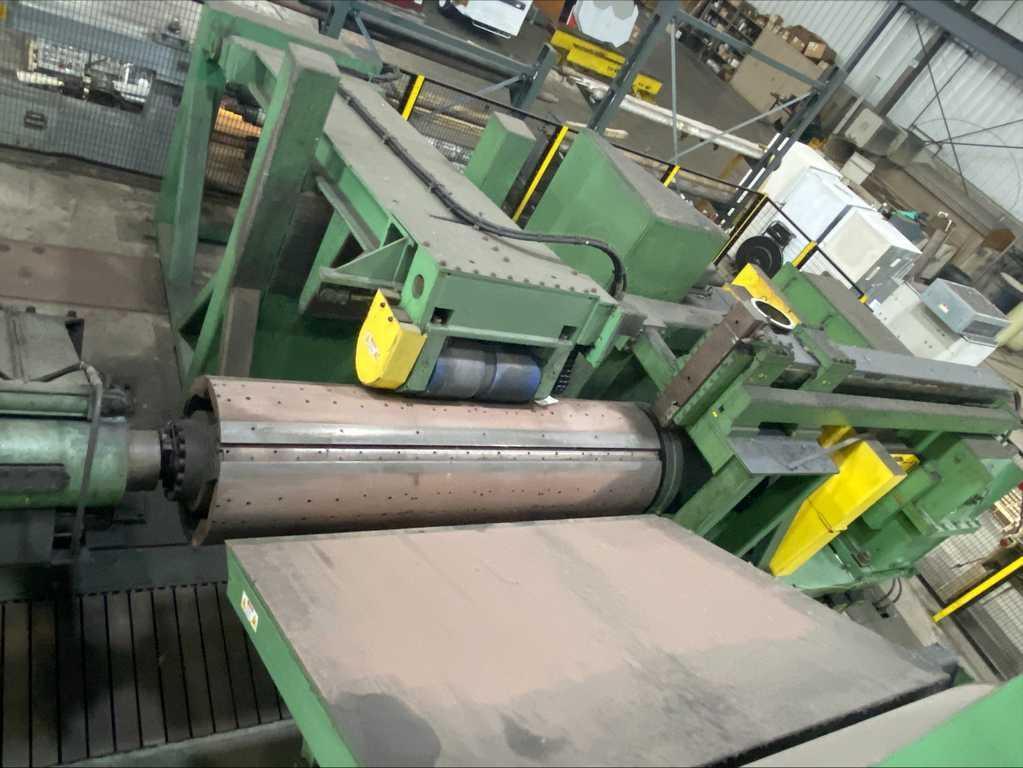

-Uncoiler:

  23" - 31" Expansion Range

  Hydraulic Expansion

  (3) Segment Mandrel

  84" O.D. Capacity

  Threading Drive

  Brake

  Sliding Base

  Powered Holddown Roll

-Outboard Support Arm:

-Peeler Table:

-Driven Pinch Rolls / Coil Breaker:

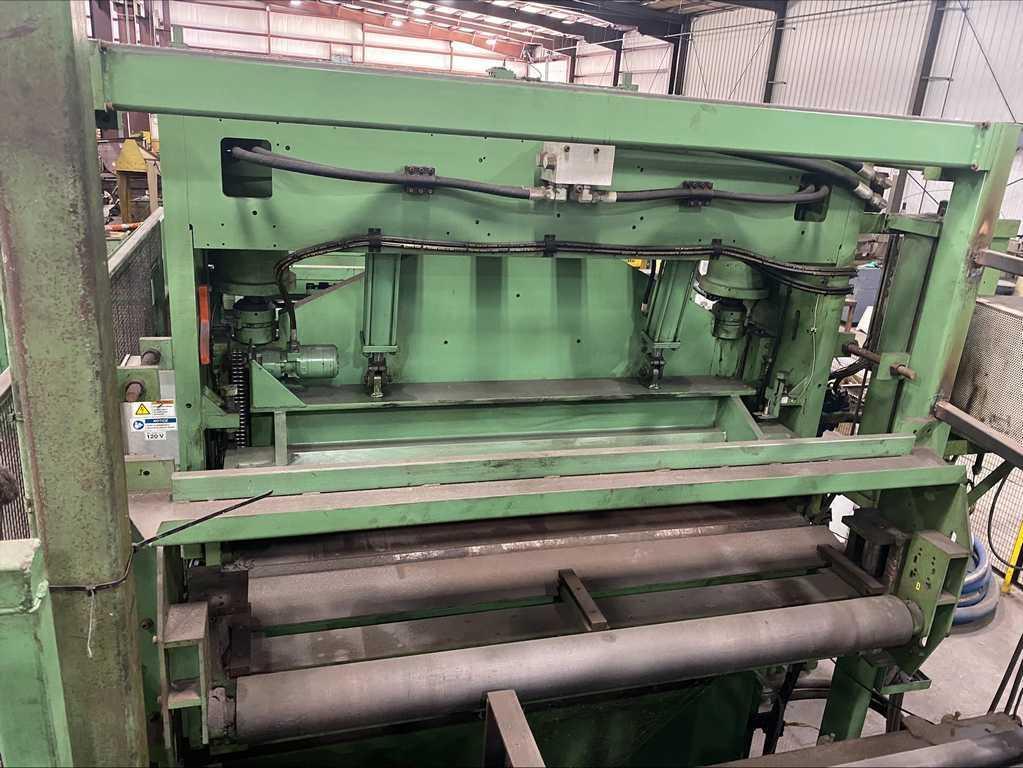

-Entry Hydraulic Crop Shear:

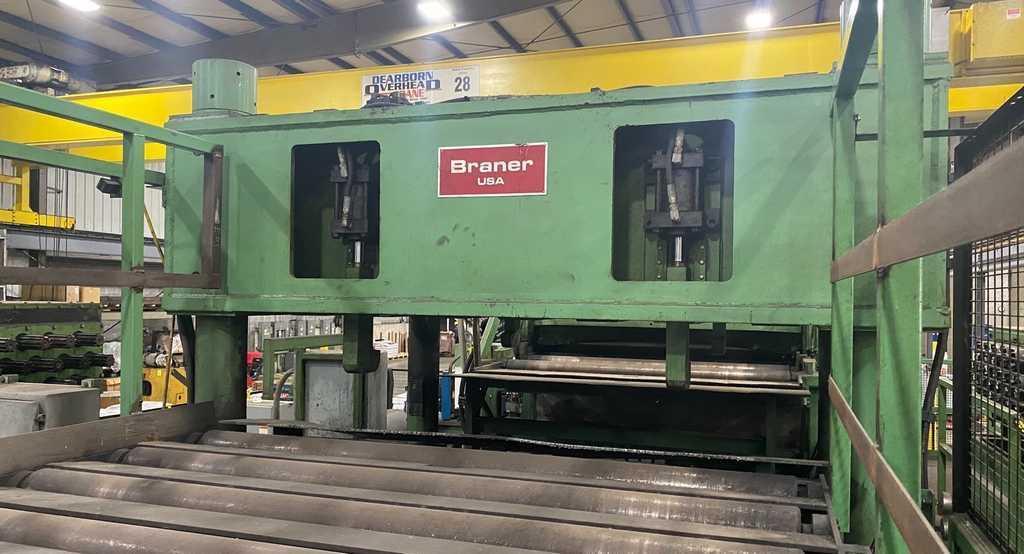

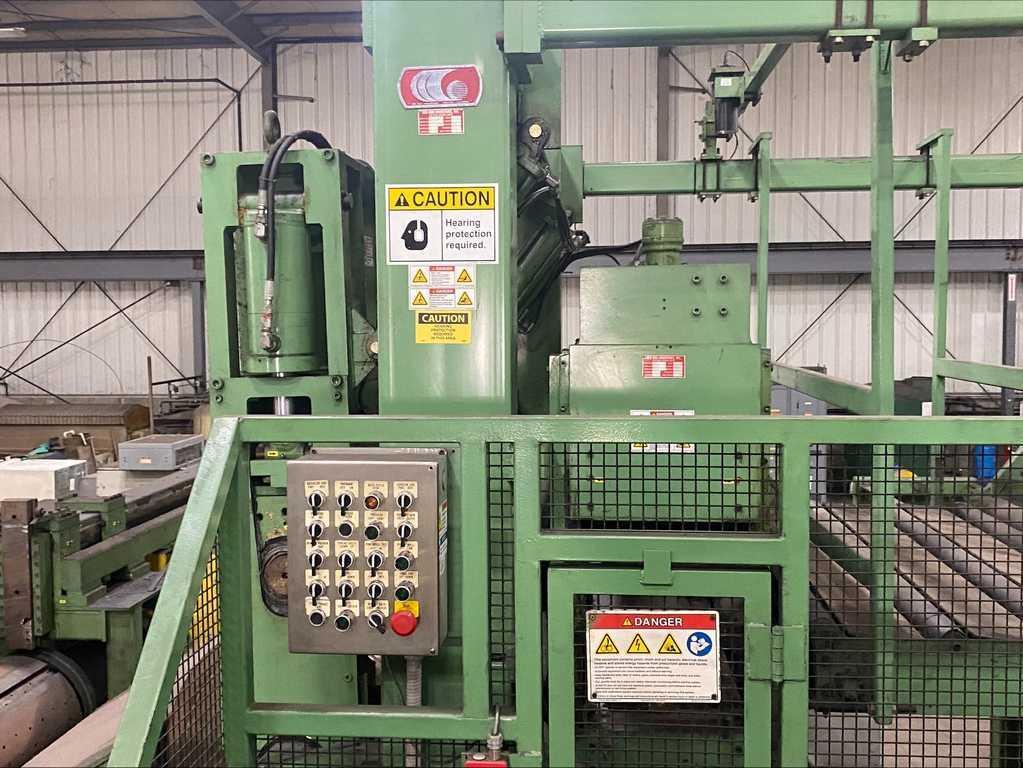

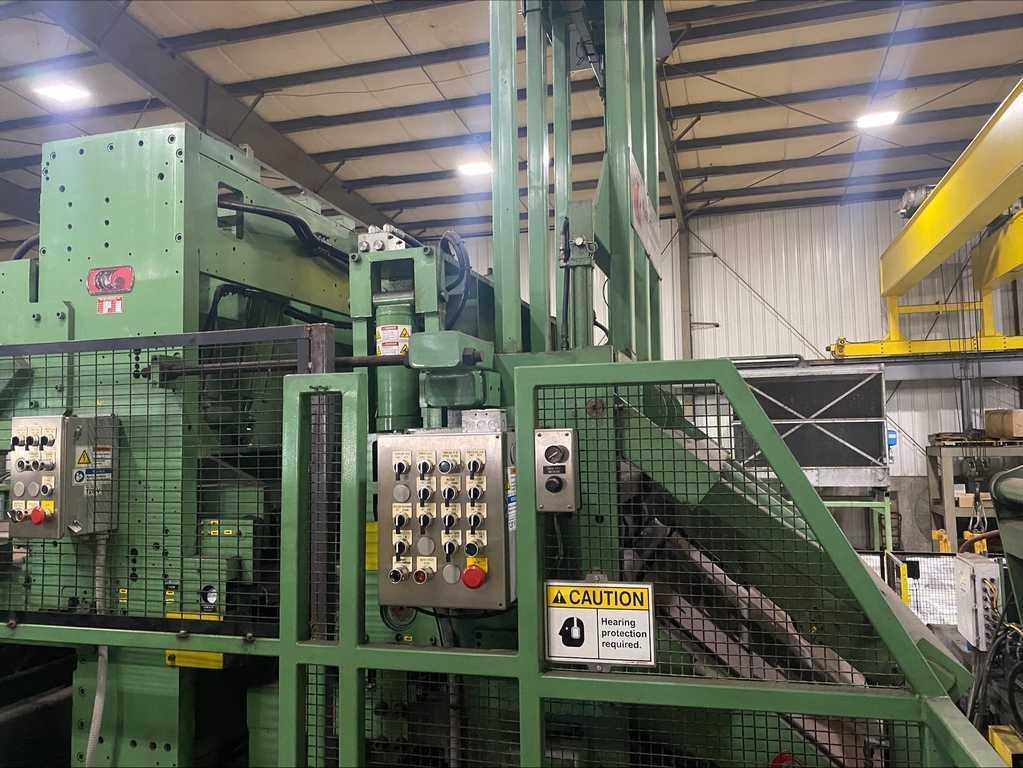

-Braner Precision Leveler: 4 HI

  2 Roll Cassettes included

  Roll Set #1 - 11 Work Rolls, 4" Dia.

    Capacity: 72" x 0.135" - 0.375" @ 60,000 PSI Yield

  Roll Set #2 - 17 Work Rolls, 2.50" Dia.

    Capacity: 72" x 0.043" - 0.187" @ 60,000 PSI Yield

  7 Flights of Motorized Backups

  250 HP Motor, 650/1950 RPM

-Exit Hydraulic Crop Shear:

-Recoiler:

  20" Dia. Drum with 24" Pads

  Hydraulic Clamp & Expansion

  Hydraulic Pushoff

  Variable Speed Drive

-Outboard Support Arm:

-Free Standing Holddown Roll:

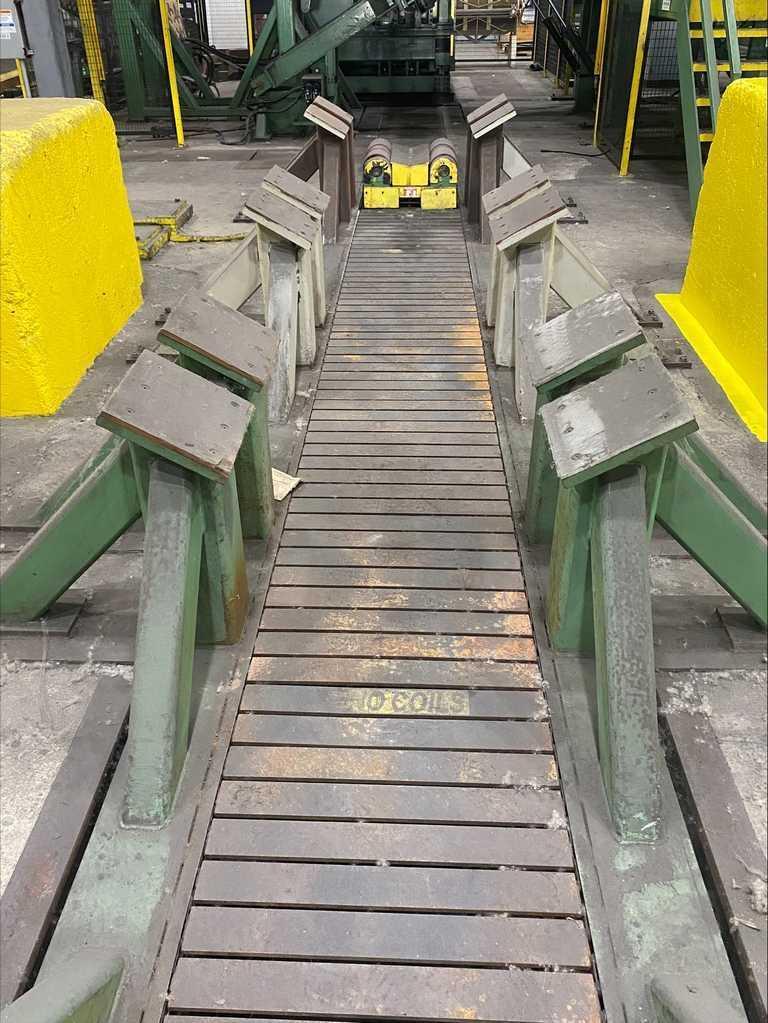

-Exit Coil Car:

  Pit Type
