74" x 0.500" x 60,000# Herr Voss Cut To Length Line
With New Red Bud Stretcher Leveler Retrofit System
-Material Width: 36" to 74"
-Coil Weight: 60,000 lbs.
-Material Thickness: 0.075" to 0.500 (at 45,000 PSI Yield)
0.375" (at 80,000 PSI Yield)
-Coil I.D. Range: 20" to 34"
-Coil O.D.: 84" Max.
-Jog Speed: 50 FPM
-Line Speed: 20 to 175 FPM
-Line Direction: Left to Right
Consisting of the following:
-Entry Coil Ramp:
3 Coil Storage
Hyd. Lever-Type Holding Mechanism

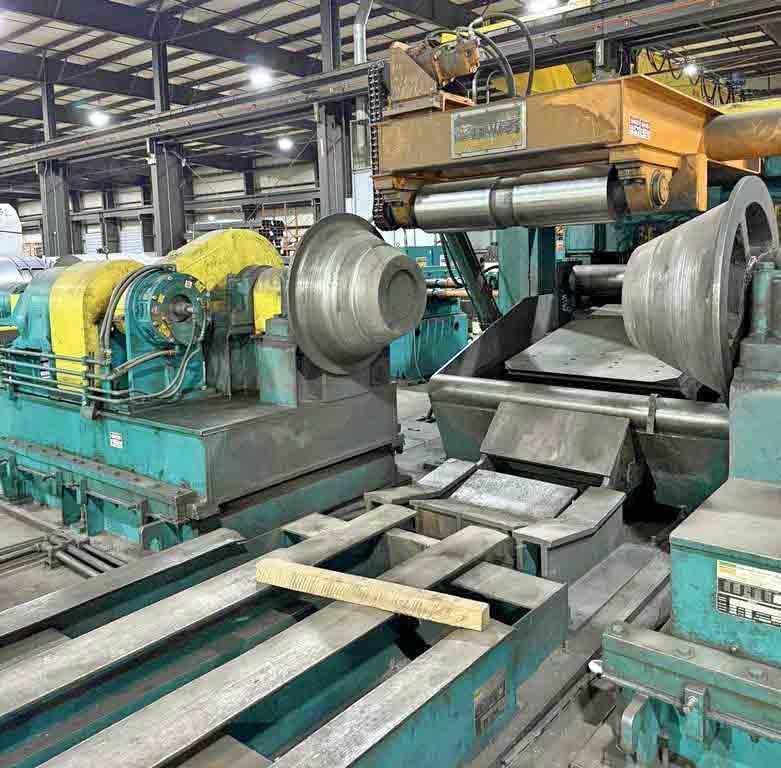

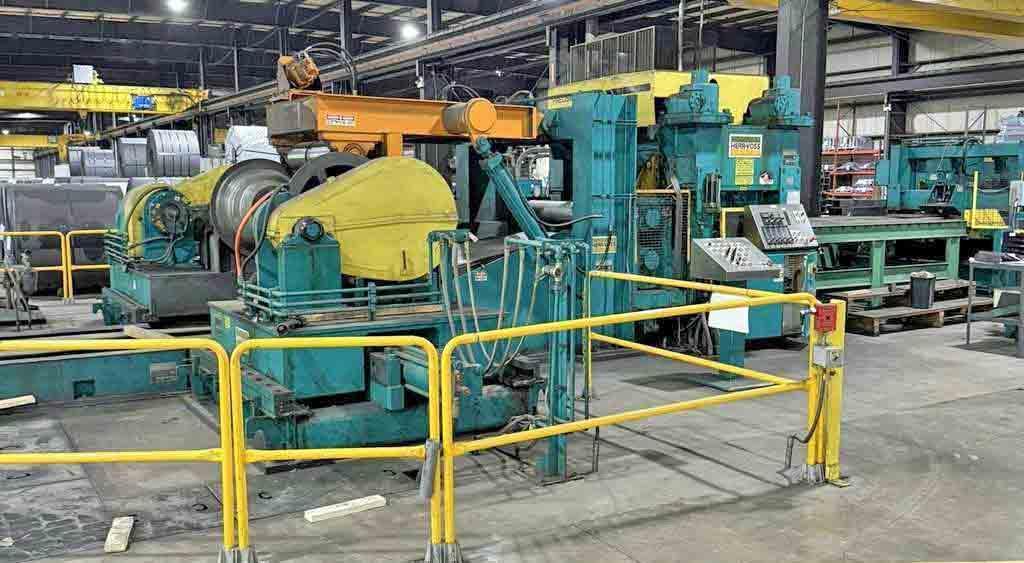

-Cone Type Uncoiler:
S/N: 44799-003
Motorized Feedup AC Motor and Air Clutch on one head
Wichita Water Cooled Brake on each head
Sliding Base on each head
Coil Lift with 12" Bore Hydraulic Cylinder
-Threading Unit:
Motorized Overarm Holddown Roll
Steel Roll powered by AC Motor
Hydraulic Actuated Peeler Table
-Entry Side Guides:
Powered Width Adjustment

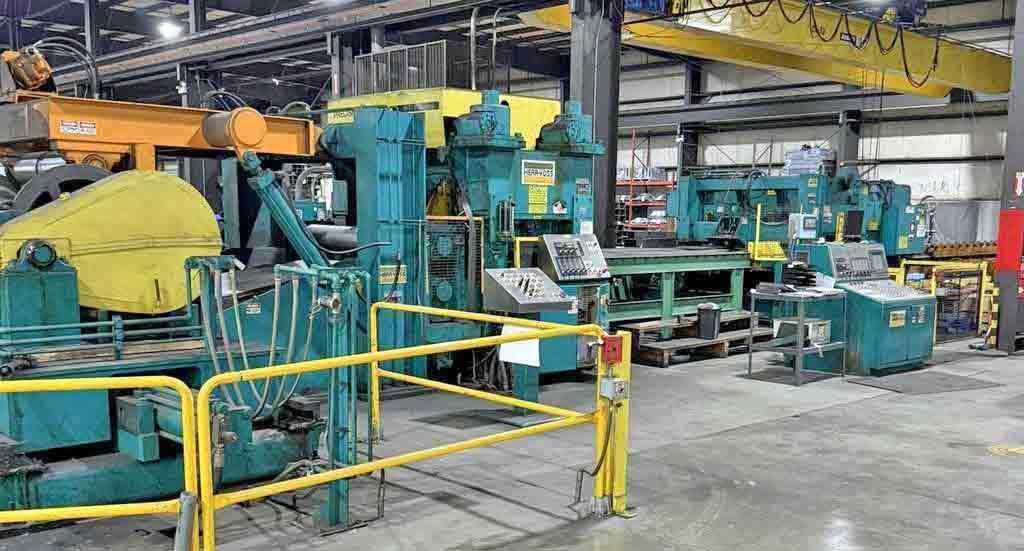

-Precision Leveler: 4 High
Keystone Model VKL 88/4.50-11/5 4 HI, LH
S/N: 44799-005
Thickness Range: 0.096" - 0.500"
11 Work Rolls
4.50" Dia. x 88" Face Rolls
5 Flights of Motorized Backups
200 HP Reliance DC Motor, 850/1700 RPM, 500 V
-Squaring Guides:
Powered Width Adjustment
(Will open to 80" Wide)
-Powered Tailout Pinch Rolls:
Hydraulic Cylinder Open & Close
-Measuring Unit:
Entry Encoder Roll
-Herr Voss Mechanical Shear:
Model: 0808
S/N: 44799-009
Blade Gap Adjustment Control
Straight Blade Rake
Material Holddowns
AC Motor
-Drop Type Stacker:
Side Guide Retainers with Powered Side Tap
40,000# Capacity
Min. Sheet Length: 24"
Max. Stacked Sheet: 24'

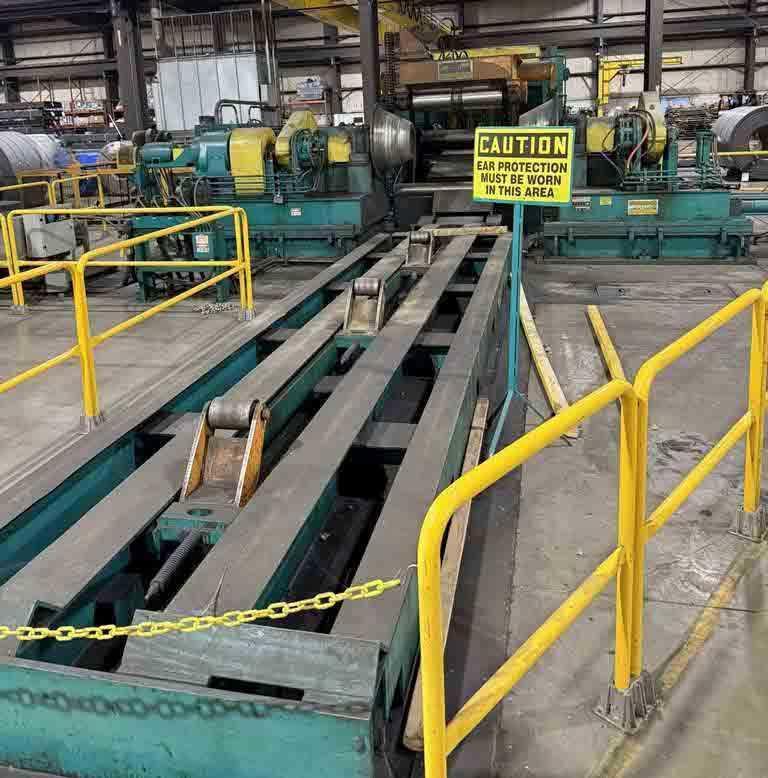

-Runout Conveyor:
40' Long
-Main Operators Control Panel:
-Main Hydraulic Power Unit:
-Includes Complete Mechanical and Electrical Drawings and
Operators Manual.
-Removed and in storage: Toledo, OH
-New Red Bud Stretcher Leveler Retrofit System:
MATERIAL DATA:
Type: CRS-HRS
Max. Yield Strength @ Max. Thickness: 45,000 PSI (310.26 N/mm2)
Max. Thickness: 0.500" (12.7 mm)
Min. Thickness: 0.060" (1.52 mm)
COIL SPECIFICATIONS:
Max. Entry Width (Machine Clearance): 75" (1905 mm)
STRETCH LEVELER SPECIFICATIONS:
Max. Stretch Clamp Center Distance: 240" (6096 mm)
Stretch Cycle Time (Approx.): 5.0 Sec.
Motor Data:
Primary LV Hydraulic Power: 150 HP AC / 85 GPM (322 LPM)
Utility Requirements:
Electrical: 460 Volt, 3 Phase
Air: 80 PSI (0.55 N/mm2)
Max. Ambient Temperature: 100 F (38 C)
Min. Ambient Temperature: 35 F (2 C)
Delivery: Approximately 14 Months
