Driven Head Loop-Type Slitting Line

Coil Weight:          60,000 lbs.

Coil Size:            20" to 24" ID x 72" OD

Line Direction:       Left to Right

Year:                 1960 - 1970's (Updated Controls)

Consisting of the following;

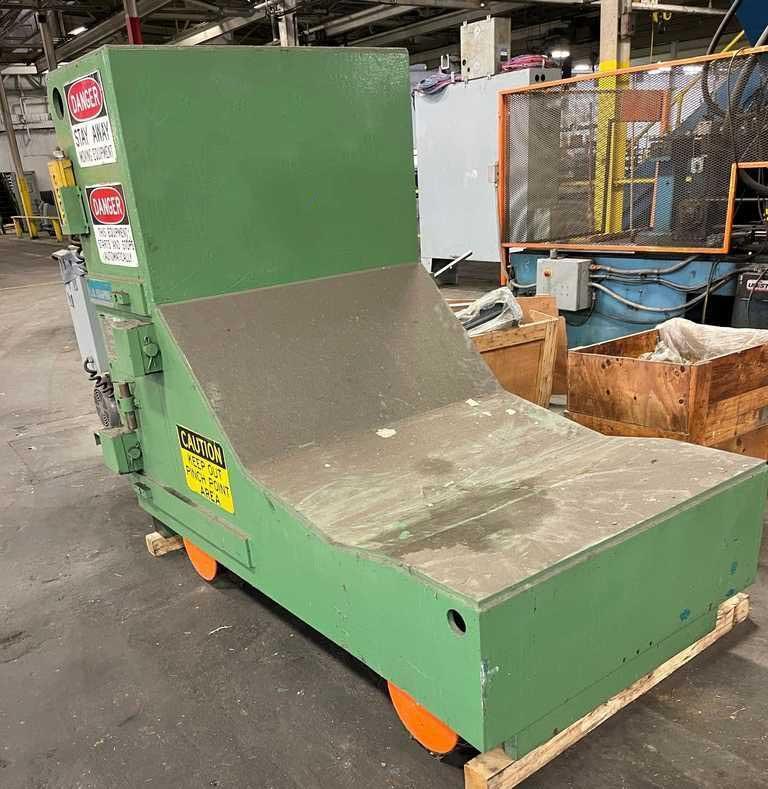

-Entry Coil Car:

  Above Ground "L" Type

  Self-Contained Hydraulics

  Electric Cable Reel

  Pushbutton Control

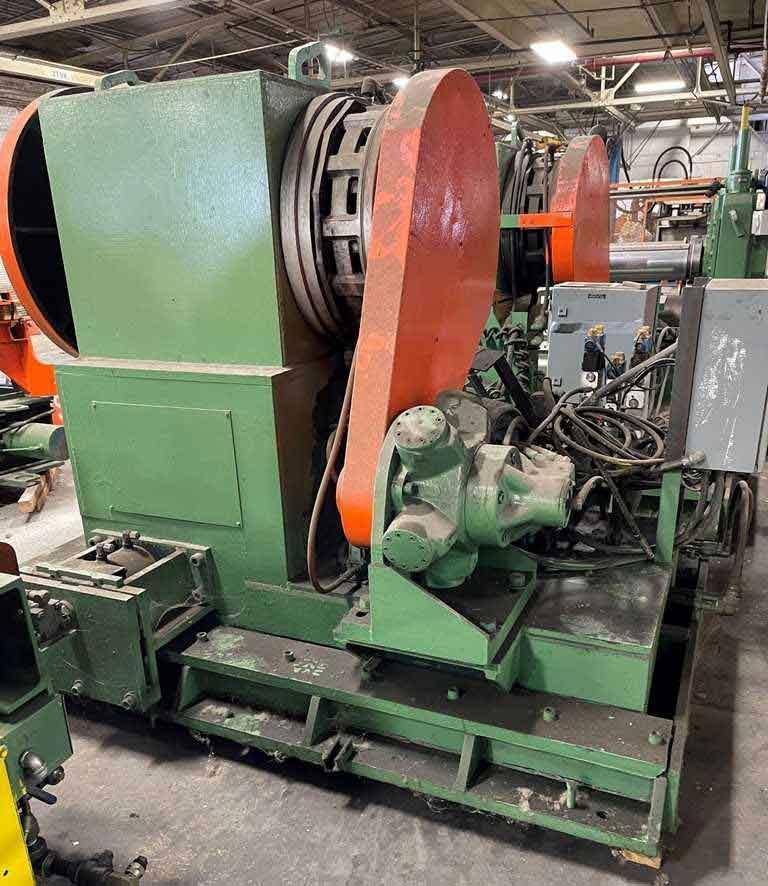

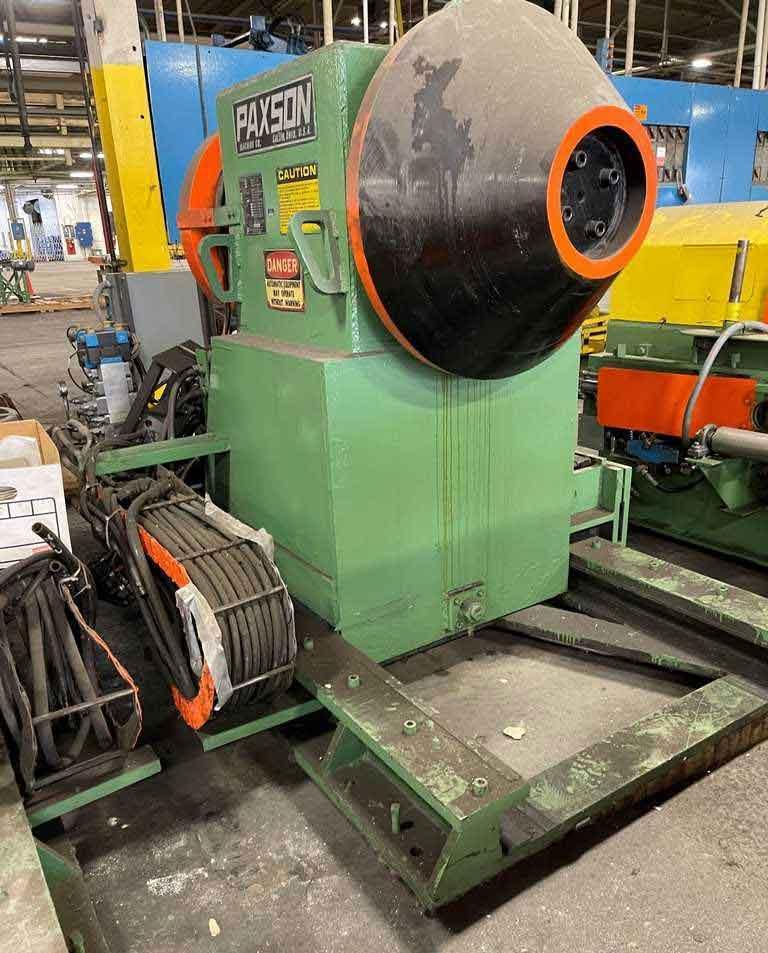

-Uncoiler:

  Double Cone Type

  Hydraulic Motor Threading Drive

  Water Cooled Brakes on each Head

  Slide Bases

-Peeler Table:

  Hydraulic Cylinder Operated

-Pinch Rolls:

  Adjustable Side Guides

-(2) Slitter Heads:

  9" Dia. Arbors

  Two Drop in Heads

  75 HP Reliance DC Motor

  650/2100 RPM, 500V

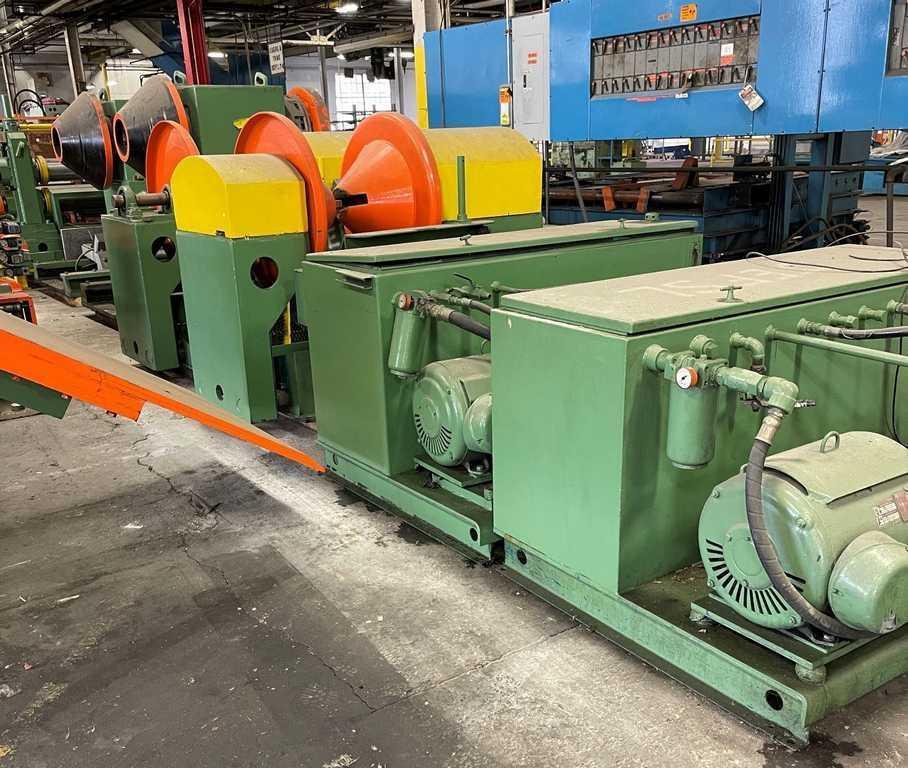

-Scrap Winders:

  Two Motor Driven Scrap Winders

  Self Dumping

-Tension Stand:

  Drag Board Type

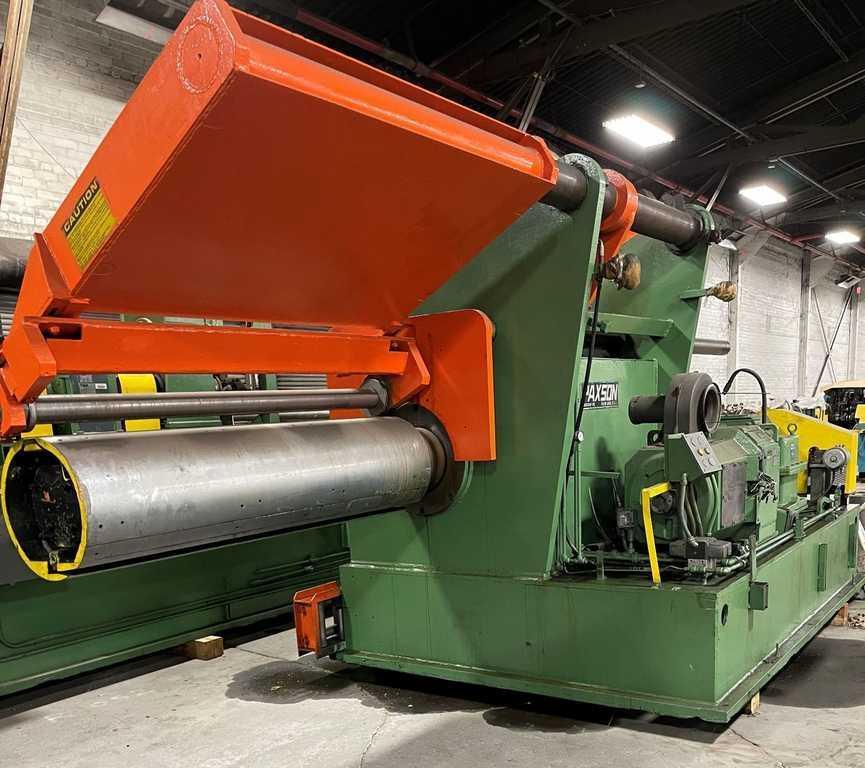

-Recoiler:

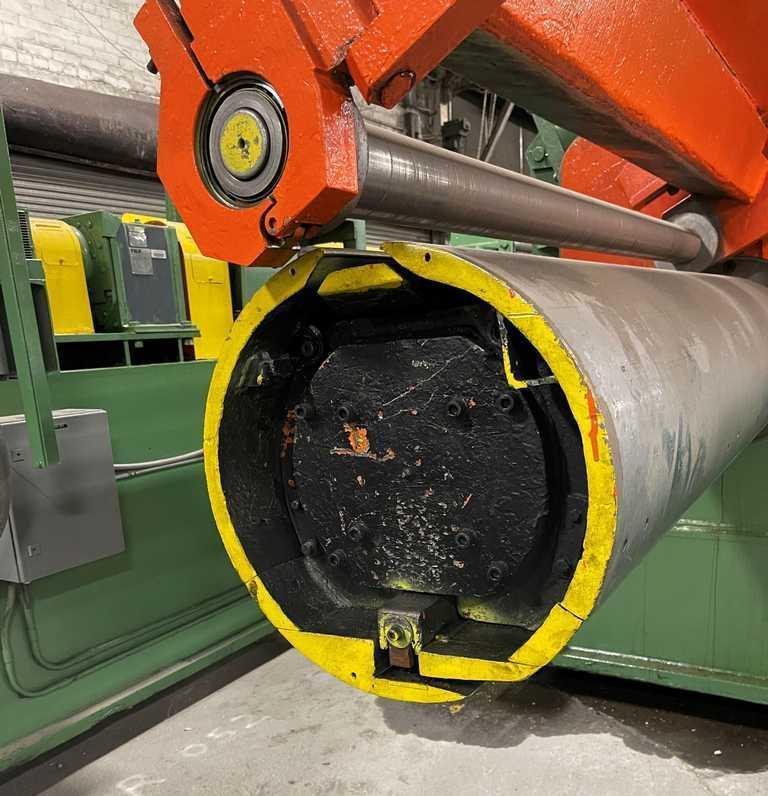

  20" Dia. Drum

  Hydraulic Clamp and Expansion

  Overarm Separator

  100 HP Motor DC 650/1950 RPM, 500 V DC

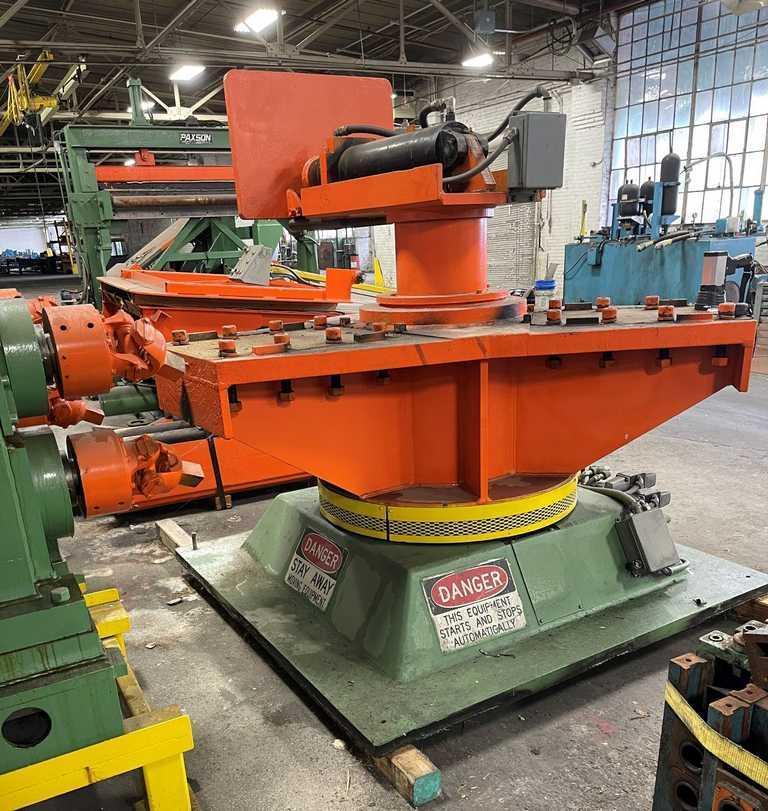

-Exit Turnstile:

  Two Arms

  Hydraulic Pushoff

-Hydraulic Powres Units:

-Good Controls, Tooling, Spare Parts

-Line is removed and in storage
