Rebuilt 72" x 6.5" x 40,000# Stamco Slitting Line

Width:                  78" Max. Entry

                        72" Max. Exit

Thickness:              0.012" - 0.125"

Incoming Coil I.D.:     16" Dia.

Outgoing Coil I.D.:     20" Dia.

Coil Diameter:          96" Max. O.D. Entry and Exit

Coil Weight:            40,000# Max.

Line Speed:             400 FPM / 800 FPM

Line Direction:         Right to Left

Consisting of the following:

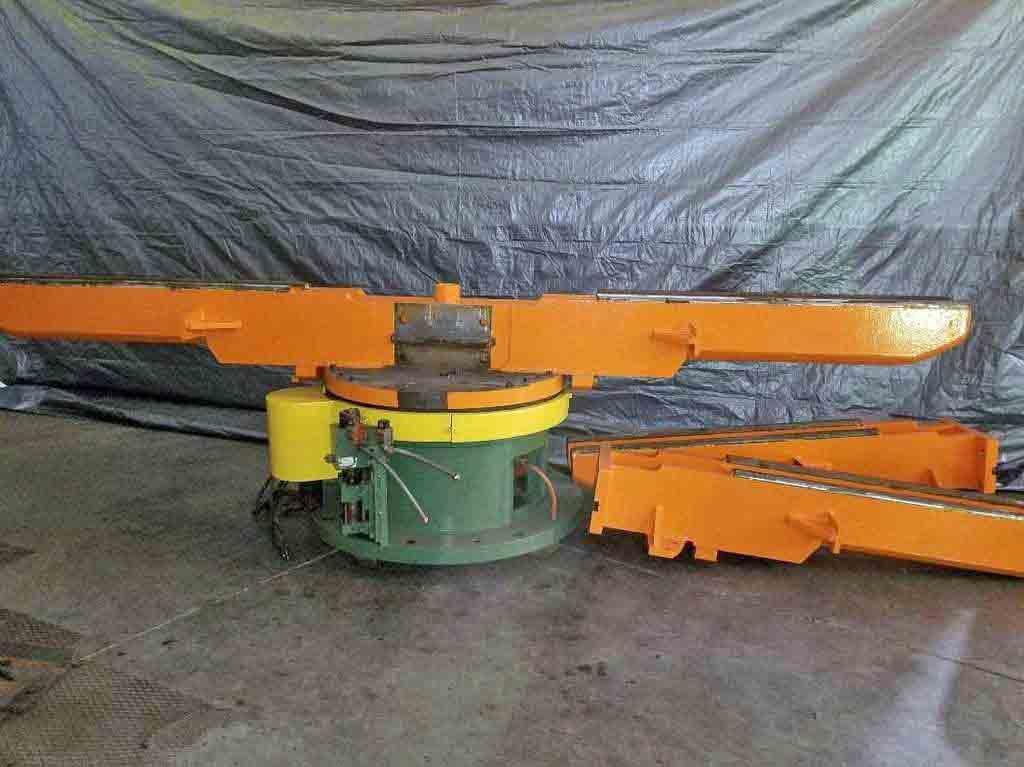

-Entry 4 Arm Turnstile:

  40,000# Max. Coil Each Arm

  Hydraulic Rotation

  Hydraulic Positioning Detent

  New Valves

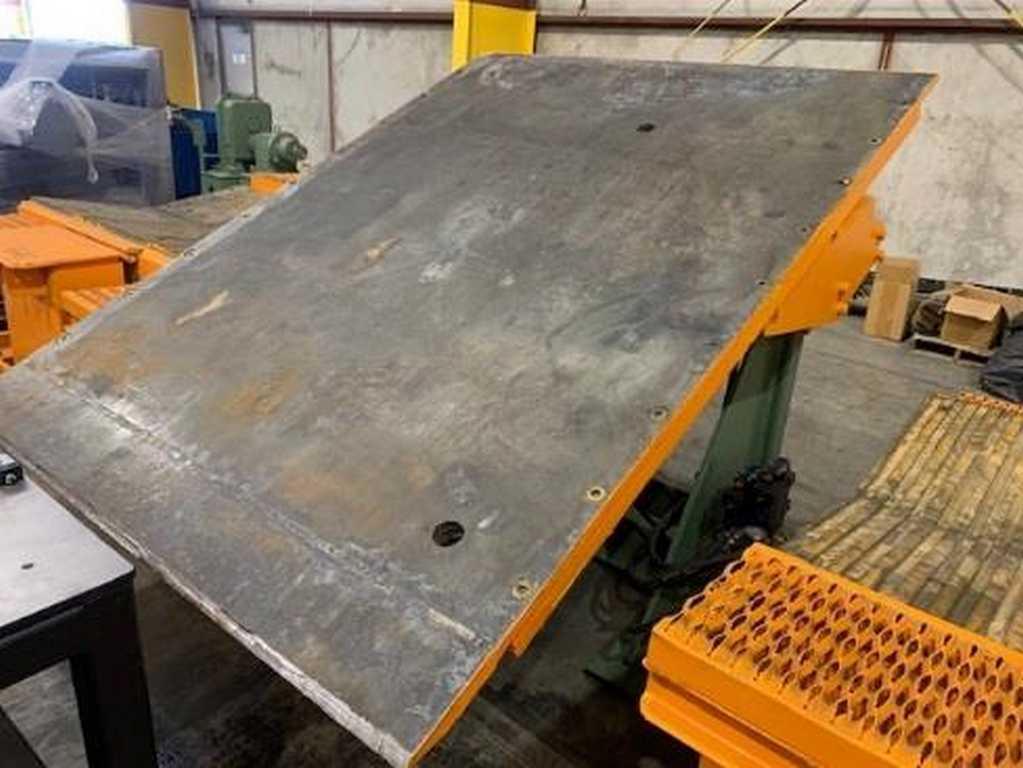

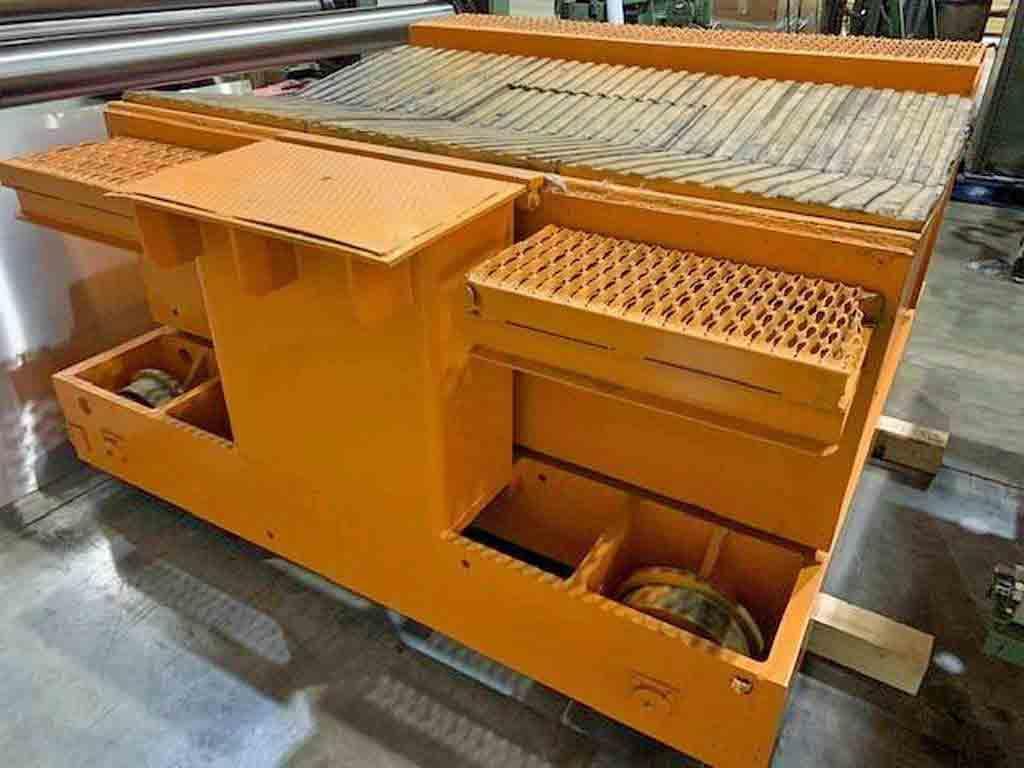

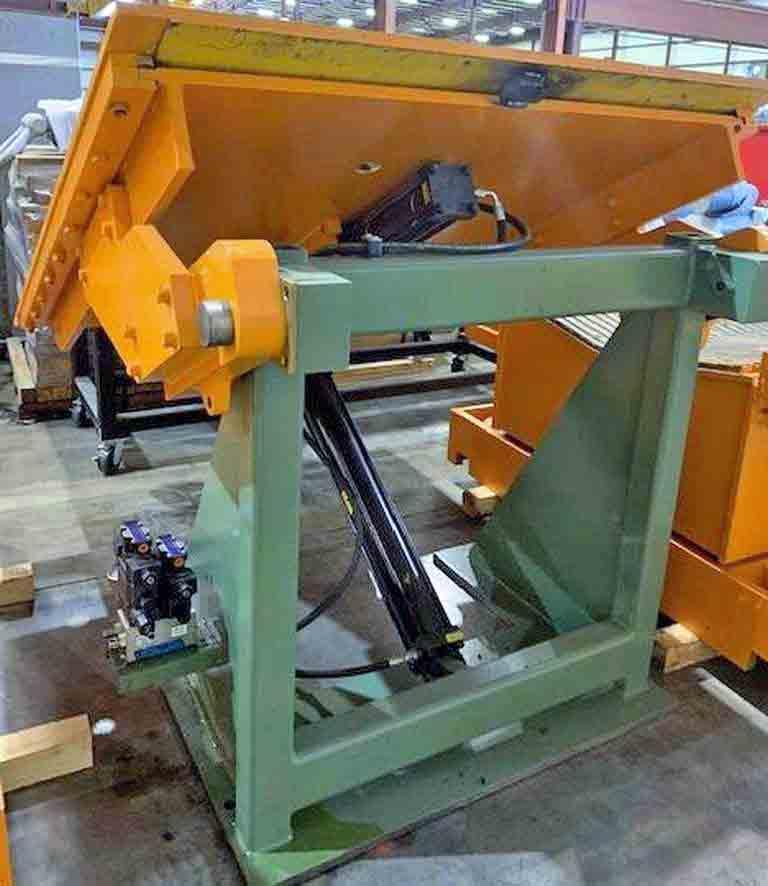

-Entry Scissor Type Coil Car:

  40,000# Max. Coil

  Spool / Pup Coil Pivoting Dump Off

  New Self-Contained Hydraulic Power Unit

  New Valves

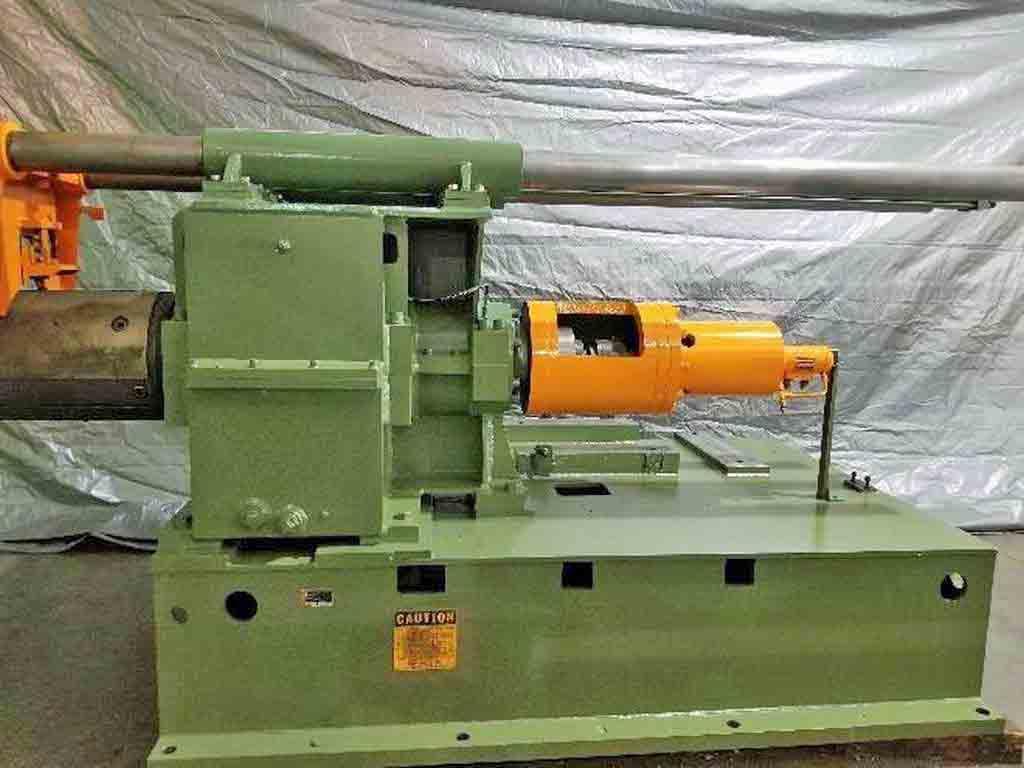

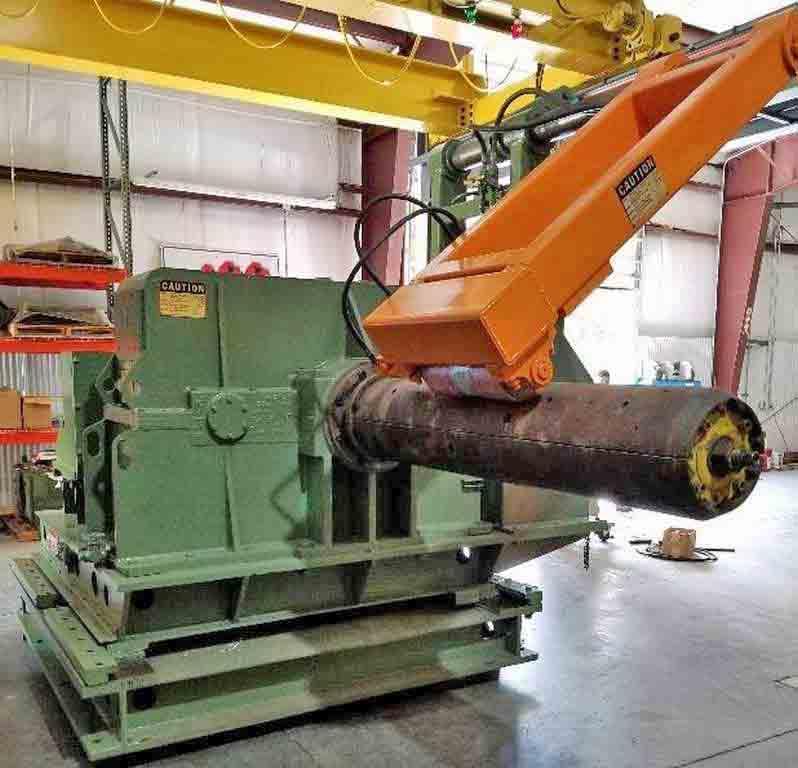

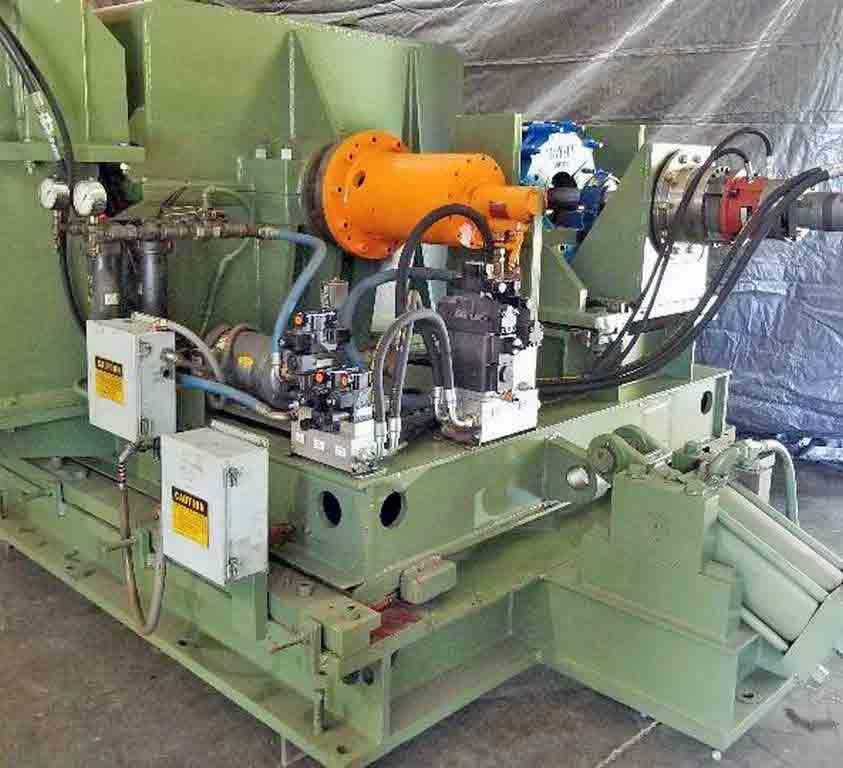

-Uncoiler:

  40,000# Max. Coil x 96" OD Max Coil

  4 Segment, 16" Diameter x 72" Face Mandrel

  Hydraulic Wedge Type Expansion

  Sliding Base for Coil Centering

  Holddown Roll

  Main Gearbox w/3:1 ratio

  Forced Oil Lubrication

  New Water Cooled Brake

  New Hydraulic Threading Drive and Clutch

  New Valves

-Pivoting Extending Type Peeler:

  New Pivot Cylinder

  New Main Frame

  New Valves

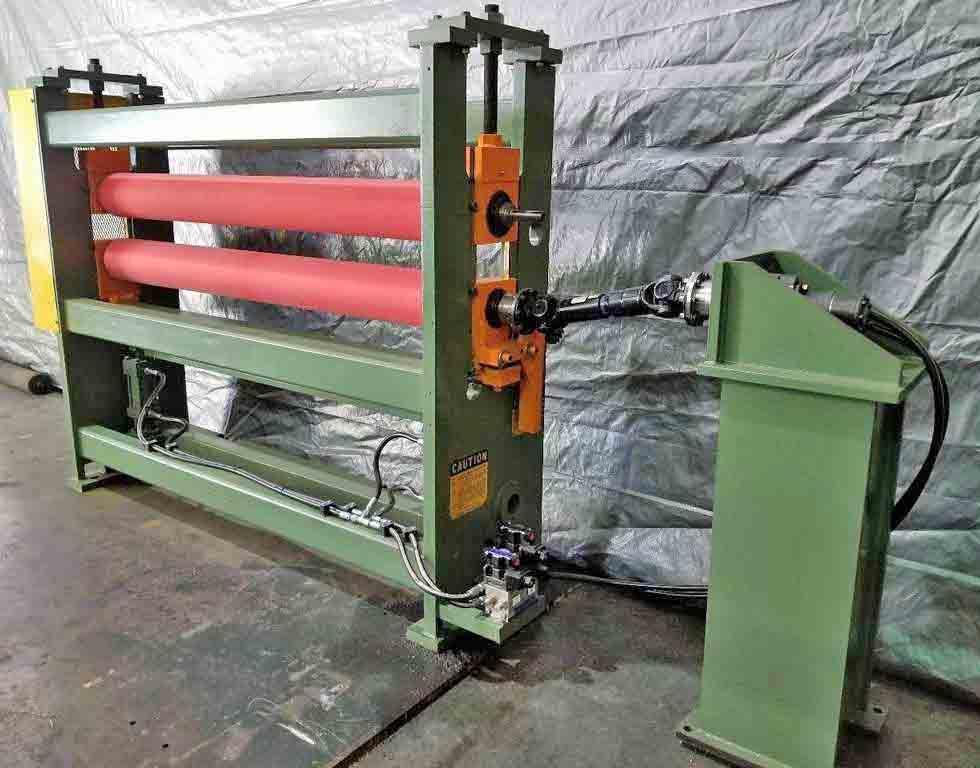

-Entry Pinch Roll:

  8" Diameter Pinch Rolls

  New Lower Roll

  New Roll Covering

  New Drive Base

  New Hydraulic Thread Drive

  New Thread Drive Reducer

  New U Joint

  New Valves

-New Slitter Entry Side Guides:

  With Anti-Flutter Roll

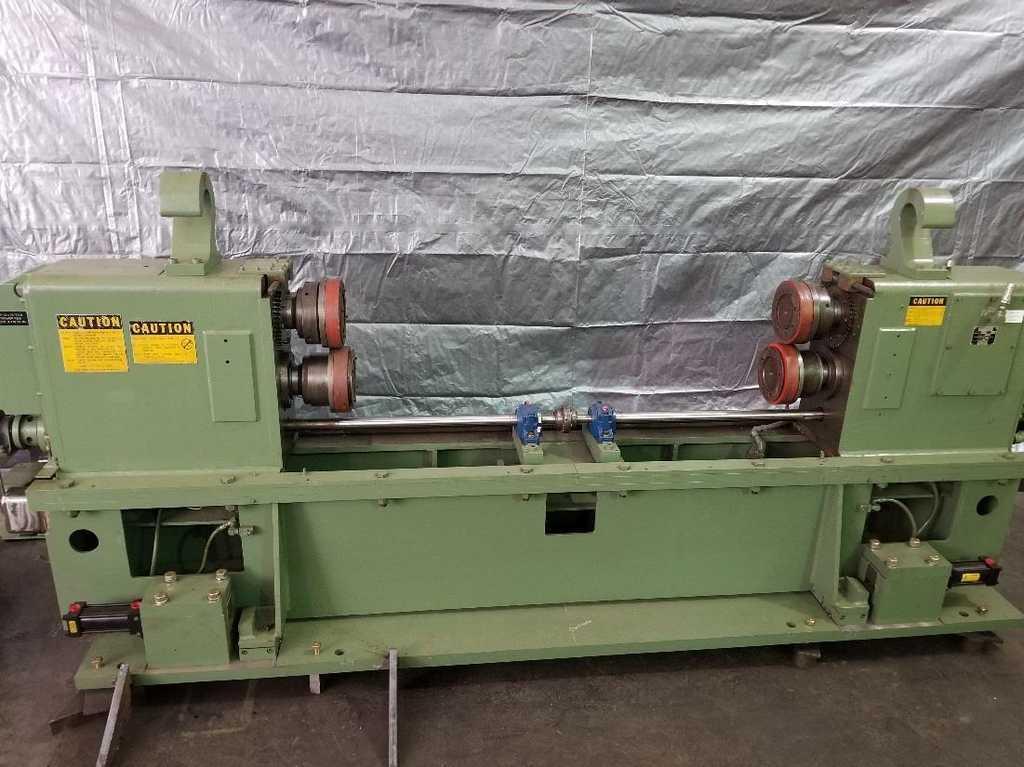

-(2) Slitter Heads:

  Crane Removal Type

  Double Eccentric Arbor Adjustment

  New 6.5" Diameter Arbors

  New Arbor Bearings

  New Main Base:

   New Hydraulic Wedge Clamps

   New Drive Jaw Couplings

   New Valves

  Slitter Drive:

   New Main Reducer

   New Jaw Couplings

   New Air Actuated Jaw Clamp

   New Valves

-(2) Side Trimmer Heads:

  Crane Removal Type

  Single Eccentric Arbor Adjustment

  New Arbor Bearings

  New Drive Shaft Assemblies

  New Jaw Couplings

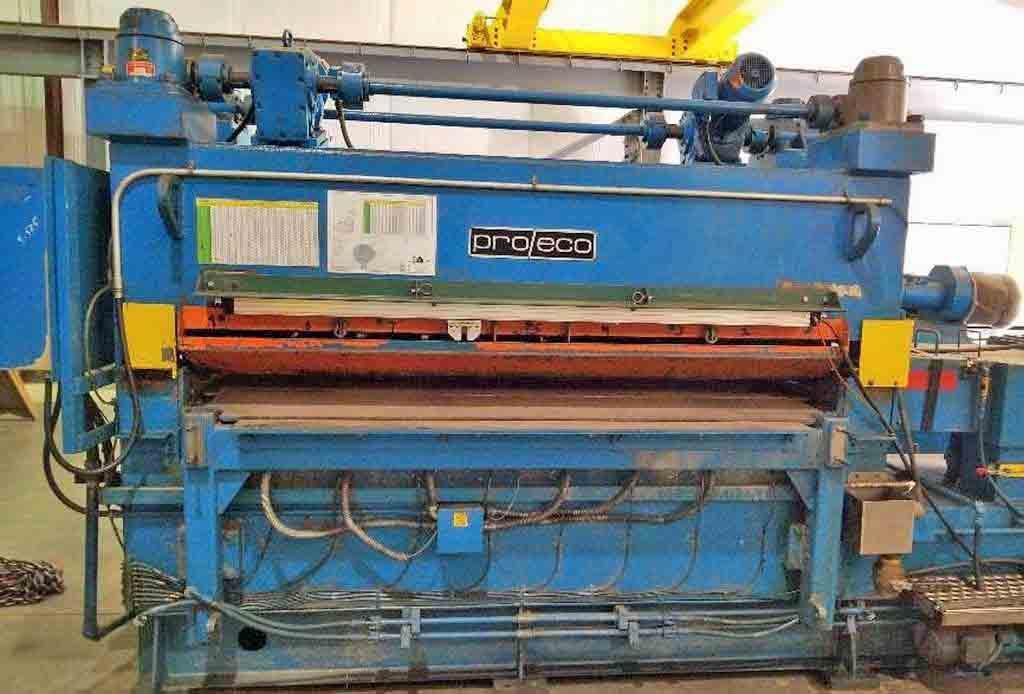

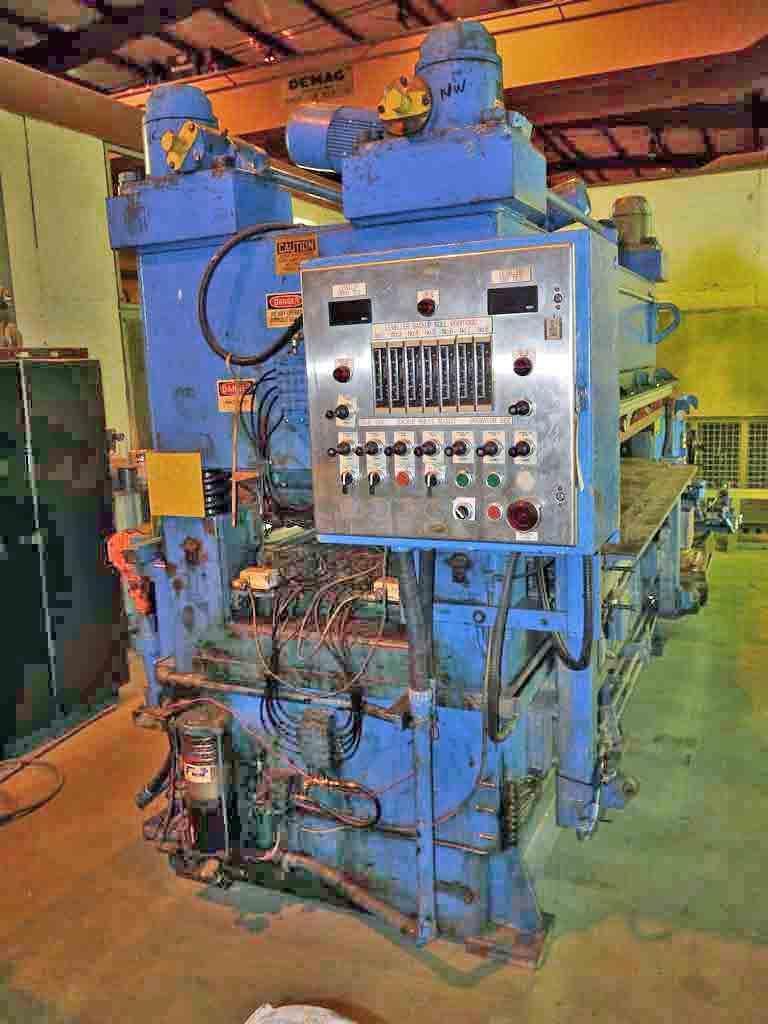

-Pro Eco Precision Leveler:

  6 Hi Configuration

  (19) Work Rolls

     1.750" Dia. x 96" Face Rolls

  (21) Full Face Intermediate Rolls

  (9) Flights of Backups

  (7) Backup Flights Motorized

  Internal Cleaning System

-Leveler Spare Parts:

  (3) Complete Sets of Work Rolls - Ground

  (1) Complete Set of Work Rolls - Unground

  (4) Complete Sets of Intermediate Rolls - Ground

  (1) Complete Set of Intermediate Rolls - Unground

  (58) Backup Bearings - New

  (206) Backup Bearings - Unground

  (9) Upper Backup Supports

  (9) Lower Backup Supports

  (46) Drive Shafts - New

  (16) U-Joint Ends - New

  (48) Work Roll Journal Bushings

  Misc. Roll End Hardware

  (2) Independent Jacks

  (2) Independent Motors

  (2) Top Frame Jacks

  (2) Transmitters

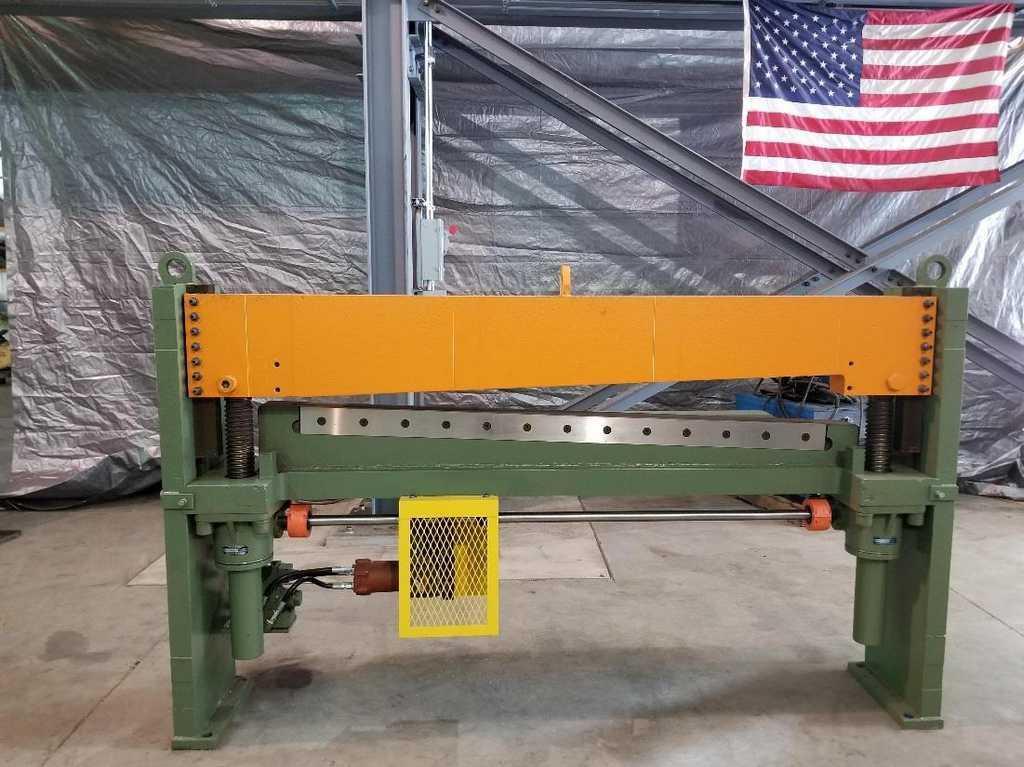

-PM Exit Crop Shear:

  Downcut Type

  Reground Shear Blades

  Rebuilt 25 Ton Jacks

  New Hydraulic Drive System

-Recoiler:

  40,000# x 96" OD Max. Coil

  20" Diameter x 84" Face Drum

  Exchangeable Quill Type Drum

  Hydraulic Expansion and Gripper

  Hydraulic Pushoff Plate

  New Main Reducer in 2020

  New Forced Lubrication System

  New Valves

-New Recoiler Reducer Specifications:

  Mfg. by Chicago Gear in 2020

  32.823:1 Exact Ratio

  700 HP @ 1781/2400 Input RPM Rating

  Bearing Life 10,000 Hrs. Min.

  Helical Gearing

  Case Hardened and Ground

  AGMA Class 10 Quality

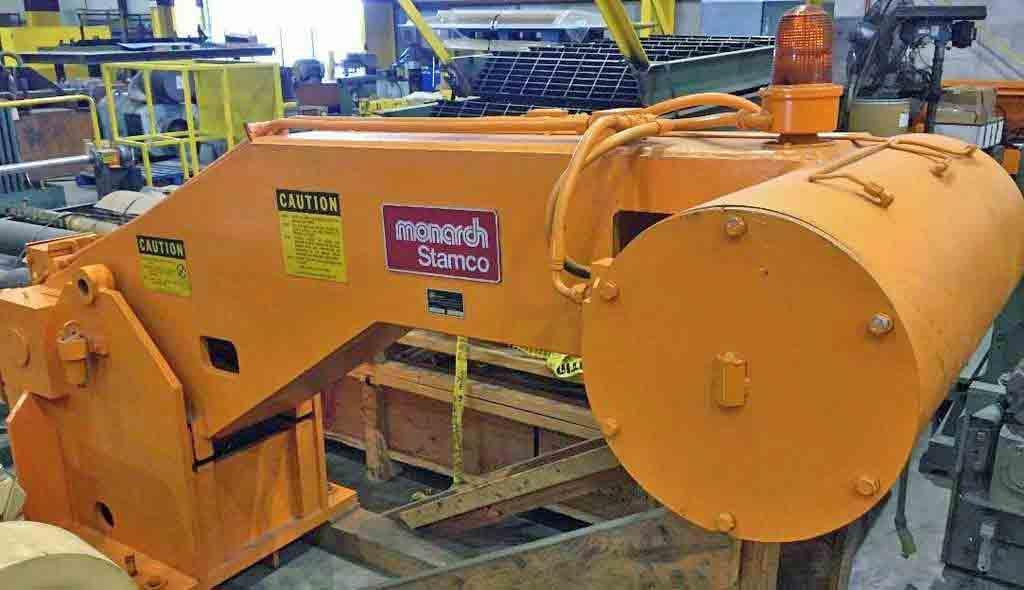

-Outboard Bearing Support:

  Provides additional support for Recoiler Drum

  Hydraulic Pivoting Arm Style

  Hydraulic Extending Nose Pin

-New Free Standing Overarm Separator Assembly:

   Exit Deflector Roll

   Threading Table

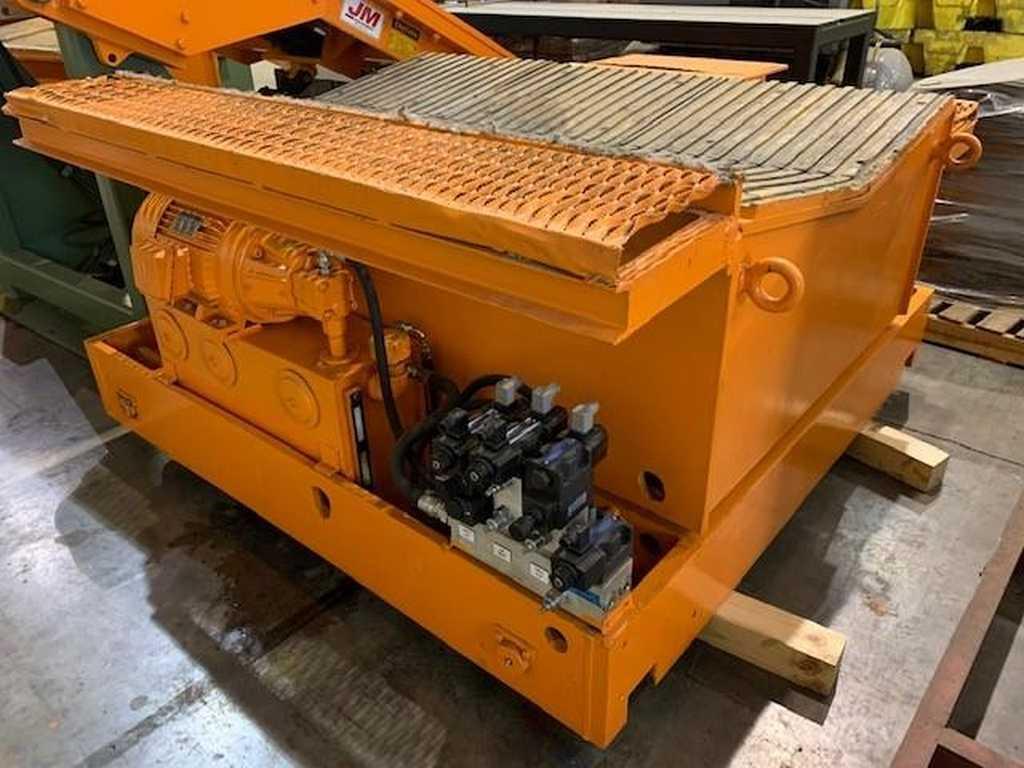

-Exit Coil Car:

  Scissor Type

  40,000# Max. Coil

  Spool / Pup Coil Pivoting Dump Off

  New Self-Contained Hydraulic Power Unit

  New Valves

-Equipment has been mechanically rebuilt

-No Electrics or Controls (Can be provided at extra cost)

-Less Slitter Tooling

-Note: Price does not Include Leveler Rebuild

-In Storage
