Year of Manufacture: 1997/2010
Materials: HRS, CRS, P/O, Galvanized
Coil Width Range: 12" - 72"
Thickness Range: 0.034" - 0.341" @ 50,000 PSI
Maximum Coil Weight: 50,000 lbs.
Coil I.D.: 20" - 24" & 30"
Maximum Coil O.D.: 84"
Line Direction: Left to Right
Sheet Length: 18" - 24'
Mode of Operation: Start / Stop
Line Speed: 0 - 150 FPM
Maximum Finished Bundle: 20,000# @ 20'
Consisting of the following:

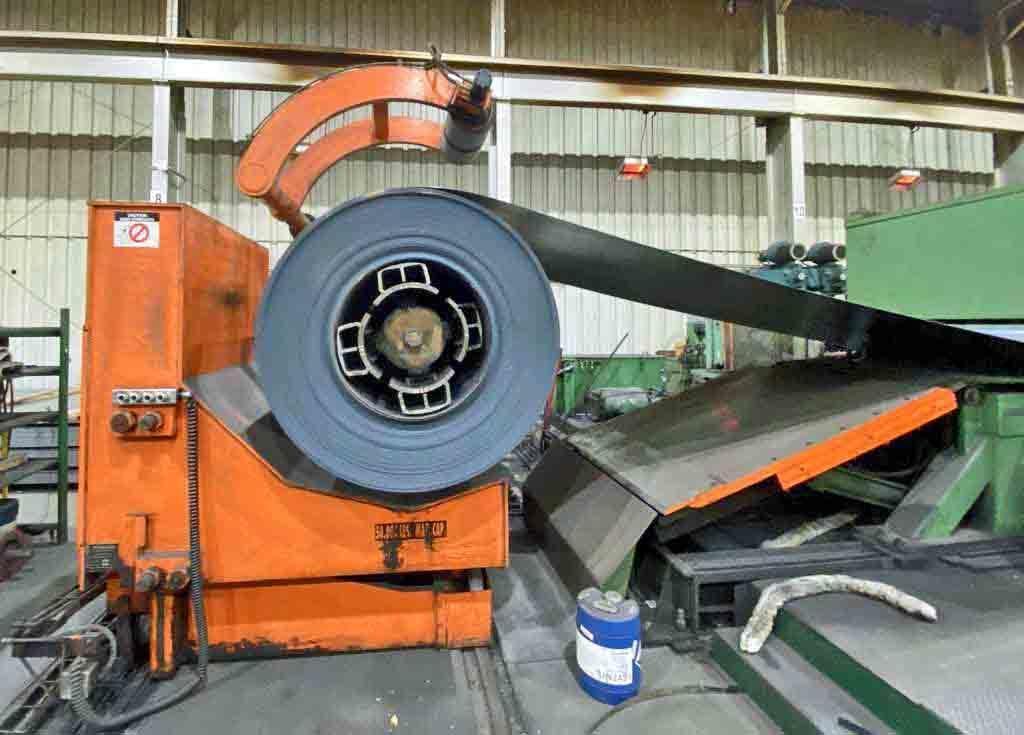

-Entry Coil Car: Strilich; New 1997
Floor Mounted
Powered Lift and Traverse
Pendant Control
Hydraulic Power from Uncoiler

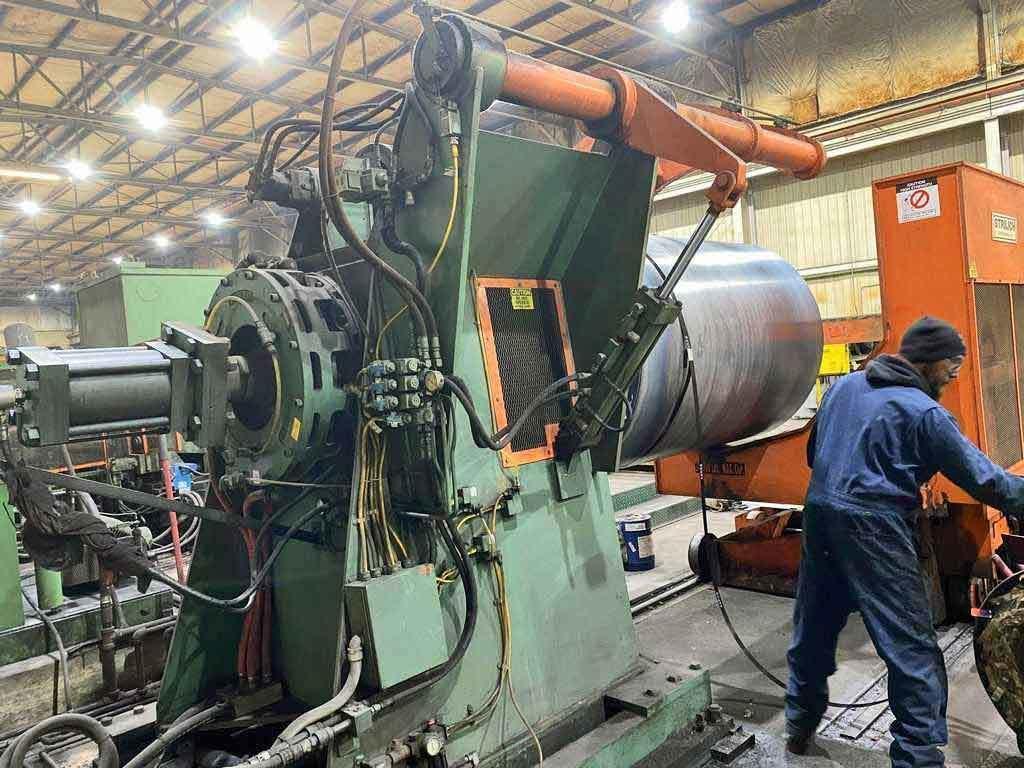

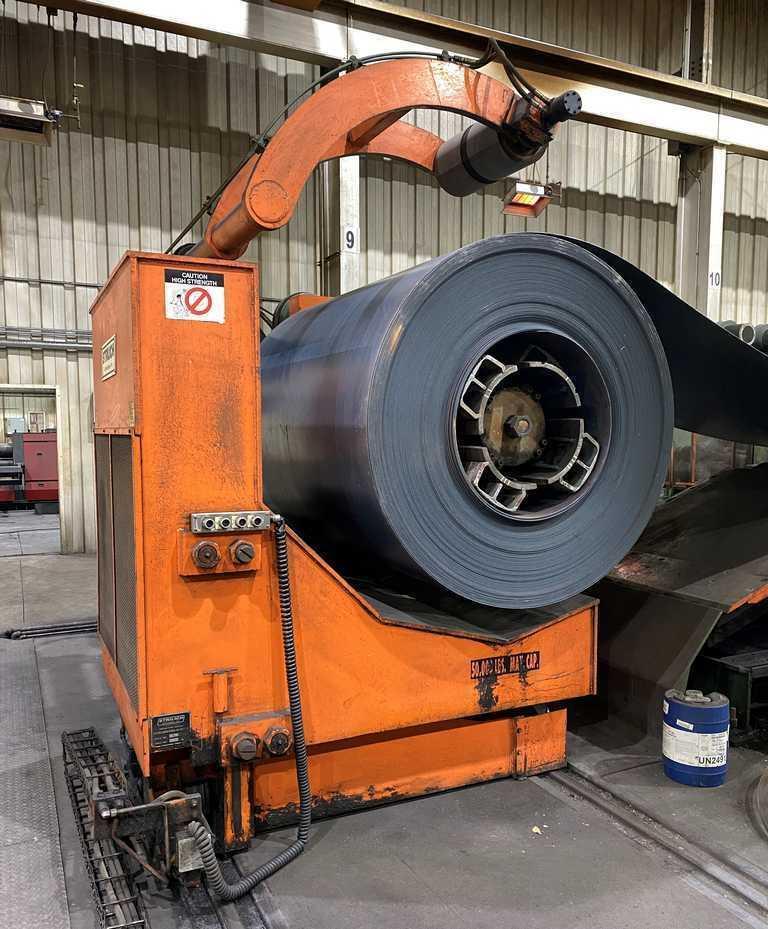

-Uncoiler: Strilich; New 1997
Mandrel Type with Pumpkin Tooth Segments
18.5" - 24.5" Expansion Range
Bolt On Risers
Powered Expansion
Hydraulic Feedup Motor
Holddown with Powered Snubber Roll
Wichita Water Cooled Brake
Slide Base
Water Cooler for Brake
-Entry Unit: Bradbury; New 1997
Tail Guard
Extending Blade Peeler
Powered Side Guides
-Entry Crop Shear: Bradbury; New 1997
Hydraulic Crop Shear
Powered 6" Dia. Pinch Rolls
Motorized adjustable Side Guides

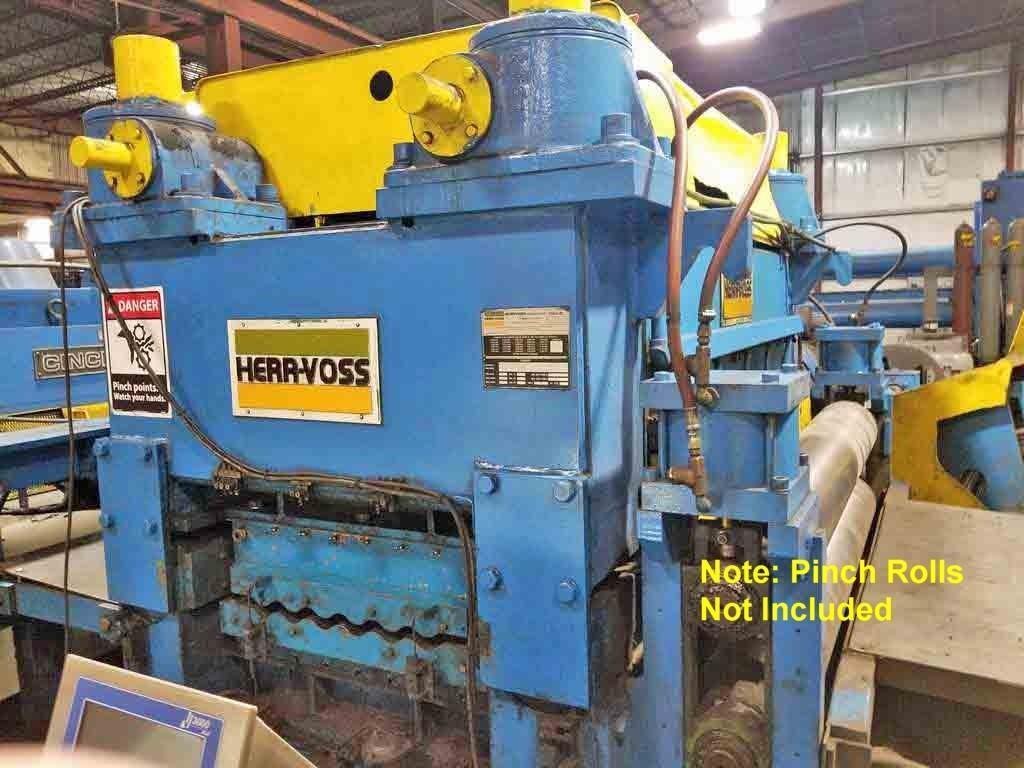

-Leveler 1: Herr Voss; Rebuilt 2001
Model: 82/2.187/17/7 4 Hi LH
Capacity: .034" - .153"
Roll Face: 84"
Roll Diameter: 2.187
19 Work Rolls; 9 Over 10
7 Flights Back Ups, 5 Motorized
100 HP DC Motor
Inverted Design To Work Top & Bottom Rolls

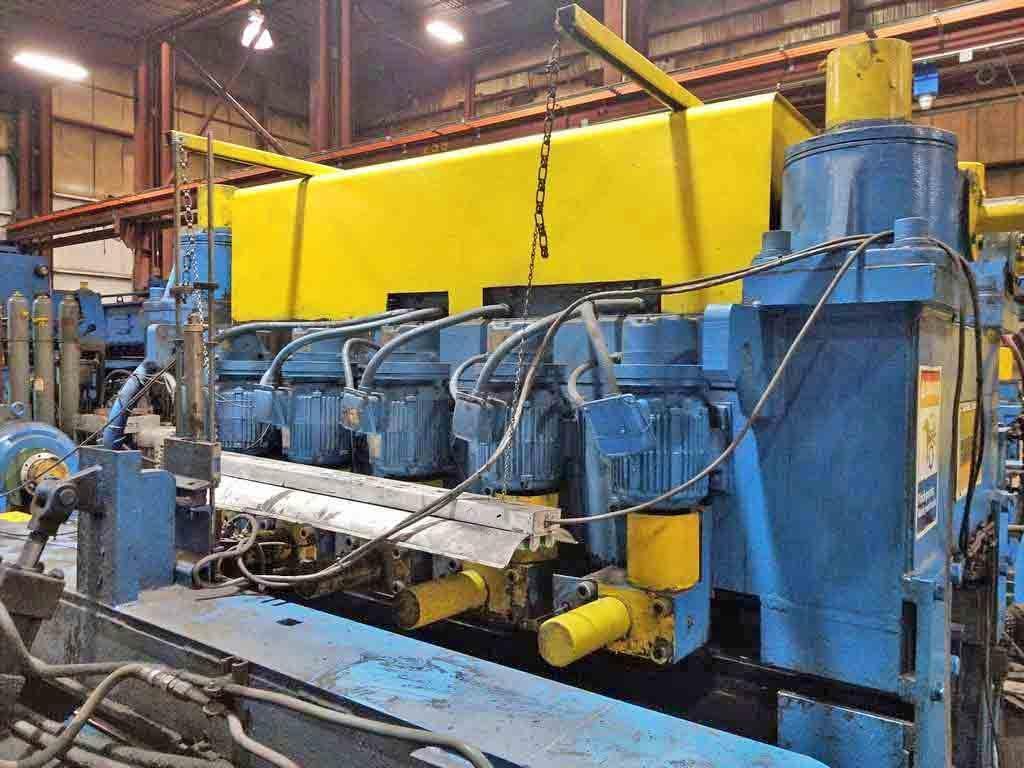

-Leveler 2: Herr Voss; New 1987
Model: VKL 84/3.500-13/5 - 4 HI, RH
Rebuilt: 2007 by Herr-Voss
Capacity: 72" x 0.067" - 0.341"
0.341" Thick @ 50,000 psi
0.222" Thick @ 80,000 psi
Roll Face: 84"
Roll Diameter: 3.500"
Number of Rolls: 13, 6 over 7
Roll Spacing: 4.25"
Number of Backups: 5 Flights, Motorized
Pinion Box Rebuilt 2021
150 HP Main DC Drive Motor
Overall Size: Leveler - 150" L x 88" W x 108" High; 35,000 lbs.
Drive - 81" L x 60" W x 64" High; 16,000 lbs.
Main Operators Panel

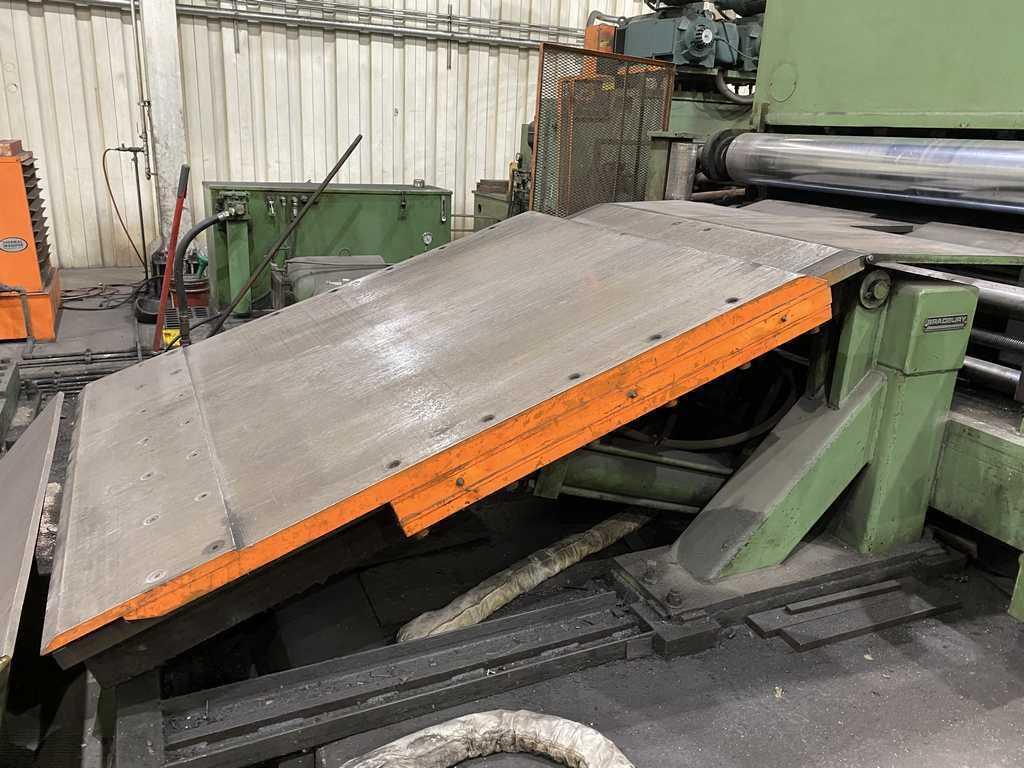

-Carry Over Table to Shear:
Flat Track Leveling Unit - 2007
-Entry Unit to Shear:
Powered Side Guides
Powered Pinch Rolls

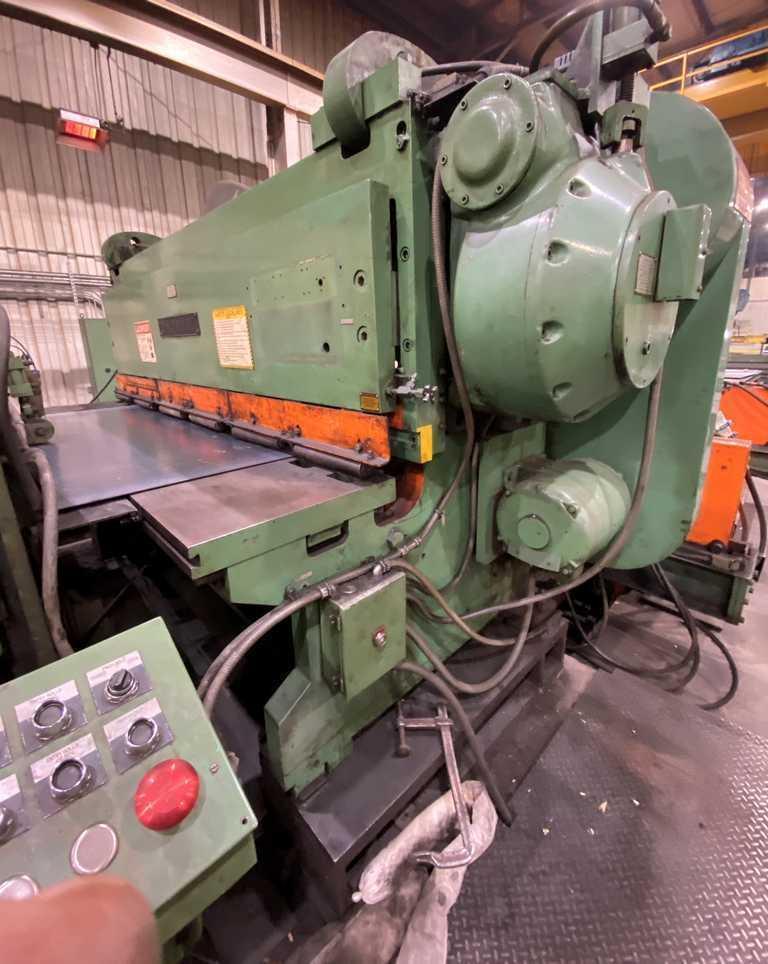

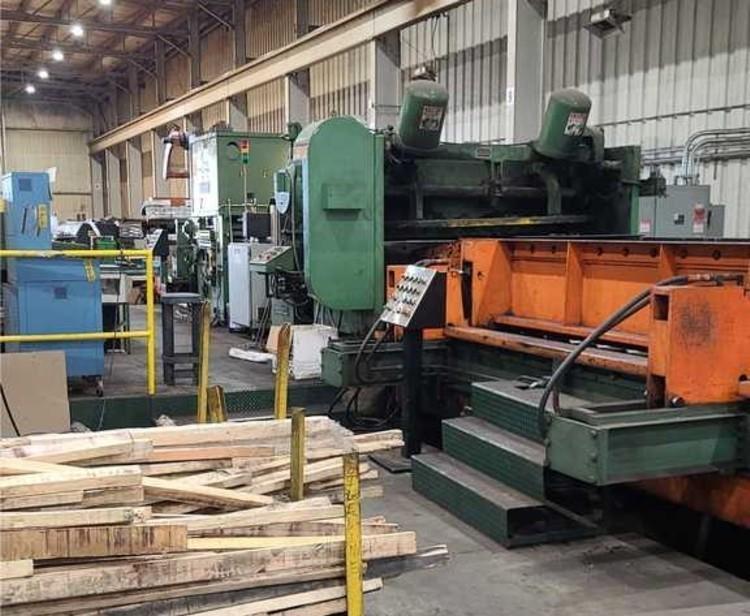

-Shear: Cincinnati; New 1995
Model #2508G; S/N: 48431
0.375" Capacity @ 60,000 PSI
50 Strokes/Min.
Down Cut Mechanical Actuation
10 HP AC Motor
Wichita Clutch
-Stacker: Strilich; New 19097

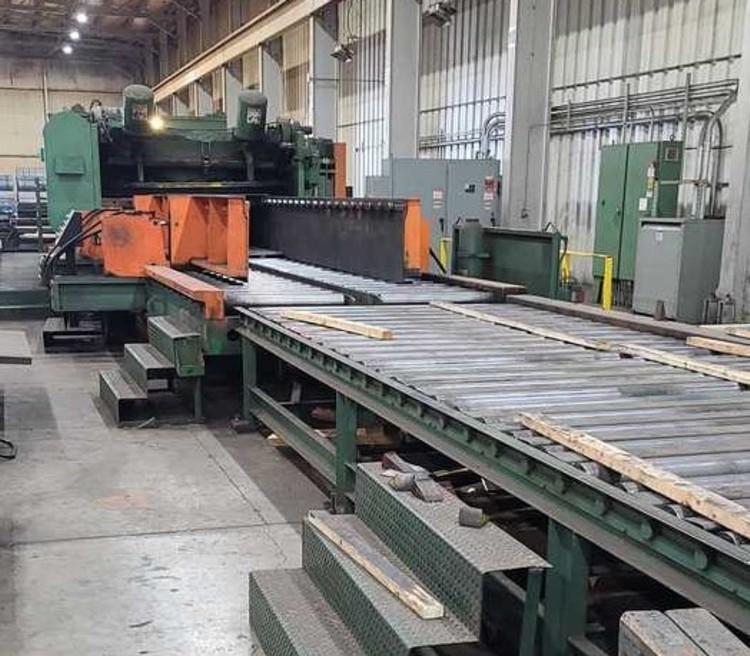

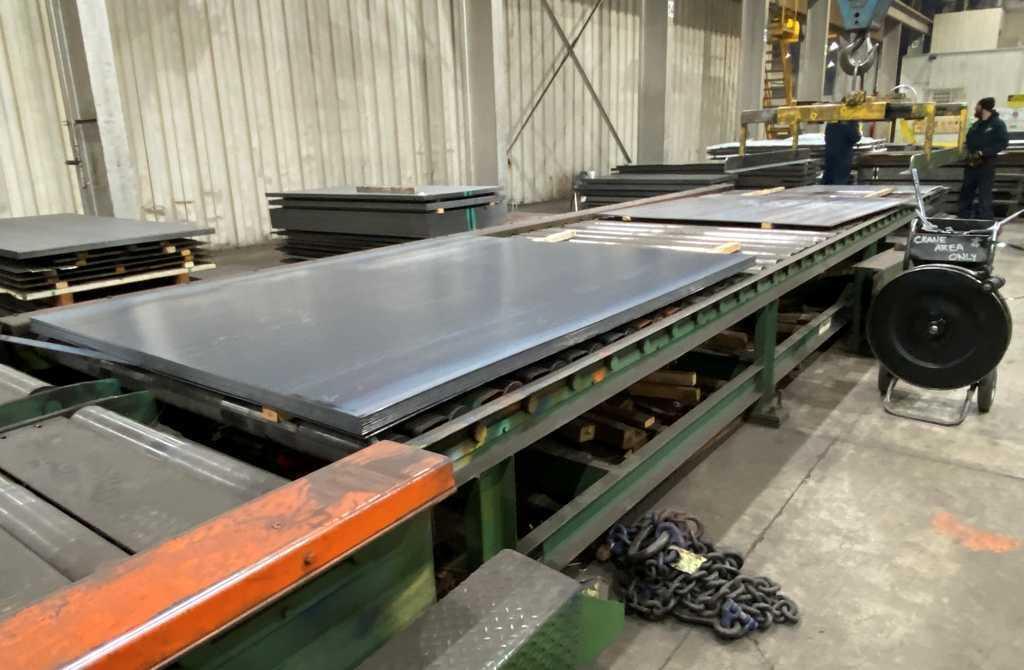

"Slide-Out" Drop Type, 24' Long
Powered Side Tampers
Powered End Stop
Split Powered Roller Conveyor
Raise and Lower
-End Discharge Conveyor: Strilich; New 1997
Powered Roller Top
24' Long
-Hydraulic System:
30 HP Central Hydraulic Power Unit
Valve Bank
-Electronics:
AC/DC Cabinets
-Misc. Operators Control Consoles:
-Drawings and Manuals
-Spare Parts:
Snubber Roll for Uncoiler
Two (2) Spare Blades for Shear
