72" x 0.500" x 60,000# Herr Voss Cut to Length Line
With New Red Bud Stretcher Leveler Retrofit System
Strip Width: 30" to 72"
Strip Thickness: 0.096" - 0.500" @ 40,000 PSI
Coil I.D. Range: 20" to 30"
Coil O.D. Range: 39" to 84"
Coil Weight: 60,000 lbs.
Sheet Length: 24" to 24'
Stack Height: 18" (including skid)
Max. Stack Weight: 40,000 lbs.
Line Speed: 175 FPM
Consisting of the following:

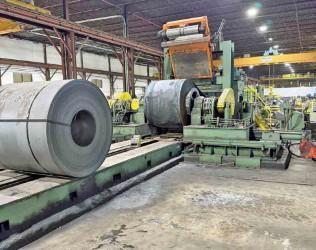

-Entry Coil Staging Ramp:
3 Coil Positions
Hydraulic Transfers
-Pit Type Coil Lift:

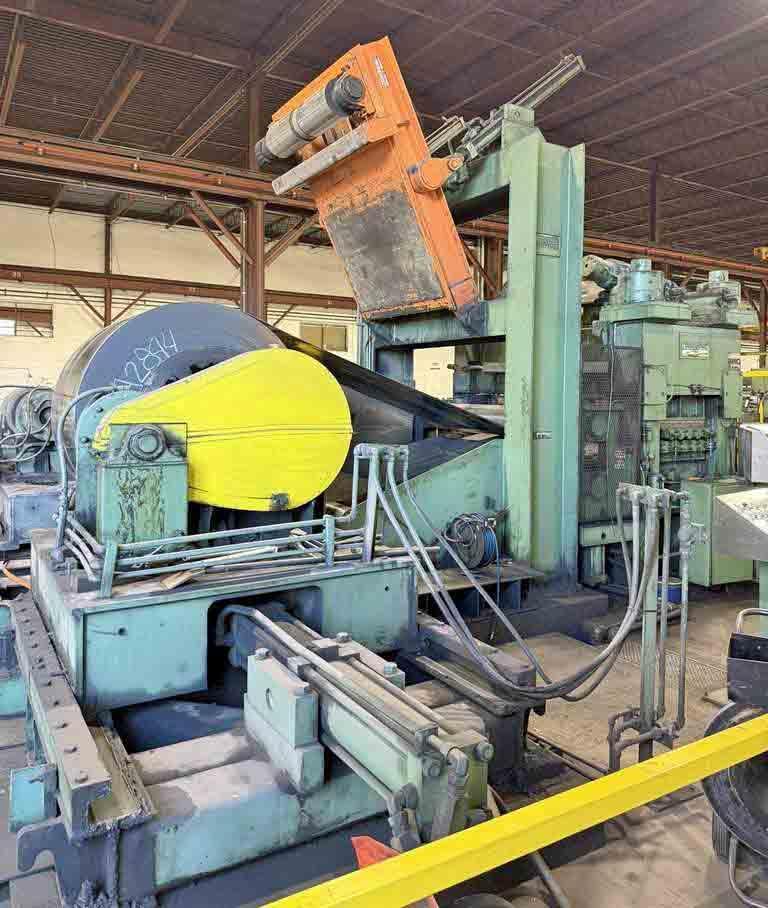

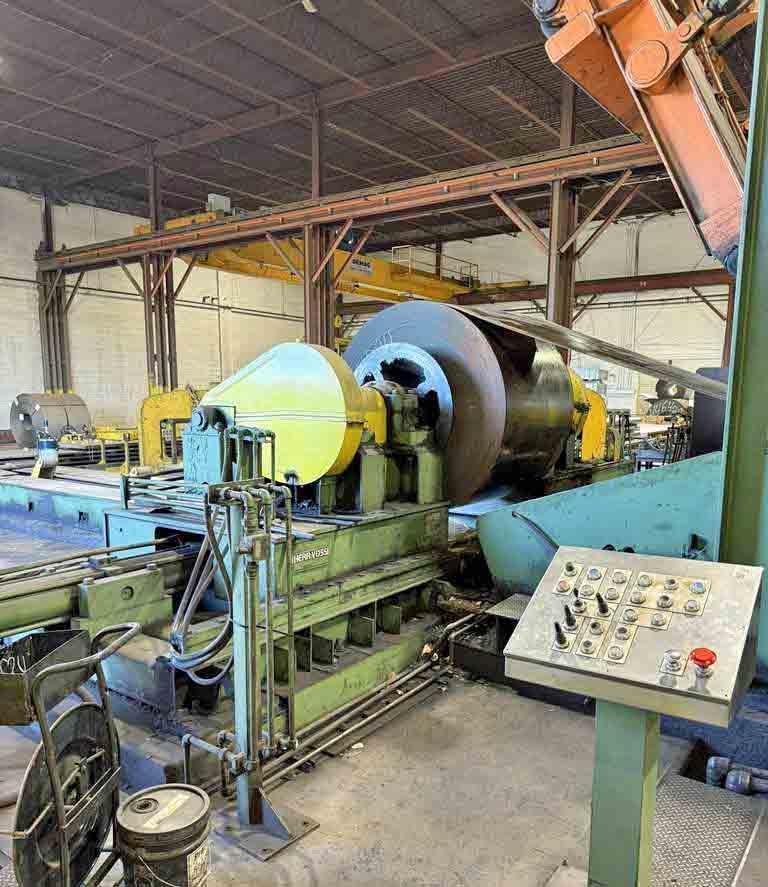

-Double Cone Uncoiler:
Water Cooled Drag Brake on both Heads
Powered Threading Drive
Sliding Base

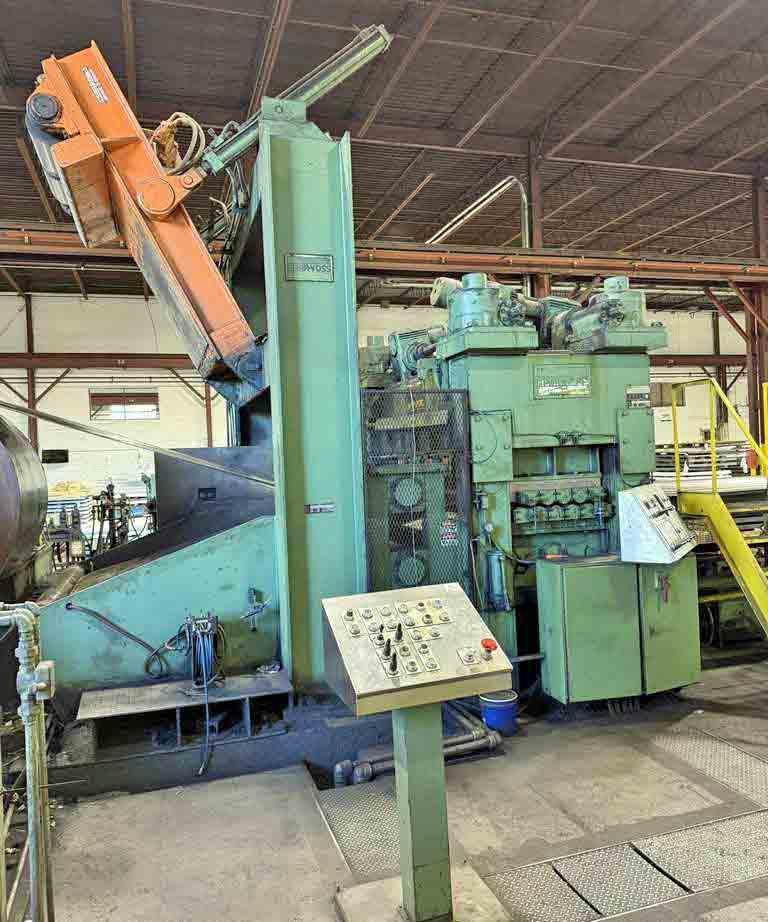

-Entry Station:
Heavy Duty Motorized Overarm Holddown Roll
Articulation Peeler Table
-Herr Voss Precision Leveler:
Model VKL 88/4.5-11/5-4HI
Capacity: 0.096" - 0.500" @ 40,000 PSI
(0.230" Max. @ 80,000 PSI)
4.5" Dia. x 88" Face Rolls
11 Roll Leveler - 5 over 6
5 Flights of Backups

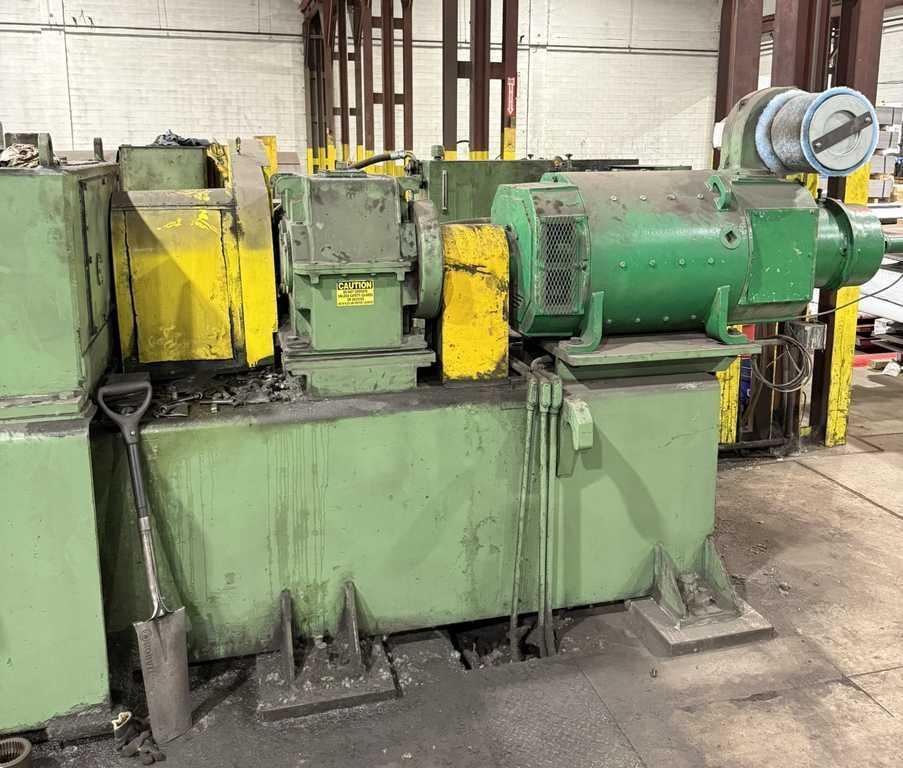

200 HP DC Motor, 850/1700 RPM, 500 V, W/Blower
Line Speed: 175 FPM
-Inspection Conveyor:
10' Long
-Side Guide Unit:
Hydraulic Motor powered Adjustment
-Measuring Roll:

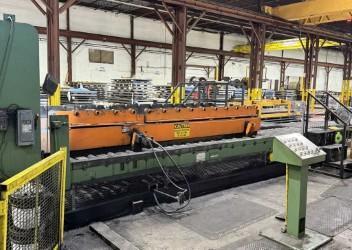

-Mechanical Downcut Shear:
Air Clutch and Brake
AC Motor Driven Flywheel

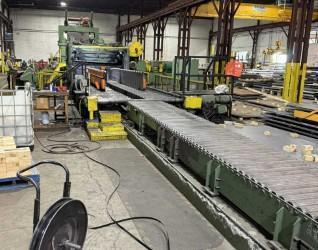

-Drop Stacker:
21' Long, End Discharge
Powered Roller Conveyor, 28' Long
-In-Line Powered Runout Conveyor:
30' Long

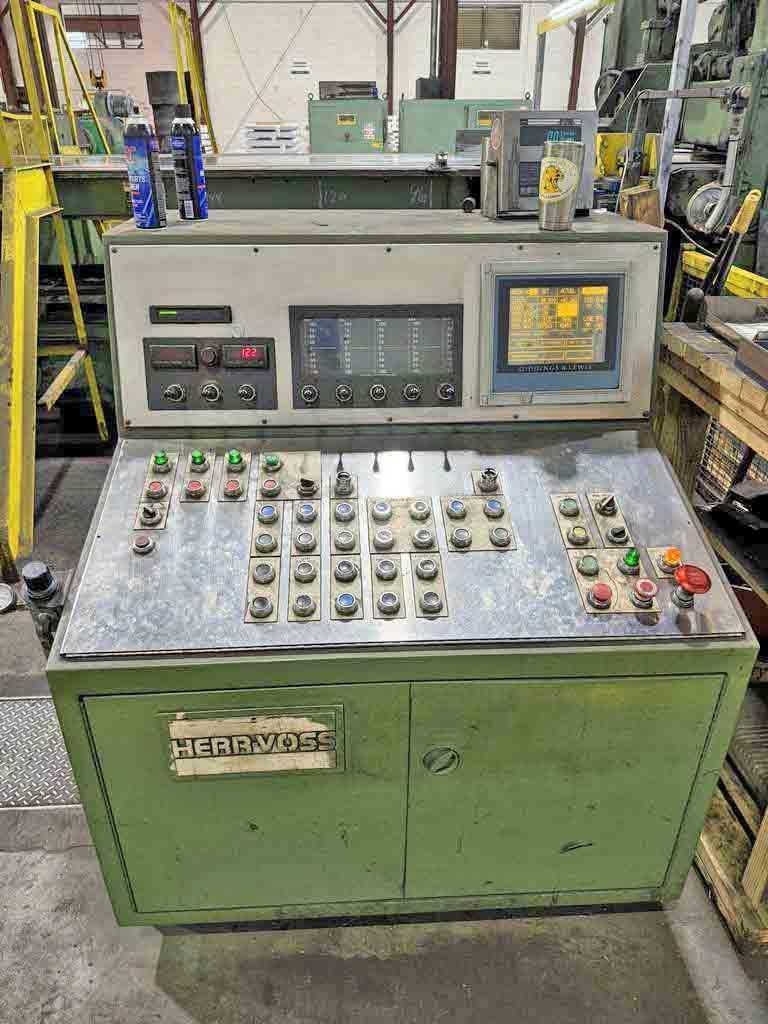

-Controls & Hydraulics:
-Spare Parts:
-Overall Line Length: 123' (Including Entry 3 Coil Staging Area)
-Line Direction: Left to Right
-Installed and Under Power; Toledo, OH.
-New Red Bud Stretcher Leveler Retrofit System:
MATERIAL DATA:
Type: CRS-HRS
Max. Yield Strength @ Max. Thickness: 45,000 PSI (310.26 N/mm2)
Max. Thickness: 0.500" (12.7 mm)
Min. Thickness: 0.060" (1.52 mm)
COIL SPECIFICATIONS:
Max. Entry Width (Machine Clearance): 75" (1905 mm)
STRETCH LEVELER SPECIFICATIONS:
Max. Stretch Clamp Center Distance: 240" (6096 mm)
Stretch Cycle Time (Approx.): 5.0 Sec.
Motor Data:
Primary LV Hydraulic Power: 150 HP AC / 85 GPM (322 LPM)
Utility Requirements:
Electrical: 460 Volt, 3 Phase
Air: 80 PSI (0.55 N/mm2)
Max. Ambient Temperature: 100 F (38 C)
Min. Ambient Temperature: 35 F (2 C)
Delivery: Approximately 14 Months
