Specifications
| Max Weight |
80000 pounds |
| Max Coil Width Capacity |
72 inches |
Equipped With
Materials: HRS, CRS, P/O, HSLA
Coil Width Range: 36" - 72"
Thickness Range: 0.090" - 0.250"
Maximum Shear: 50,000 PSI
Maximum Yield: 65,000 PSI
Max. Coil Weight: 80,000#
Coil I.D.: 20" - 36"
Max. Coil O.D.: 80"
Line Direction: Right to Left
Sheet Length: 36" - 20' (within Tampers)
Sheet Length: 36" - 30' (within Exit Conveyor)
Sheet Length: 36" - 40' (with special handling)
Mode of Operation: Start / Stop
Line Speed: 0 - 150 FPM
Max. Finished Bundle: 20,000# @ 20'
Consisting of the following:

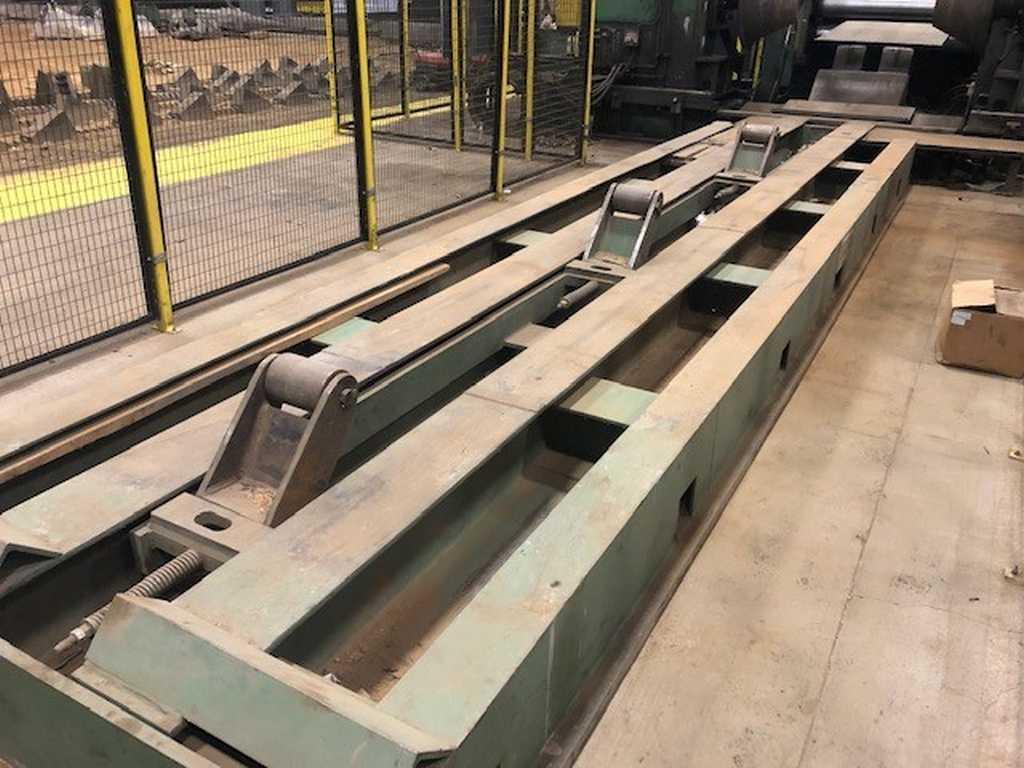

-Entry Coil Storage Ramp:
Three (3) Coils x 80,000 each
Floor Mounted
-Coil Elevator:
Pit Mounted
Powered Lift

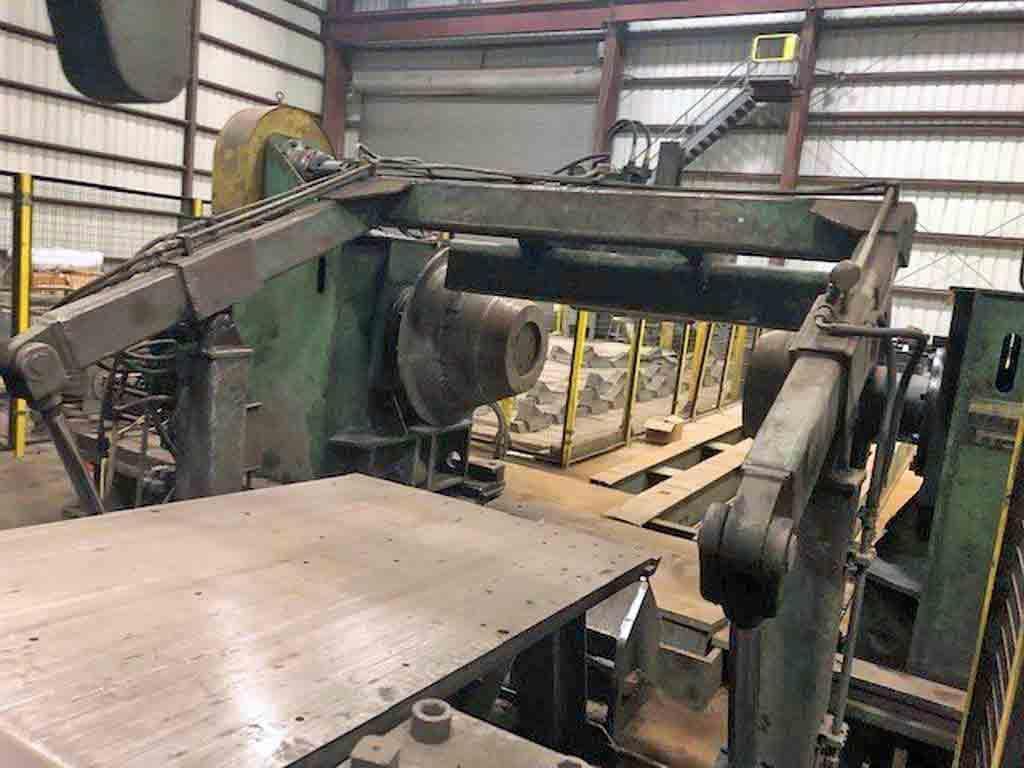

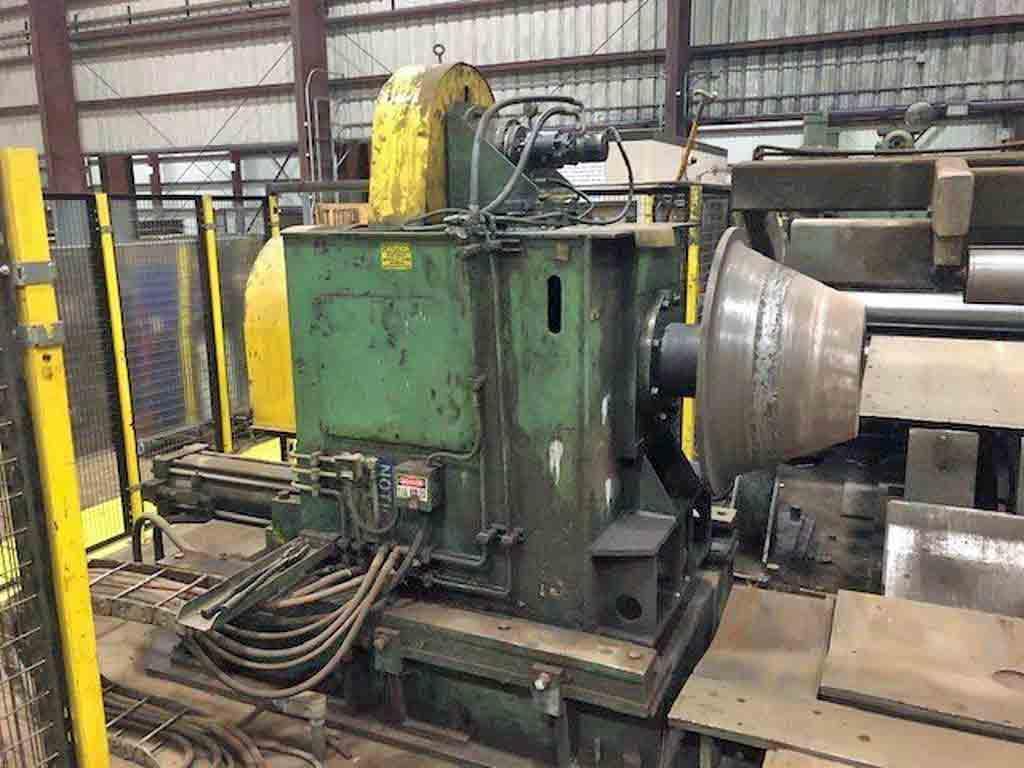

-Uncoiler:
Floor Mounted
Double Cone Type
Hydraulic Feedup Motor - Each Side
Wichita Water Cooled Brake - Each Side
Slide Base - each head (Cylinders rebuilt in 2019)
Water Cooler for Brake
-Feedup Assist Assembly:
Floor Mounted
Holddown with Powered Snubber Roll
Tail Guard
-Peeler Unit:
Extending / Grasshopper Type

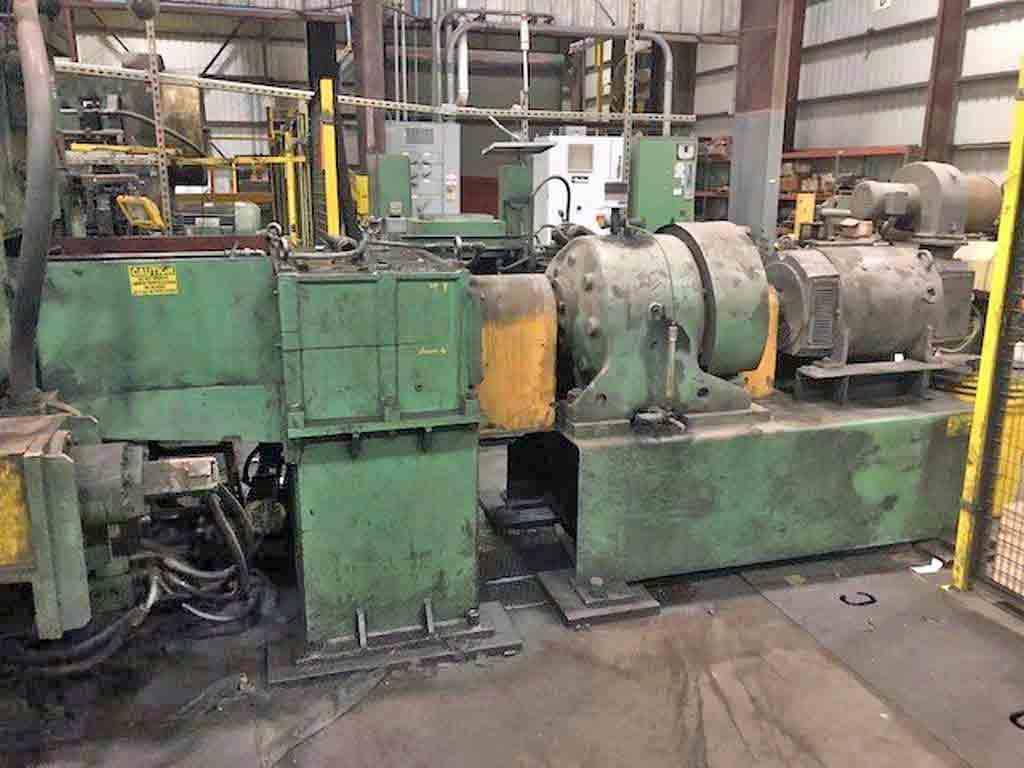

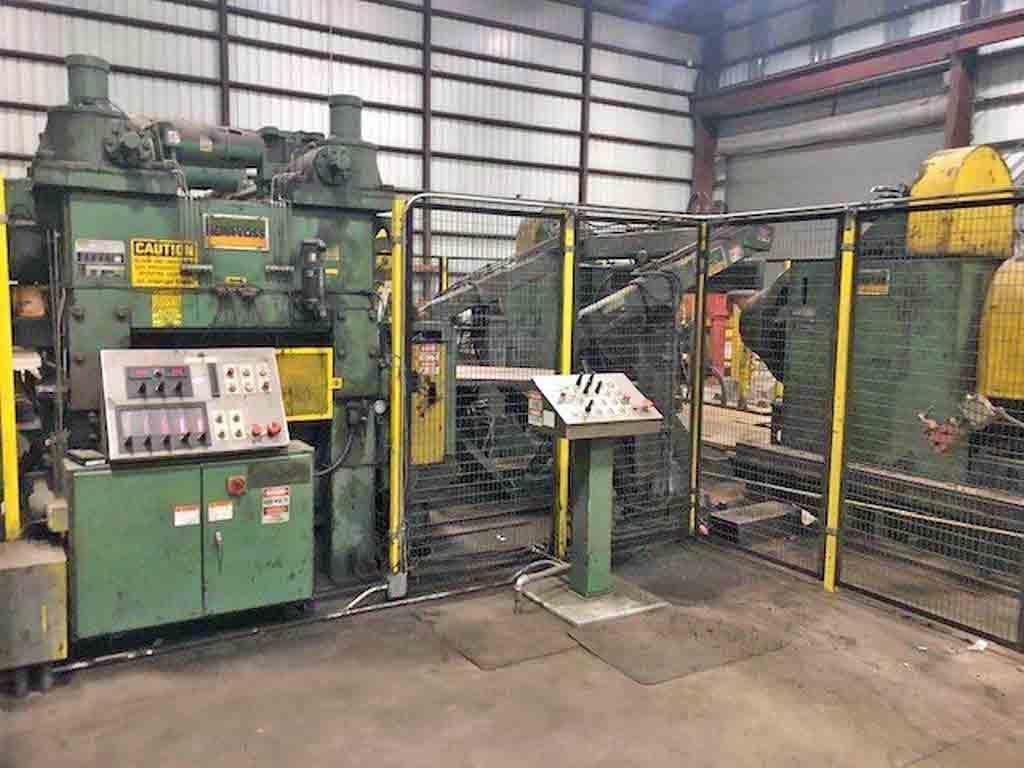

-Corrective Leveler:
VKL 84/3.500-17/5, 4 HI, RH
Powered Entry Pinch Rolls
Seventeen (17) Work Rolls in an 8/9 Configuration
Work Rolls are currently 3.443" Diameter
Five (5) Flights of Adjustable Backup Rolls
4 HI Configuration
200 HP DC Motor
Machine Mounted Controls
-Carryover Table to Shear:
Powered Side Guides
Fixed Upper Deflector Roll
Powered Bottom Feed Roll

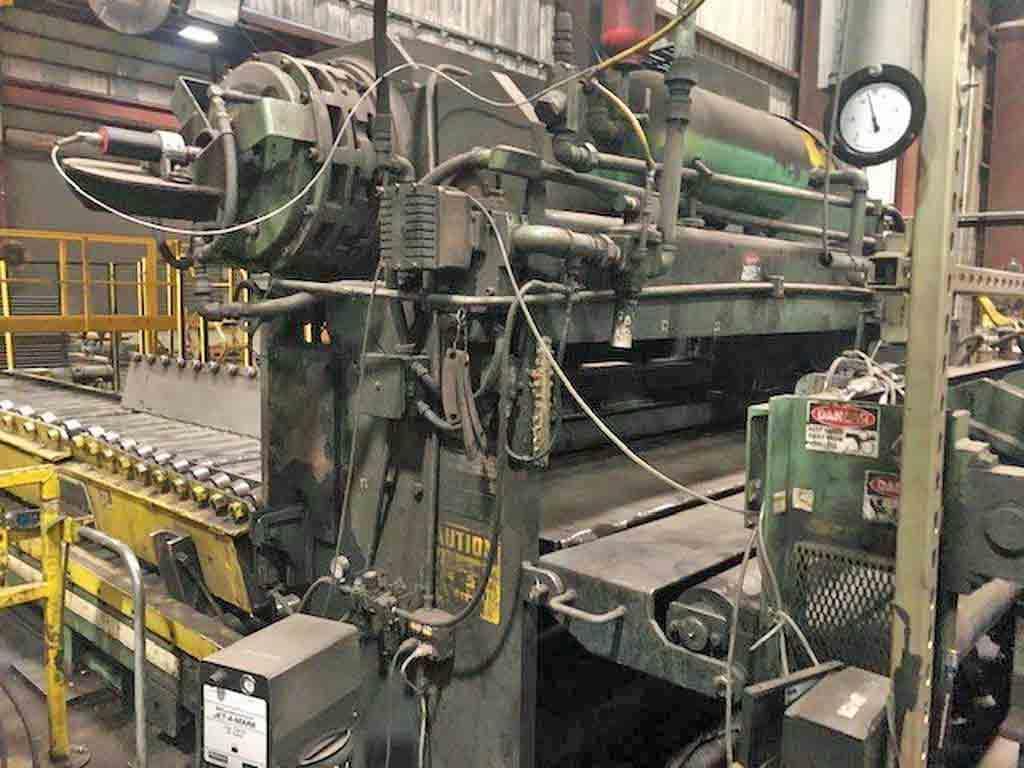

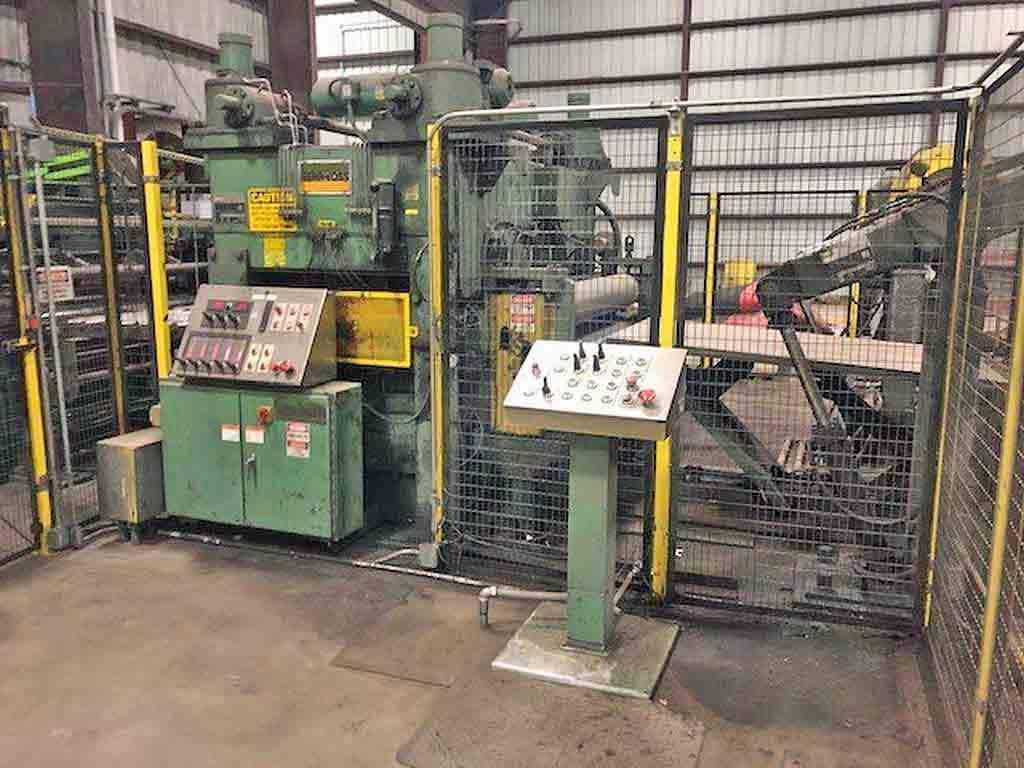

-High Speed Shear:
Down-cut Mechanical Actuation
Single Rate Blade
Manual Gap Adjust
40 HP AC Motor
Wichita Clutch

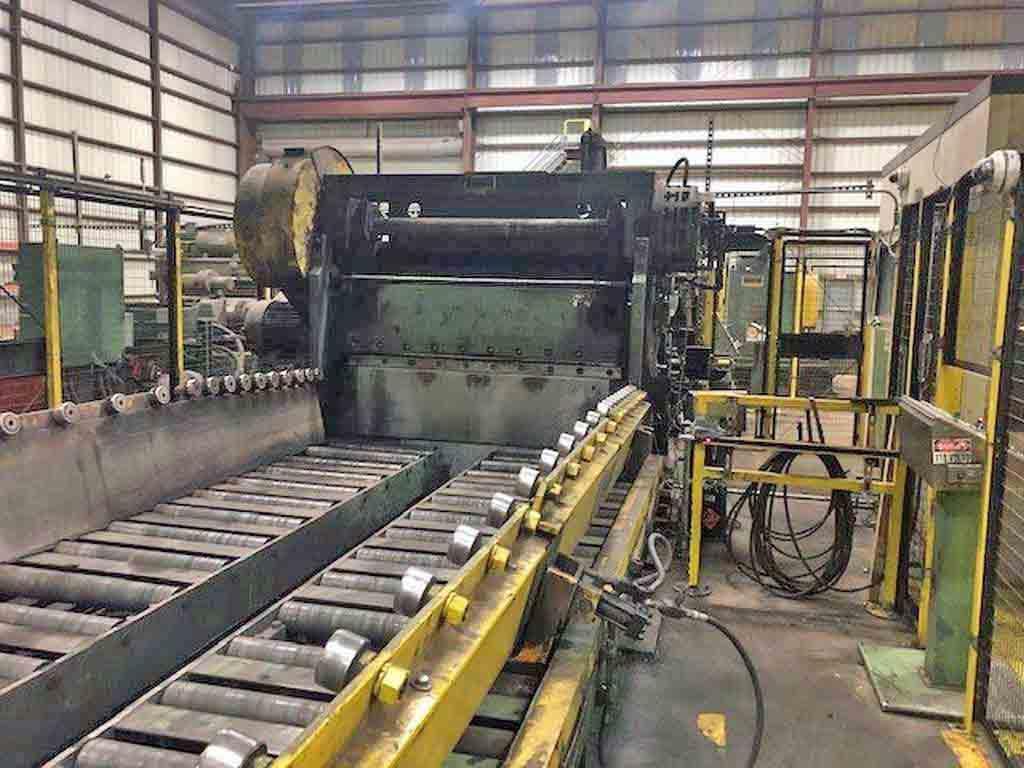

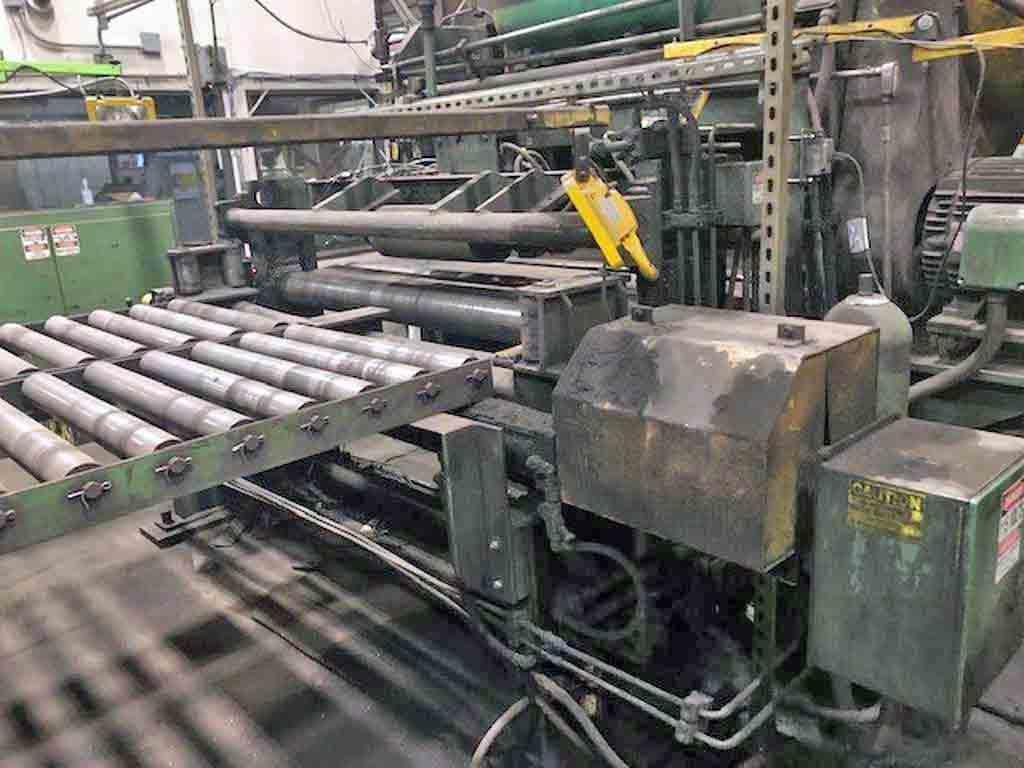

-Stacker:
"Slide-Out" Drop Type
Powered "Kick-Out" Rolls into Stacker
Powered Side Tampers
Powered End Stop
Split Powered Roller Conveyor
-End Discharge Conveyor:
Idler Roller Top
Four (4) Braking Sections
60' Long x 46" Wide
-Hydraulic System:
Central Hydraulic Power Unit
Valve Bank
-Electronics:

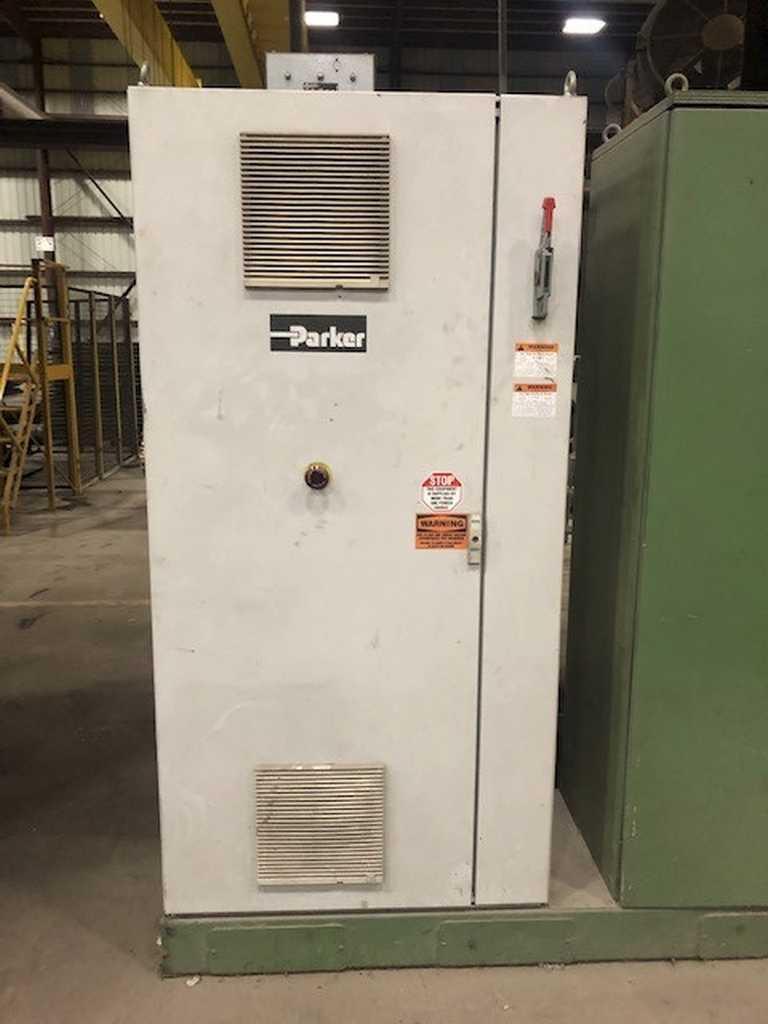

AC/DC Cabinets
Parker DC Drive (New in 2012)
Misc. Transformers
-Misc. Operators Control Consoles:

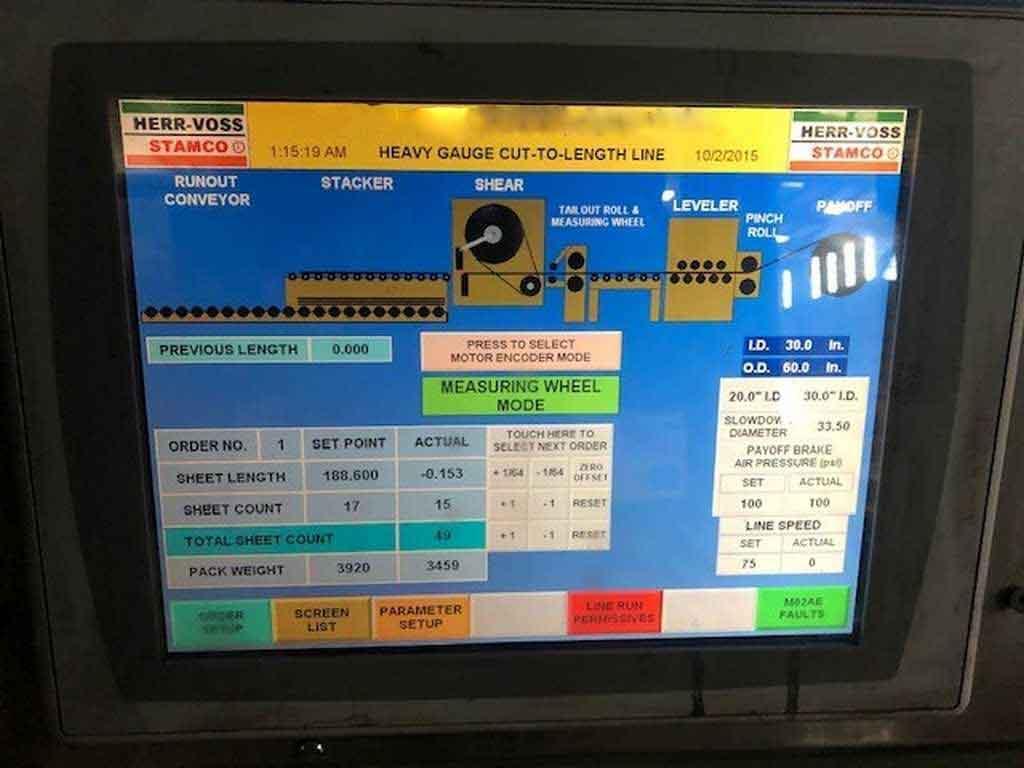

Main Console with Touch Screen Controls
-Drawings and Manuals
-Spare Parts:
Uncoiler Wear Plates
Four (4) New Corner Jacks for the Leveler
Spare DC Motor for Leveler
Spare Distribution Box for Leveler (completely rebuilt)
Thirty-Five (35) Usable Spindles for Gearbox (some used some new)
Thirteen (13) Work Rolls (3.400" Diameter, need to be reground)
Ninety-Five Backup Bearings (6.218" Diameter)
Ten (10) Leveler Backup Bearing Flight Blocks
Spare Motor for Shear
Two (2) Spare Blades for Shear
Spare Guide Rolls for Stacker
-Under Power
