Specifications
Equipped With
Maximum Coil Width: 72"
Maximum Coil Weight: 50,000#
Thickness Range: 0.047" - 0.200"
Line Speed: 50 - 150 FPM
Coil ID Range: 20" - 28"
Maximum Coil OD: 72"
Maximum Stack Length: 252"
Consisting of the following:

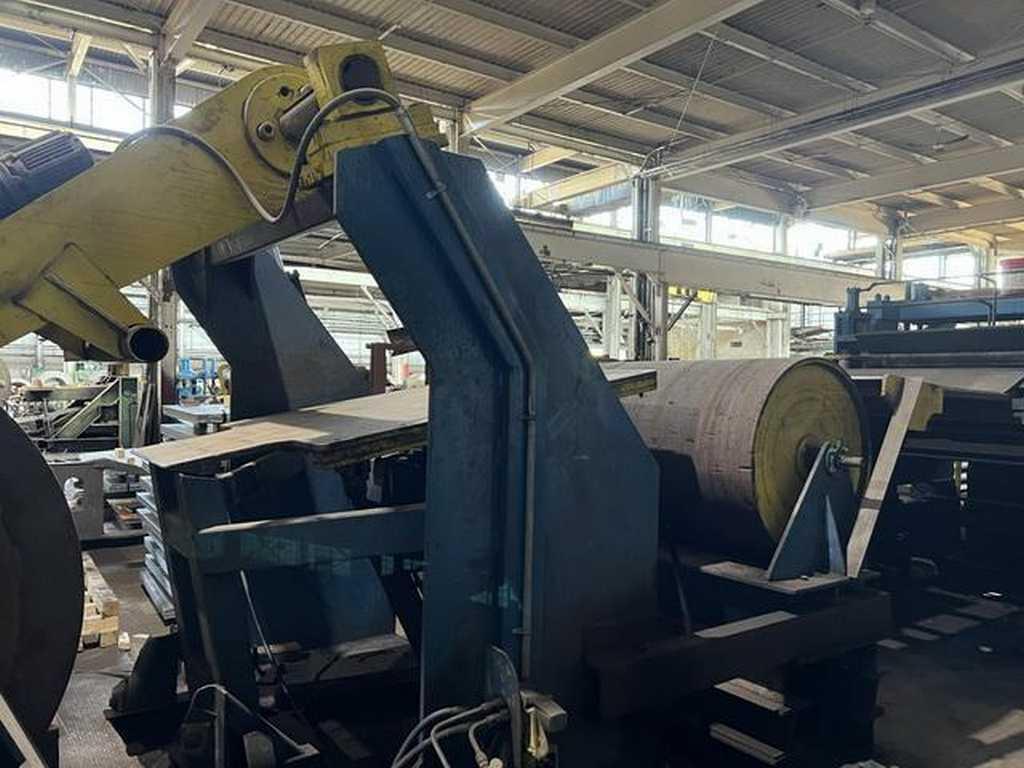

-Entry Coil Staging Ramp
-Coil Lift

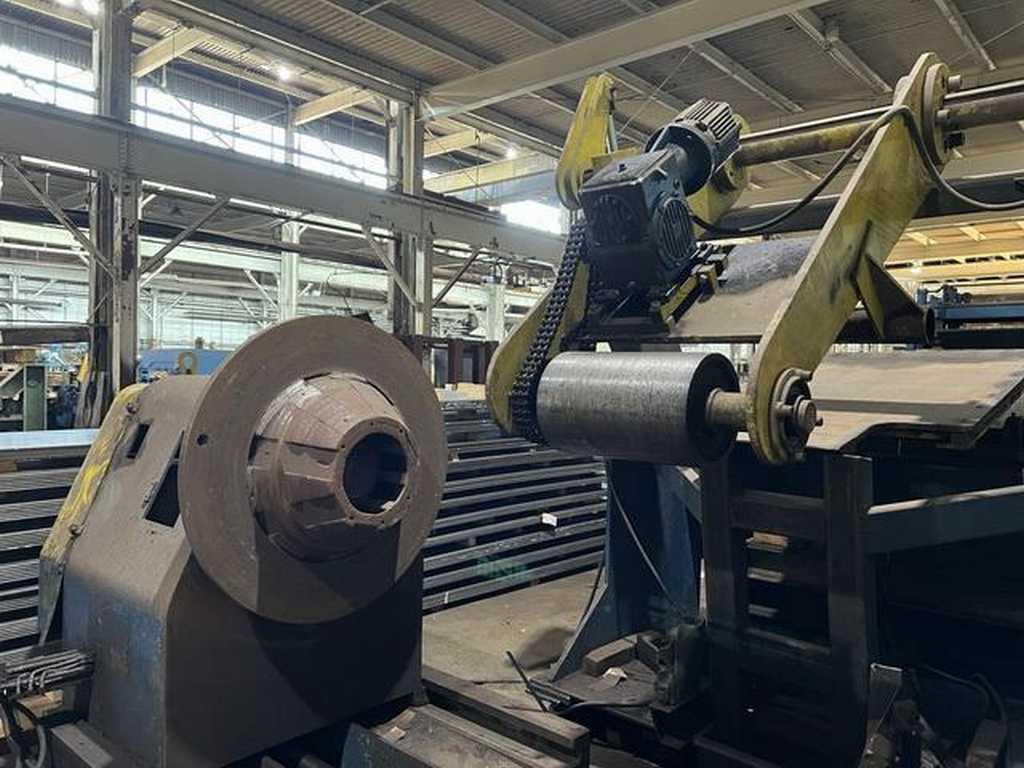

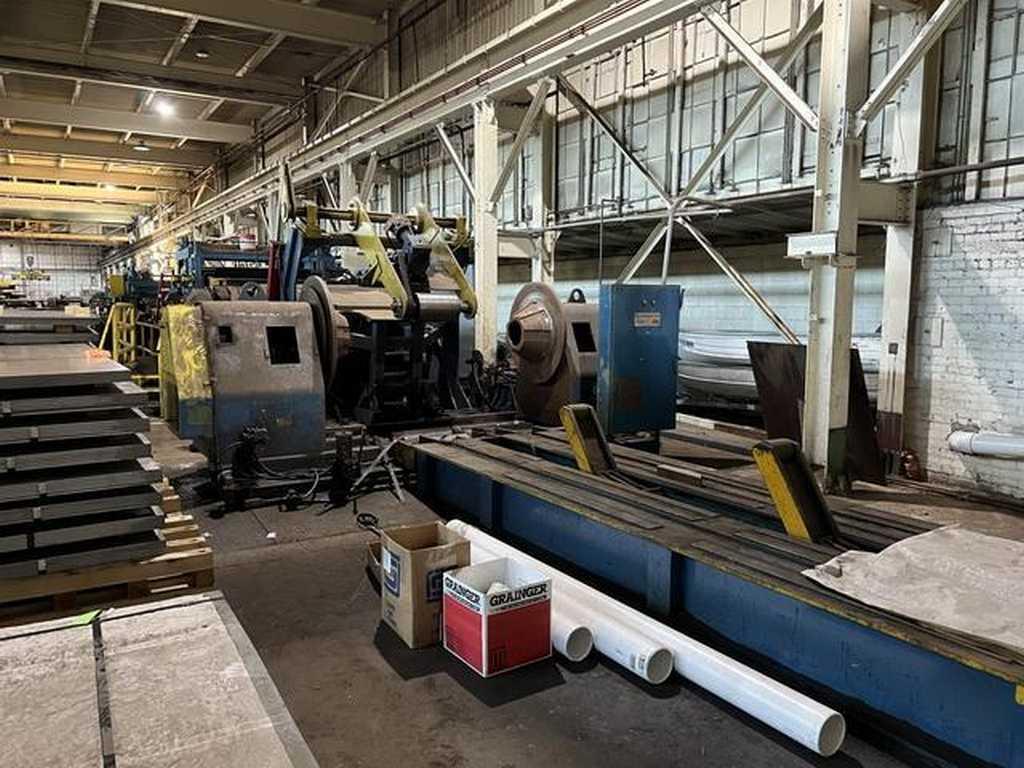

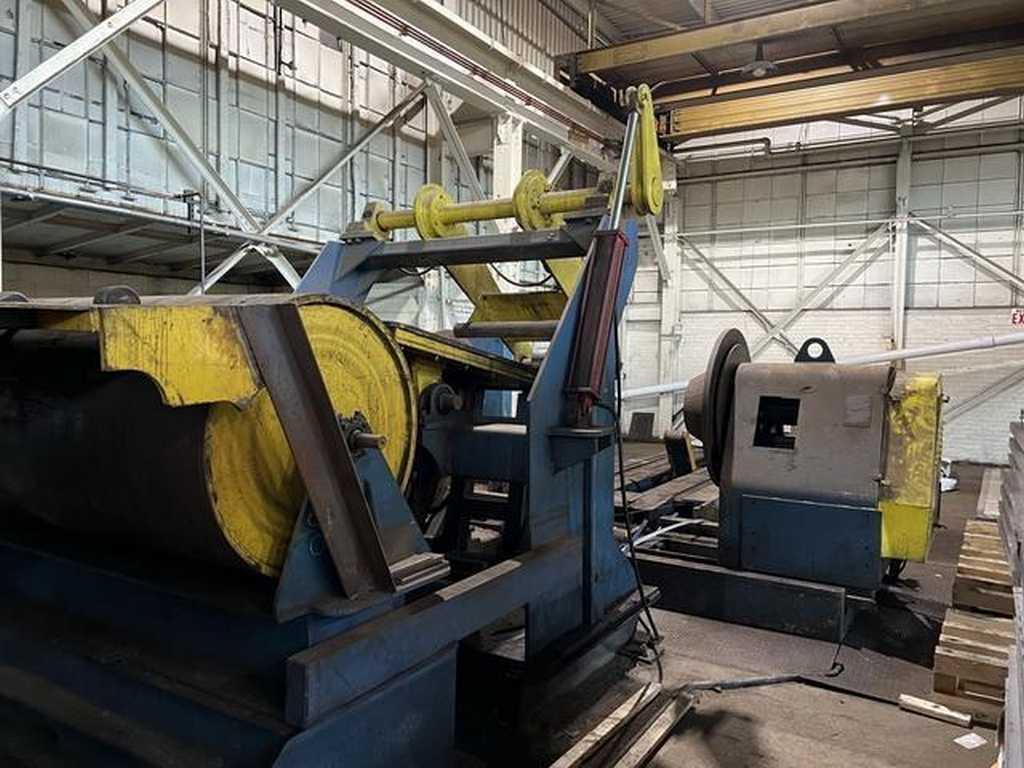

-Double Cone Uncoiler:
Sliding Bases
-Peeler and Holddown Roll:
Powered Holddown Roll
Pass Line Roll
-Edge Guides
-Pinch Rolls

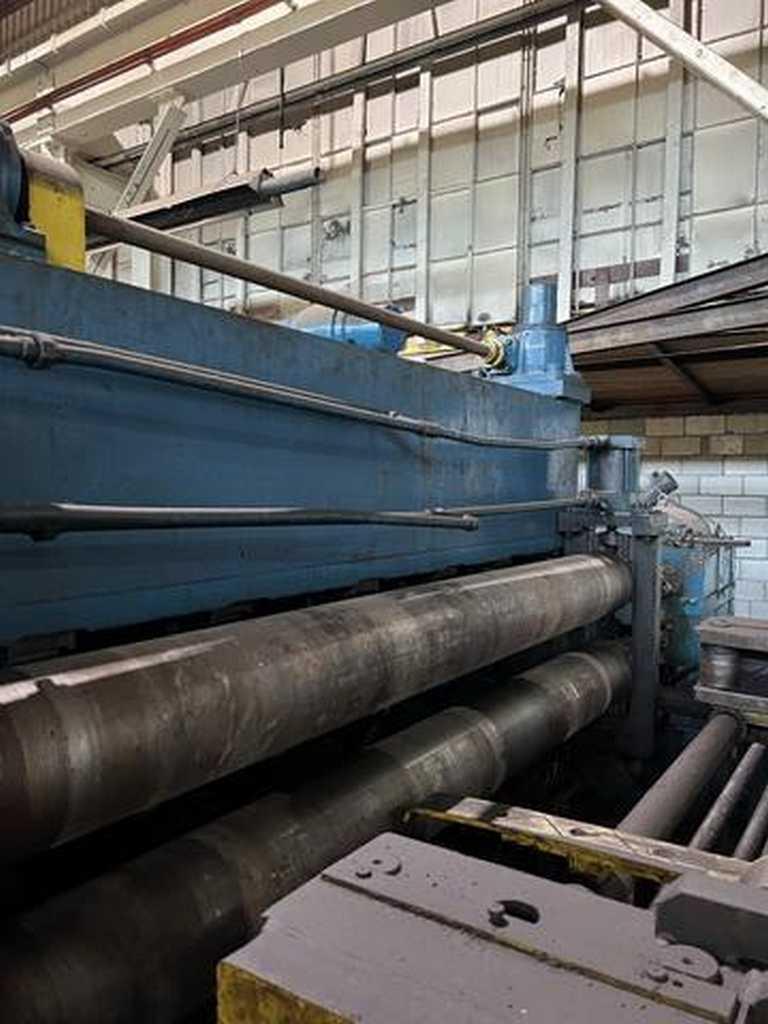

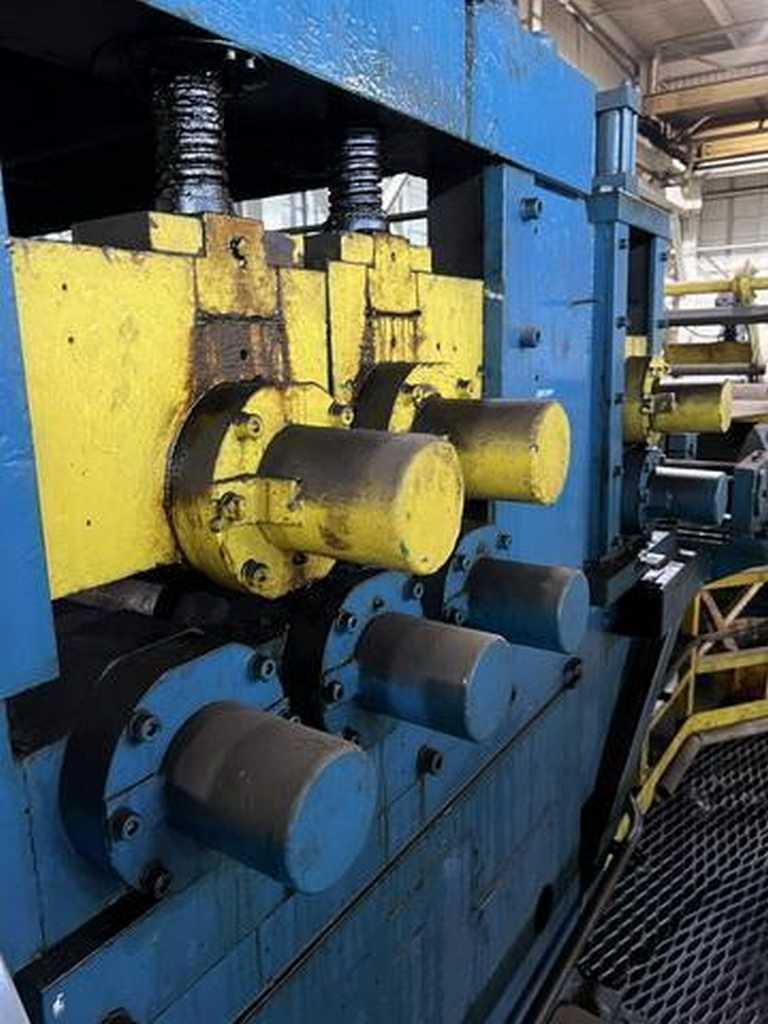

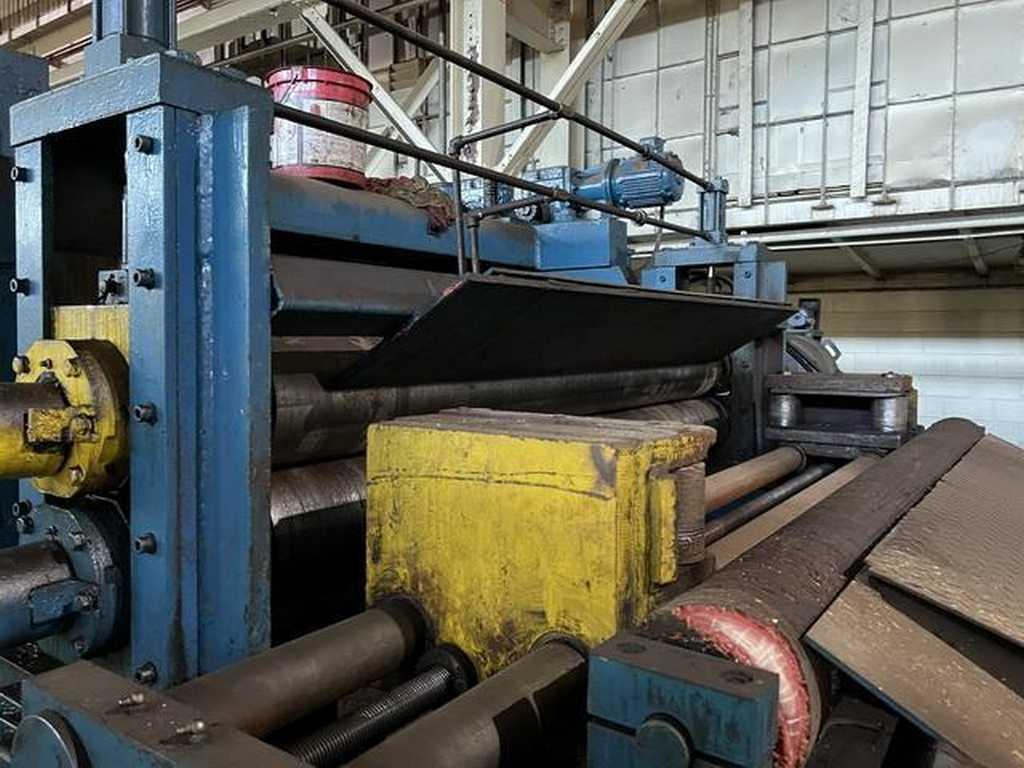

-Flattener:
Five Powered Rolls
-Pit
-Pass Line Roll
-Edge Guides
-Pinch Rolls

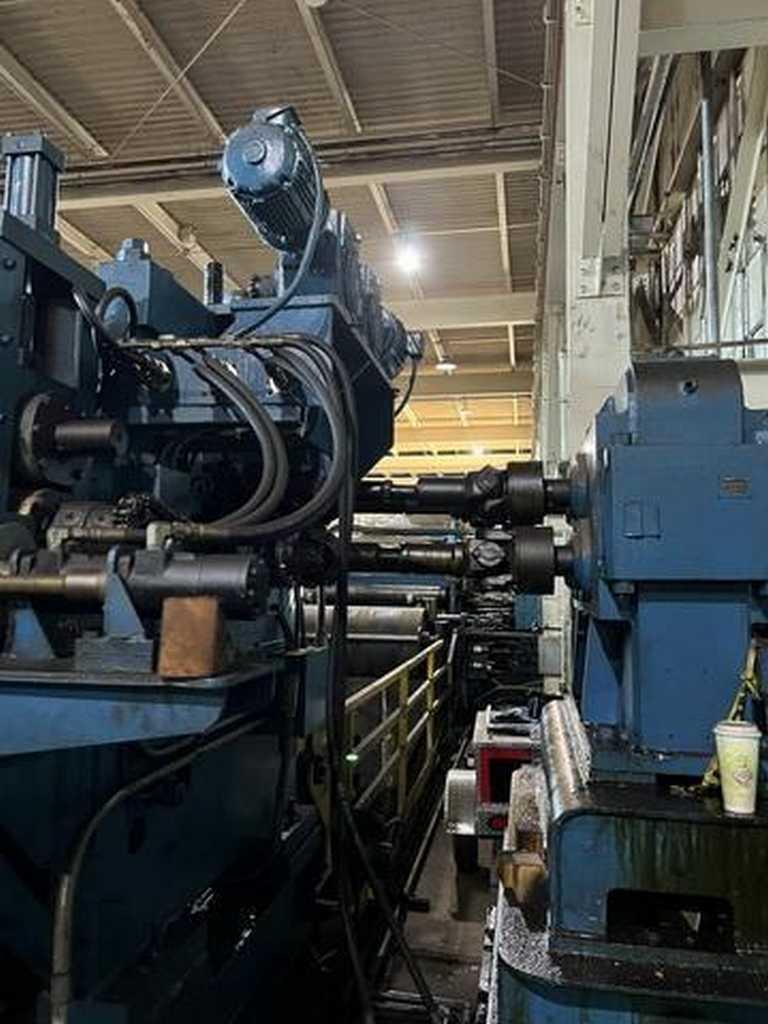

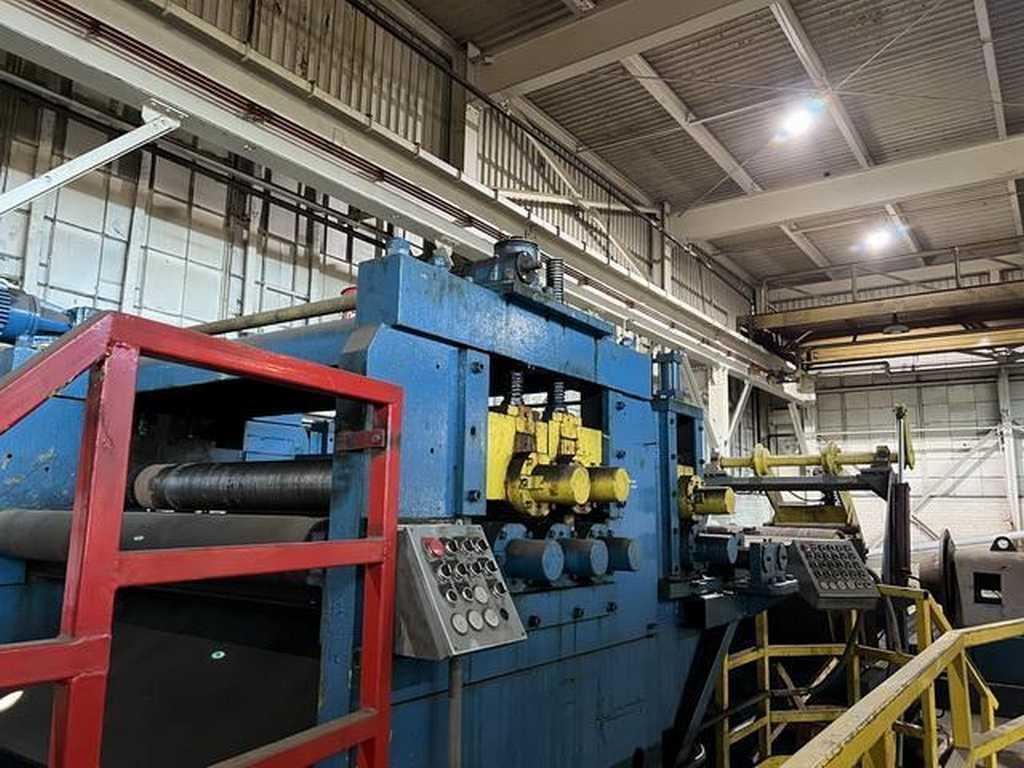

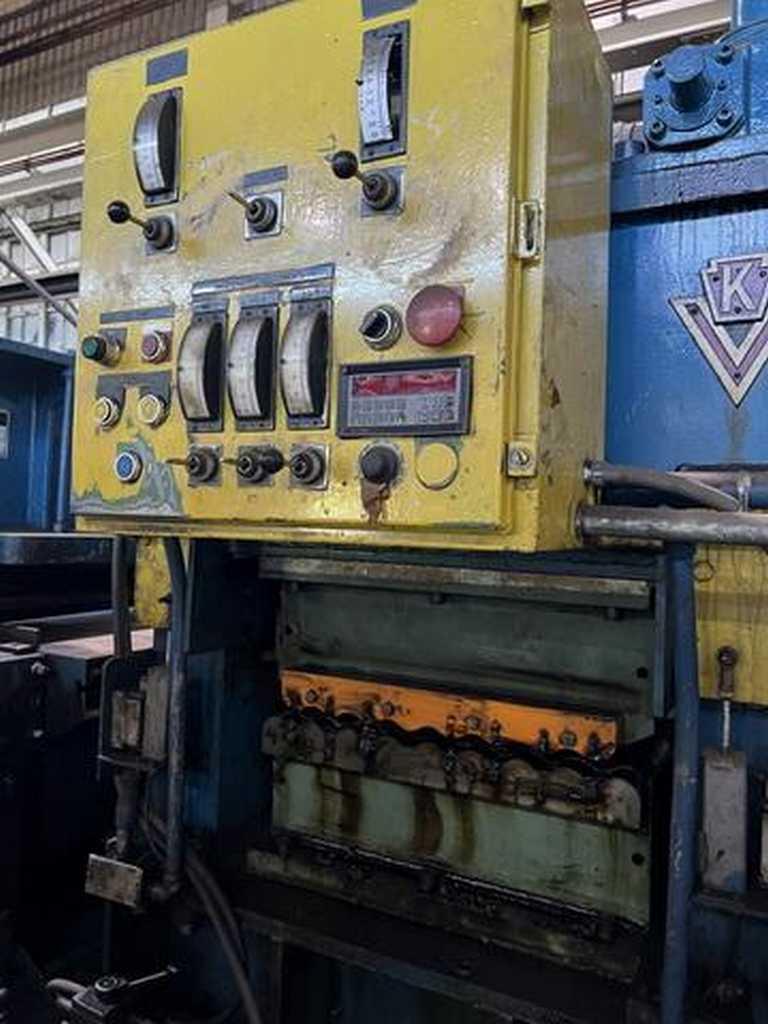

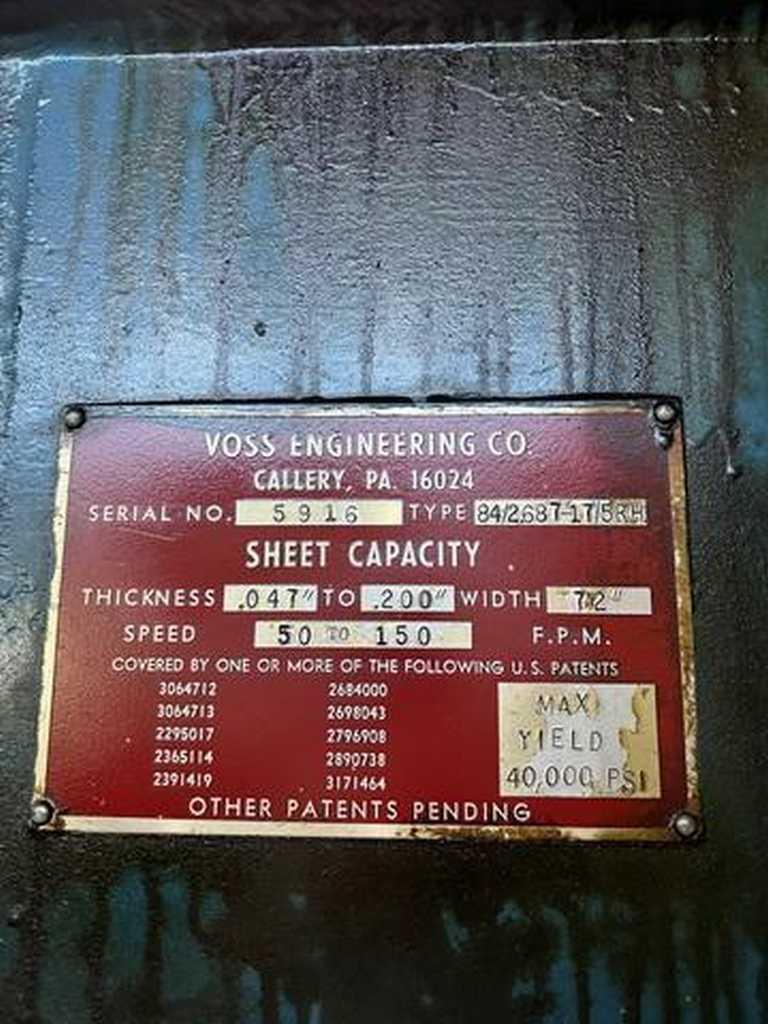

-Voss Leveler:
Capacity: 0.047" - 0.200"
Model: 84/2.687-17/5RH
4 HI Leveler
17 Rolls
Roll Diameter: 2.687"
Roll Face: 84"
5 Flights of Backups
3 Flights of Backups with Independent Adjustments
Motorized Tilt

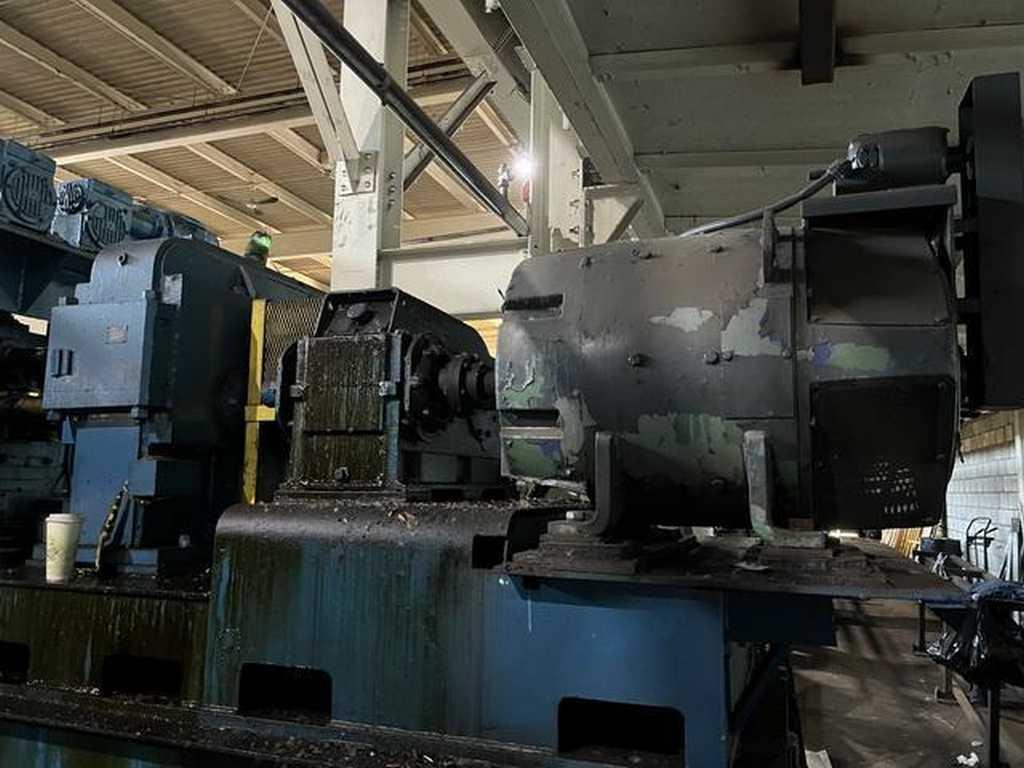

75 HP DC Motor
Encoder

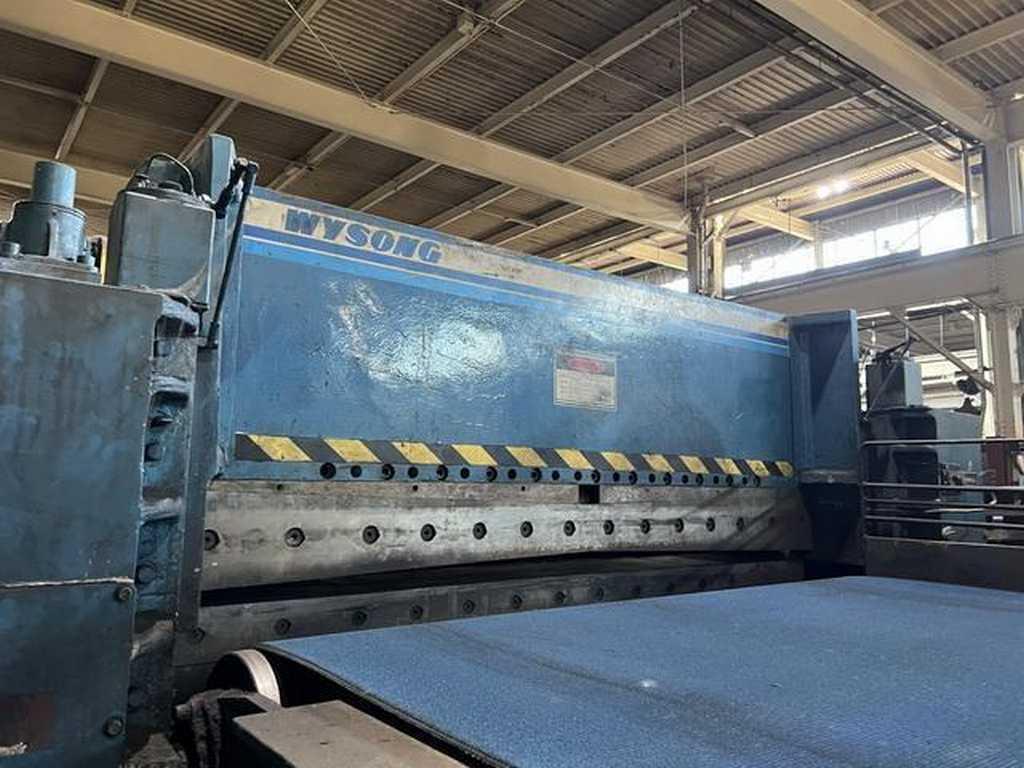

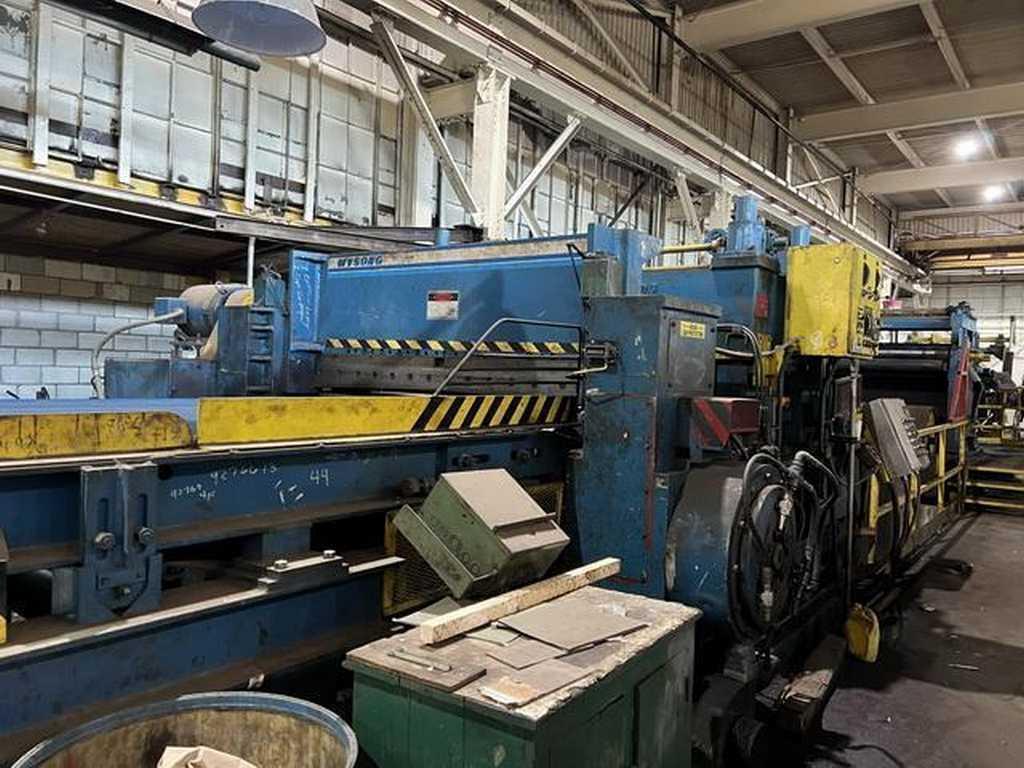

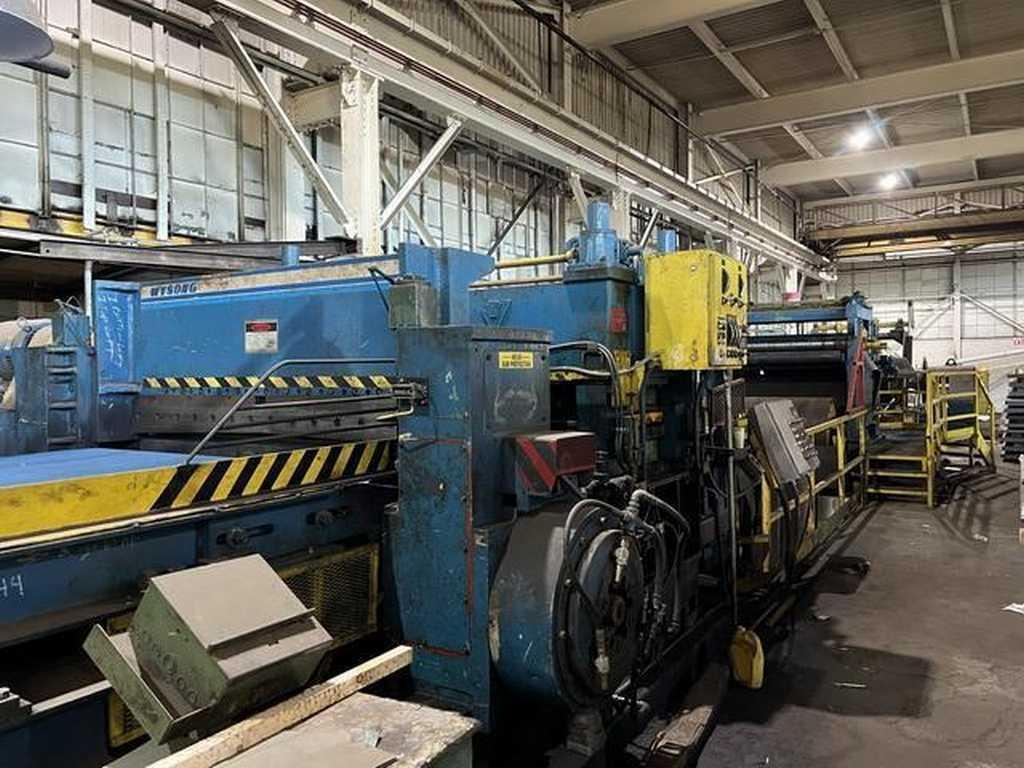

-Wysong High Speed Shear
Bow Tie Blade

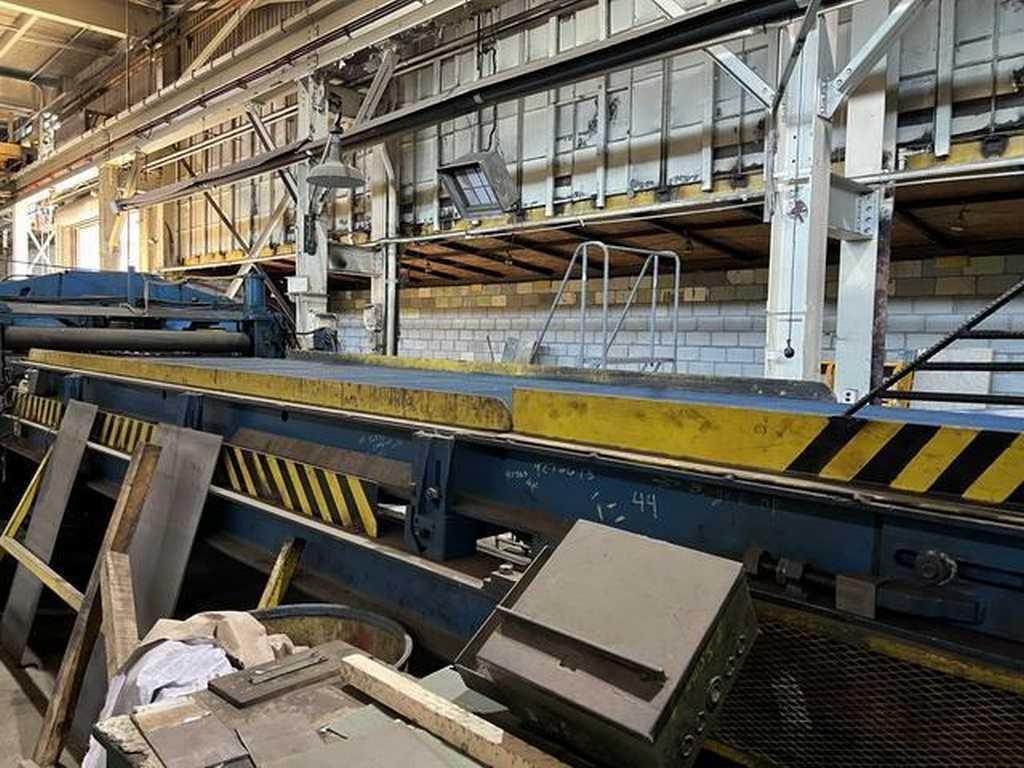

-Conveyor

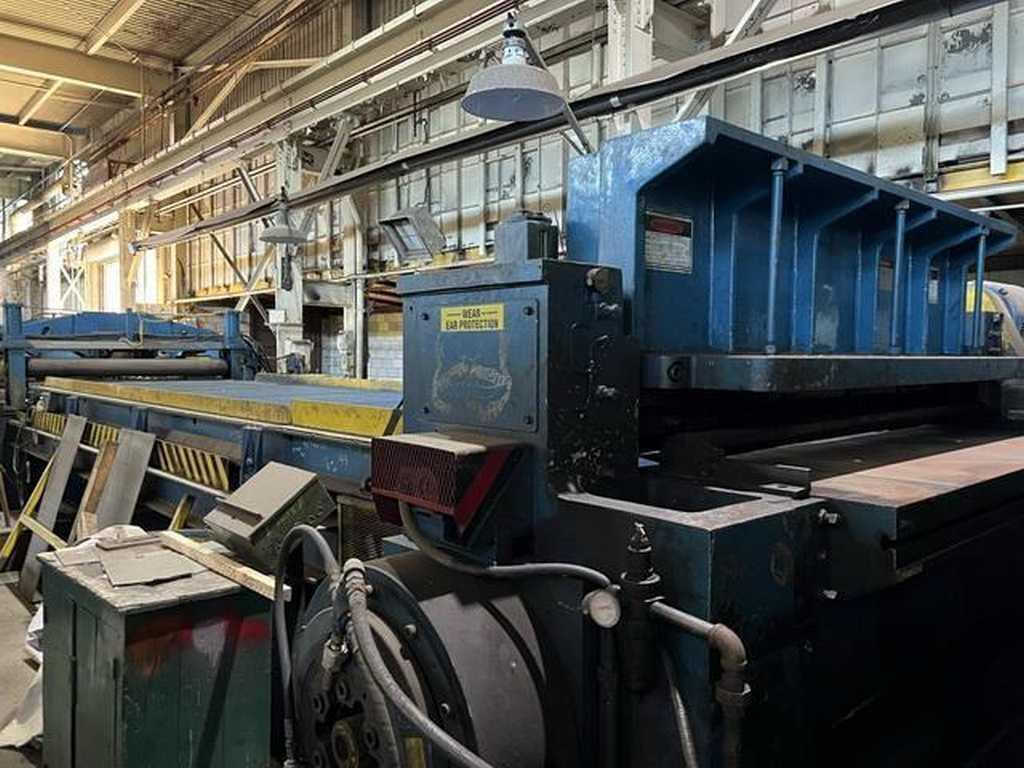

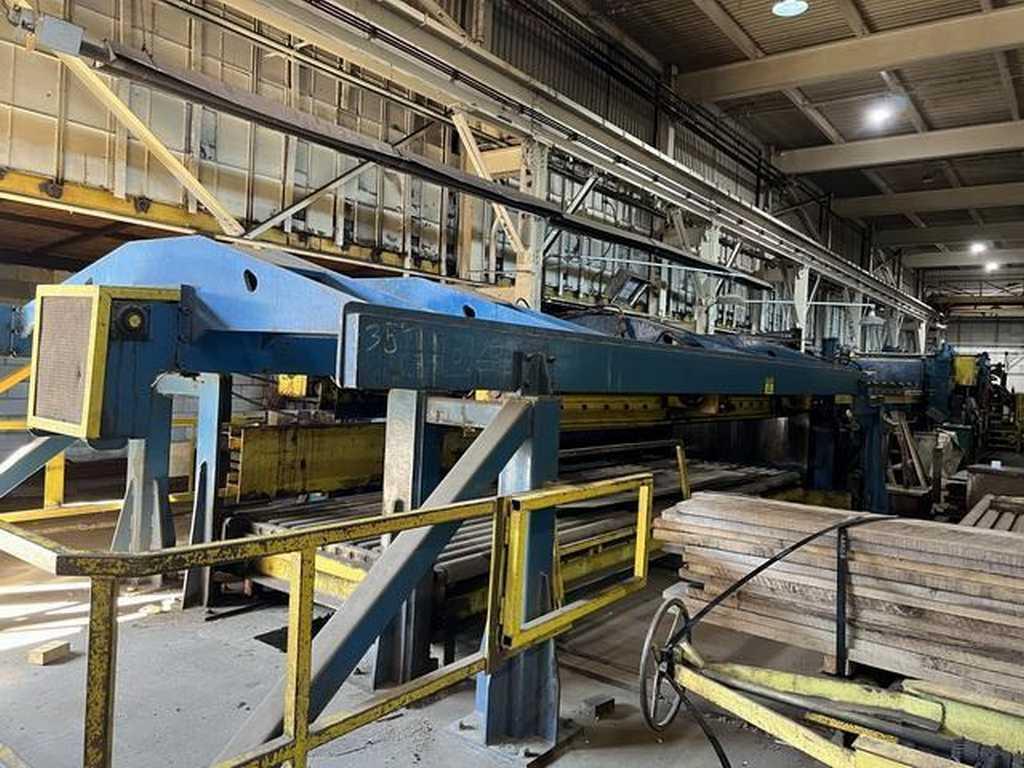

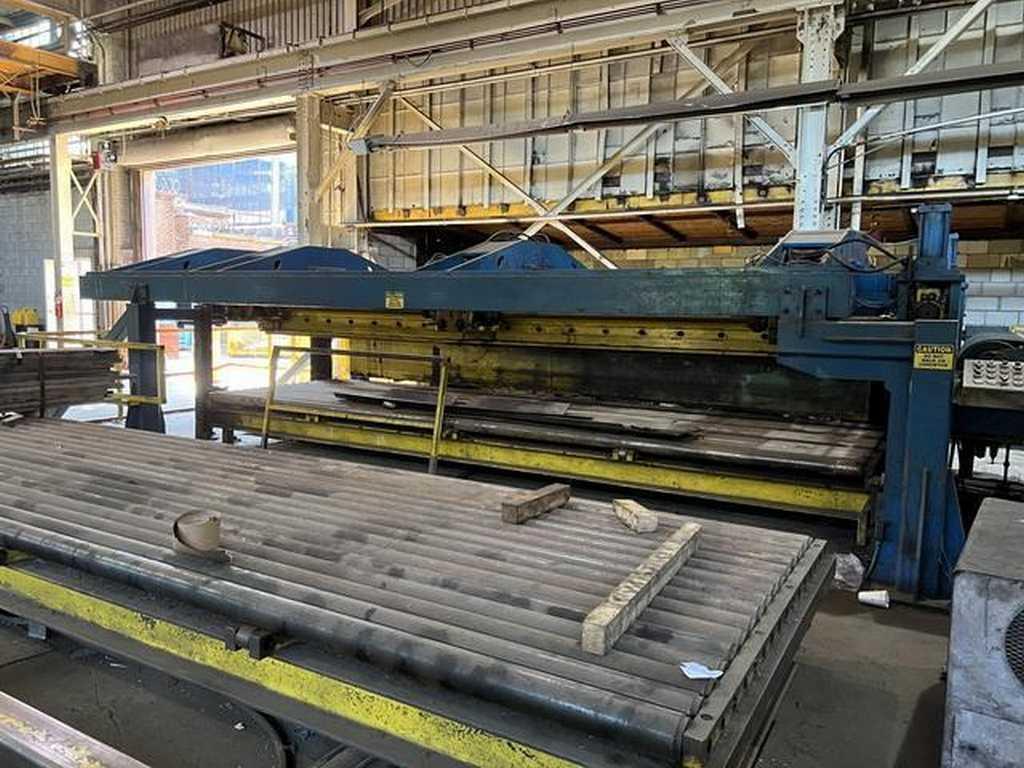

-Drop Type Stacker
Side Discharge
-Installed
