72" B&K Cut-to-Length Line
Coil Weight: 50,000 lbs.
Thickness Capacity: 0.187" Mild Steel
Line Speed: 150 FPM
Line Direction: Right to Left
Consisting of the following:

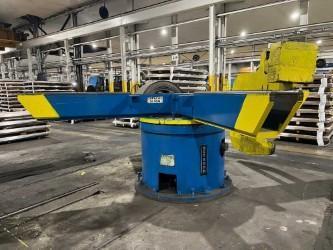

-Entry Turnstile: Octagon
4 C-Hook Arms
Powered Rotation

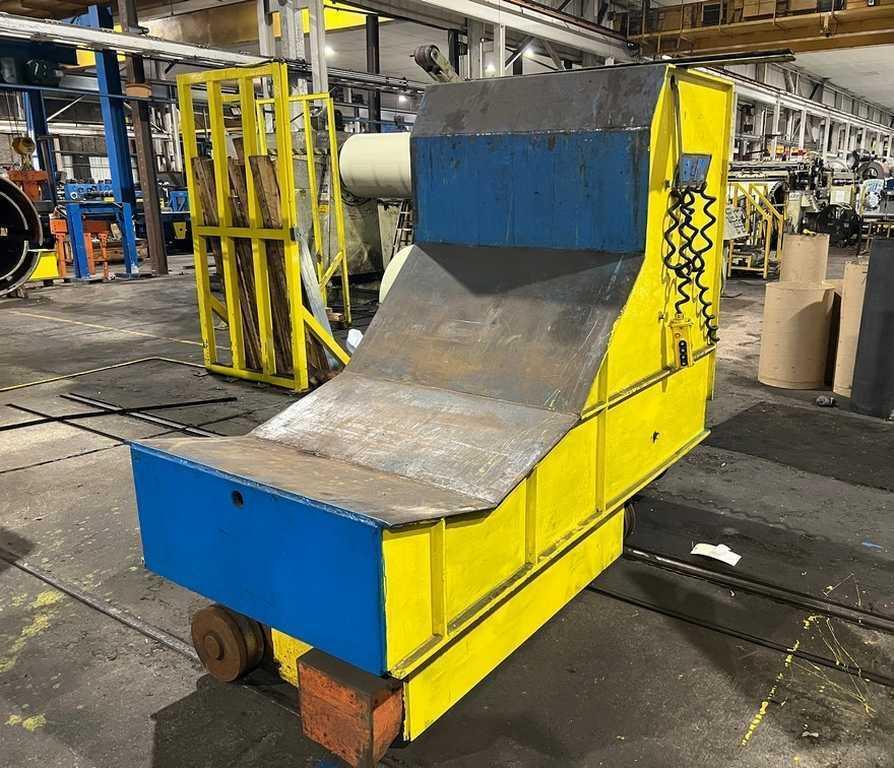

-Entry Coil Car:
Above Floor L-Shaped Design
Self-Contained Hydraulics

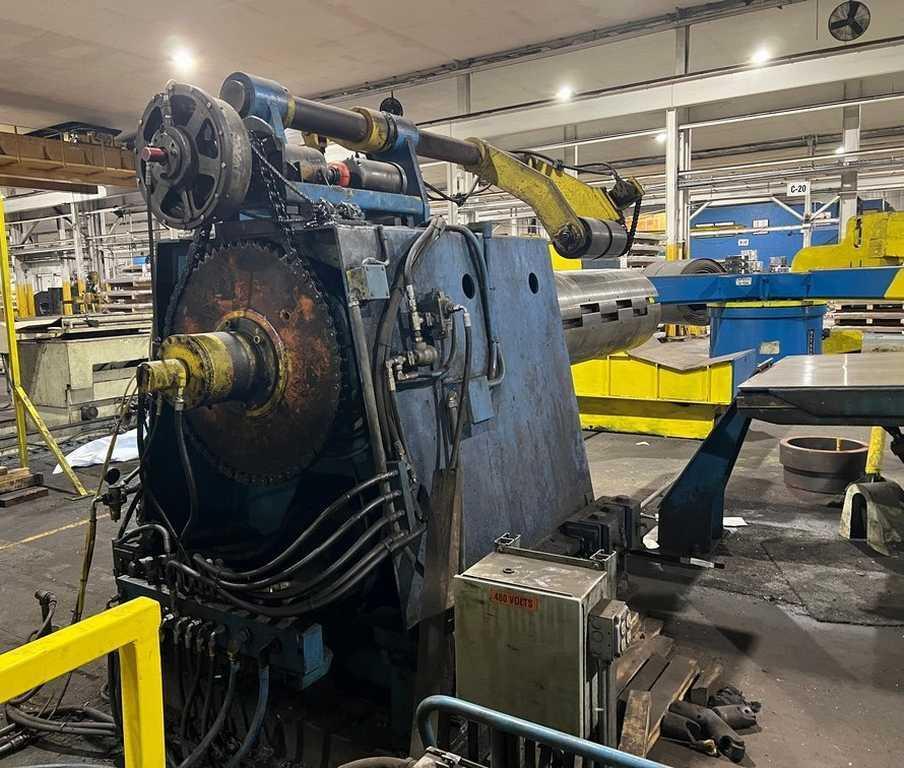

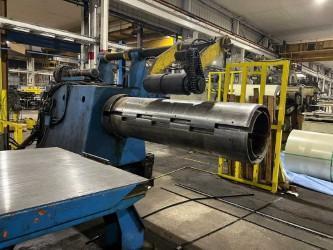

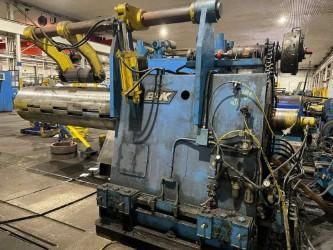

-Uncoiler:
Hydraulic Expanding Pumpkin Tooth Mandrel
20" - 24" Coil ID
72" Coil OD
Threading Drive w/Air Clutch
Hydraulic Slide Base
Attached Powered Holddown Roll

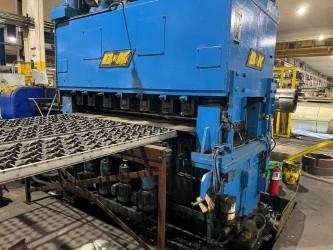

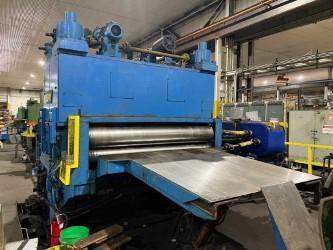

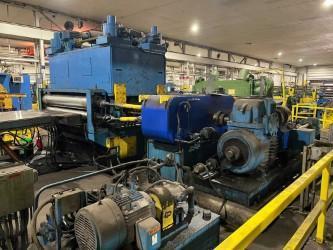

-Leveler:
Entry Hydraulic Peeler Table

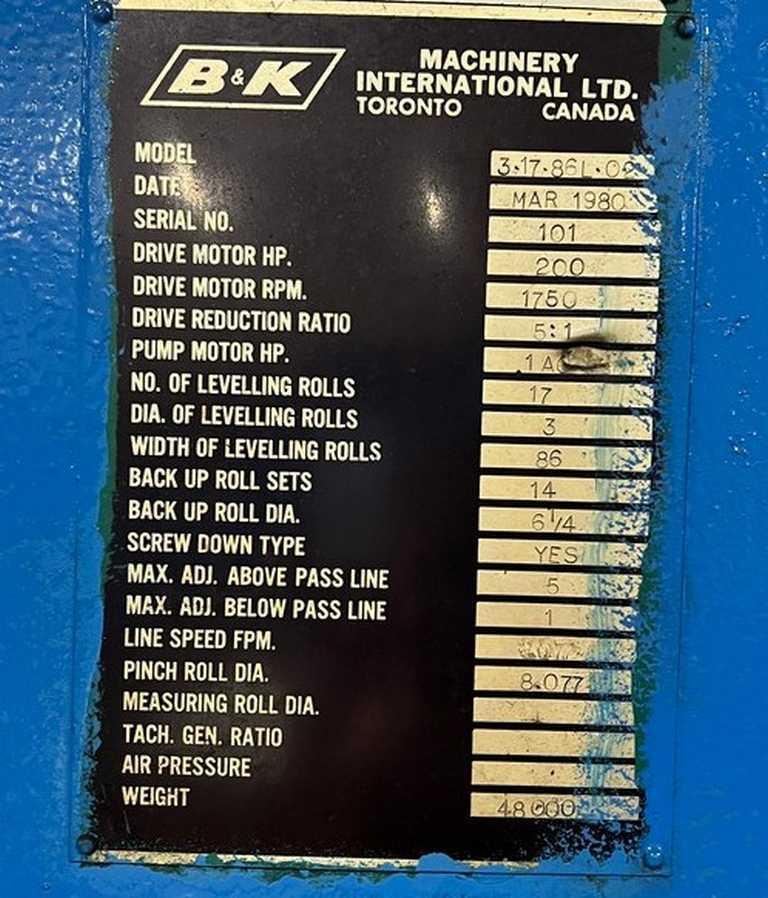

Leveler Model: 3-17-86L-02
Entry Driven Pinch Rolls

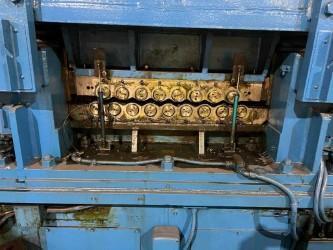

17 Work Rolls 8 over 9 Design
3" Dia. x 86" Wide Work Rolls

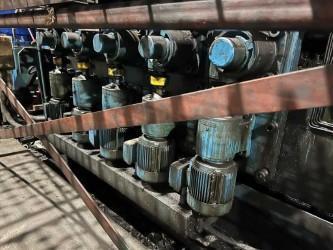

7 Flights of Backups, 5 Flights Motorized
200 HP DC Motor, 1750 RPM
Weight: 48,000 lbs.

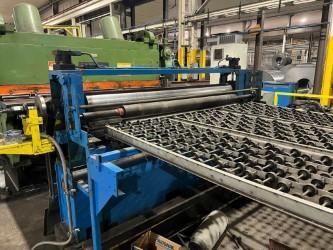

-Measuring Roll:

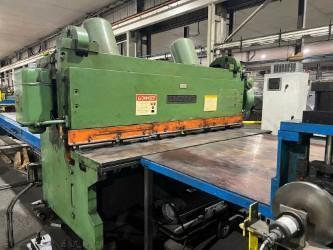

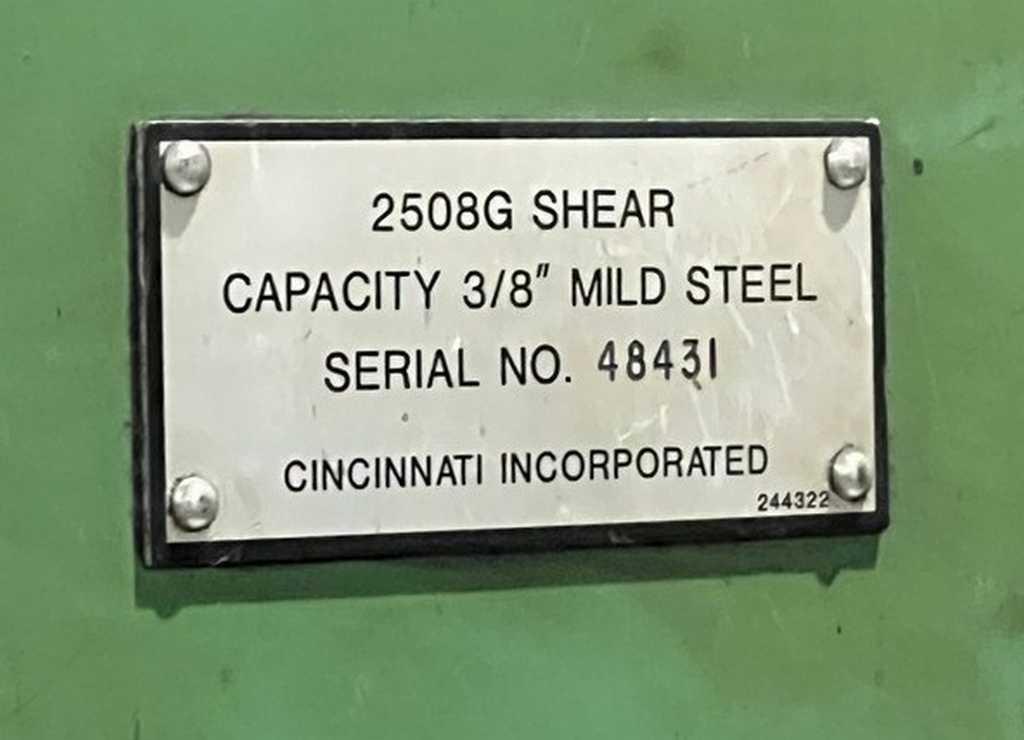

-Mechanical Shear: Cincinnati
Model: 2508 G
0.375" x 96" Capacity
50 Strokes/Min.
-Runout Belt Conveyor:

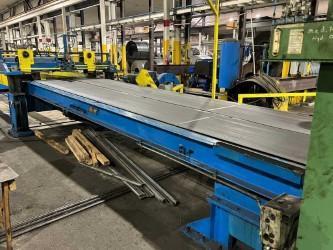

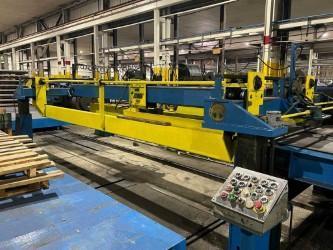

-Stacker:
20' Sheet Length
Drop Type Design
Motorized Back Stop

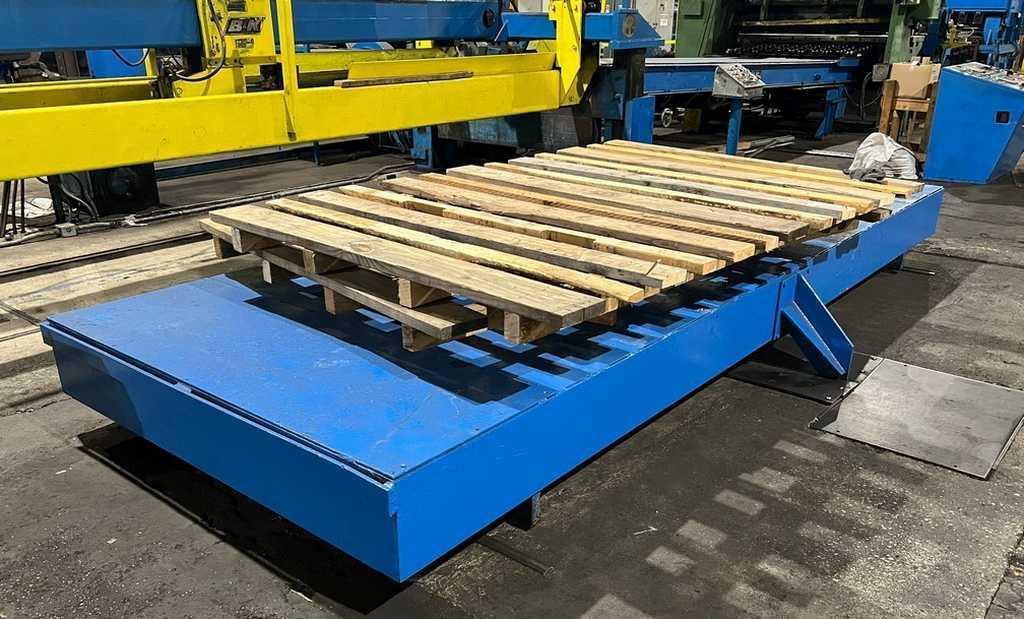

Side Pallet Injector Cart
End Discharge Sheet Cart
-Line is Installed
