Year of Manufacture: .............. 1997/2010 Materials: ........................ HRS, CRS, P/O, Galvanized Coil Width Range: ................. 12" - 72" Thickness Range: .................. 0.034" - 0.153" Maximum Coil Weight: .............. 50,000 lbs. Coil I.D.: ........................ 20" - 24" & 30" Maximum Coil O.D.: ................ 84" Line Direction: ................... Left to Right Sheet Length: ..................... 18" - 24' Mode of Operation: ................ Start / Stop Line Speed: ....................... 0 - 150 FPM Maximum Finished Bundle: .......... 20,000# @ 20'
Entry Coil Car: Strilich; New 1997 Floor Mounted Powered Lift and Traverse Pendant Control Hydraulic Power from Uncoiler

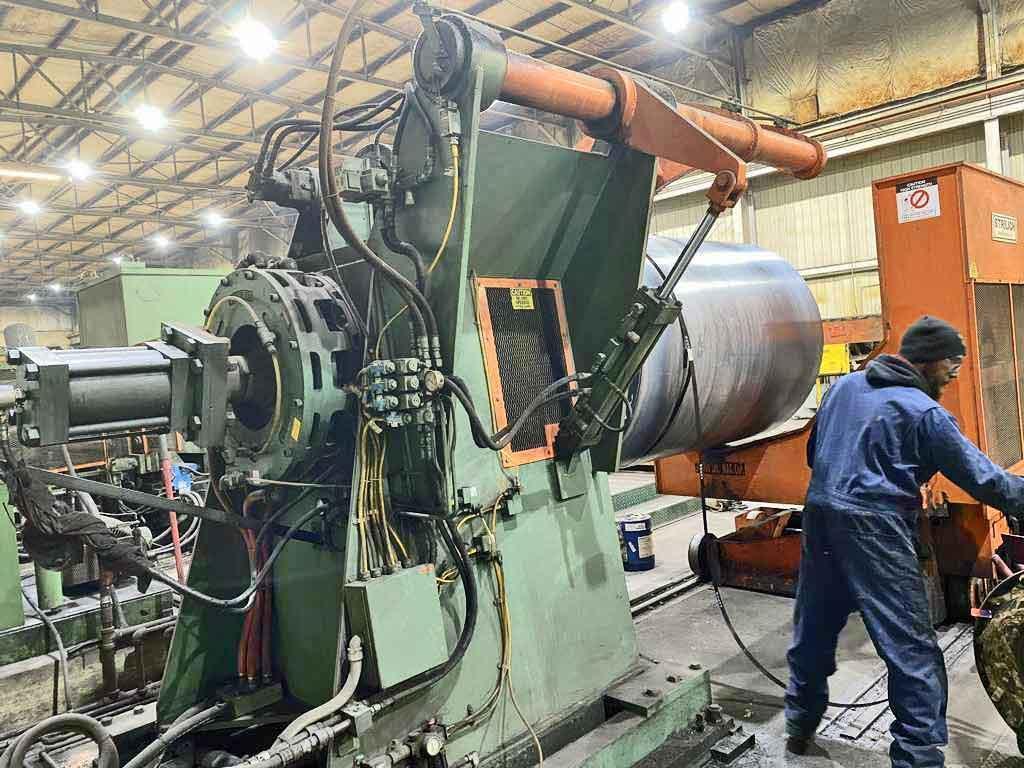

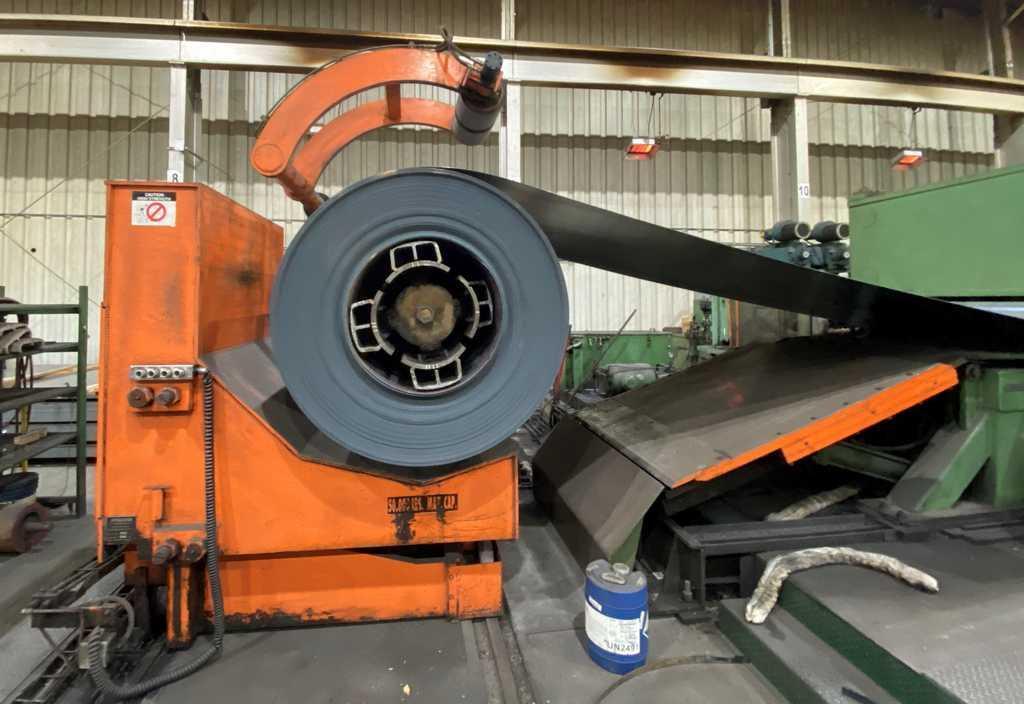

Uncoiler: Strilich; New 1997 Mandrel Type with Pumpkin Tooth Segments 18.5" - 24.5" Expansion Range Bolt On Risers Powered Expansion Hydraulic Feedup Motor Holddown with Powered Snubber Roll Wichita Water Cooled Brake Slide Base Water Cooler for Brake

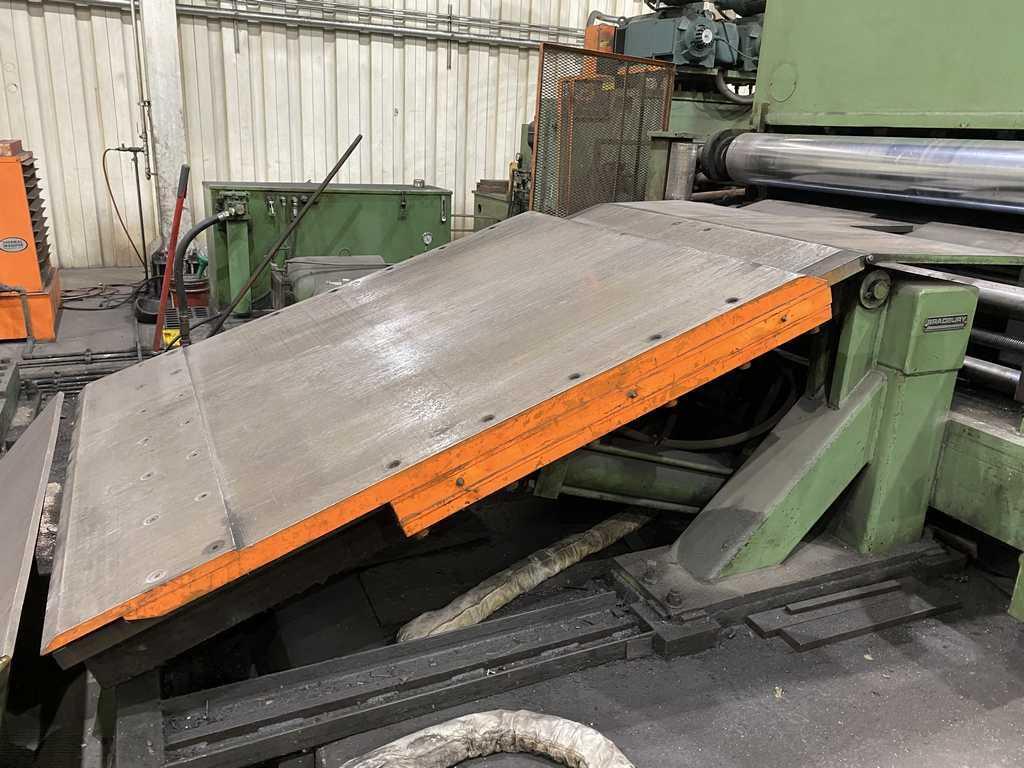

Entry Unit: Bradbury; New 1997 Tail Guard Extending Blade Peeler Powered Side Guides

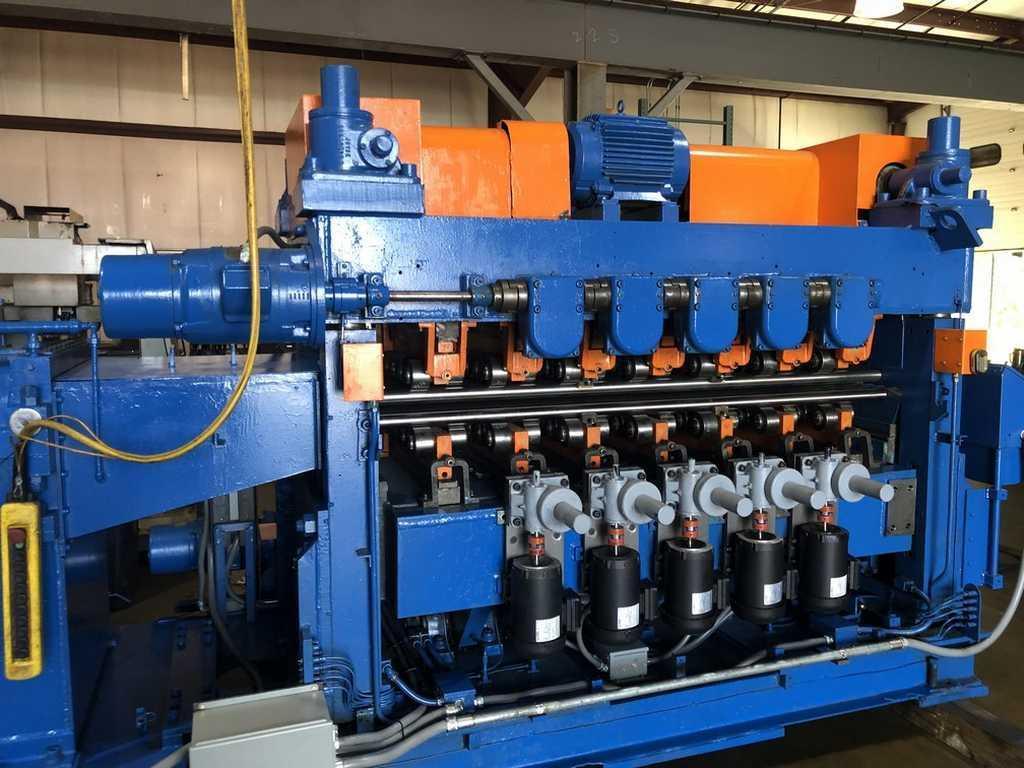

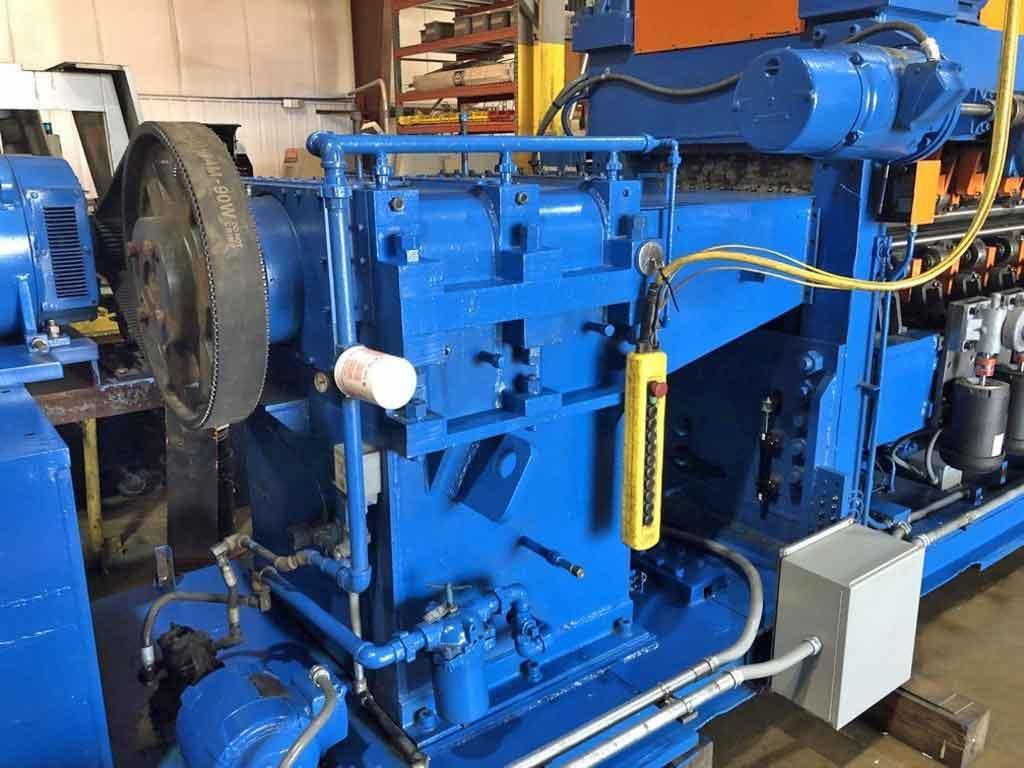

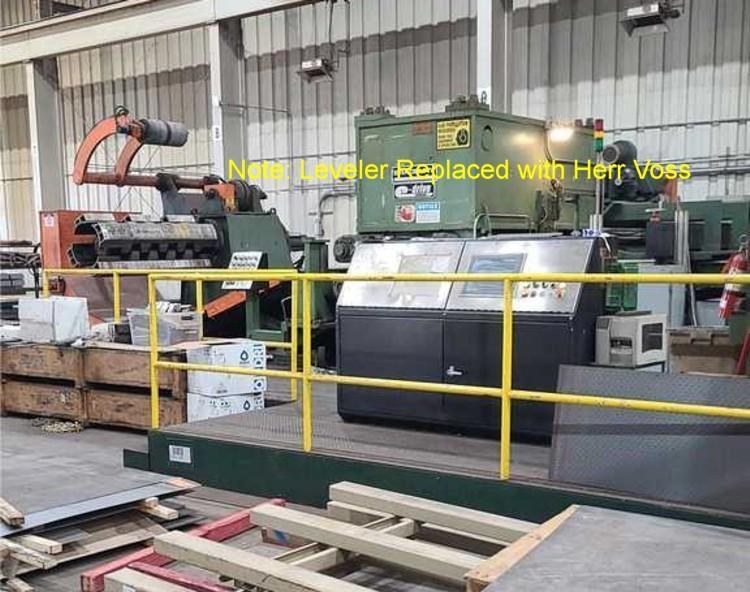

Leveler: Herr Voss; Rebuilt 2021 Model: ...................... 86/2.187/19/7 Material: ................... 45,000 PSI Line Speed: ................. 40 - 300 FPM Max. Width: ................. 73" Thickness Range: ............ 0.034" - 0.153" Work Roll Diameter: ......... 2.187" Leveler Configuration: ...... 4 HI

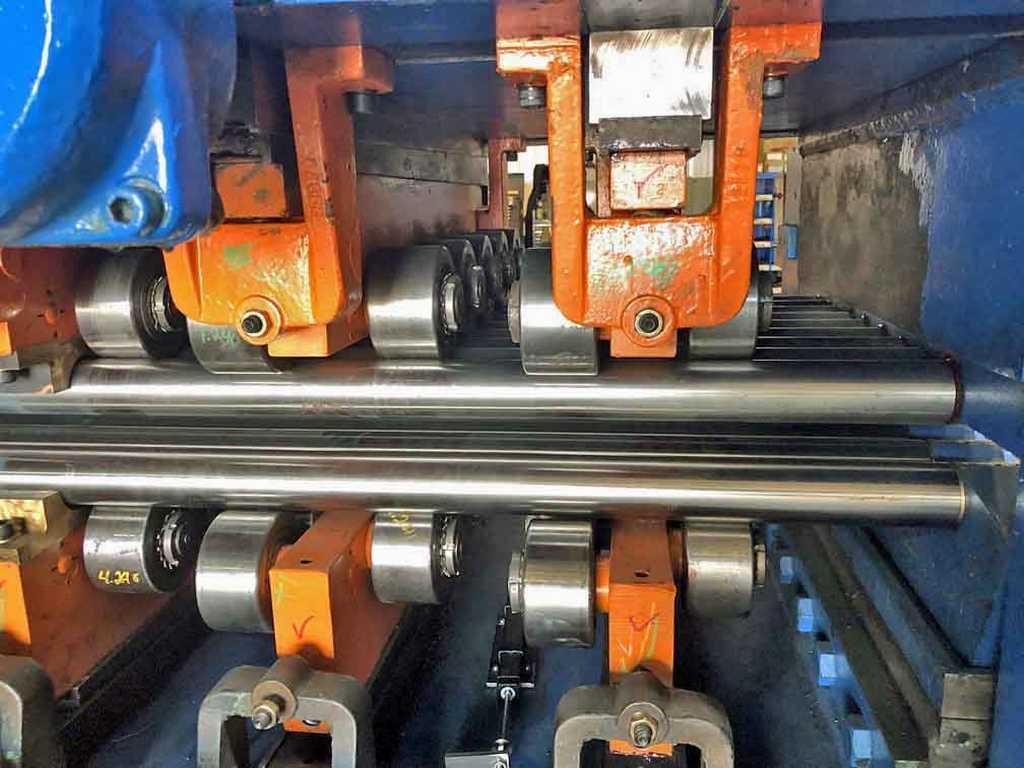

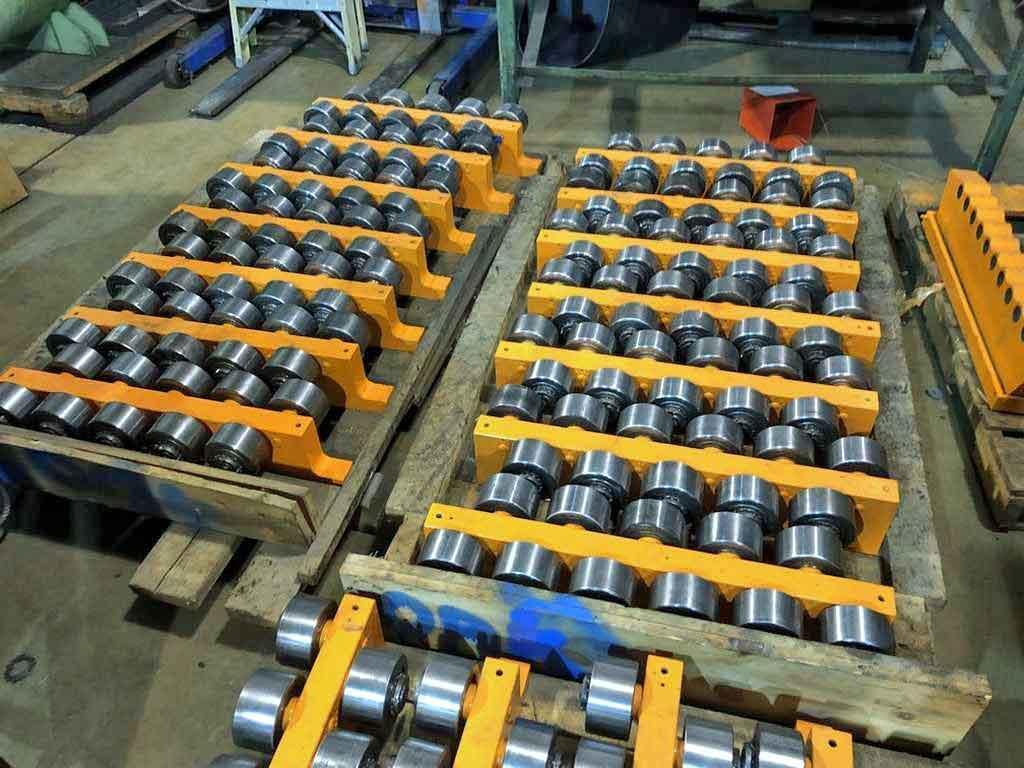

Powered Entry Pinch Rolls Nineteen (19) Work Rolls, 9 over 10 2.187" Dia. x 86" Face Width Rolls Seven (7) Flights of Backups, (5) Flights are Motorized) Rebuilt 100 HP DC Motor and New Reliance Drive

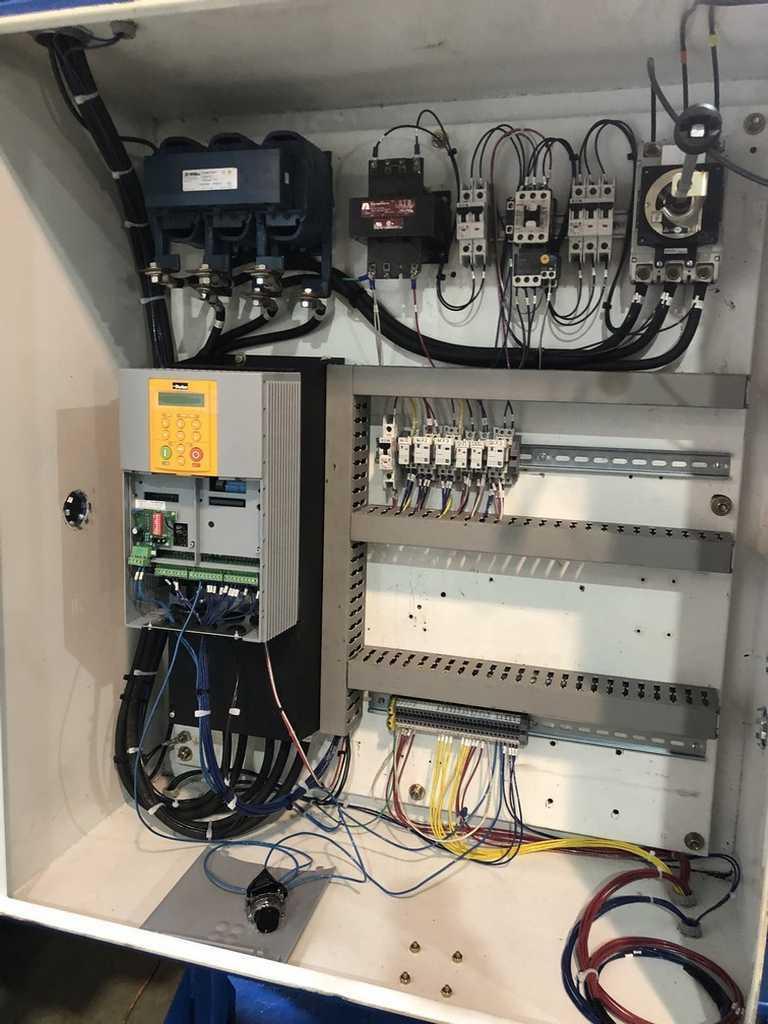

Leveler is Rebuilt with New DC Drive and New Controls

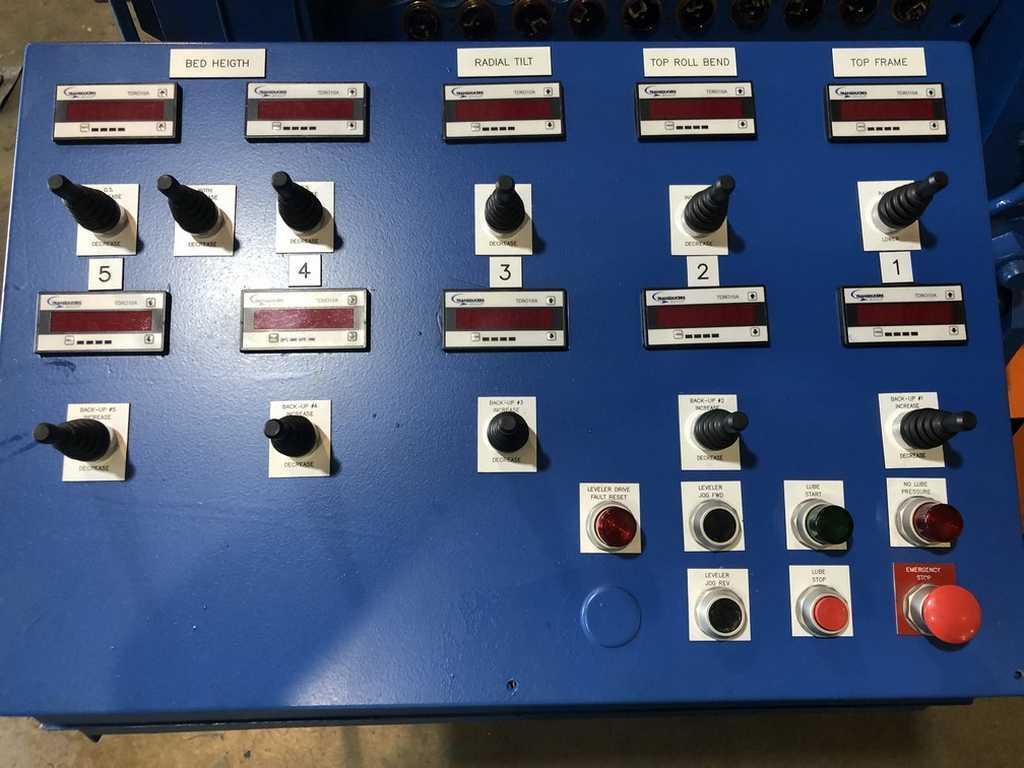

Rebuild Includes: 1. Work Rolls Reground & Chromed To Original Diameter 2. Back Up Rolls Reground & Chromed To Original Diameter 3. DC Motor Baked, Run Tested & New Reliance DC Drive 4. New Machine Attached Operators Panel With Joy Sticks
-Carry Over Table to Shear: Flat Track Leveling Unit - 2007
-Entry Unit to Shear: Powered Side Guides Powered Pinch Rolls

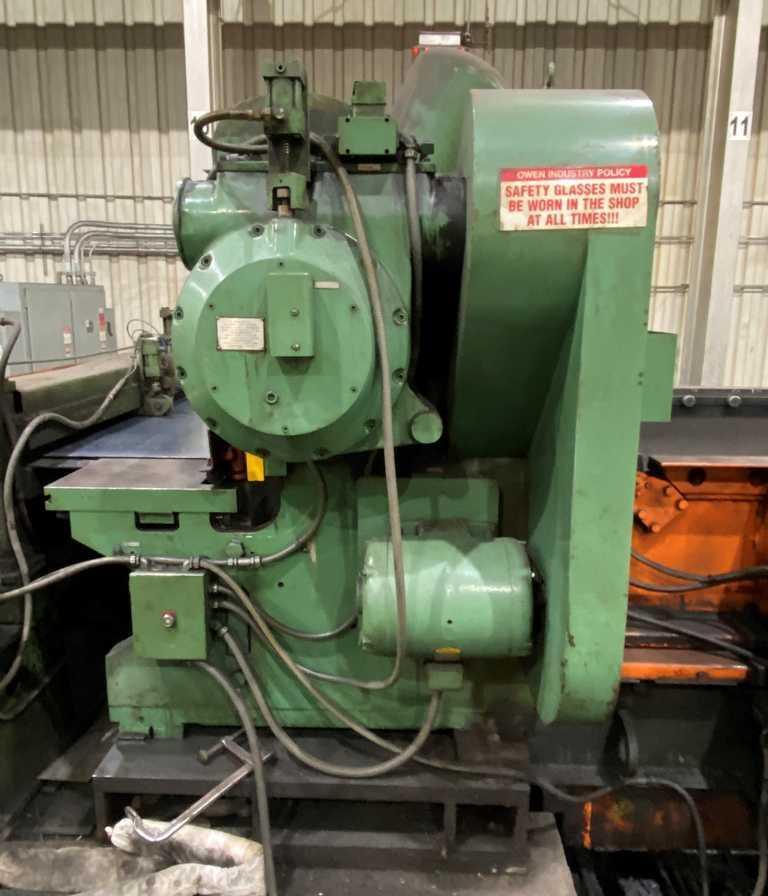

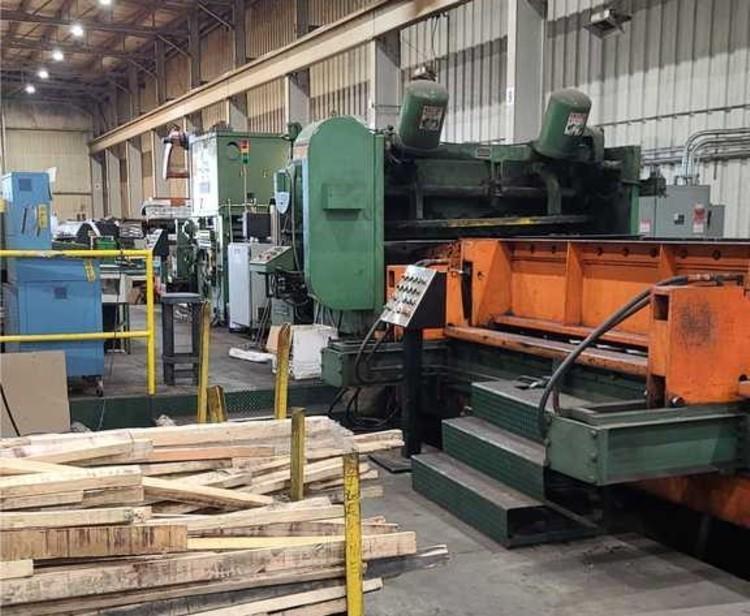

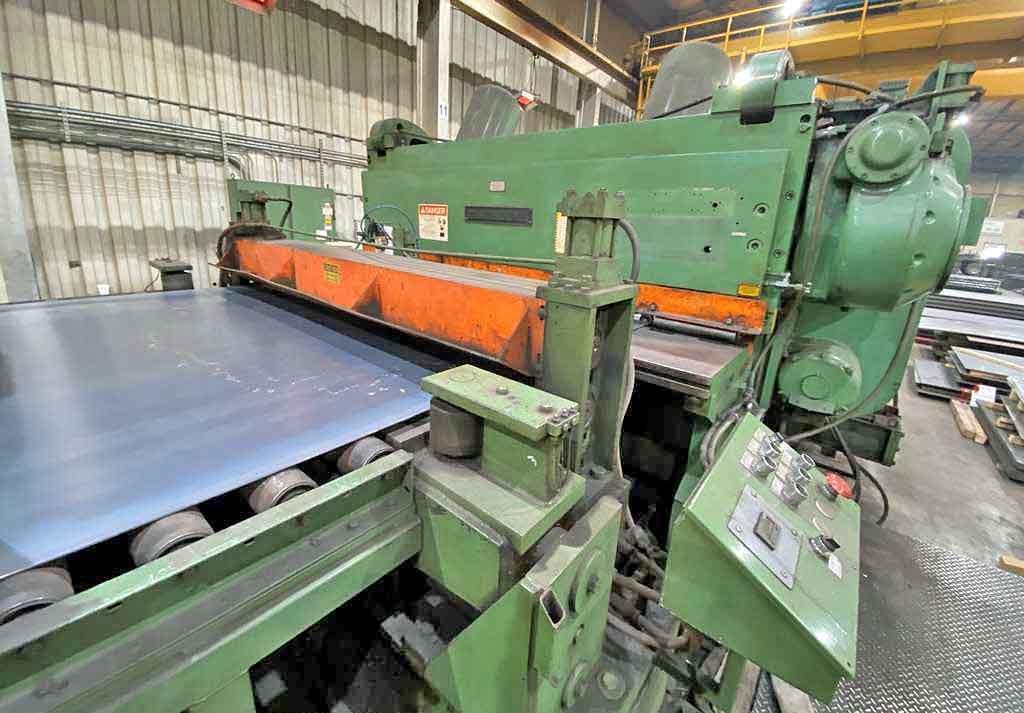

-Shear: Cincinnati; New 1995 Model #2508G; S/N: 48431 0.375" Capacity @ 60,000 PSI 50 Strokes/Min. Down Cut Mechanical Actuation 10 HP AC Motor Wichita Clutch

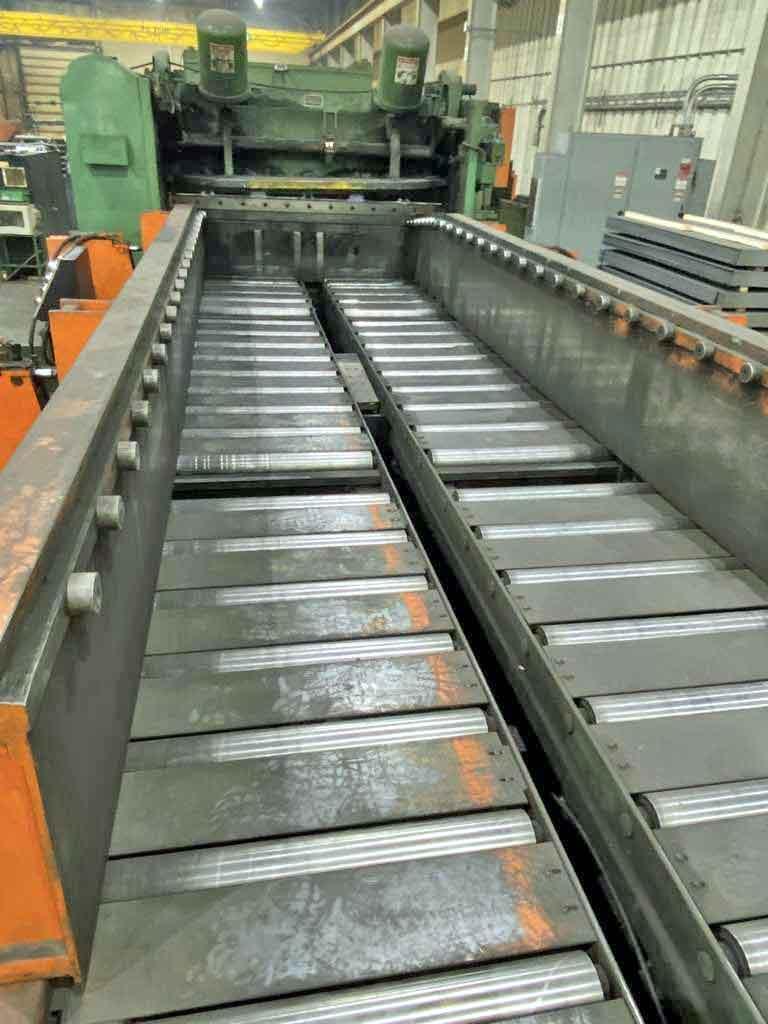

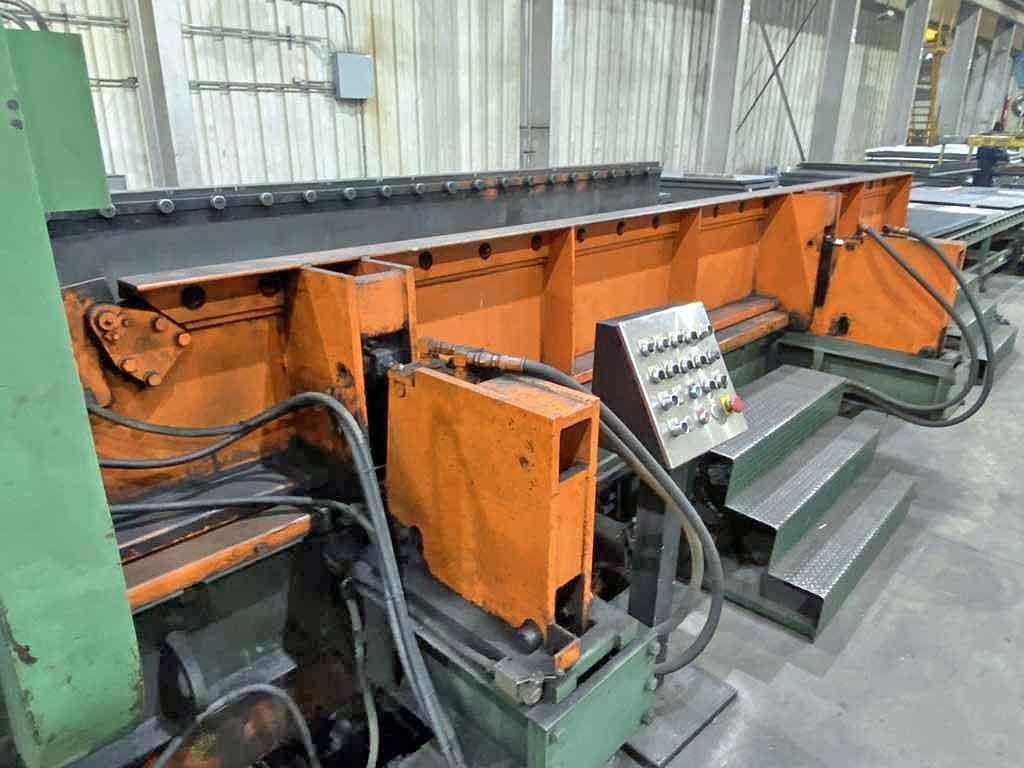

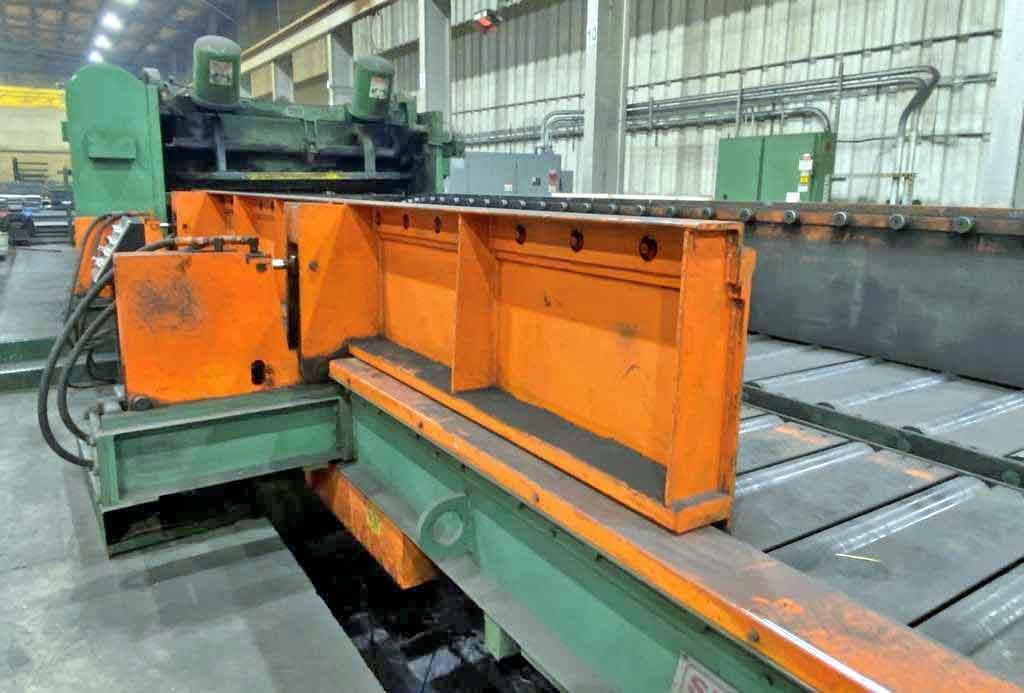

-Stacker: Strilich; New 1997 "Slide-Out" Drop Type, 24' Long Powered Side Tampers Powered End Stop Split Powered Roller Conveyor Raise and Lower

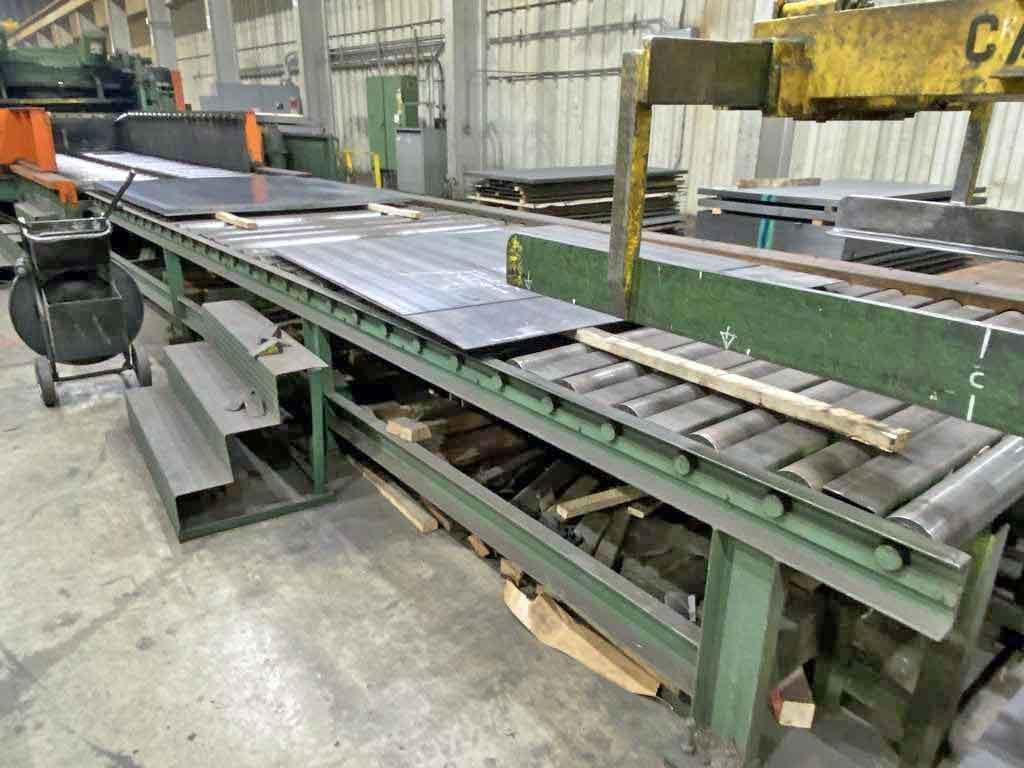

-End Discharge Conveyor: Strilich; New 1997 Powered Roller Top 24' Long
-Hydraulic System: 30 HP Central Hydraulic Power Unit Valve Bank

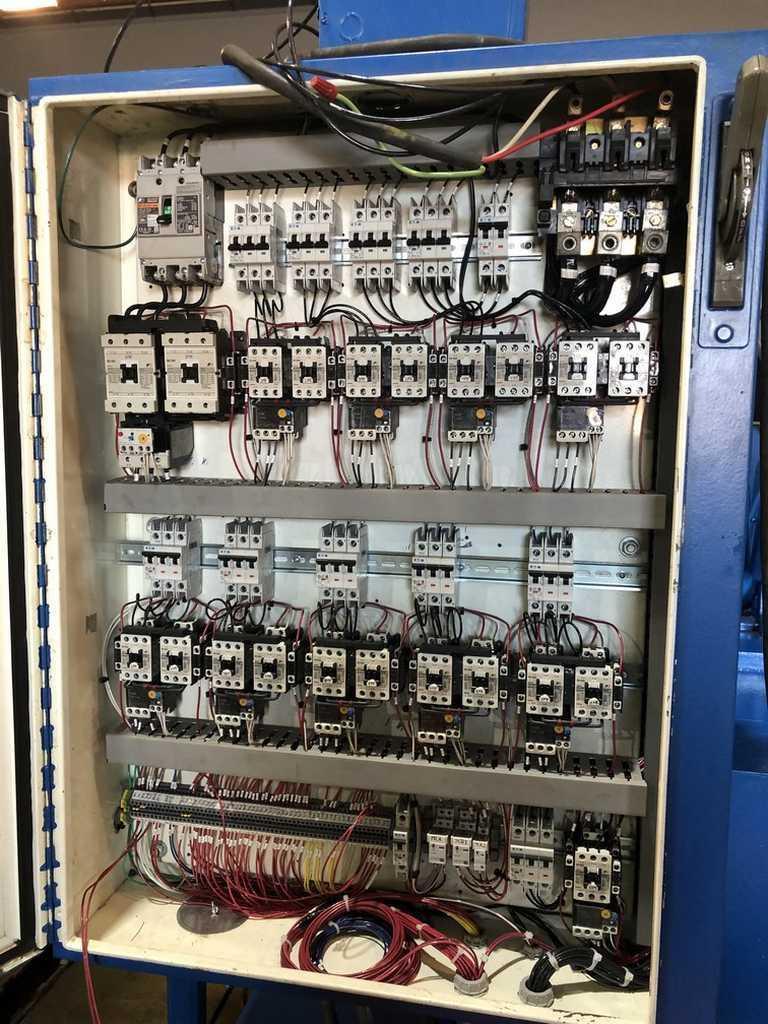

-Electronics: AC/DC Cabinets -Misc. Operators Control Consoles: -Drawings and Manuals -Spare Parts: Snubber Roll for Uncoiler Two (2) Spare Blades for Shear
