72" B&K Cut-to-Length Line

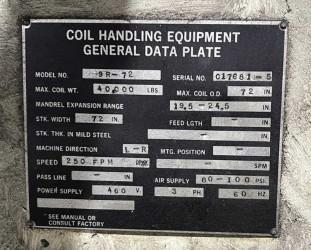

Coil Weight: 40,000 lbs.
Thickness Capacity: 0.021" - 0.135" Mild Steel
Line Speed: 250 FPM
Line Direction: Left to Right

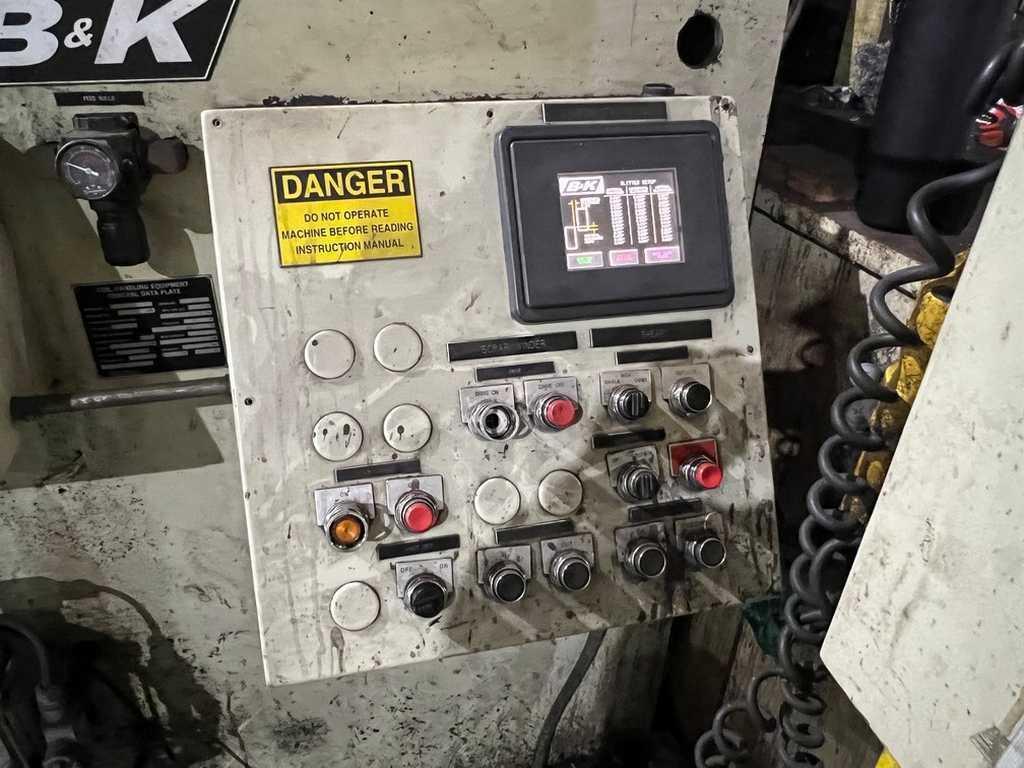

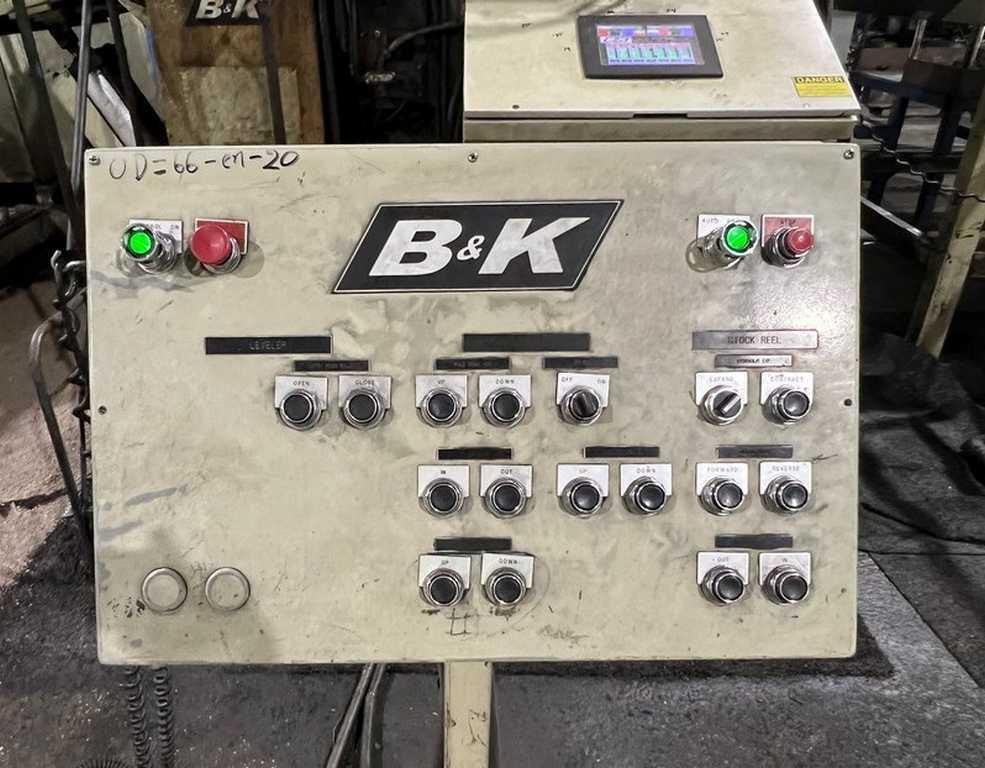

Updated Electrics
Consisting of the following:
-Coil Car:
Above Floor V-Shaped Design

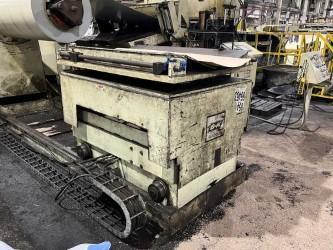

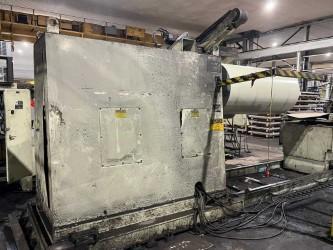

-Uncoiler:
Single Mandrel Design
20" - 24" Coil ID
72" Coil OD
Hydraulic Expansion
Slide Base

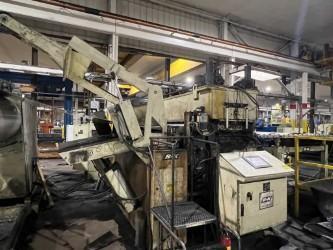

-Entry Unit:
Holddown Roll
Peeler Table

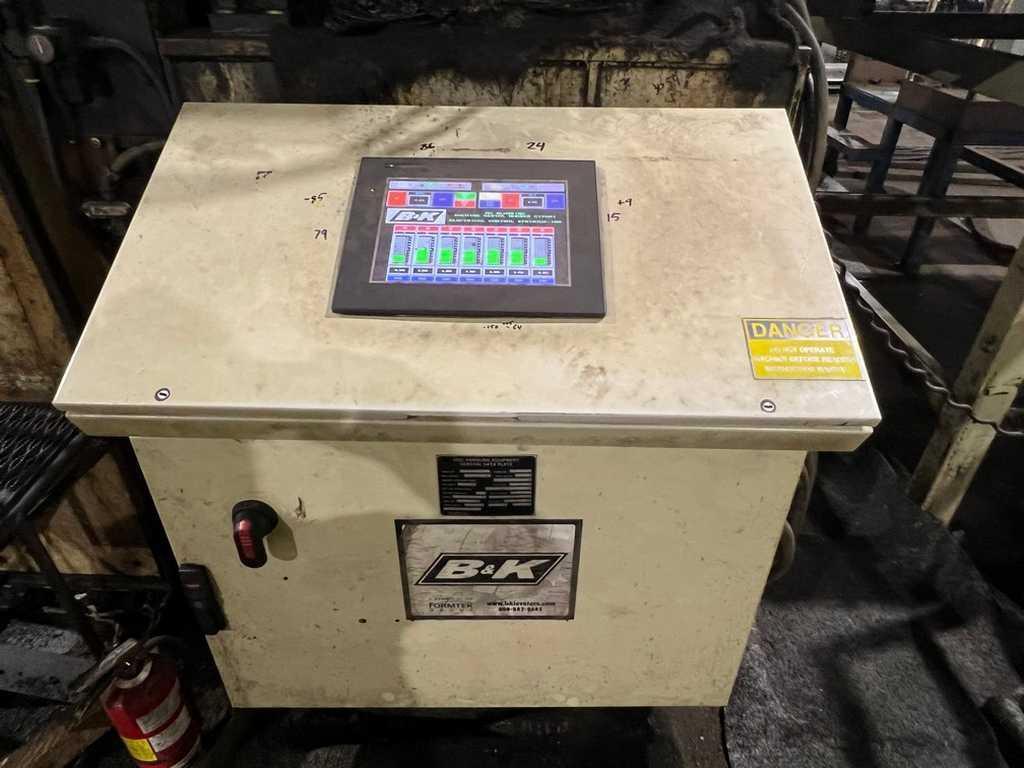

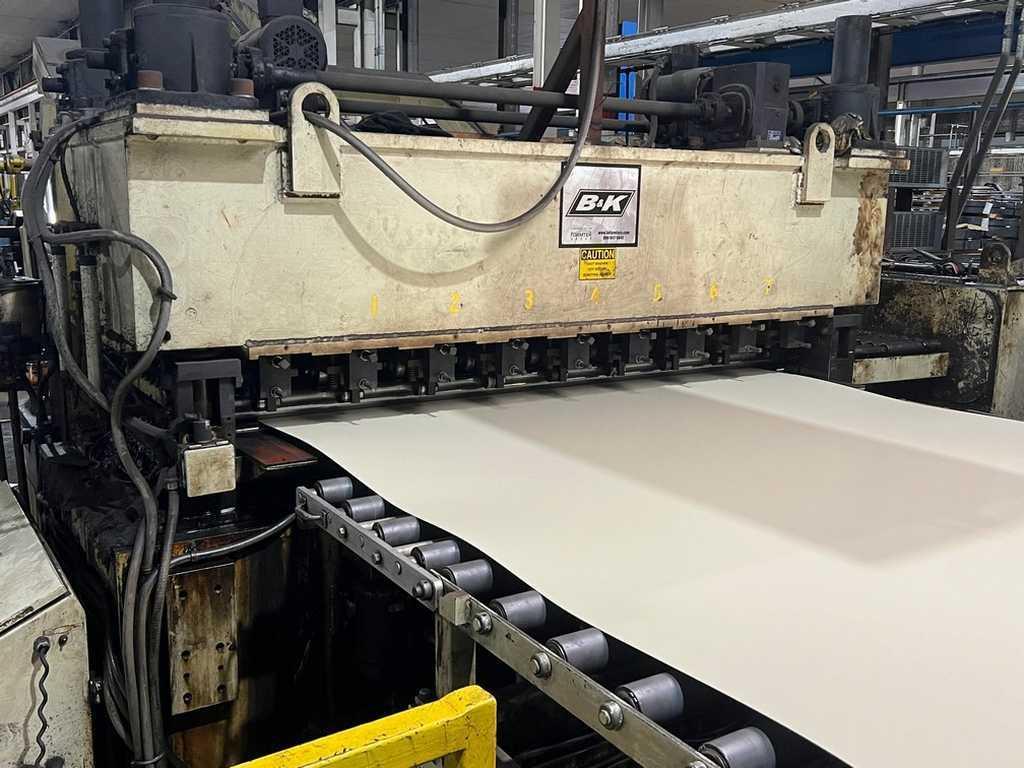

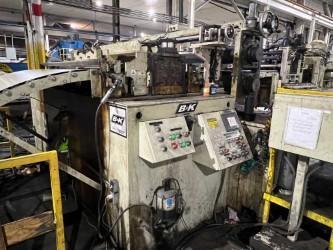

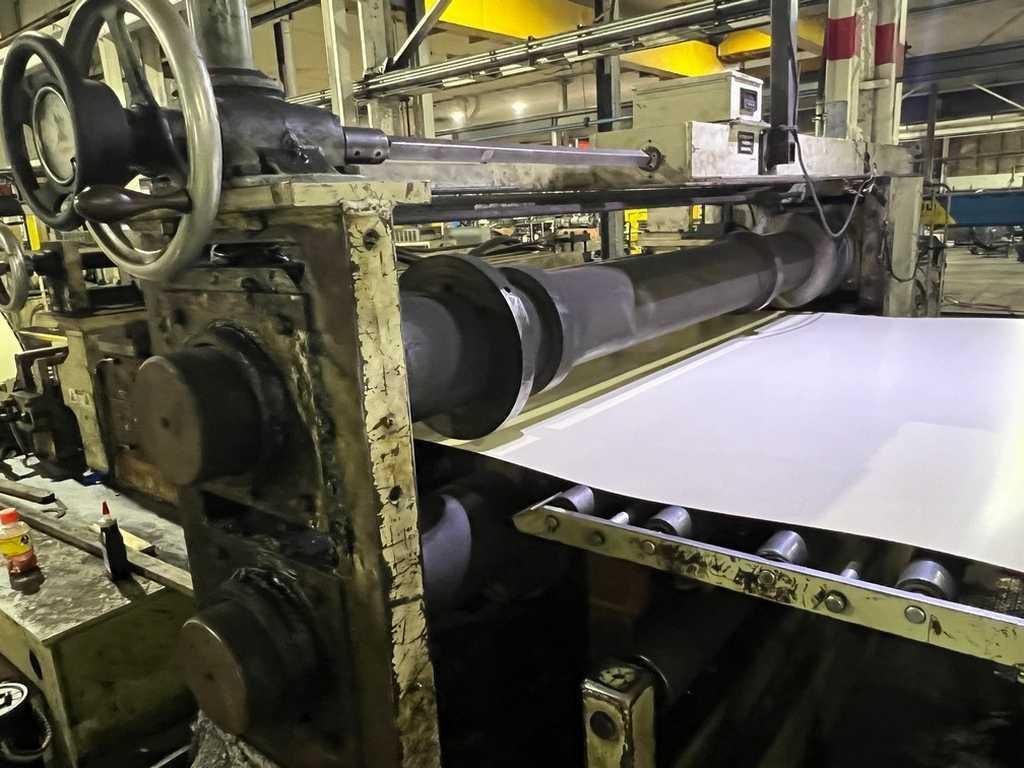

-Precision Leveler:
Entry Side Guides
Entry Pinch Rolls
19 Work Rolls, 9 over 10 Design
1.75" Dia. x 84" Wide Work Rolls
9 Flights of Backup Rolls, 7 Motorized

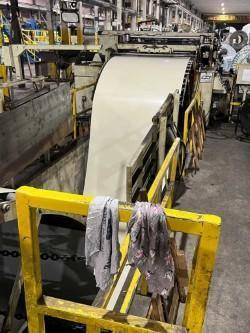

-Looping Pit:
-Exit Pit Unit:
Cascade Rolls
-Roll Feed:
4 Roll Measuring Unit
Slitter Head (Presently not used)

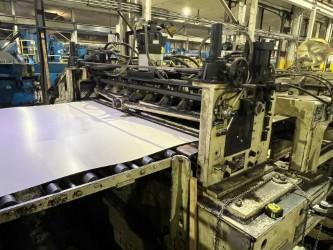

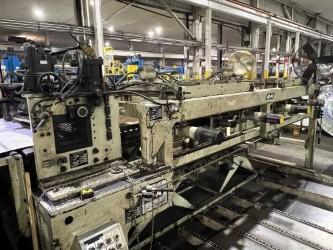

-Hydraulic Shear:

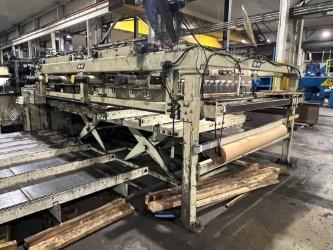

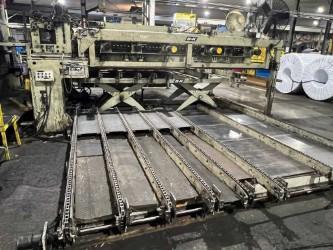

-Stacker:
10,000# Bundle Capacity
14' Sheet Length
Auto Drop Design
Motorized Back Stop
Chain Drive Side Eject Pallet System
Scissor Lift Sheet Stacker
Chain Drive Bundle Ejector System
-Line is Installed
