72" x 0.078" x 44,000# Bradbury Cut To Length Line STOCK #2945

Brand
BRADBURY

Model

Stock #
2945

Condition
Good

Year

Location
Toledo, Ohio
United States

Specifications

Equipped With

Upgrade:                   2008
Coil Width:                1830 mm
Coil O.D.:                 28" - 60" (710 mm - 1525 mm)
Coil I.D.:                 20" - 24" (510 mm - 610 mm)
Coil Gauge:                0.024" - 0.078" (610 mm - 1981 mm)
Coil Weight:               44,000 lbs. (19,963 kg)
Material Process:          Cold Rolled Steel 50,000 PSI Yield
Exit Sheet Width:          24" - 72" (610 mm - 1830 mm)
Exit Sheet Length:         14" - 144" (355 mm - 3660 mm)
Stacker:                   Magnet Design with Transfer Bed
Line Speed:                250 FPM
Cuts Per Minute:           40
Direction of Travel:       Right to Left (Viewed from Operator Side)
Entry Coil Car:            Above Ground, 40,000 lb. Capacity, 24" Lift
Entry Reel Mandrel Dia.:   20" - 24" Expanding - 4 Segment (508 mm - 610 mm)

Loop Table:                Pit Type with Catenary Guide Conveyor (Looper)

Main Shear Type:           Mechanical Downcut

Approx. Line Dimensions:   90' x 30' Width

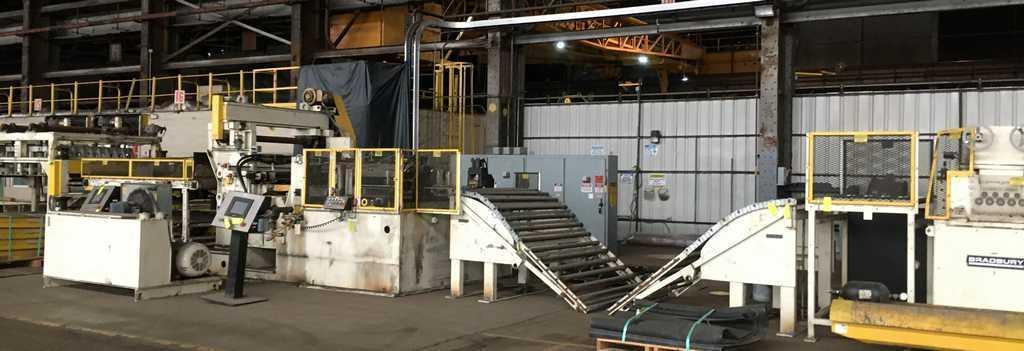

Consisting of the following:

-Entry Turnstile

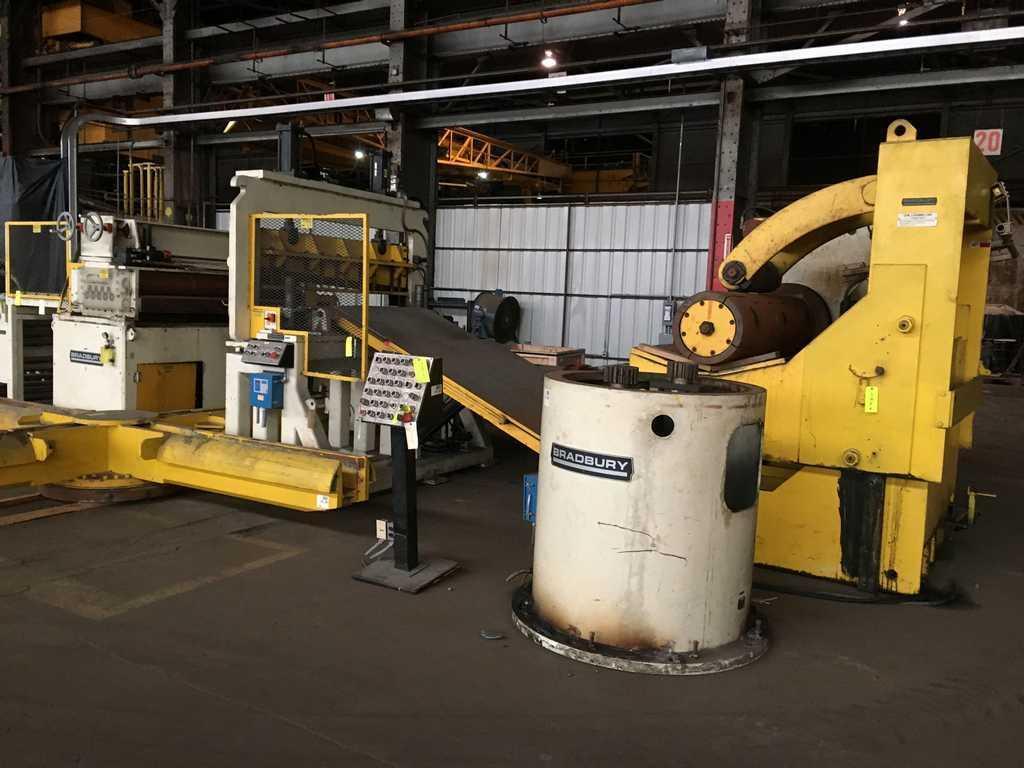

-Payoff Reel
-Above Ground Coil Car
-Entry Crop Shear and Peeler

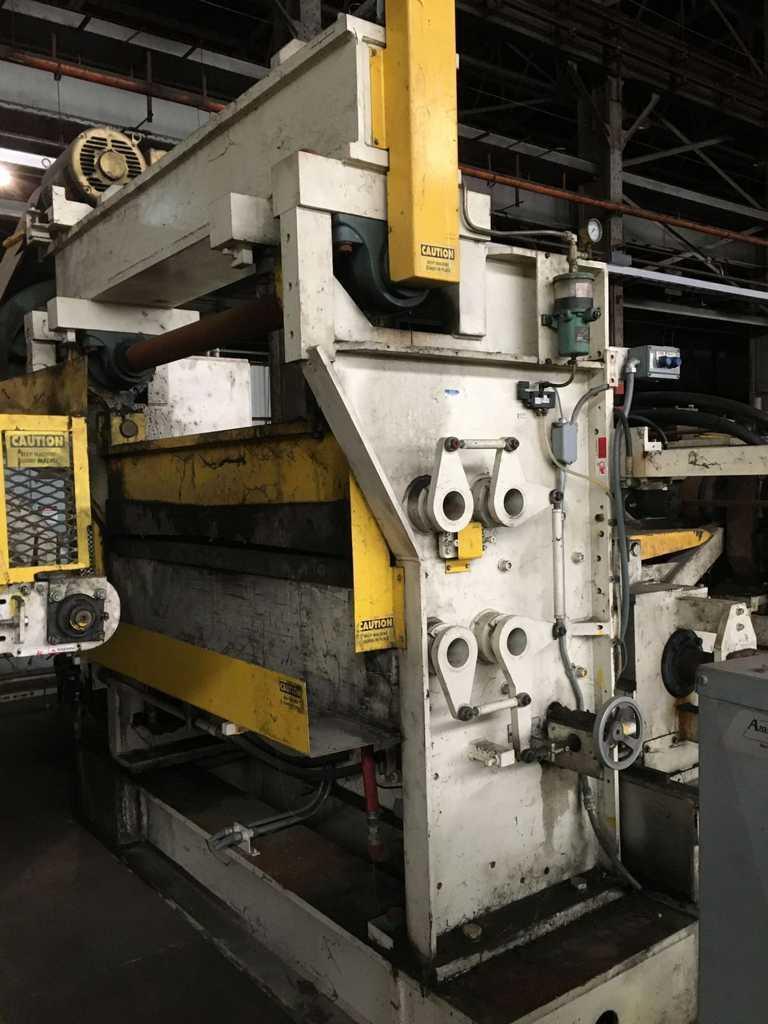

-Roller Flattener
-Catenary Guide Assembly (Looper)
-Main Shear Assembly on Common Base with Notcher, Side Trimmer
  and Scrap Chopper.

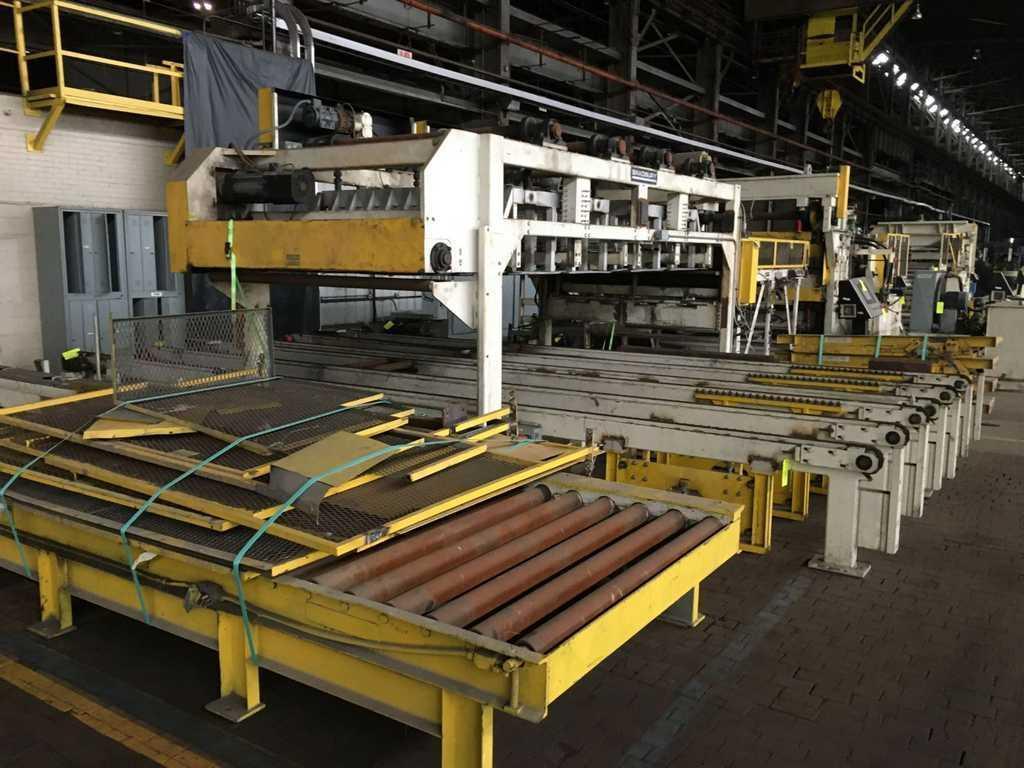

-Magnetic Stacker
-Stack Transfer Conveyor
-Runout Table Section
