Material: Hr, Cr Steel
Shear Strength: 60,000 PSI
Width: 64" (66" Untrimmed)
Thickness: 0.065" To 0.500" (Edge Trim only on 0.625")
Coil Size:
I.D.: 24" To 30" Entry
30" Exit
O.D.: 90" Entry and Exit
Coil Weight: 100,000 Lbs. Max.
Line Direction: Left to Right
Line Speed: Low - 30 FPM to 150 FPM
High - 90 FPM to 450 FPM
Cuts:
Low Speed: 5 Cuts 0.500"
7 Cuts 0.375"
8 Cuts 0.312"
10 Cuts 0.250"
High Speed: 10 Cuts 0.065" - 0.187"
Consisting of the following:
-Coil Entry System:
100,000 Lbs. Capacity
3 Coil Storage & Feed Ramp
Pit Type Coil Car

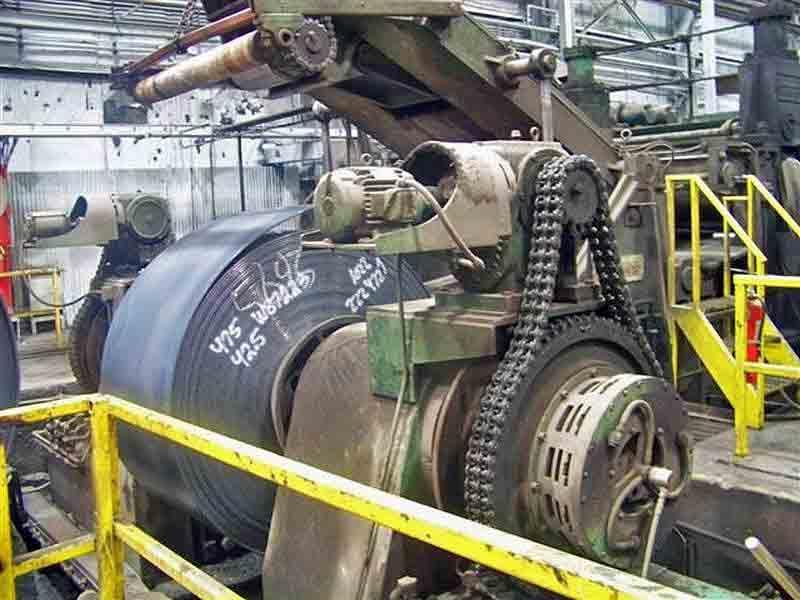

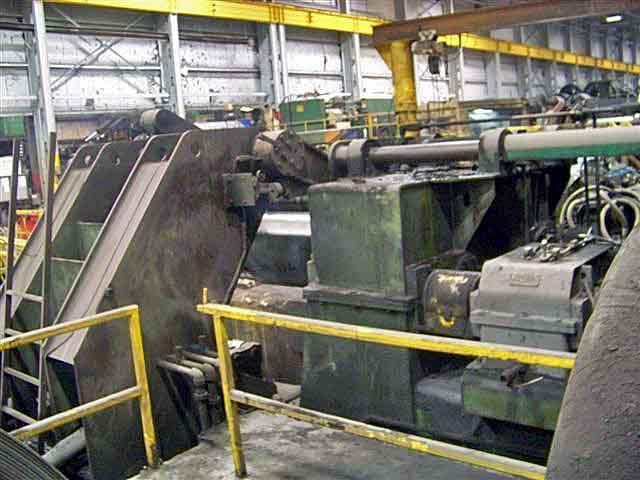

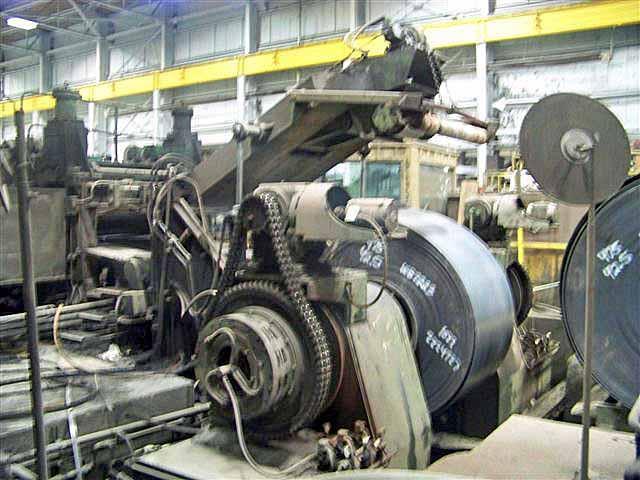

-Double End Cone-Type Uncoiler:
24" - 30" I.D. Range
Power Feedup by AC Motors
Dual Wichita Air Brakes

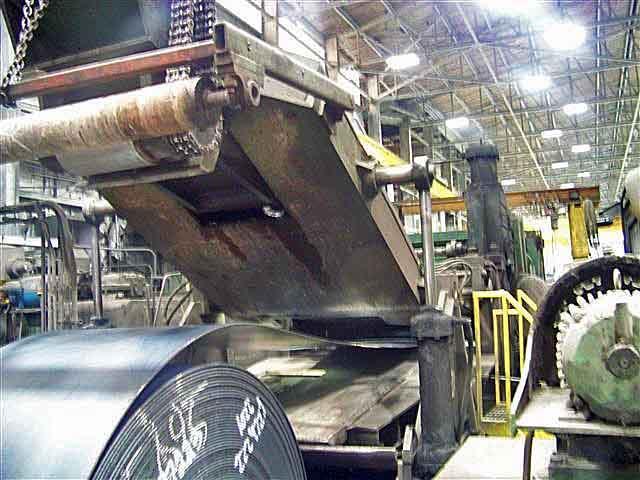

-Peeler:
Over & Under Peeler Tables with Hydraulic Power
Overarm Feedup Roll
-Edge Guide System: Upgraded in 1997
Hydraulic Power Unit w/20 HP AC Motor
Rexroth 32 GPM variable volume pump
100 Gallon Reservoir

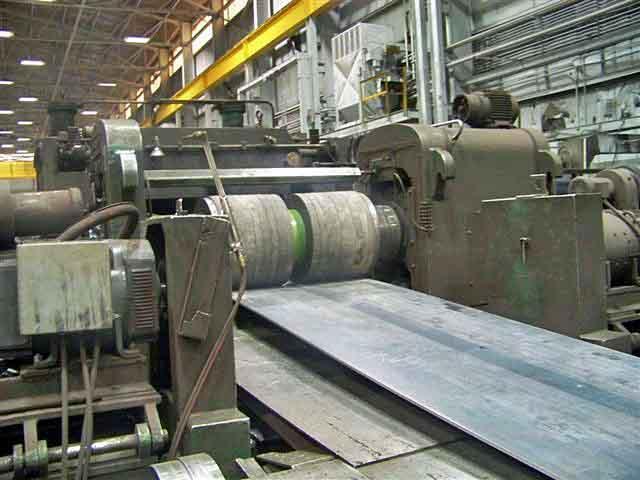

-Flattener:
Entry Side Guides
2 - 12" Diameter Entry Driven Pinch Rolls
5 Roll Flattener
2 over 3 Rolls
200 HP DC Motor
-Entry Driven Pinch Rolls:
5 HP AC Motor, 1800 RPM

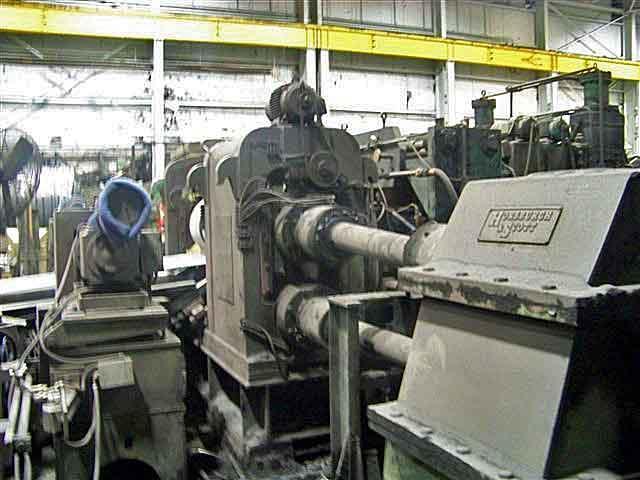

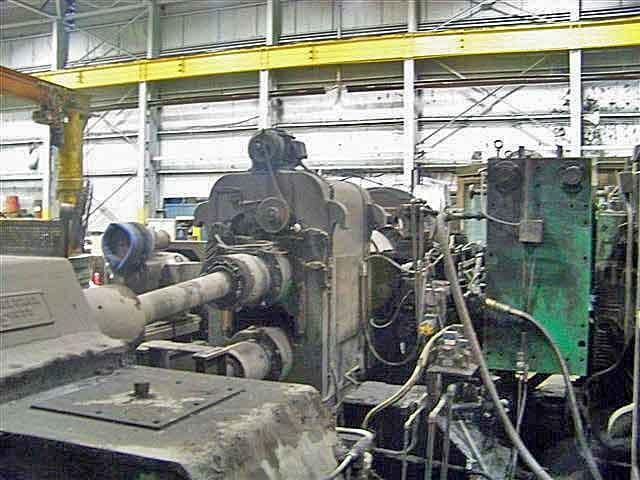

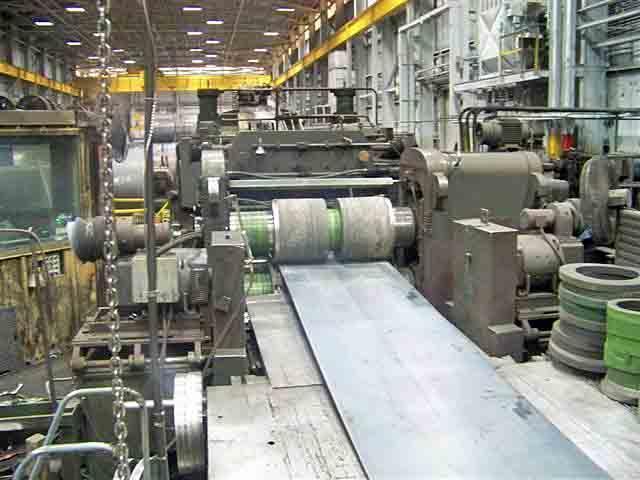

-Slitter Head:
66" Wide
12" Dia. Arbors
Parallel Arbor Adjustment, Driven by 5 HP AC Motor
Main Drive: 250 HP DC Motor, 1150/1800 RPM
Quick Set Locking Knives

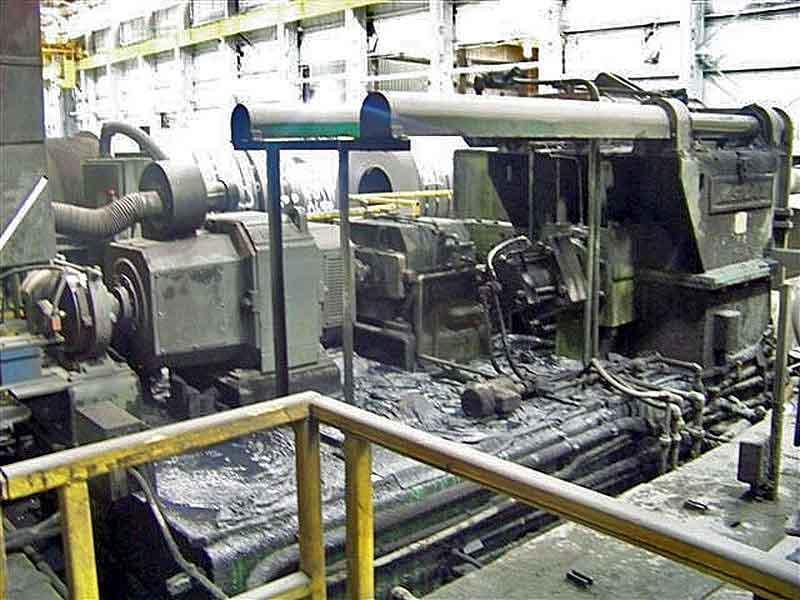

-Dual Scrap Choppers:
100 HP DC Motor on each Chopper
Power Scrap Conveyor Receives Scrap and Carries it away to a Hopper
-Transfer Table:
Hydraulic Lift & Lower

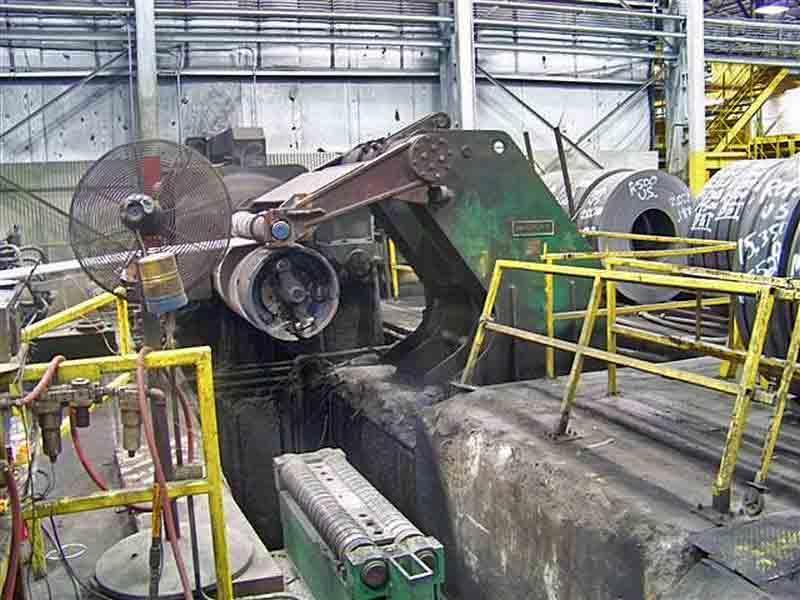

-Recoiler:
100,000 Lbs. Capacity
66" Face x 30" Dia. Drum
Hyd. Drum Expansion by 14" Bore Cylinder
Hydraulic Pushoff
250 HP DC Motor, 500/1600 RPM

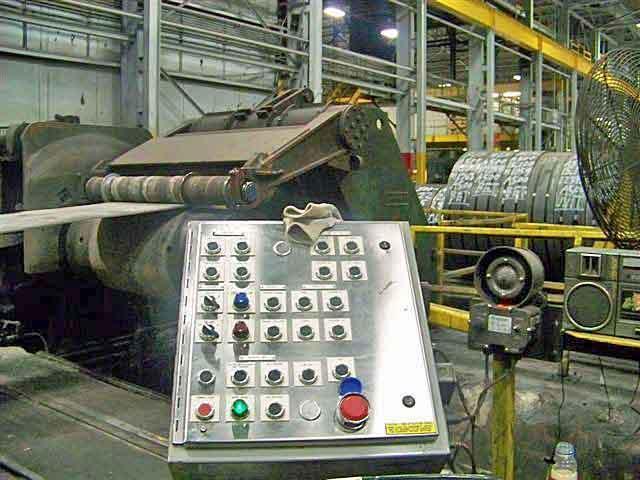

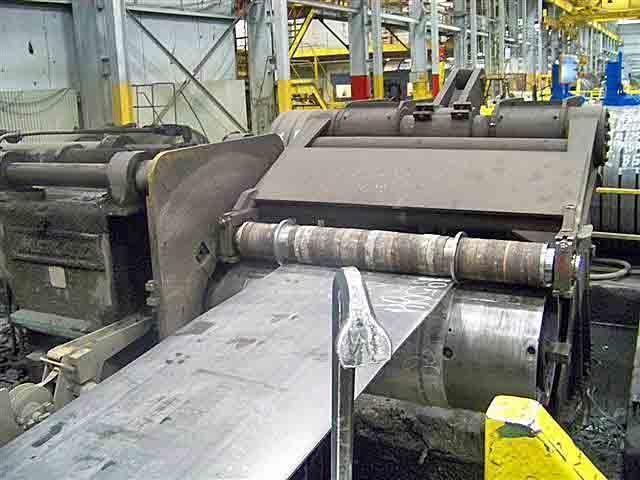

-Free Standing Overarm Separator:
-Exit Coil Car:
Pit Type

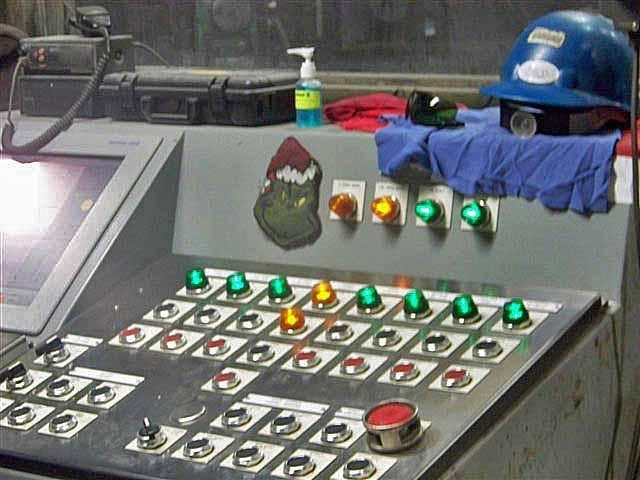

-Drive and Control System: New in 2006
Allen Bradley FlexPak 3000 DC Drives with ControlLogix Processor.
There are (3) separate ControlNet networks, each handled by a
separate AB #1756-CNB module.
The chassis also contains local discrete input and output modules,
as well as an ethernet module (AB #1756-ENBT), which connects the
system to a Wonderware InTouch HMI, showing the status of the
drive system and alarms.
-Hydraulics: Complete system upgraded in 2006.
-Includes:

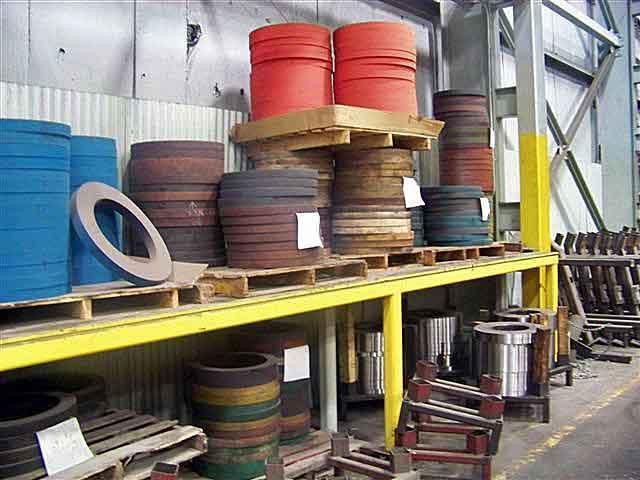

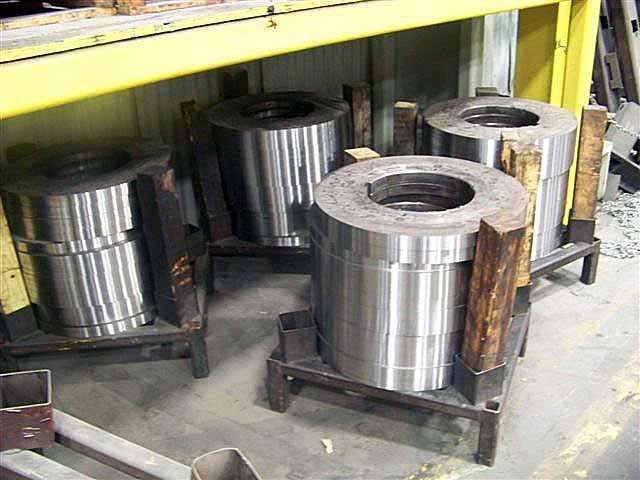

Large amount of Tooling; Knives, Spacers, Rubbers and Overarm Tooling
The Knives are the Quickset Type.
Full set of Manuals, Mech. and Elect. Drawings
Large amount of Spare Parts.
-Line is installed, but not under power.
