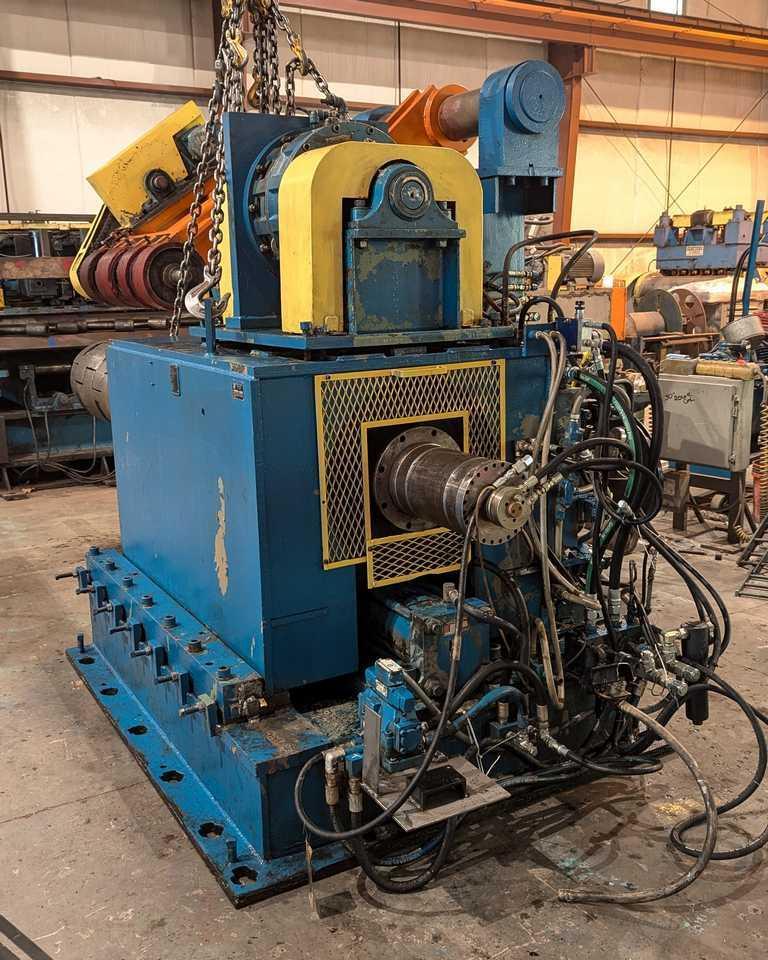

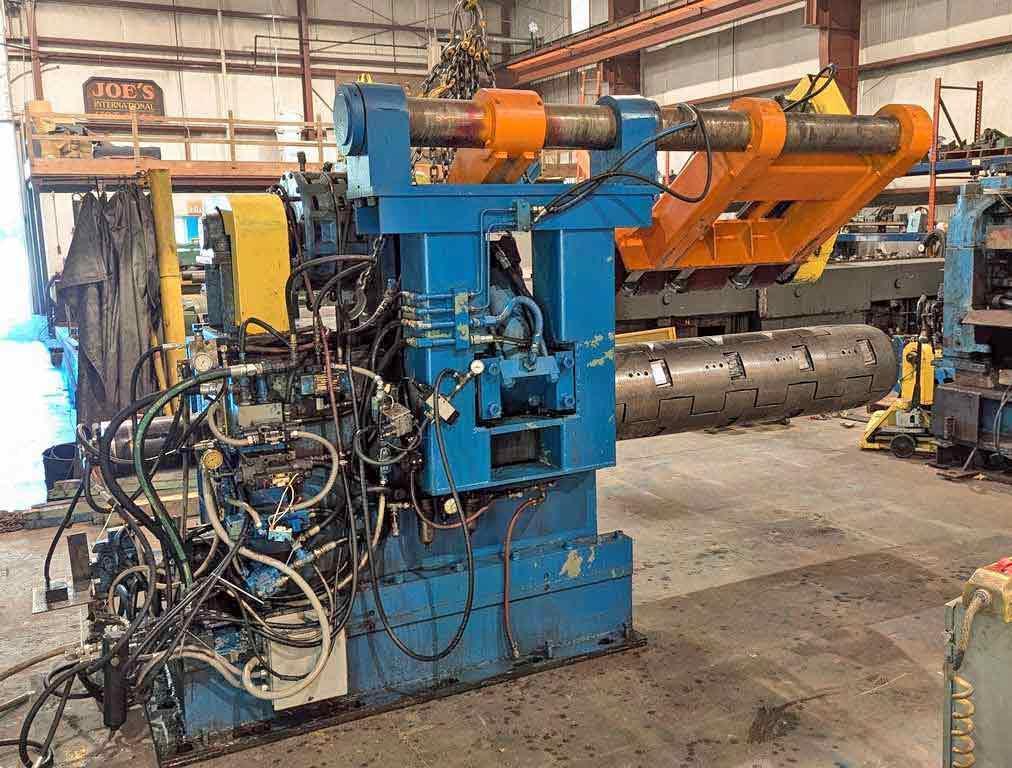

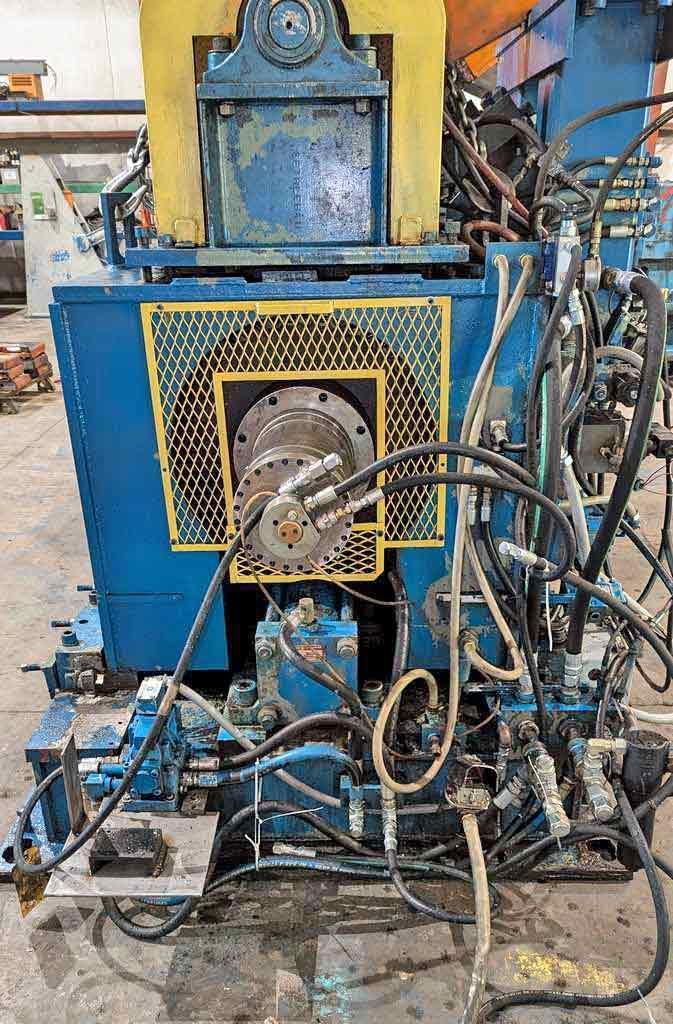

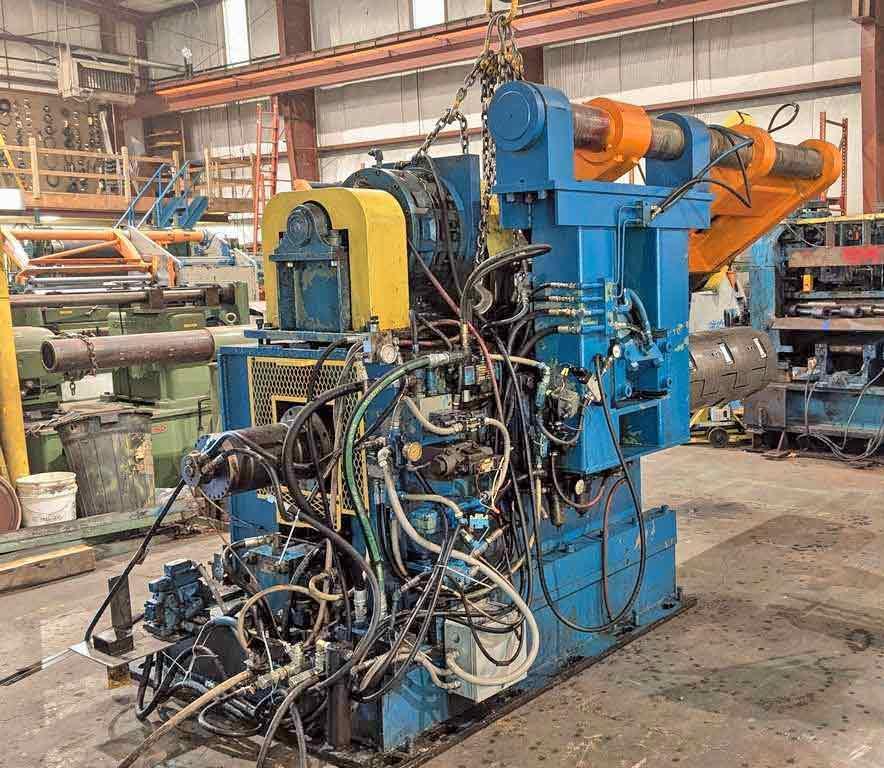

Warner Swasey Uncoiler

Model: CRH 4072

-Capacity: 40,000 lbs. x 72" Wide
-Maximum Width:  72"

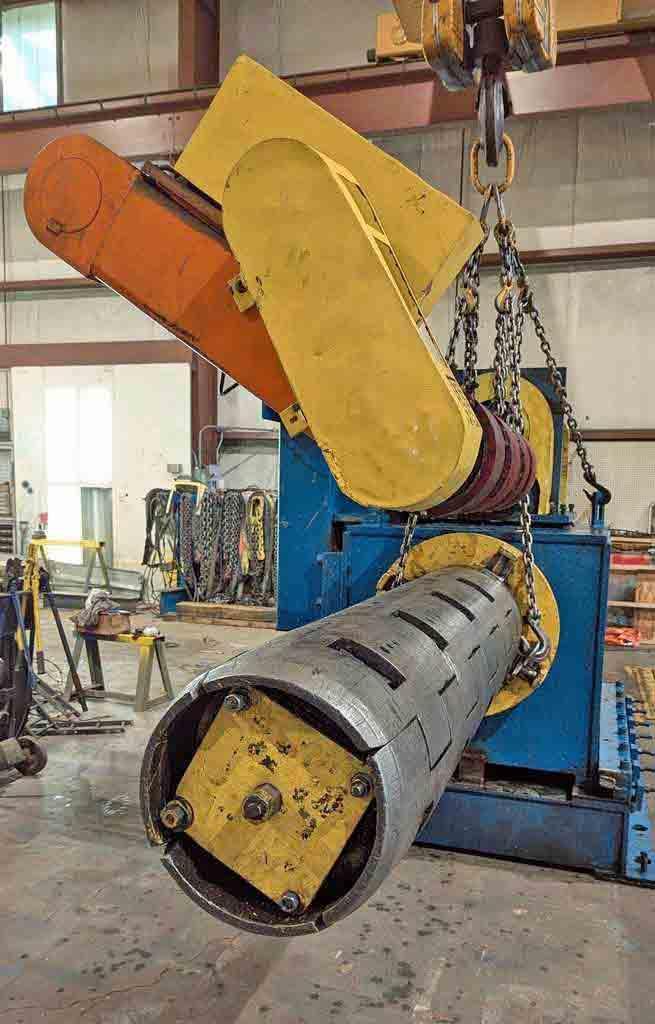

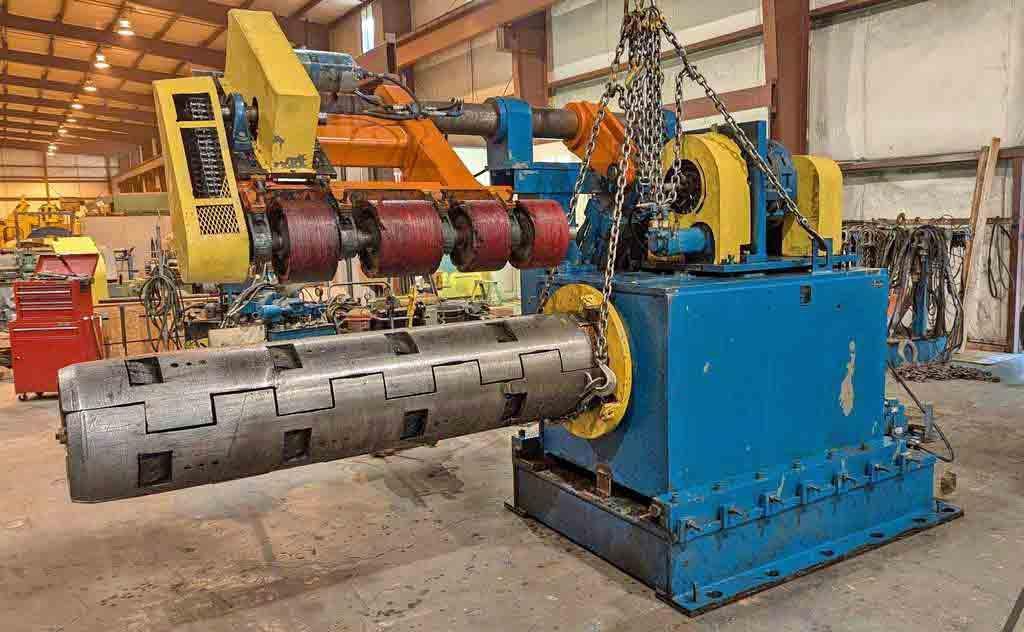

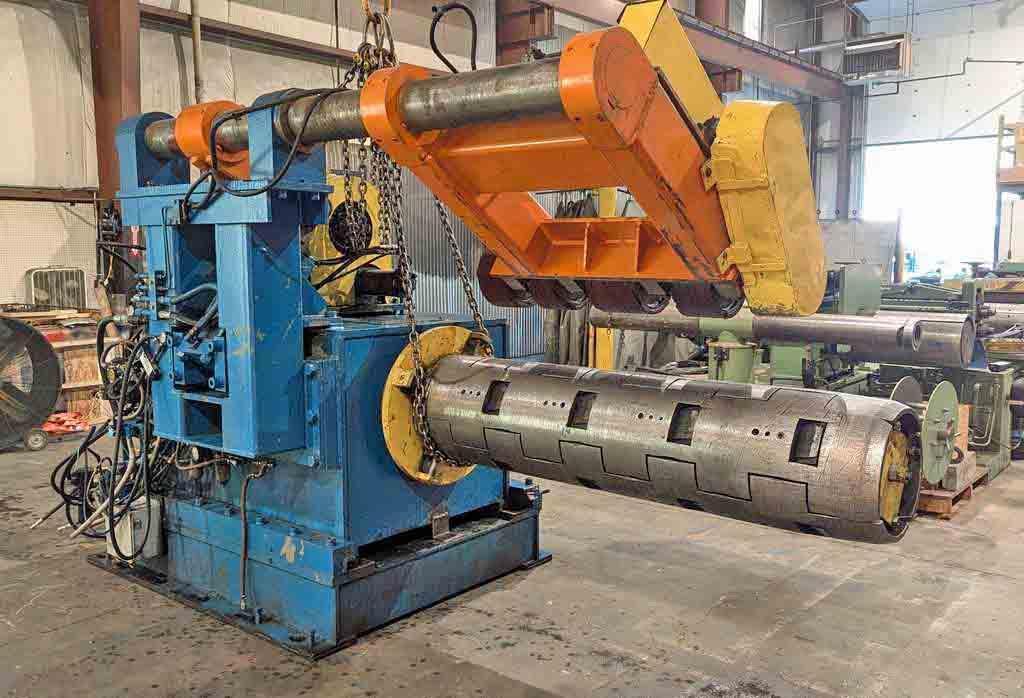

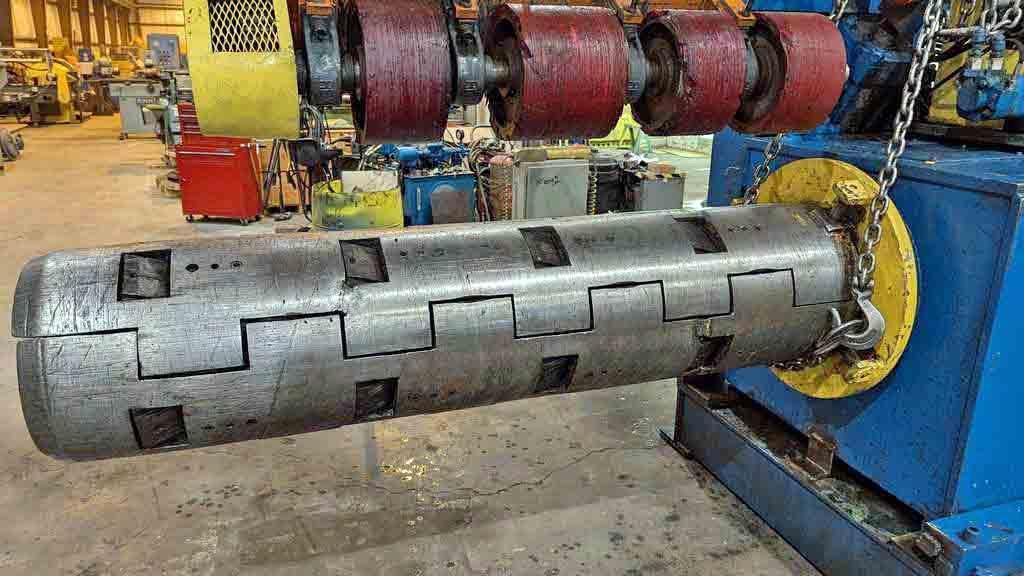

-77" Face Width Pumpkin Tooth Mandrel
-20" - 24" Expansion Range
-10" Dia. Main Shaft
-Hydraulic Expansion
-Sliding Base w/8" Bore x 12" Stroke Hyd. Cylinder
-Attached Holddown Roll
-Water Cooled Brake
-Passline: 37.5" from Floor to center of Mandrel
-Overall Size: 176" L x 70" W x 98" High
-Line Direction: Left to Right
-In Storage: Toledo, OH.
