Specifications
| Max Width of Workpiece |
60 inches |
Equipped With

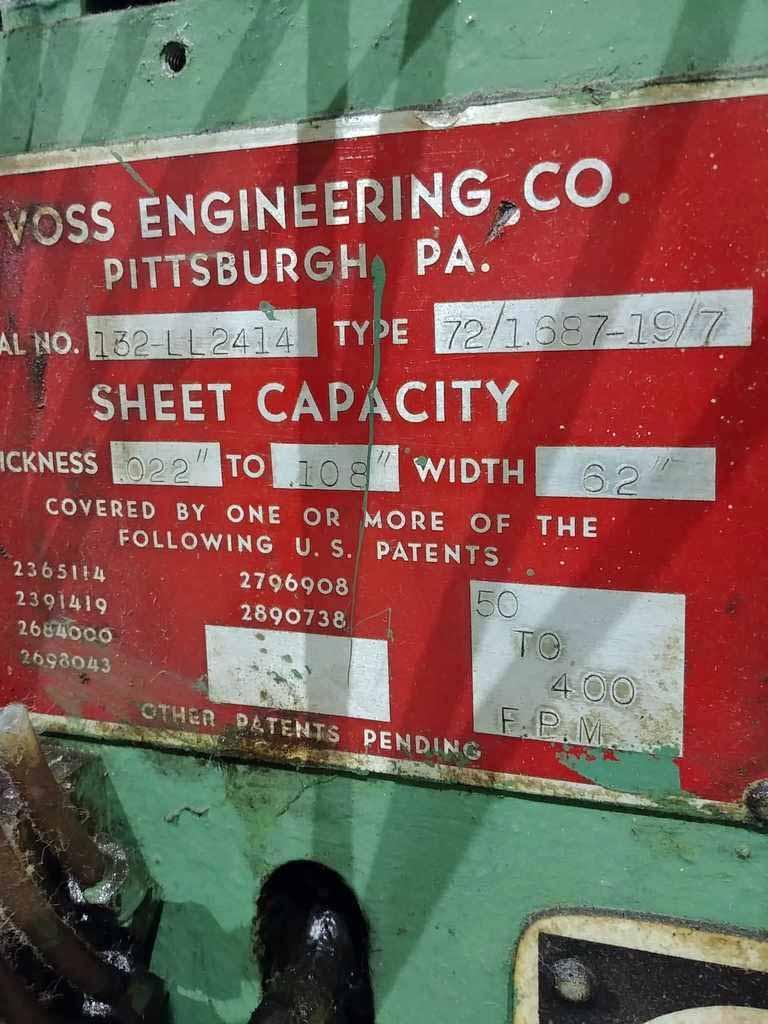

MODEL NUMBER: 72/1.687 - 19/7
DIAMETER OF ROLLS: 1.687"
ROLL FACE WIDTH: 72"
THICKNESS CAPACITY: 0.022" - 0.108" (MILD STEEL)
WIDTH CAPACITY: 62"
LINE SPEED: 50 - 400 FPM
PASSLINE: 42"

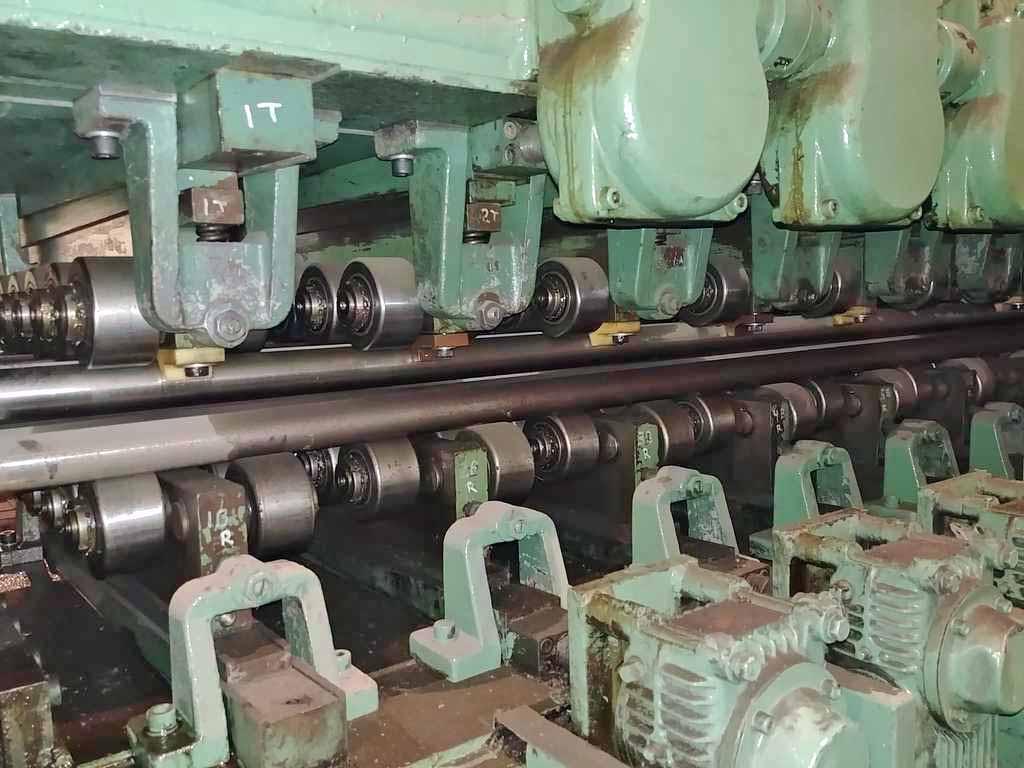

-19 WORK ROLLS
9 OVER 10 CONFIGURATION
-7 FLIGHTS OF BACKUP ROLLS
5 FLIGHTS MANUAL ADJUSTMENT
-POWERED ENTRY PINCH ROLLS
-RADIAL TILT & ROLL BEND ADJUSTMENT

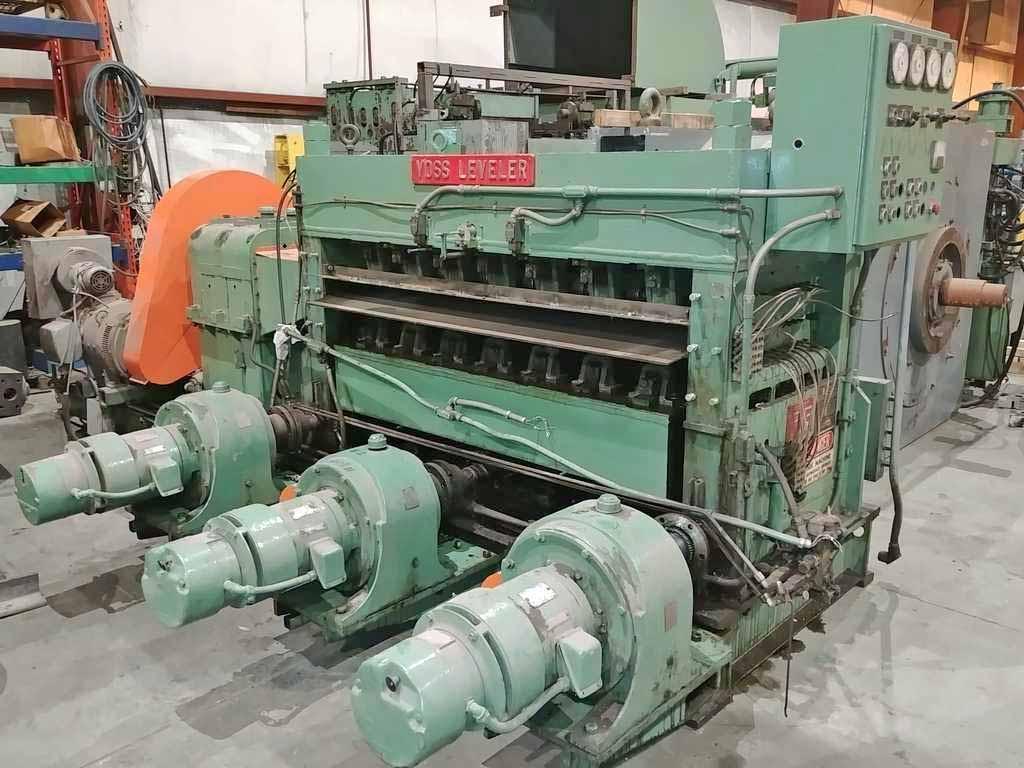

(3) 5 HP AC GEARED DRIVE MOTORS

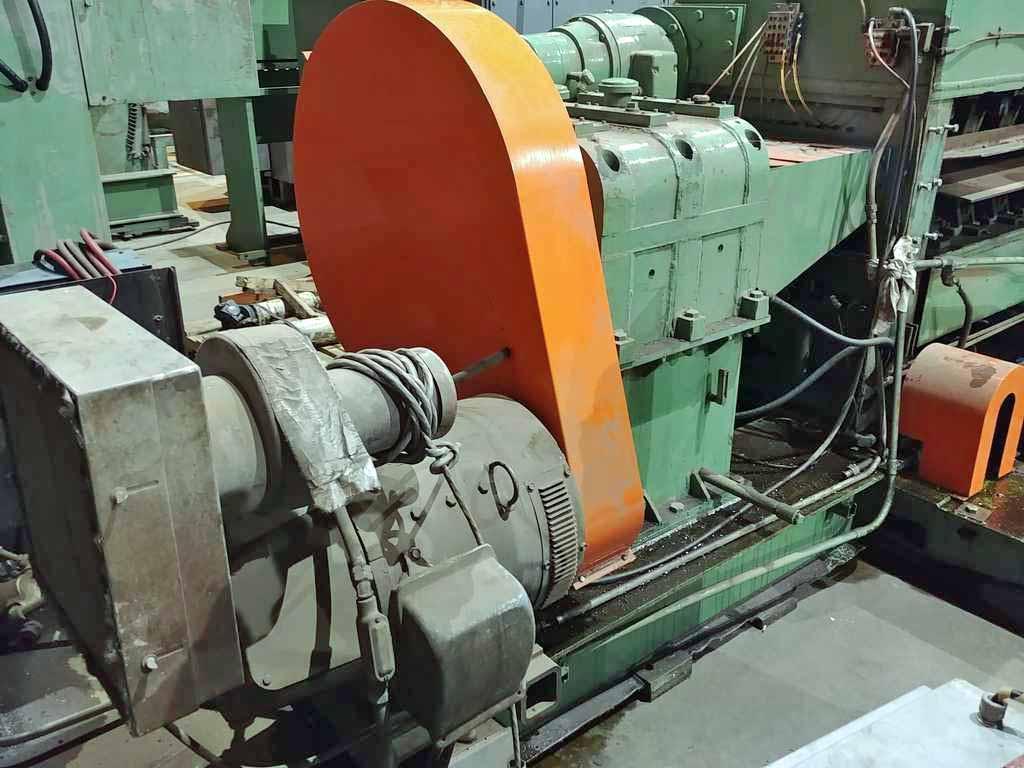

-MAIN DRIVE: UNICO 80 HP DC MOTOR WITH GEARBOX
-OVERALL SIZE: 210" L x 94" W x 80" HIGH
29,000 LBS.
-LINE DIRECTION: LEFT TO RIGHT
