Specifications
Equipped With

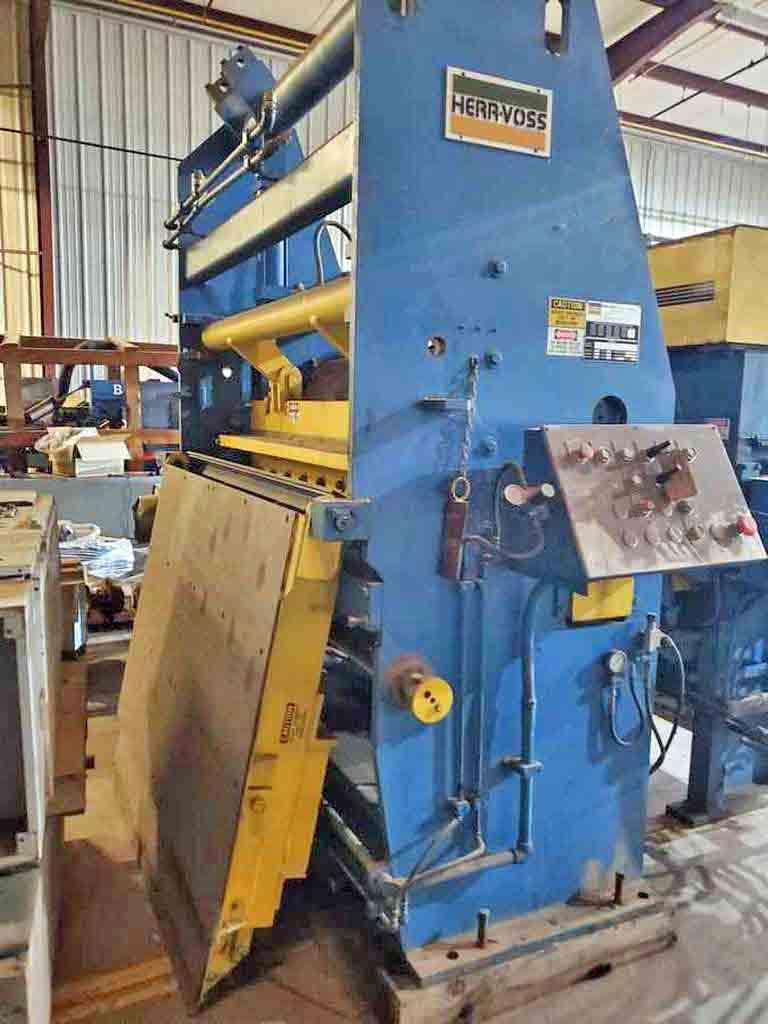

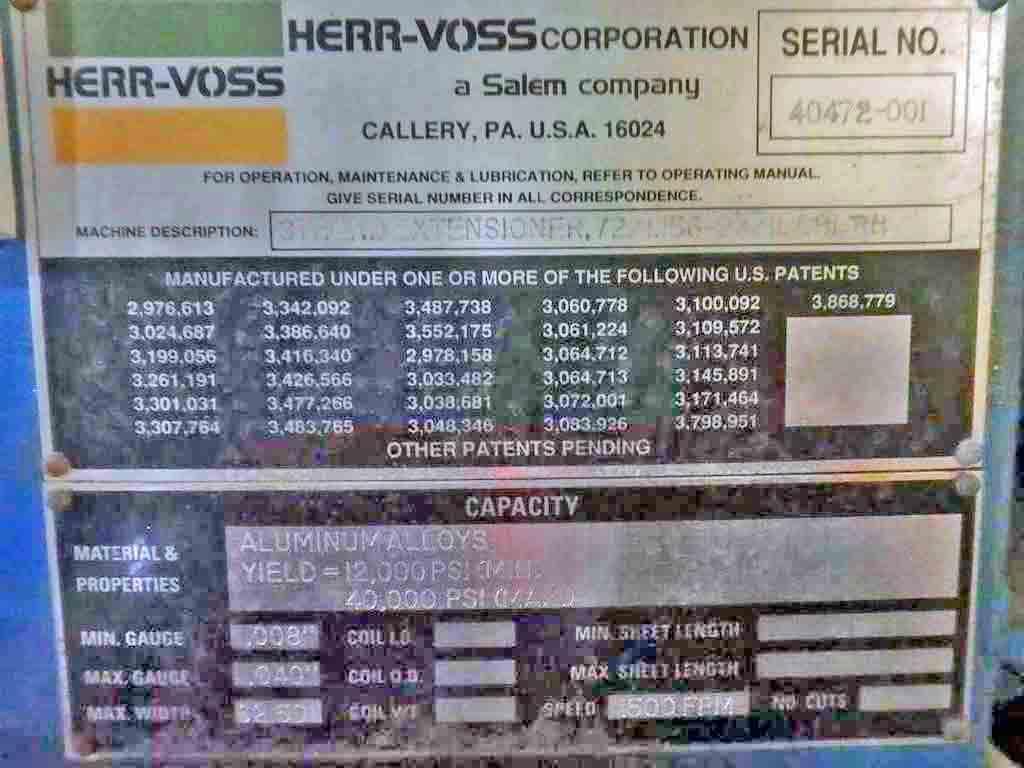

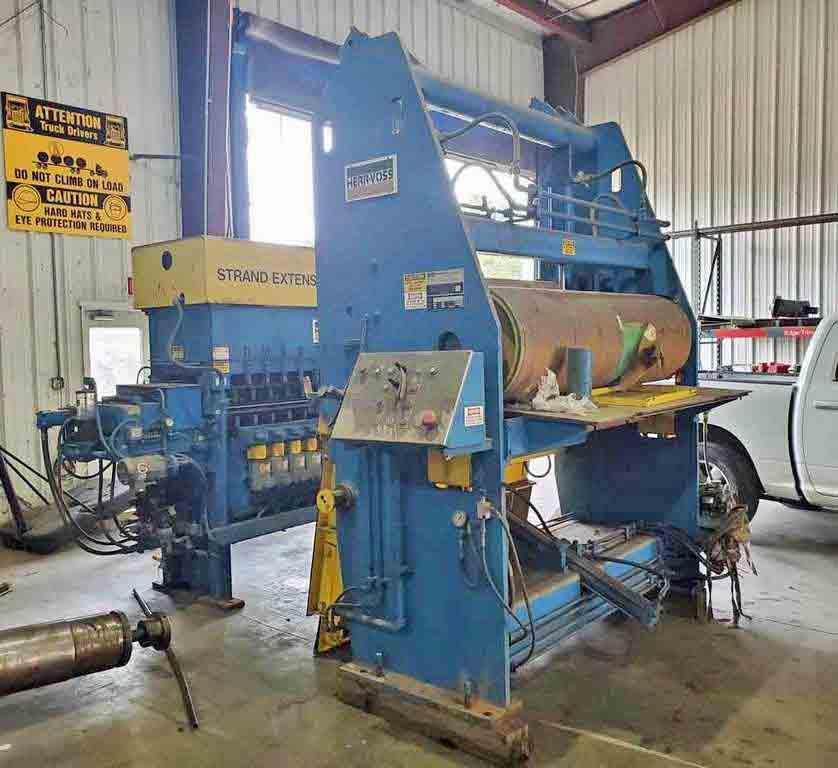

MAKE .......................................... HERR VOSS
WIDTH CAPACITY ................................ 62.5" INCHES

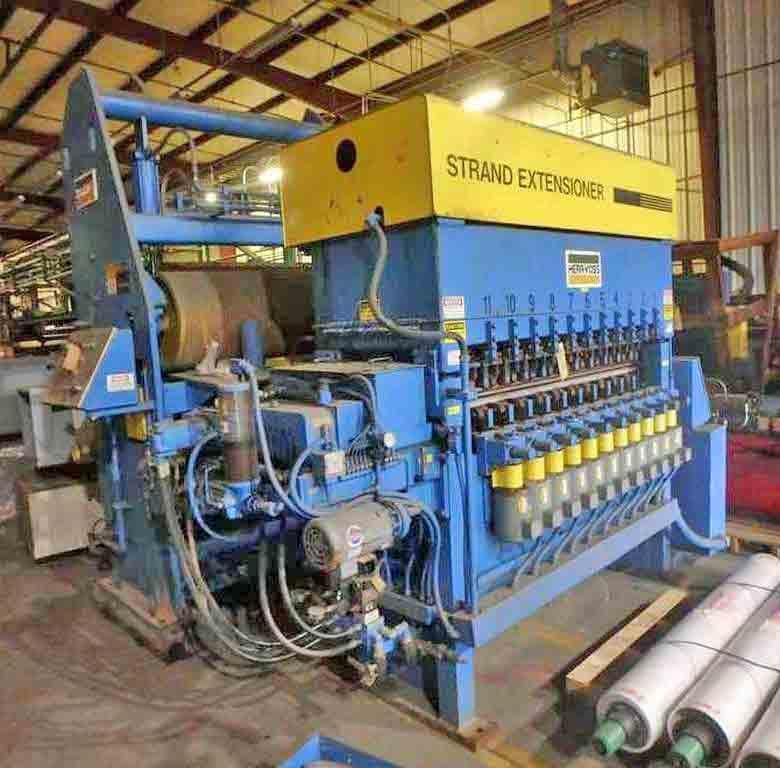

WORK ROLLS .................................... 23 (11 OVER 12)
MINIMUM COIL THICKNESS ........................ 0.008" INCH
MAXIMUM COIL THICKNESS ........................ 0.040" INCH
MAX LINE SPEED ................................ 1500 FPM
MATERIAL YIELD STRENGTH ....................... 12,000 TO 40,000 PSI
ROLL FACE ..................................... 72" INCHES
ROLL DIAMETER ................................. 1.1560" INCH

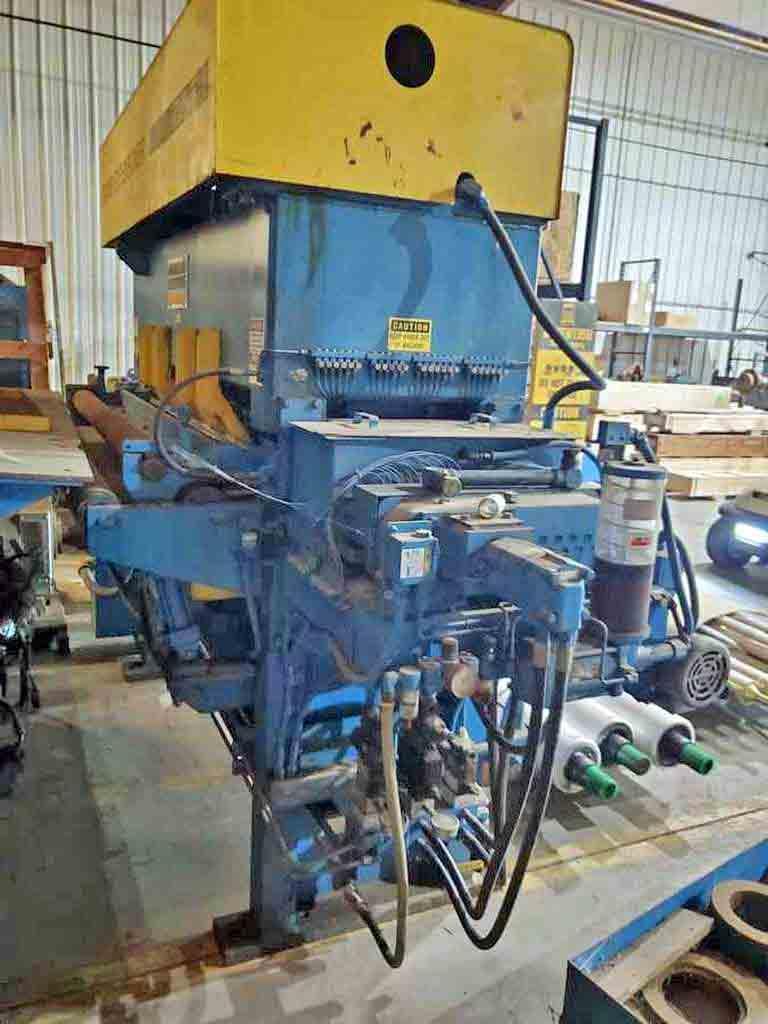

MOTORIZED BACKUPS ............................. 11 FLIGHTS
HYDRAULIC MOTOR DIVE WITH PINION BOX .......... YES
LUBE SYSTEM ................................... YES
OPERASTORS PANEL WITH JOYSTICK CONTROLS ....... YES
PASSLINE ...................................... APPROX 52" INCHES
LINE DIRECTION ................................ RIGHT TO LEFT
EXIT UNIT ..................................... YES

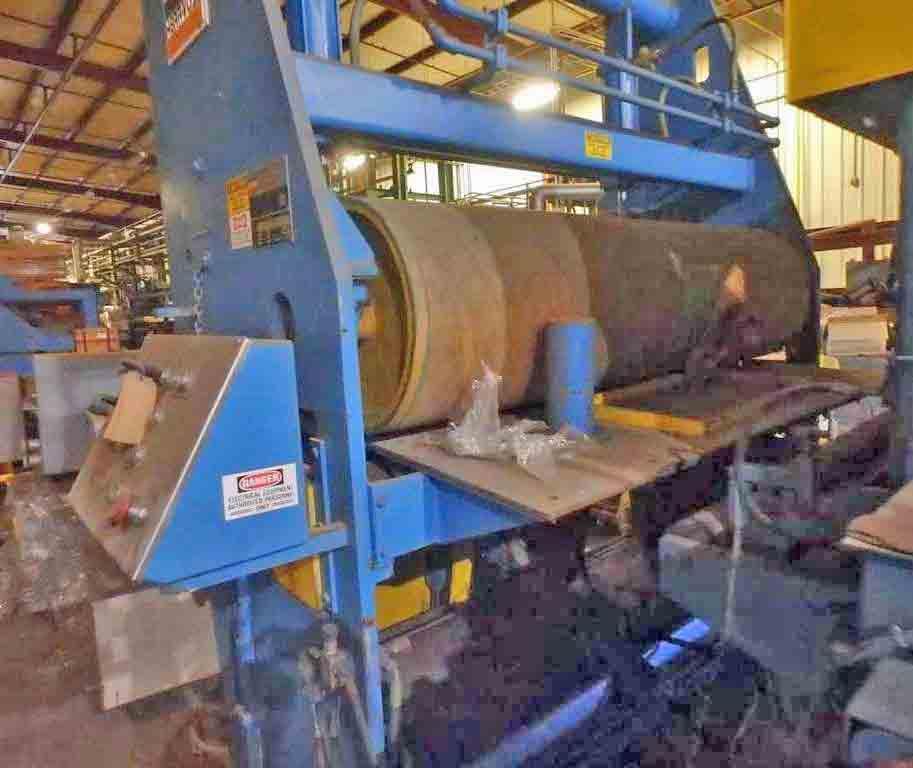

DEFLECTOR ROLL ................................ 21" INCH DIAMETER X 72" INCH FACE
BOTTOM NIP ROLL ............................... 6" INCHE DIAMETER X 77" INCH FACE
DRIVEN BY ..................................... HYDRAULIC MOTOR

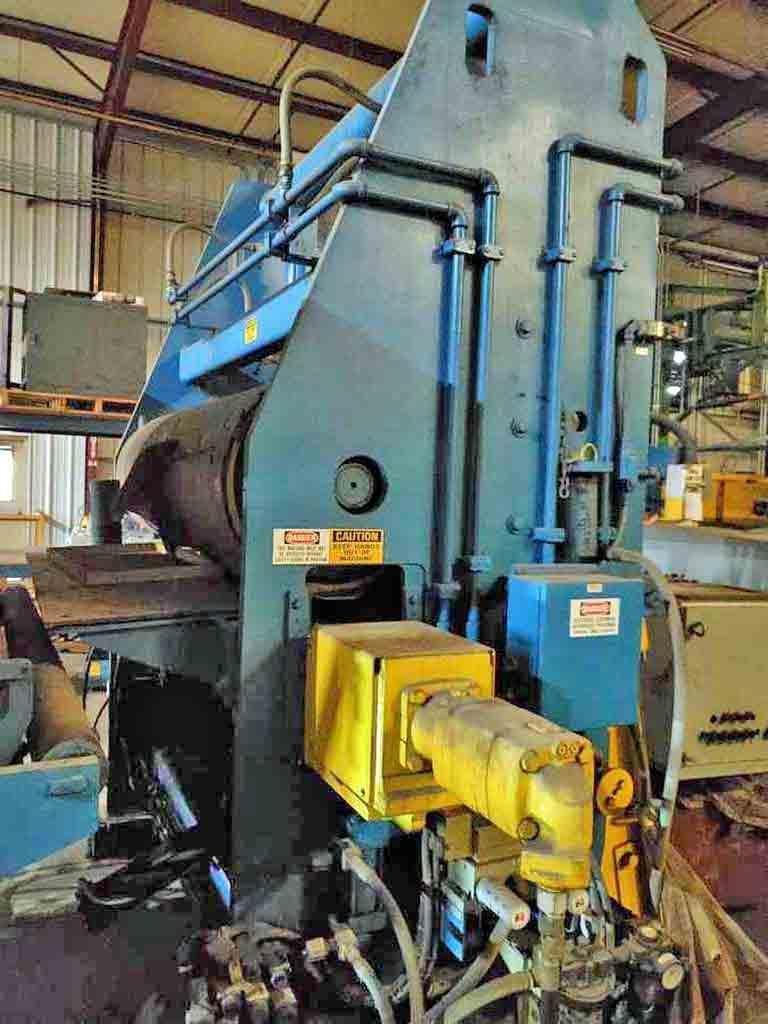

HYDRAULIC CROP SHEAR .......................... YES
BLADE LENGTH .................................. 72" INCHES
EXIT THREADING TABLE .... YES
OPERATIONS TABLE ..... YES (ATTACHED)
SPARE ROLLS ...... YES
