Specifications
Equipped With

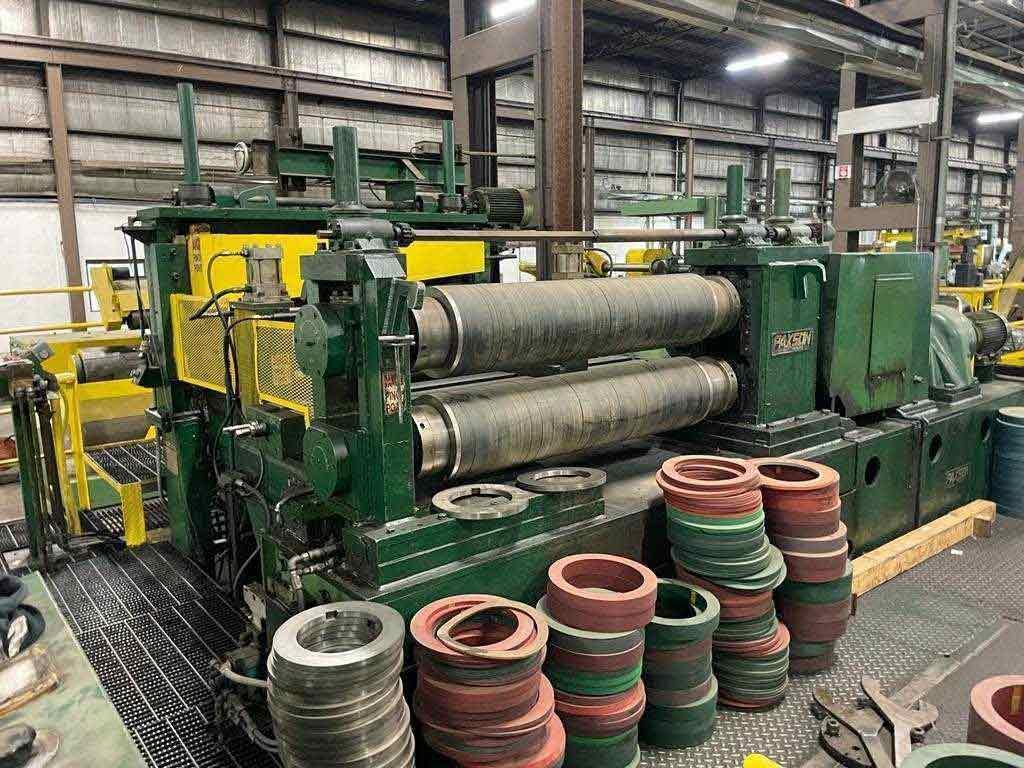

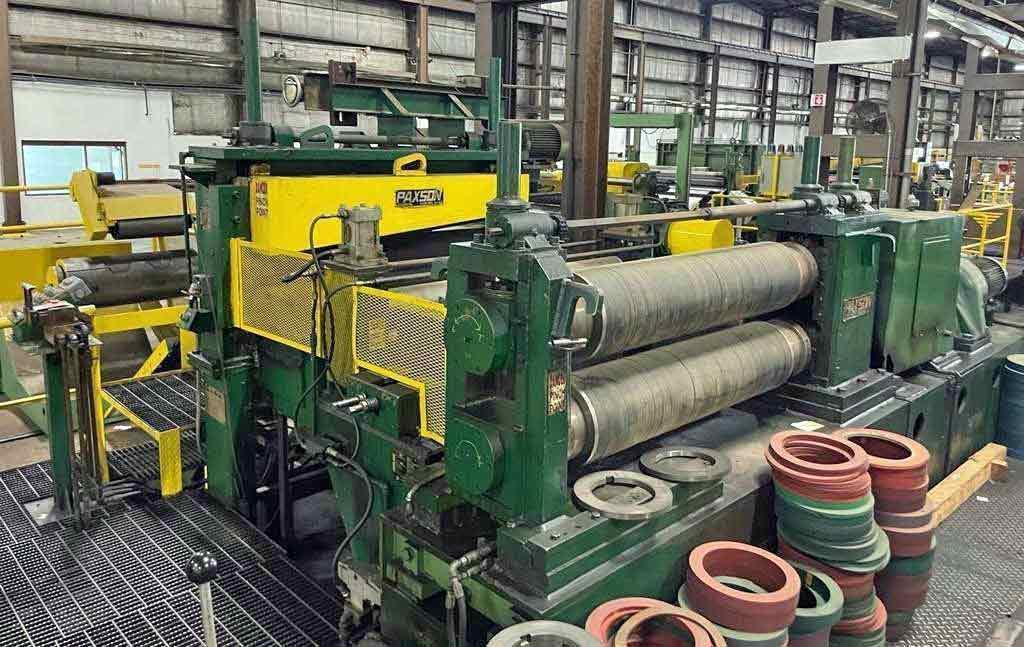

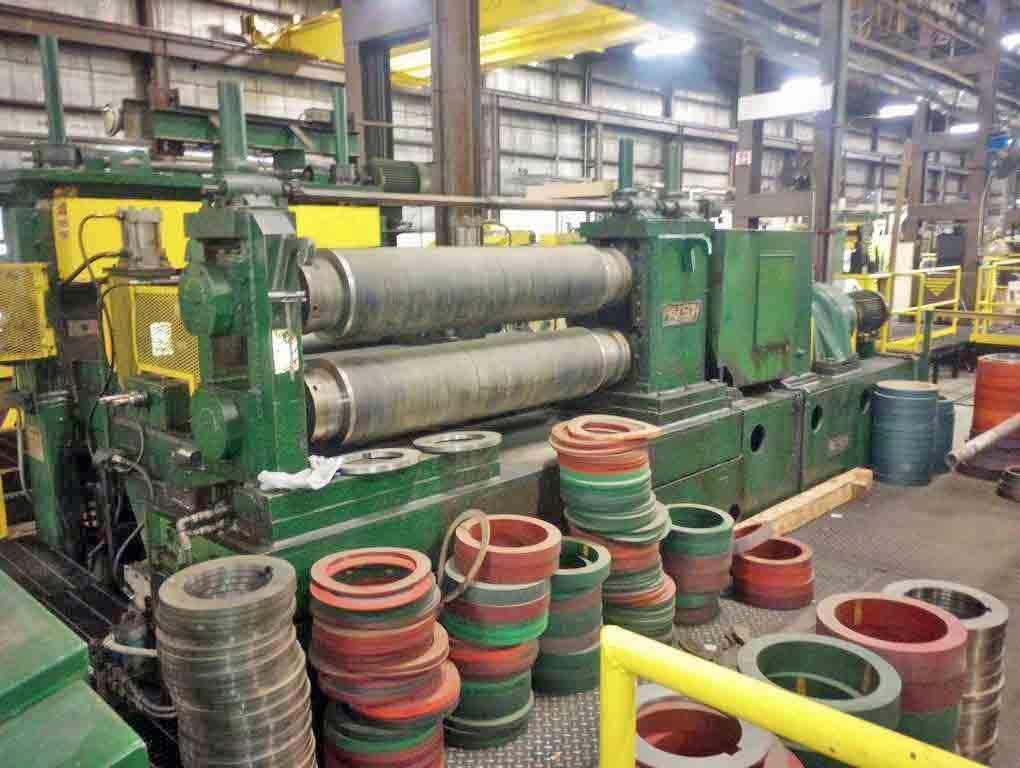

Paxson Removable Slitter Head

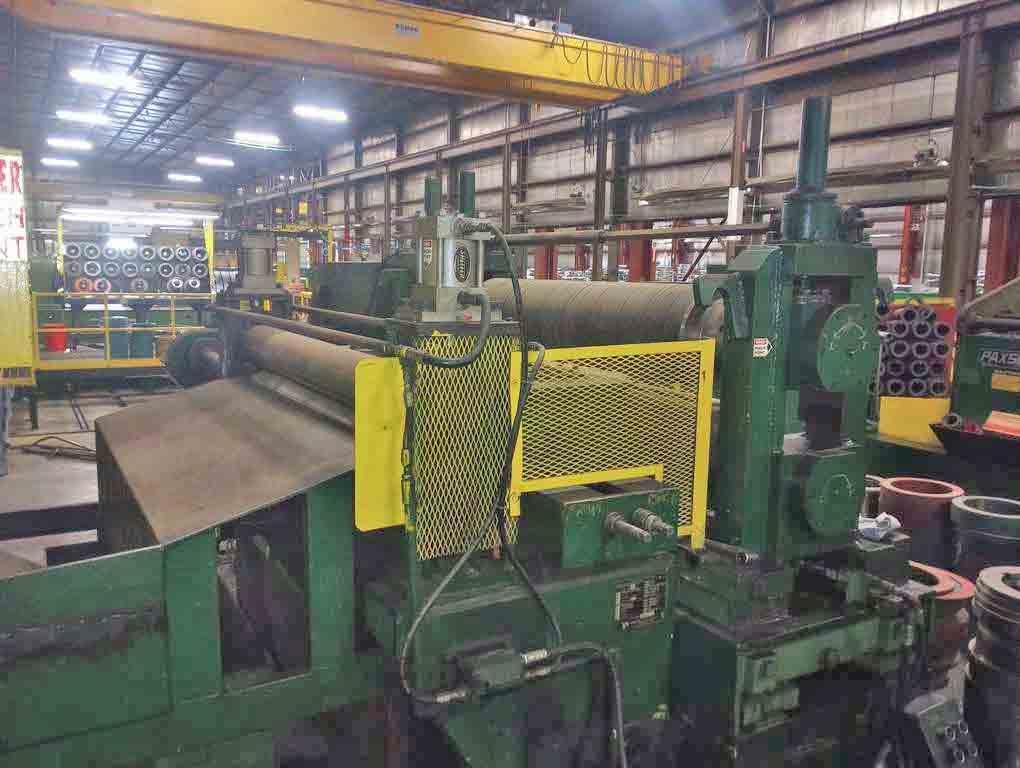

-Slitter Entry Unit:
6" Dia. x 64" Face Driven Pinch Rolls
3 Roll Edge Guides, Manual Adjustment
-(1) Slitter Head:
Removable Head Design
8" Dia. x 62" Long Arbors
Parallel Arbor Adjustment

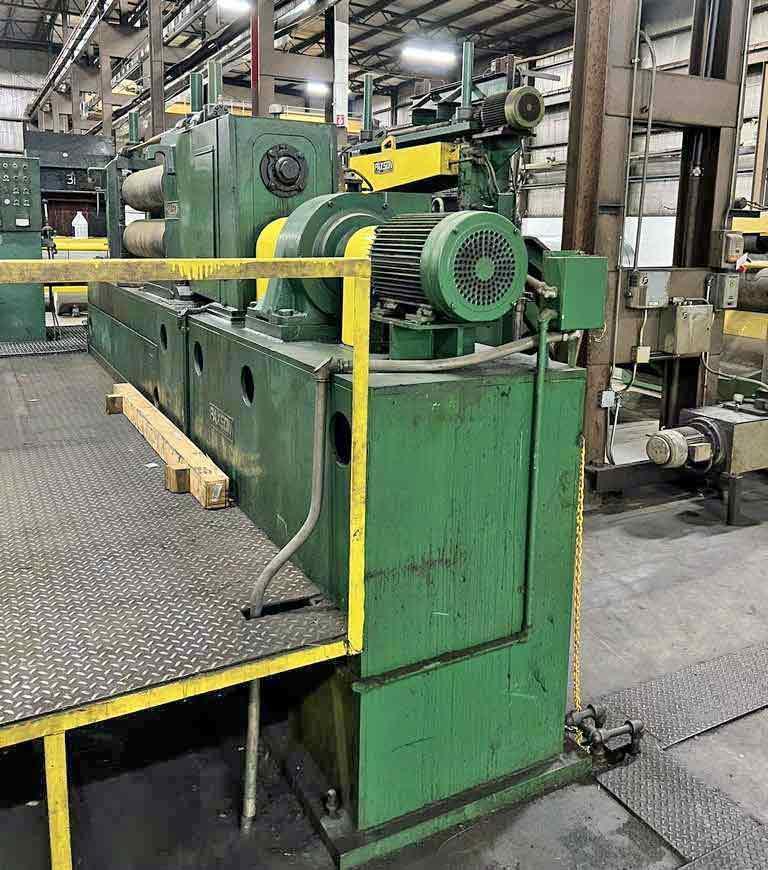

Threading Drive: 20 HP AC Motor, 1750 RPM
Falk Reducer, w/129.5:1 Ratio
14" Max. Knife Dia.
-Tooling Count
44 knives 1/2" wide x 11.687" OD
45 knives 1/2" wide x 11.500" OD
38 Knives 3/4" wide x 12.500" OD
140" Of Assorted Spacers
-Passline: 72" Approx.
-Line Direction: Left to Right
-In Storage: Toledo, OH
