60" x 7.50" x 40,000# Loopco Slitting Line
Material Thickness Range: 0.020" - 0.188"
Line Speed: Low Speed Range:
250 FPM @ 24" Dia. Build-Up to 750 FPM @ 72" O.D.
High Speed Range:
750 FPM @ 24" Dia. Build-Up to 1500 FPM @ 72" O.D.
Approx. Slitting Capacity:
Low Speed Range: 250 FPM
45,000 PSI 60,000 PSI
8 Cuts in 0.188" 6 Cuts in 0.188"
12 Cuts in 0.135" 9 Cuts in 0.135"
20 Cuts in 0.090" 15 Cuts in 0.090"
20 Cuts in 0.067"
High Speed Range: 750 FPM
45,000 PSI 60,000 PSI
7 Cuts in 0.120" 4 Cuts in 0.120"
11 Cuts in 0.090" 8 Cuts in 0.090"
20 Cuts in 0.067" 15 Cuts in 0.067"
20 Cuts in 0.020" 20 Cuts in 0.020"
Line Direction: Left to Right
Consisting Of:
-Entry Turnstile:
(3) C-Hook Type Arms
Powered Rotation
-Entry Coil Car:
Above Floor Type
Self-Contained Hydraulics
Hand Pendant Control
-Uncoiler:
Pumpkin Tooth Mandrel
Hydraulic Expansion
Threading Drive
Sliding Base
Wichita Brake
Powered Holddown Arm
-Peeler Table:

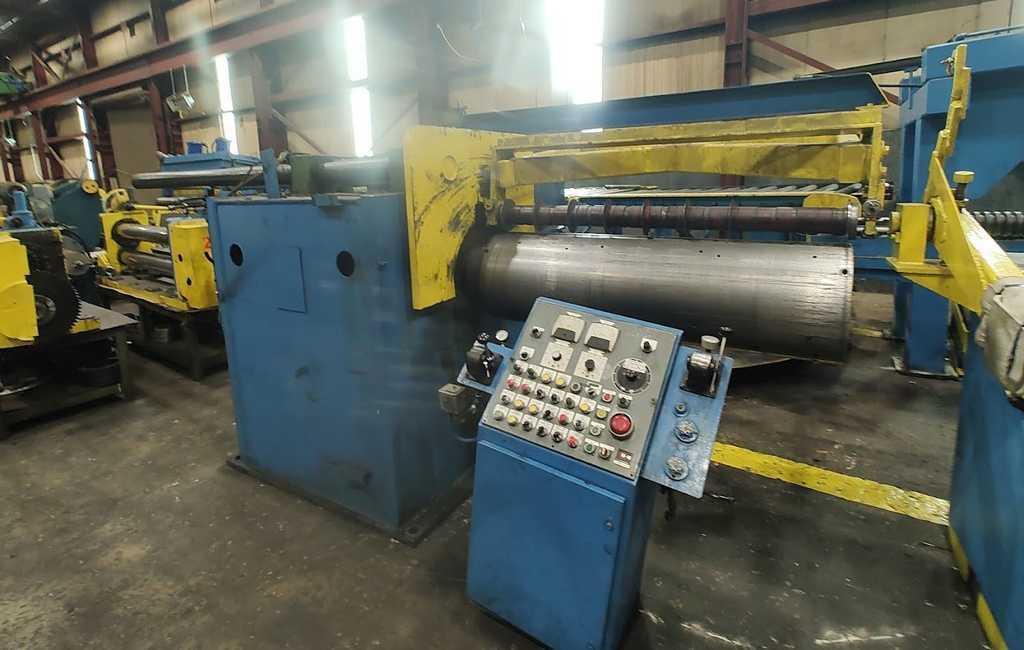

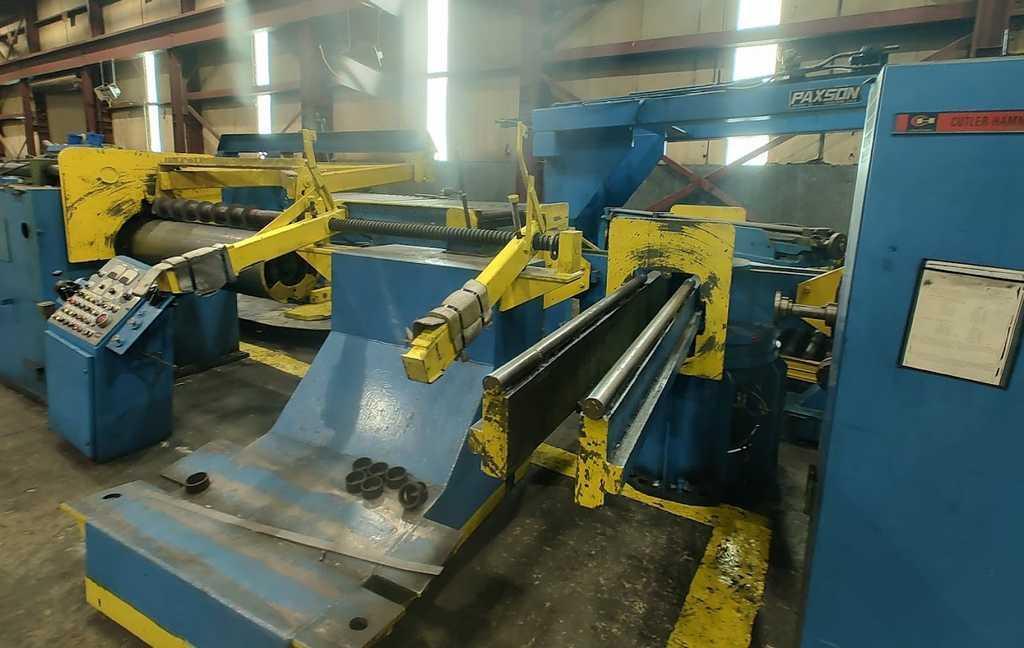

-Slitter Head:
Entry Pinch Rolls
Entry Side Guides
(2) Slitter Heads
7.5" Dia. Arbors
Parallel Arbor Adjustment
Threading Drive

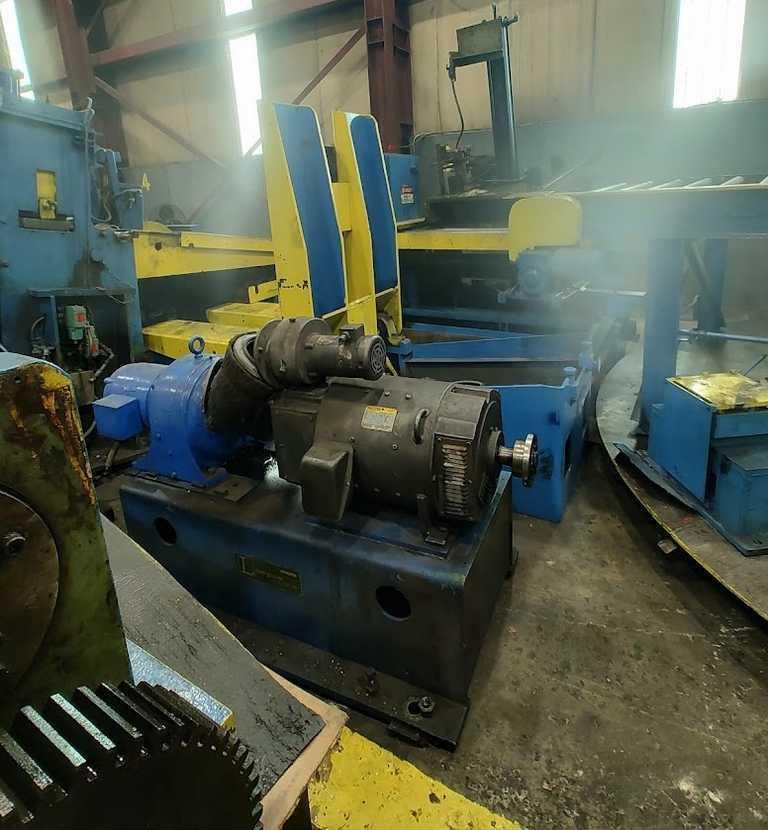

DC Motor Drive

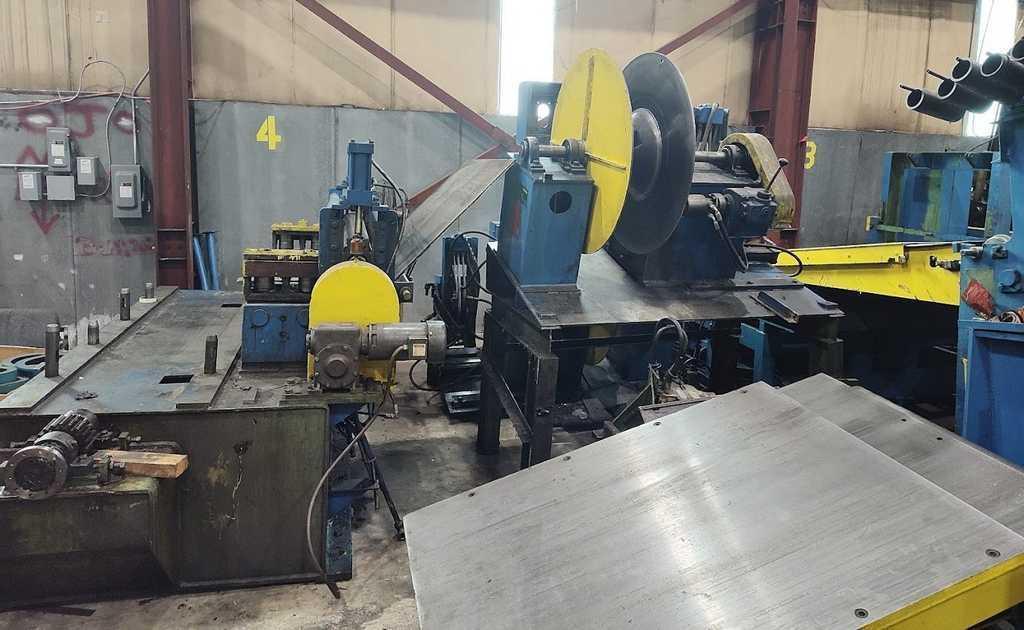

-Scrap Winder:
Hydraulic Motor Driven
2 Speed Transmission
Oscillate Wind
Powered Scrap Ball Dump

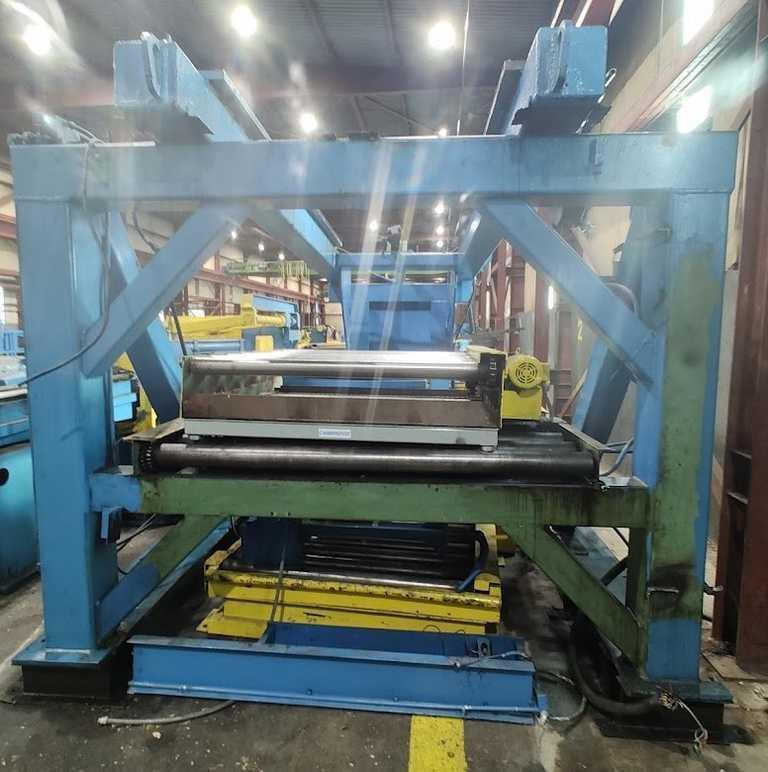

-Tension Stand:
Attached Pit Table
Entry Separator Tooling Bar
Pad Type Tension by (2) Hydraulic Cylinders

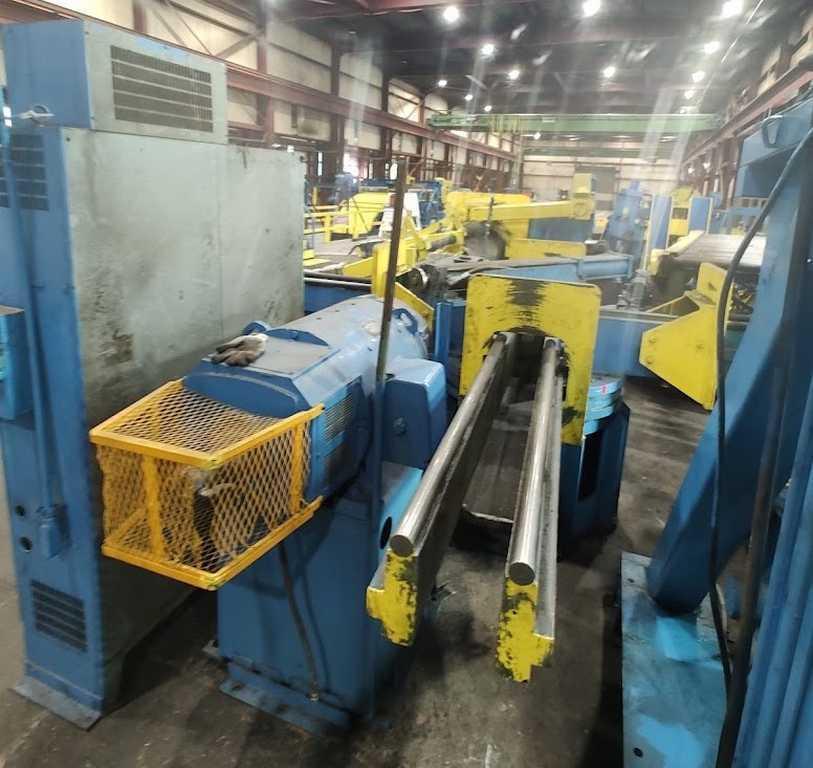

-Recoiler:
Powered Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
DC Drive Motor
-Exit Coil Car:
Coil Stabilizing Arms
Self-Contained Hydraulics

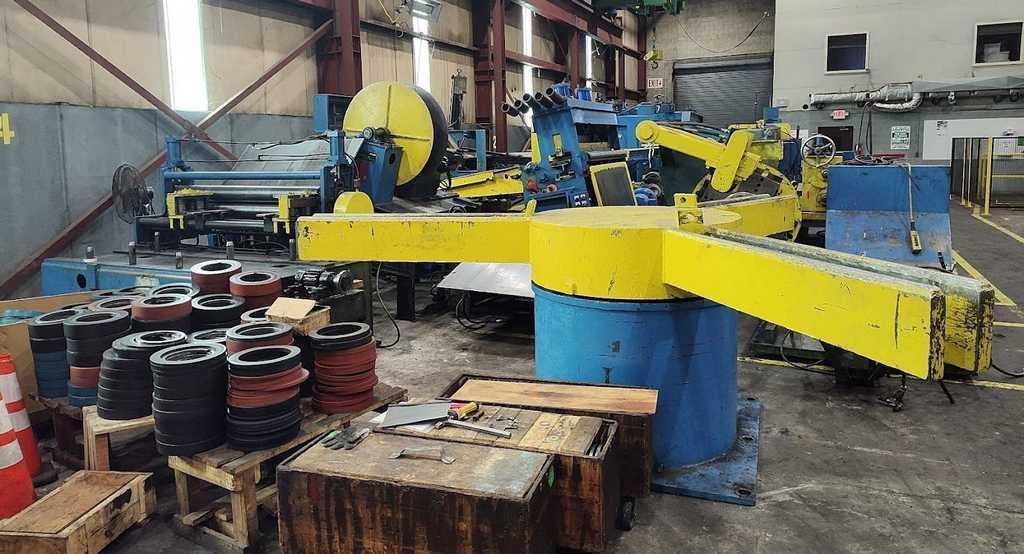

-Exit Turnstile:
(4) C-Hook Type Arms
Hydraulic Pushoff
Powered Rotation
-Slitter Tooling:
-Main Operators Control Panel:

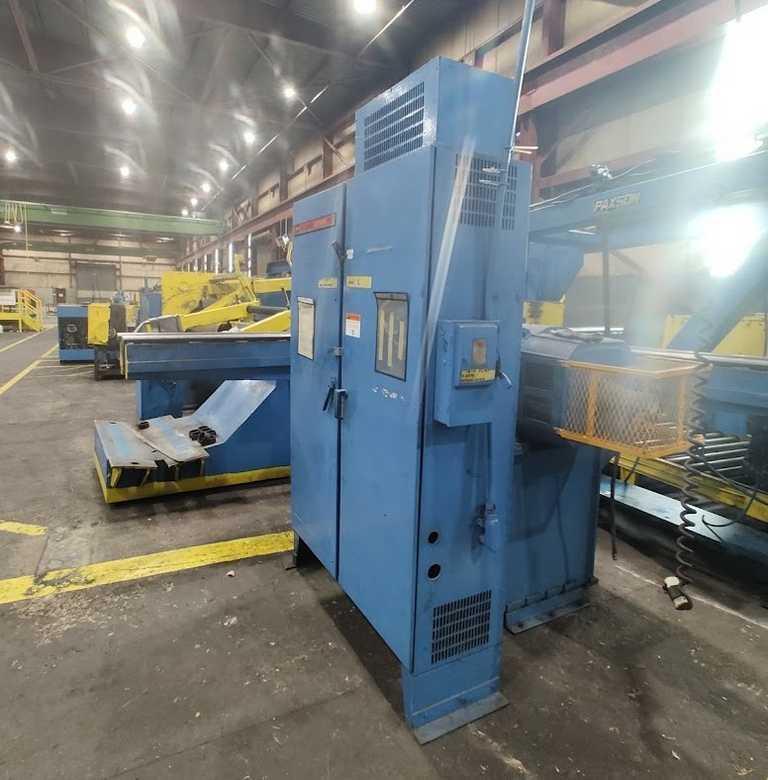

-Main Electrical Panel:
-Line is removed and in storage
