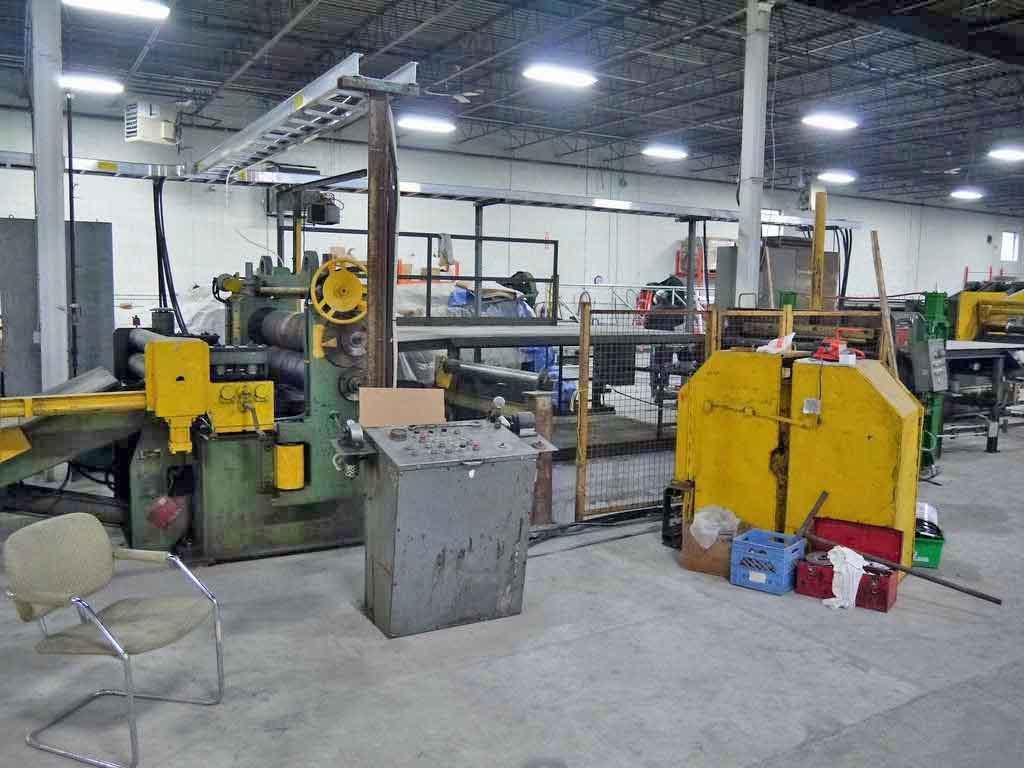

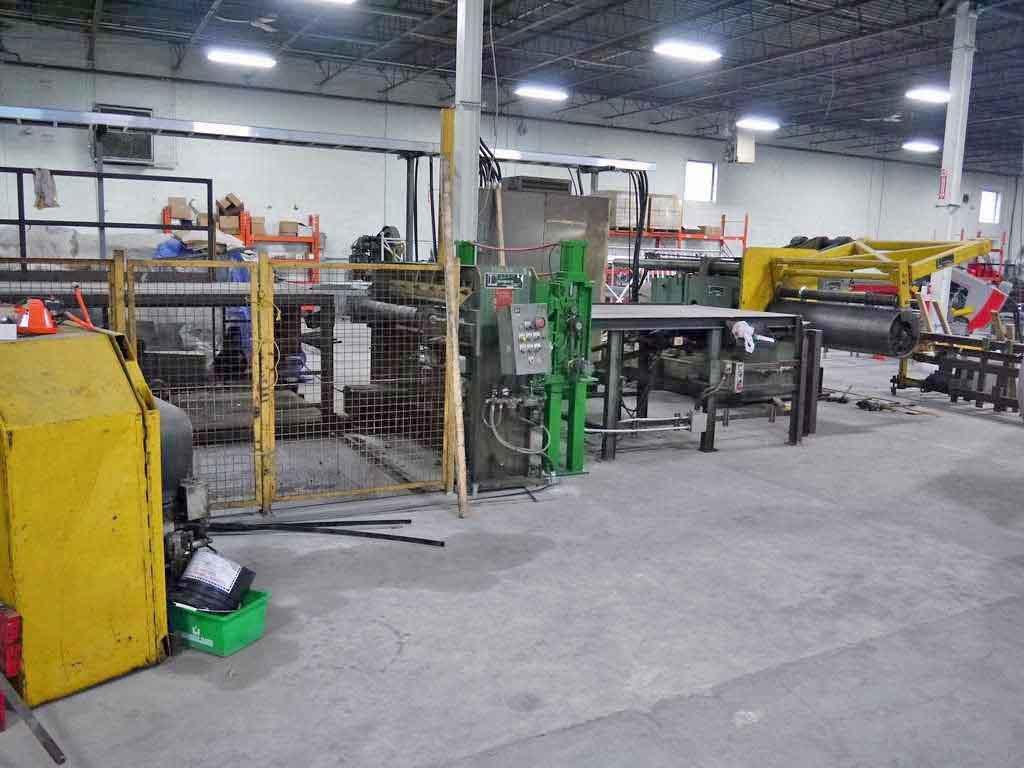

60" x 7.00" x 40,000# Loopco Slitting Line

Brand
LOOPCO

Model

Stock #
2051

Condition
Used

Year

Location
Toledo, Ohio
United States

Specifications

Max Width of Workpiece 60 inches

Equipped With

Width:                     60"
Weight Capacity:           40,000#
Coil I.D. Entry:           19.50" - 24"
Coil I.D. Exit:            20"
Line Speed:                300 and 600 FPM
Line Direction:            Left to Right

Consisting of the following:

-Loopco "L" Type Coil Car:
  Self Contained Hydraulic Power Unit
  Hydraulic Motor Travel

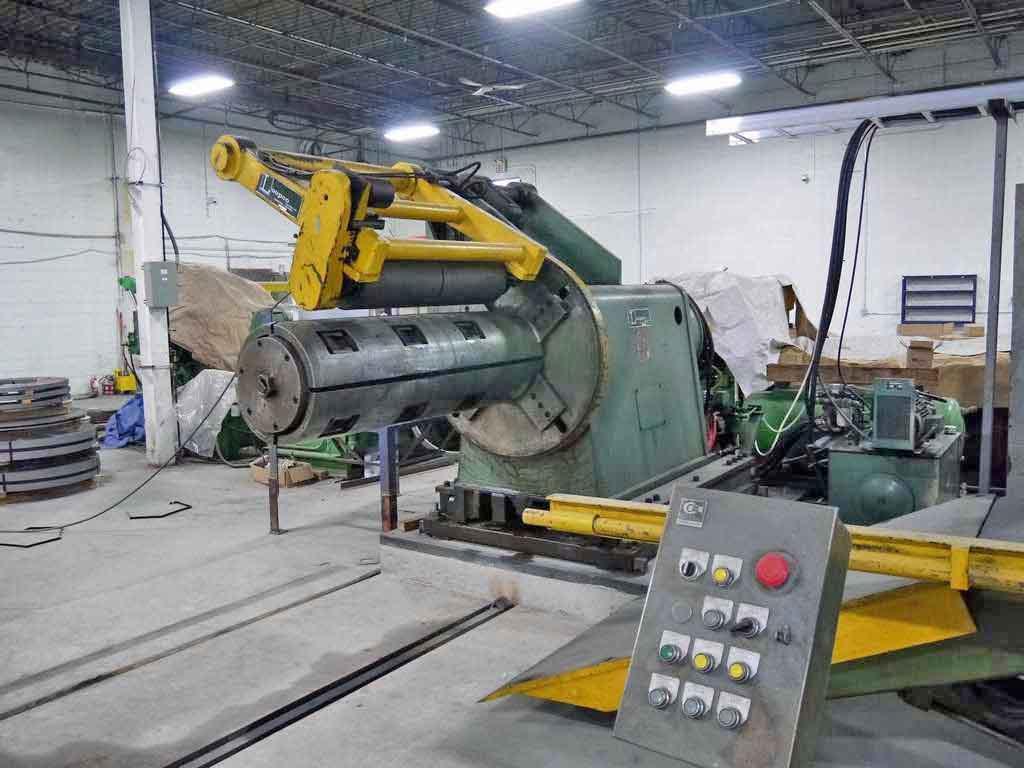

-Loopco Mandrel Uncoiler:
  Hydraulic Expansion
  Powered Overarm Holddown Roll
  Sliding Base
  Water Cooled Brake
  Feedup Drive

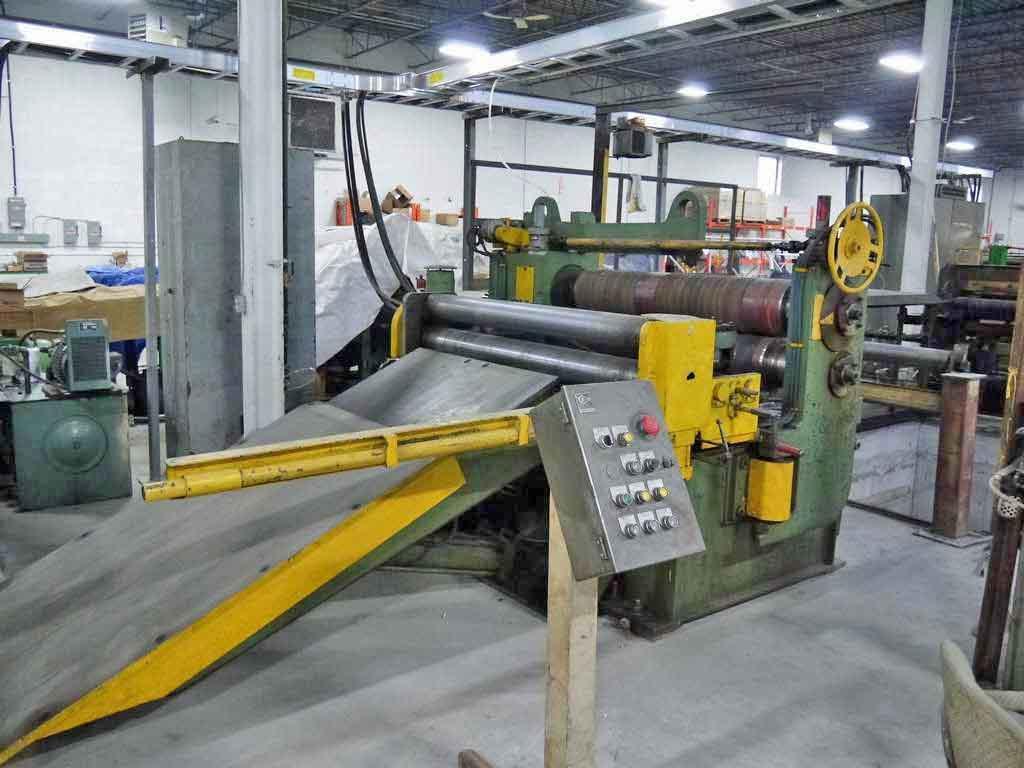

-Loopco Entry Unit:
  Peeler Table
  Driven Pinch Rolls
  Roller Side Guides

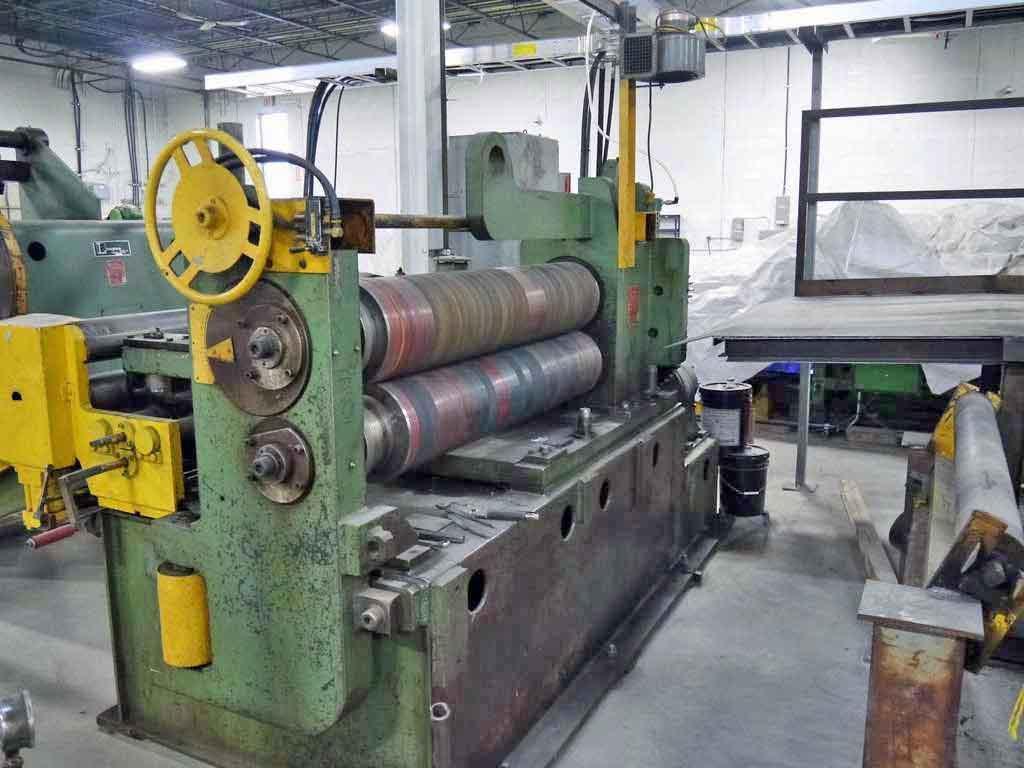

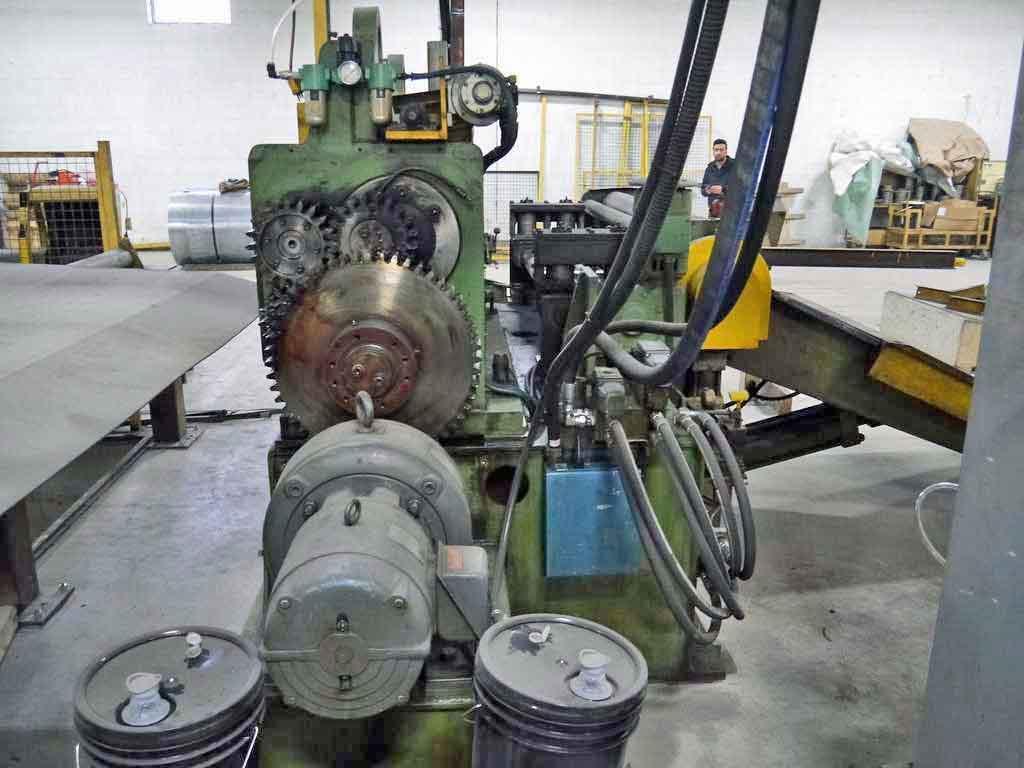

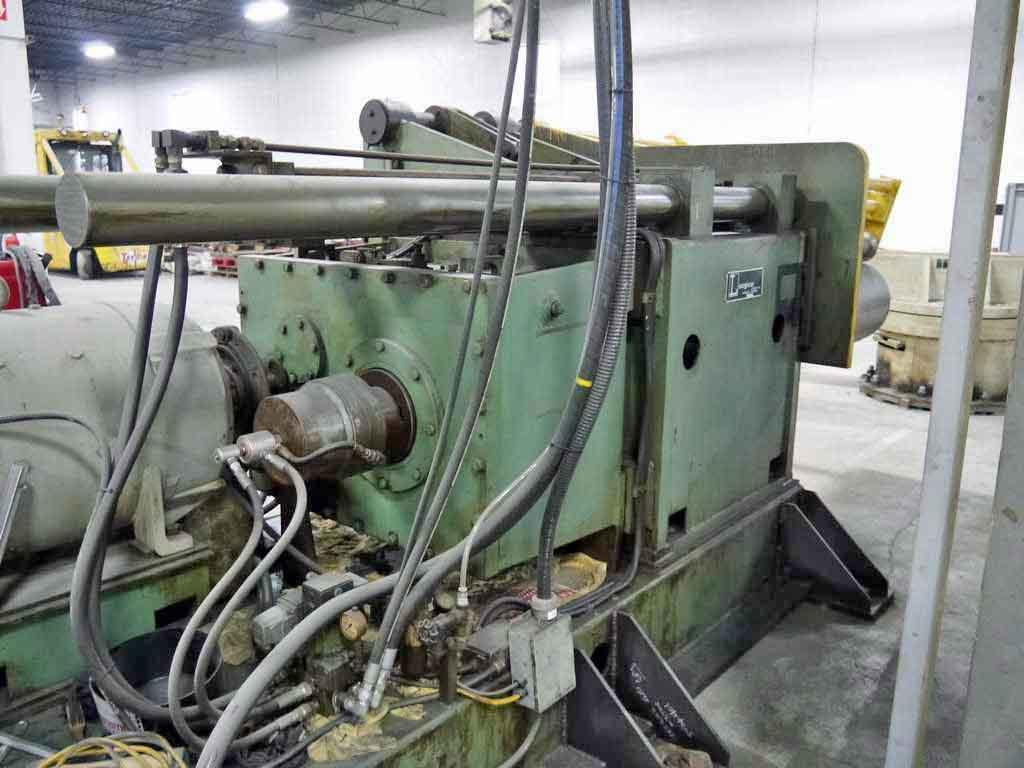

-Loopco Slitter Head:
  Crane Type Removable (1 Head)
  7" Dia. Arbors
  AC Gear Motor Threading Drive

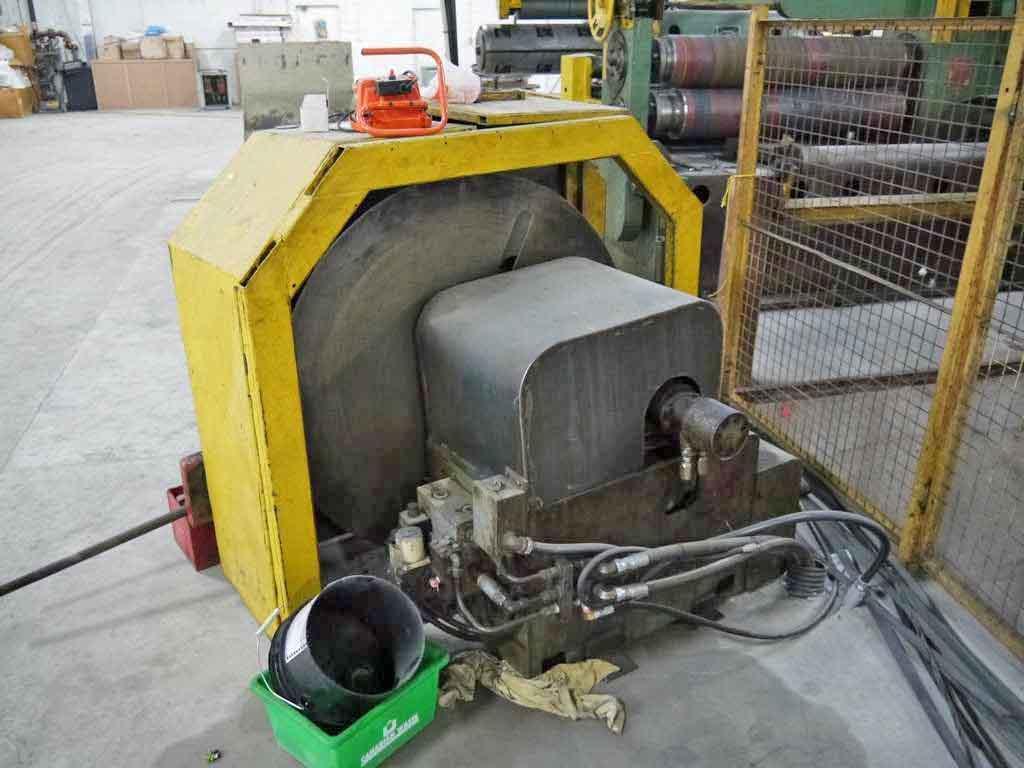

-(1) Scrap Winder:
  Hydraulic Motor Drive

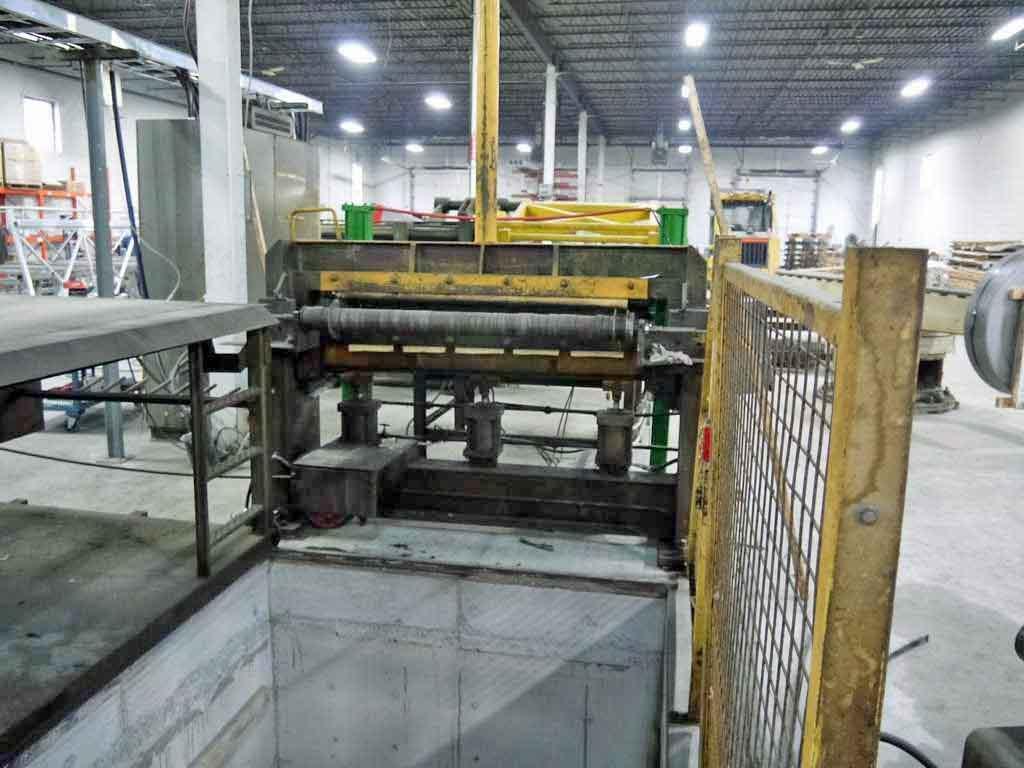

-Pit Cross Over Table:

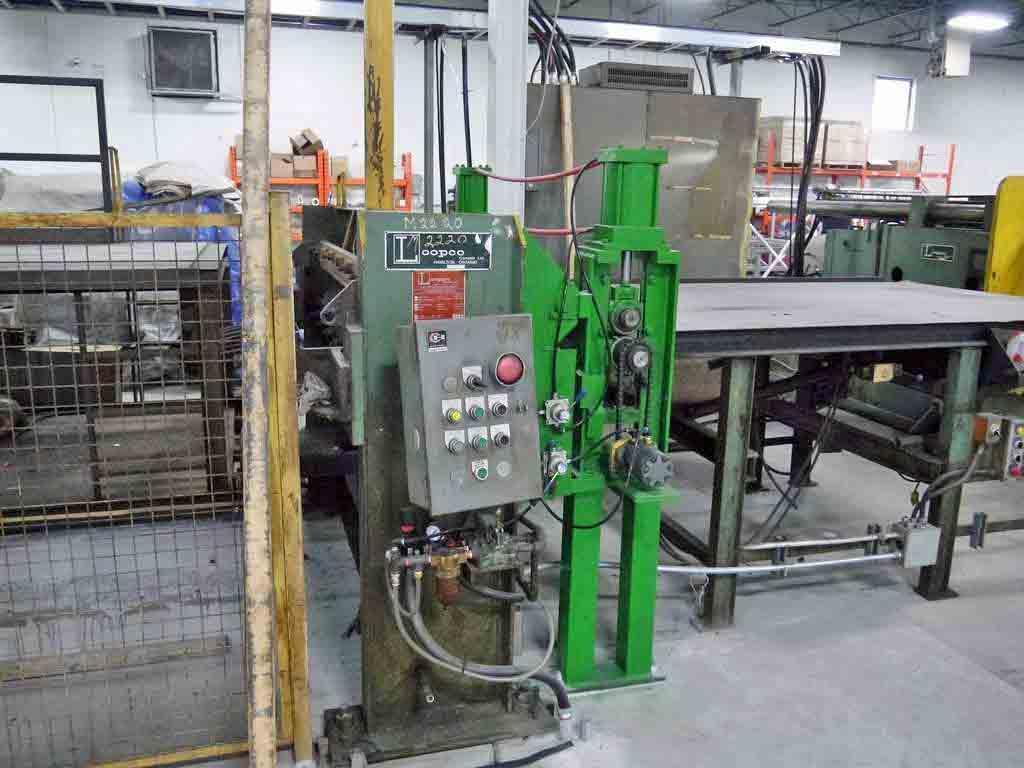

-Loopco Drag Board Tension Stand:
  Air Bag Tension Type
  Exit Driven Pinch Rolls

-Cross Over Table to Recoiler:

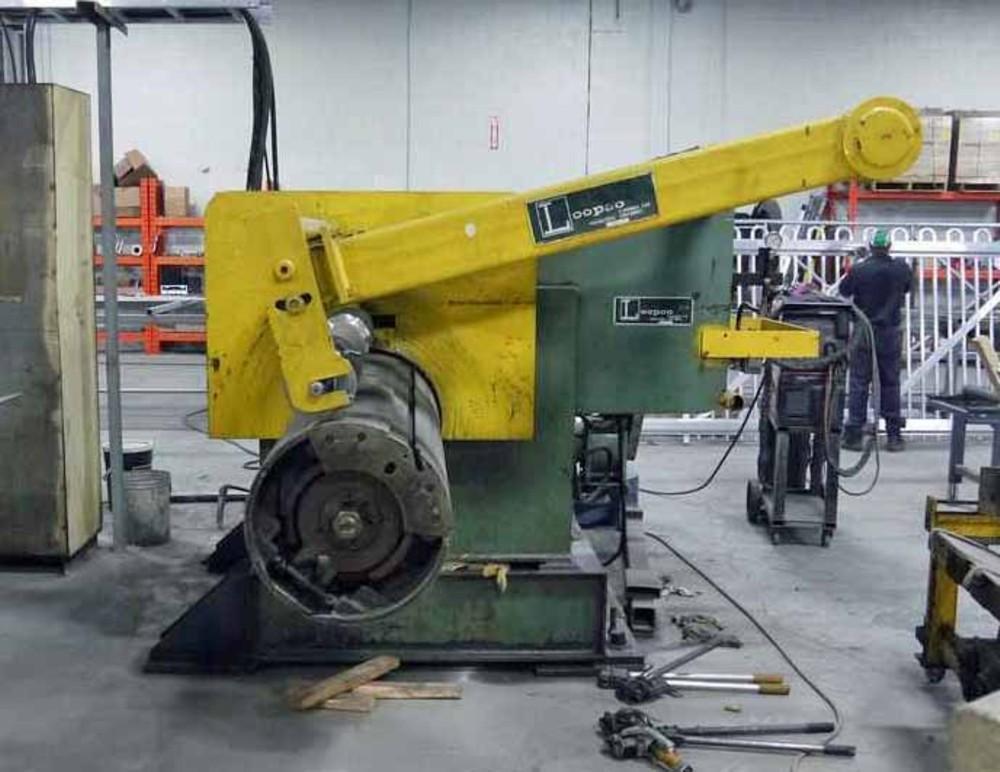

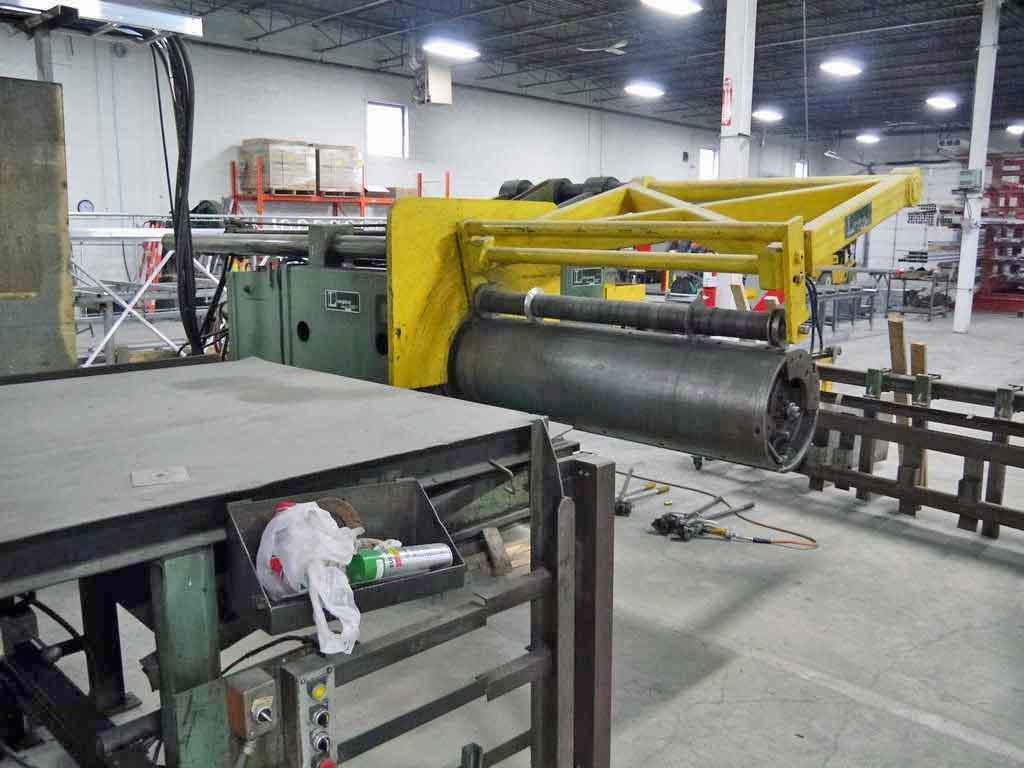

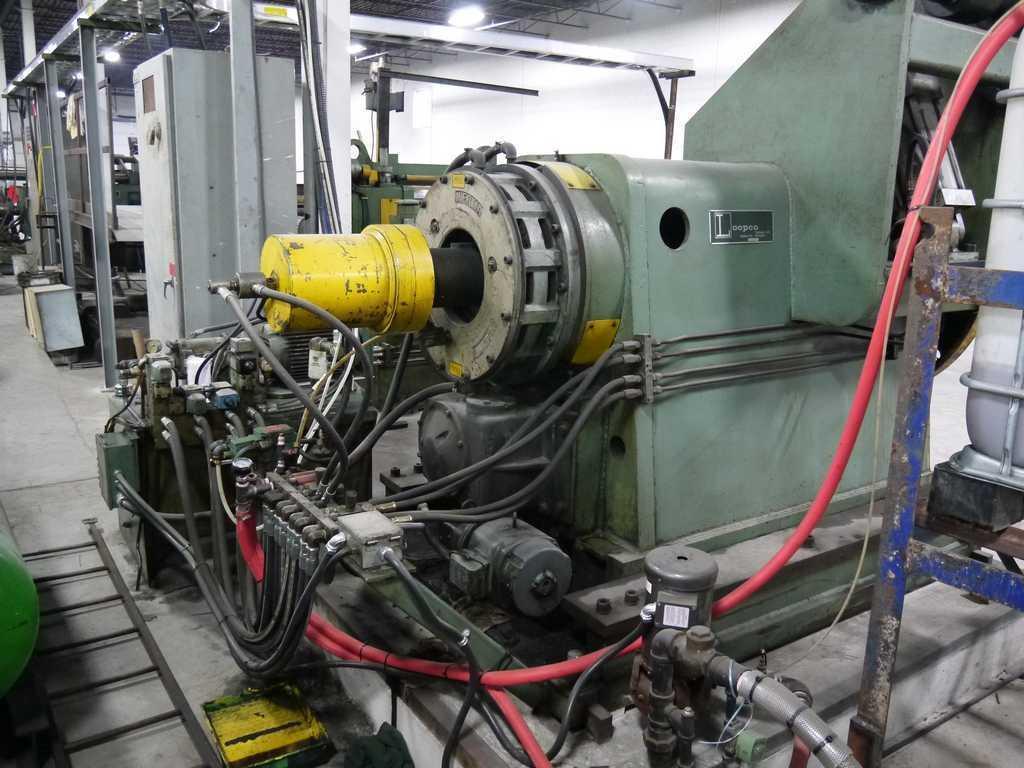

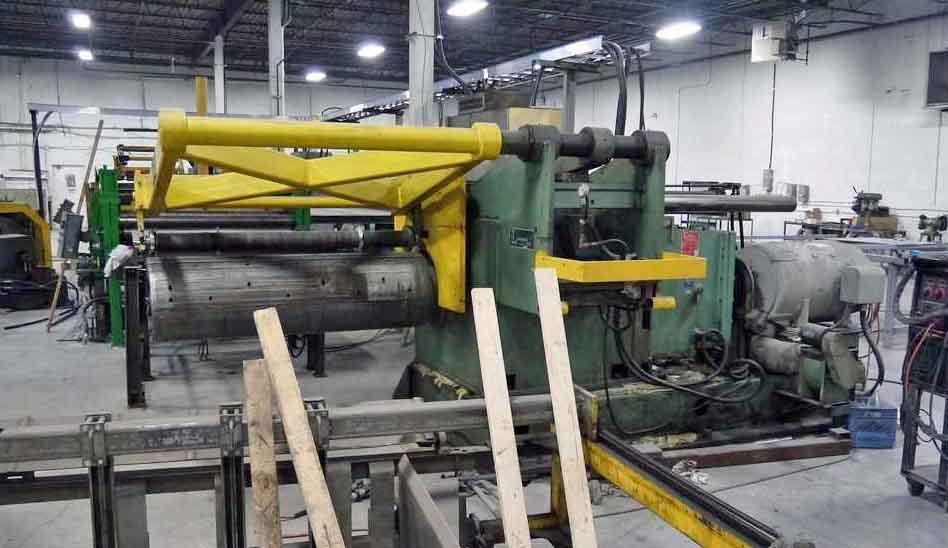

-Loopco Recoiler:
  20" Dia. Drum
  Hydraulic Expand & Grip
  Overarm Separator
  2 Speed Reducer w/34.34:1 & 17.17:1 Ratios
  75 HP DC Motor, 650 - 2000 RPM, 500 V

-2 Arm Turnstile

-Slitter Tooling and Tooling Cart

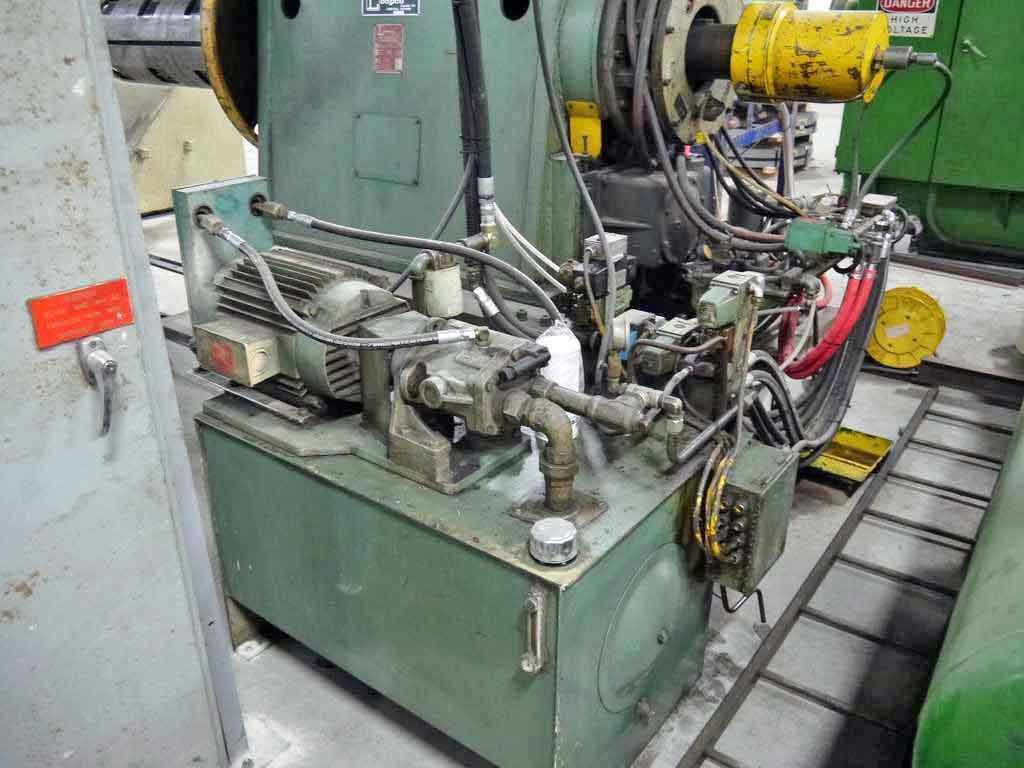

-Hydraulic Unit

-Controls

-Line is Installed
