Specifications
Equipped With
Materials: CRS, Alum.
Max. Coil Width: 60"
Thickness Range: 0.010" - 0.119"
Max. Coil Weight (Entry): 24,000#
Max. Coil Weight (Exit): 20,000#
Max. Shear: 45,000 PSI
Max. Yield: 45,000 PSI
Coil I.D. (Entry): 16" - 24"
Coil I.D. (Exit): 16" / 20" & 24"
Max. Coil O.D.: 60"
Line Direction: Left to Right
Mode of Operation: Driven
Line Speed: 250 / 500 FPM Approx.
Consisting of the following:
-Entry Turnstile:
Four (4) Arms x 25,000# per Arm
Powered Rotation
Slotted for C-Hooks
-Entry Coil Car:
Mast Type
Floor Mounted
Powered Lift and Traverse
Self-Contained Hydraulics
Machine Mounted Controls

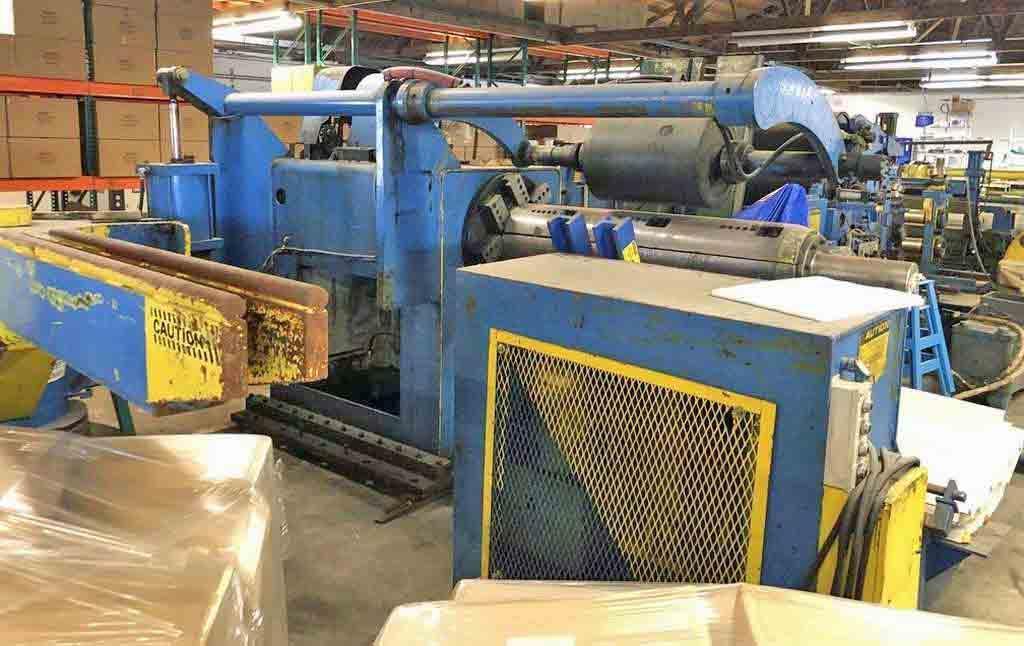

-Uncoiler:
Single Mandrel Type
Hydraulic Expansion
Holddown with Powered Snubber Roll
Wichita Water Cooled Brake
AC Feedup Drive
Slide Base
Paper Winder
-Outboard Support - A & B:
Powered Extension / Retraction
-Entry Unit:
Extending Blade Peeler
Manual Side Guides
Powered Entry Pinch Rolls (incomplete)
PVC Applicator
Idler Pinch Rolls for PVC Application
Rotary Crop Shear

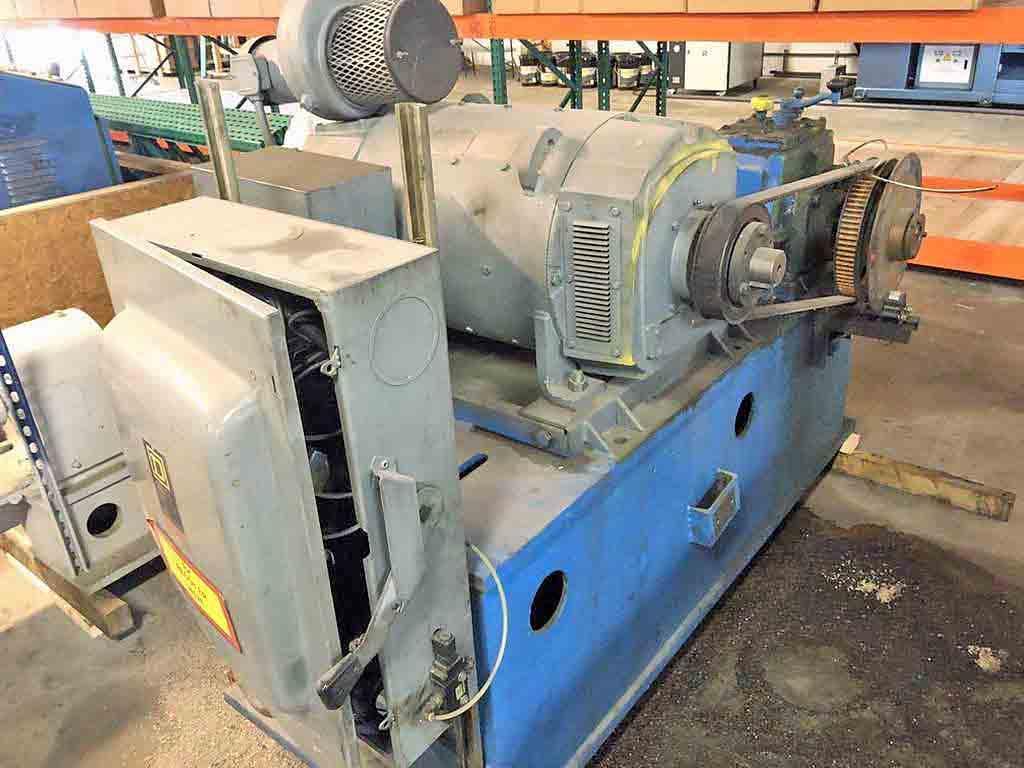

-Stationary Slitter Base:
20 HP AC Leeson Feedup Motor, 1750 RPM
Renold Gear Reducer, 41.8/1 ratio
75 HP Baldor DC Motor, 1760 RPM, (New in 2001)
Powered Head Lock
-Two (2) Slitter Heads:
Injector Type
Powered Traverse
Powered Top Arbor Adjust
Powered Outboard Retraction
"Over the Arbor" design for slitting widths between 48 - 60"
Head #1 - 5" Diameter Arbors
Head #2 - 7" Diameter Arbors
-Pit Section:
Inspection Table
Powered Cross Over Table

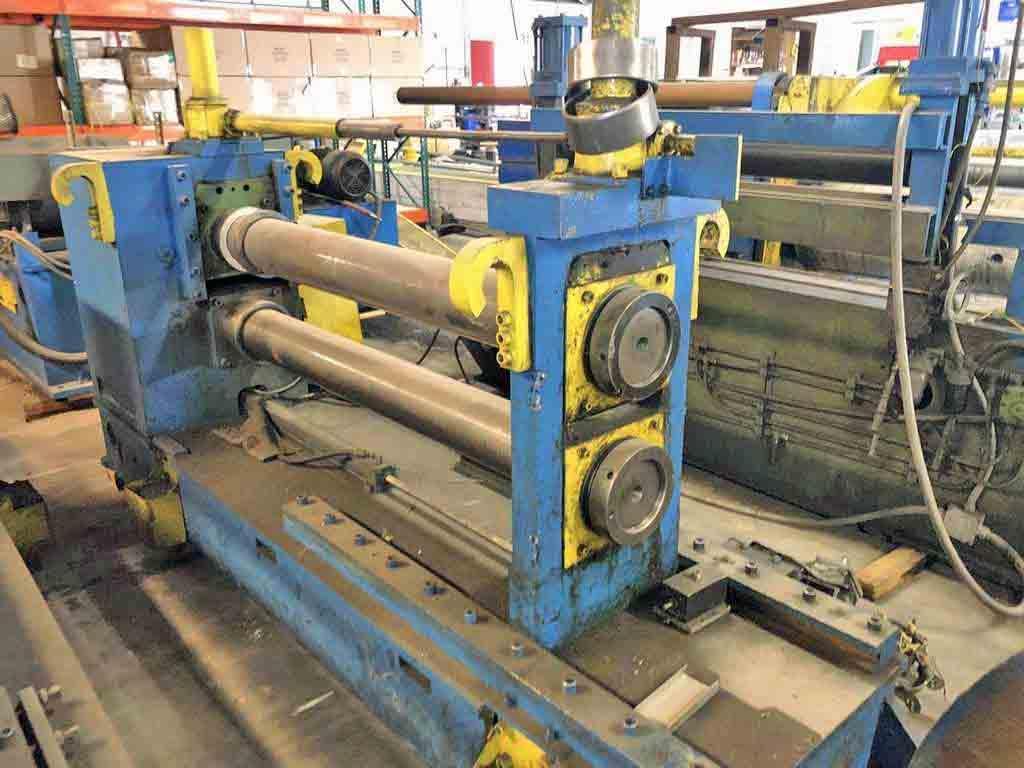

-Tension Stand: Combination Drag and Roll Type
Strip Separator Arm
"Drag" Type with two (2) Cylinders
Two (2) 14" Diameter Tension Rolls
Two (2) Wichita Water Cooled Brakes

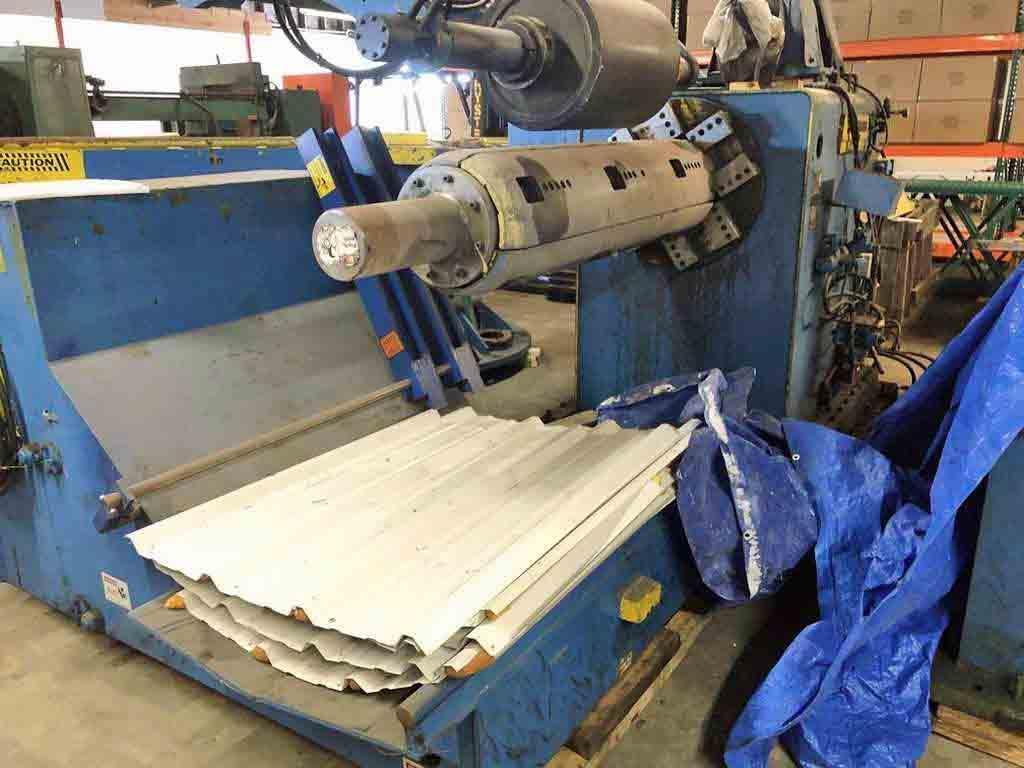

-Recoiler:
16" Dia. Drum
Hydraulic Pushoff
Hydraulic Expansion & Gripper
Overarm Separator Assembly
150 HP Baldor AC Motor, 1150/2000 RPM
Two (2) Speed Transmission, 2:1 and 1:1 ratios
Bolt-on Risers for 20" & 24"
-Exit Coil Car:
Mast Type
Floor Mounted
Powered Lift and Traverse
Self-Contained Hydraulics
Narrow Coil Retainers
Machine Mounted Controls
-Exit Turnstile:
Two (2) Arms x 20,000# Per Arm
Powered Rotation
Slotted for C-Hook
Powered Lift / Retract
-Two (2) Scrap Winders:
Hydraulically Powered
Manual Scrap Dump
Level Wind
-Electrical Controls:
Main Operators Control Console
Auxiliary Operators Control Console
75 HP DC Drive for Slitter Head (New in 2003)
150 HP DC Drive for Recoiler (New in 2001)
-Slitter Tooling:
Approx. Knife Count
80 - 0.250" x 5" ID
50 - 0.500" x 5" ID
59 - 0.250" x 7" ID (beveled)
47 - 0.250" x 7" ID (beveled)
58 - 0.250" x 7" ID
Rubbers
Spacers
Shims
Separator Tooling
-Hydraulics System
-Water Cooler
-Removed and in Storage
