60" x 6.50" x 40,000# Stamco Slitting Line STOCK#3214

Brand
STAMCO

Model

Stock #
3214

Condition
Good

Year

Location
Toledo, Ohio
United States

Specifications

Max Width of Workpiece 60 inches
Max Thickness of Workpiece (in.) 6.50 inches
Weight 40000 ounces

Equipped With

Capacity: 0.008" - 0.080" Alum. & Alloy
-30" to 103" O.D. Entry (80" O.D. Exit)
-500 and 1000 FPM
-40,000 lb. Entry
-Line Direction:  Right to Left

Consisting of the following:

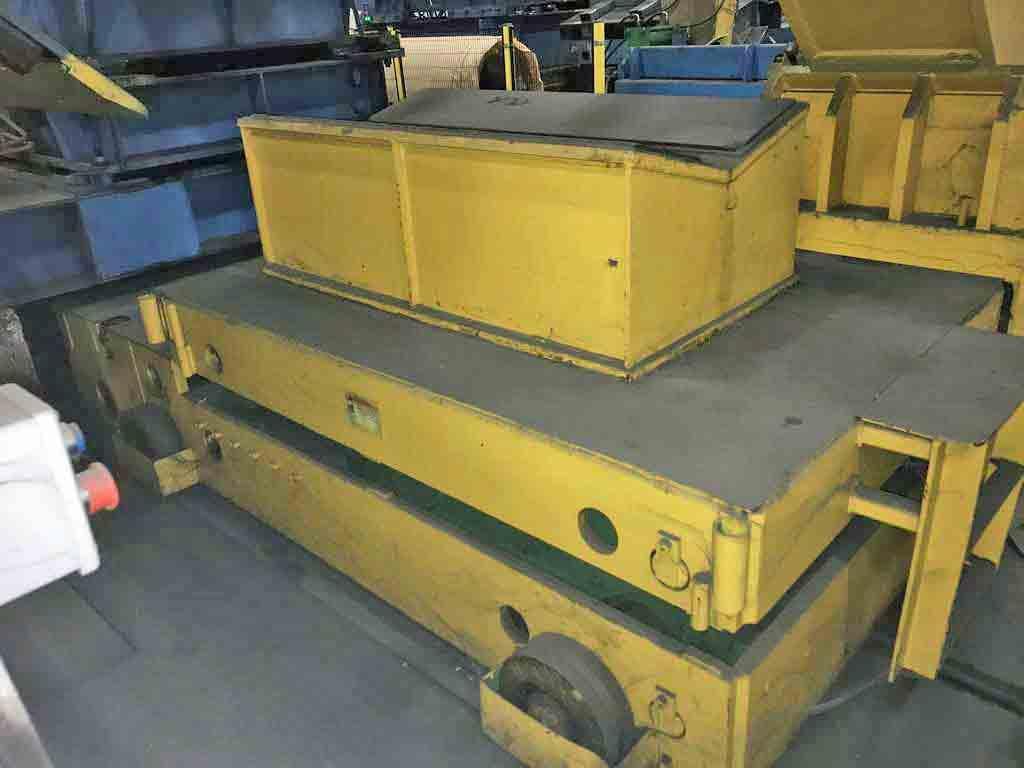

-Southworth Coil Car:
  40,000 lb. Capacity
  Self-Contained

-Uncoiler:
  Hydraulic Expansion:  16" - 20"
  Overarm Holddown
  Slide Base
  100 HP DC Motor, 500 - 2000 RPM
  2 Speed Reducer
  Outboard Support Arm

-North American Edge Control:
  36" Centering Guide

-Entry Peeler Table:
  Hydraulic Vertical Lift and Horizontal Extend

-Driven Pinch Roll:

-Hydraulic Downcut Crop Shear:

-Driven Slitter Head: Horizontal Configuration
  6.5" Arbor Diameter
  74" Face Arbors
  30 HP DC Motor Drive 850/2250 RPM
  Entry Side Guides - Roller Type
  20" Dia. Deflector Roll with Nip Roll
  Slit Metal Guide
  20" Dia. Exit Deflector Roll / R & L
  Exit Scrap Guide

-Scrap Chute:
  Side Guides & Roller Deflector

-Scrap Winder Baller:
  28" Max. Scrap Ball OD
  Hydraulic Ball Eject Cylinder
  16" Dia. Weighted Scrap Masher
  25 HP AC Drive Motor
  2 Speed Reducer - Baller Speed 100 & 500 FPM

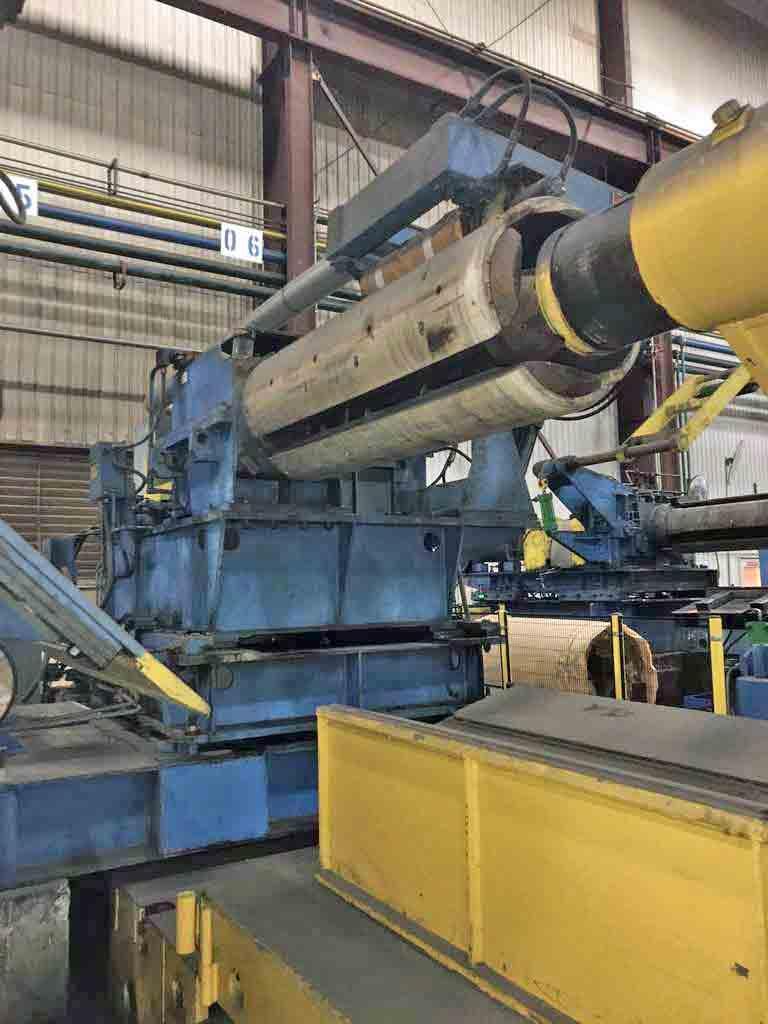

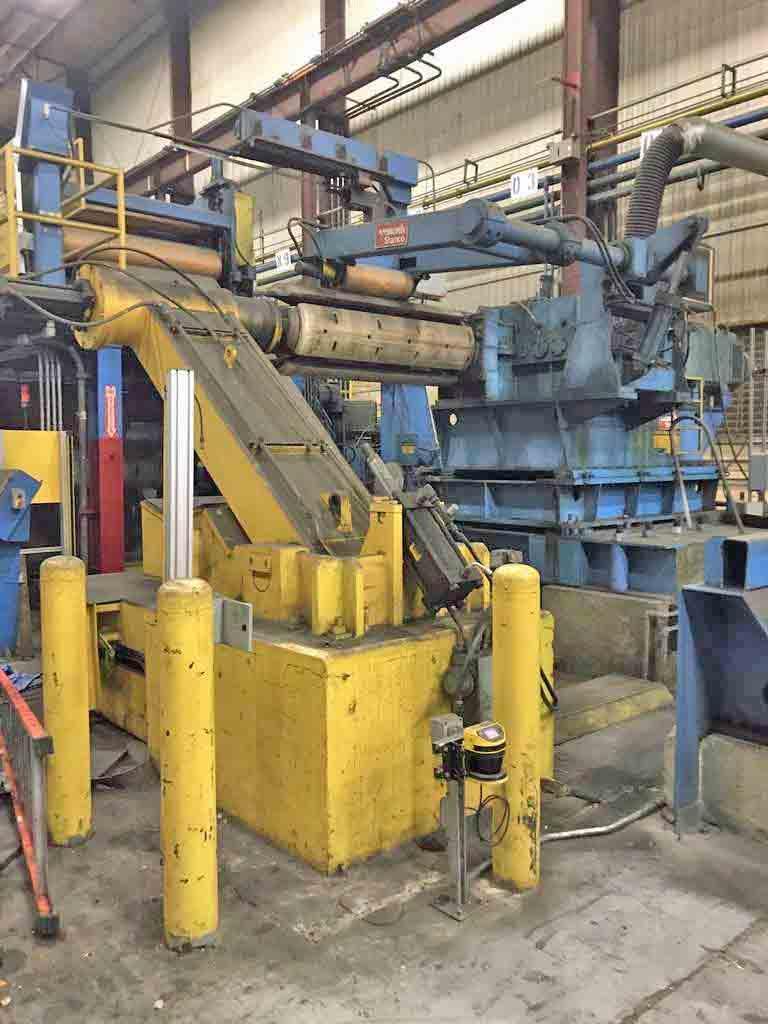

-Dual Recoilers:
  One Right Hand and One Left Hand
  25,000 lb. Capacity Each
  16" ID with 20" Riser Plates
  80" Coil OD Max.
  Hydraulic Pushoff
  Hydraulic Grip and Expand
  57" Floor to Mandrel C-Line
  2 Speed Gearbox 10.4 and 20.3:1 Ratio

-Free Standing Overarm Separator

-Southworth Coil Car:  (2)
  20,000 lb. 24" Lift Height
  Self-Contained

-Main Hydraulic Power Unit:
  Dual 20 HP AC Motors
  Dual Vickers PVB45A Pumps
  600 Gal Reservoir

-Asko Tooling

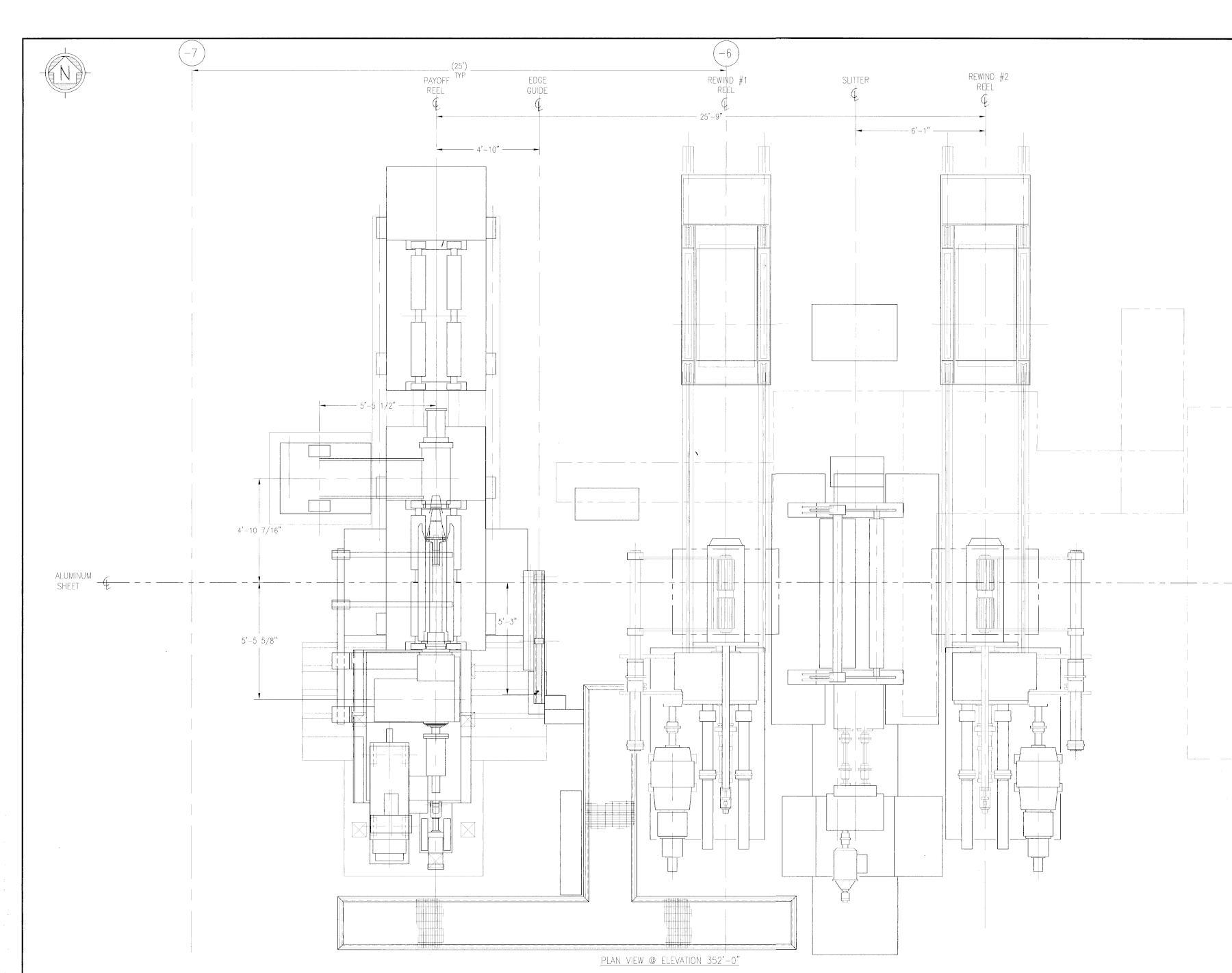

-Floor Space Requirement:  38' Long x 29' Wide x 17' High

-Removed from Service








PRICE....................: USD425,000
