Specifications
Equipped With
-Material: Cold Rolled and Hot Rolled Steel
-Strip Width: 18" - 60"
-Line Speed: 200 - 500 FPM
-Thickness: 0.032" - 0.375"
-Line Direction: Right to Left
Consisting of the following:
-L Type Entry Coil Car:
40,000# Max. Coil Weight

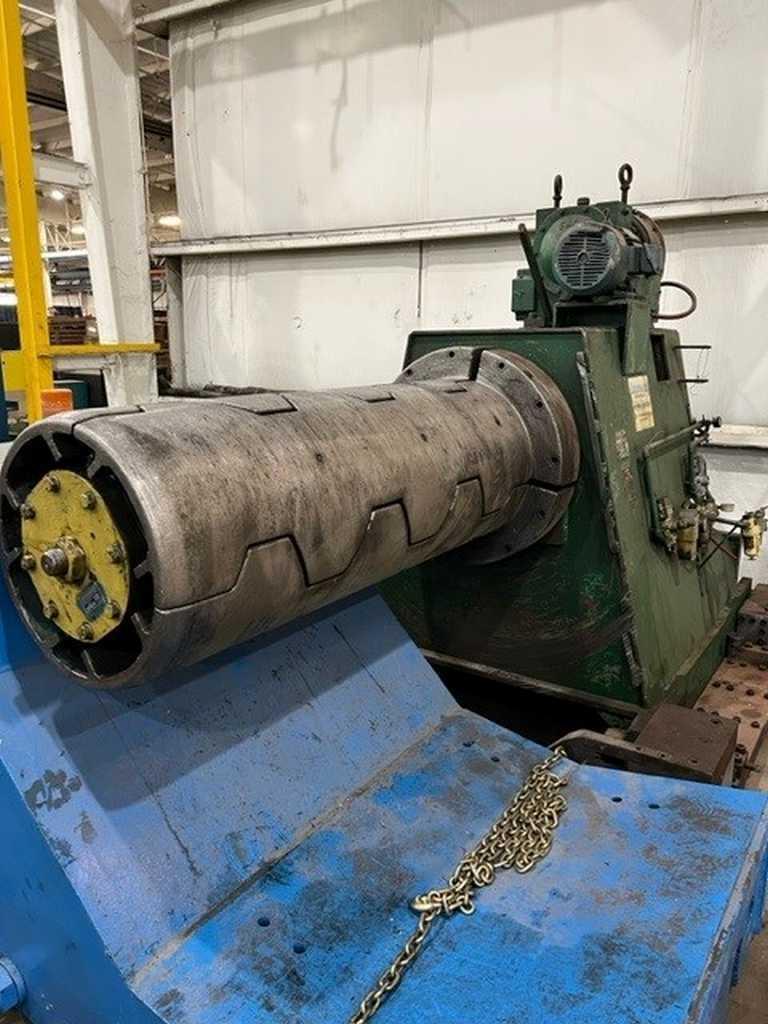

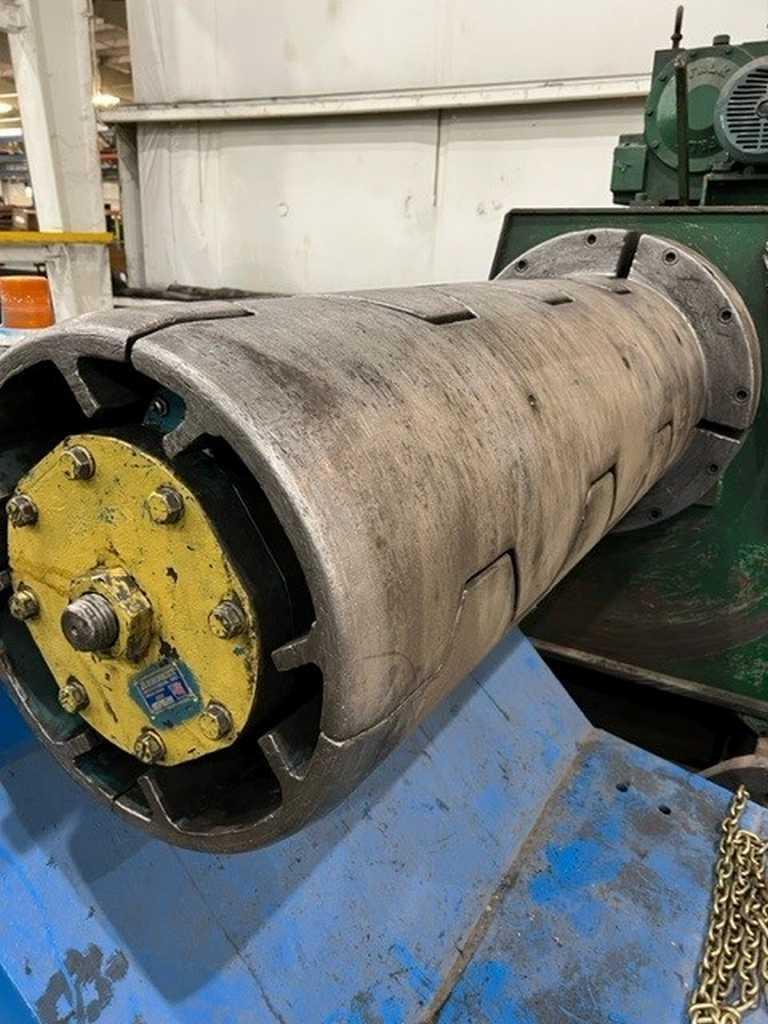

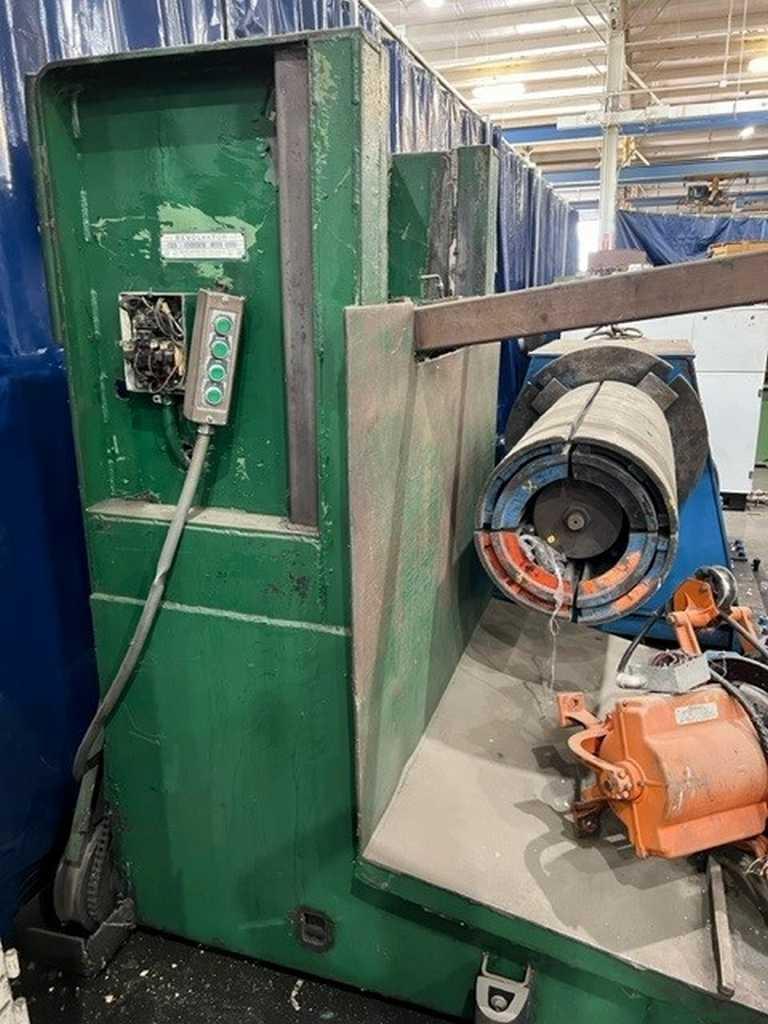

-Uncoiler:
Coil ID: 23" - 30.50"
Coil OD: 72" Maximum
Coil Weight: 50,000# Maximum
Sliding Base
Hydraulic Expansion
Wichita Brake
Peeler and Holddown Roll

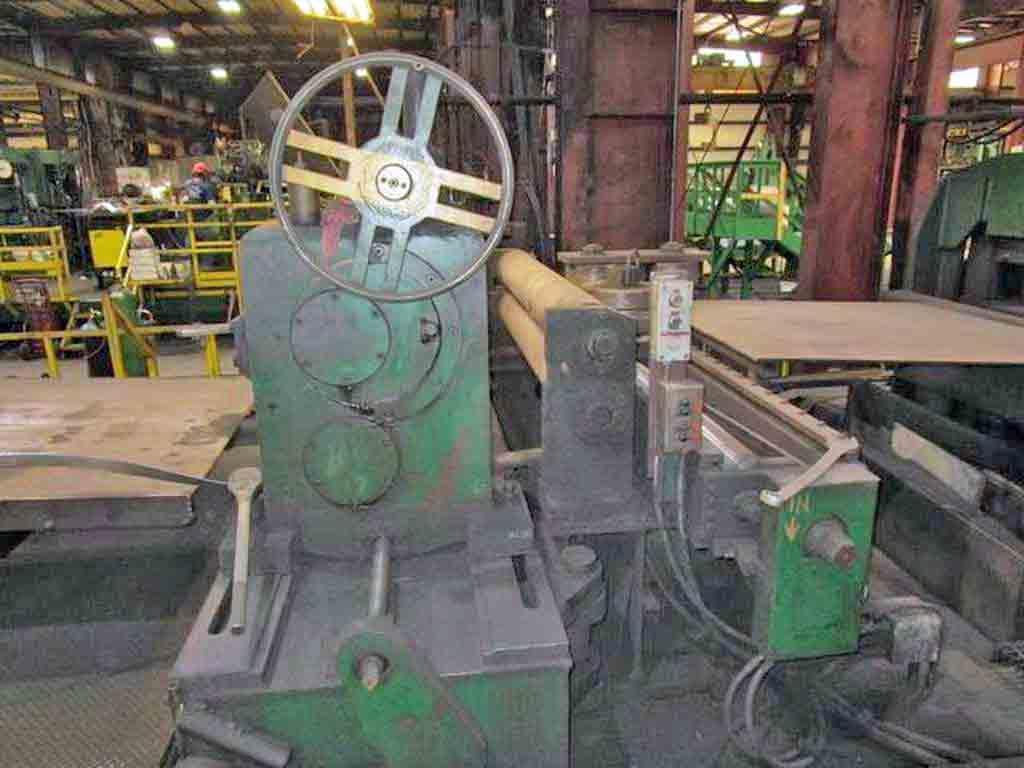

-5 Roll Coil Breaker:
-Entry Adjustable Edge Guides:
-Entry Crop Shear:

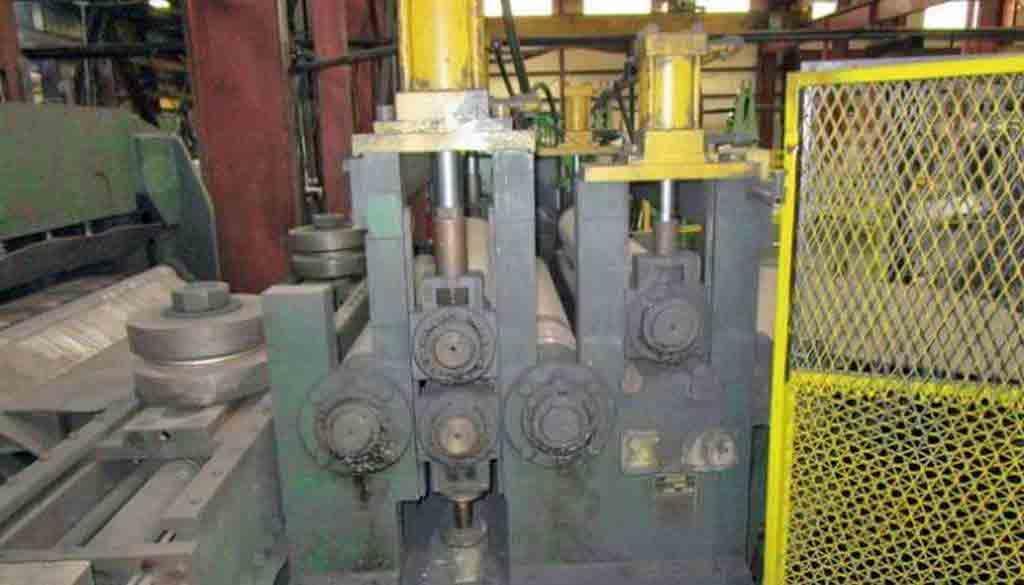

-Slitter Head:
10" Dia. Arbors
Single Eccentric Arbor Adjustment
Entry Passline Rolls
40 HP Motor Drive
-2 Scrap Winders:

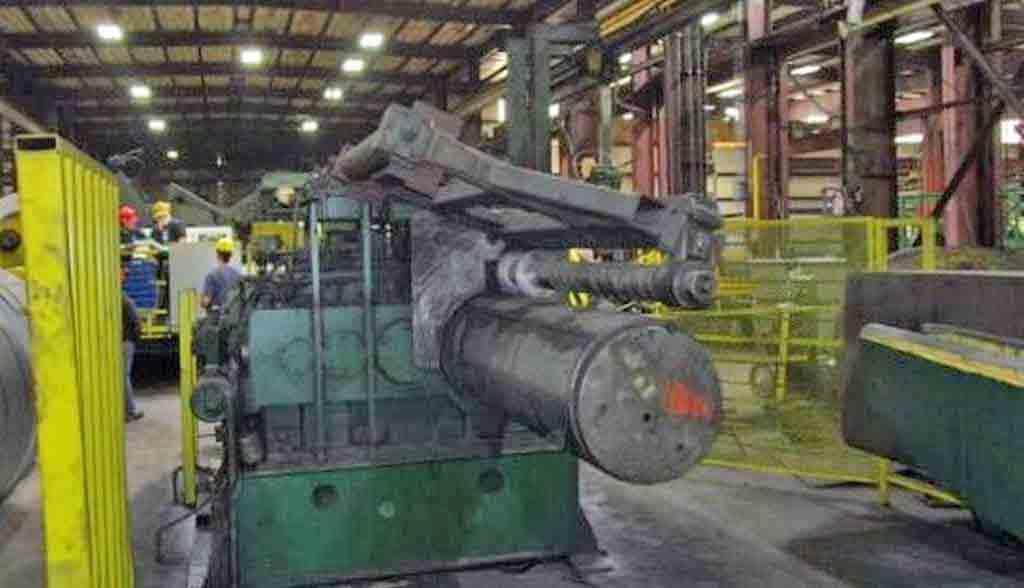

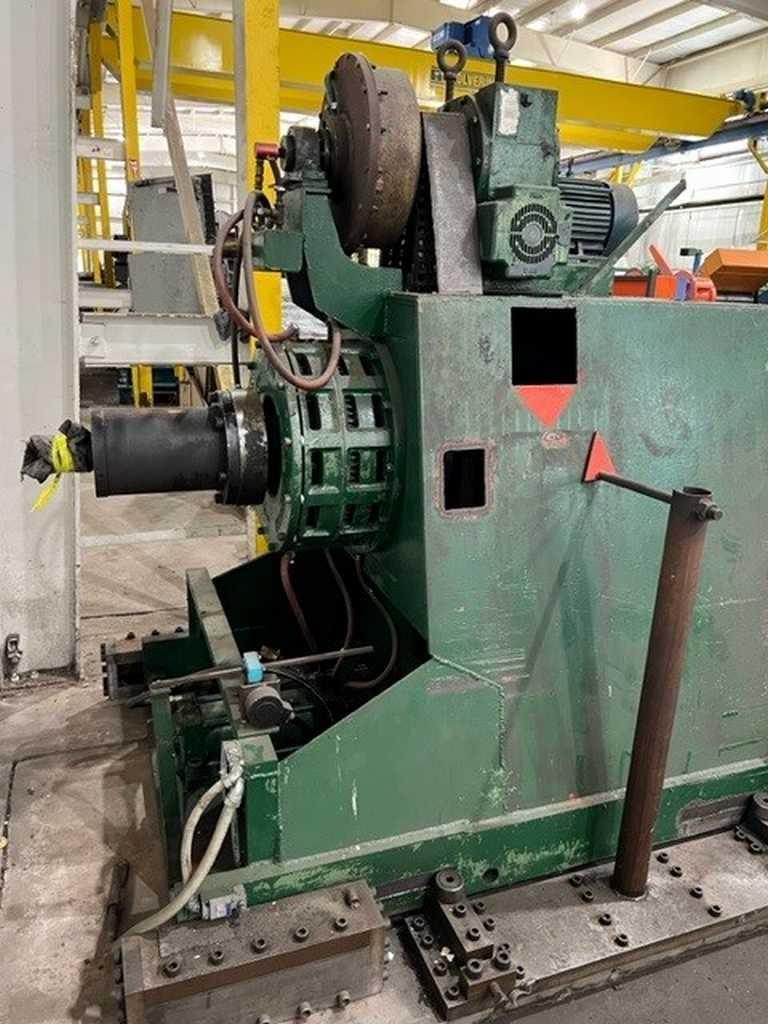

-Recoiler:
Hydraulic Pushoff
Overarm Separator
24" Dia. Drum
Coil OD: 72" Maximum
150 HP DC Motor
2 Speed Gearbox

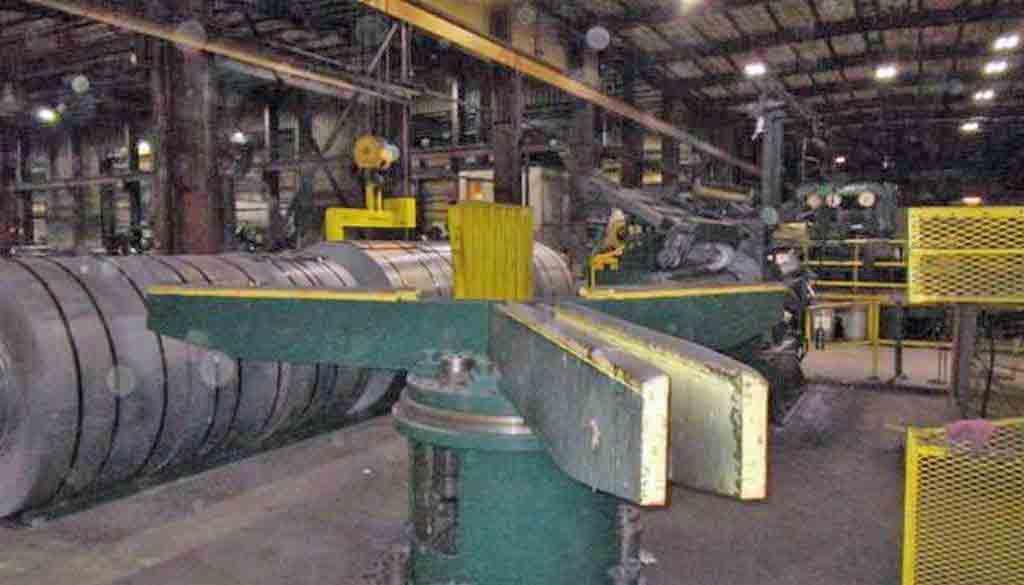

-3 Arm Exit Turnstile:
40,000# Capacity Per Arm
Powered Rotation
No Pushoff
-Complete Line with Knives, Rubbers and Spacers
-Controls, Hydraulics and Electrics
-Removed and in Storage
