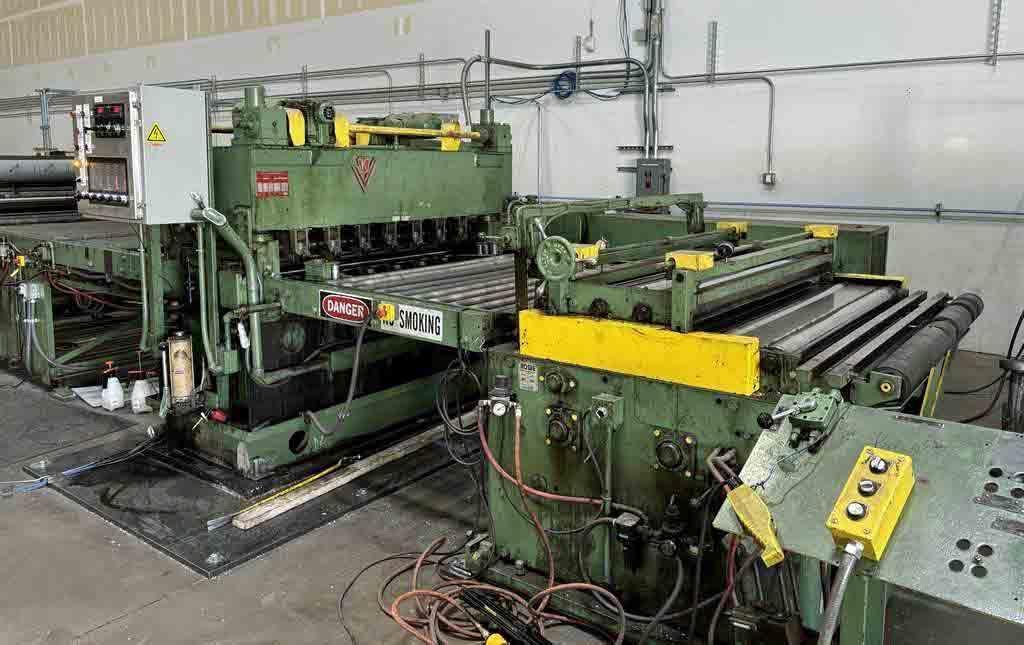

60" x 0.139" x 20,000# Rowe/Voss Cut To Length Line
Width Capacity: 60"
Thickness: 0.019" - 0.139"
Coil Weight: 20,000#
Line Speed: 160 FPM
Consisting of the following:

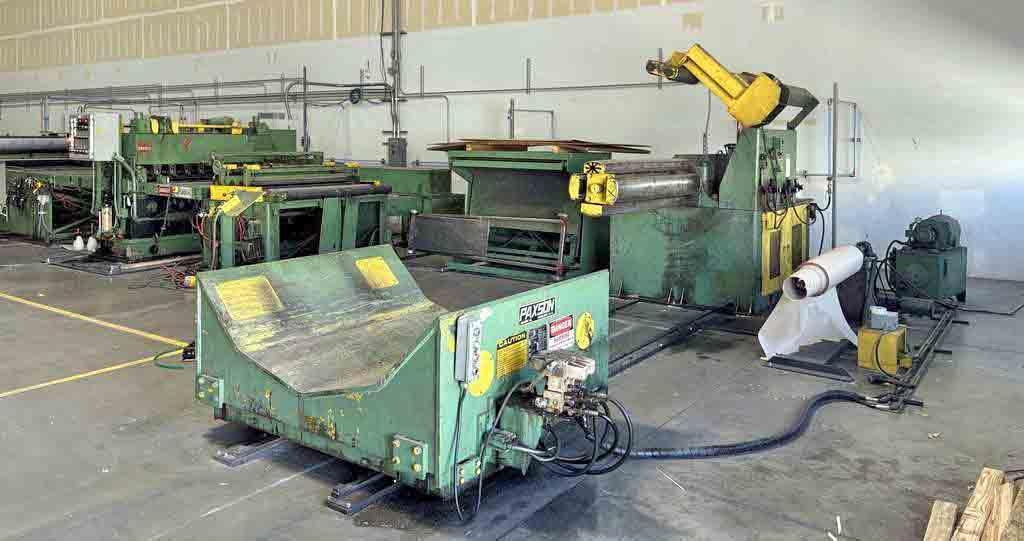

-Paxson Coil Car:
Above Floor Type
Self-Contained Hydraulics
Hand Pendant Control

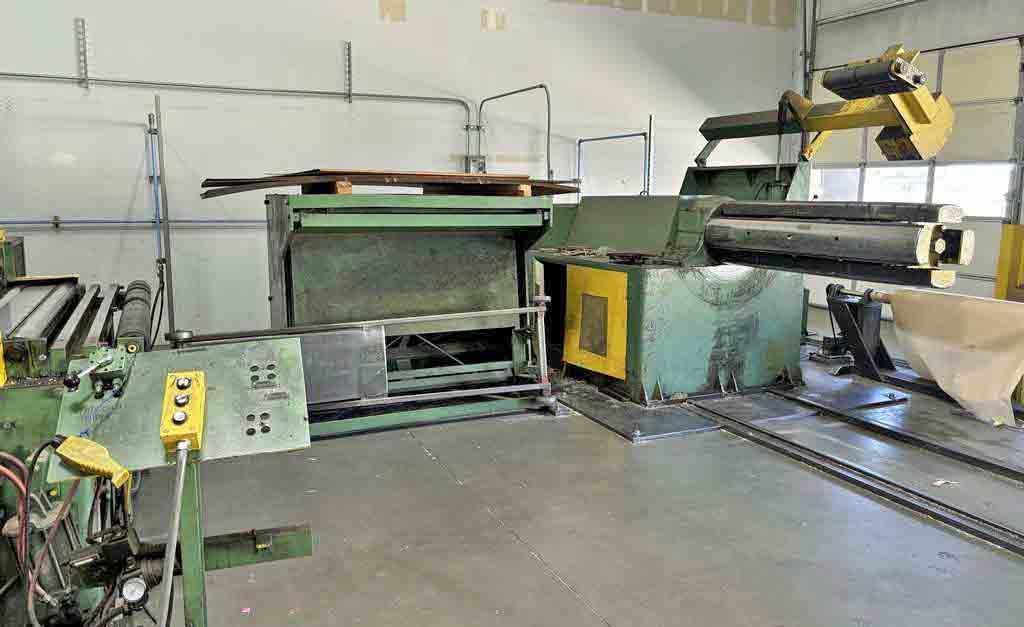

-Rowe Uncoiler:
Powered Expansion
Driven Mandrel
Overarm Holddown Roll
-Paper Winder:
-Rowe Peeler:
-Rowe 5 Roll Straightener:

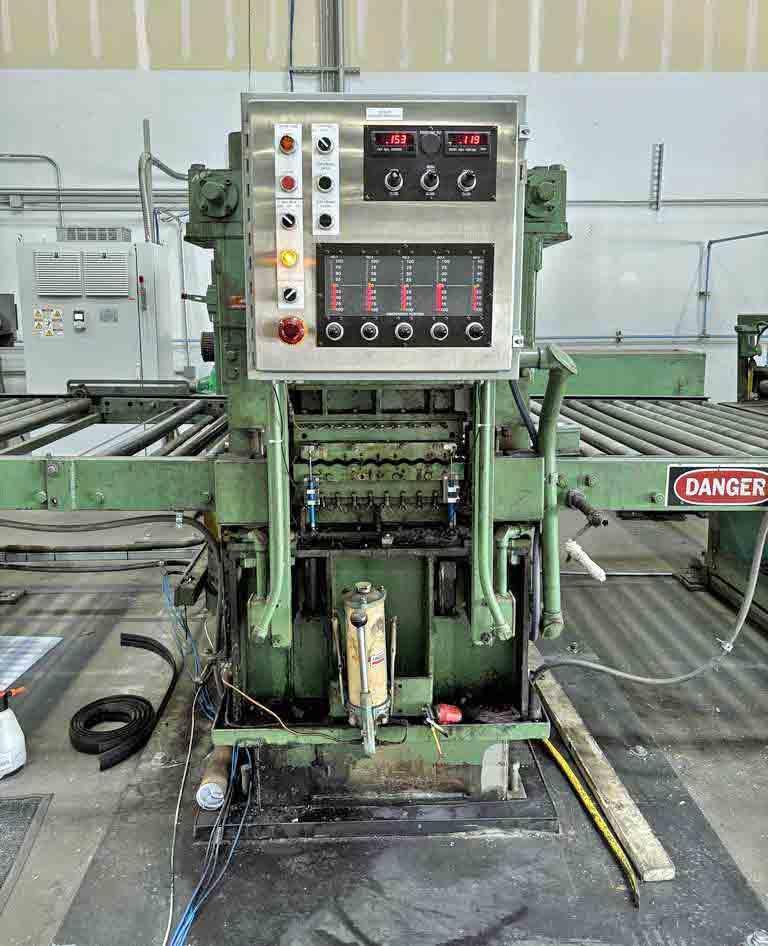

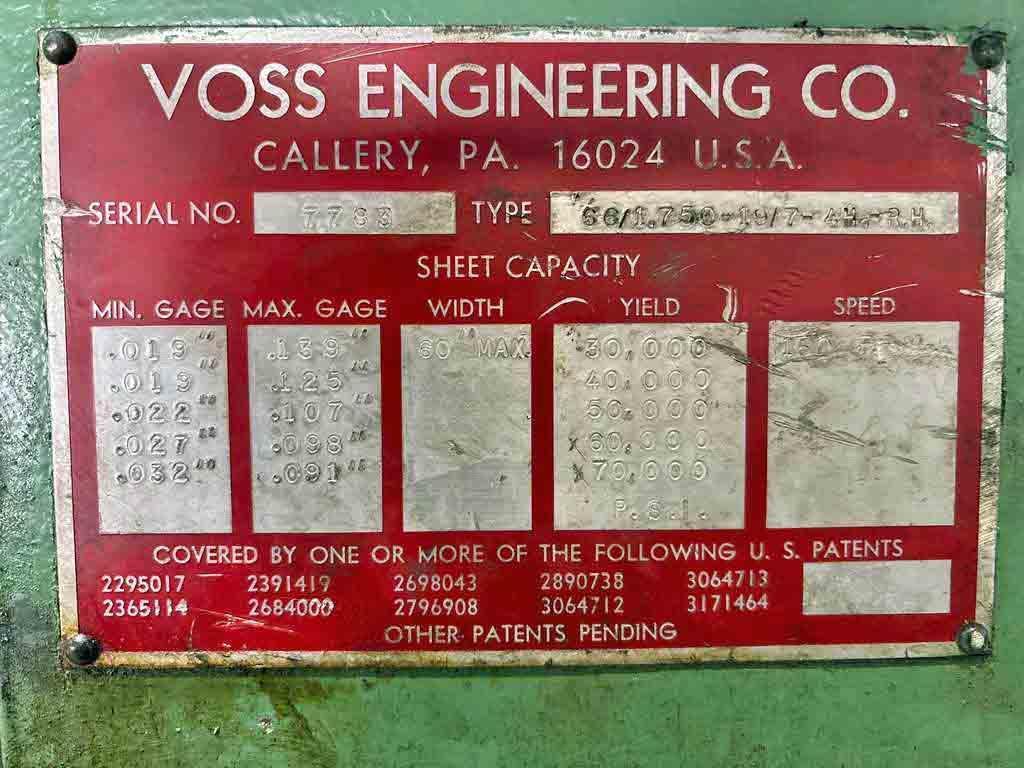

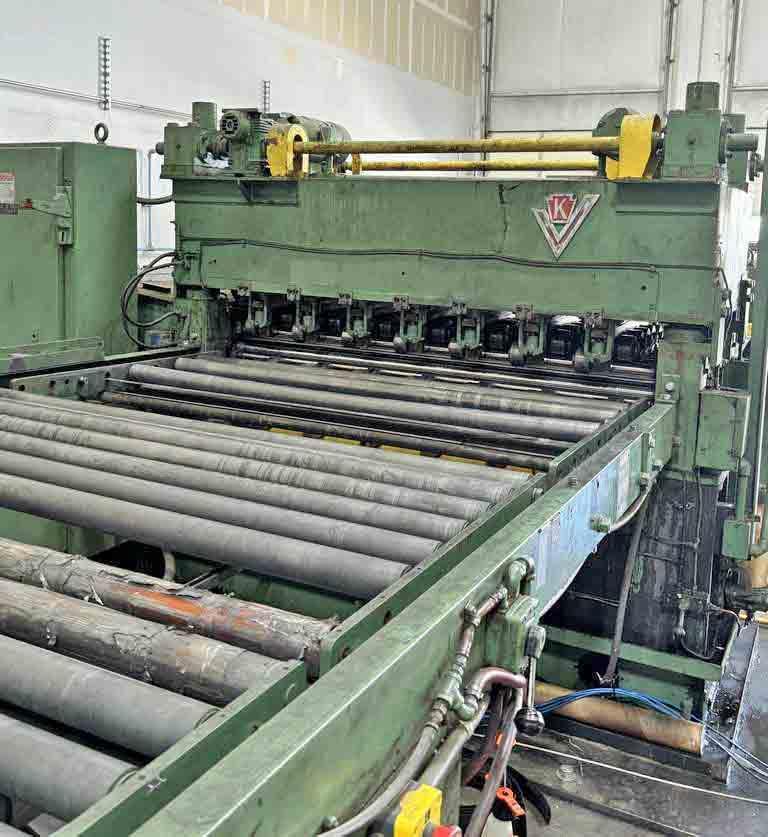

-Herr Voss Leveler:
Model 66/1.750-19/7-4HI-R.H.
19 Work Rolls, 9 over 8
66" Roll Face
1.750" Roll Diameter
7 Flights of Back-ups
5 Flights Motorized
DC Drive Motor
-Rowe Hump Table:
-Vinyl Applicator:

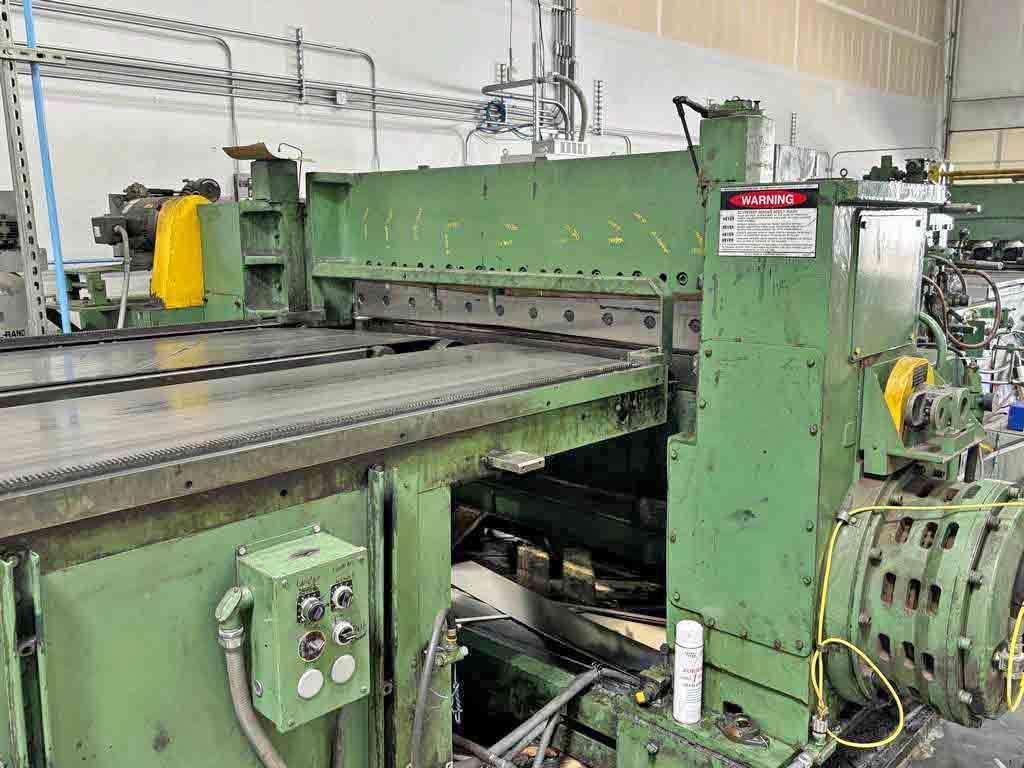

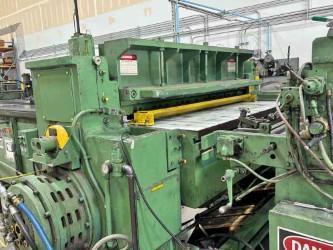

-Wysong High Speed Shear:
Bow-Tie Top Blade
Wichita Clutch and Brake
Drive Motor w/Blower

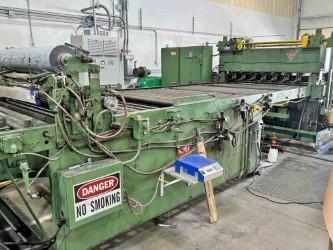

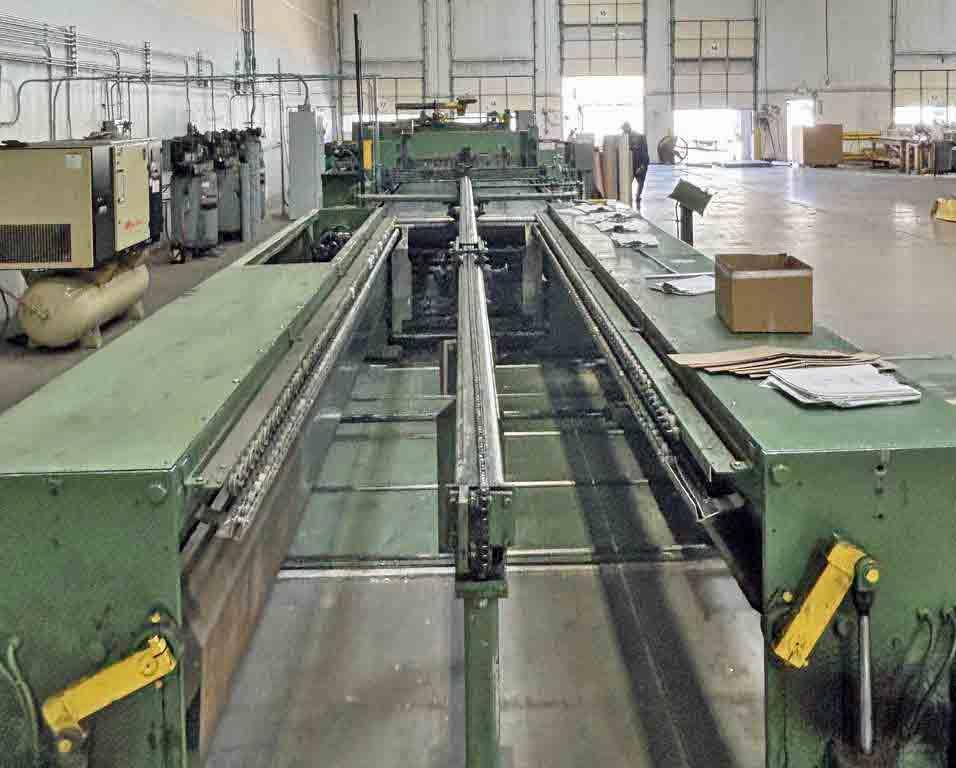

-Rowe Belt Runout Table & Gauge Head:
(2) Driven Belts

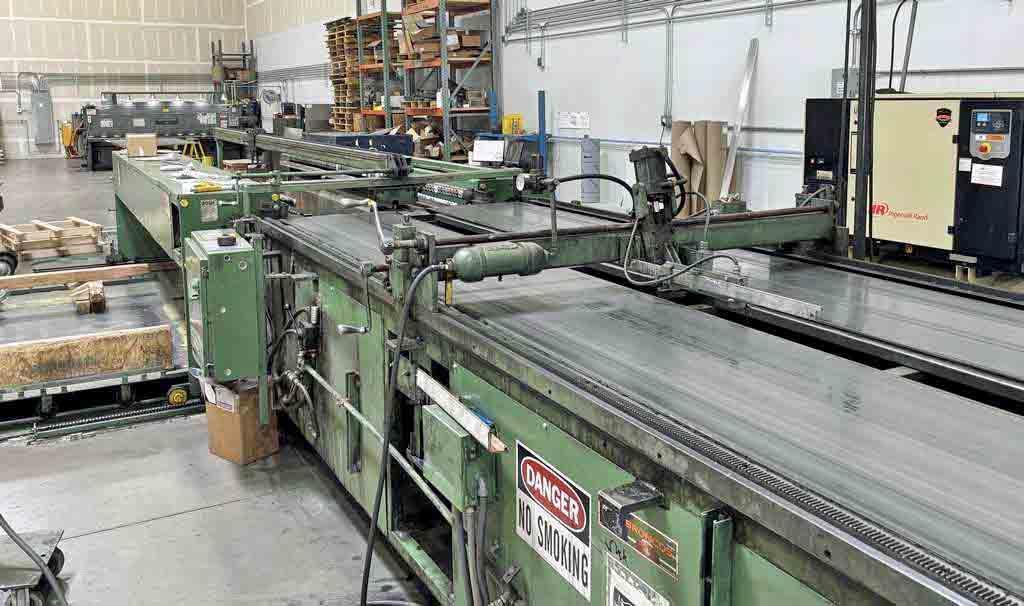

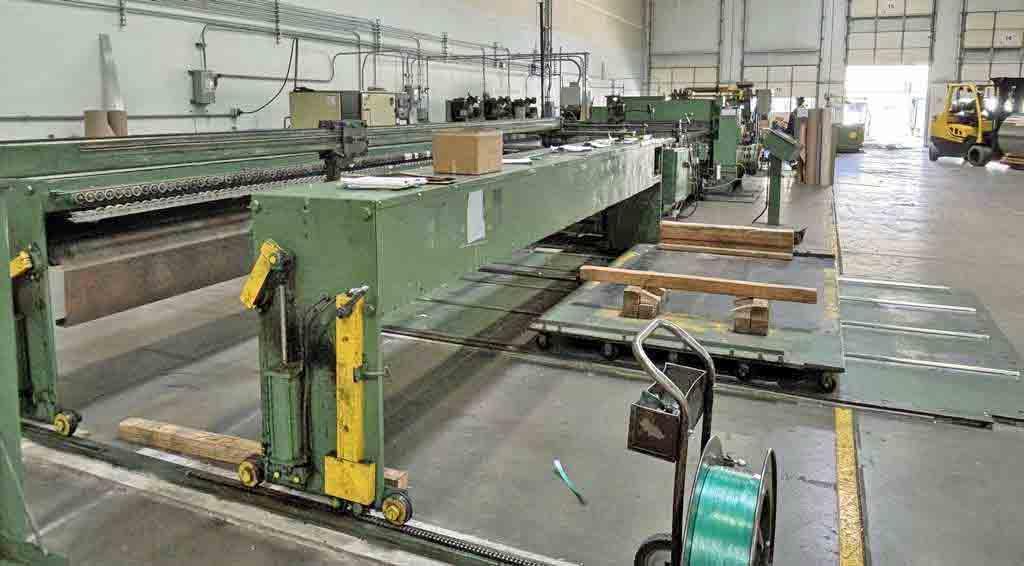

-Rowe Stacker:
4 Side Skate Wheel Drop Stacker
Powered Width Adjustment
Powered Length Adjustment
Side Discharge
20' Long
-Line is installed and running
