Capacity: 0.020" - 0.135" Mild Steel
Line Direction: Left to Right
Consisting of:

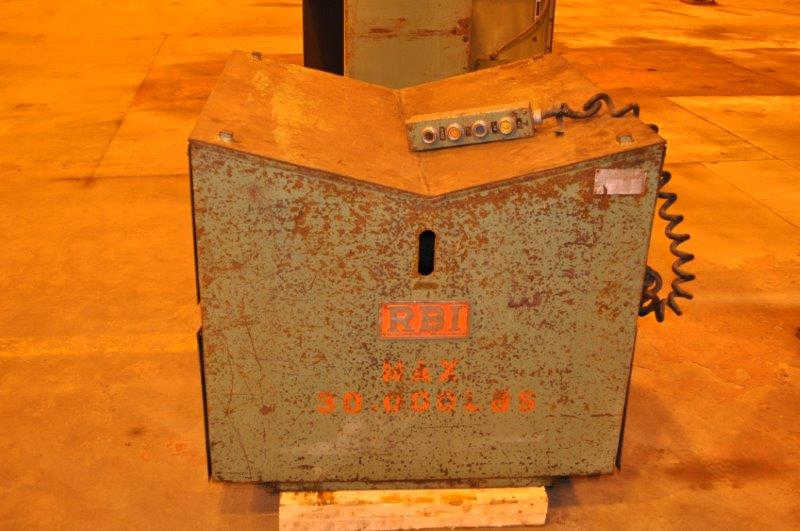

-Entry Coil Car: 23,000# Capacity Model CC 30 S/N: CCB85-M0055 36" Long "V" Cradle Overall Size: 42" L x 36" W x 36" High

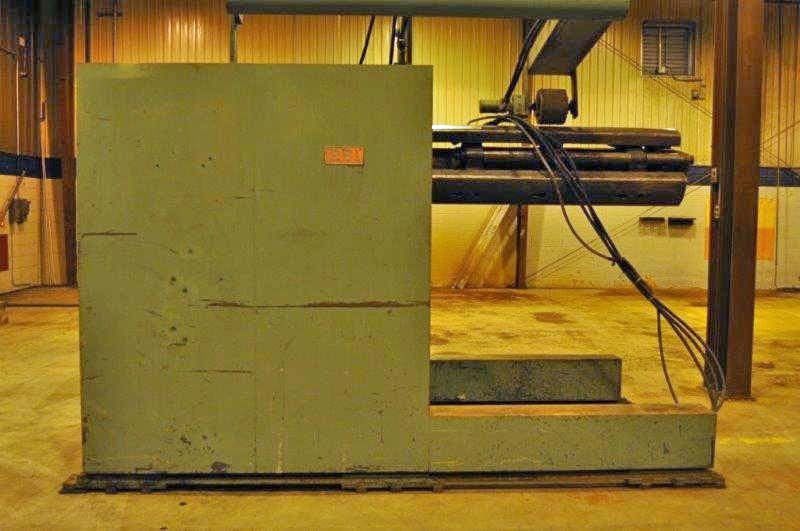

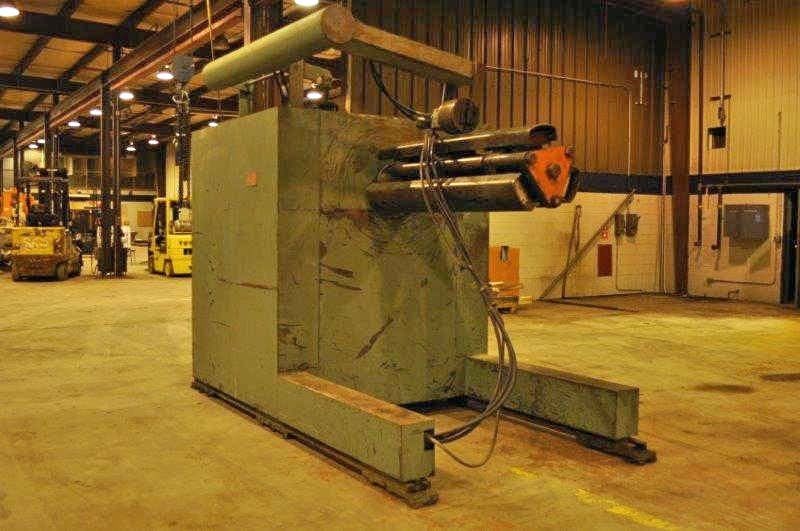

-Uncoiler: 23,000# Capacity Model RM60-24 S/N: SRB85-M0055 62" Face Mandrel 20" - 24" Coil I.D. Range Hydraulic Wedge Type Expansion Hyd. Threading Drive Air Cylinder Operated Disc Brake Powered Holddown Arm Overall Size: 146" L x 77" W x 105" High
?
-Peeler Table: Attached to Straightener

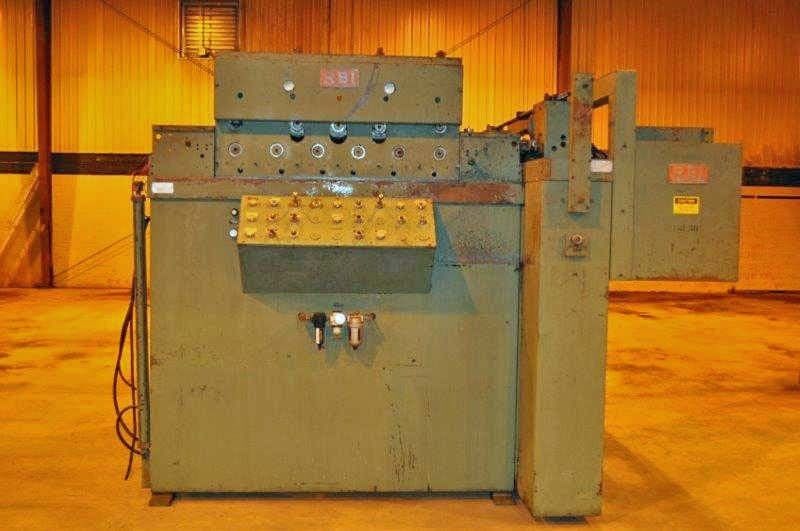

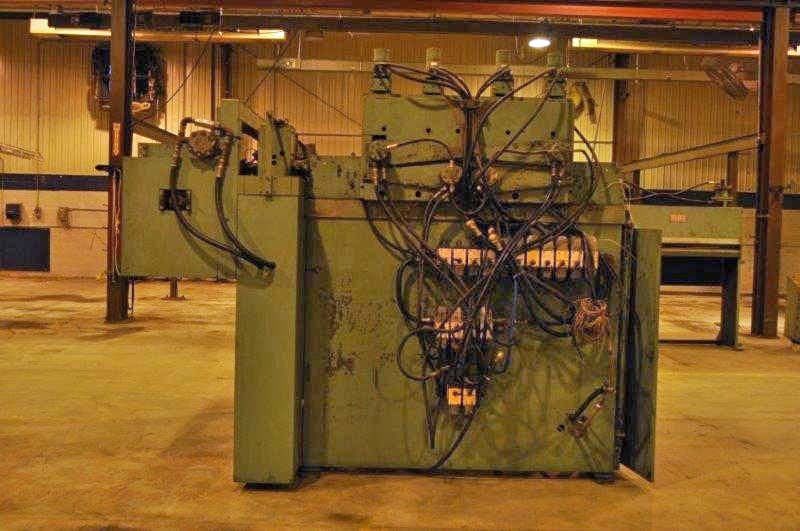

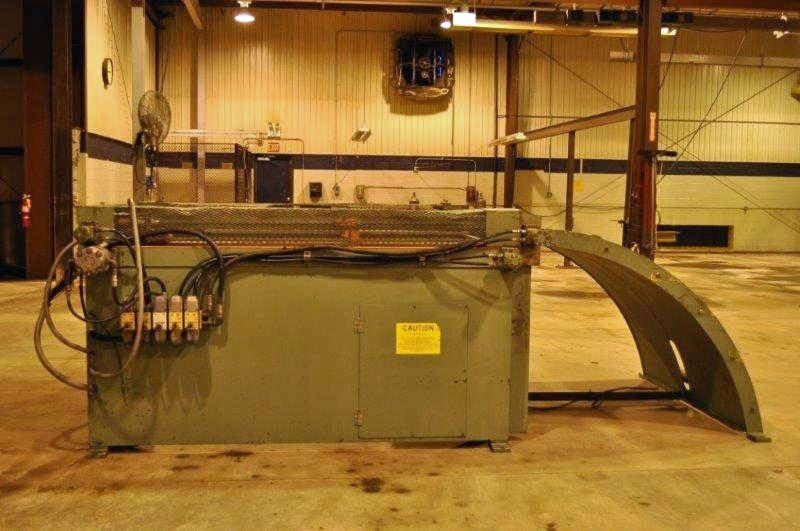

-Straightener / Edge Trimmer Unit: 60" x 0.135" Capacity Model SM560 S/N: SSB85-M0055 Entry Driven Pinch Rolls 7 Work Rolls, 3 over 4 Exit Driven Pinch Rolls Hydraulic Drive Double Stub Edge Trimmer Model: ET 10-60 Powered Width Adjustment Dual Scrap Choppers Common Drive with Straightener Overall Size: 109" L x 105" W x 90" High
?

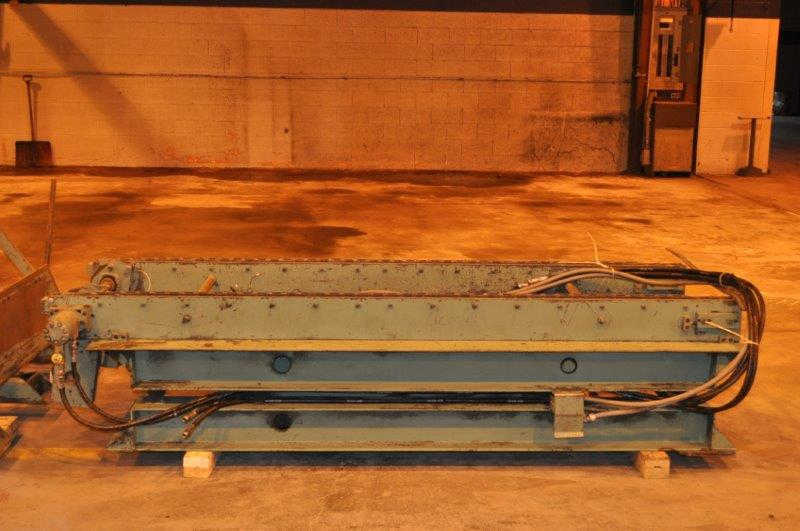

-Grip Feeder: 60" x 0.135" Capacity Model FMP 9HD-60-72 72" Stroke Length Max. Cylinder Type Deceleration Cam Follower Matrial Guides Hydraulic Gripper Overall Size: 152" L x 102" W x 52" High
?

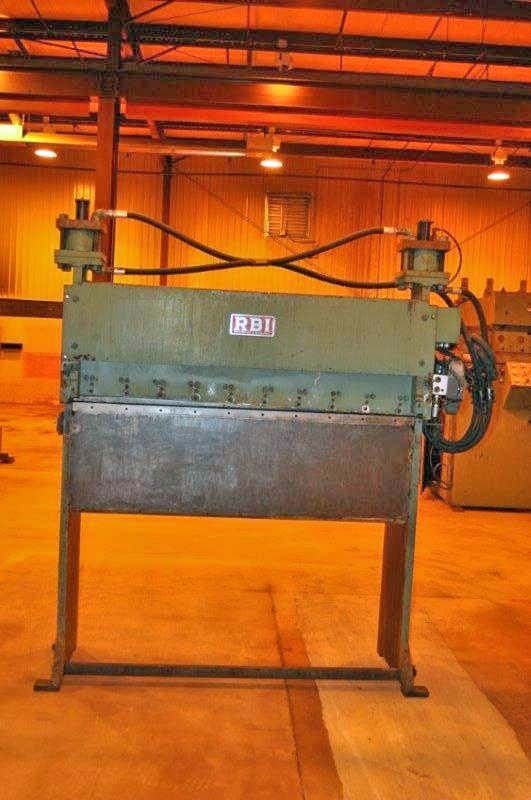

-Shear: 60" x 0.135" Capacity Model G18L-60 S/N: SHB85-M0055 Hydraulic Actuated Overall Size: 84" L x 27" W x 83" High
?

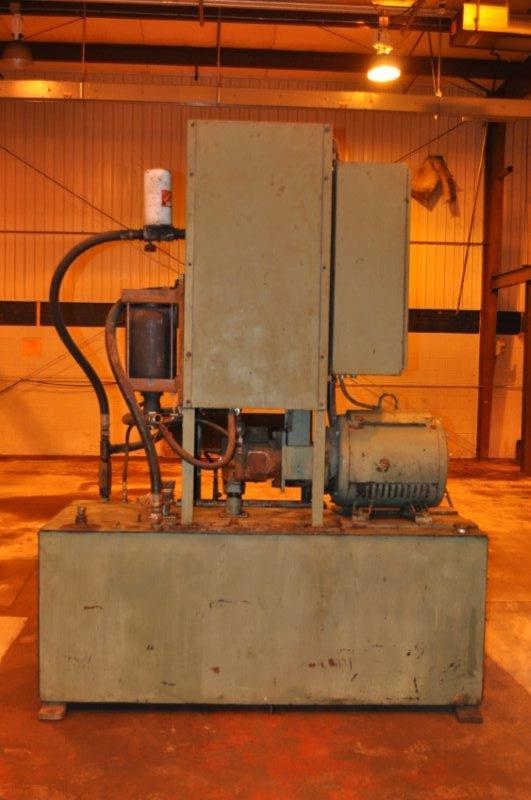

-Main Hydraulic Power Unit: 50 HP AC Motor 230/460 V Overall Size: 60" L x 52" W x 81" High
