REF #: 11563-C      SERIAL #:      YEAR:


Rowe Cut-to-Length Line with Herr Voss 6HI Leveler

Capacity: 60" x 20,000#
Material Thickness: 0.020" - 0.085" Mild Steel
                   (0.105" on Shear)
Line Direction: Left to Right

Consisting of:

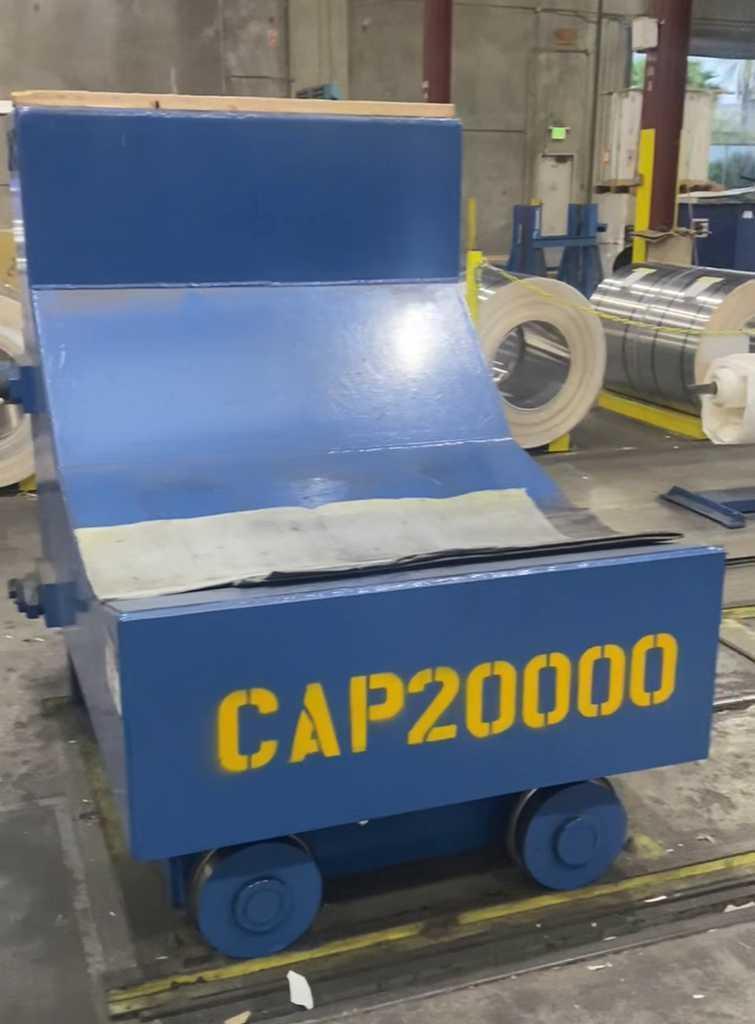

-Entry Coil Car: CoilTech
  Self-Contained Hydraulics

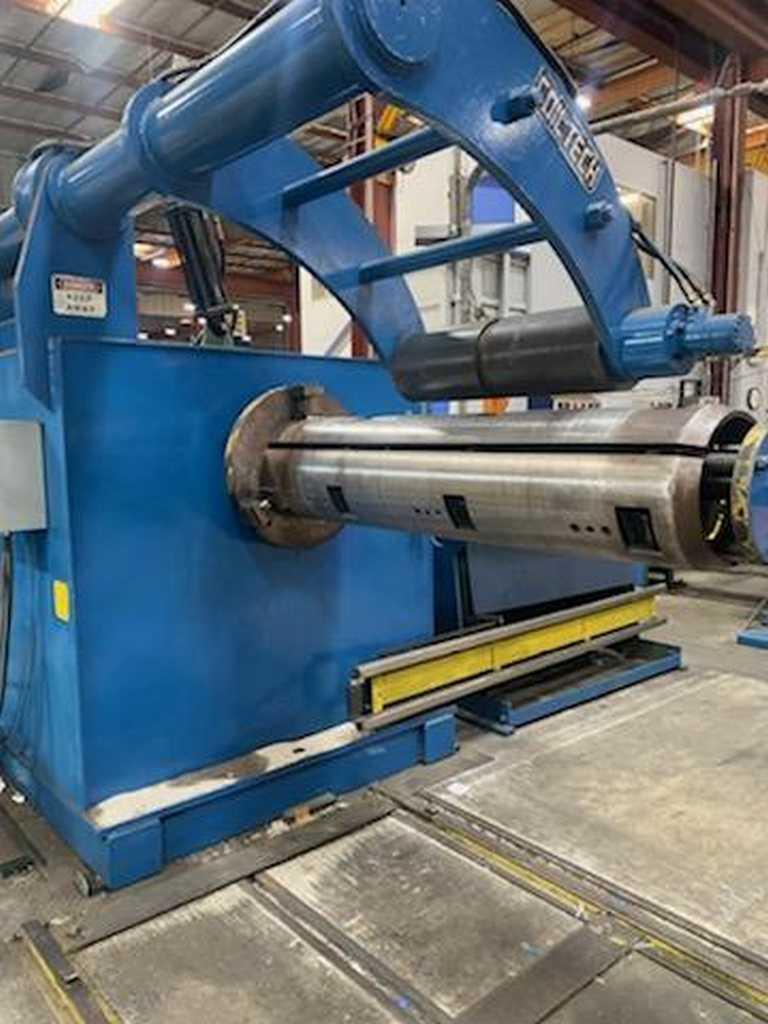

-Uncoiler: CoilTech
  Hydraulic Expansion
  (4) Segment Mandrel
  Threading Drive
  Brake
  Powered Holddown Roll

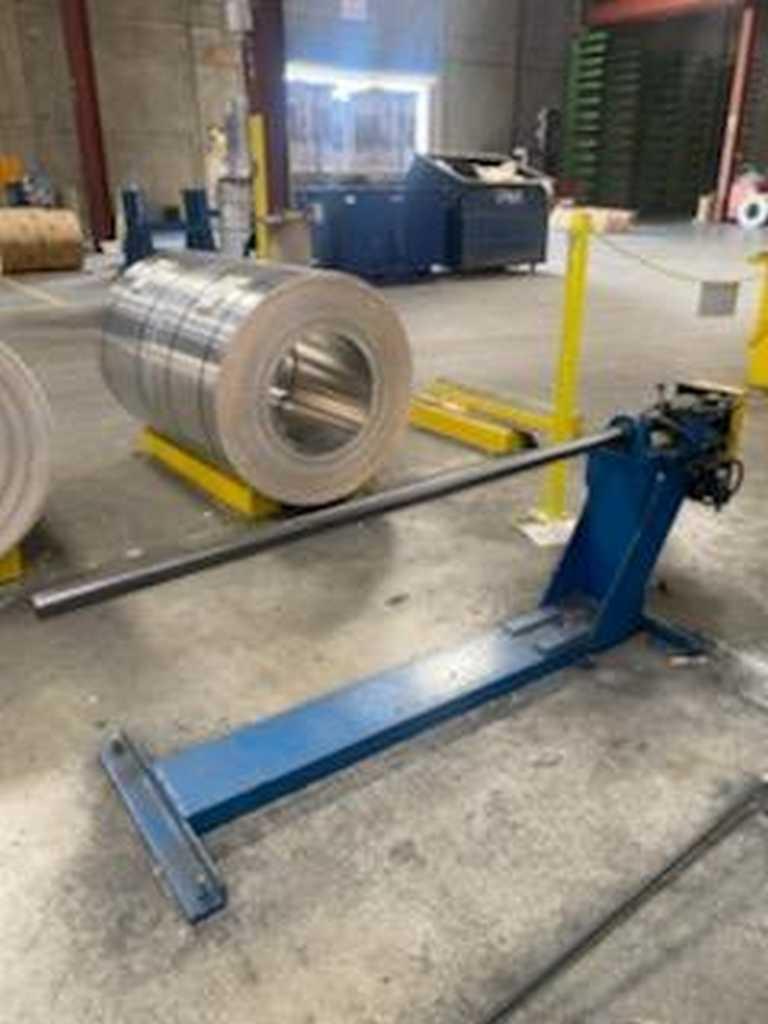

-Paper Unwinder:

-Threading Table: Rowe

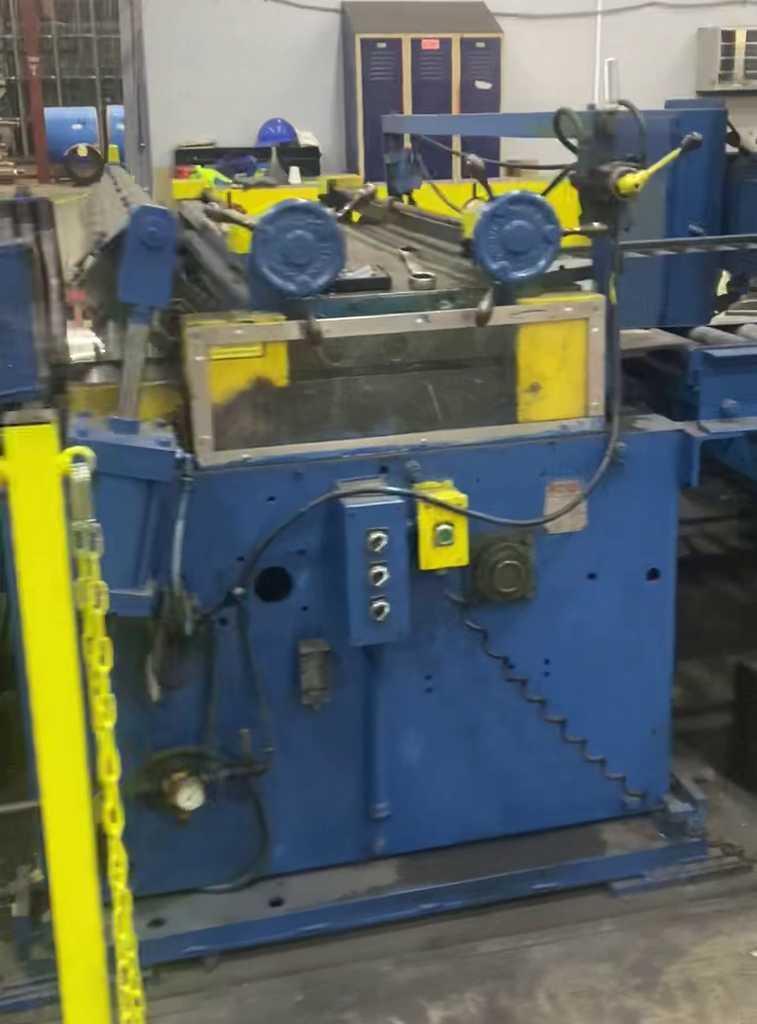

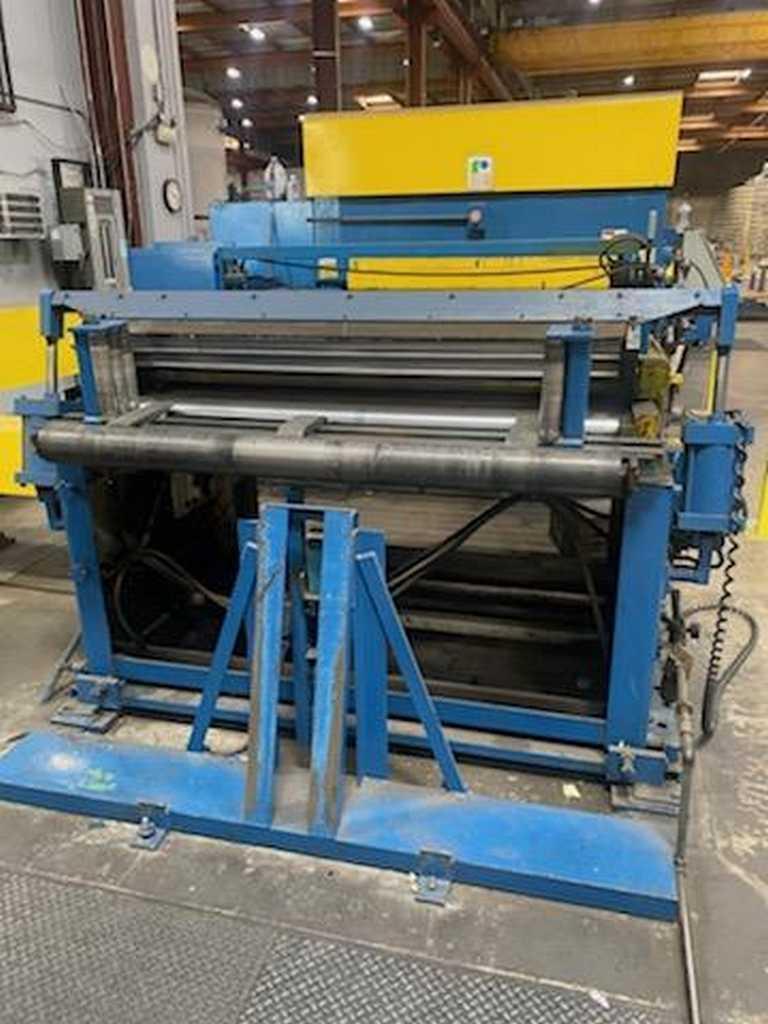

-Straightener: Rowe
  Model: V6-60
  Thickness Capacity: 0.020" - 0.085" Mild Steel

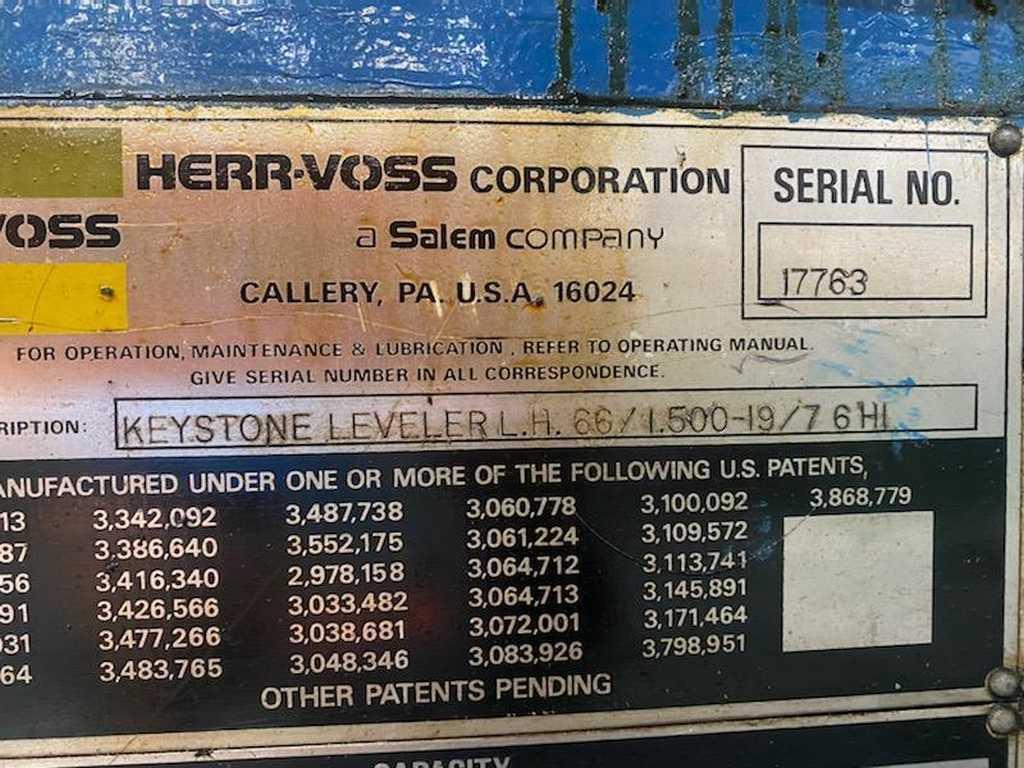

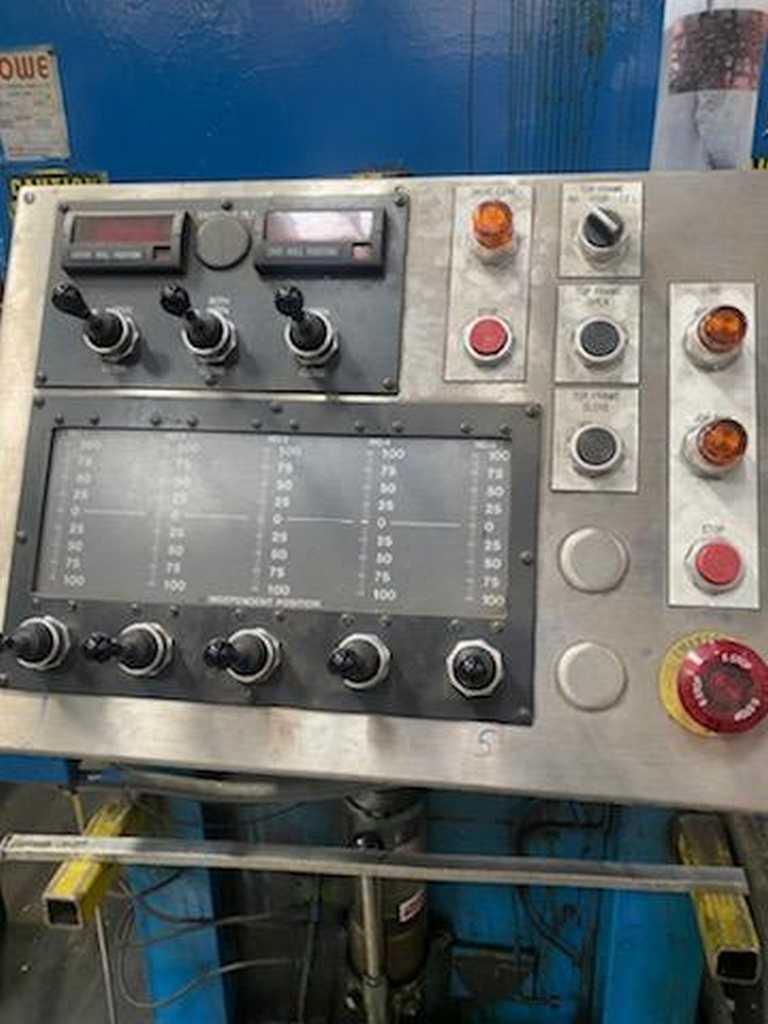

-Precision Leveler: Herr Voss 6HI
  Model: Keystone 66/1.500-19/7 6HI
  Thickness Capacity: 0.022" - 0.075" @ 40,000 PSI
  19 Work Rolls
  1.500" Dia. x 66" Face Rolls
  7 Flights of Backups (5 Flights Motorized)
  Line Speed: 0 - 160 FPM

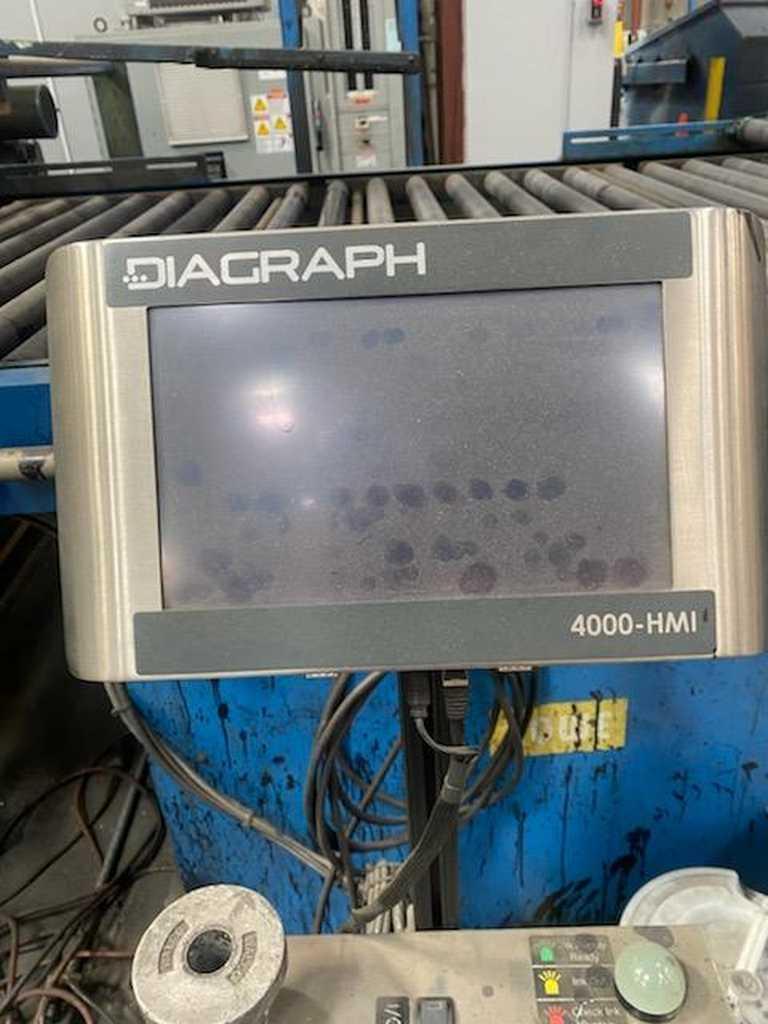

-Diagraph Impulse Jet Controller:
  Model 4000-HMI

-Film Applicator:

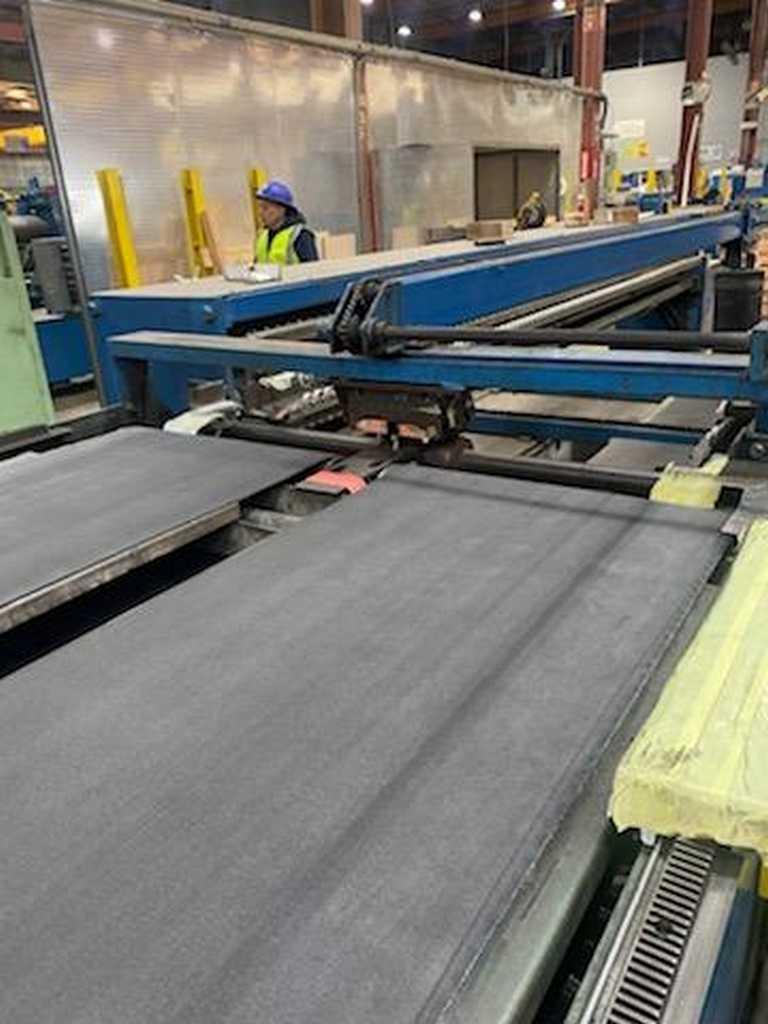

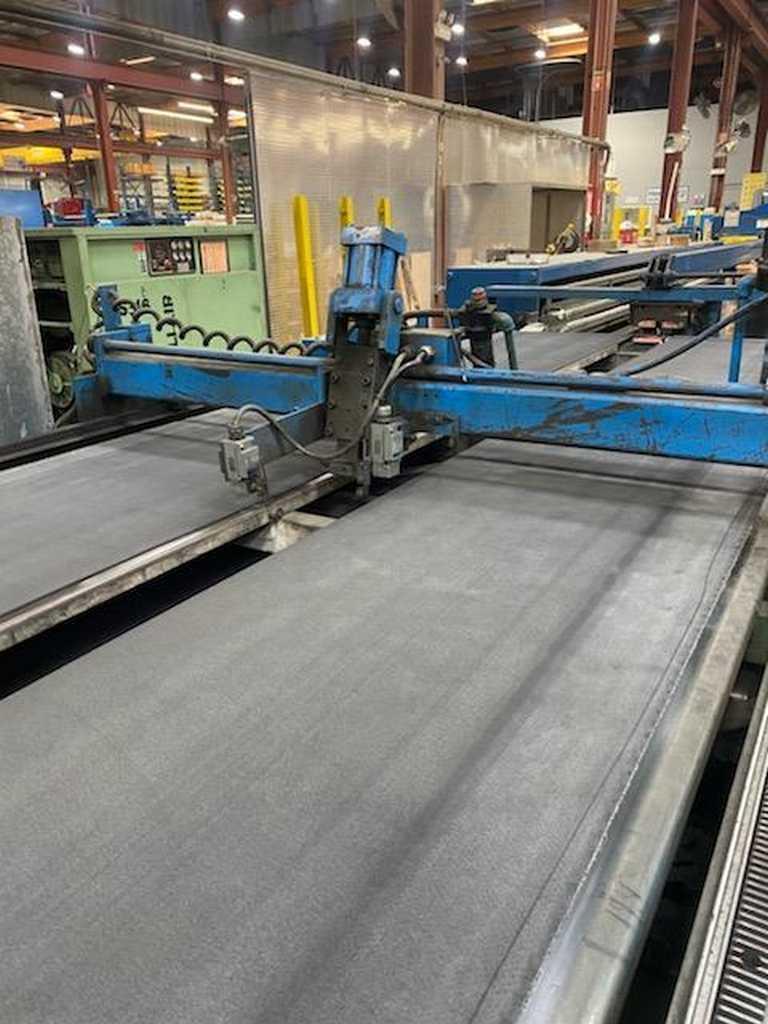

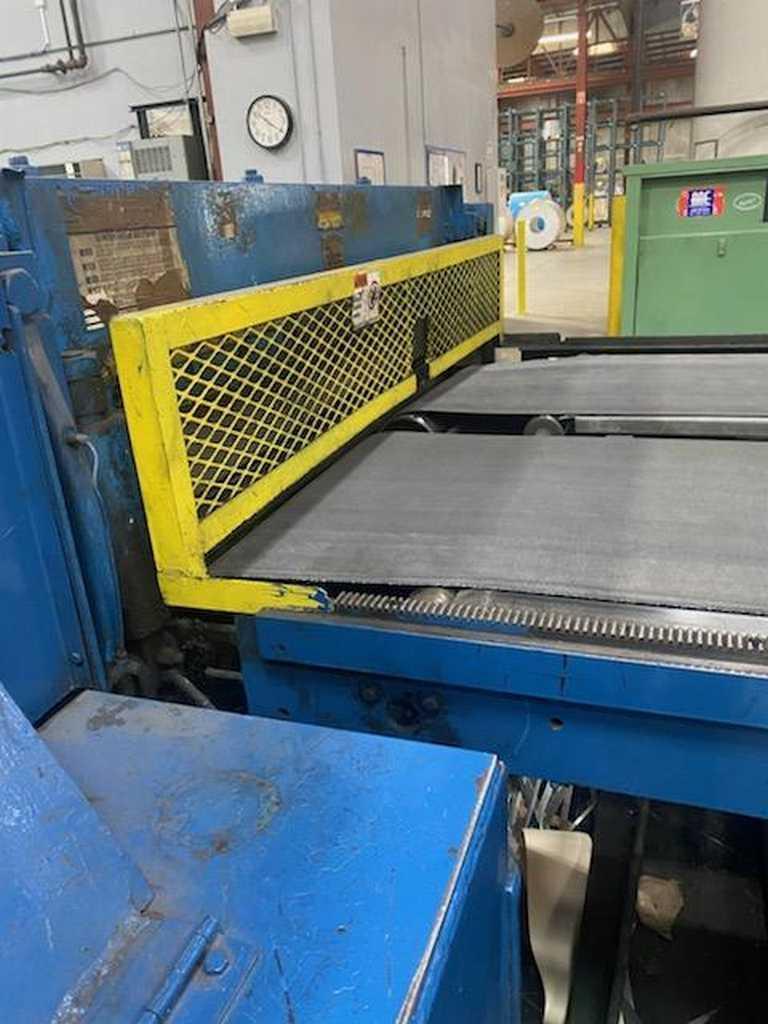

-Measuring Table: Rowe
  Twin Powered Belts
  Measuring Head

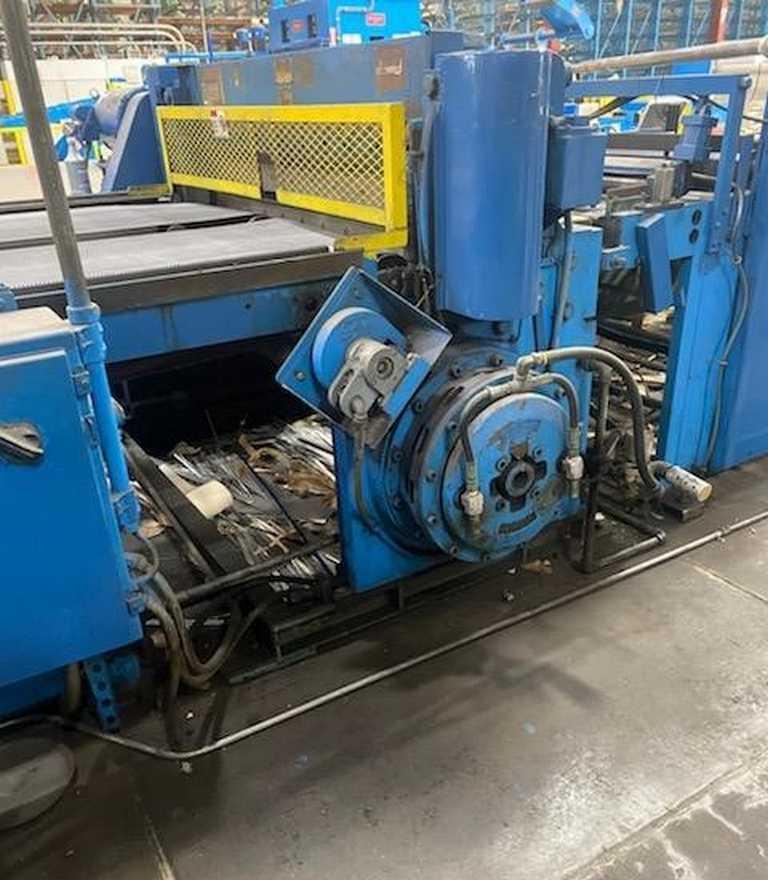

-High Speed Shear: Wysong
  Model: HS1060-RKB
  Thickness Capacity: 0.105" Mild Steel
  Bow Tie Top Blade
  300 SPM
  15 HP AC Motor

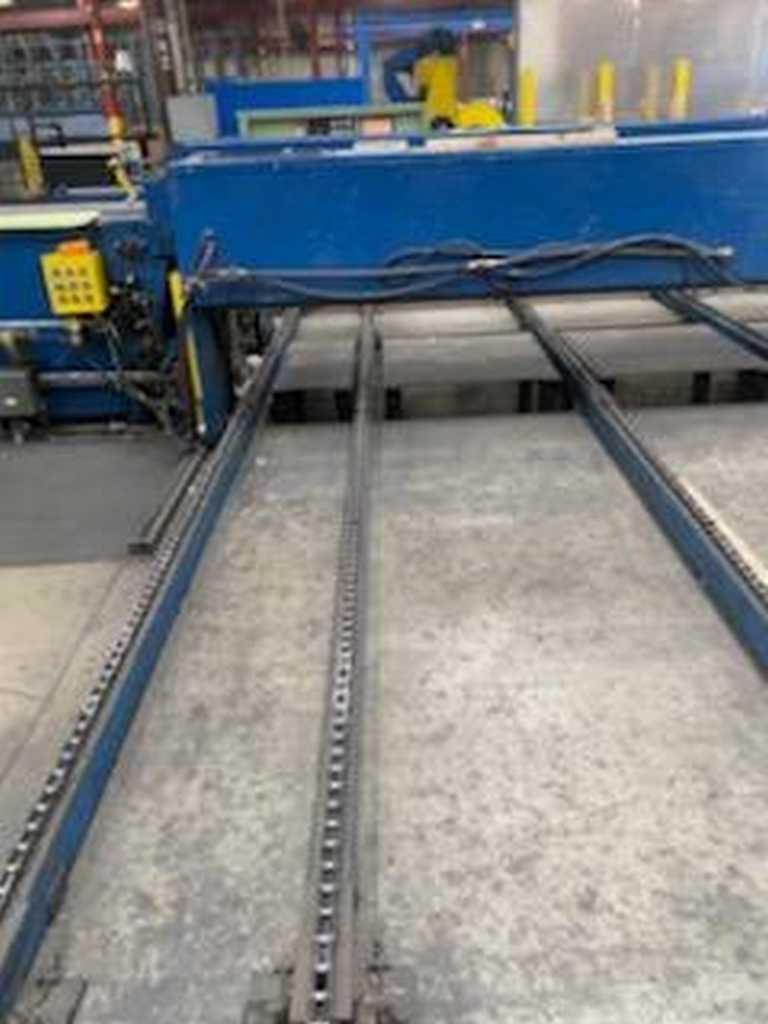

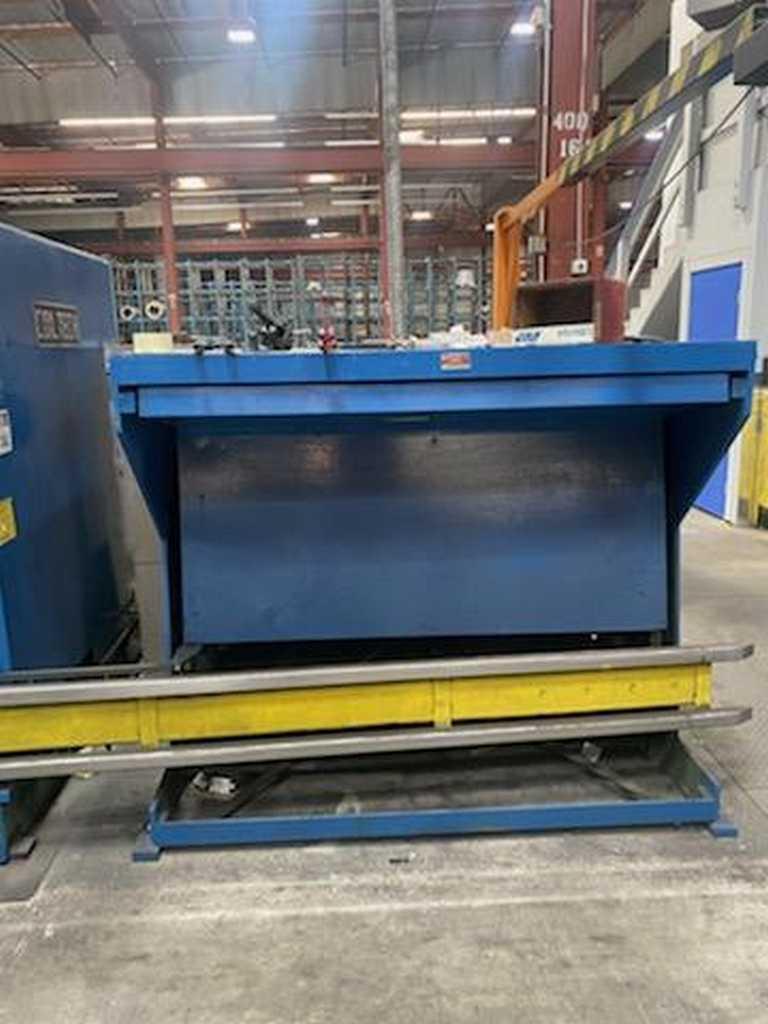

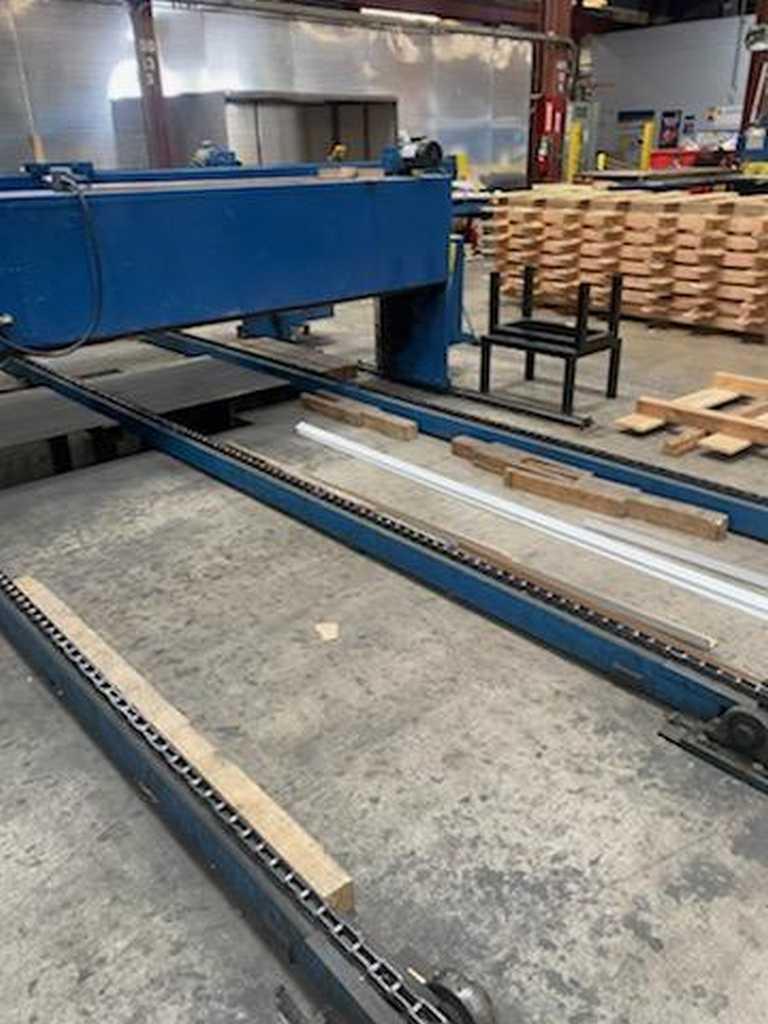

-Stacker: Rowe
  Model: STKRDT60-16
  Capacity: 16' Long Sheets

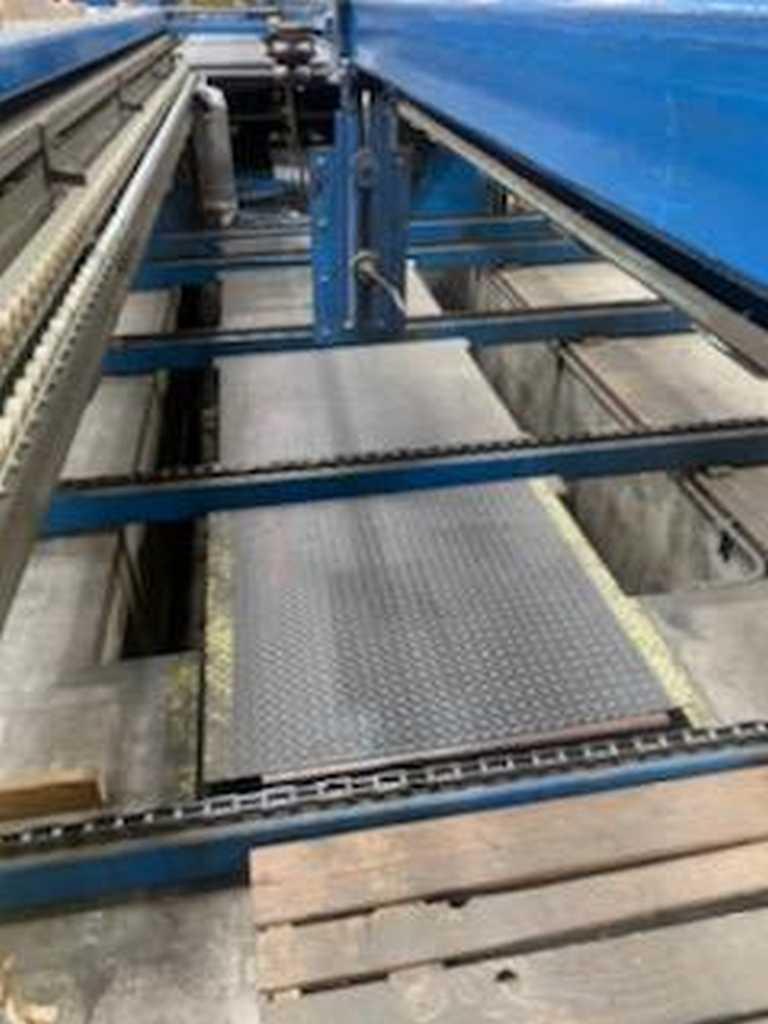

  Side Discharge Chain Conveyor

-Electrics and Hydraulics:

-Line is Installed and Under Power
