-Model Number: Iowa Precision Slear 1
-Materials: CRS, Alum, Galv, Pre-Paint
-Min./Max. Coil Width: 6" - 60"
-Thickness Range: 0.015" - 0.064"
-Maximum Shear: 45,000 PSI
-Maximum Yield: 45,000 PSI
-Maximum Coil Weight: 20,000#
-Coil I.D.: 20" - 24" (Nominal)
-Maximum Coil O.D.: 64"
-Slitting Capacity: Five (5) Cuts of 0.060"/Six (6) Cuts of 0.045"
-Minimum Slit Width: 3"
-Line Direction: Right to Left
-Stacker Length: 1 - 12'
-Maximum Bundle: 18" x 10,000# @ 12'
-Mode of Operation: Front Loop
-Line Speed: 20 - 200 FPM / 20-150 FPM (using Scrap Winders)
-Required Area: 20' x 70'
-Required Power: 160 Amps
Consisting of the following:
-Entry Turnstile:
Four (4) Arms x 20,000# per arm
Powered Rotation
Slotted for C-Hook
-Entry Coil Car:
Low Boy Type
Floor Mounted
Powered Lift and Traverse
-Uncoiler:
Mandrel Type
Powered Expansion
Feedup Drive
Holddown with Powered Snubber
Loop Control with Dancer Arm
Self Contained Hydraulic Unit

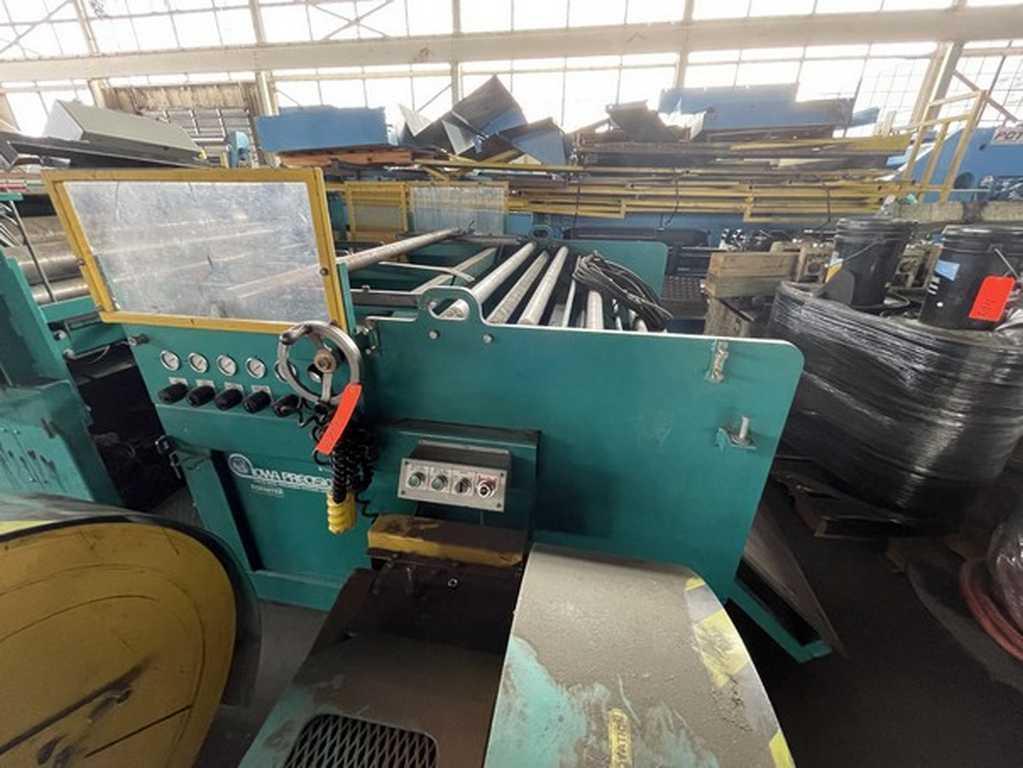

-Entry Unit:
Extending Blade Peeler
Powered Entry Pinch Roll
Manual Side Guides
-Pit Section:

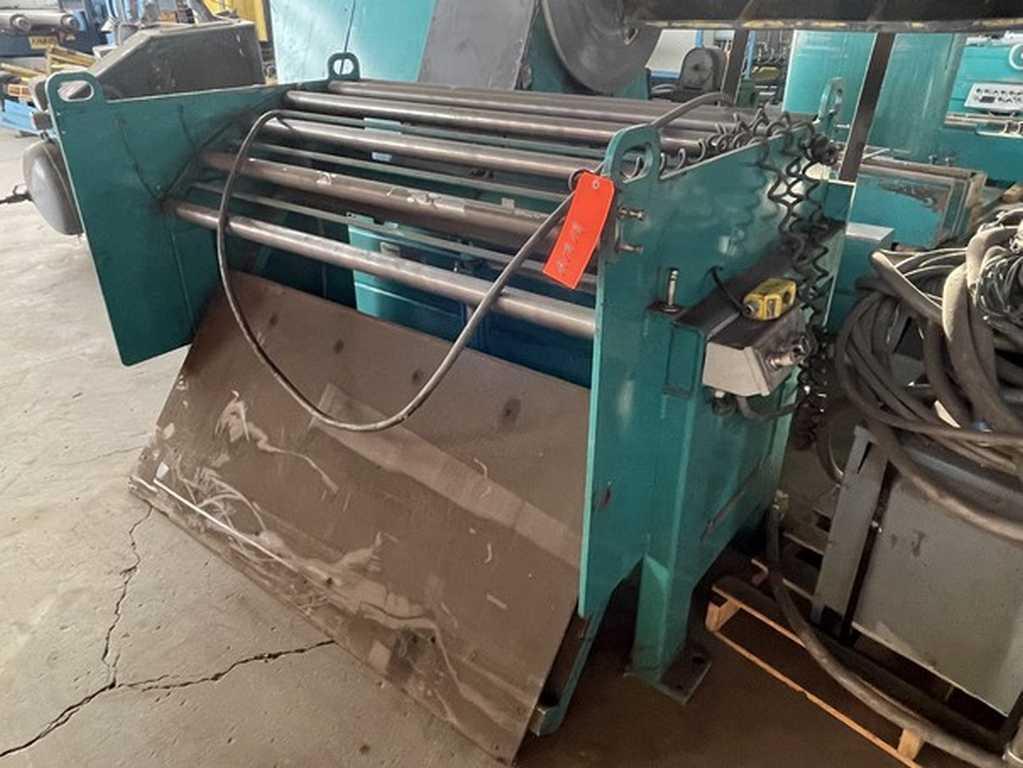

Entry/Exit Cascade Rolls with Cross Over Tables
Sonic Loop Control
Manual Side Guides

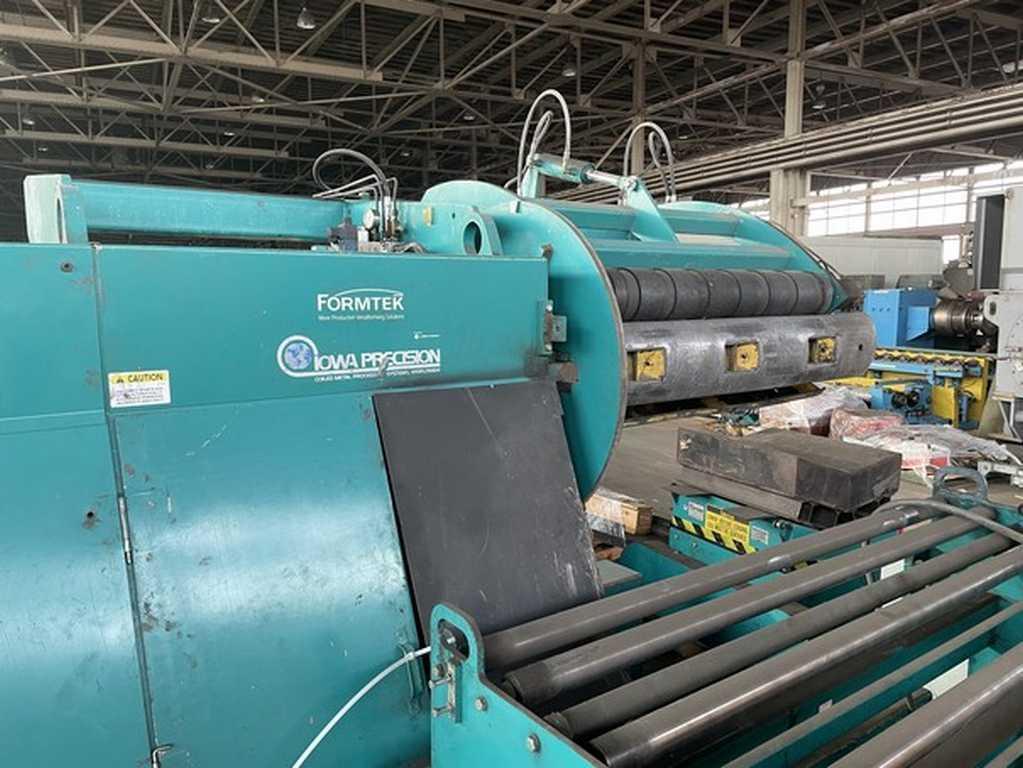

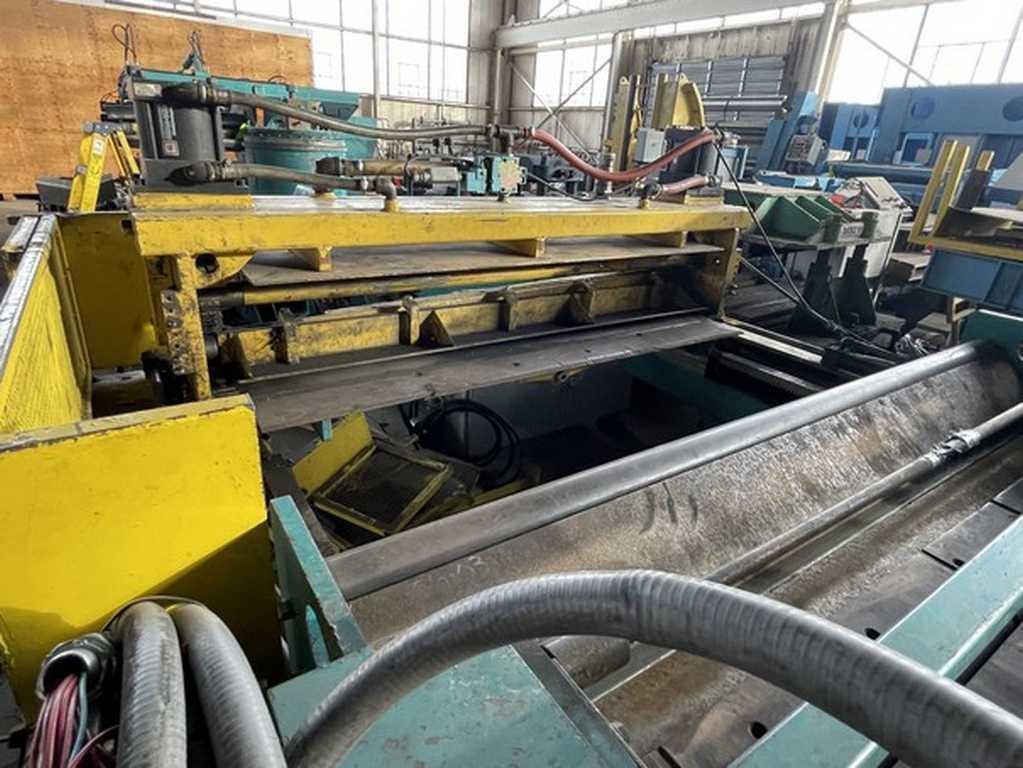

-Slear Unit:
Powered Entry Pinch Rolls
Slitter Head with Hub Type Tooling (5" Diameter Arbor)
Fifteen (15) Slitter Knives
Powered Pinch Rolls #2

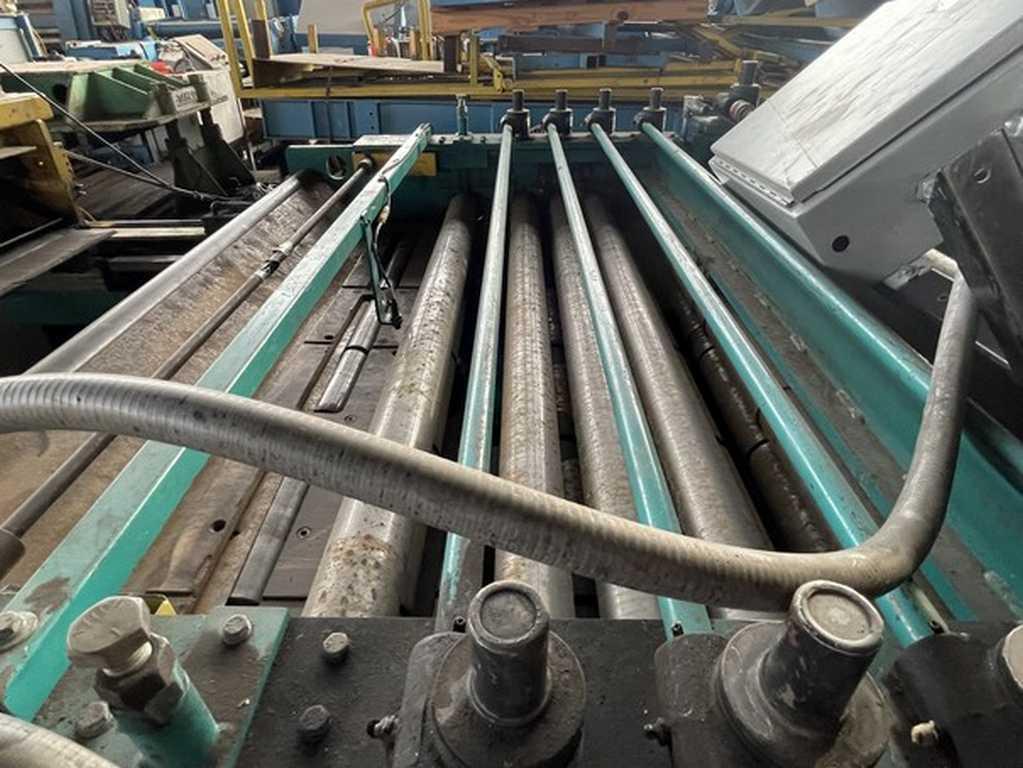

Flattener with Six (6) Work Rolls in a 3/3 Configuration
Powered Exit Pinch Rolls

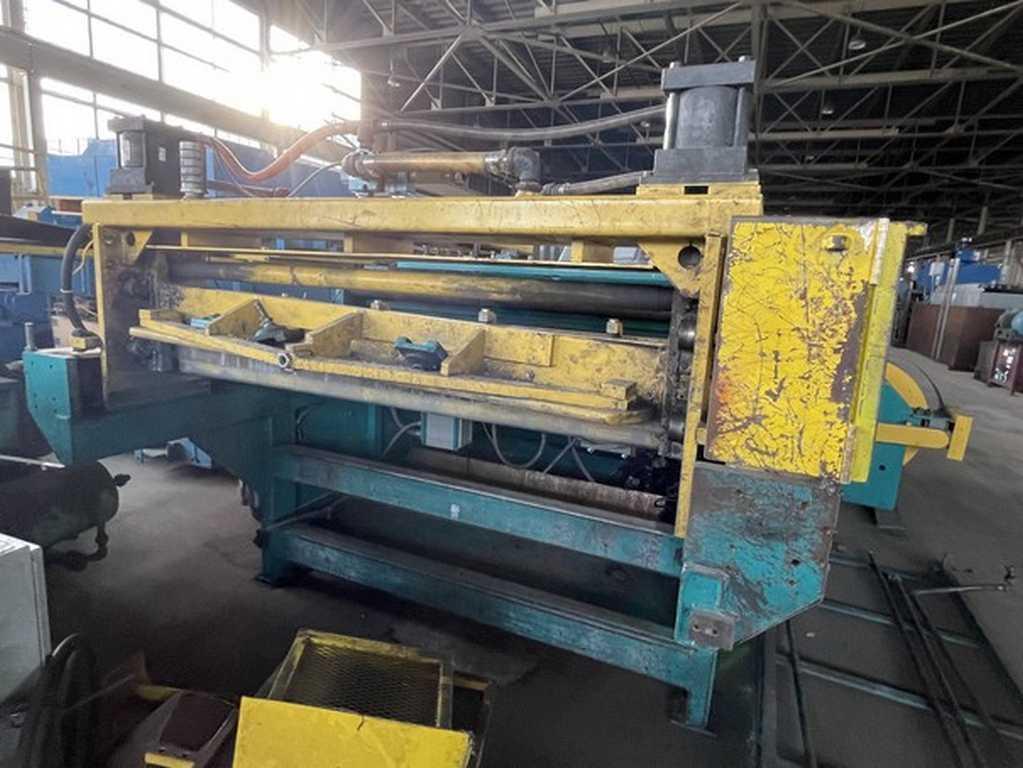

Down Cut Shear on Traversing Track (Single Rake Blade)
One (1) Spare Set of Shear Blades

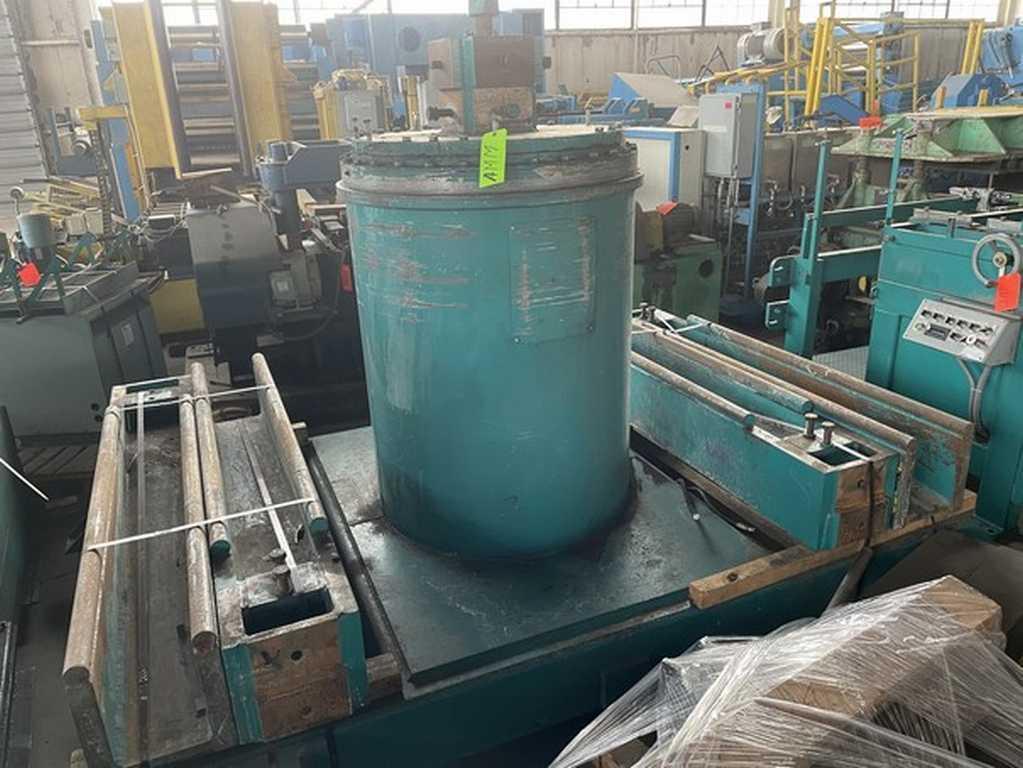

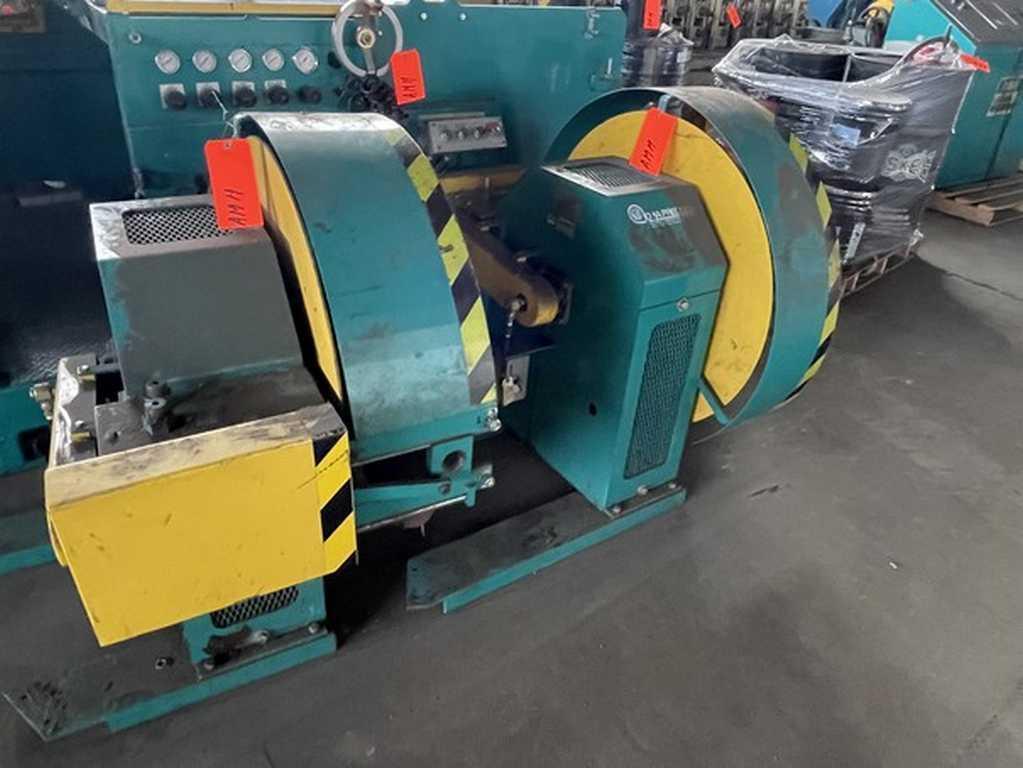

-Two (2) Scrap Winders:
Minimum/Maximum Scrap Width: 0.250" - 1"
Level Wind
Automatic Scrap Dump
-Stacker (New in 2013):
Manual Adjustable End Stop
Manual Adjustable Side Tampers
Avon Scissor Lift Table with Powered Roller Conveyor Top
Three (3) Sheet Tampers
Five (5) Blank Dividers
Lift Table with Powered Conveyor Top
-Powered Side Discharge Conveyor (New in 2013):
12' Length
20,000# Capacity
Twin Powered Rubber Belts
-Electronics:

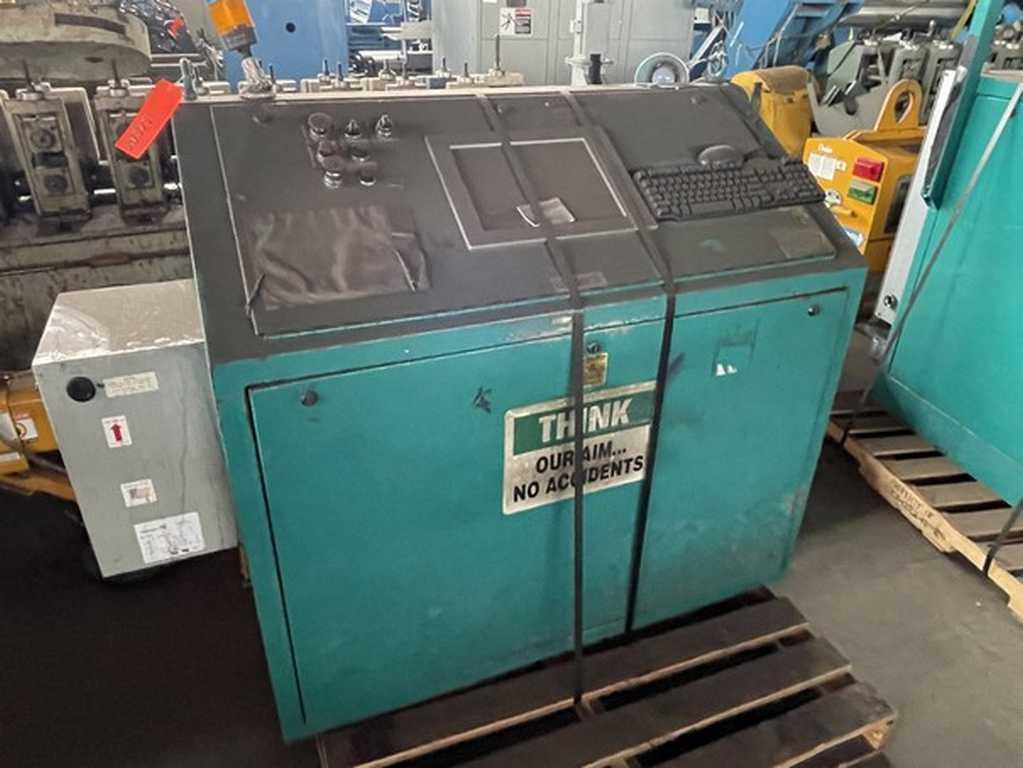

Main Operators Console with Allen Bradley Touch Screen and PLC
Aux. Control Consoles

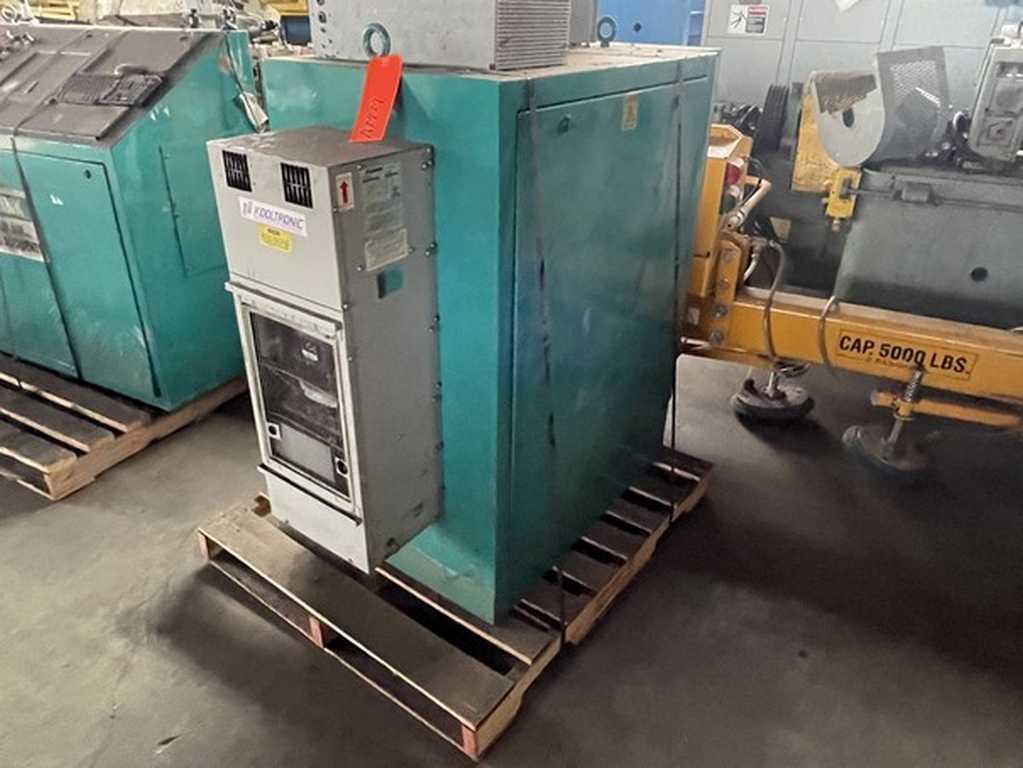

AC/DC Cabinet
-Misc. Transformers
