5.000" x 0.250" Bradbury Rafted Tube Mill STOCK#3561



Stock #



Toledo, Ohio
United States


Equipped With

Bradbury Rafted Tube Mill
Maximum Round:                 5.00" Dia.
Maximum Square:                5" x 5"
Maximum Wall Thickness:        0.250"
Maximum Coil Weight:           20,000 lbs.
Line Speed:                    30 to 150 FPM
Line Direction:                Right to Left
Consisting of the following:

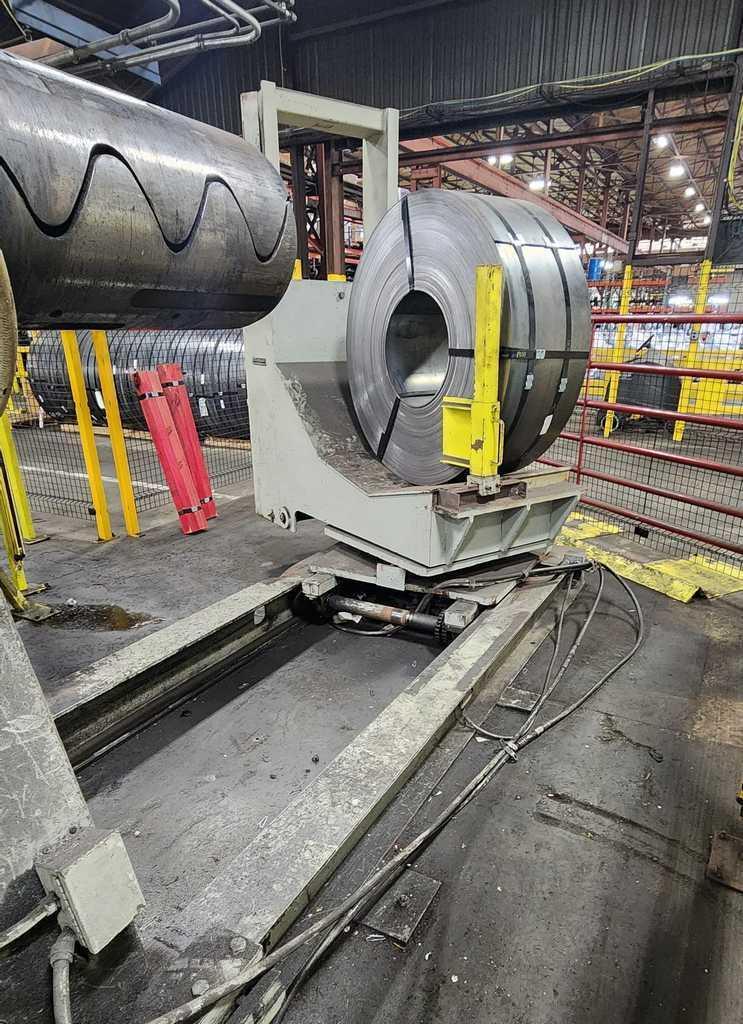

-Bradbury Coil Car:
  20,000 lb. Capacity
  Side Mast Type
  0 - 28" Vertical Coil Lift
  Vertical Lift thru Hydraulic Cylinder
  Rotating Base

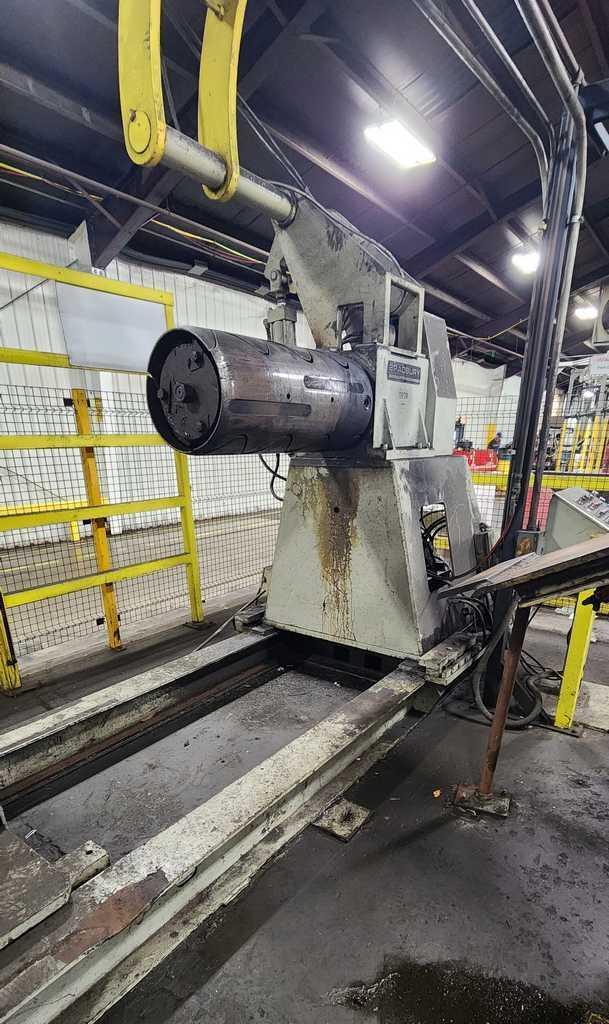

-Bradbury Uncoiler:
  Model:  SR-20
  20,000 lb. Capacity
  36" Maximum Coil Width
  3 Segment Pumpkin Tooth Mandrel
  72" Maximum Coil O.D.
  18.50" - 24.50" Expansion Range
  Hydraulic Wedge Type Expansion
  Air Cooled Drag Brake (Single Caliper)
  Hydraulic Feedup Drive
  Sliding Base
  Overarm Holddown Roll
-Bradbury Peeler/Feed Table:
  Hydraulic Powered Table Lift & Extension
  Pivot Mount Design

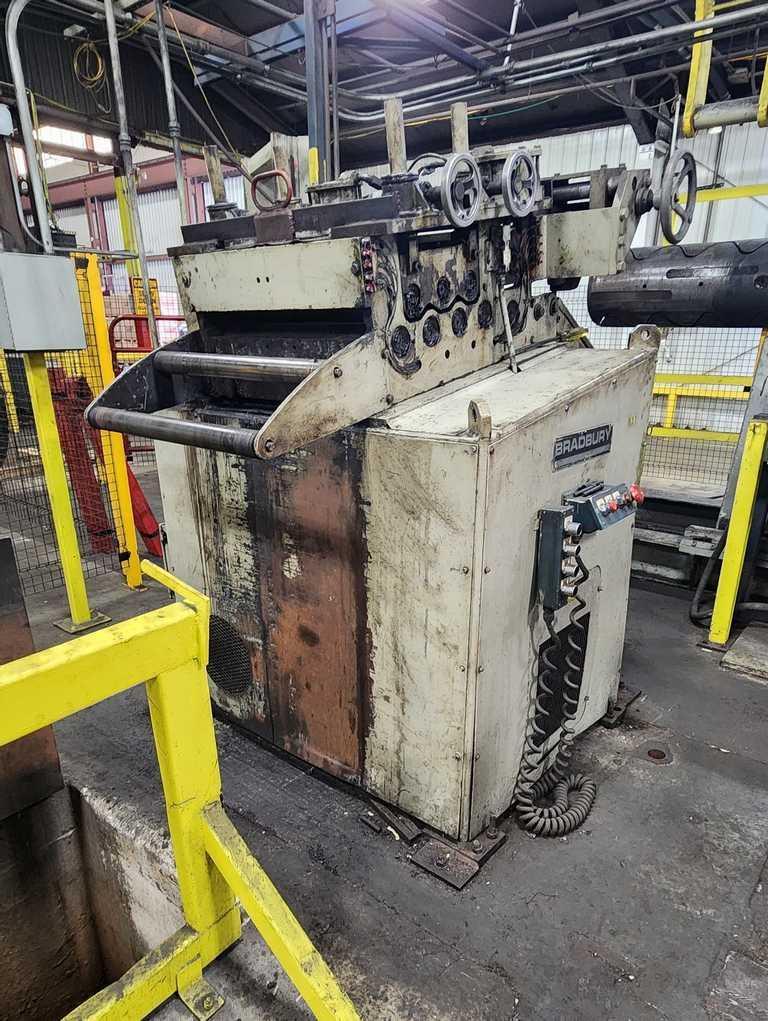

-Bradbury 7 Roll Roller Straightener:
  Model:  RS-46
  (7) - 4" Diameter Work Rolls
  24" Max. Material Width
  0.164" Max. Material Thickness (Up to 70,000 KSI Steel)
  6" Diameter Air Loaded Pinch Rolls
-Bradbury Barrier Feed Table:
  Roll in Type
  24" Maximum Material Width

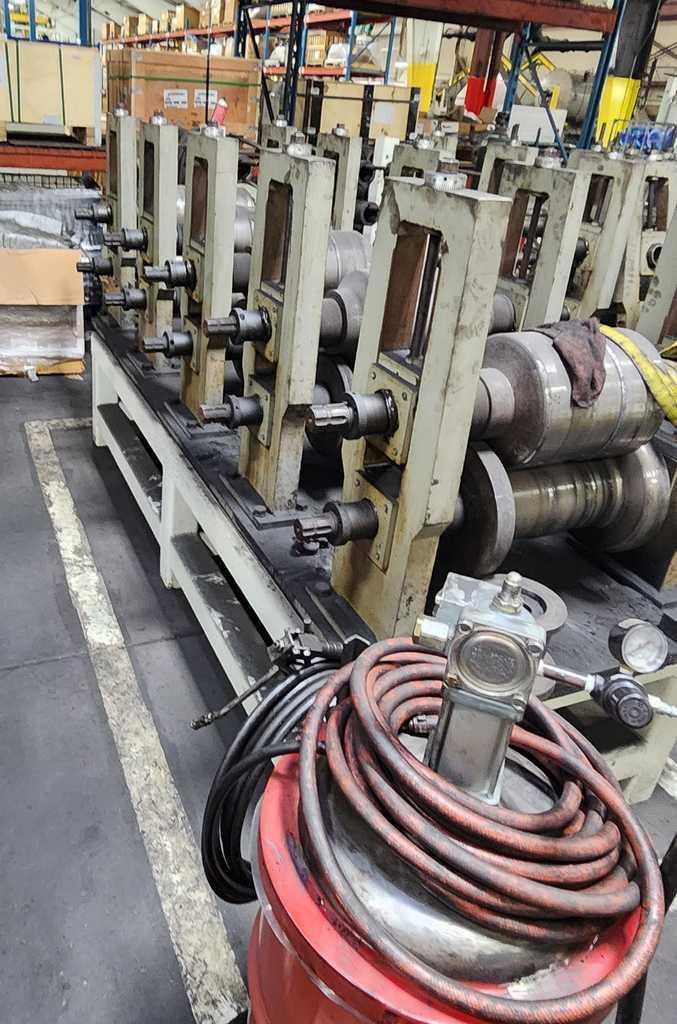

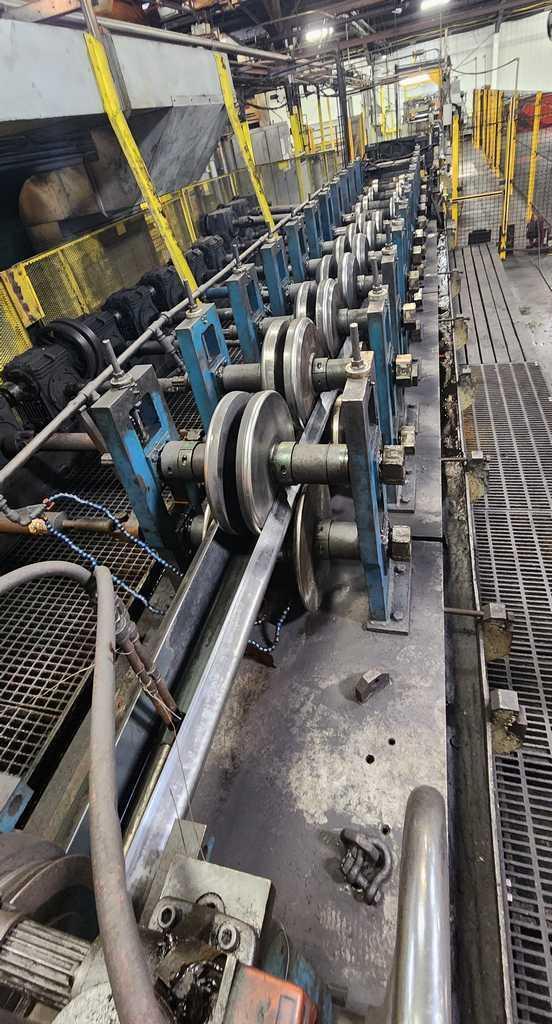

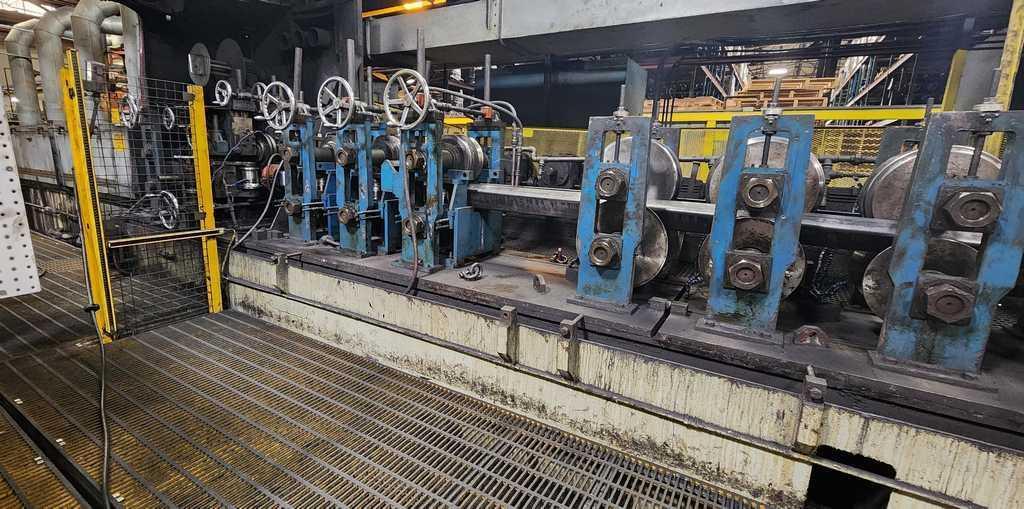

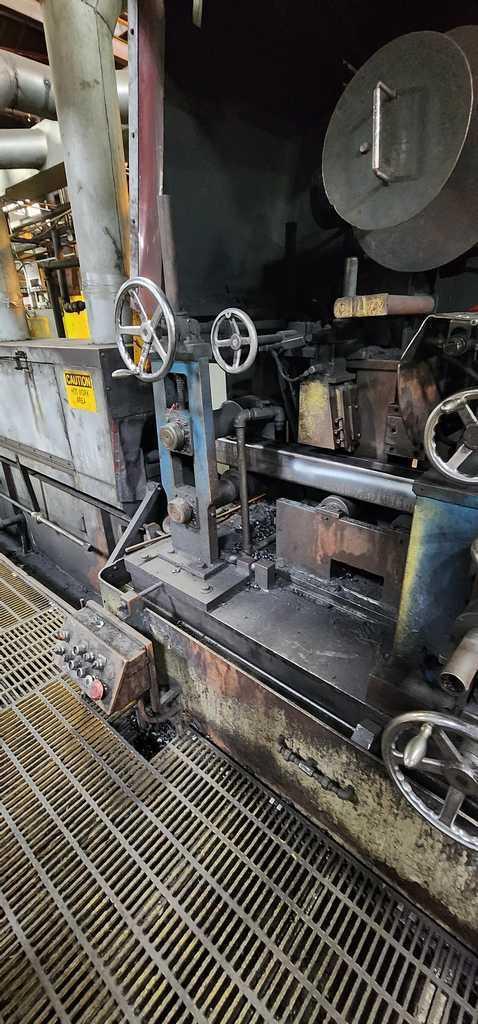

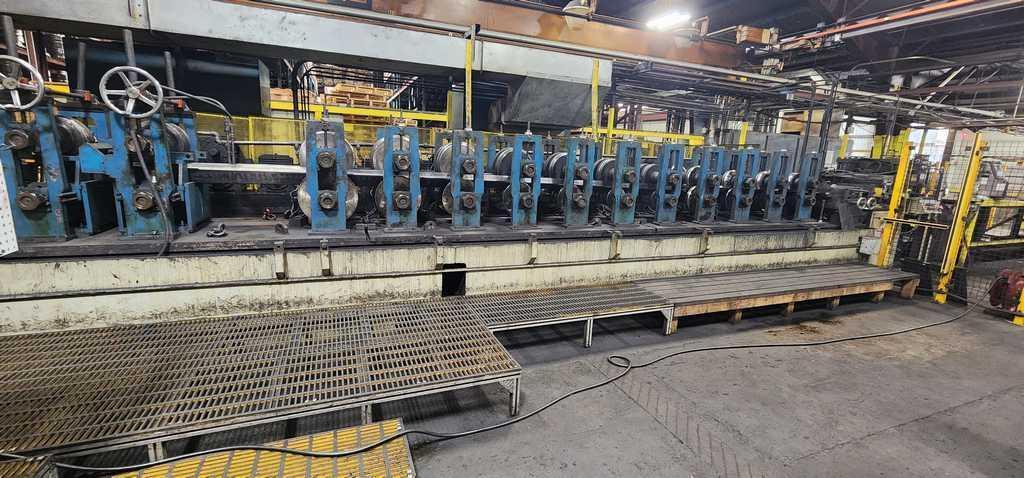

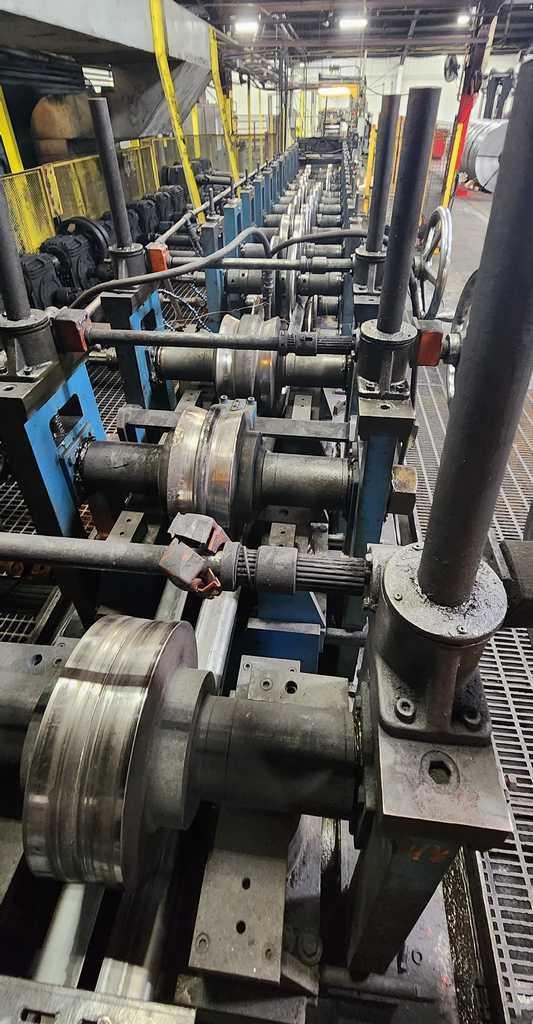

-Bradbury Rafted Rollformer:
  Series:  400
  Model:  425-22-16, Geared Head
  16 Forming Stations on an extended Base
  4 Roll Mill Tech Weld Box
  3.50" Diameter Spindles
  6" to 14" Vertical Spindle Adjustment Range
  21.50" Horizontal Center Distance
  22" Roll Space
  Speed:  30 - 150 FPM
  150 HP DC Drive
  Equipped with Reverse, Jog and Dynamic Braking

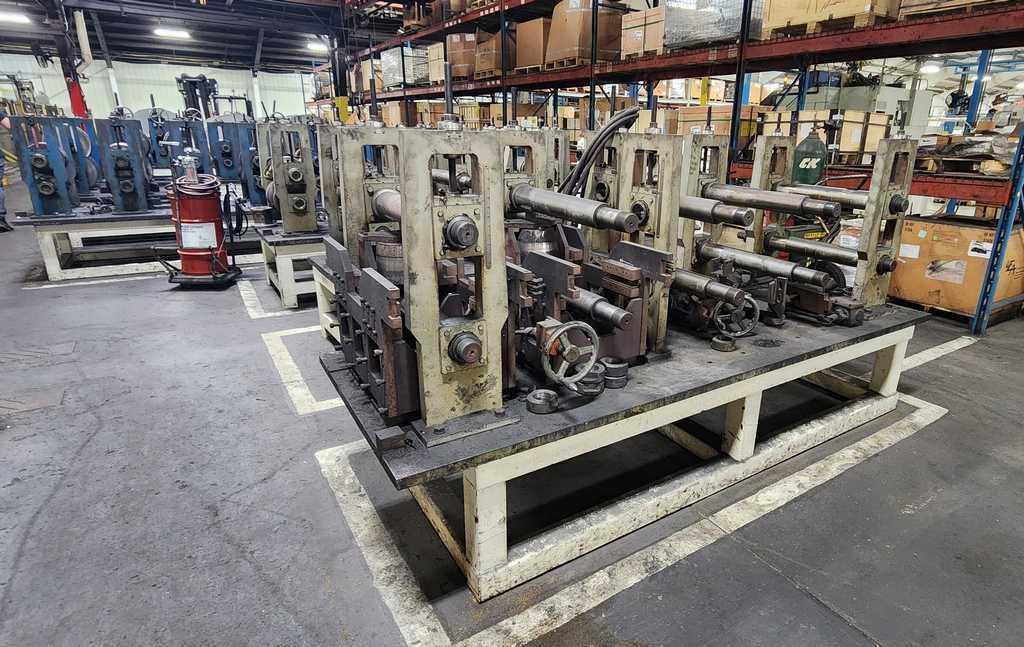

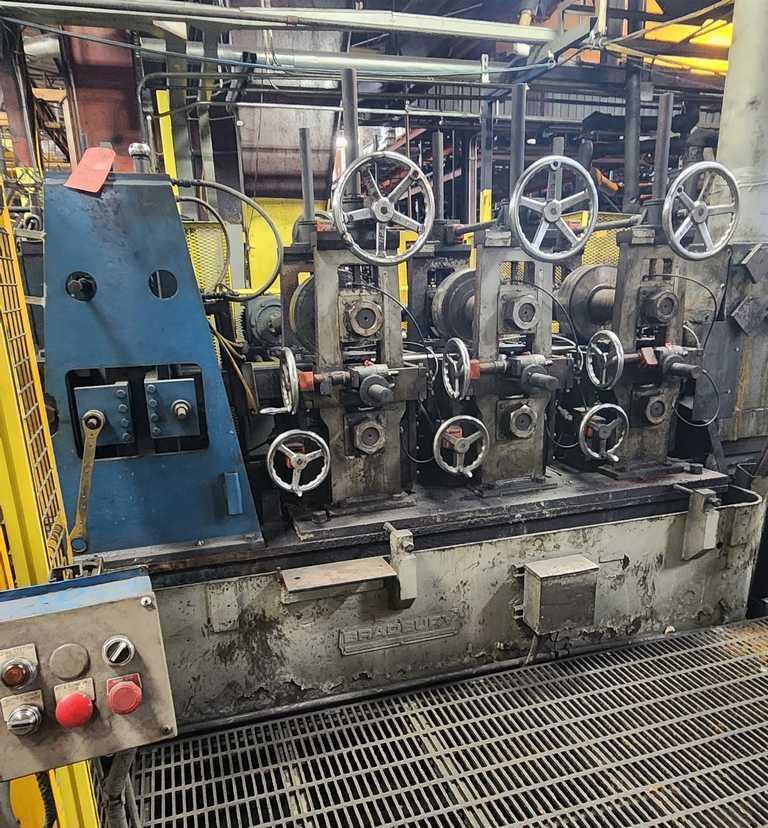

-Bradbury Rafted Sizing Unit Stand:
  (3) Forming Stands mounted on an independent Common Base
  (3) Fin Pass Stands

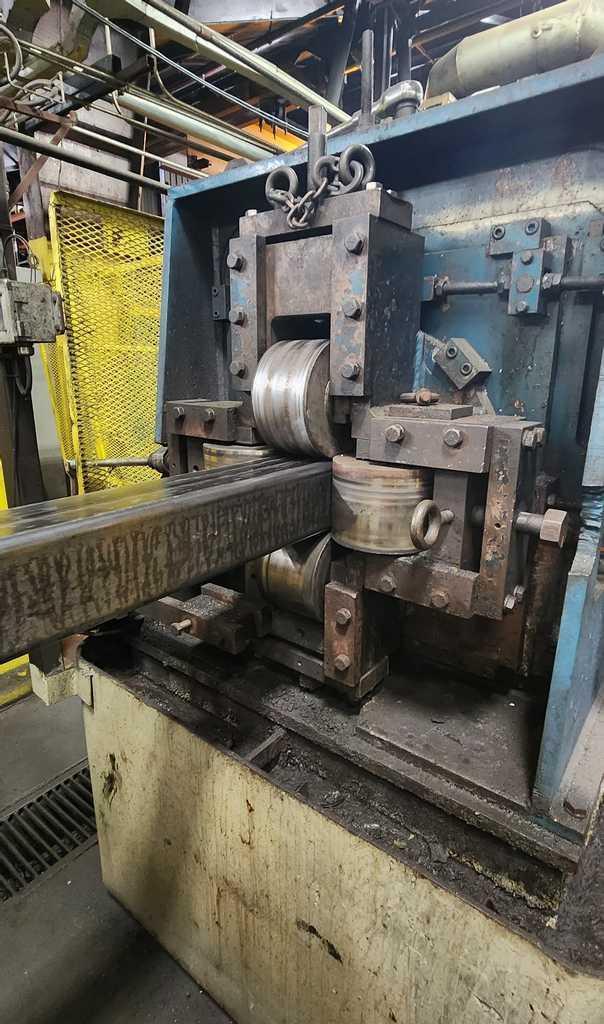

  Rafted Turkshead
  Driven by 30 HP DC Motor

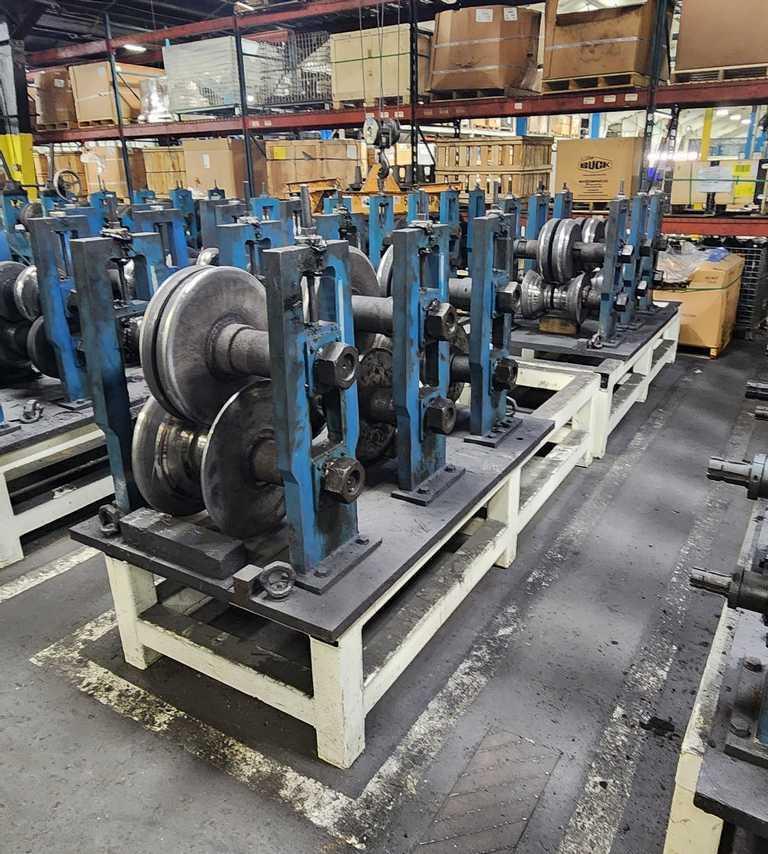

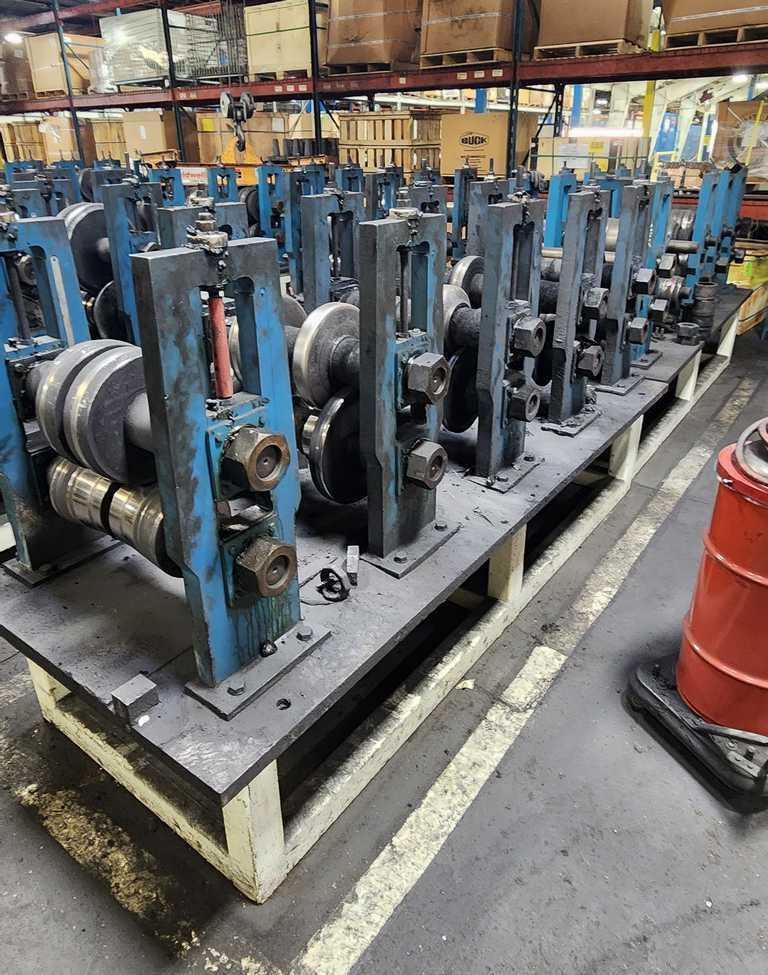

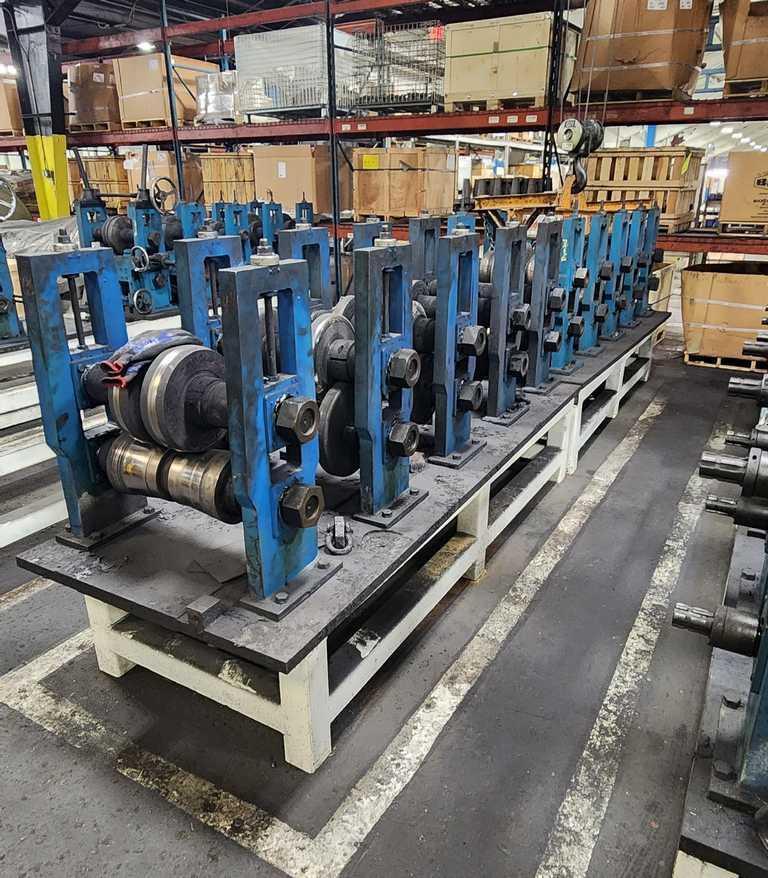

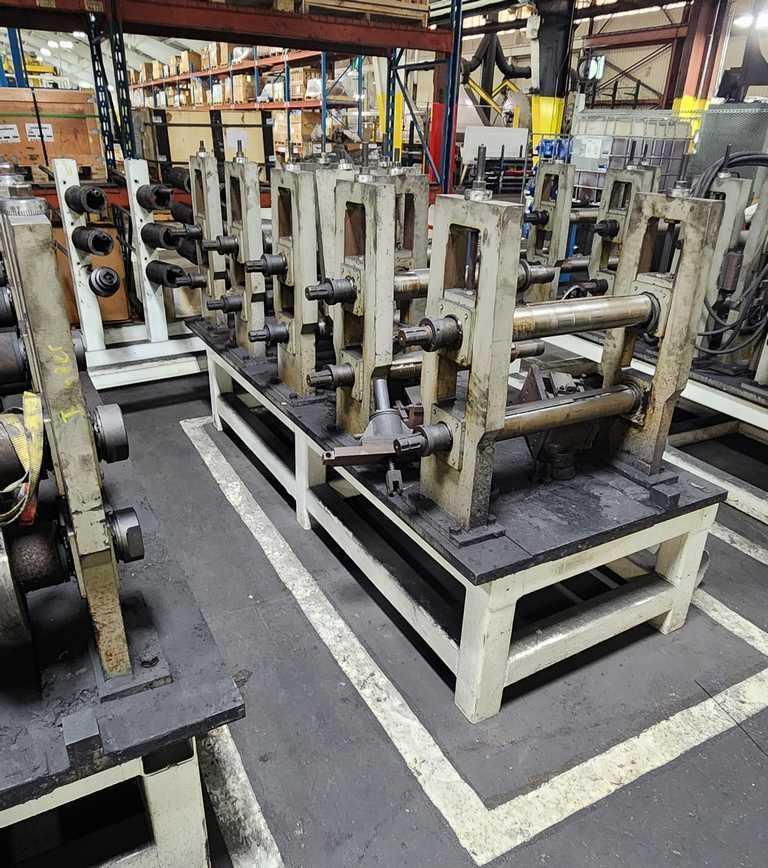

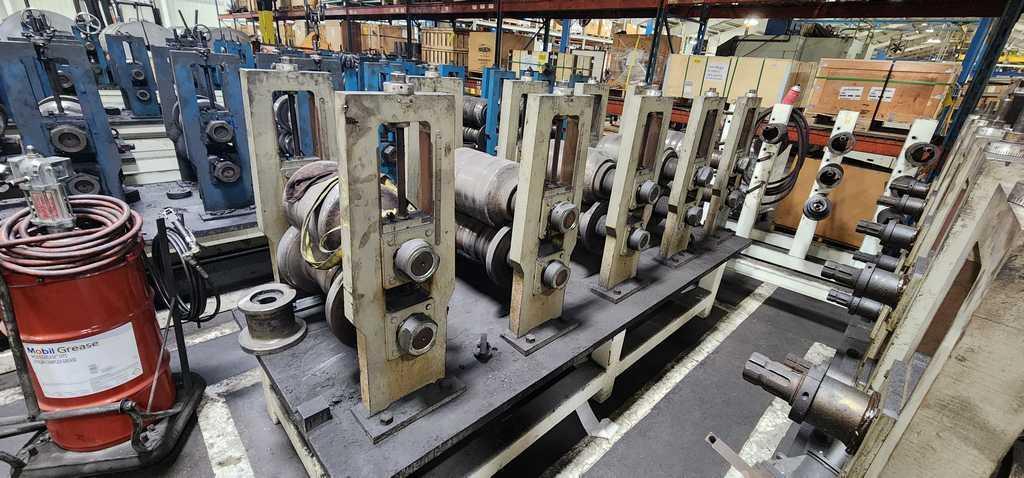

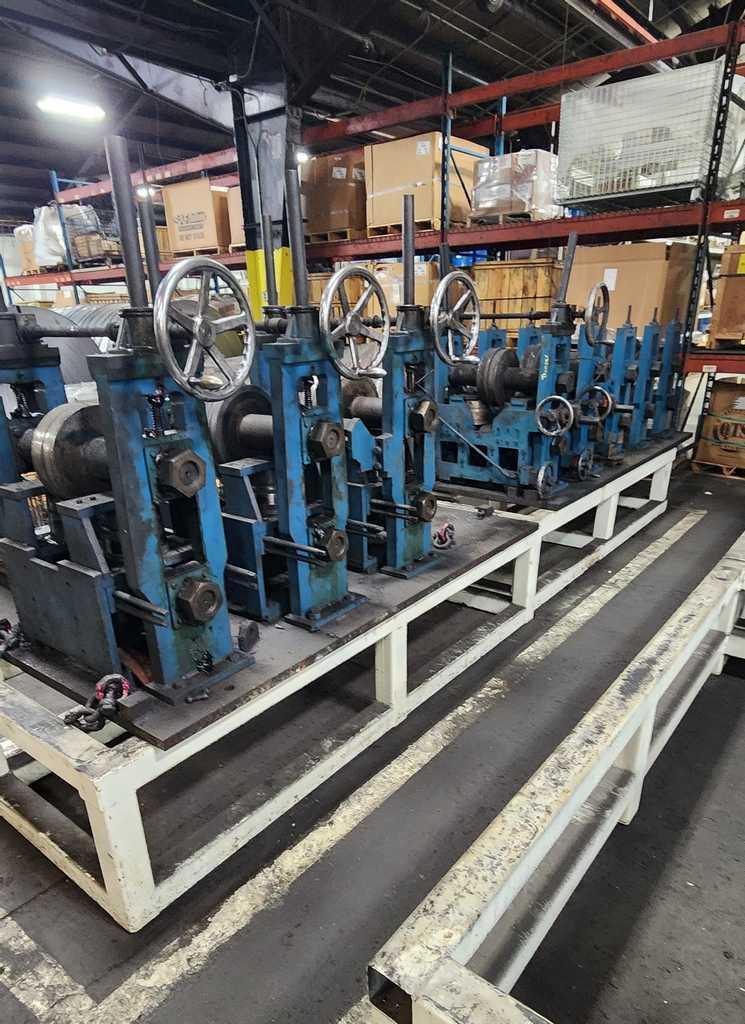

-Complete "Extra Set" of Rafted Stands (Mill and Sizing Unit)
-Hydraulic Scarfing System (Outside Only)

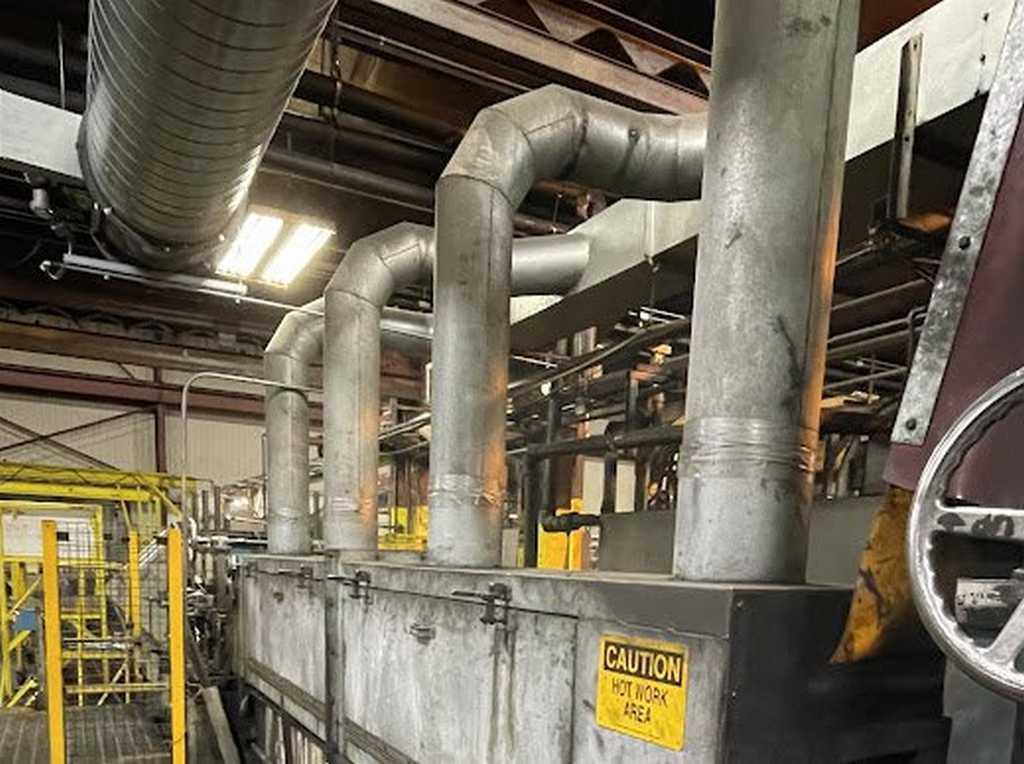

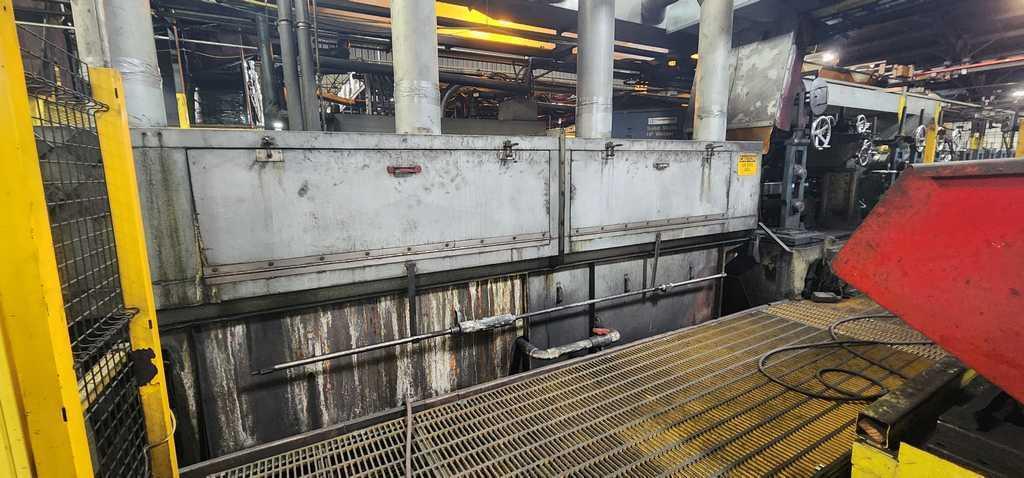

-15' Long Cooling Trough with Spray Nozzles
-Turkshead Straightener
-Less Tooling, Welder and Cut-Off.
