Consisting of the following:

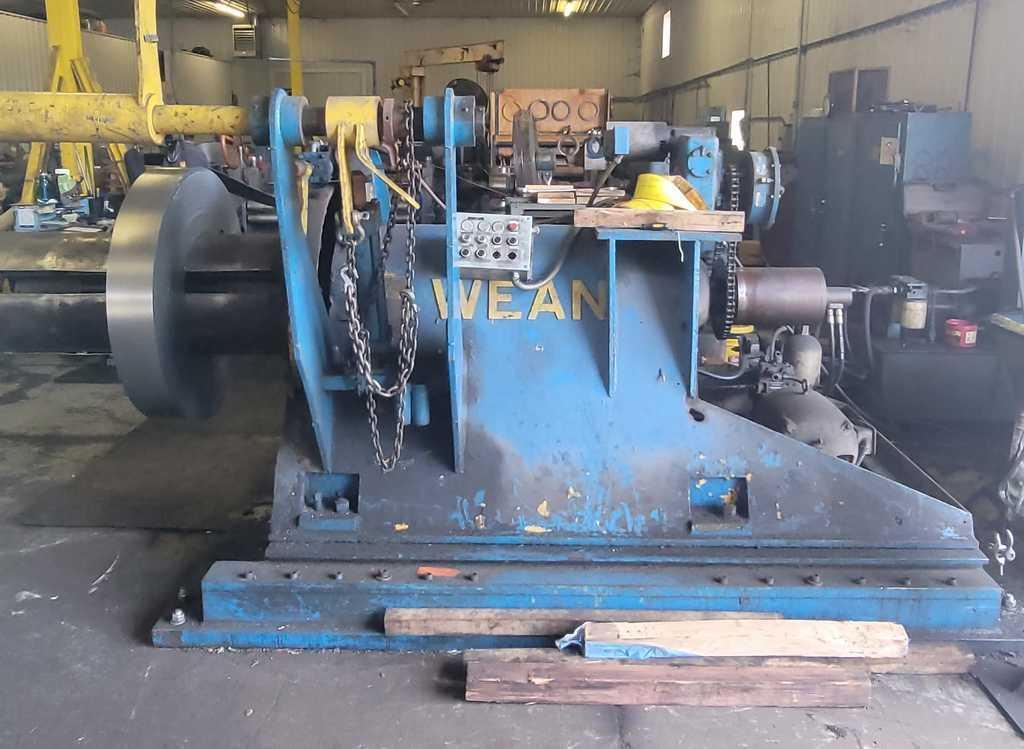

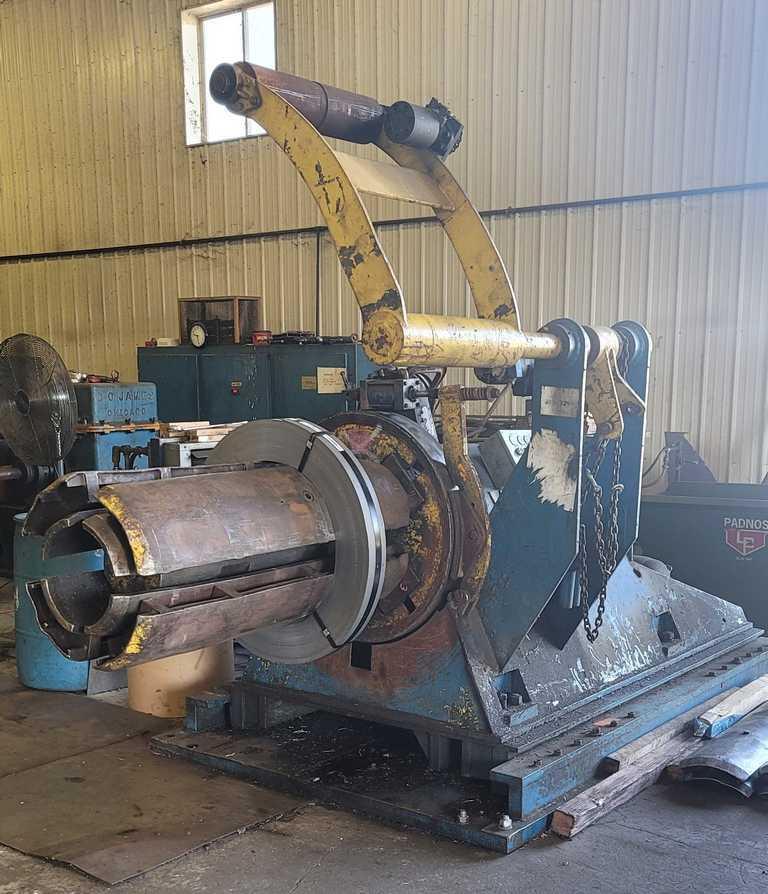

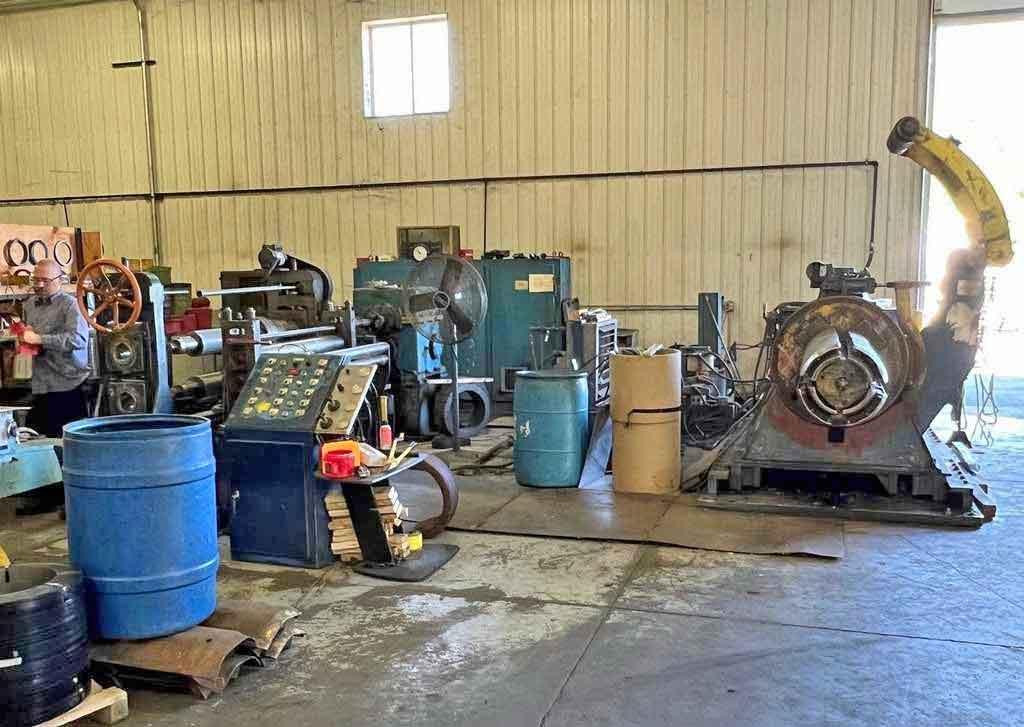

-Uncoiler:

  Hydraulic Expansion, 16" - 20" I.D.

  Bolt-on Pads for 24" I.D.

  54" Wide Mandrel

  Sliding Base

  3 HP AC Feedup with Air Clutch

  Band Brake

  Wichita Water Cooled Brake (Not Installed)

  Coolant System with Pump, Tank and Radiator

  Holddown Arm with Powered Roll

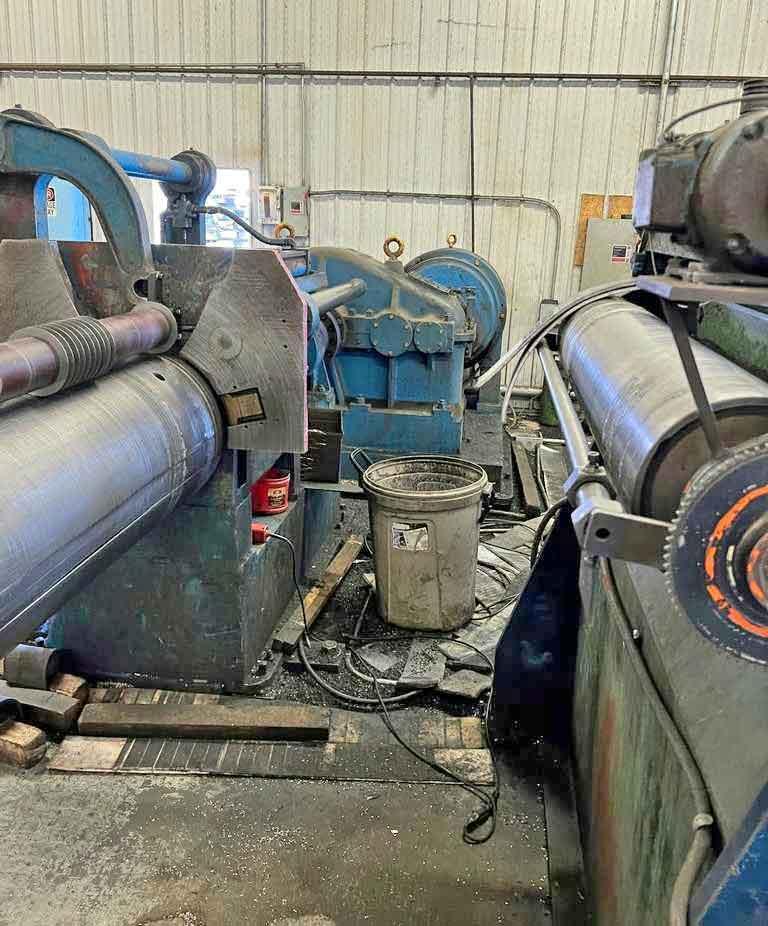

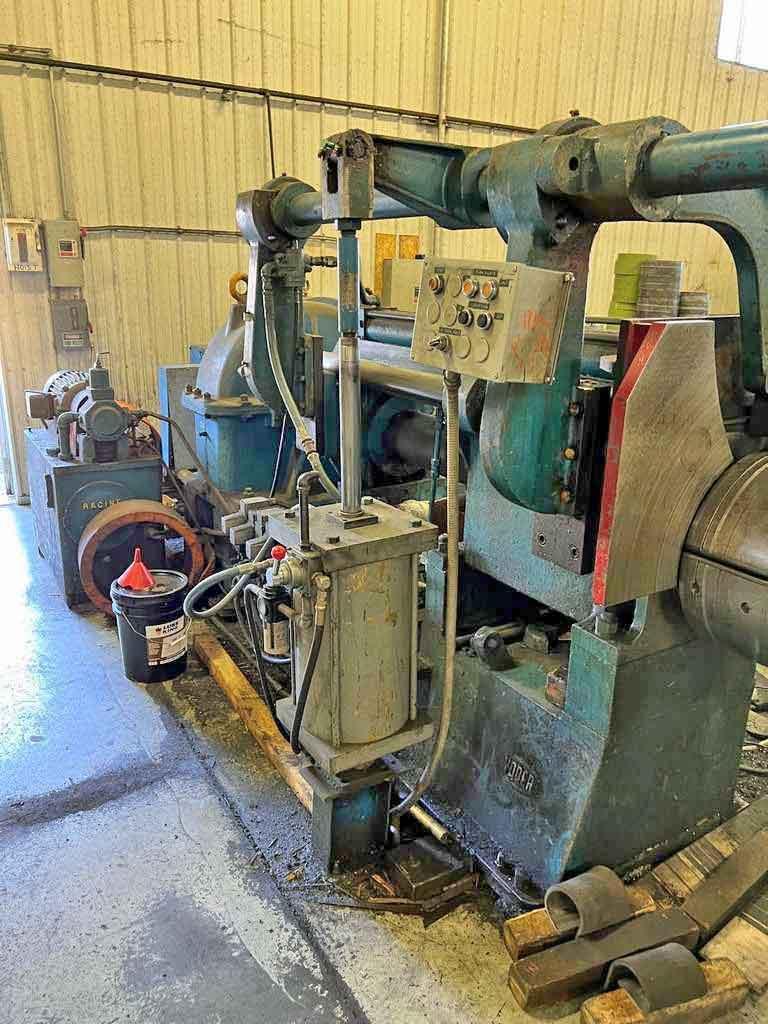

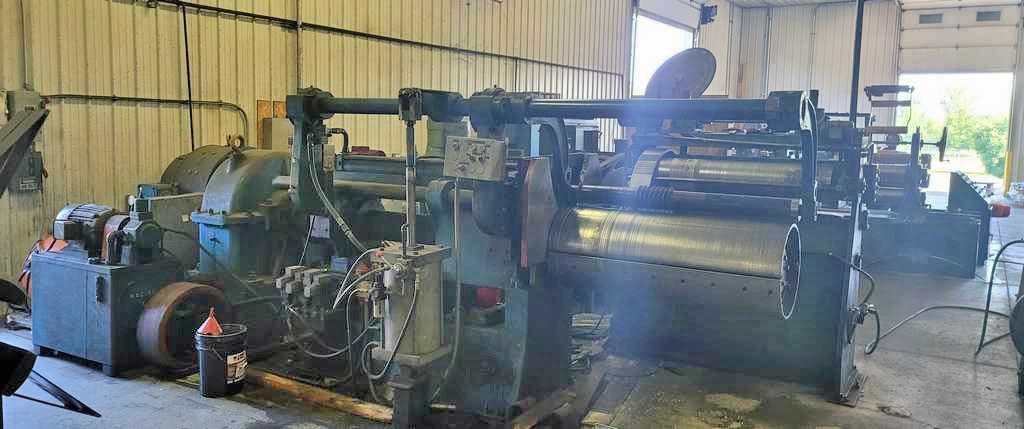

-Slitter Head:

  Yoder M3 1/2

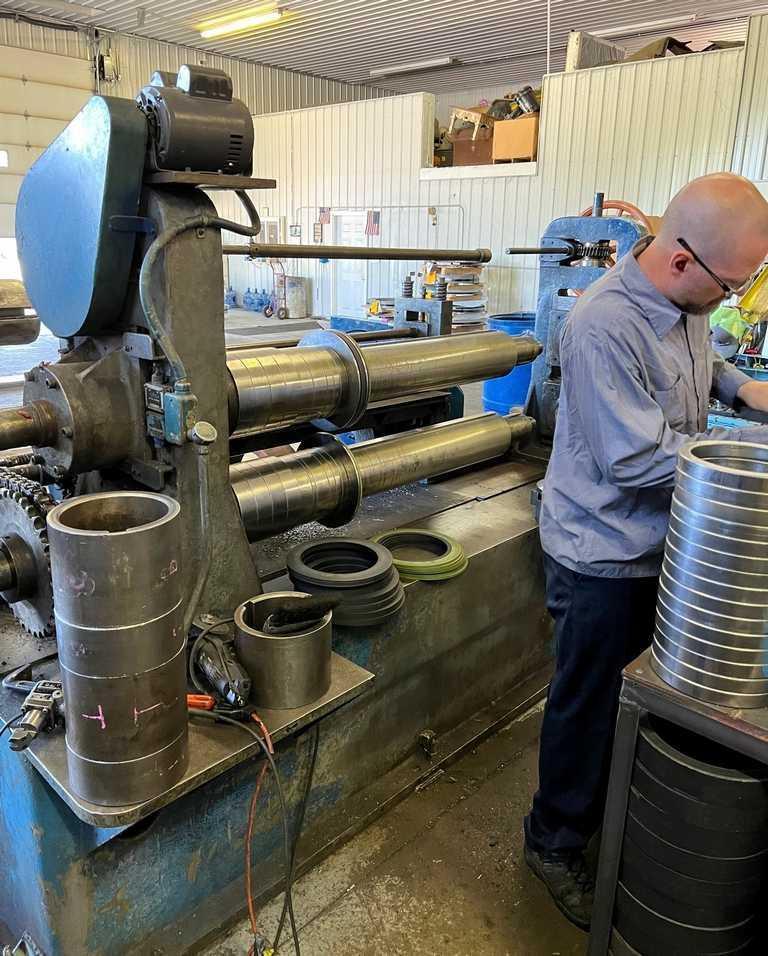

  7" Dia. Arbors

  Entry Powered Pinch Rolls

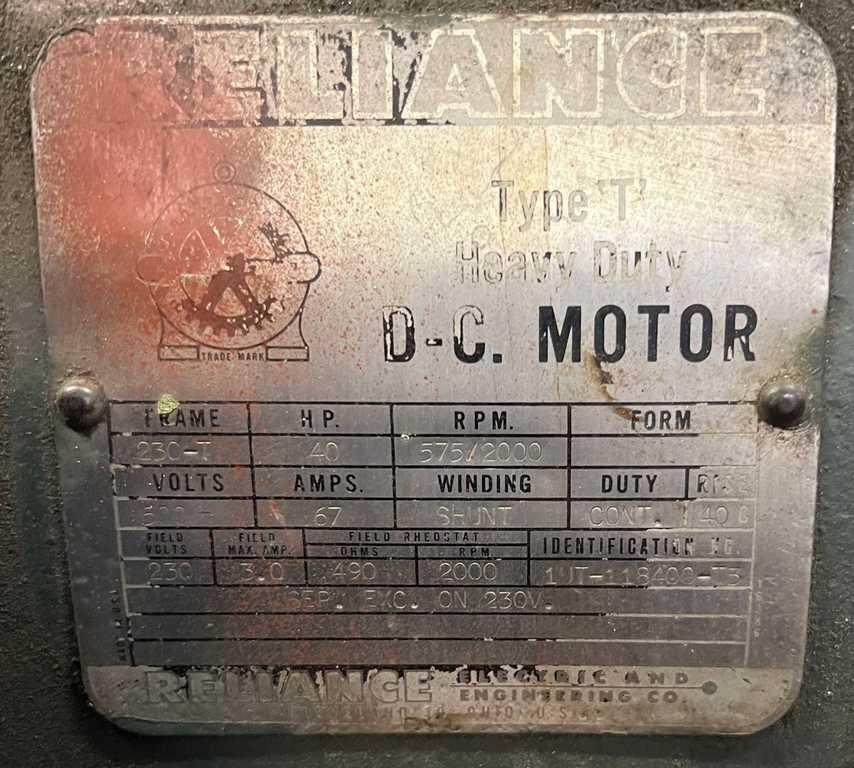

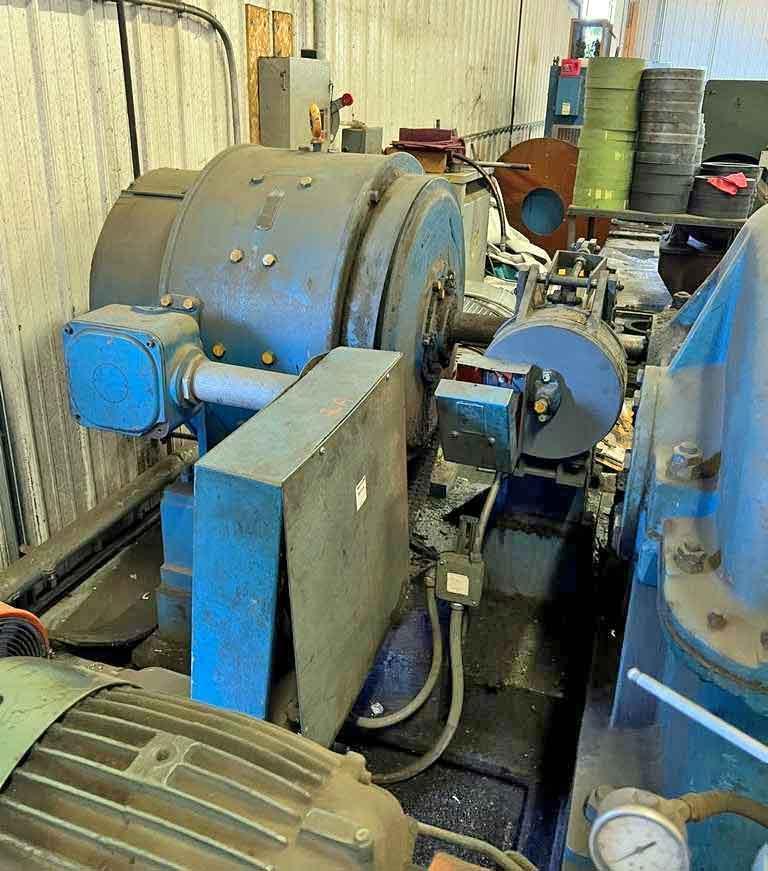

  40 HP DC Motor, 575/2000 RPM, 500 V

  D.O. James Right Angle Reducer w/21:1 ratio

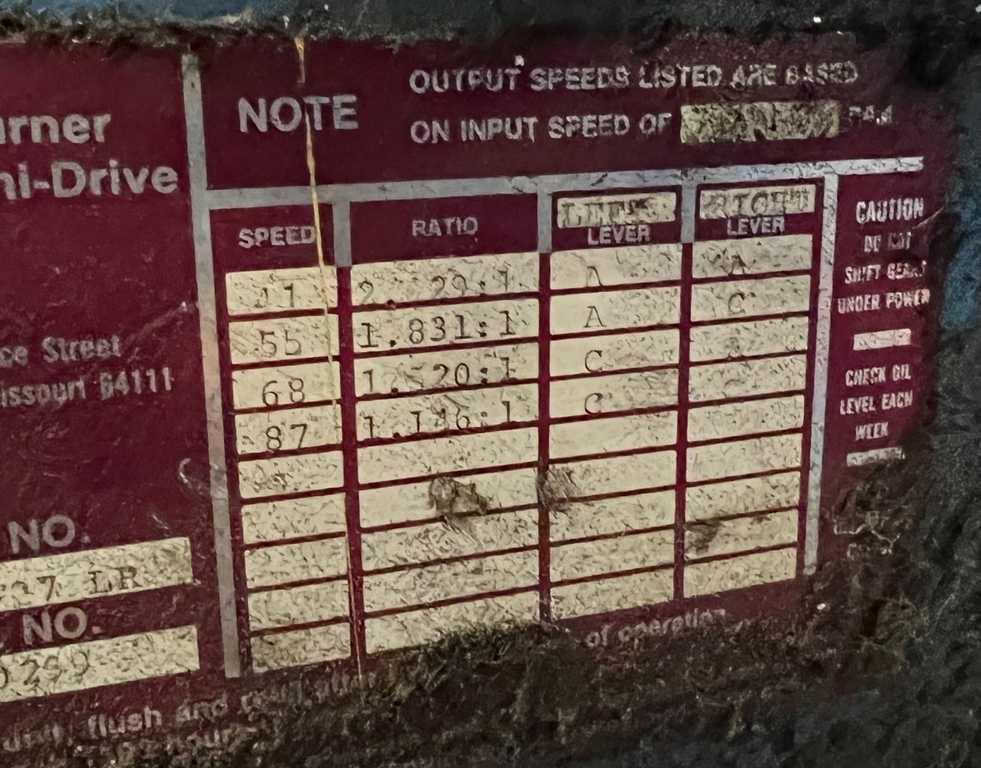

  4 Speed Transmission with 1.1, 1.5, 1.8, 2:1 ratios

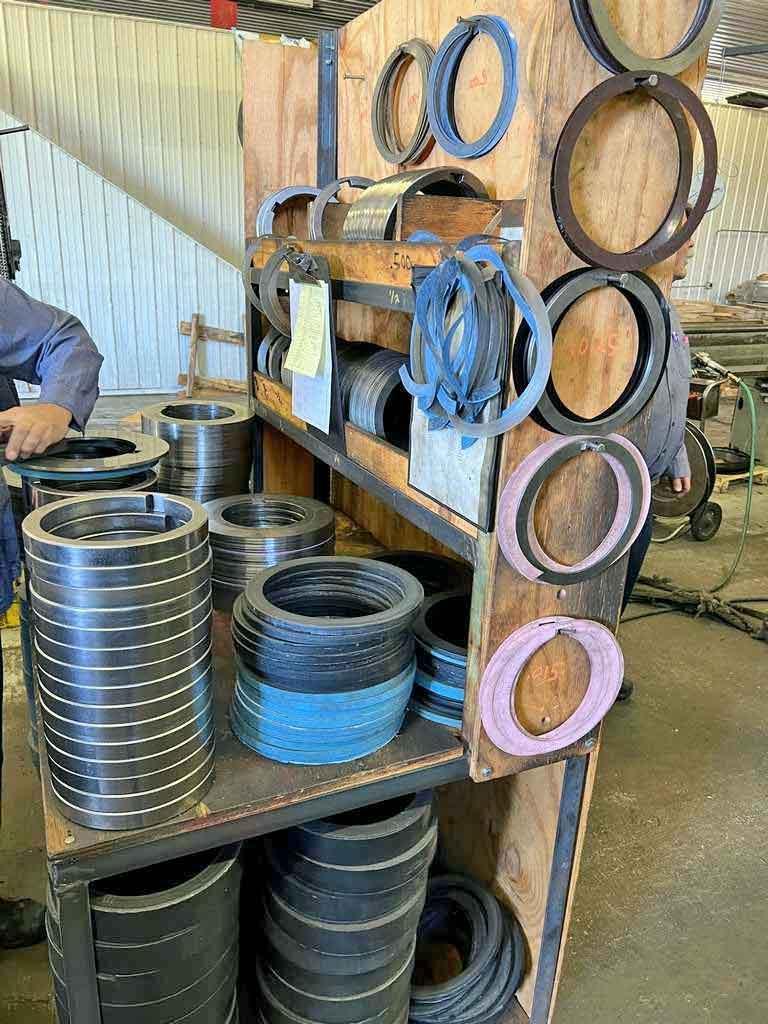

  Tooling including 160 Knives

  Powered Screwjacks for Parallel Arbor adjustment

  New Jet Nuts

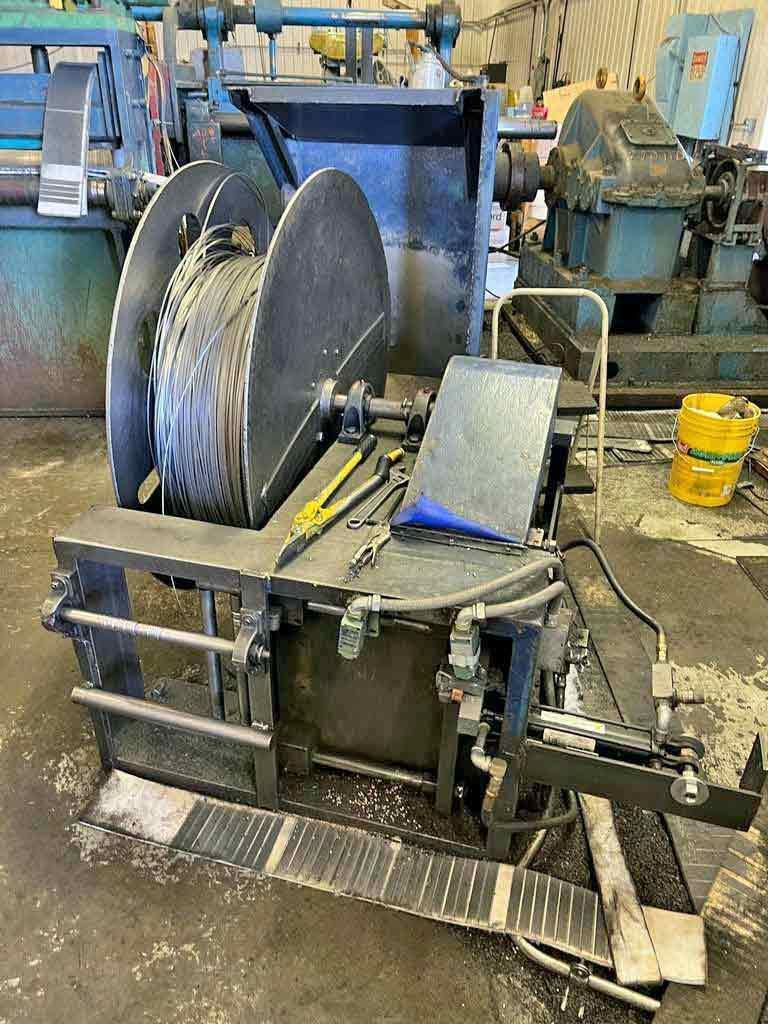

-(1) Scrap Winder:

  Hydraulic Motor Driven

  Oscillating Wind

-Tension Stand:

  With Crossover Table

  Entry Separator Tooling Bar

  Powered Duff Norton Jacks for clamping pressure

  Exit Passline Roll

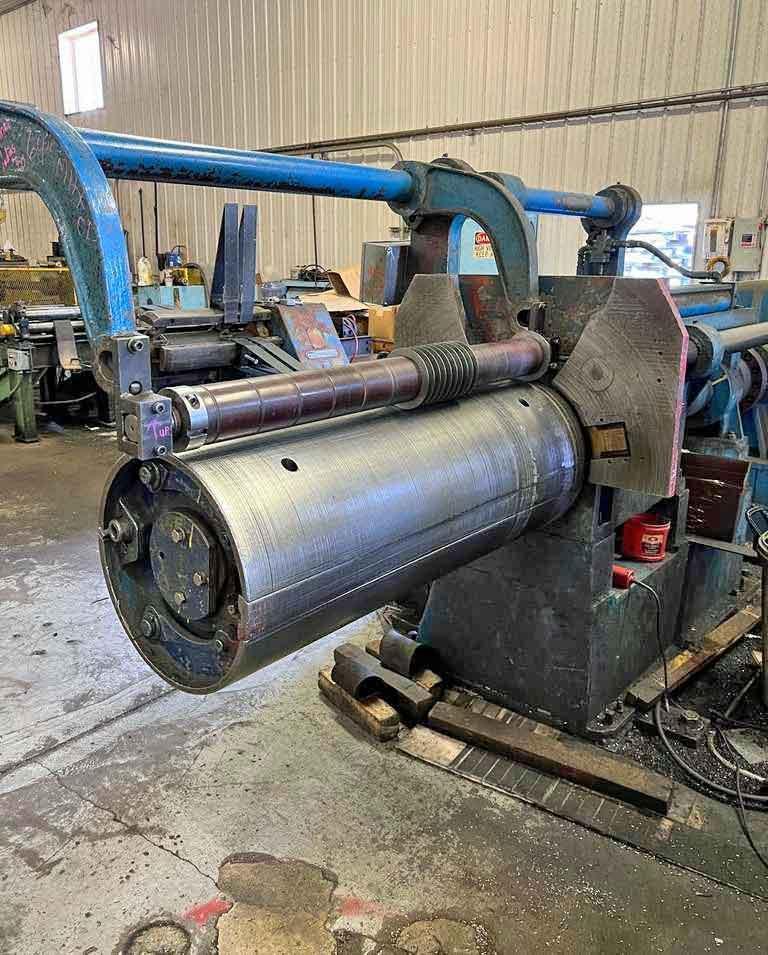

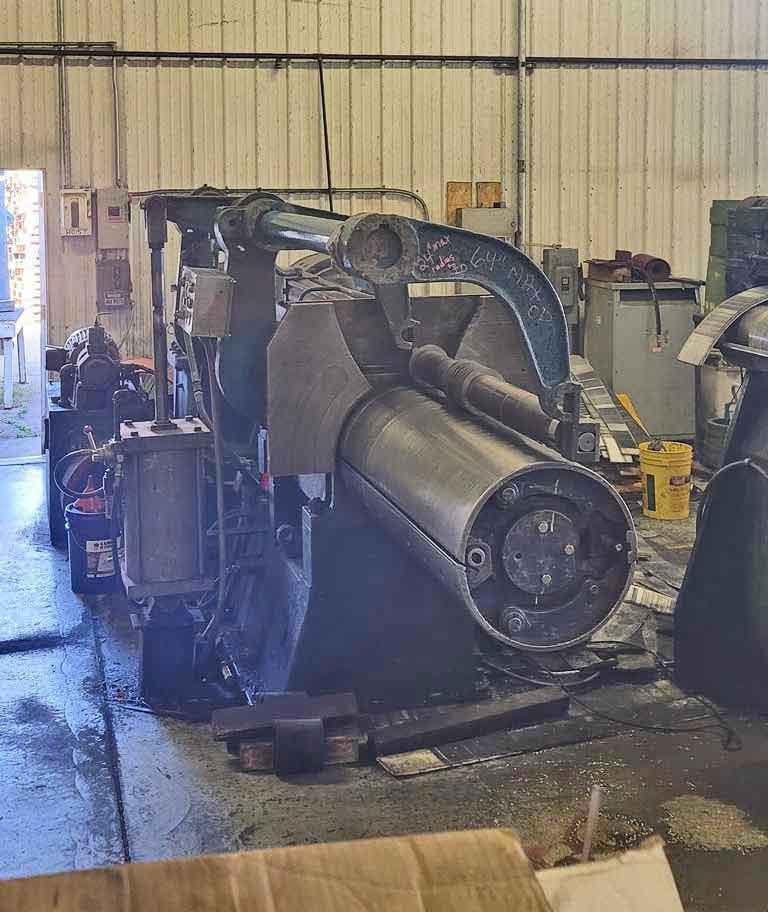

-Recoiler:  Yoder

  20" Dia. Drum

  Manual Clamp and Expansion

  Hydraulic Pushoff

  75 HP DC Motor, 575/2000 RPM, 230 V

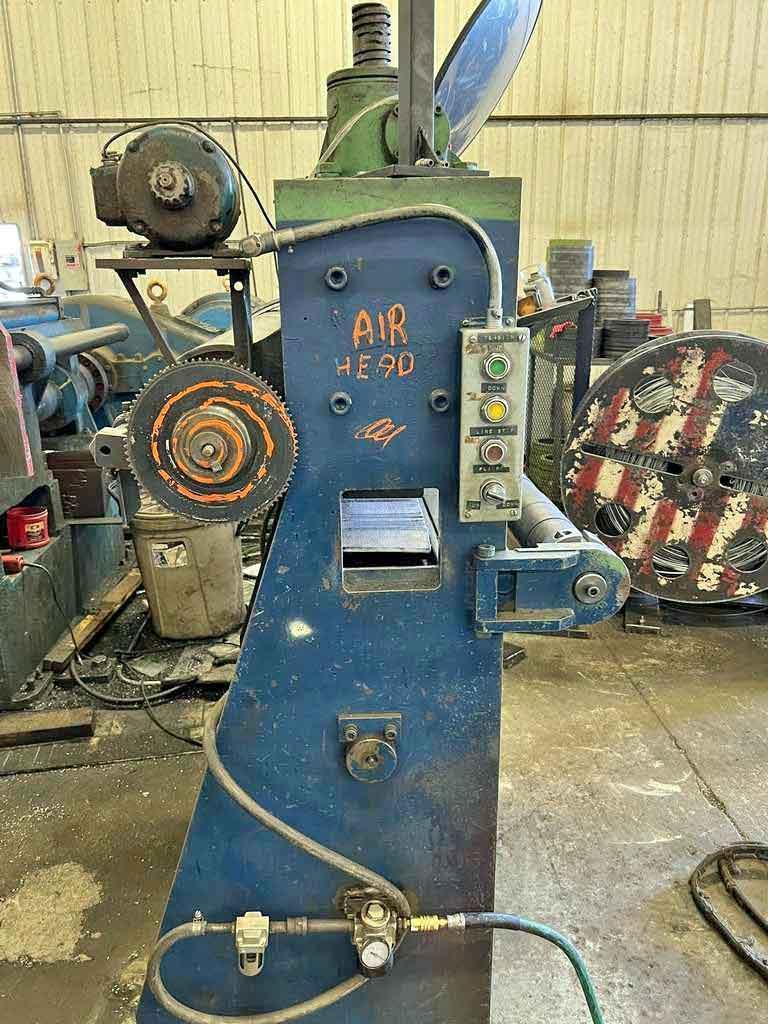

-Overarm Separator:

  with Tooling

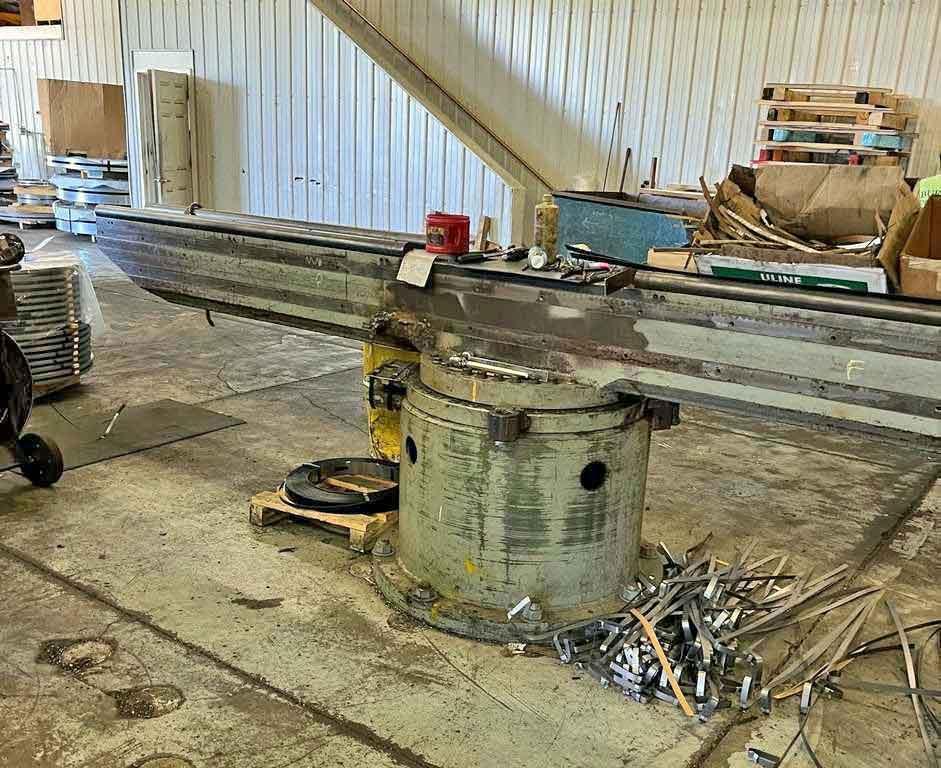

-2 Arm Turnstile:

  C-Hook Type Arms

  Powered Rotation

  Less Pushoff

-2 Hydraulic Units:

-Operators Control Panel:

-Line Direction:  Right to Left

-Line is installed and under power
