Width:                    48"

Coil Weight:              30,000 lbs.

Coil Thickness Range:     0.015" - 0.075"

Line Direction:           Right to Left

Consisting of the following:

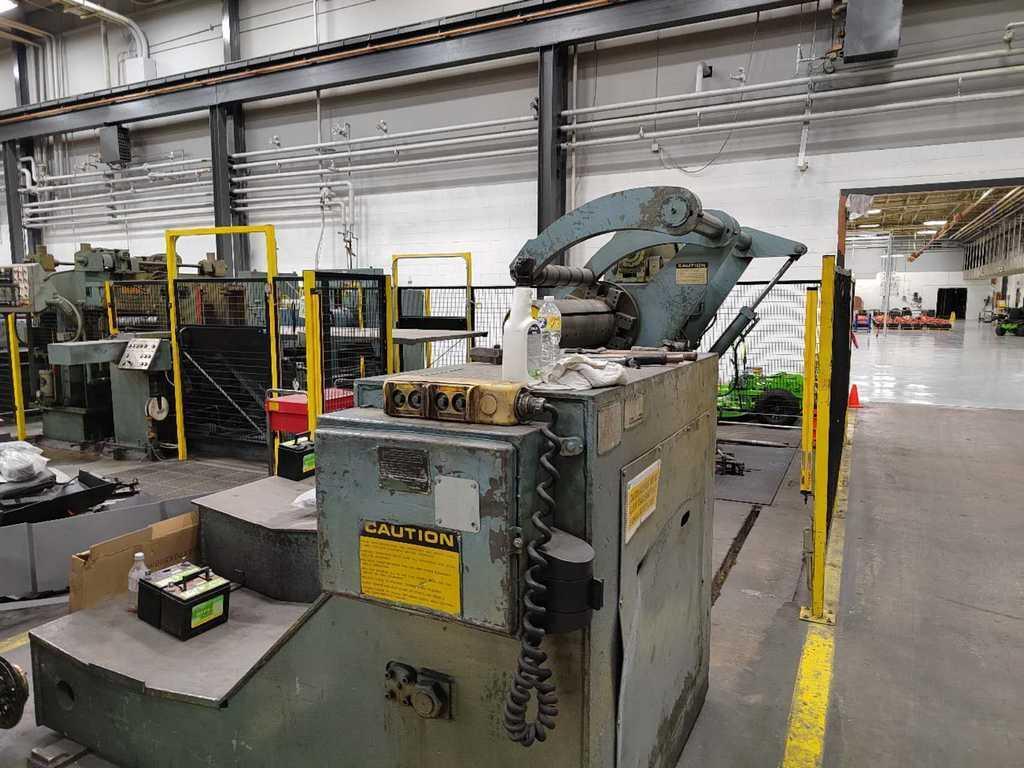

-Entry Coil Car:

  "L" Type

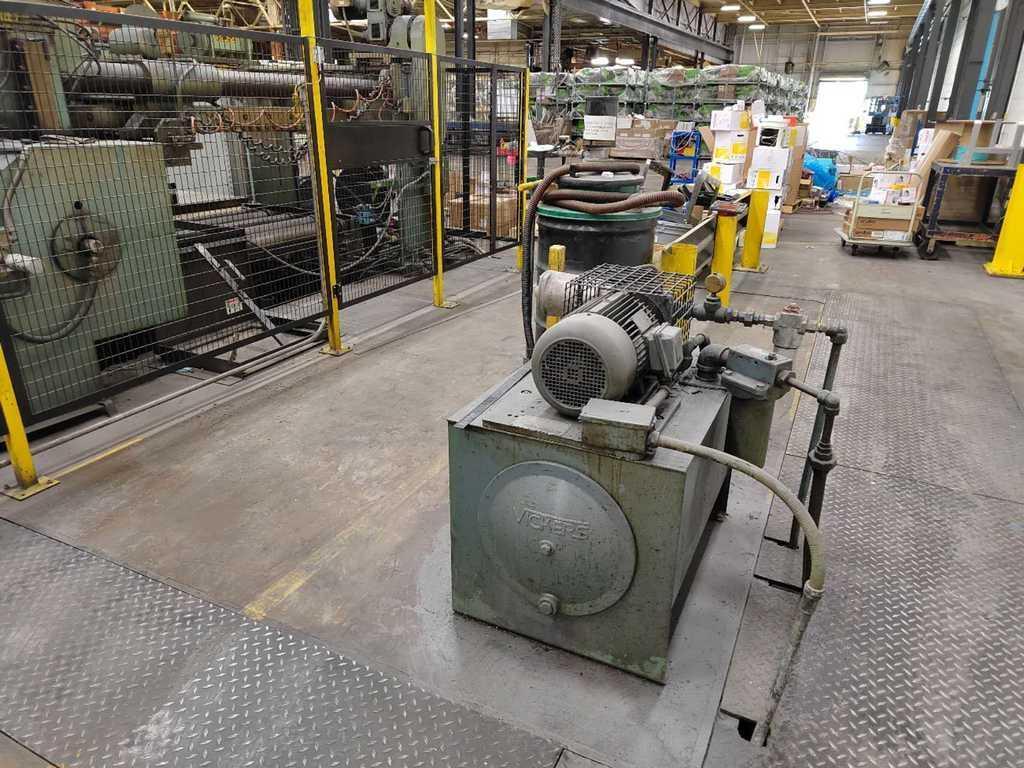

  Self Contained Hydraulic Power Unit

  Hydraulic Lift & Travel

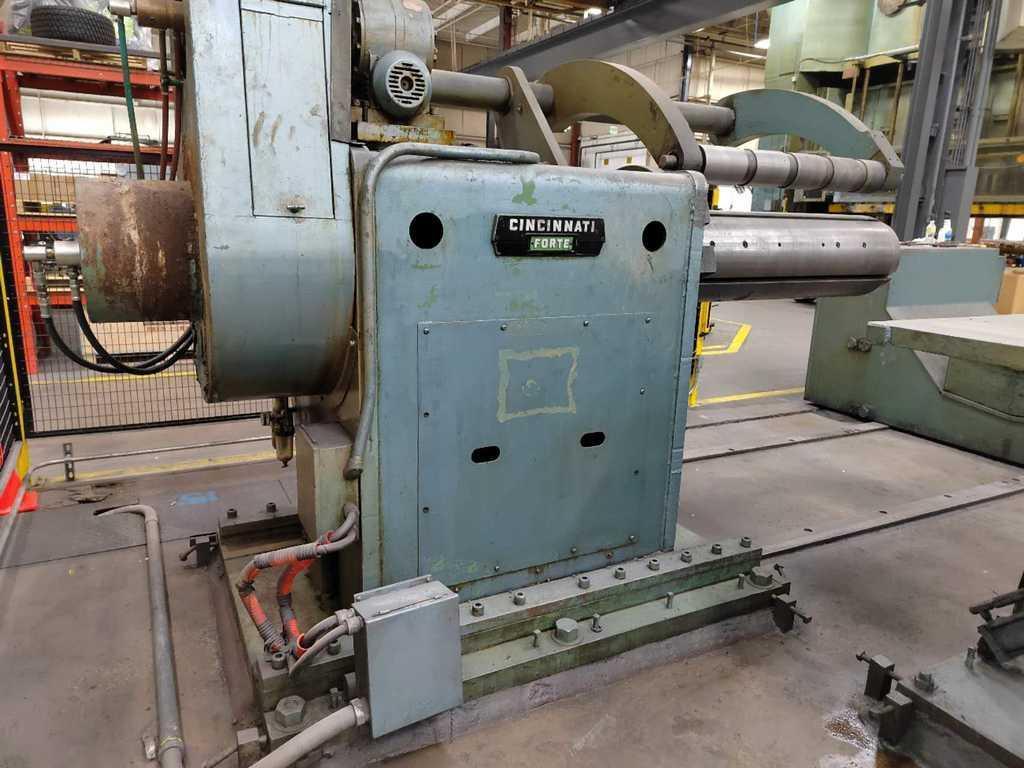

-Mandrel Uncoiler:

  Hydraulic Expansion

  Overarm Holddown

  Hydraulic Motor Feedup

  Sliding Base

-Entry Unit:

  Peeler Table - Hydraulic Articulation

  Powered Roller Side Guide Adjustment

  Powered Pinch Rolls

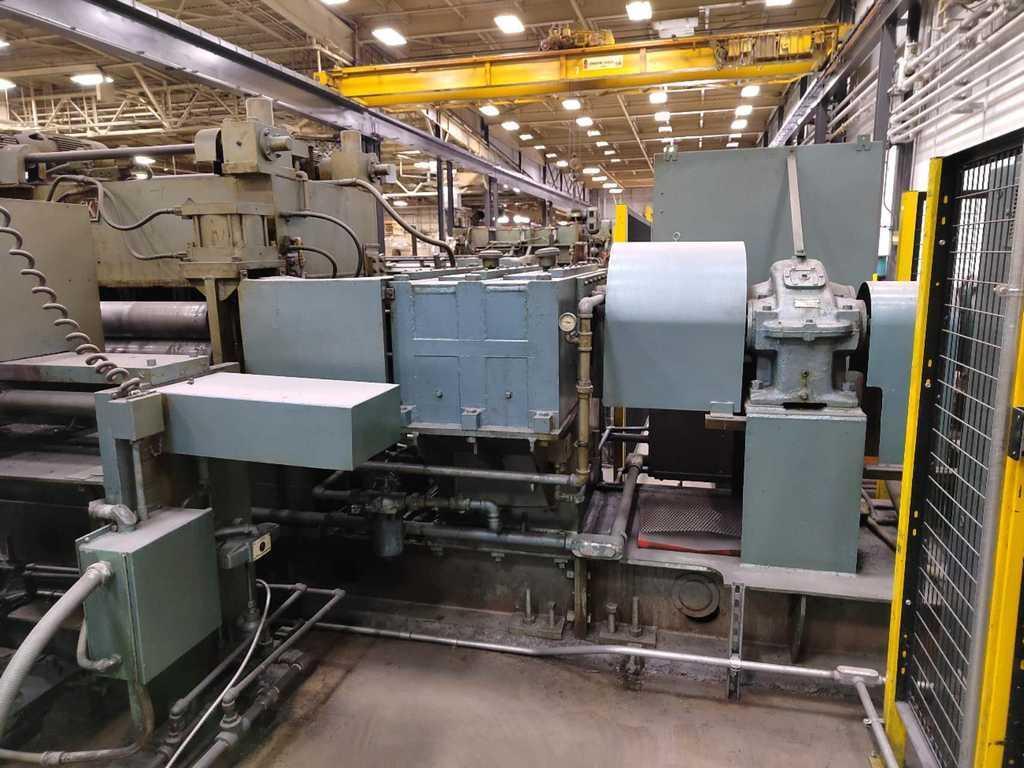

-Herr Voss Leveler:

  AC Motor Drive

-Carry Over Table

-Edge Trimmer

-Scrap Chopper

-Hump Table

-Mechanical Shear

-Measuring Table

-Cincinnati Stacker:

  Skate Roll Supports

  Bombay Drop Type

  Side Discharge

  Powered End Stop

-Line is Installed
